Product Overview
Description
Product Introduction

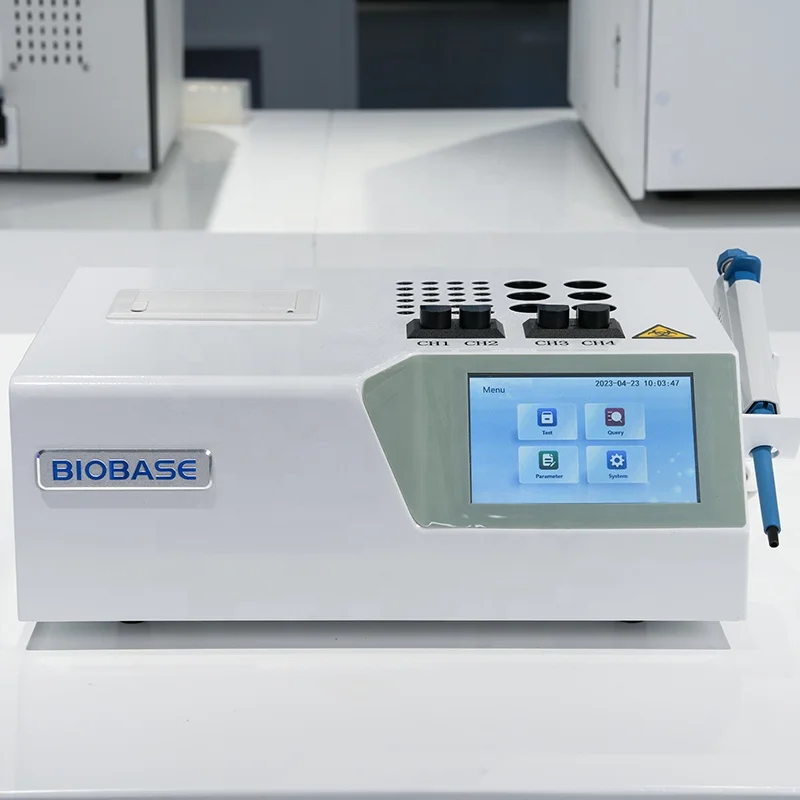

Blood Coagulation Analyzer
Introduction:
The blood coagulation analyzer adopts the principle of optical colorimetry for detection. After the reagent is mixed with the plasma, fibrinogen is converted into fibrin and coagulated, which leads to the change of the optical density of the test specimen, and the instrument detects the coagulation end point.
Feature:

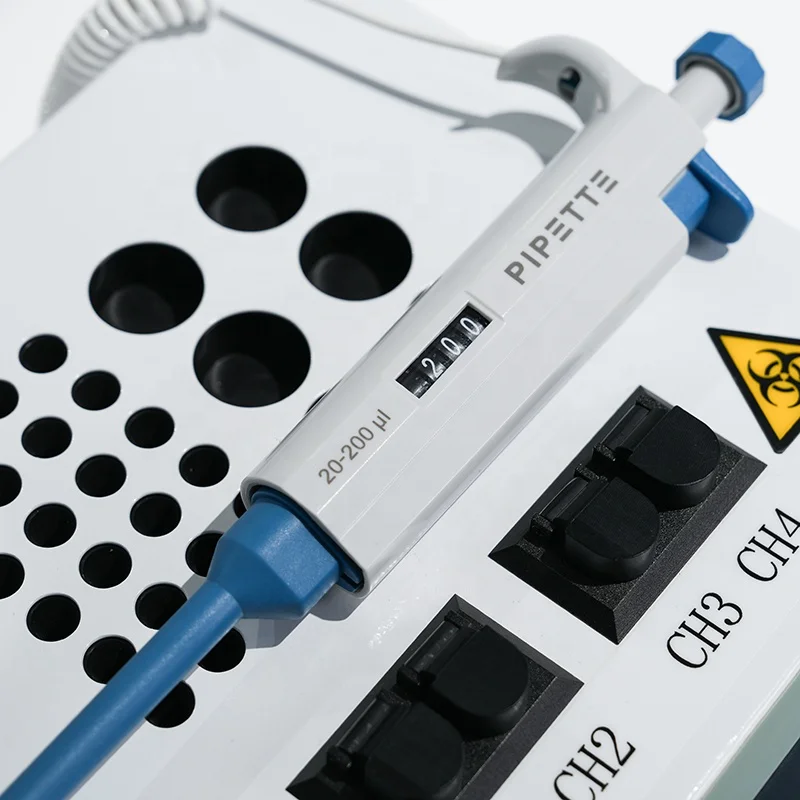

1. Dual-channel independent detection, can analyze different items at the same time.

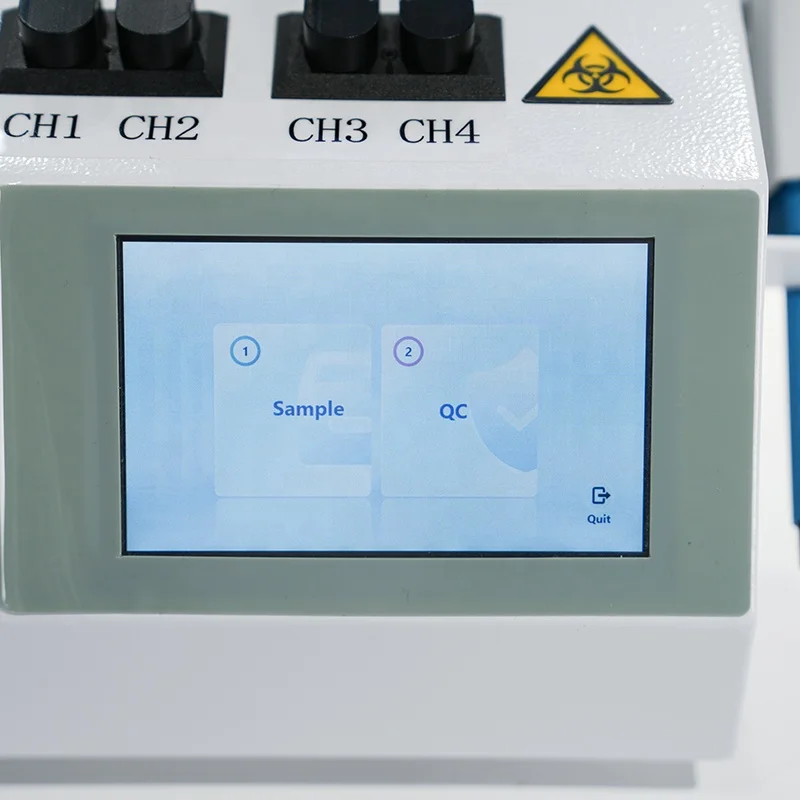

2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
Technical Specification
Model | BK-CA02 | BK-CA04 | |
Test Principle | Optical Colorimetry | ||
Test Items | PT, APTT, TT, FIB | ||
Test Channel | 2 (can test different projects at the same time) | 4 (can test different projects at the same time) | |
Wavelength | 470nm | ||
Detection Time | Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds | ||

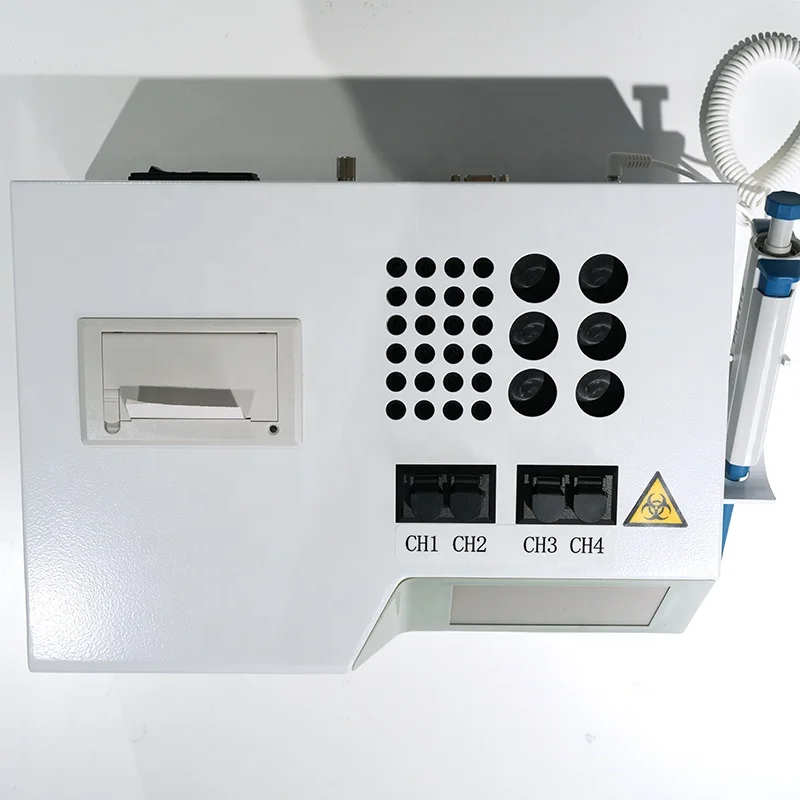

Sample Incubation Position | 12 | 24 | |
Reagent Incubation Position | 5 | 6 | |
Detection Position Temperature | 37.0±1.0°C | ||
Incubation Position Temperature | 37.0±1.0°C | ||
Incubation Time | 1-999s | ||
Reaction Time | 1-99s | ||
Reagent Dosage | Minimum dosage 20μl | ||
Sample Volume | 20μl~40μl | ||
Display | 5-inch high-definition color touch screen | ||
Storage | 20,000 results storage, automatically save measurement data when power off | ||

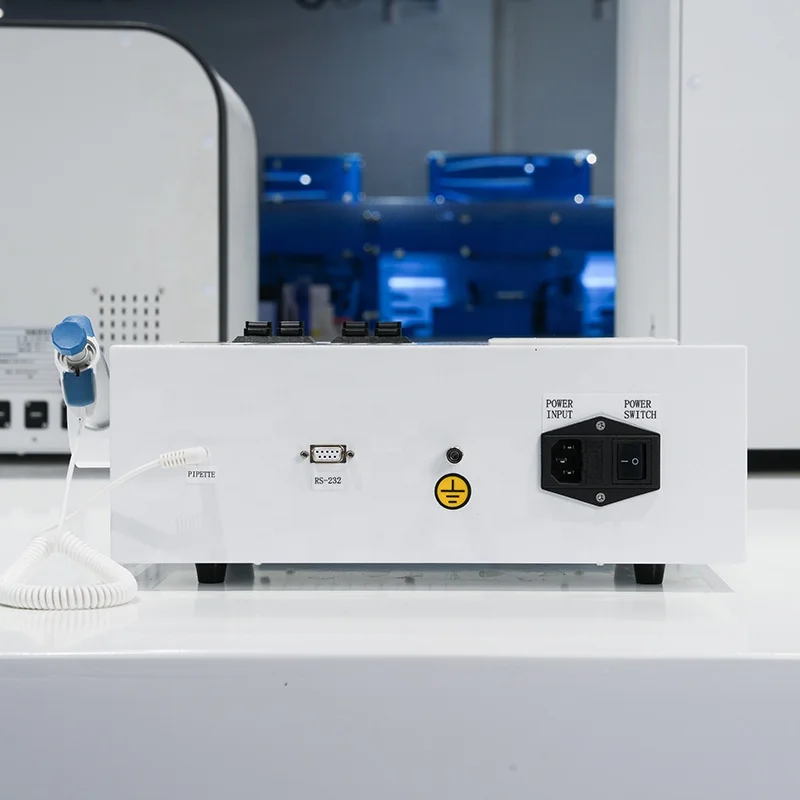

Communication Interface | RS232 serial interface, support LIS system | ||
Printer | Built-in thermal printer | ||
Power Supply | AC100~240V, 50/60Hz | ||
Consumption | 70VA | ||
Ambient Temperature | 10℃～30℃ | ||
Relative Humidity | ≤80% | ||
Atmospheric Pressure | 86kPa~106kPa | ||
External Size (W* D*H) | 360*210*120mm | 390*250*135mm | |
Net Weight | 3.5kg | 4.96kg | |
Package Size (W* D*H) | 376*246*316mm | 445*305*265mm | |
Gross Weight | 5Kg | 7kg | |
Your may need
BIOBASE is an experienced manufacturer of medical equipment, such as clinical anlyzers and rehabilitation aid products
Clinical Anlyzers::

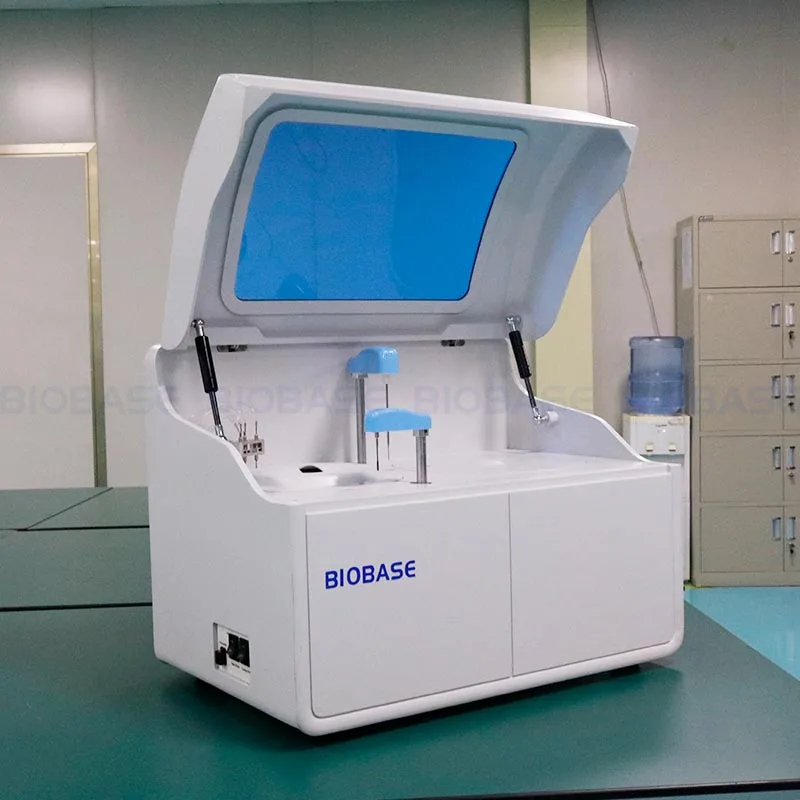

Auto Biochemistry Analyzer BK-200
The automatic biochemical analyzer is an instrument that measures a specific chemical composition in body fluids according to the principle of photoelectric colorimetry.
It automatically runs all or part of the steps of sampling, mixing, warm bath (37°C) detection, result calculation, judgment, display and printing results and cleaning in the original manual operation process.
With fast measurement speed, high accuracy and small consumption of reagents, it has been widely used in hospitals, epidemic prevention stations and family planning service stations at all levels.

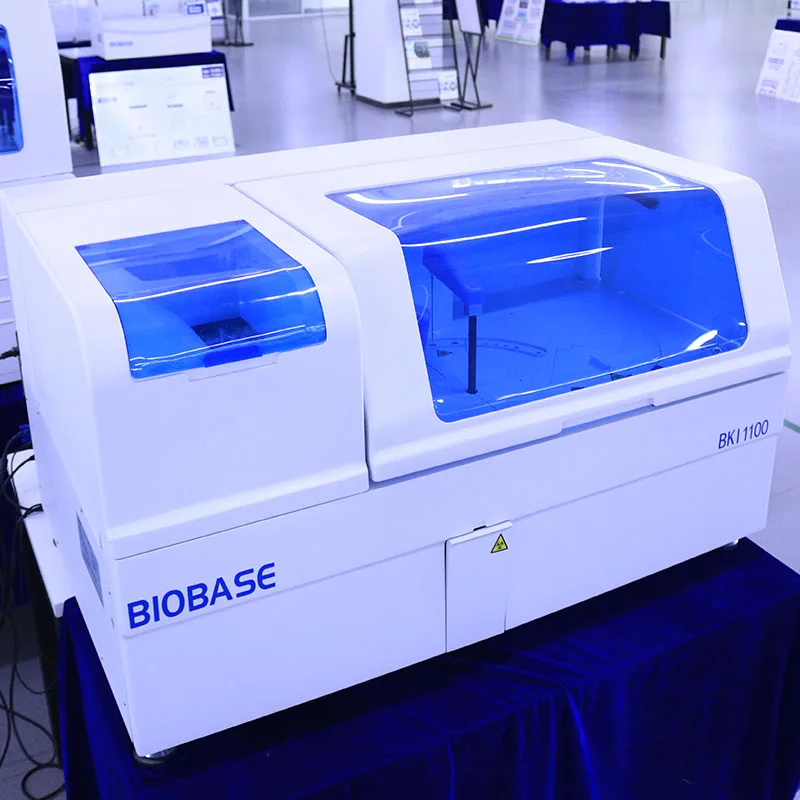

Chemiluminescence
Immunoassay(CLIA)
This instrument is a type of labeled antibody technology. It labels antibodies or antigens with chemiluminescent agents, catalytic luminescent enzymes or substances whose products are indirectly involved in luminescent reactions, so that redox reactions occur. Visible light is released during the reaction or the reaction excites the fluorescent substance to emit light, which is finally detected with a luminometer.
Features: high specificity, high sensitivity, simple and rapid separation, non-toxic reagents, safe and stable, and can be automated.
Features: high specificity, high sensitivity, simple and rapid separation, non-toxic reagents, safe and stable, and can be automated.

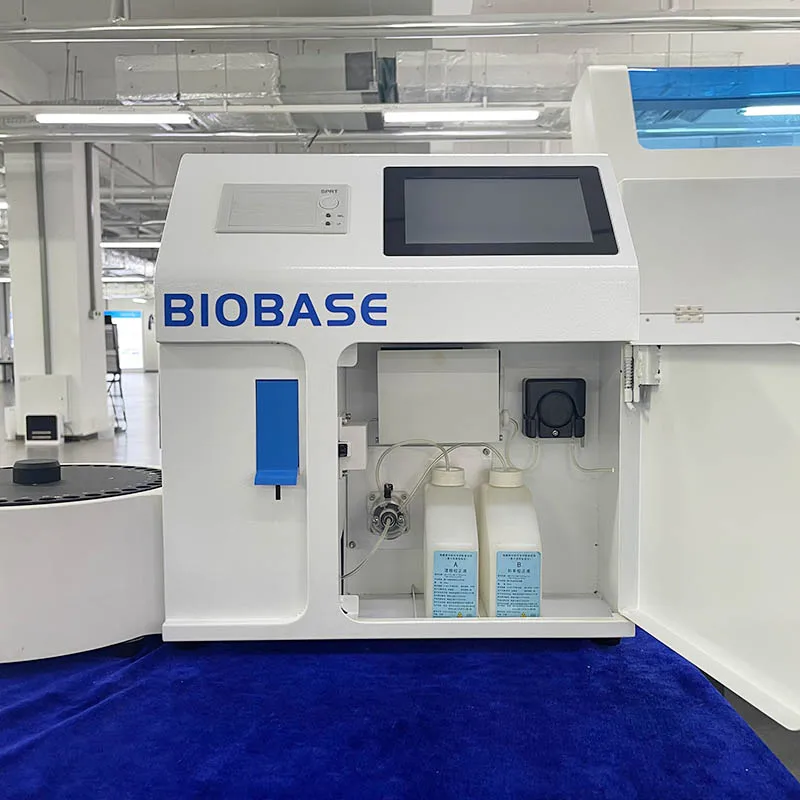

Our electrolyte analyzers are instruments used to measure electrolyte levels in whole blood, plasma, serum, and urine samples.
Elisa Reader
Elisa Washer
3-part Hematology Analzyer
5-part Hematotogy Analyzer
Rehabilitation Aid Products:
Electronic Hospital Bed
Electronic Wheelchair
You can consult Nalli freely any questions about these products!
