Hot Sale K Gold Silver Copper Metal Granulating Machine With Low Price
- Category: >>>
- Supplier: Zhejiang Cooldo Electromechanical Equipment Co. Ltd.
Share on (11000009350968):
Product Overview
Description
Products Description

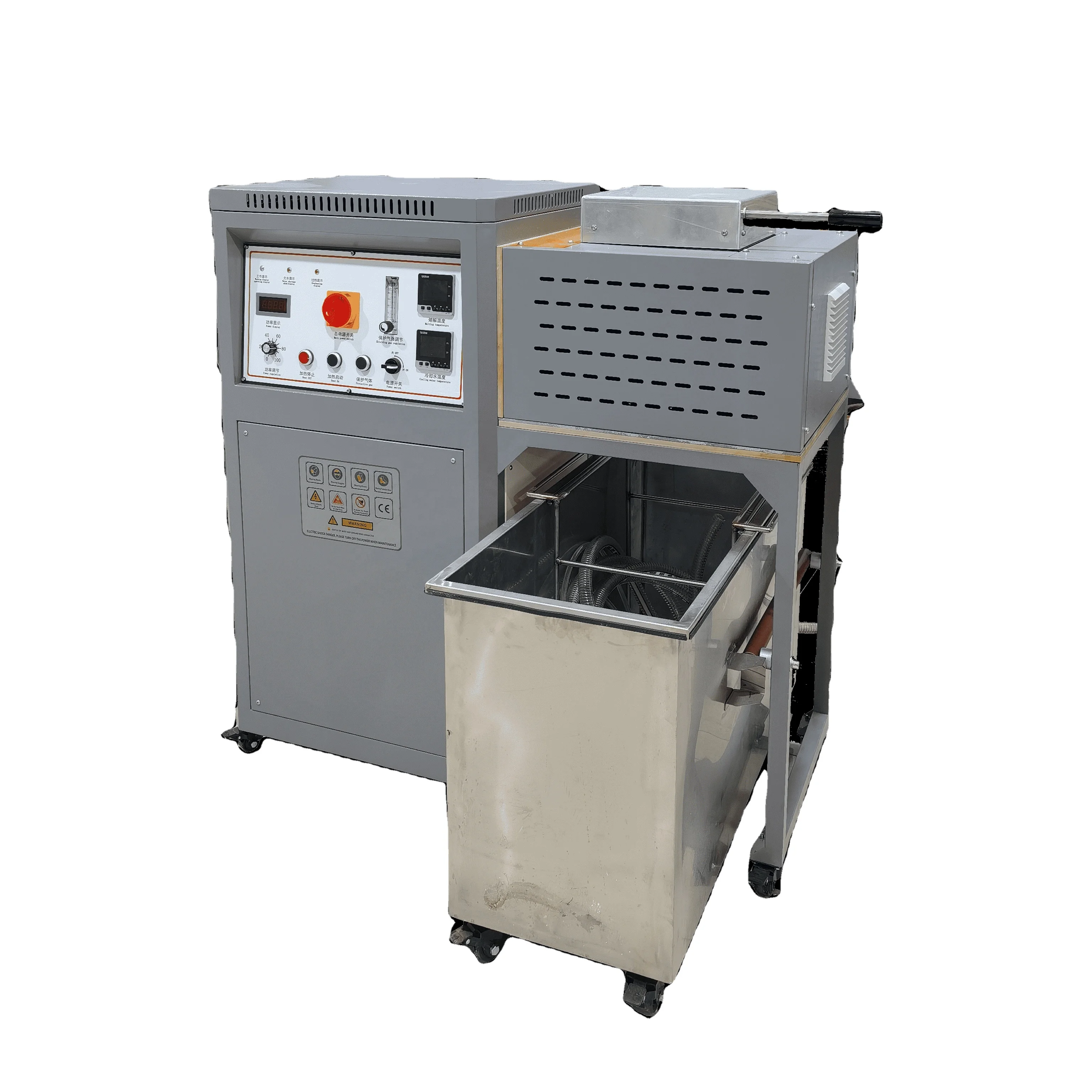

Hot Sale K Gold Silver Copper Metal Granulating Machine With Low Price

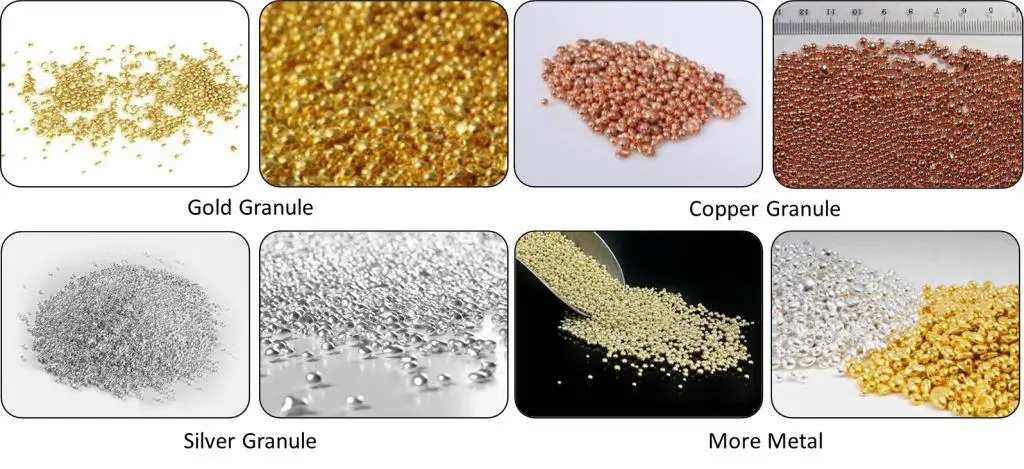

CDOCAST metal forming machine is used to produce master grains and alloy grains, starting from raw material molten by induction heating, and then poured into a water tank passing through a multi-hollowed crucible that acts as flow breaker.
This metal forming machine developed by our company adopts the latest IGBT indution Technology .It can be
continuously adjusted with the stable oscillation frequency and equipped with perfect protection, including overcurrent; overpressure; overheating and underwater protection, and additionally, the switch adopts the interlock design against the wrong operation, circulating cooling and using conveniently.

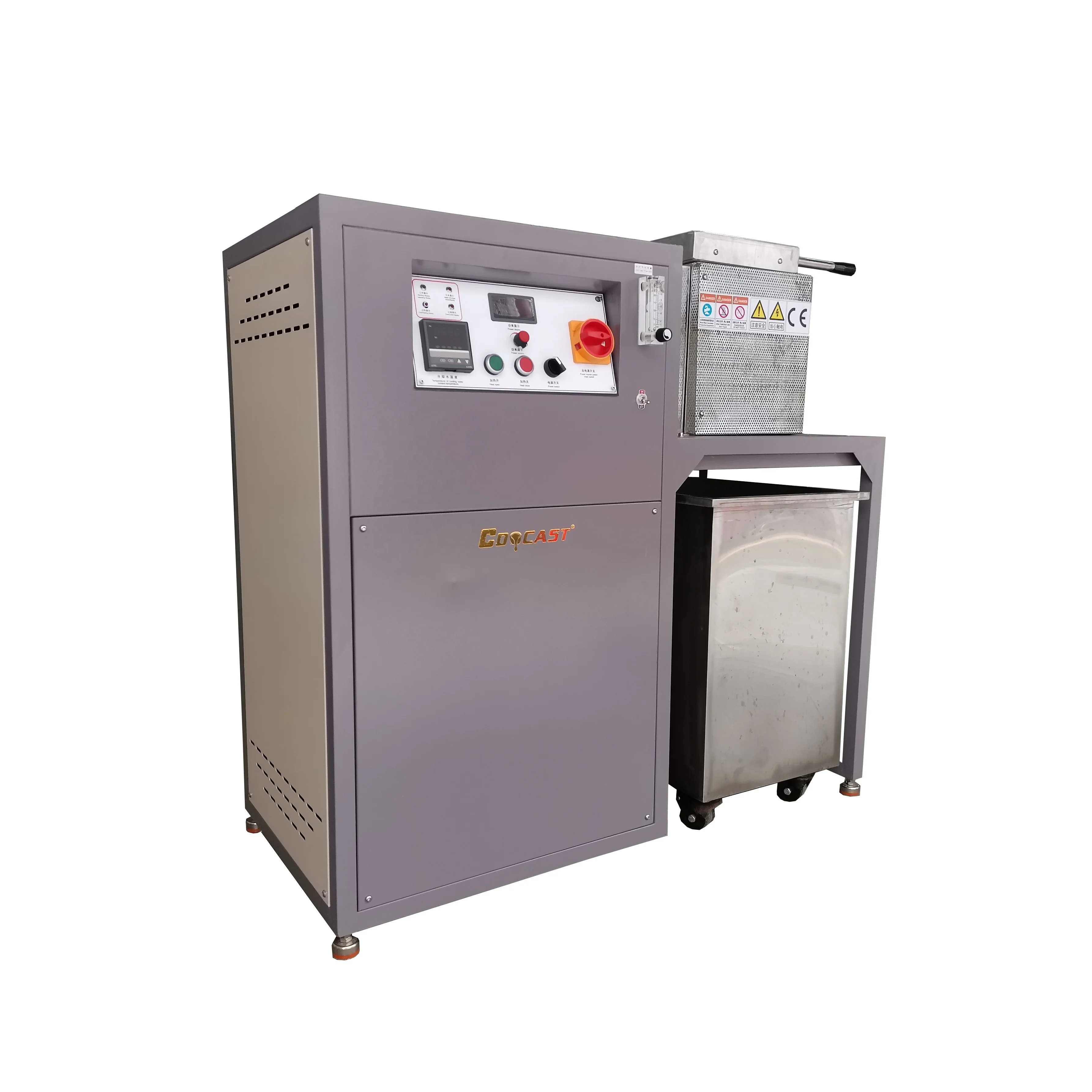

1kg-10kg Integrated Gold& Silver Granulator

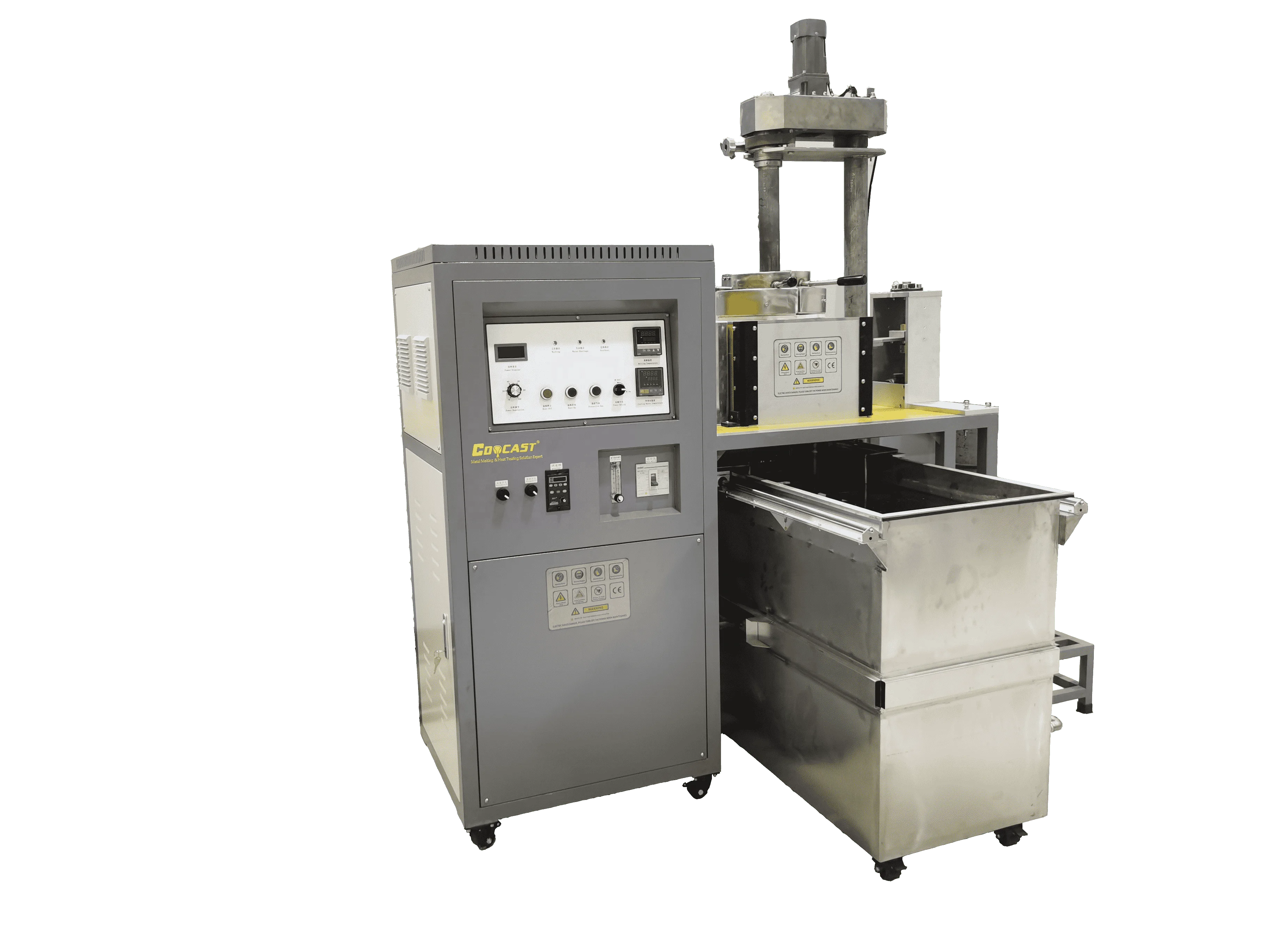

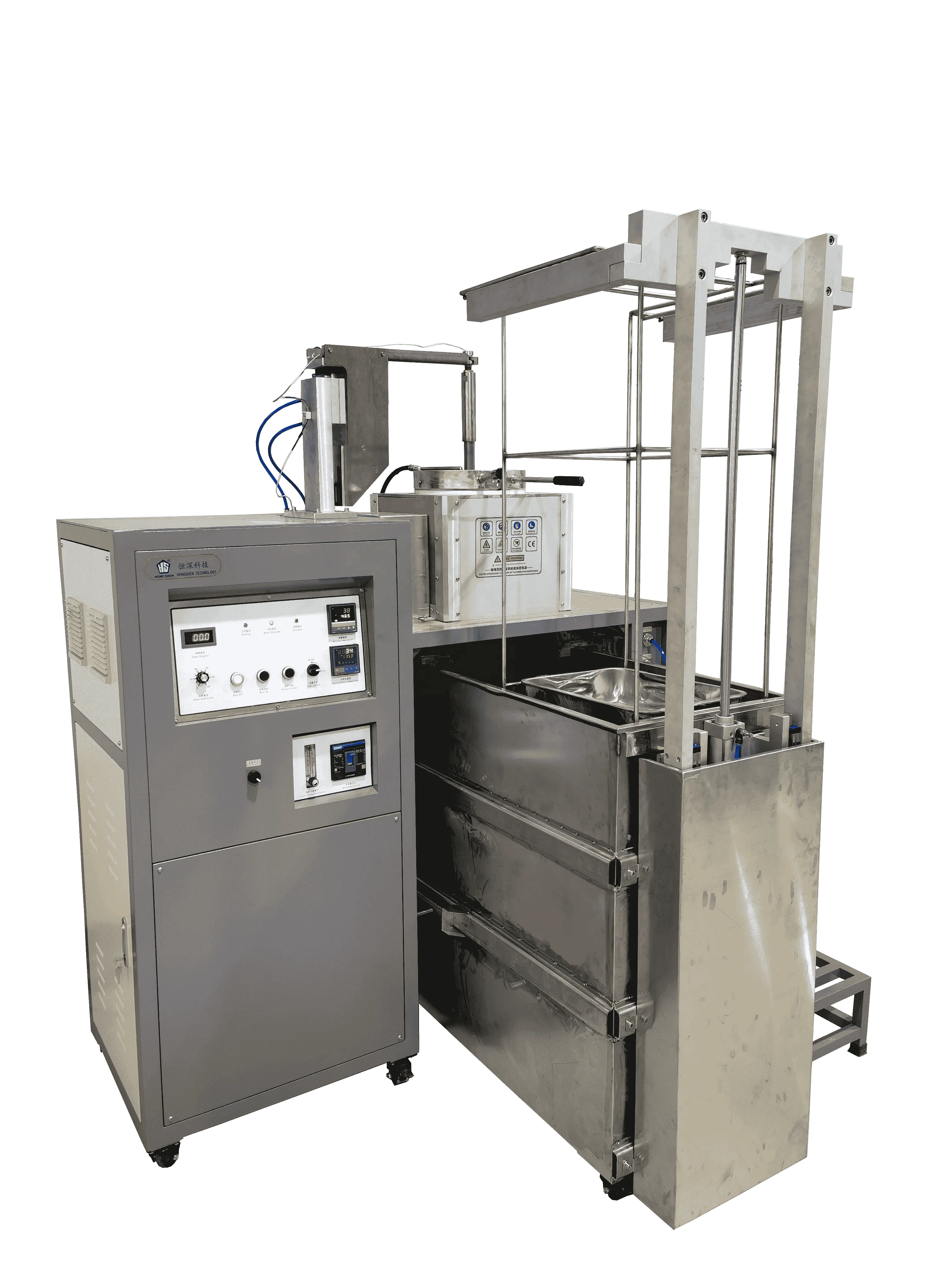

1000oz Silver Grains Making Machine With Automatic Lifting Loading Tray
Machine for making metal grains with Motor stirring system

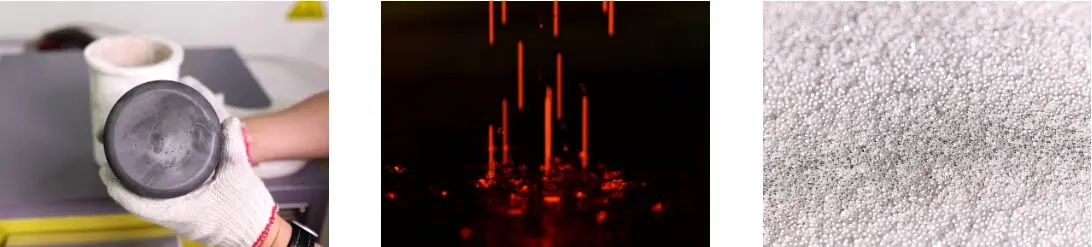

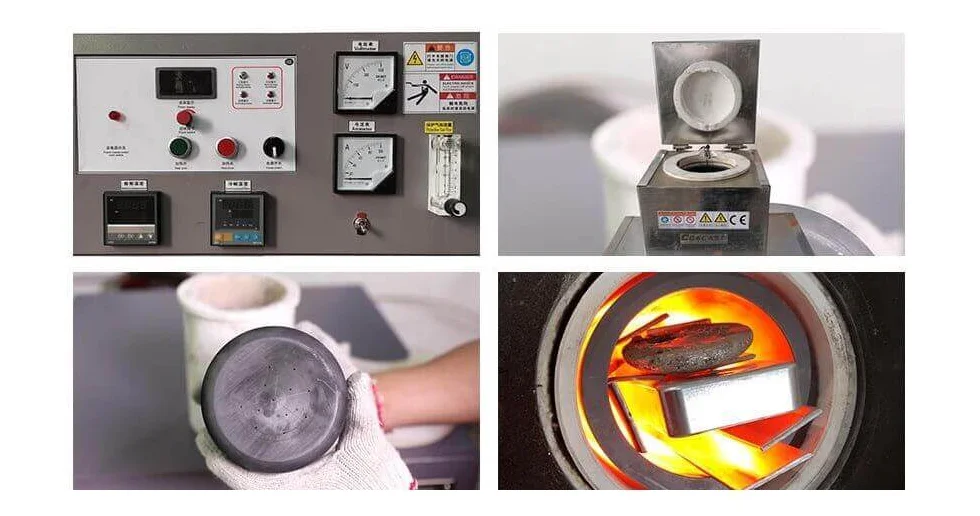

Through a multi-hollowed crucible,molten metal is granulated
Parameter
Model | CDO-MG15 | CDO-MG25 | CDO-MG35 | CDO-MG40 | CDO-MG45 | ||||
Power | 15kw | 25kw | 35kw | 40kw | 50kw | ||||
Voltage | 380V(220V), 3 phase, 50/60Hz | 380V, 3 phase, 50/60Hz | |||||||
Max temperature | 1500℃ | 1600℃ | 1600℃ | 1600℃ | |||||
Melting time | 5-8min | 8-10min | 10-15min | 15-20min | 20-30min | ||||
Granulating Time | About 10mins | About 10mins | About 15mins | About 20mins | About 30mins | ||||
Casting method | Gravity granulation | Gravity granulation | Gravity granulation | Gravity granulation | |||||
Max capacity | Gold:2-4kg | Gold:8-10kg | Gold:20-25 kg | Gold:60kg | Gold:100kg | ||||
Silver:1-2kg | Silver:4-5kg | Silver:10-12kg | Silver:30kg | Silver:50kg | |||||
Overall size | 1100*500*1100mm | 1200*600*1200mm | 1300*700*1300mm | 1400*800*1400mm | 1500*900*1500mm | ||||
Weight | 150kg | 180kg | 220kg | 270kg | 330kg | ||||
Application
Feature:
1.Heating coil with low-voltage design, insulted heating, safe, and table.
2.The induction generator is designed to allow the homogenization of the alloy thanks to the stirring effect of the magnetic
field which works while the metal is being melted in the crucible.
3.Water in the tank is continuously circulating and it is cooled by a powerful chiller to keep the process variables under control and obtaining consistency and quality in the produced grains.
4.Easy to get materials from granulating barrel and can supplement cooling water.
5.The finished products have no oxidization, producing equal particles, good color and good sphere.
Related Products
Click the picture for more details!
50-150kg Powder Making Machine 5-50kg Powder Making Machine Jewelry Casting Machine
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Factory
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
