Manufacturers of Aluminium Extrusion Plant Aluminium Billet Re heating Furnace Available at Affordable Price

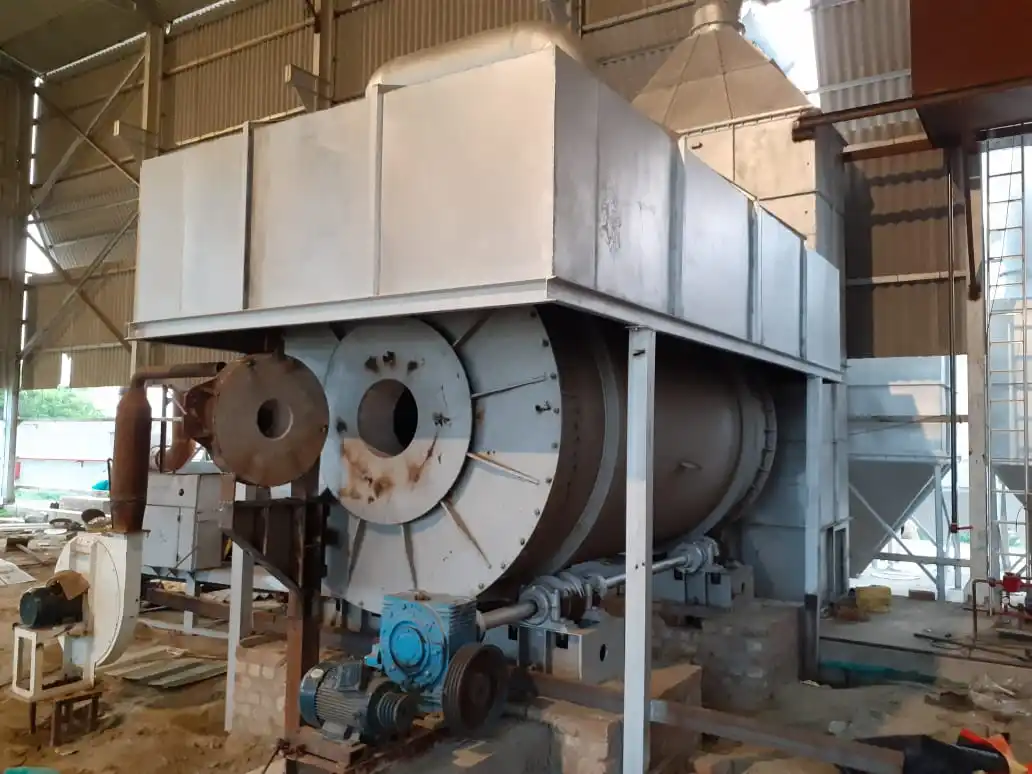

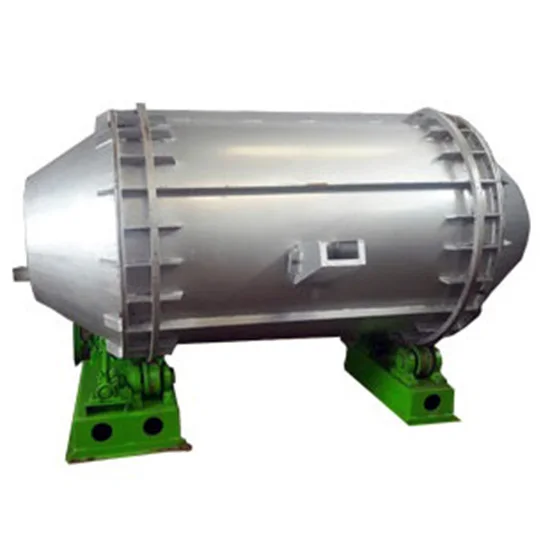

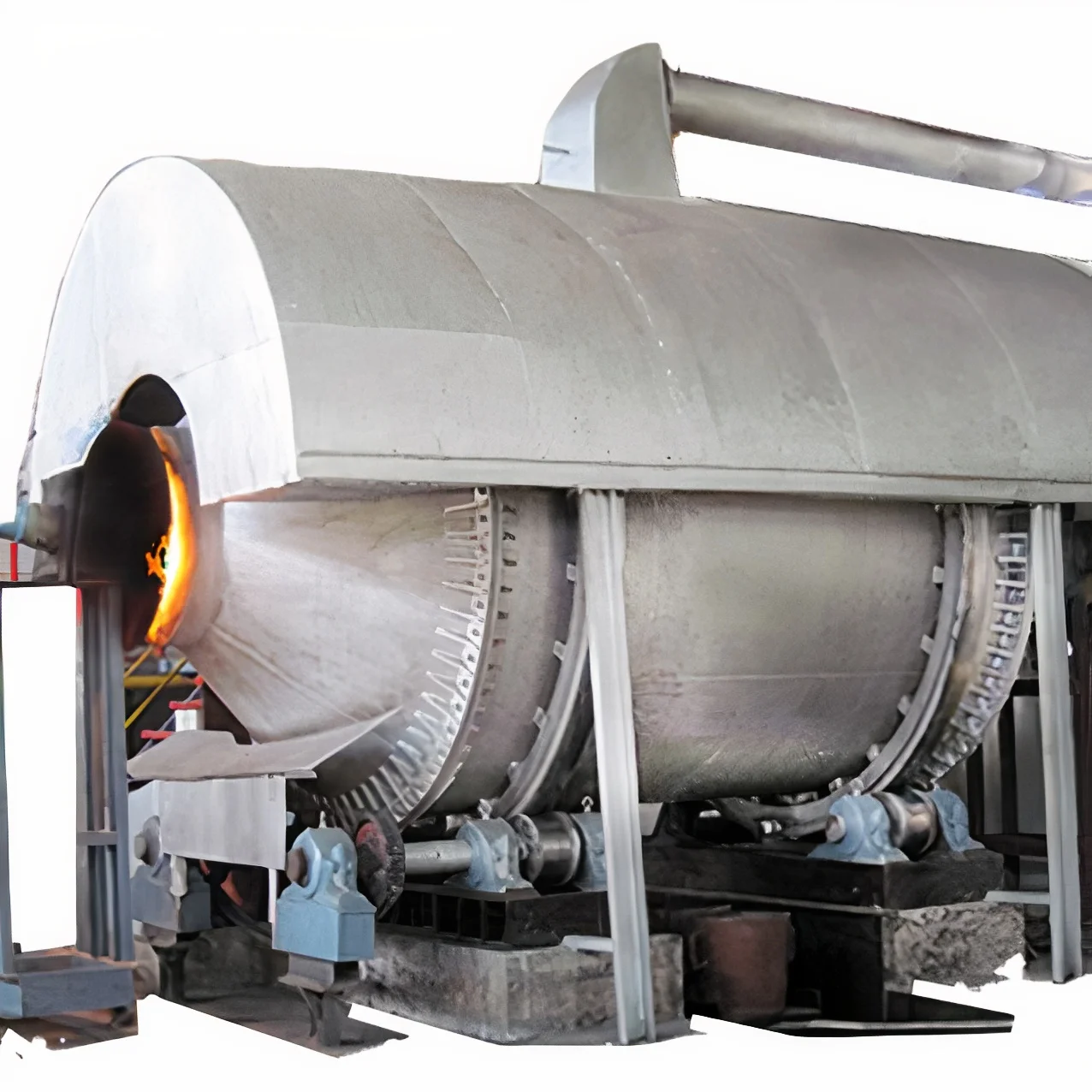

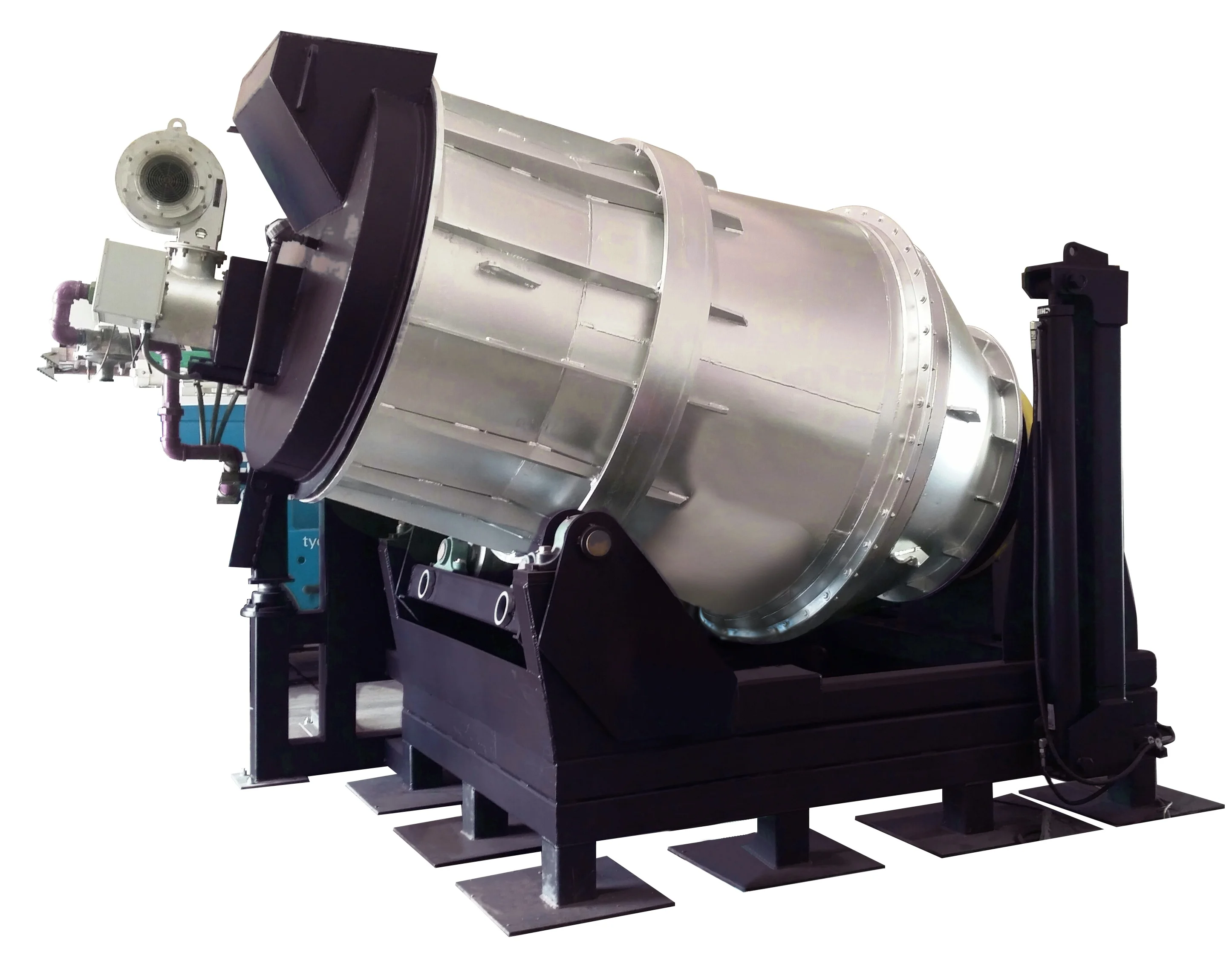

 ALUMINIUM MELTING ROTARY FURNACE

Aluminum is one of rich mineral on the earth. The alloy widely apply on aircraft, vessel, power transition and architecture. Because the aluminum alloy weight light, easy to fabrication, good mechanical property, easy to get quality surface after anodizing or powder coating process. Therefore it is used on door, window and wall of various architectural structure.
The project of aluminum doors and windows manufacture factory set up that must consider the technical ability, management and market factor. It is basic facility for 500 ton profile output capacity showing on below

Indotherm Equipment Corporation manufactures Aluminium Extrusion Plant on turn key basis

• Melting Furnace
• Billet Casting

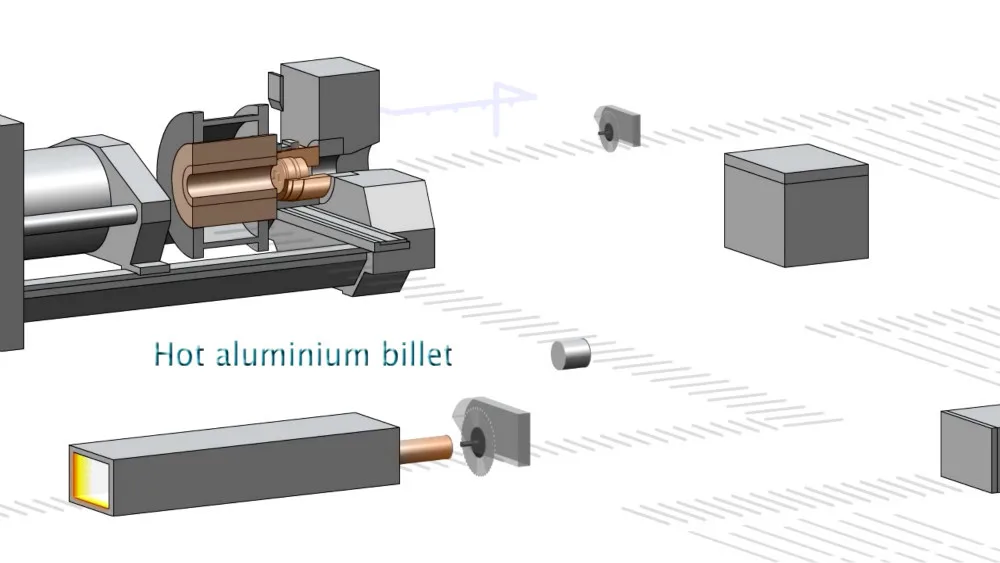

GAS FIRED CONTINOUS LOG PRE –HEATING FURANCE

• Billet Homogenizing

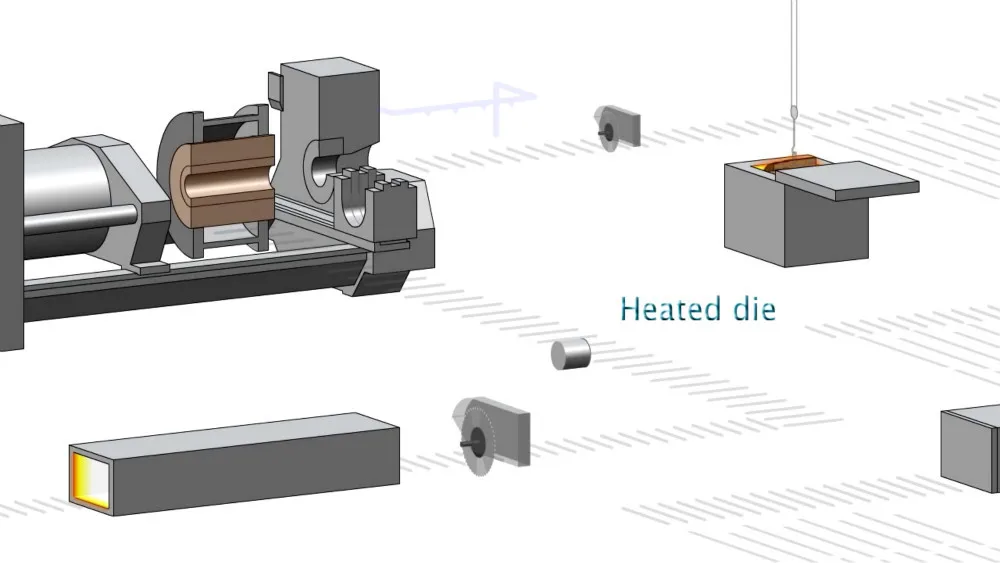

• Die Pre-heating
• Billet Heating
• Handling System
• Stretcher
• Aging Oven
• Powder Coating System
• Anodizing System
• Complete plant, except Extrusion Press

Land & Building, Electricity Required:-

1)      Constructed Area required  :

      Extrusion Building : 24 x 90 mtr

      Foundry Area        : 24 x 50 mtr.

2)      Transformer to be installed :-  500 K.W.

      (Considering future expansion & anodizing

      Genset Required    : Extrusion- 550 KVA + Foundry - 125 KVA

3)   Current Required   : 500 K.W.

4.      Material required quantity (Month)

 Consumption

Basic facilities

1. Factory building, office

2. Electric power equipment
  (1).Transformer station
  (2). Transformer station to electric control box.
  (3).Electric control box to machine

3. Water supply
  (1).Water pump
  (2).Pure water treatment
  (3).Cooling tower
  (4).Reservoir
  (5).Boiler
  (6).Piping:from boiler and reservoir to equipment.

4. Air supply
  (1).Air compressor.
  (2).Piping:from air compressor to equipment

5. Oil supply
  (1).oil feed pump
  (2).Oil storage tank
  (3).Piping:Pump to equipment

6. Foundation for:
  (1).Melting furnace, casting machine.
  (2).Extrusion press & handling system.
  (3).Anodizing treatment tank construction.
  (4).Waste water treatment construction.

7. Moving & shifting vessel
  (1).Truck
  (2).Lift hooker

Main specification               Table 2

The manufacture output ability be estimated basing on casting 2 shift, extrusion 3 shift and anodizing 3 shift. (8 hours for each shift).

The extrusion line output will be altered by following factor:
1.    Aluminum alloy
2.    Quality of billet.
3.    Profile thickness and size.
4.    extrudable condition.
5.    lot quantity for each die.
6.    Die design ability.

 8.      Main equipment and capacity

Two extrusions press one1250 us Tons and 1800 us Tons,product suitable the furniture, plate, windows, doors and curtain wall.

Anodizing coloring treatment equipment, the oxide film thickness up to 0.001mm.
