Ready Stock 800 watt Smart Grid Tie Solar Micro Inverter WiFi Communication NEP BDM 800 Microinverter 800W
- Category: >>>
- Supplier: Xiamen Kseng New Energy Tech Co. Ltd.
Share on (11000009403511):
Product Overview
Description

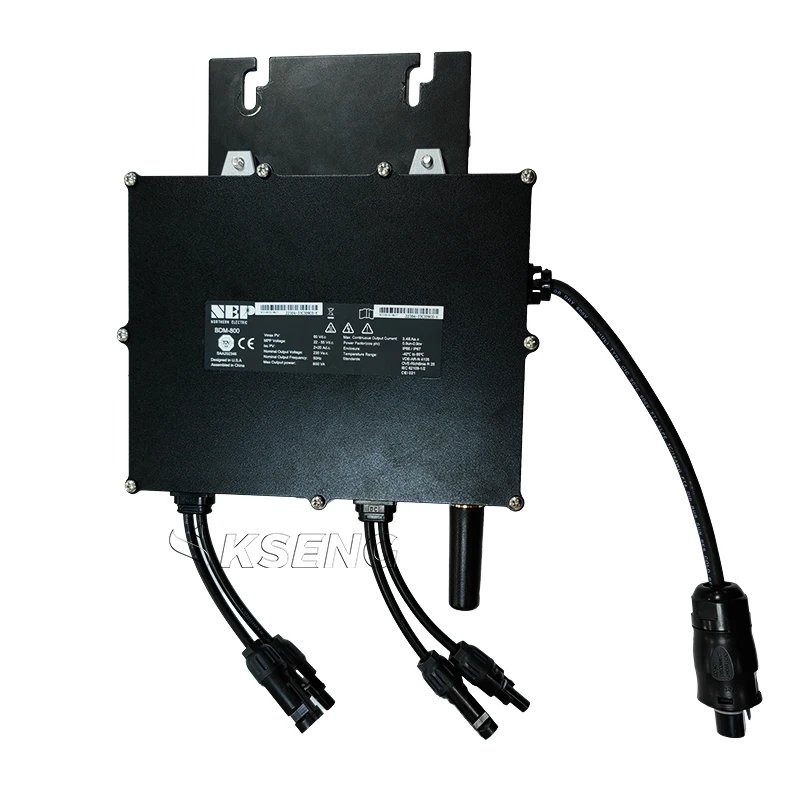

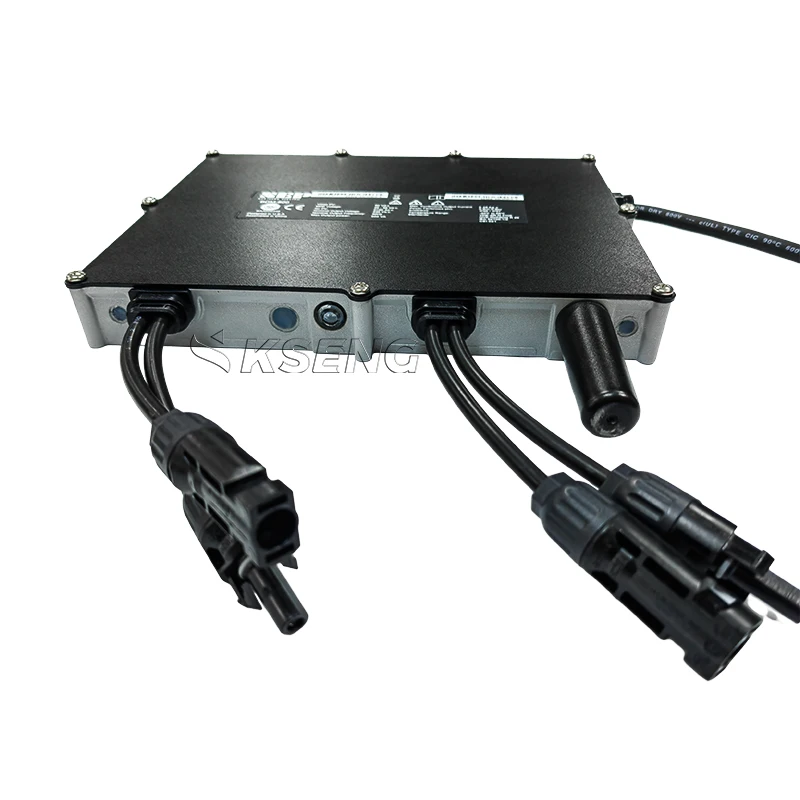

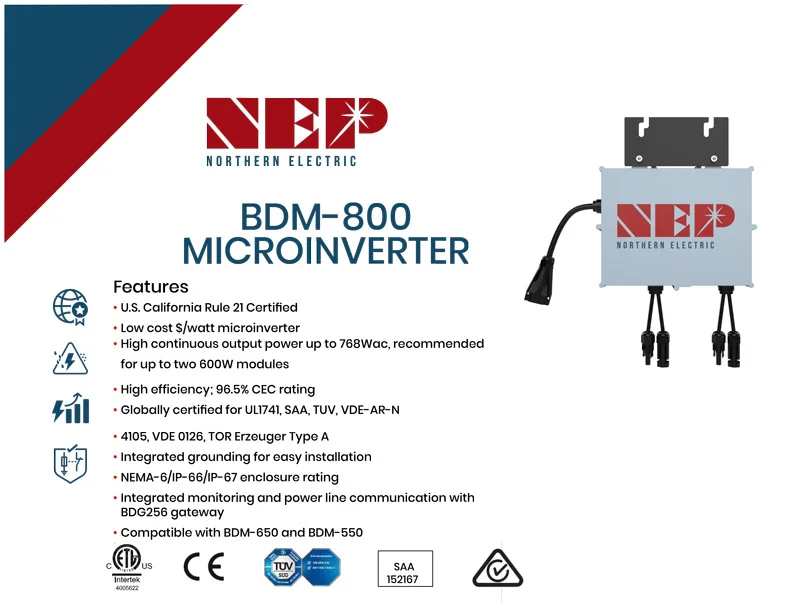

Ready Stock 800 watt Smart Grid Tie Solar Micro Inverter WiFi Communication NEP BDM 800 Microinverter 800W
For the entire photovoltaic system, the component (solar panel) is only one link, and the micro-inverter undertakes the key task of converting natural energy into safe and usable electrical energy.Single-phase micro-inverters are mostly suitable for residential or small commercial projects.
Model | BDM 800 |
Input DC | |
Recommended Max PV Power (Wp) | 1200 |
Recommended Max DC Open Circuit Voltage (Vdc) | 60 |
Max DC Input Current (Adc) | 17×2 |
MPPT Tracking Accuracy | >99.5% |
MPPT Tracking Range (Vdc) | 22-55 |
Isc PV (absolute maximum) (Adc) | 20 x 2 |
Maximum Inverter Backfeed Current to the Array(Adc) | 0 |
Output AC | |
Rated AC Output Power (Wp) | 800 |
Nominal Power Grid Voltage (Vac) | 768 / 700 / 750 |
Allowable Power Grid Voltage (Vac) | 211V-264* / 183V-228* / configurable* |
Allowable Power Grid Frequency (Hz) | 59.3 a 60.5* / configurable |
THD | <3% (at rated power) |
Power Factor (cos phi, fixed) | -0.99>0.9 (adjustable) / 0.8un>0.8ov |
Rated Output Current (Aac) | 3.2 / 3.36 / 3.26 |
Current (inrush)(Peak and Duration) | 9.4A, 15us |
Nominal Frequency (Hz) | 60 / 50 |
Maximum Output Fault Current (Aac) | 9.6A peak |
Maximum Output Overcurrent Protection (Aac) | 10 |
Maximum Number of Units Per Branch (20A)(All NEC adjustment factors have been considered) | 2005/5/5 |
Syistem efficiency | |
Weighted Averaged Efficiency (CEC) | 95.50% |
Night Time Tare Loss (Wp) | 0.11 |
Protection functions | |
Over/Under Voltage Protection | Yes |
Over/Under Frequency Protection | Yes |
Anti-Islanding Protection | Yes |
Over Current Protection | Yes |
Reverse DC Polarity Protection | Yes |
Overload Protection | Yes |
Protection Degree | NEMA-6 / IP-66 / IP-67 |
Ambient Temperature | -40°F to +149°F (-40°C to +65°C) |
Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
Display | LED LIGHT |
Communications | Power Line |
Dimension (W-H-D) | 8.8” x 8.2” x 1.38” (268x250x42 mm) |
Weight | 6.4 lbs. (2.9 kg) |
Environment Category | Indoor and outdoor |
Wet Location | Suitable |
Pollution Degree | PD 3 |
Overvoltage Category | II(PV), III (AC MAINS) |
Product Safety Compliance | UL 1741 CSA C22.2 No. 107.1 IEC/EN 62109-1 IEC/EN 62109-2 |
Grid Code Compliance* (Refer to the label for the detailed grid code comliance) | IEEE 1547 VDE-AR-N 4105* VDE V 0126-1-1/A1 AS 4777.2 & AS TOR Erzeuger Typ A |

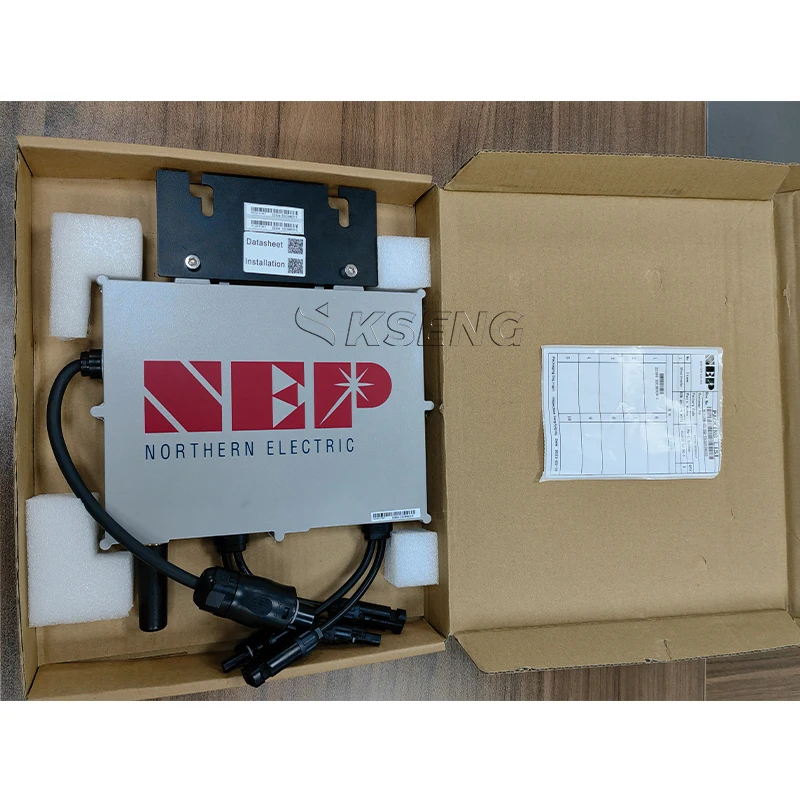

Product packaging

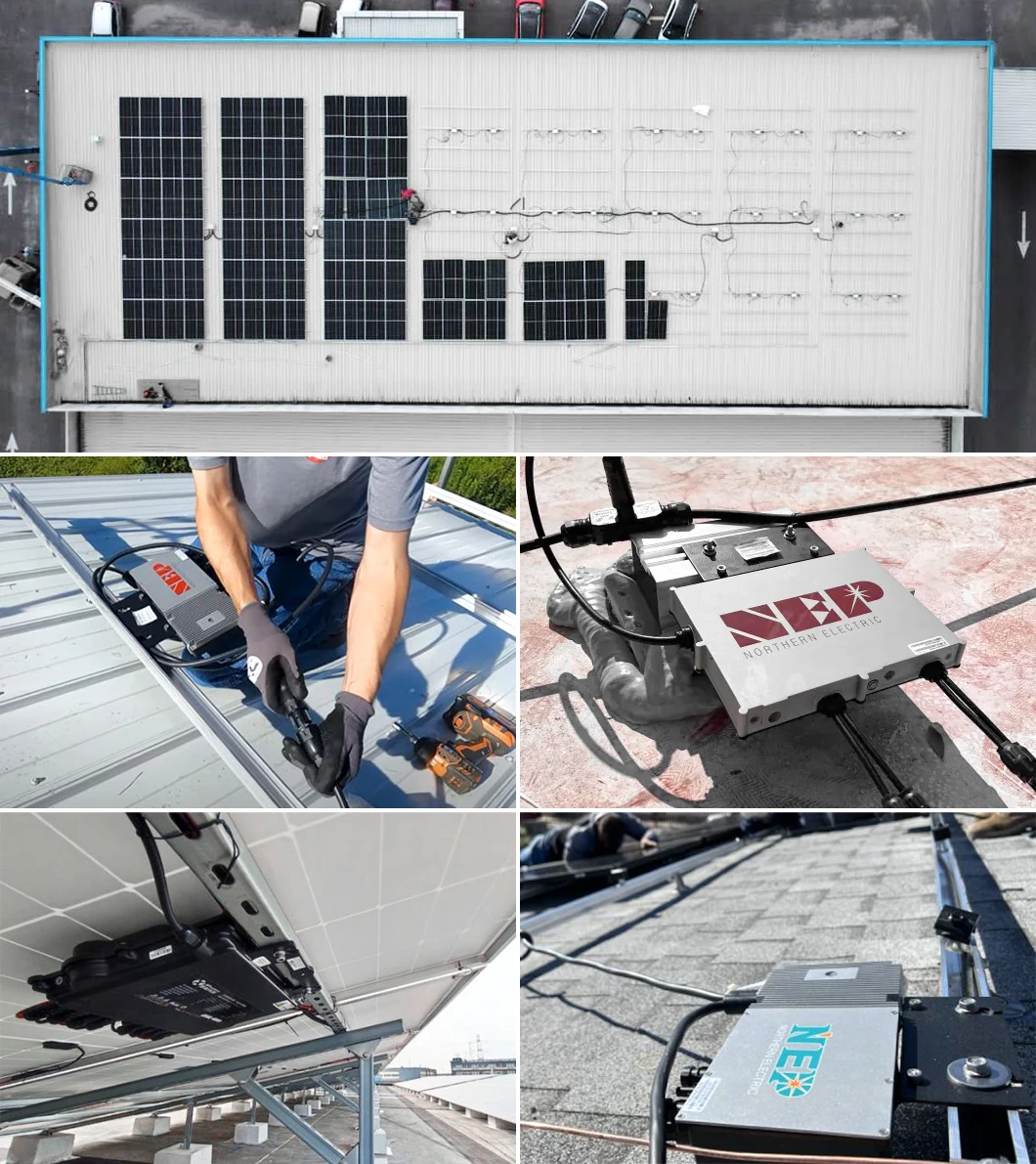

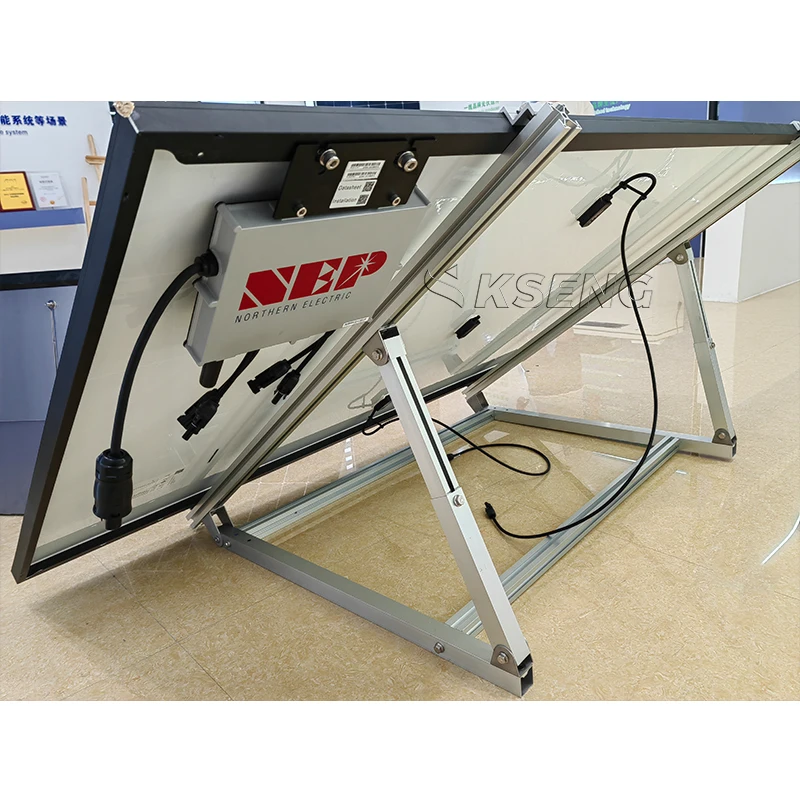

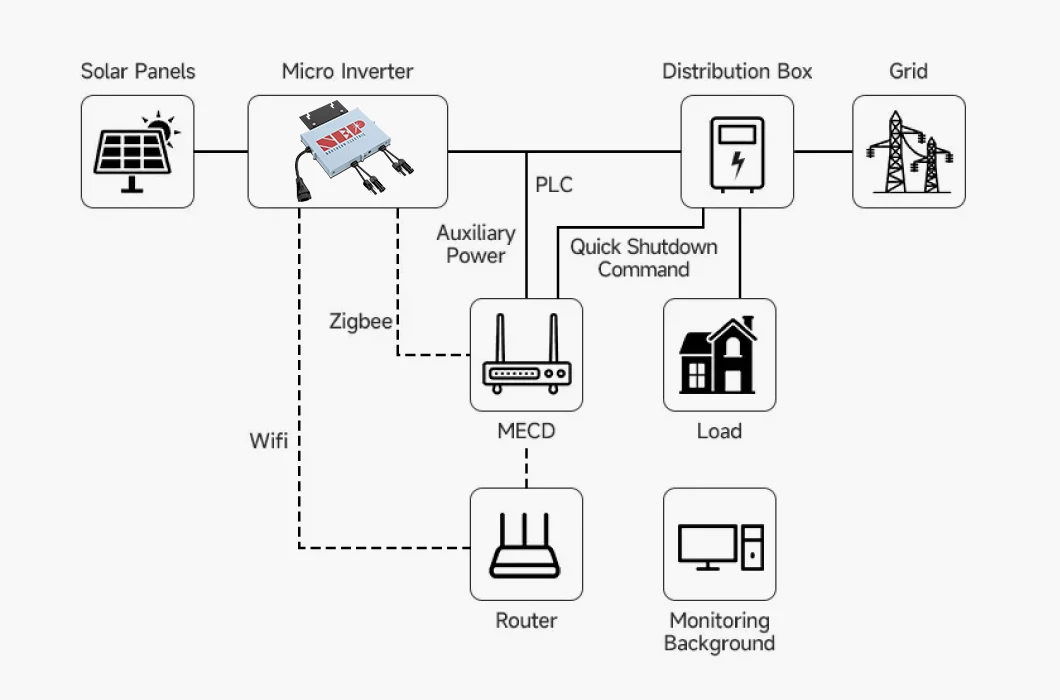

Product Application

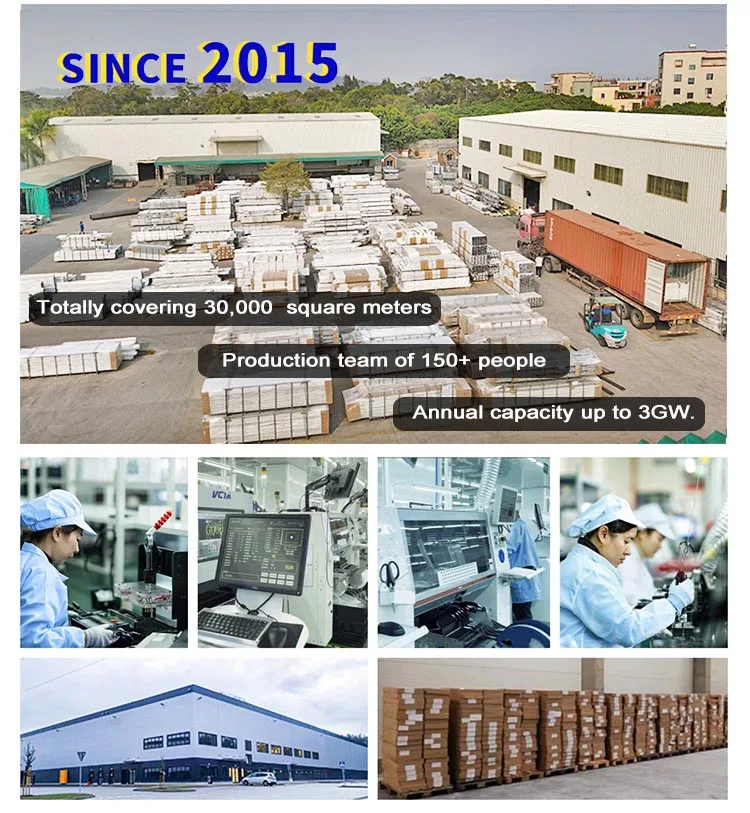

Company Information
*Kseng solar, an total solutions provider that offers solar racking and tracking systems for the residential, commercial& industry and utility-scale solar application.
*Driven by the mission of” Empowering our world with clean energy ”, Kseng solar has increased its global presence with branches and offices in South Korea, Japan, Australia, Malaysia, Vietnam, Hong Kong S.A.R and other countries and regions. And it has up to 6GW annual production capacity with manufacturing base in Indonesia, Malaysia, Fujian and Tianjin.
*Since the inception of 2015, Kseng solar has a proven track record as the ideal racking brand for its strong engineering, manufacturing and customer service capability. With its own manufacturing base to conduct strict quality control and numerous international standards accreditation, Kseng solar has accomplished more than 5GW of solar racking shipments by the end of 2021. Among them, it has ranked No.1 in Korea’s solar racking market and keeps the best annual growth rate for six consecutive years in Japan market.
