11inch 3600MT Short Stroke Constant Speed Prestressed VFD Motor Aluminium Extrusion Press Machine

Product Overview

Description



11inch 3600MT Short Stroke Aluminum  Profilie Extrusion Press Machine Main Featrues:

1	Short stroke design,empty circle time:16sec
2	Unique crane system for short billet feeding to extrusion press machine
3	Constant speed design, constant speed control range is 0.5~11mm/s
4	Pre-stressed design, pre stressed is 4100Tons
5	VFD motor, VFD control
6	billet length is 1200mm

11inch 3600MT Aluminium Extrusion Press Machine Main Parameters:





1	billet size:dia.280mm*1200mm Long
2	main cylinder diameter:1300mm, normal using pressure is 240kgf/cm2, entire forging material
3	extrusion front platen outlet:Dia 380mm*520mm
4	pre-stressed: 4100Tons
5	extrusion speed: 0~13mm/sec
6	empty circle time: 16sec
7	VFD motor, VFD control system, save 15~20% more energy than traditional design
8	main pump and high pressure valve is Germany Rexroth Brand
9	PLC is Siemens  S7-1200 Series
10	high pressure plunger pump is Germany Rexroth brand

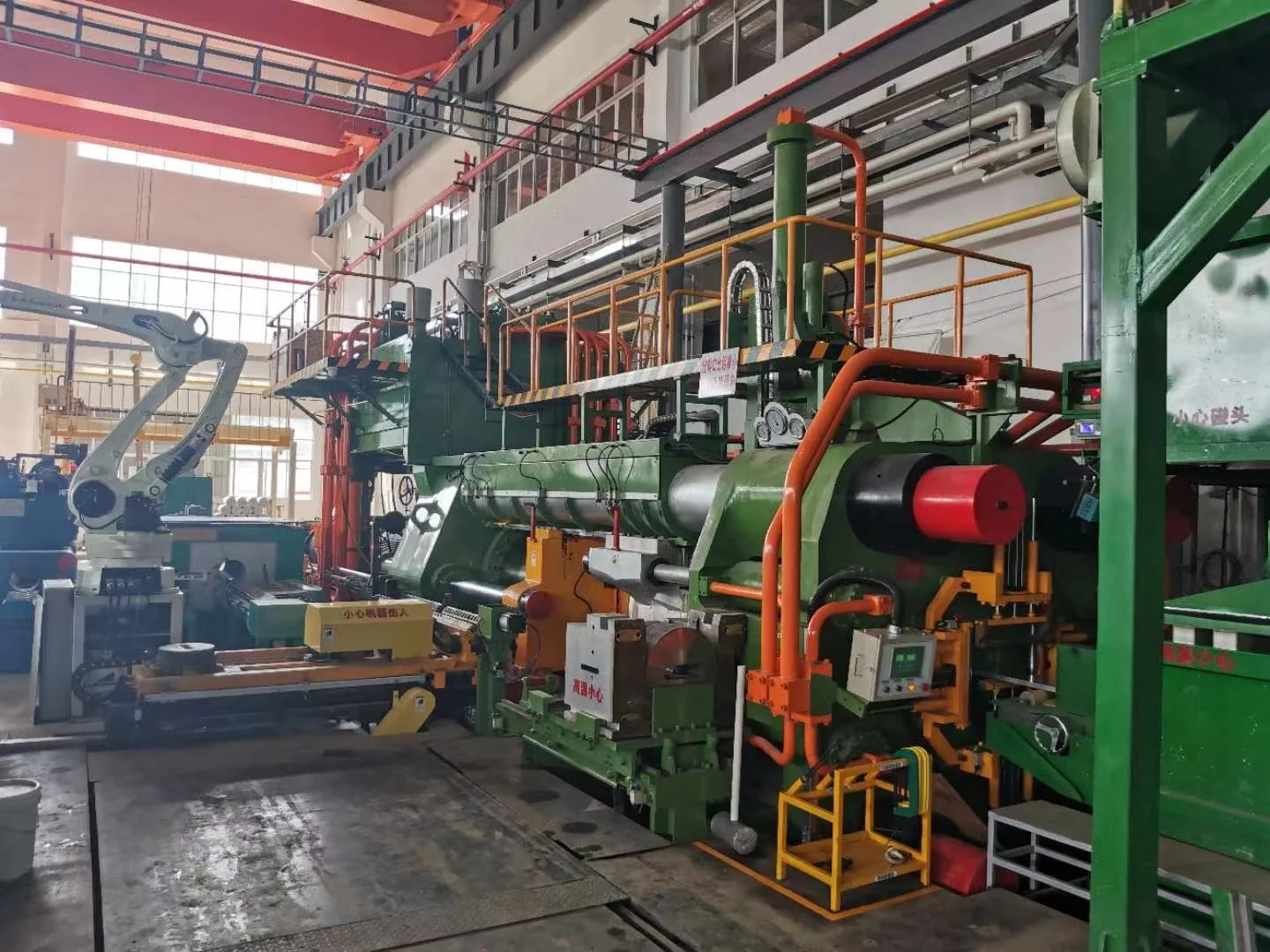

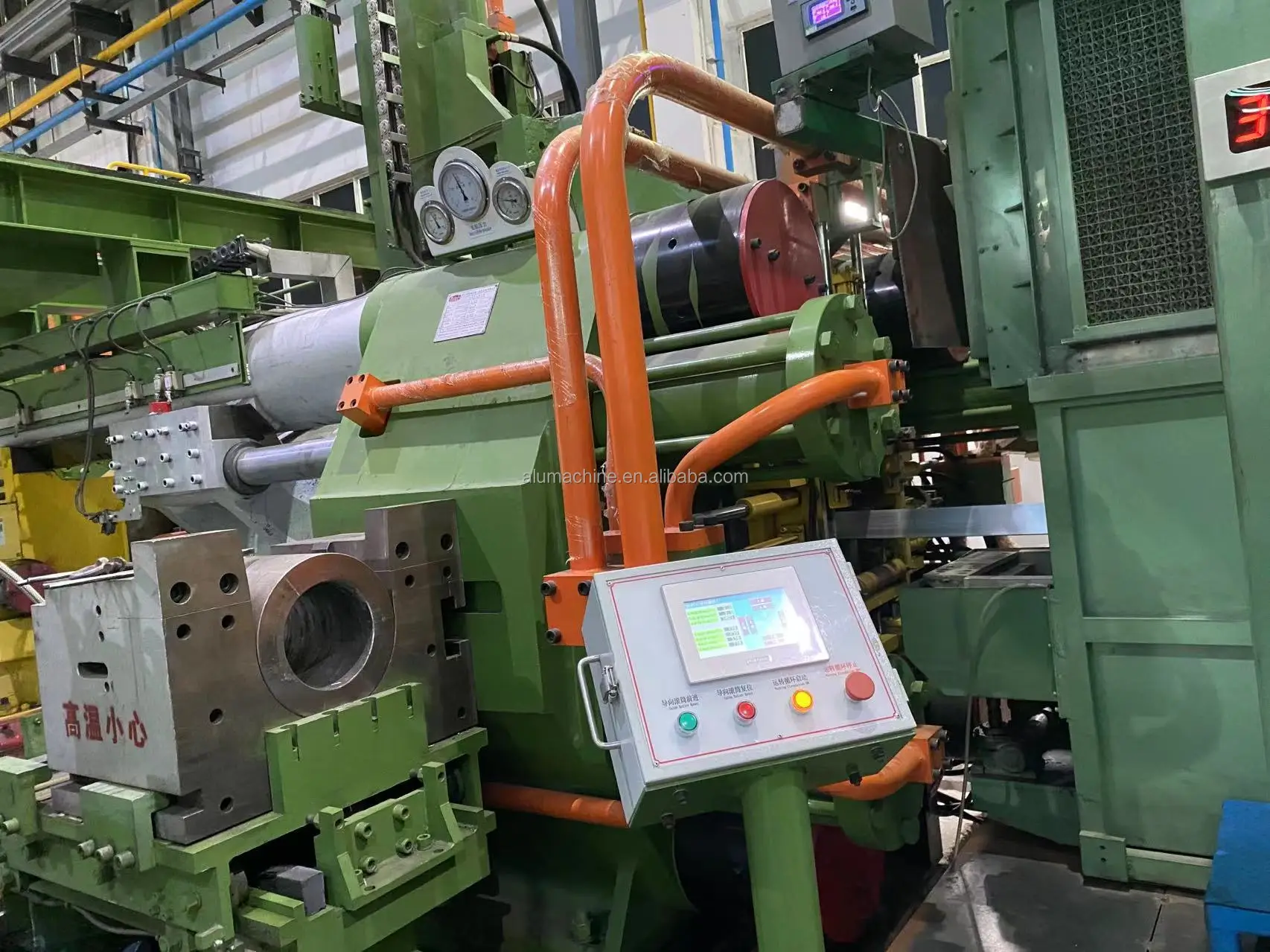

Extrusion press macine working in customer factory:

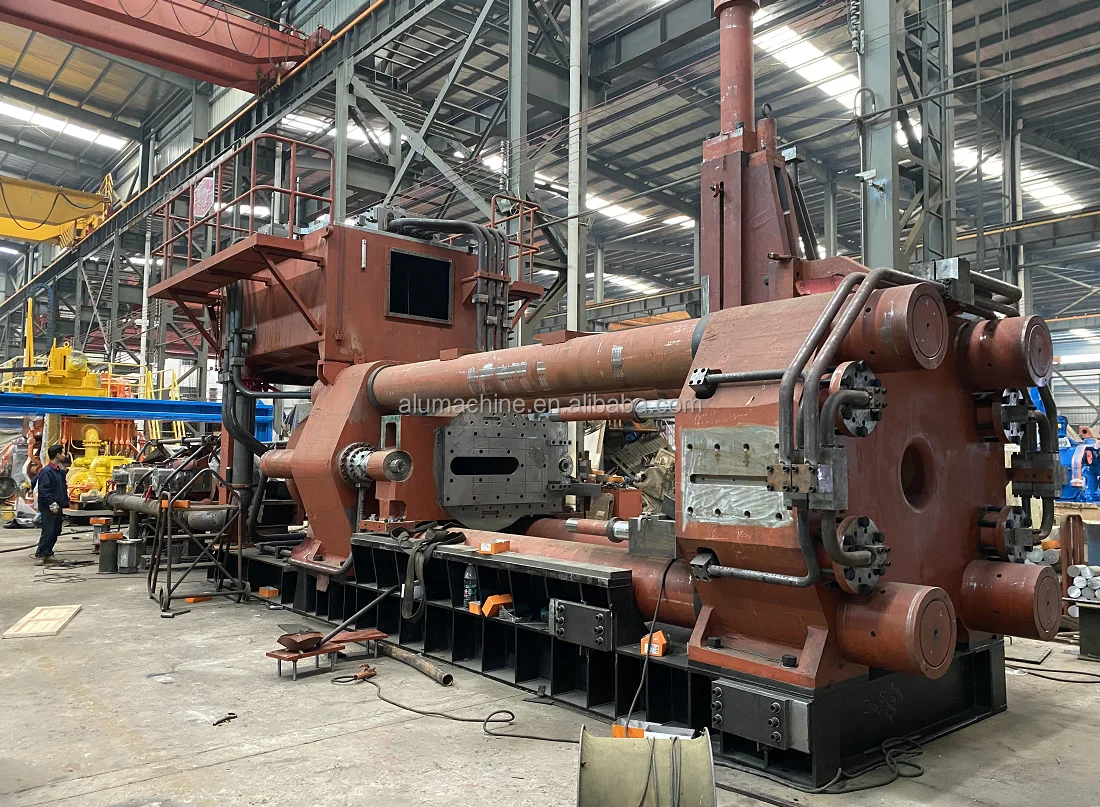

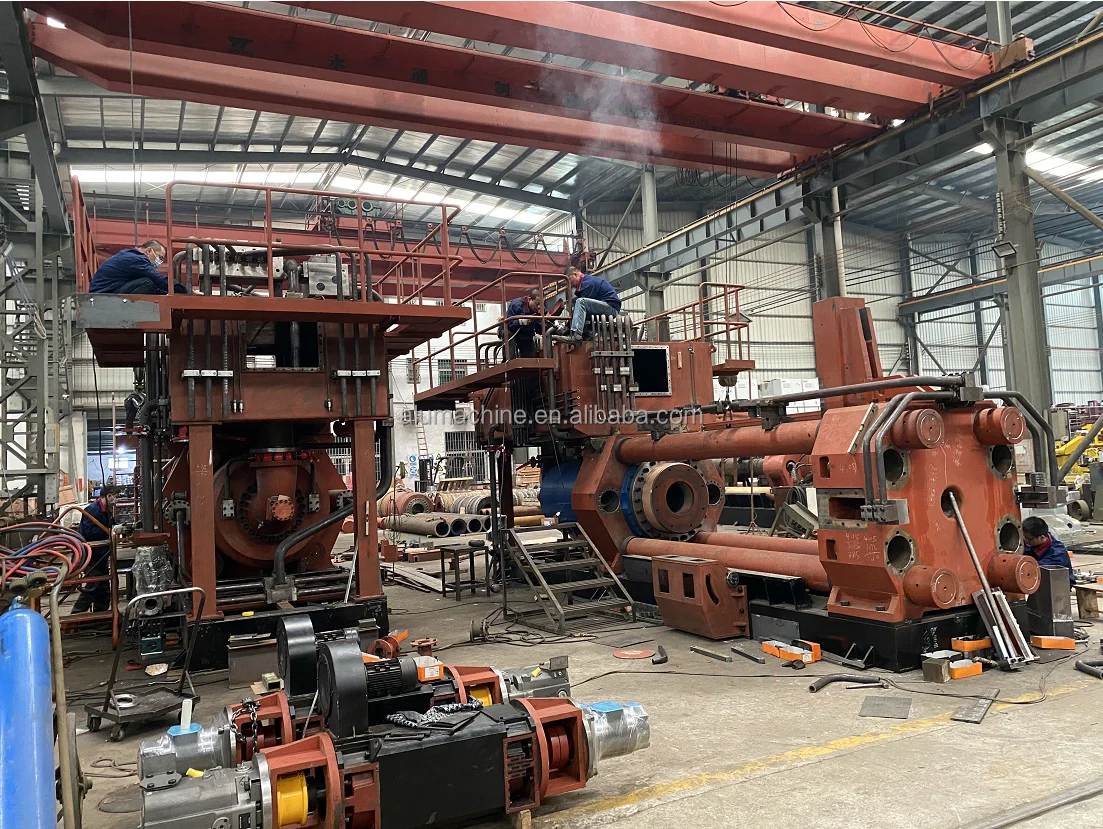

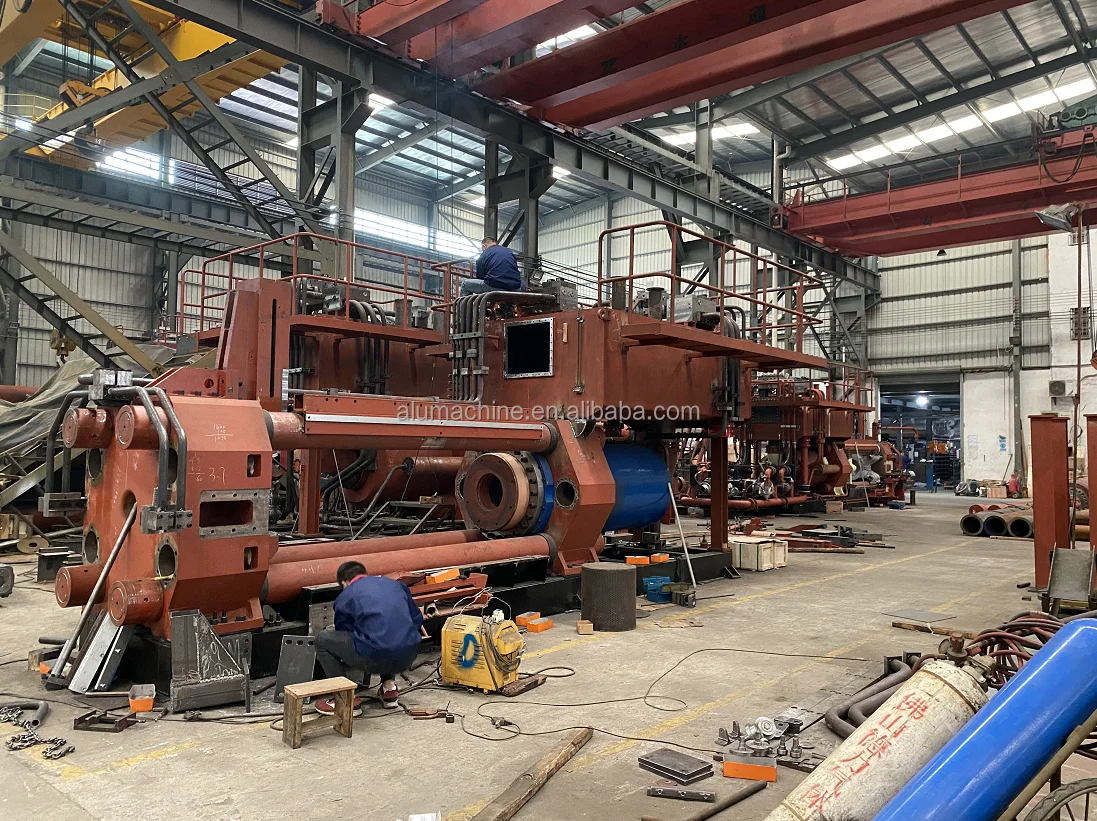

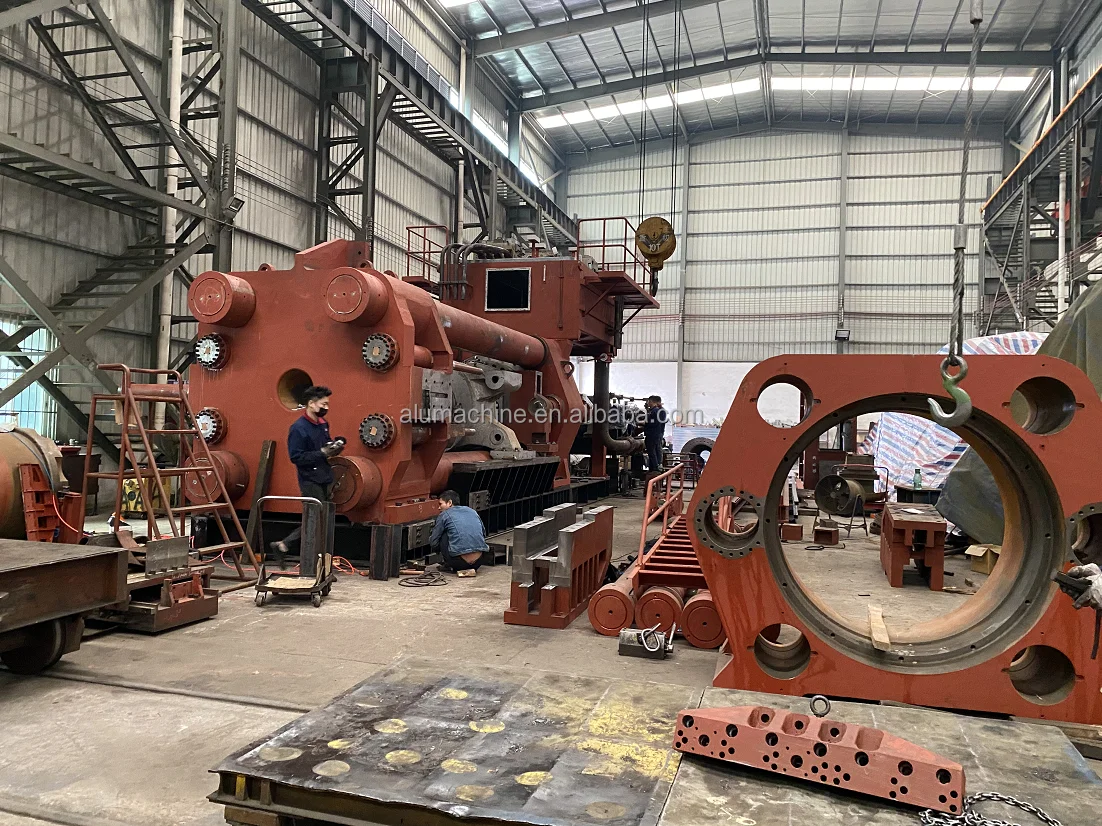

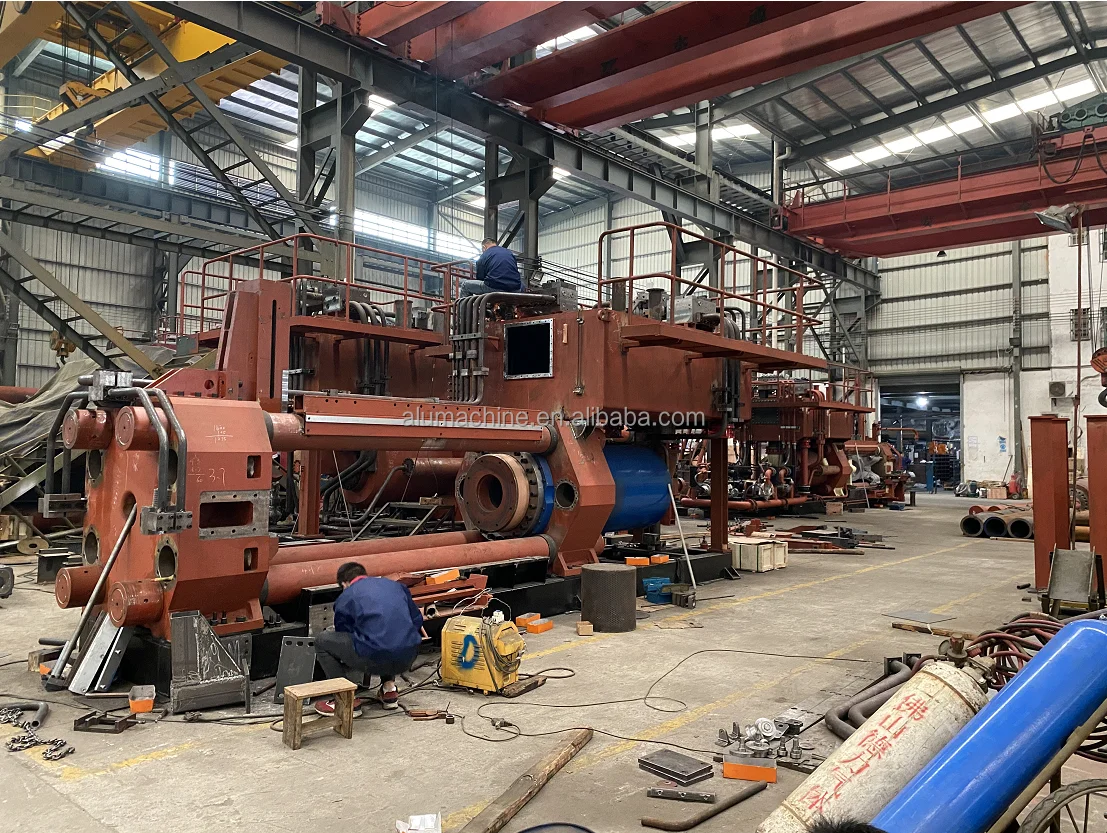

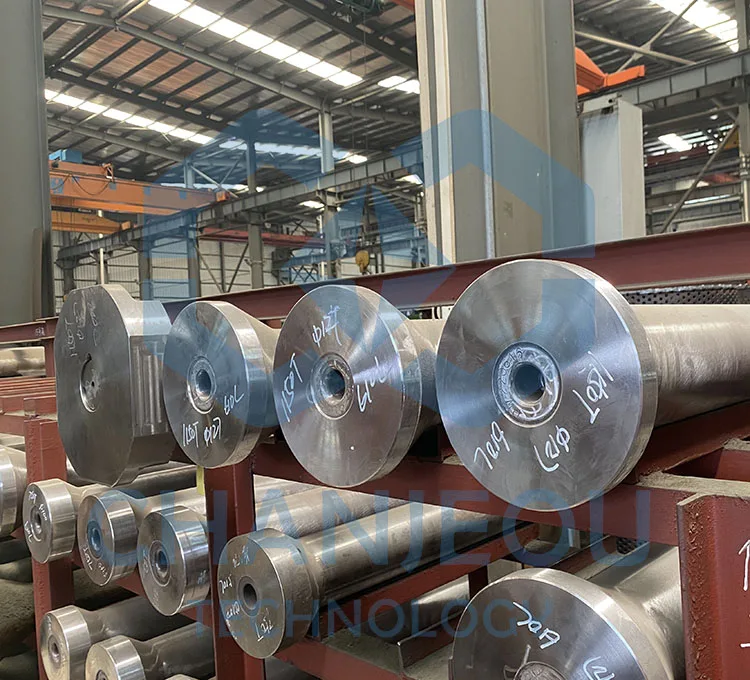

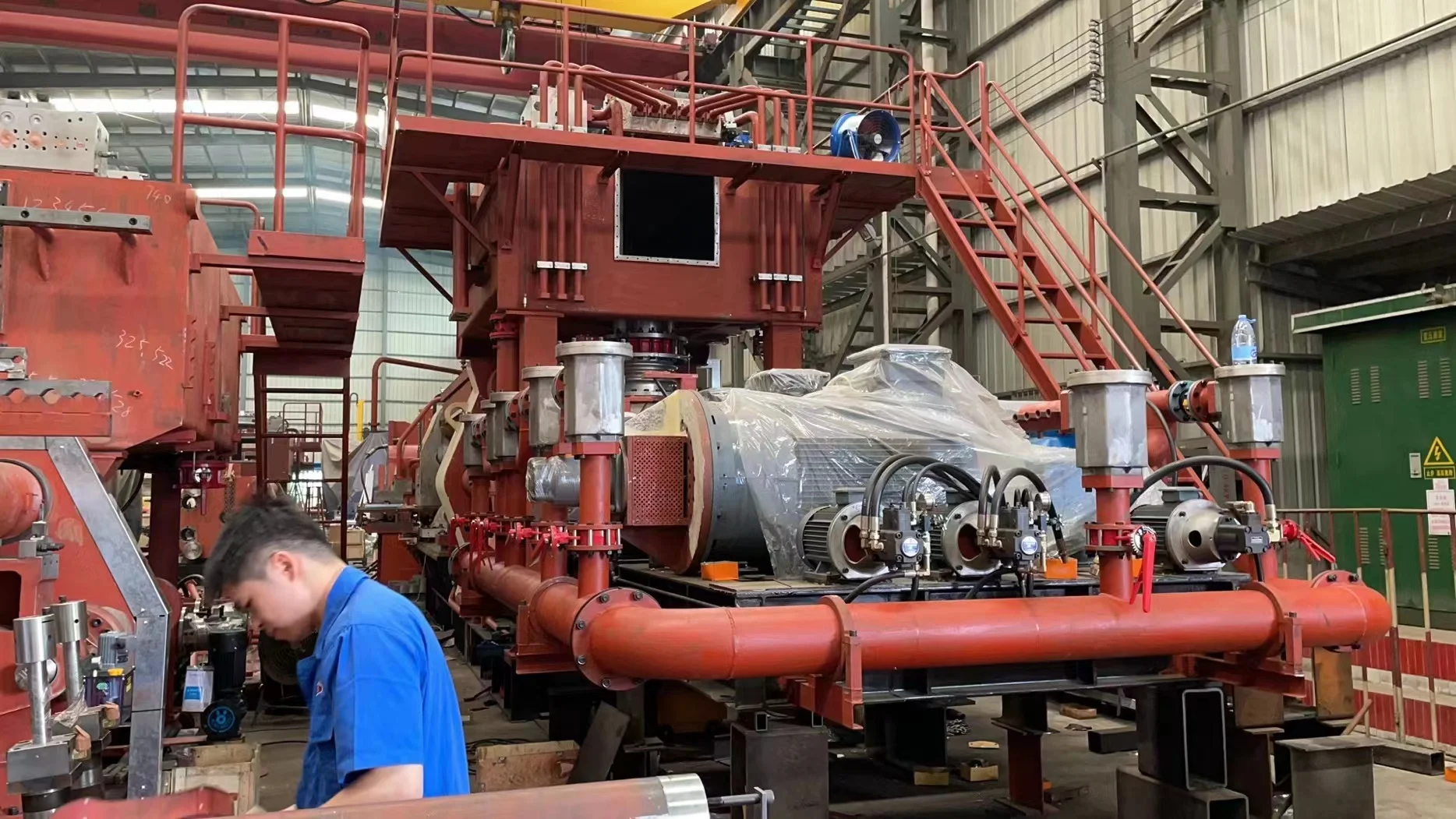

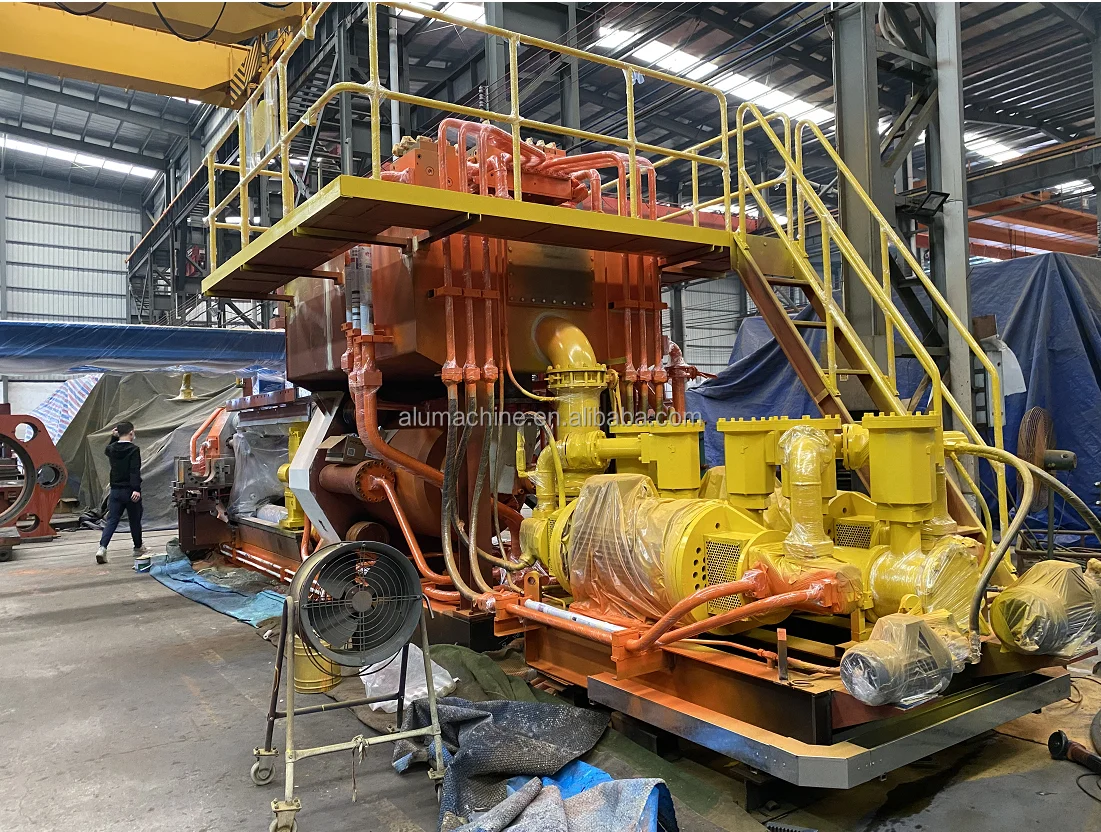

 Factory workshop view:
