20KW Home Use Solar System 15KW Hybrid Inverters 15KW Solar Panels 20Kwh Storage Lithium Batteries
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.Bluesun Ltd.
Share on (11000009441417):
Product Overview
Description
Product Description
8KW Hybrid Solar Power System Configuration | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono Black frame 425w solar panel | 20 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 10kWh Stacked Battery | 1 pcs | |||
4 | Hybrid Inverter | 8kva | 1pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||

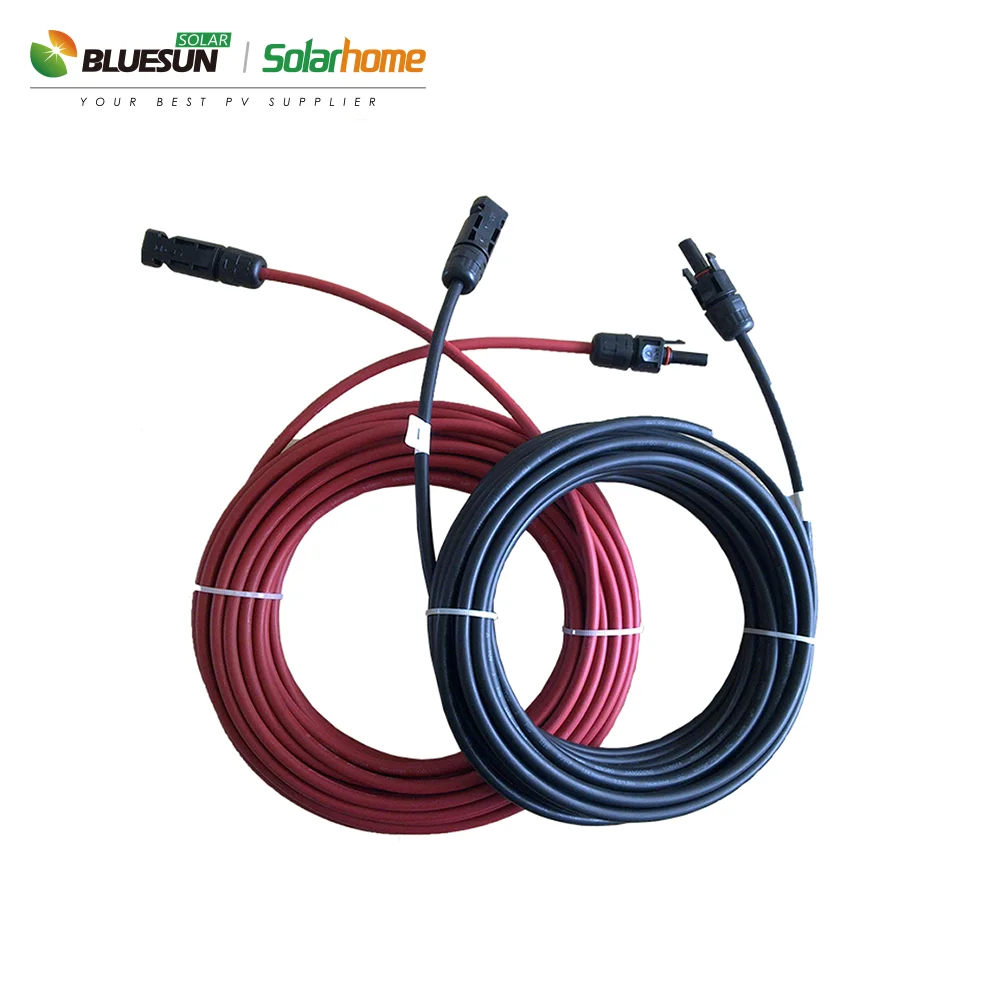

6 | Cable | 4mm² PV cable | 100m | |||
7 | Connector | Solar Connector | 8 pairs | |||

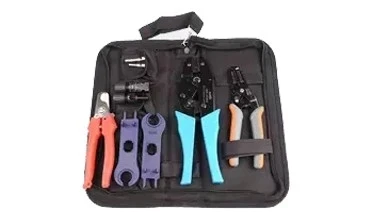

8 | Tools Bag | Solar Installation tools | 1 set | |||
10KW Hybrid Solar Power System Configuration | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono Black frame 425w solar panel | 24 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 20kWh Stacked Battery | 1pc | |||
4 | Hybrid Inverter | 10kva | 1pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 200m | |||
7 | Connector | Solar Connector | 12 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
12KW Hybrid Solar Power System Configuration | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono Black frame 425w solar panel | 28 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 25kWh Stacked Battery | 1pc | |||
4 | Hybrid Inverter | 12kva | 1pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 200m | |||
7 | Connector | Solar Connector | 16 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
Configuration Detail

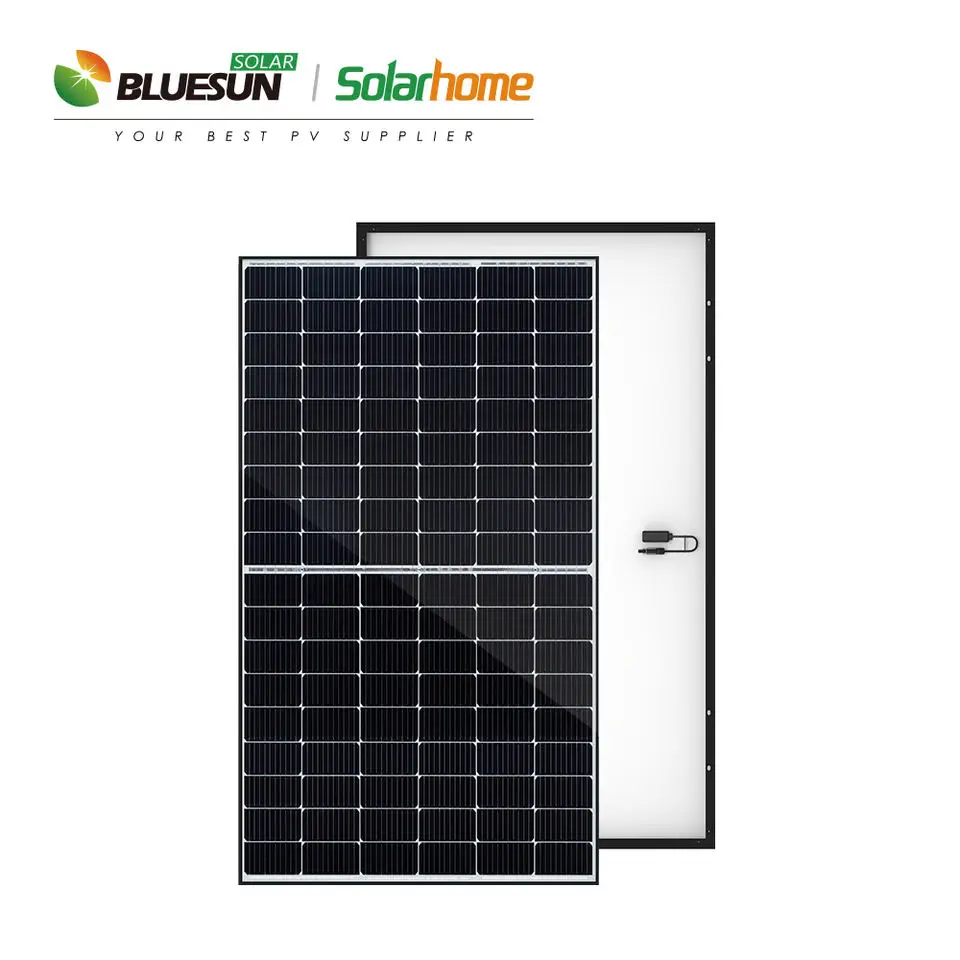

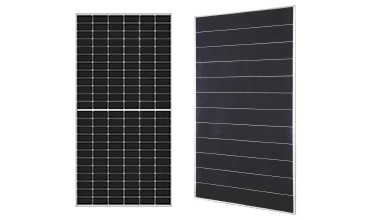

Mono Solar Panels
>Peak Power Watts: BSM425G12-54HPH
>Max Power Voltage: 32.03V>Max Power Current: 13.29A
>Open Circuit Voltage: 38.25V
>Short Circuit Current: 14.18A
>Dimensions:1722*1134*30mm
>Weight: 21.5kg

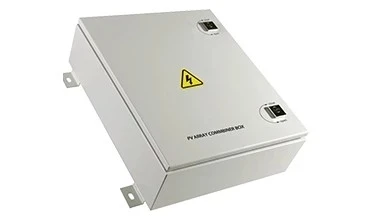

PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.

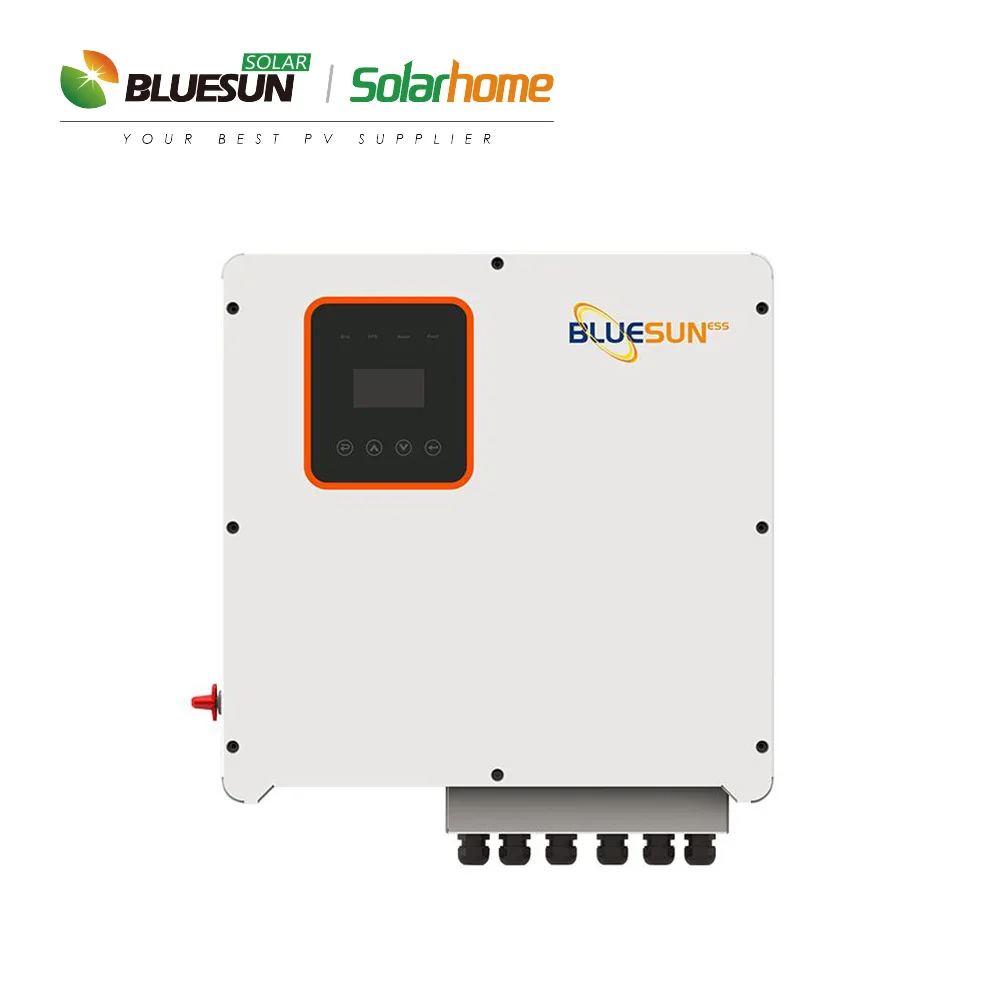

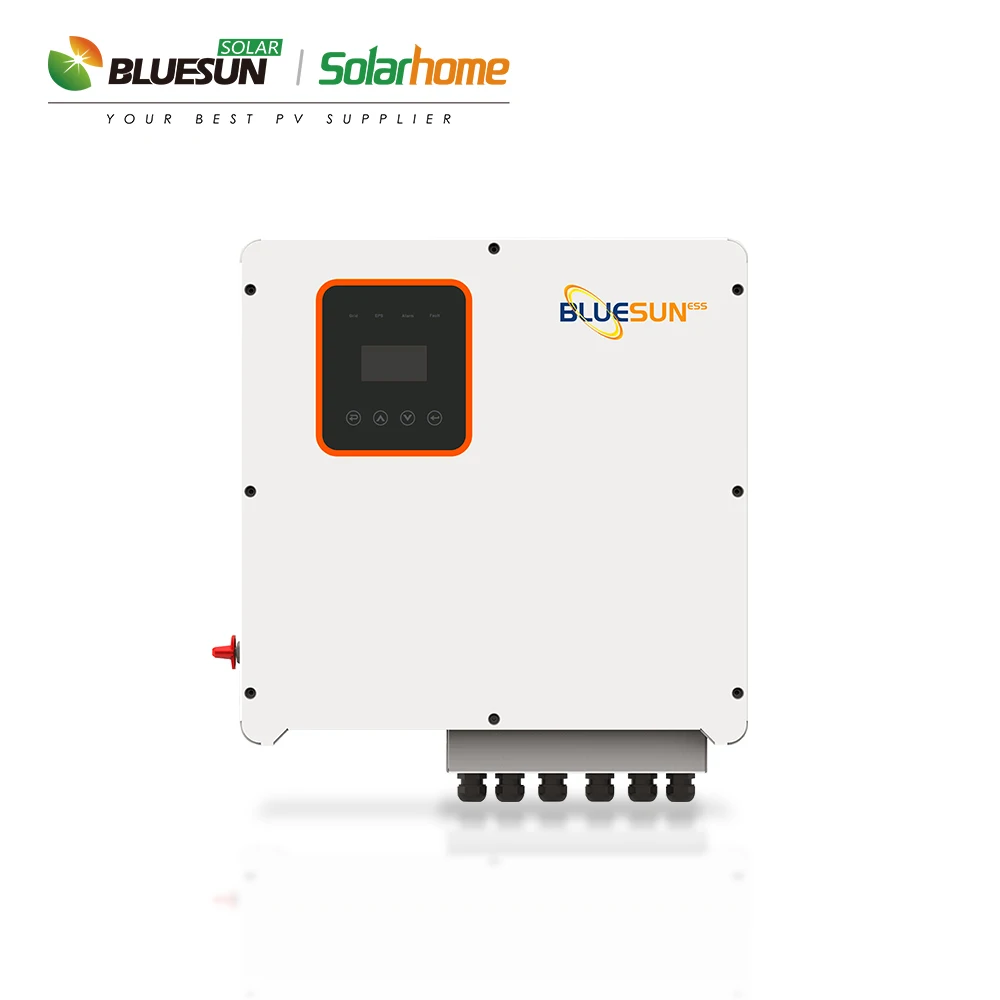

Hybrid Solar Inverter
> Modular & NREL certified PCS P-Q & V-F mode
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.

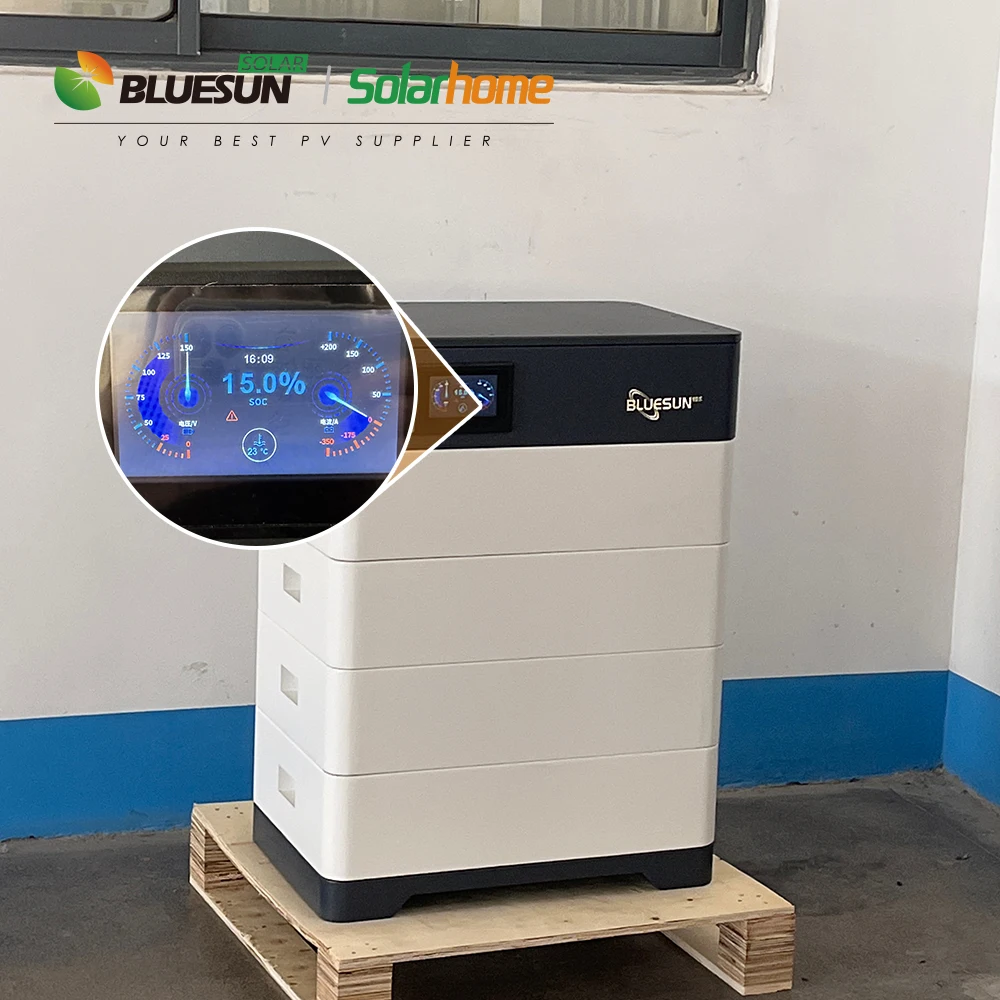

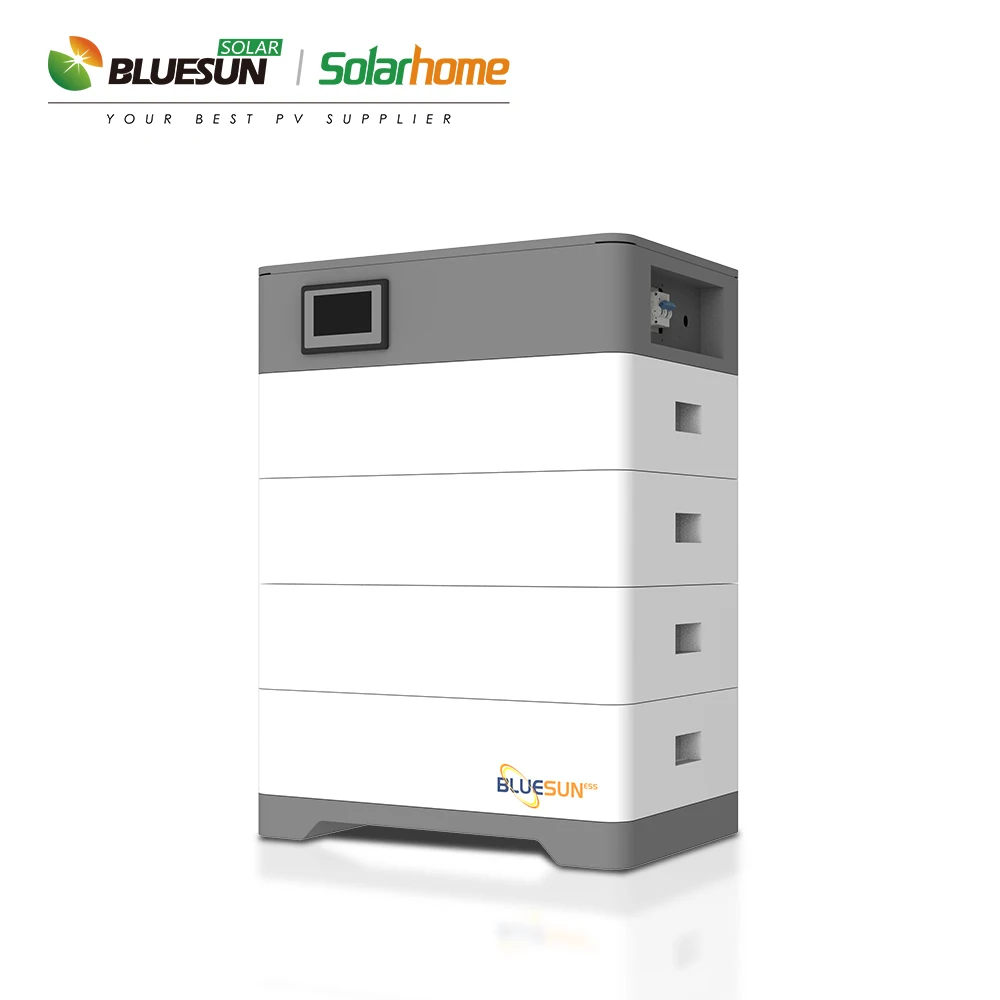

Battery Pack
> 2V,12V Agm Battery
> 2V,12V Gel Battery
> 48V Lithium Battery
*Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired
together
together

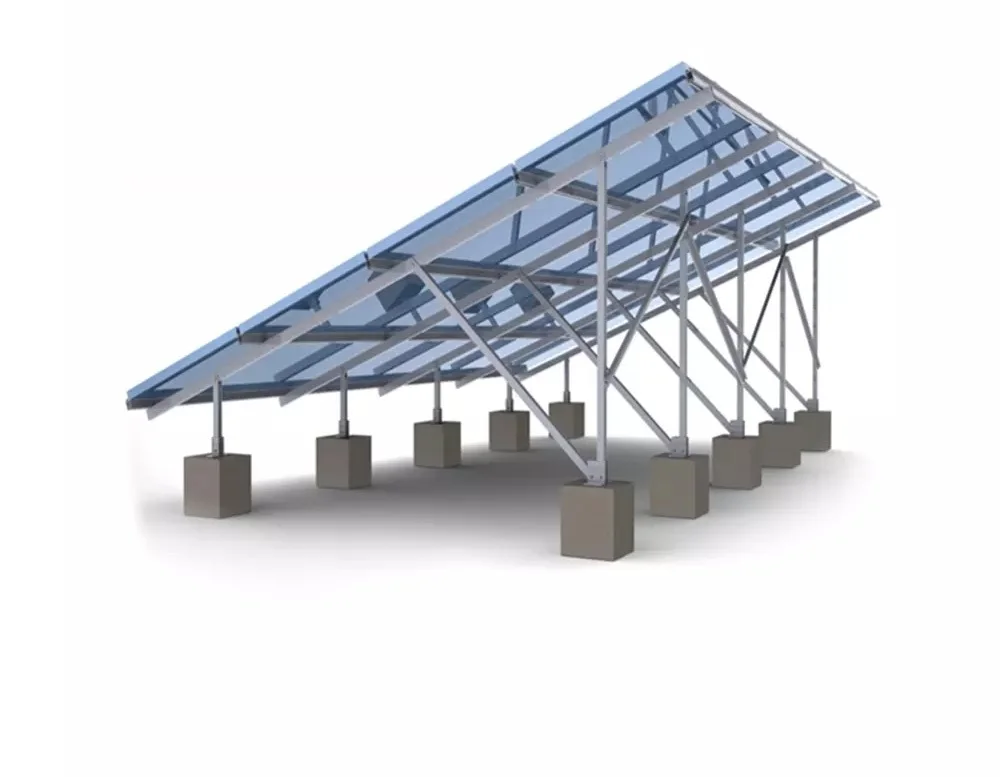

PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
>Disassembly Tool

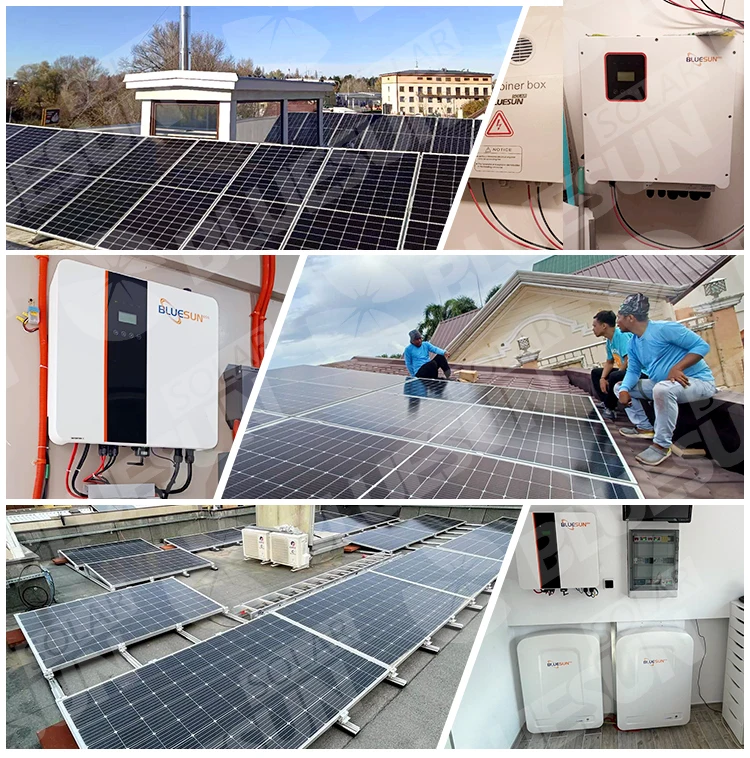

Project

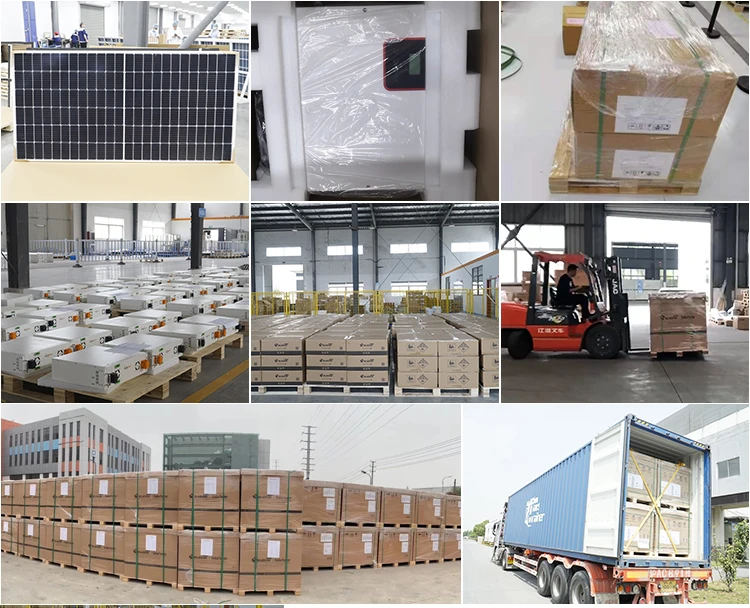

Packing&Delivery
Global Exhibitions
Contact us
