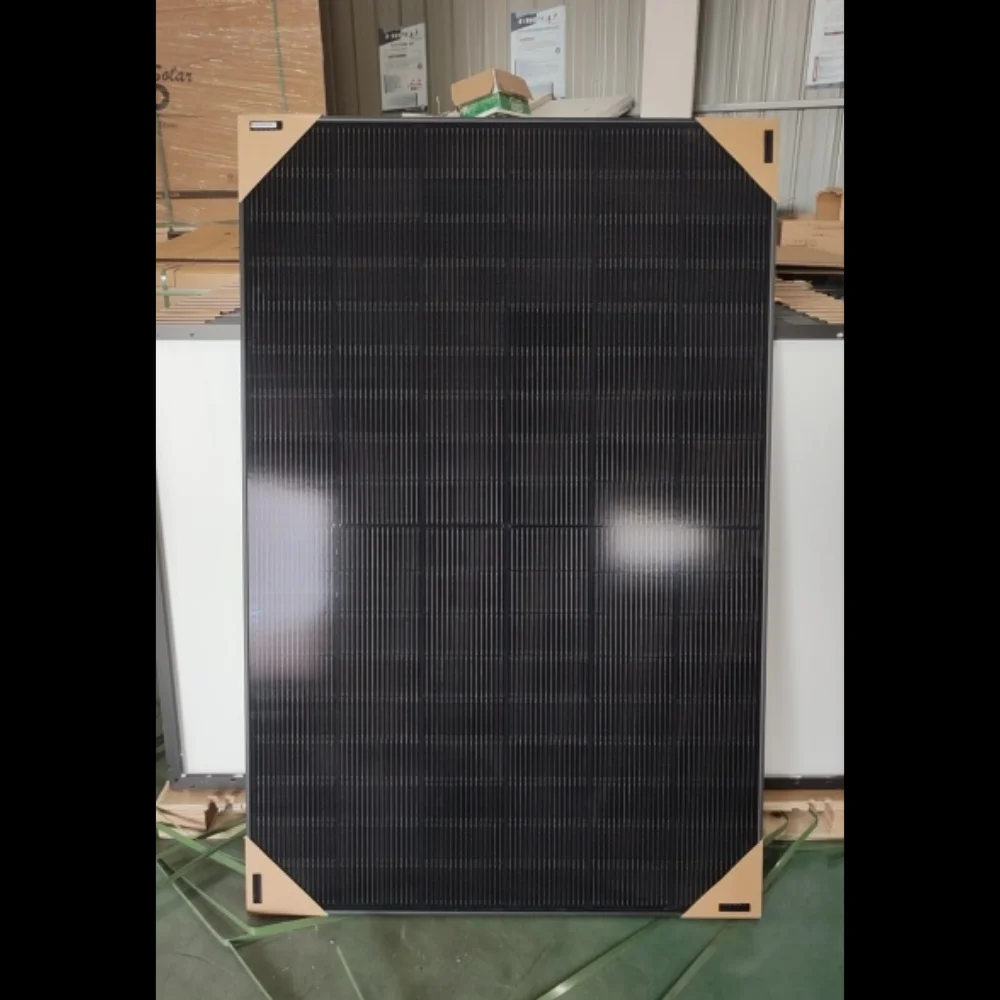

Jinko Solar Panels Tiger Neo N type 54hl4 b 400 420 Watt Module 400w 405w 410w 415w 420w All Black Solar Panels For Home Use
- Category: >>>
- Supplier: Chasun Solar Co. Ltd.
Share on (11000009445907):
Product Overview
Description
Product Description
Product Details
Specification
SPECIFICATIONS （STC) | ||||||||||
Module Type | JKM400N-54HL4-B | JKM405N-54HL4-B | JKM410N-54HL4-B | JKM415N-54HL4-B | JKM420N-54HL4-B | |||||
Maximum Power (Pmax) | 400Wp | 405Wp | 410Wp | 415Wp | 420Wp | |||||
Maximum Power Voltage (Vmp) | 31.28V | 31.47V | 31.66V | 31.85V | 32.04V | |||||
Maximum Power Current (Imp) | 12.79A | 12.87A | 12.95A | 13.03V | 13.11A | |||||
Open-circuit Voltage (Voc) | 37.38V | 37.58V | 37.77V | 37.96V | 38.15V | |||||
Short-circuit Current (Isc) | 13.55A | 13.62A | 13.68A | 13.74A | 13.80A | |||||
Module Efficiency STC (%) | 20.48% | 20.74% | 21.00% | 21.25% | 21.51% | |||||
Operating Temperature(℃) | -40℃~+85℃ | |||||||||
Maximum system voltage | 1000VDC (IEC) | |||||||||
Maximum series fuse rating | 25A | |||||||||
Power tolerance | 0~+3% | |||||||||
Temperature coefficients of Pmax | -0.29%/℃ | |||||||||
Temperature coefficients of Voc | -0.25%/℃ | |||||||||
Temperature coefficients of Isc | 0.045%/℃ | |||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
Packing & Delivery
(Two pallets = One stack )
36pcs/pallets, 72pcs/stack, 936pcs/ 40'HQ Container
36pcs/pallets, 72pcs/stack, 936pcs/ 40'HQ Container
Then put one big carton on the pallet, two pallets put in a stack. on the top of stack, it also can add 8pcs. We usually put 2 pcs in a carton.
There are some customers require no carton, No pallet, Because this loading way can put more panels and save shipping cost.
There are some customers require no carton, No pallet, Because this loading way can put more panels and save shipping cost.

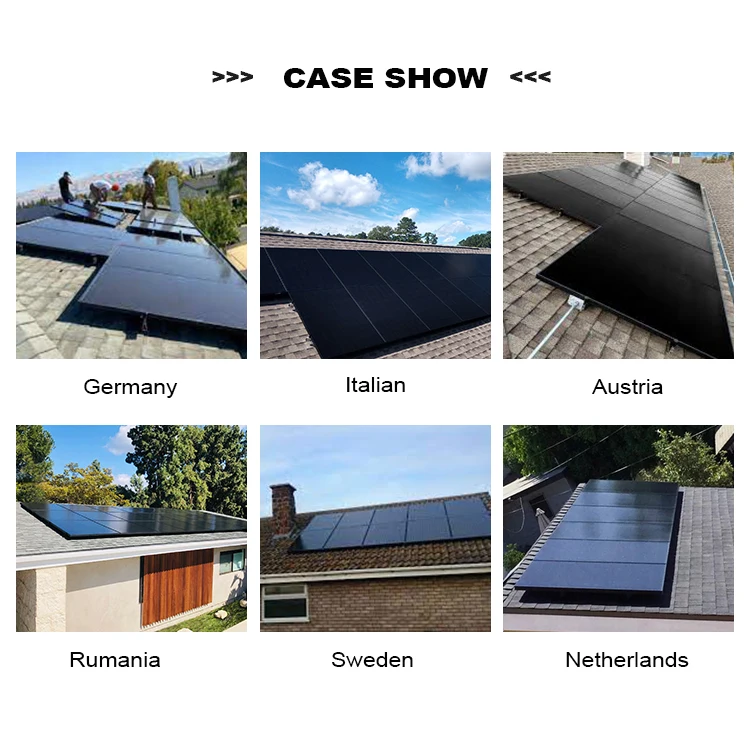

Our Projects
Certifications
Company Profile
Chasun Solar is a group company with skillful technical team. With First class pre - and after - sales service.
We also are agent of HUAWEI inverter, Longi Solar Jinko solar and so on. The solar products will supply you with under market price.
We also are agent of HUAWEI inverter, Longi Solar Jinko solar and so on. The solar products will supply you with under market price.
FAQ
1. who are we?
We are based in Jiangxi, China, start from 2021,sell to Western Europe(45.00%),Mid East(35.00%),Domestic Market(10.00%),Africa(5.00%),Southeast Asia(3.00%),South America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter, Solar Panels, Solar Panels Brackets, Lithium Battery
4. why should you buy from us not from other suppliers?
Chasun Solar is a group company with skillful technical team. With First class pre - and after - sales service.
We also are agent of HUAWEI inverter, Longi Solar Jinko solar and so on. The solar products will supply you with under market price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Spanish,German,French
We are based in Jiangxi, China, start from 2021,sell to Western Europe(45.00%),Mid East(35.00%),Domestic Market(10.00%),Africa(5.00%),Southeast Asia(3.00%),South America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter, Solar Panels, Solar Panels Brackets, Lithium Battery
4. why should you buy from us not from other suppliers?
Chasun Solar is a group company with skillful technical team. With First class pre - and after - sales service.
We also are agent of HUAWEI inverter, Longi Solar Jinko solar and so on. The solar products will supply you with under market price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Spanish,German,French
