Прямая поставка с фабрики, ZKG 2000 тиристор, регулятор напряжения SCR для автоматической выдувной машины для бутылок, пресс форма, горячий бегун
- Category: >>>
- Supplier: Beijing Bense Times Import And Export Co. Ltd.
Share on (11000009529130):
Product Overview
Description
Product Description
ZKG, ZKD, SCR series intelligent voltage regulators:

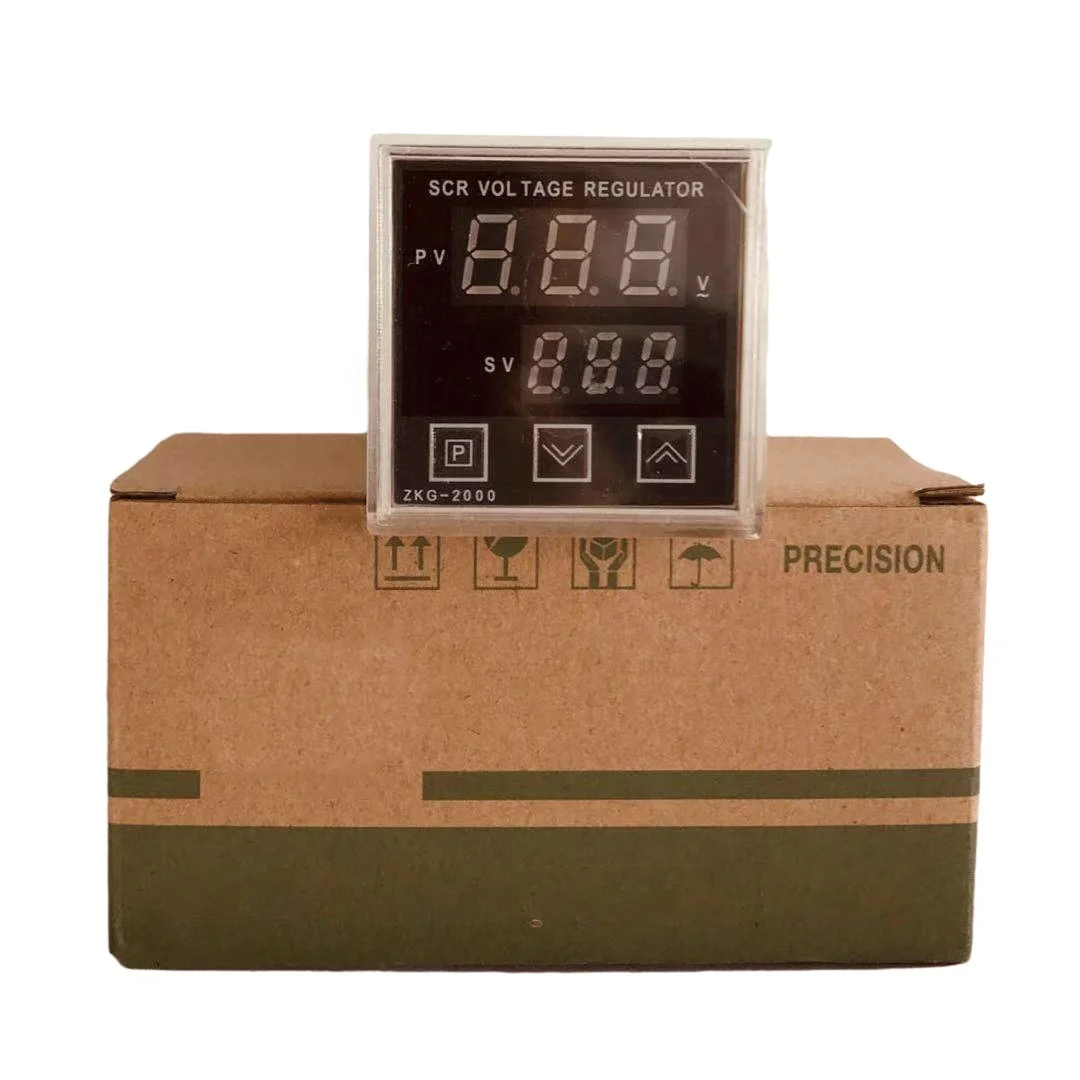

Model ZKG-2000
Model ZKG-2000
Overall dimensions (mm): 48*48 Installation dimensions: 45*45
The ambient temperature: 0 ° C to 50 ° C and the relative humidity is not more than 85%
Working voltage: AC 220V±15% 50Hz about 3W
The output pulse amplitude is not less than 3V, and the width is not less than 50Us (when the load is 20Ω).
Working voltage: AC 220V±15% 50Hz about 3W
The output pulse amplitude is not less than 3V, and the width is not less than 50Us (when the load is 20Ω).
The maximum conduction angle of phase-shift trigger is not less than 150°
Main Output type: Voltage regulator
Main Output type: Voltage regulator
Output regulation range: 0~220VAC
Main features:
◆ With single-chip microcomputer as the core technology, the voltage on the load is continuously adjusted by the way of shift triggering
◆ Using deep voltage negative feedback, with excellent voltage regulation performance, good adjustment linearity, the impact of power grid fluctuations is also reduced to a minimum
◆ New design, small size, light weight, flat mounted LED digital tube as output indicator, clear reading, remote observation and other unique advantages◆ High precision, strong shock resistance, good reliability, strong anti-interference ability
◆ Use touch switch control, reliable and convenient
◆ Suitable for blowing machine and other mechanical equipment temperature regulation
Specification
1. Display resolution: 1V
2. Display range: 0~250V
3. Voltage setting range: 0~220V (or specified range)
4. Output pulse: amplitude>3V, width>50us (at 50Ω load)
5. The maximum conduction angle of phase shift trigger: >160°
6. Working environment: non-corrosive gas occasions where the temperature is 0~50℃ and the relative humidity does not exceed 85%
7. Power supply: AC 220V±15% 50/60Hz about 3VA
8. Gross weight: 150g
2. Display range: 0~250V
3. Voltage setting range: 0~220V (or specified range)
4. Output pulse: amplitude>3V, width>50us (at 50Ω load)
5. The maximum conduction angle of phase shift trigger: >160°
6. Working environment: non-corrosive gas occasions where the temperature is 0~50℃ and the relative humidity does not exceed 85%
7. Power supply: AC 220V±15% 50/60Hz about 3VA
8. Gross weight: 150g
