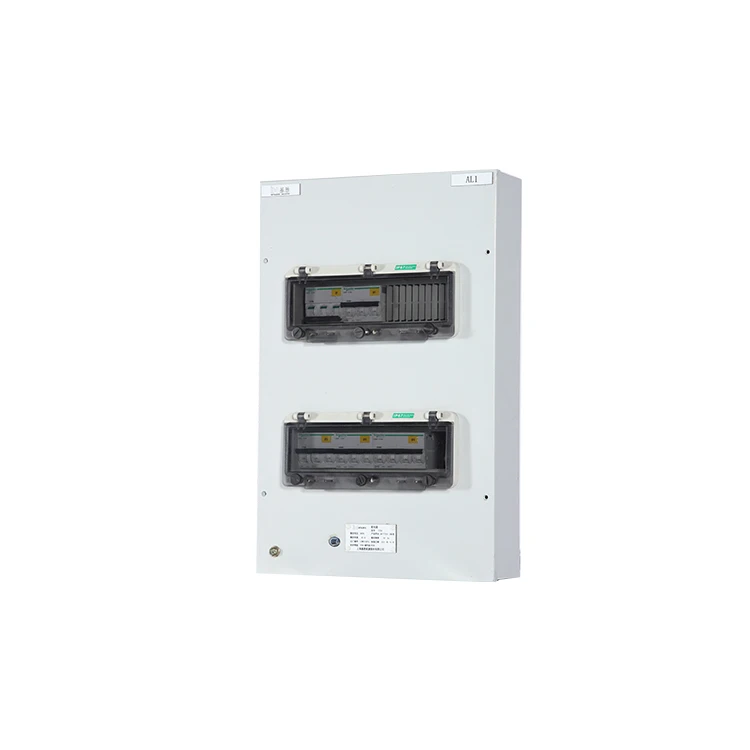

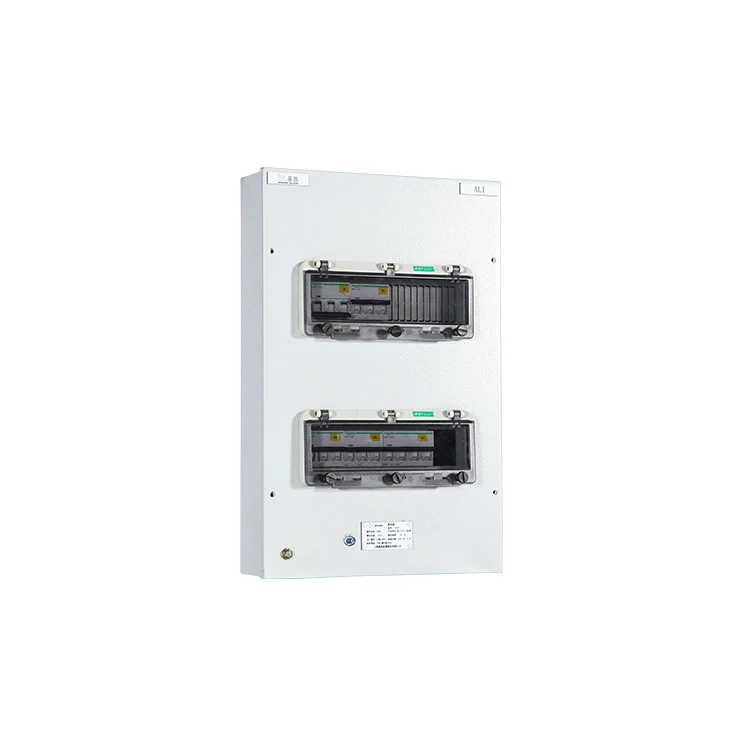

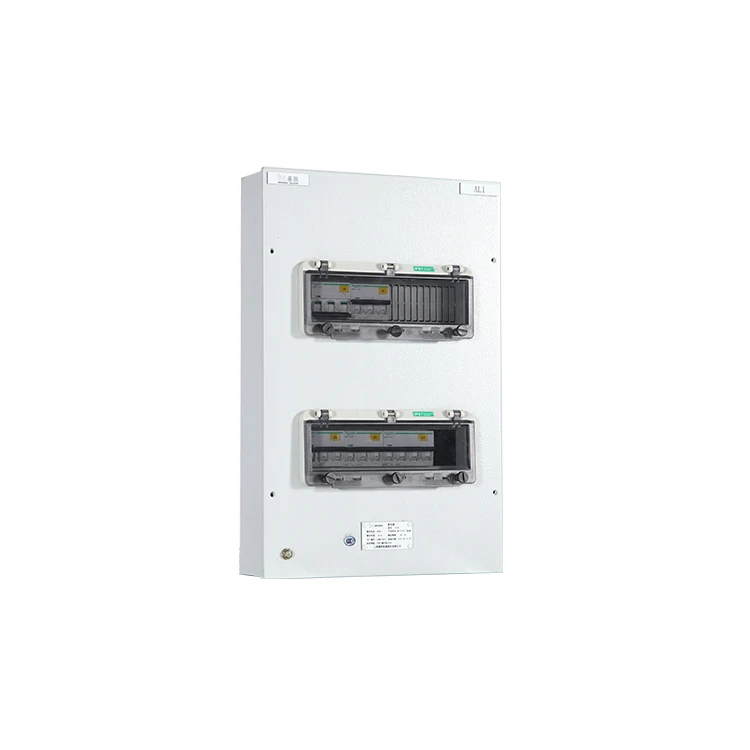

72 Way CE Waterproof 3 Phase Circuit Breaker Distribution Panel Board pdu electrical control panel
- Category: >>>
- Supplier: Shanghai Infraswin Energy Co. Ltd.
Share on (11000009634711):
Product Overview
Description
Specification
Total number of circuits | Panel height (mm) | Panel width (mm) | Box height (mm) | Box width (mm) | Box depth (mm) | Note |
4 | 175 | 165 | 155 | 135 | 80 | single row |
6 | 230 | 200 | 205 | 175 | 90 | single row |
10 | 300 | 300 | 265 | 265 | 90 | single row |
12 | 300 | 335 | 265 | 300 | 90 | single row |
15 | 300 | 390 | 265 | 355 | 90 | single row |
18 | 300 | 445 | 265 | 410 | 90 | Double row |
20 | 500 | 300 | 465 | 265 | 90 | Double row |
24 | 500 | 335 | 465 | 300 | 90 | Double row |
30 | 500 | 390 | 465 | 355 | 90 | Double row |
36 | 500 | 445 | 465 | 410 | 90 | Double row |
45 | 620 | 390 | 585 | 355 | 90 | three rows |
Product Description
■ Applicable standards:
GB7251.3 Low-voltage complete switchgear and control equipment
Product features:

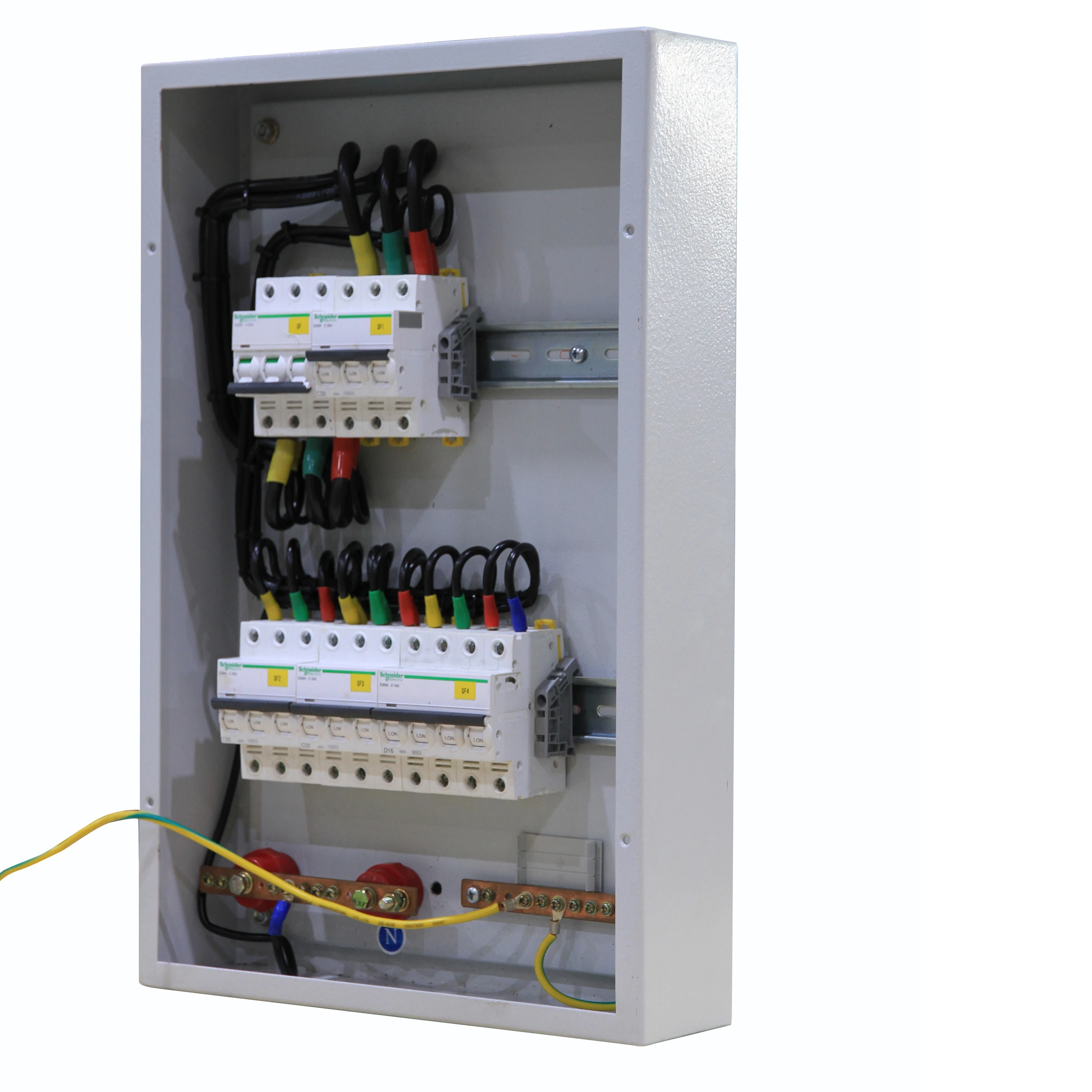

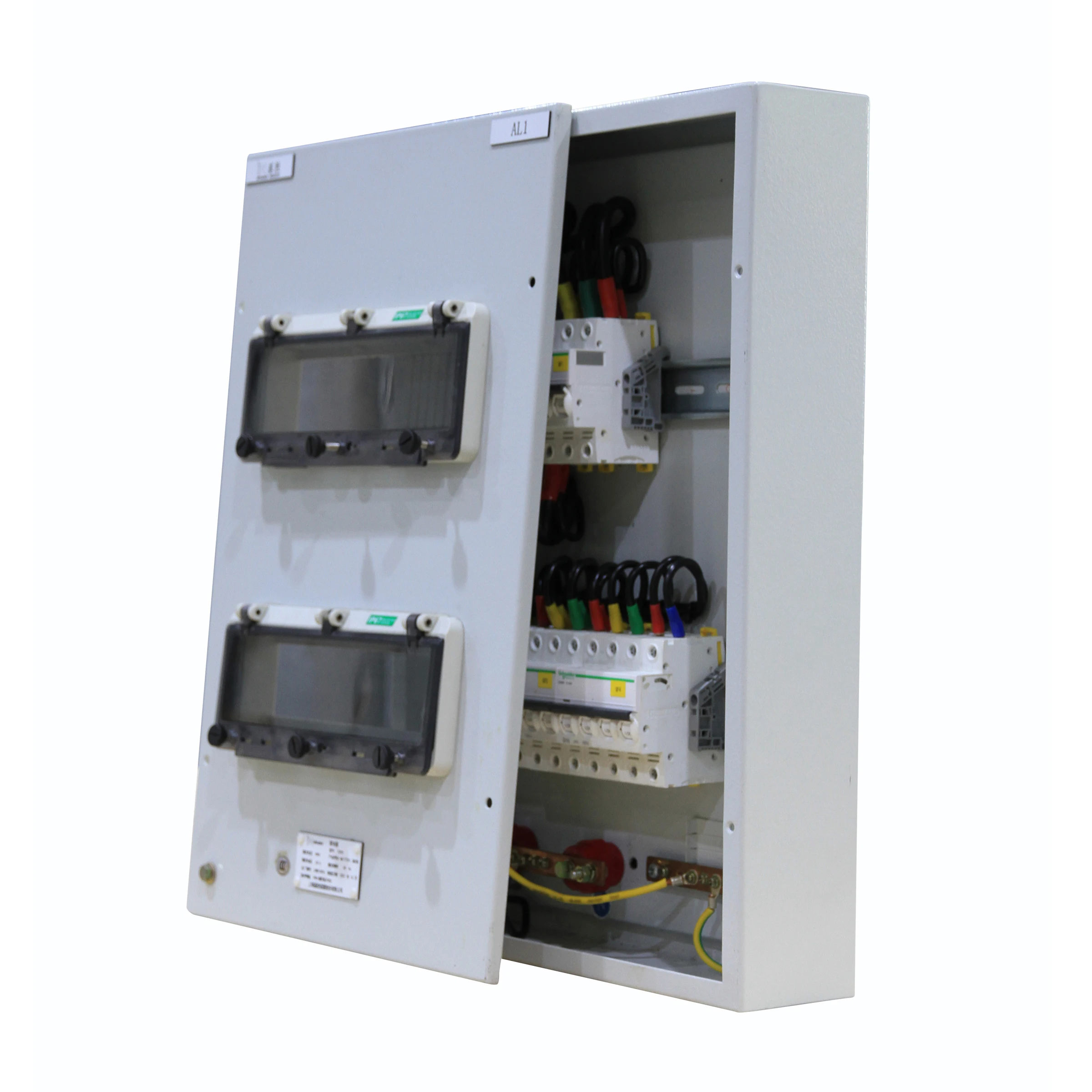

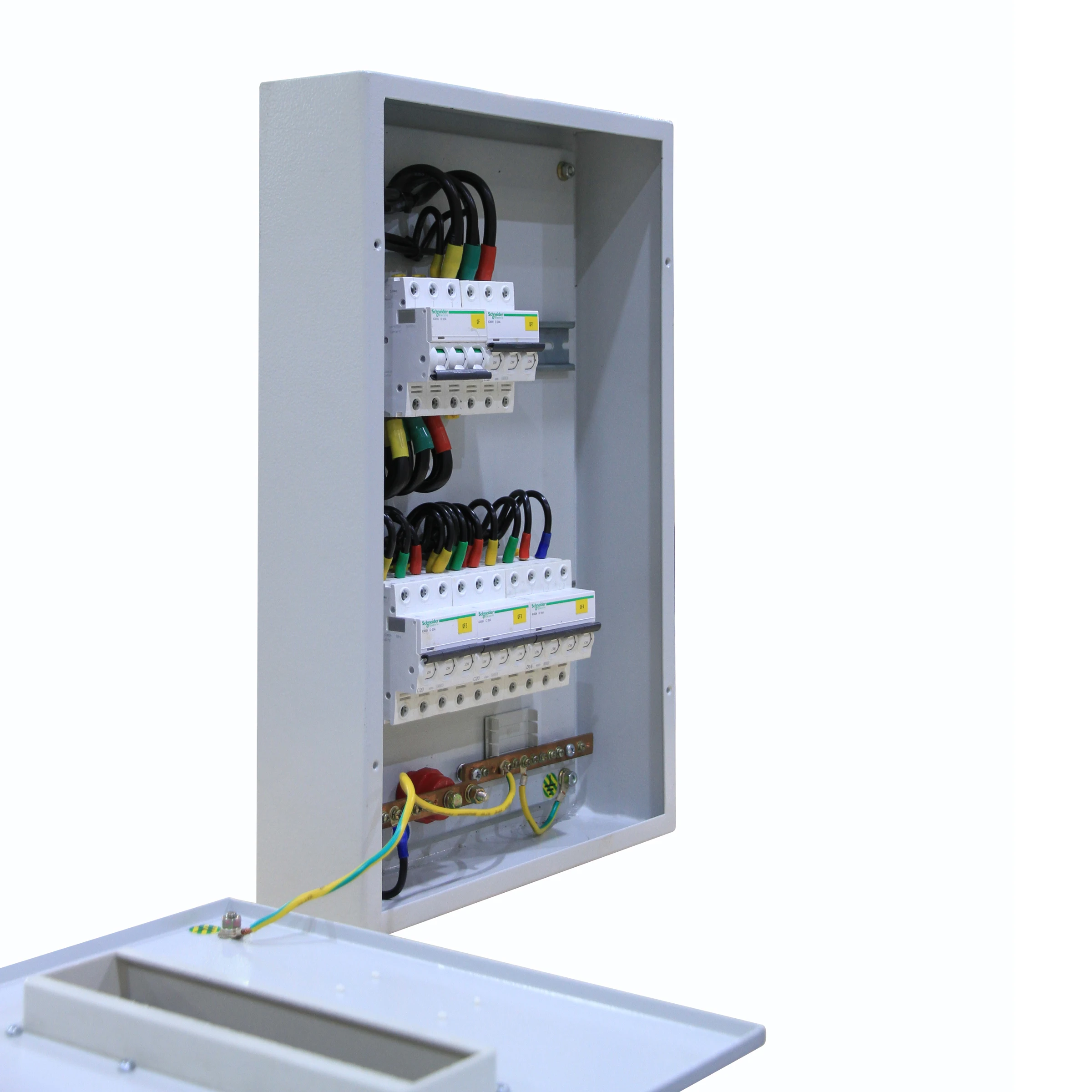

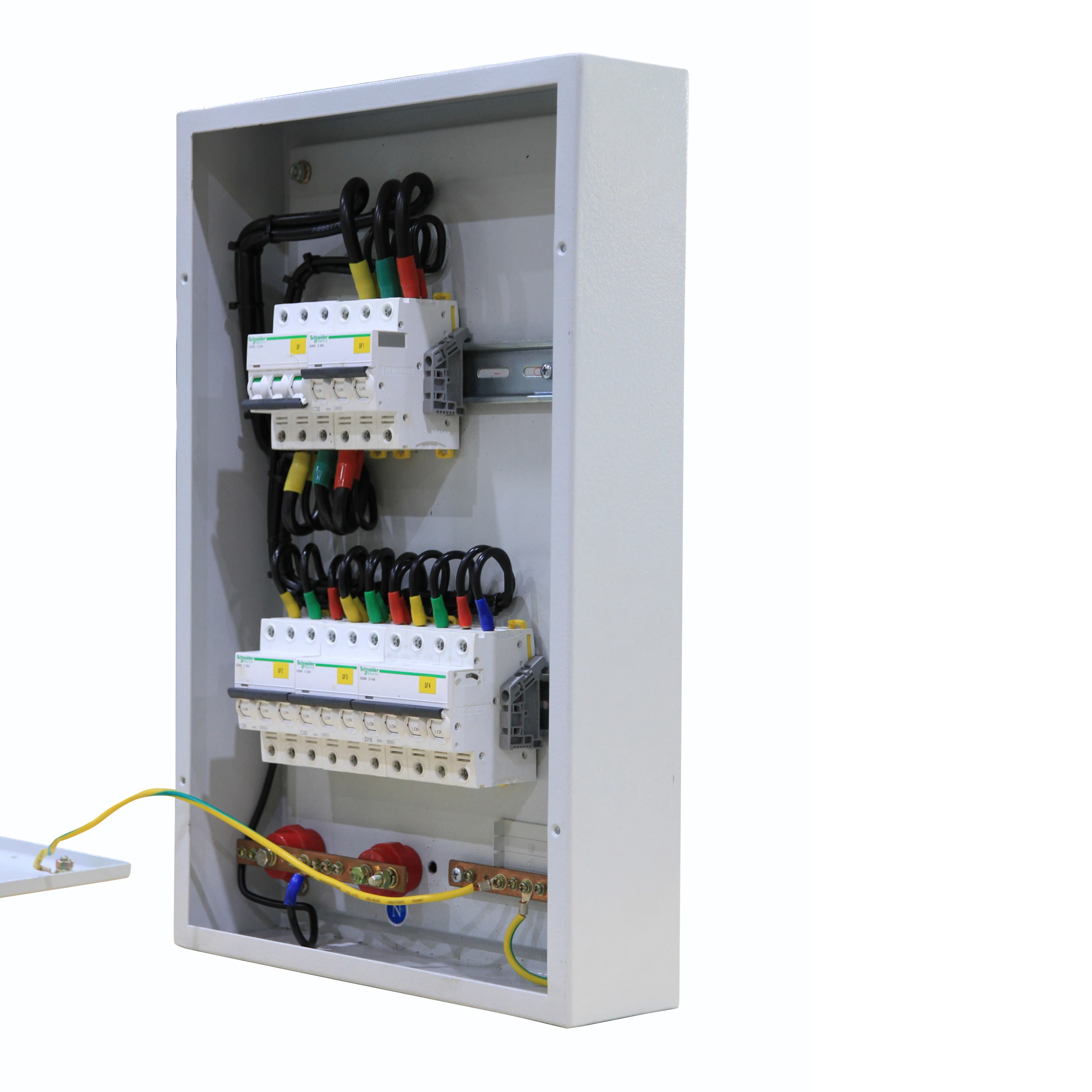

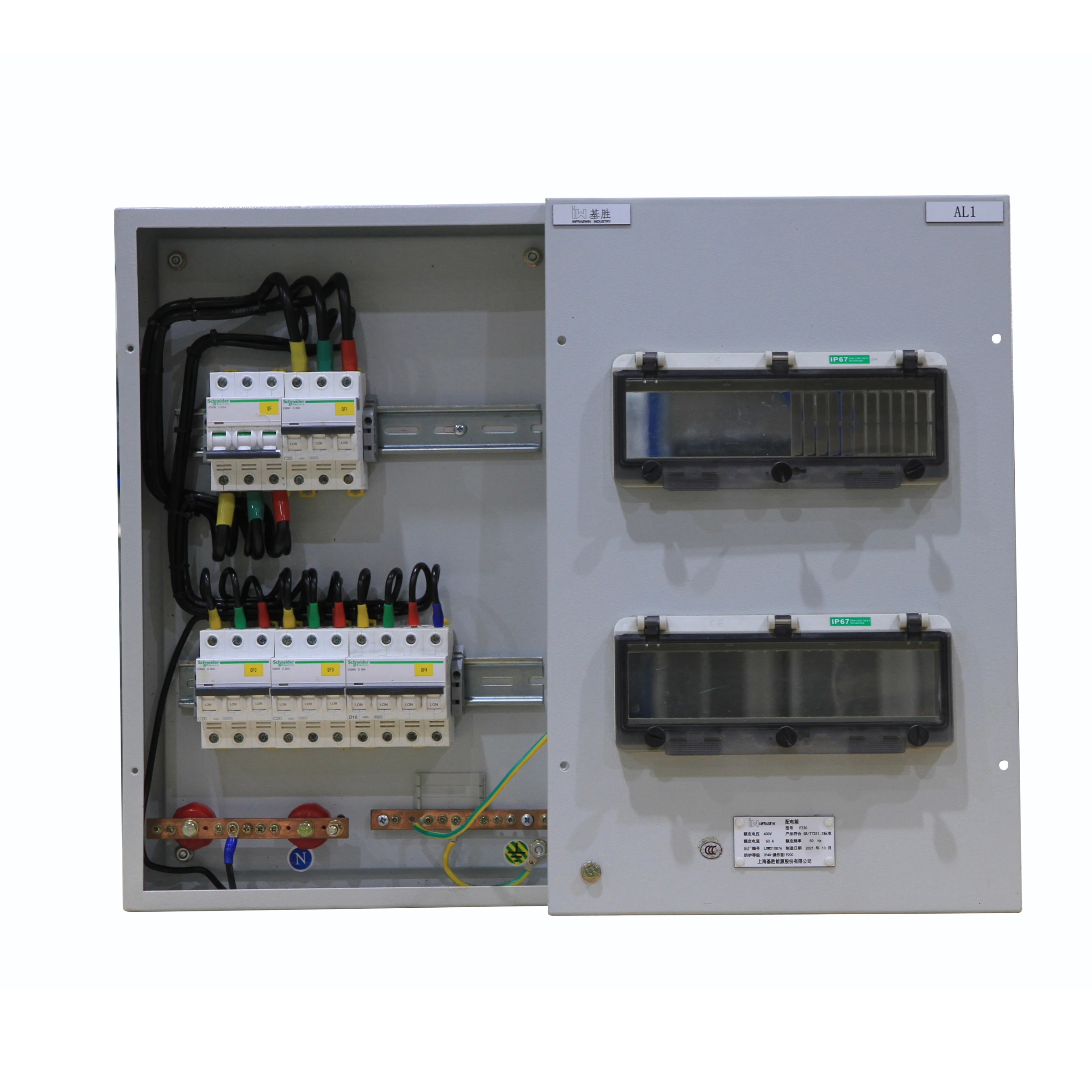

The PZ30 series is an indoor terminal distribution box product specially developed for the mid-to-high-end commercial and civil construction markets. It can be widely used for indoor terminal power distribution in various places such as villas, apartments, commercial buildings and hotel shopping malls. Its unique left and right door conversion without any tools allows customers to have personalized choices. The design of the cover freely adjusting the parallelism can ensure the perfect close contact between the face cover and the wall surface even without professional tools. Rails are installed in the box to configure terminal power distribution protection products, and the in-wall type can be equipped with lifting and adjusting rails; the in-line structure can be equipped with such as disconnecting switch, leakage protectors, molded case circuit breakers, and other DIN rail mounting components wire entry device for direct cable connection.
■ Even if the cabinet is tilted, the cover can be adjusted to keep the cover level forever.
■ Even if the box is too deep, you can adjust the cover fixing screws to make the cover and the wall fit.
■ Knockout holes design, flexible application.
■ The frame can be easily disassembled, and the installation and maintenance are convenient.
■ Even if the cabinet is tilted, the cover can be adjusted to keep the cover level forever.
■ Even if the box is too deep, you can adjust the cover fixing screws to make the cover and the wall fit.
■ Knockout holes design, flexible application.
■ The frame can be easily disassembled, and the installation and maintenance are convenient.
Products are widely used in high-rise buildings, residences, stations, ports, airports, hospitals, theaters, large commercial sites and industrial and mining enterprises.
The number of outgoing circuits is 6~72 modulus, which meets the needs of users.
PZ30 distribution box is divided into two types: wall-mounted (exposed installation) and embedded (concealed installation). According to different needs of users, the wall-mounted type installs a hanger on the wall and directly hangs the distribution box on the wall. Embedded needs to be opened on the wall, and the distribution box is embedded in the wall. The panel of the distribution box is flush with the wall, and the effect is more beautiful.
Company Profile
Our Advantages
Certificate
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Do your products have export qualifications?
A1: Our products comply with IEC standards, and have passed UL508A certification (North America) and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider with 14 years experience, and a listed company on the NEEQ. According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense.
A1: Our products comply with IEC standards, and have passed UL508A certification (North America) and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider with 14 years experience, and a listed company on the NEEQ. According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense.
