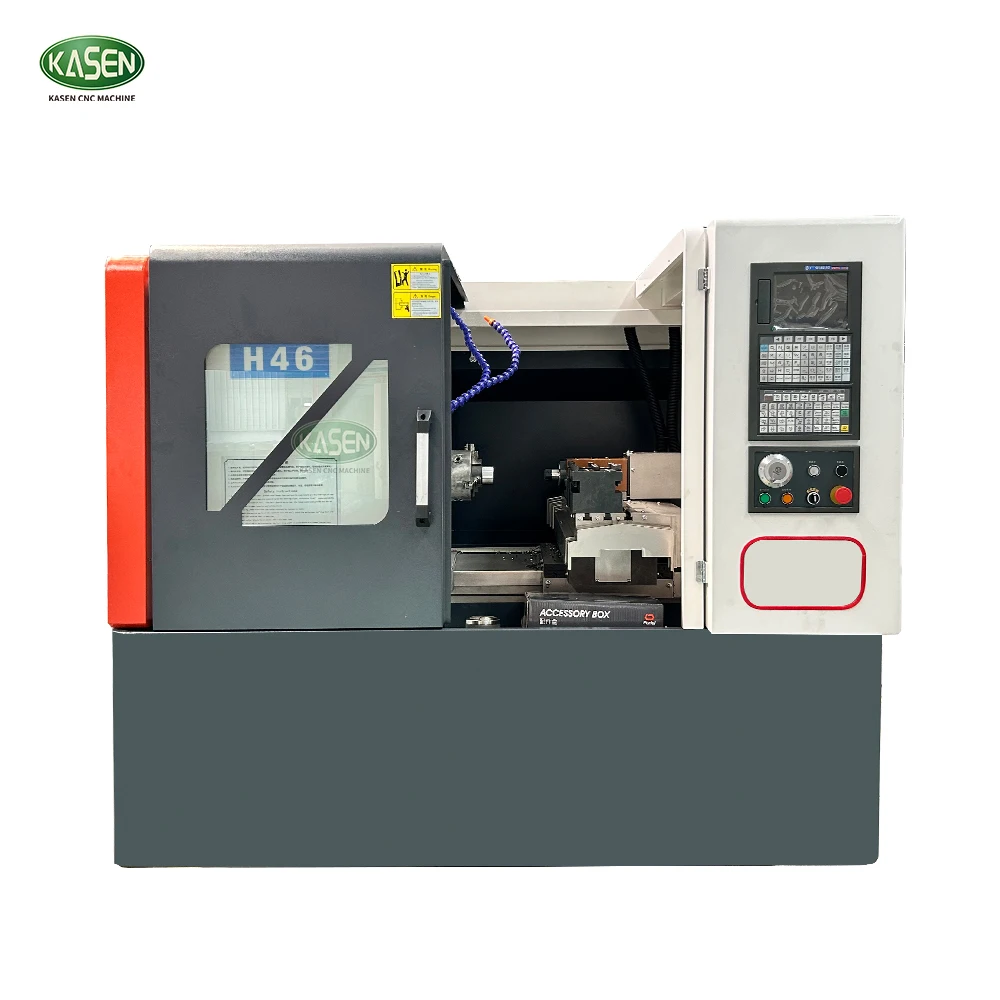

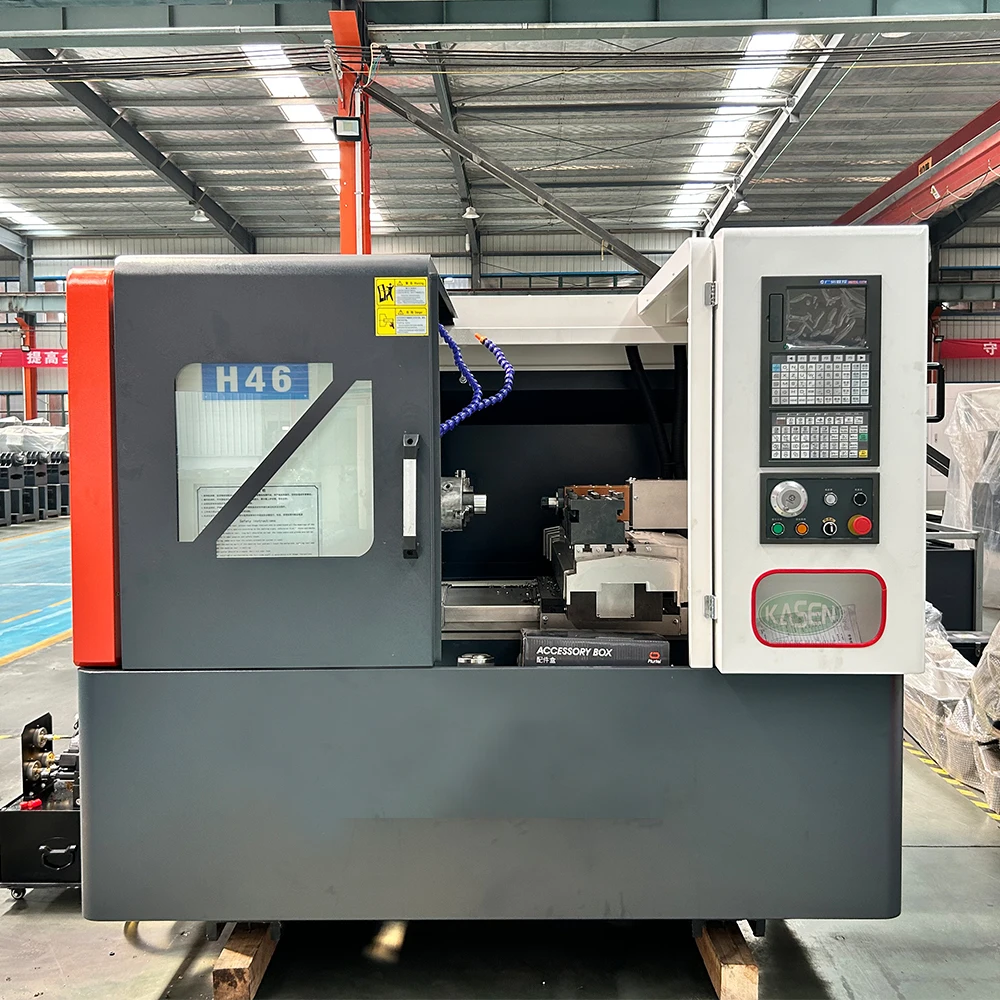

china low price metal small cnc lathe H36 H46
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (11000009853844):
Product Overview
Description
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece ,and could also turn various threads , circle arc , circular cone ,inside and outside surface of revolved body . This machine is widely used in sanitary .valve , electrical appliance ,instrument , automobile, motorcycle , bearing and so on .
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece ,and could also turn various threads , circle arc , circular cone ,inside and outside surface of revolved body . This machine is widely used in sanitary .valve , electrical appliance ,instrument , automobile, motorcycle , bearing and so on .
Standard Configuration :

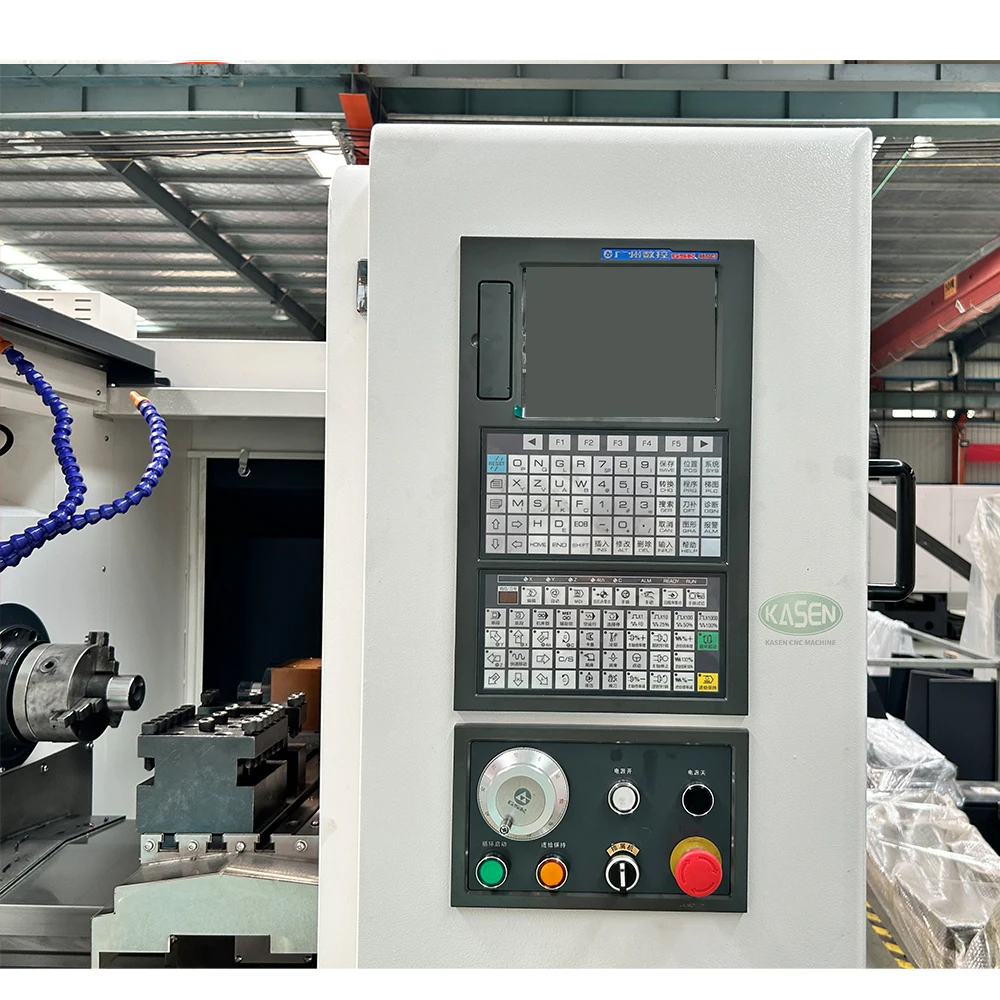

1. System: GSK
2. Frequency spindle motor
3. Stepless speed changer

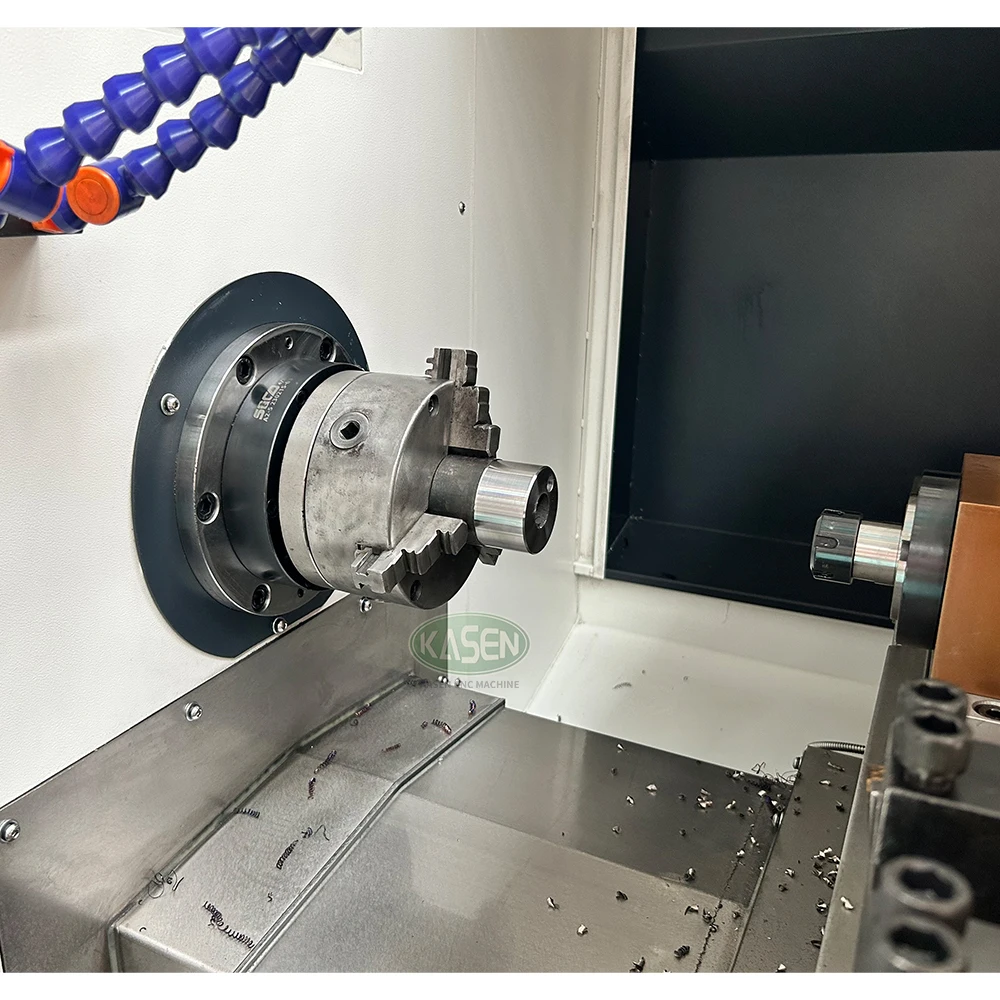

4. Spring chuck
5. Linear guides
6. Lighting system
7. Cooling system
1. System: GSK
2. Frequency spindle motor
3. Stepless speed changer
4. Spring chuck
5. Linear guides
6. Lighting system
7. Cooling system
8.Automatic lubrication system
Optional Configuration:
System | KND ,Siemens ,Fanuc etc |
Spindle motor | Servo spindle motor |
Tool post (turret) | Electric 6-station / 8-station /Gang type 4-station |
Chuck | Spring chuck ,Hydraulic chuck ,pneumatic chuck |
Feeder | Automatic Bar feeder |
Conveyor | Automatic chip conveyor |
Specifications of CNC Lathe machine
Specifications | Units | H36 | H46 |
Max.swing over bed | mm | 360 | 460 |
Max.swing over cross slide | mm | 110 | 140 |
Max.processing length | mm | 250 | 330 |
X/Z axis travel | mm | 340/250 | 360/330 |
Spindle nose | A2-5 | A2-5 | |
Spindle bore | mm | 48 | 56 |
Bar capacity | mm | 38 | 42 |
Max. spindle speed | rpm | 2500/4000 | 3500 |
Chuck size | mm | 6 | 8 |
Spindle motor | KW | 4 | 5.5 |
X/Z axis repeatability | mm | ±0.003 | ±0.003 |
X/Z axis feed motor torque | N.m | X:4 Z:4 | X:4 Z:6 |
X/Z axis rapid traverse | m/min | 15/15 | 15/15 |

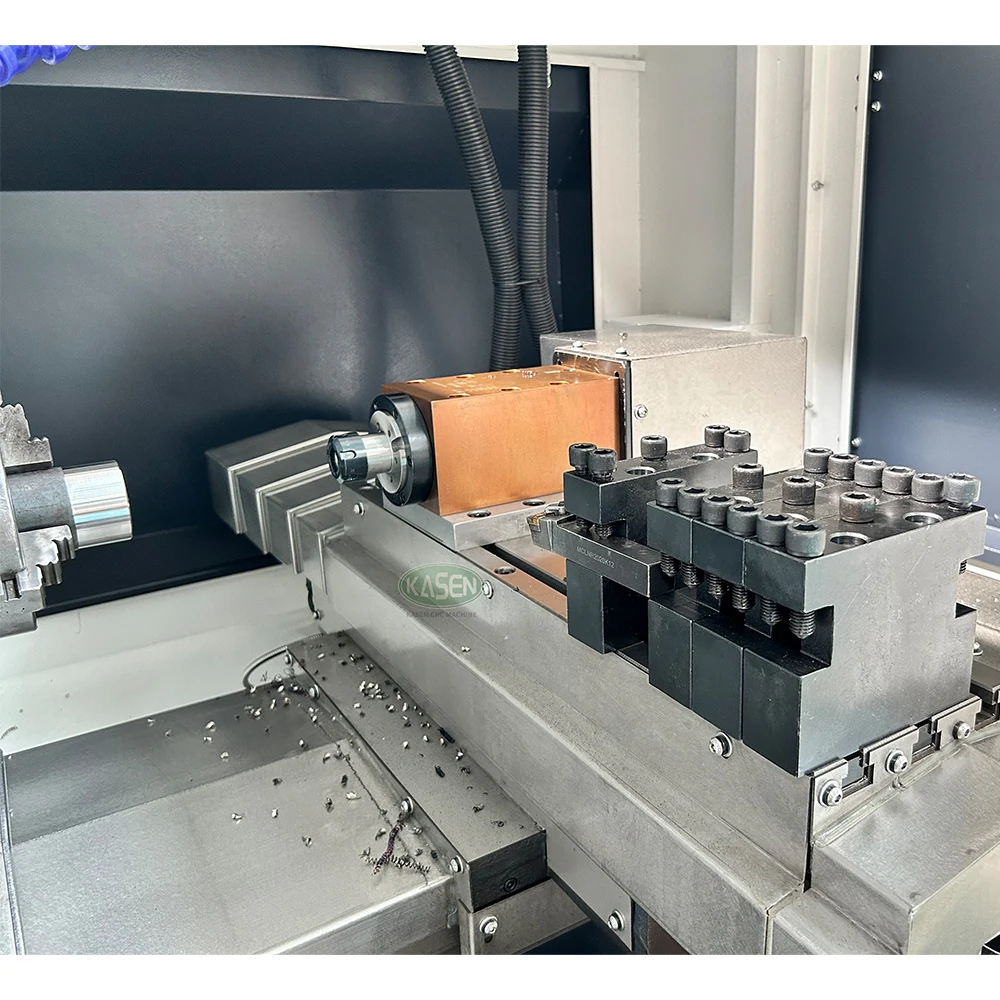

Tool post type | Row of knive4 | Row of knive4 | |
Cutting tool shape size | mm | 20x20 | 25x25 |
Guide form | linear guideway | linear guideway | |
Total power capacity | KVA | 8 | 9.5 |
Machine dimension(LxWxH) | mm | 2000/1400x1580 | 2335x1815x1605 |
Net weight | kg | 1500 | 2200 |
Product Description

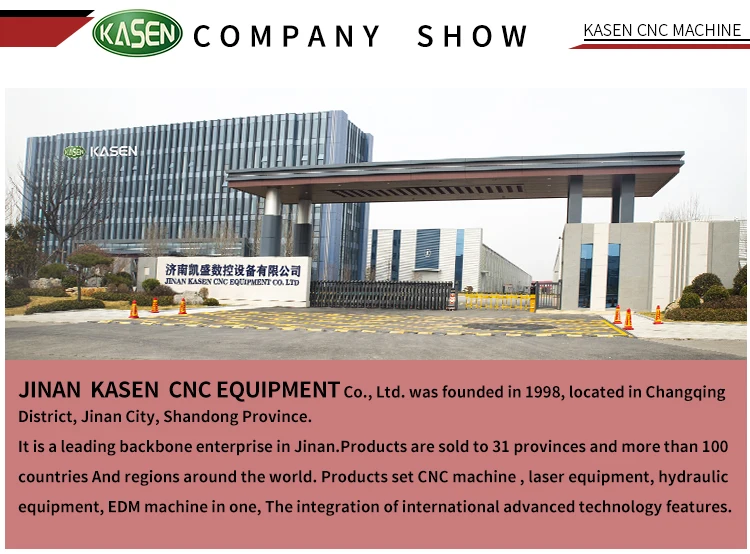

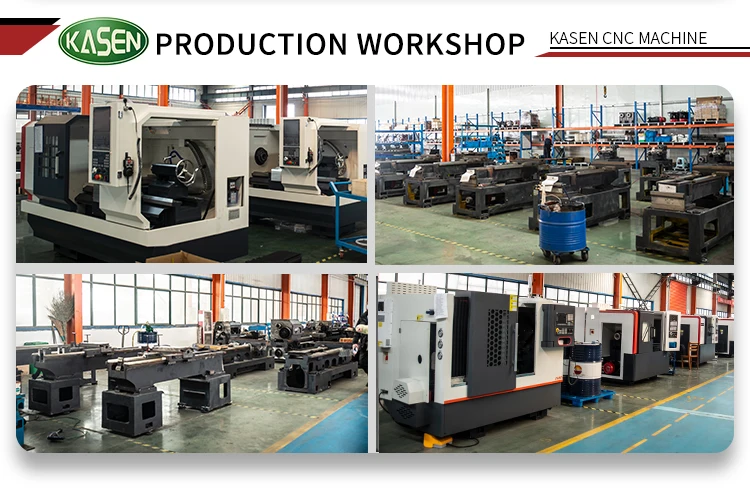

Company Profile
Certifications
Exhibition
Customer visiting
Packing & Delivery
FAQ
1: Where is your company
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
