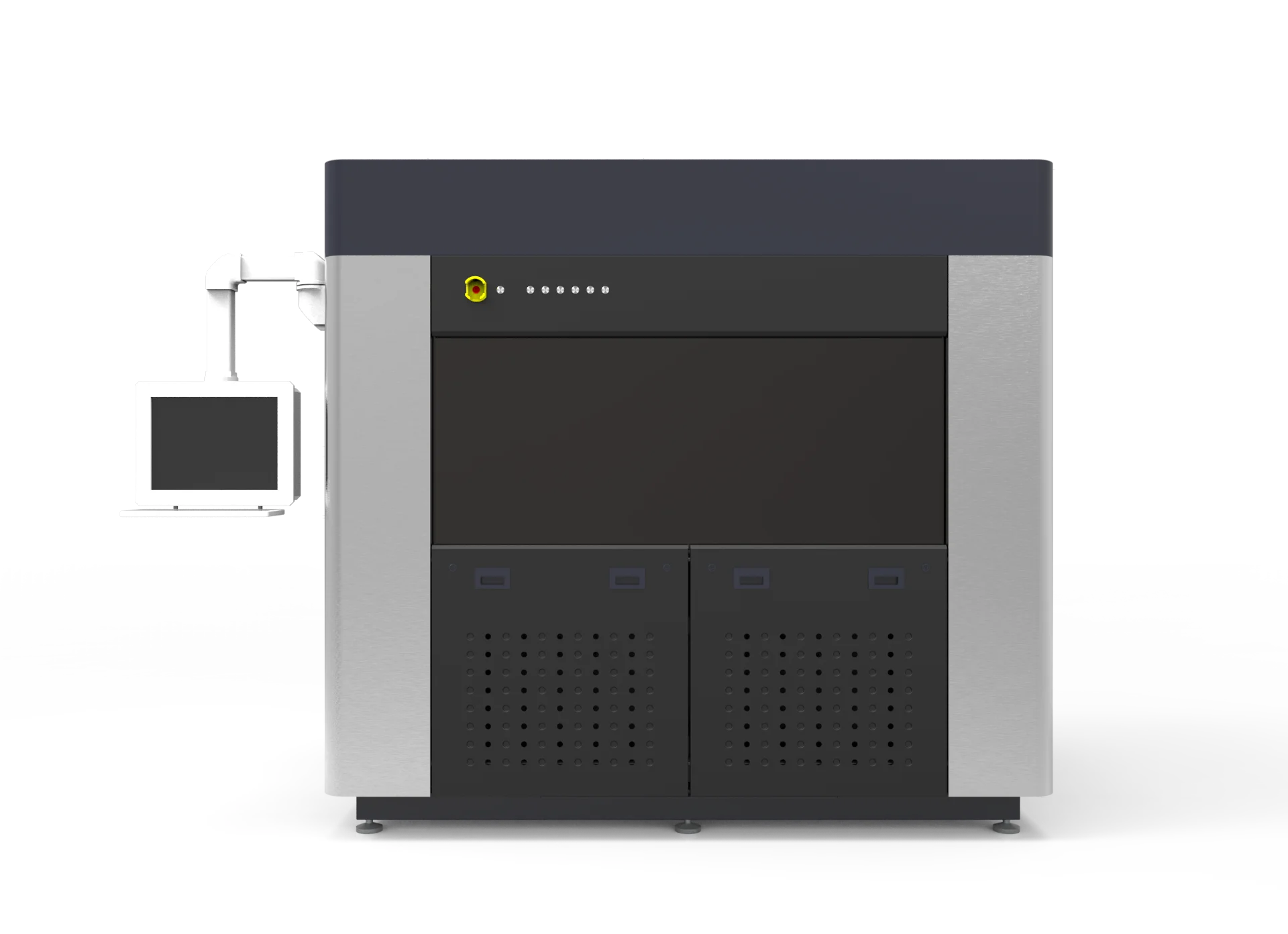

Dual laser fast printing speed stereo lithography kings SLA 3d printers with laser scanner
- Category: >>>
- Supplier: Shenzhen Jinshi 3d Printing Technology Co. Ltd.
Share on (11000009856849):
Product Overview
Description
Product Description

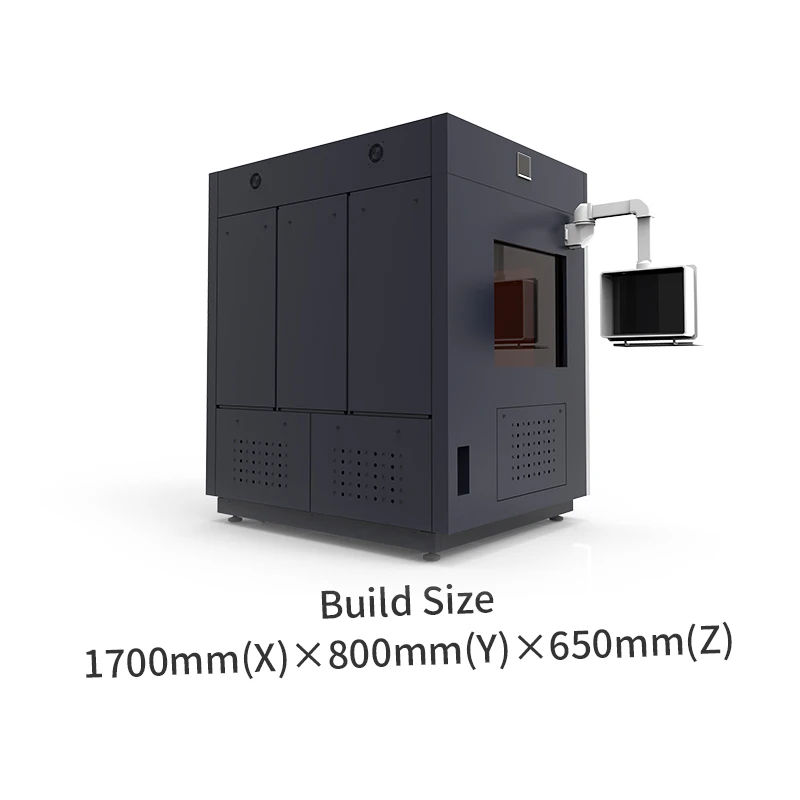

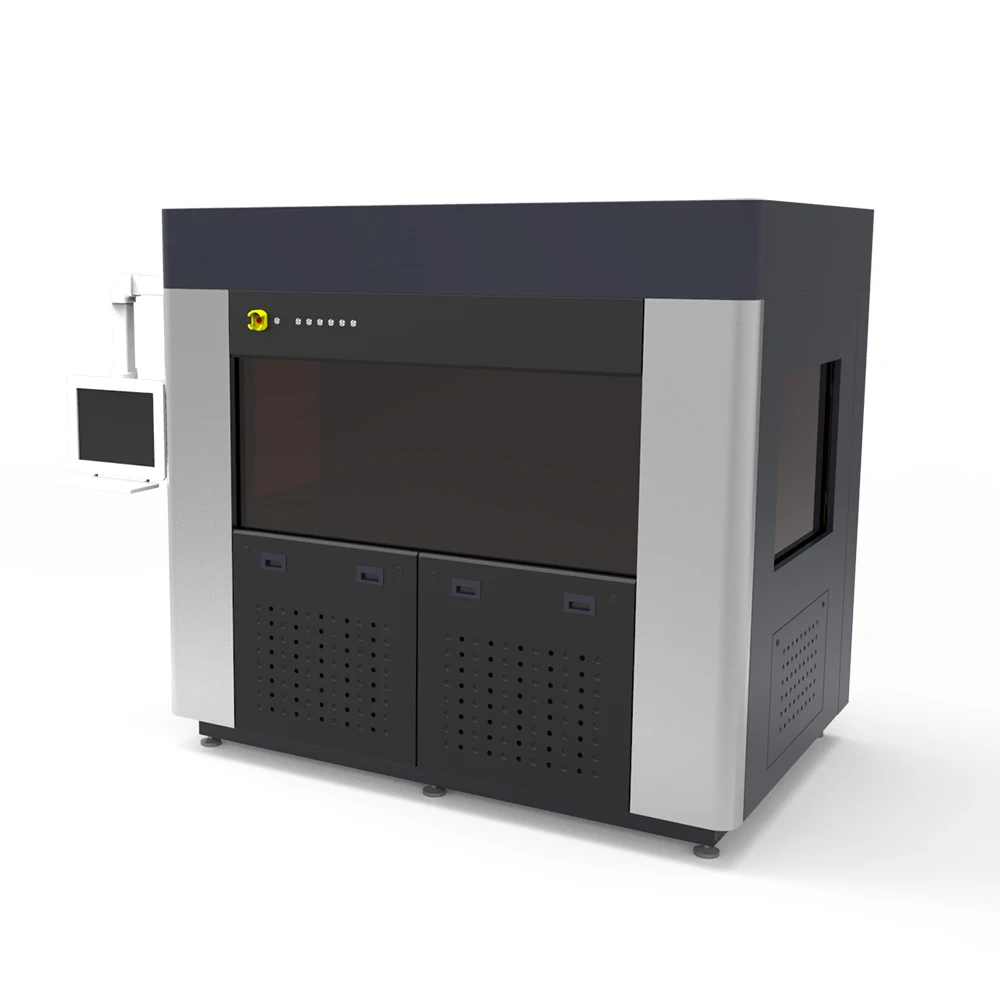

Industrial-grade Building Capacity.Our Kings-1700Pro is the largest industrial SLA 3D printer in China with a maximum printing size of 1700 x 800 x 600 mm.
The Kings 1700pro SLA 3D printer can satisfy most industrial design and prototyping needs with the lowest unit cost. And it has dominant level advanatages over other SLA printers on printing speed and accurancy for large size items and batch printing. Saves lots of time.
Top Quality Components Inside the solid steel frame sits a highly stable hollow square marble recoater frame, marble evevator holder and marble scanning system base (never deformation) with aerospace grade aluminum Z-axis module, to minimize vibration and maximize precision.
True-to CAD Accuracy and Surface Finish.
Equipped with fast and intuitive printer interface software, and a galvanometer optical system by ScanLab Germany, the Kings1700pro displays top scanning speeds(max 15m/s) and enhances production efficiency significantly.
Surface roughness as low as 0.05 μm makes post processing simple and efficient.
Wide Choice of Materials. A selection of over 10 different custom-designed photosensitive resin printing materials with unique characteristics for functional prototypes and low-volume manufacturing.
TWO years warranty. Whenever there is any problem, our professional engineers will offer on-site repair service.
Made-To-Measure Customization. We offer a considerable selection of customizations free of charge. Available upgrades on Kings control software, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.
Basic info. | Kings-1700Pro |
Max Printing Size | 1700*800*600mm |
Machine Size | 247cm(W)*168cm(D)*230cm(H) |
Rated Power Consumption | 2.2KVA |
Machine Weight | 3600kg |
First Tank Resin | 1350kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm (Variable Beam) |
Max Scanning Speed | 15m/s |
Layer Thickness | 0.05mm~0.20mm |
Laser System | US Brand OPTOWAVE |
Laser Type | Solid-state frequency tripled Nd: YV04 |
Wave length | 355nm |
Laser Power | Resin Surface Power≥ 300 mW |
Scanning System | Germany Brand Scanlab |
Scanning Mode | Germanic galvanometer scanner |
Variable Beam System | Galvo/Closed-loop |
Main Sturcture | Marble recoater frame, marble evevator holder and marble scanning system base |
Coating Mode | Intelligent position vacuum recoating |
Vertical Resolution Ratio | 0.0005mm |
Repeat Positioning Accuracy | ±0.01mm |
Motion Control System | Closed-loop |
Machine Control Software | KINGS 3D control software |
Input Data File Format | STL |
Operating System | Windows 7/10 |
Network Type and Protocol | Ethernet，TCP/IP |
Electrical Requirement | 200-240VAC 50/60Hz, single-phase,10A |
Ambient Temperature | 20-26ºC |
Relative Humidity | ＜40%，non-condensing |
Machine Warranty | 2 years (including laser) |
Free Accessories | UV curing box; dehumidifier, UPS, parts loading container and tool box |
Kings1700 Pro Application

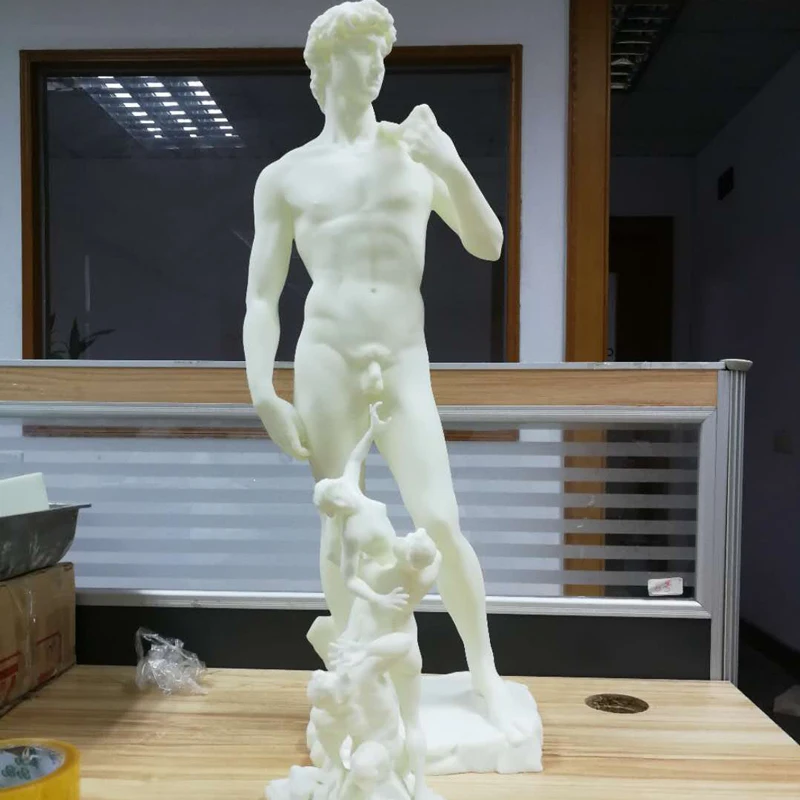

2. One-stop printing for large size items, such as sculptures, automative parts or prototypes and so on.
So when you print large items, you no longer need to firstly tear the files into several parts, print them separately and then glue them together.
SLA VS CNC
SLA 3D Printing | CNC | |
Process Feature | One-piece molding, batch printing | Multiple molding, single processing |
Molding features | 360 degree printing with any structure | 90 degree carving with simple structure |
Material utilization | Additive manufacturing, high utilization | Reduced manufacturing, high waste rate |
Develop time | 1-3 dyas | 10-15days |
Worker | one person can operate many machine, just 3 days to learn | One operator can watch max 3 machines, and need 6+ month training |
Environment | no pollution, no noise | Strong vibration, high noise, dust pollution |
Cost Trend | Costs continue to decrease | Material cost continue to increase |

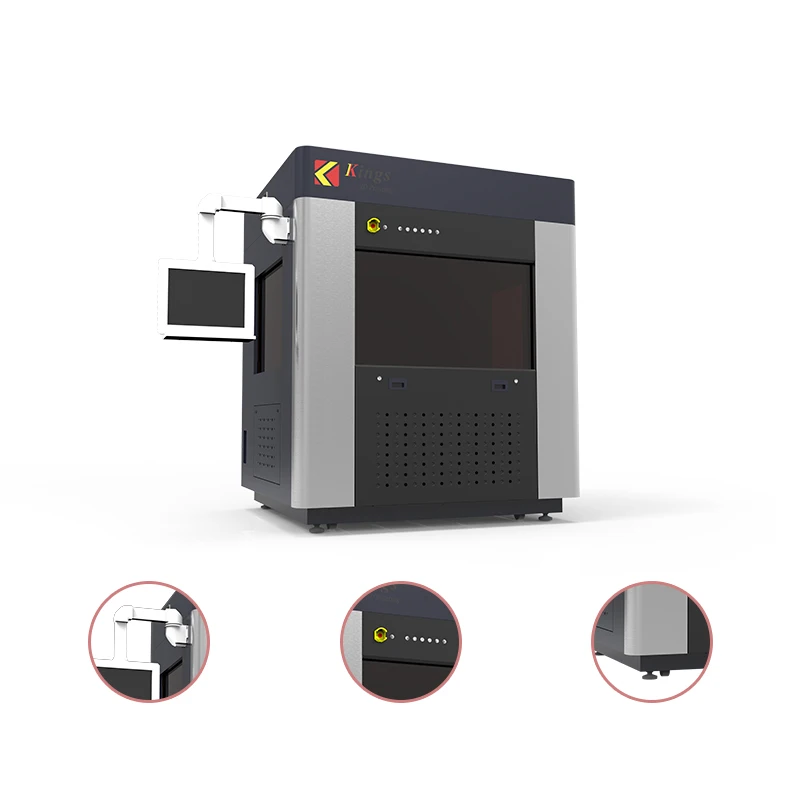

Kings SLA printers
Basic info. | Kings 3035Pro |
Max Printing Size | 300*350*350mm |
Machine Size | 94cm(W)*102cm(D)*192cm(H) |
Rated Power Consumption | 1.2KVA |
Machine Weight | About 780kg |
First Tank Resin | About 76kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm (Variable Beam) |
Max Scanning Speed | 15.0m/s |
Layer Thickness | 0.05mm~0.20mm |
Basic info. | Kings 450Pro |
Max Printing Size | 450*450*350mm |
Machine Size | 104cm(W)*117cm(D)*192cm(H) |
Rated Power Consumption | 1.2KVA |
Machine Weight | About 800kg |
First Tank Resin | About 146kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm(Variable Beam) |
Max Scanning Speed | 15.0m/s |
Layer Thickness | 0.05mm~0.20mm |
Basic info. | Kings 6035Pro |
Max Printing Size | 350*600*350mm |
Machine Size | 108cm(W)*95cm(D)*198cm(H |
Rated Power Consumption | 1.5KVA |
Machine Weight | About 880kg |
First Tank Resin | About 140kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm(Variable Beam) |
Max Scanning Speed | 15.0m/s |
Layer Thickness | 0.05~0.20mm |
Basic info | Kings 600Pro |
Max Printing Size | 600*600*400mm |
Machine Size | 118cm(W)*129cm(D)*224cm(H) |
Rated Power Consumption | 1.5KVA |
Machine Weight | about 1200kg |
First Tank Resin | about 240kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm (Variable Beam) |
Max Scanning Speed | 15.0 m/s |
Layer Thickness | 0.05mm~0.20mm |
Basic info. | Kings 800Pro |
Max Printing Size | 800*800*500mm |
Machine Size | 140cm(W)*149cm(D)*247cm(H) |
Rated Power Consumption | 1.8KVA |
Machine Weight | 1900kg |
First Tank Resin | 500kg |
Beam Size (diameter @1/e2) | 0.06-0.8mm (Variable Beam) |
Max Scanning Speed | 15.0 m/s |
Layer Thickness | 0.05mm~0.20mm |
Accessories and resins
UPS
1set
Loading part container
1 set
UV solidifying box
1 set
Dehumidifier
1 set
Resin
First full tank resin
Resin Model | Material Features | Resin Color | ||
ABS like resin(Finish product similar to ABS) | ||||
KS408 | Delicate surface, temperature resistance 45℃, good toughness | White | ||
KS608 | Temperature resistance 65℃, moistureproof, good strength and accuracy in humid condition | Yellow | ||
KS408B | Delicate surface, good solidity, temperature resistance 55℃ | Brown | ||
PMMA like resin(Finish product similar to PMMA) | ||||
KS158T | Transparent, moistureproof & shrinkageproof, temp resistance 60℃, toughness 15% lower than KS408 | Transparent | ||
Silicone Like Resin(Finish product is soft) | ||||
KS198S | Low viscosity, high flexibility and high accuracy | White | ||
Shenzhen Kings 3D Printing Technology Co., Ltd is a high-tech enterprise providing scientific and efficient 3D printing solutions.Kings has been devoted to marketized application of 3D printing since 2008 and has been growing rapidly ever since
As a leading brand of industrial SLA 3D printers, Kings runs not only the largest R&D and manufacturing base for SLA 3D machines and printing materials but also one of the largest customized 3D printing service center in China
We are the first 3D printing enterprise that made a technical breakthrough in the shoe industry. The application of high toughness material and the innovation in Orang 2.3 software have greatly improved the efficiency of the shoe molds and greatly cut the cost.
Kings has established comprehensive marketing and service channels. Professional after-sale engineers are sent for programming training, on-site machine installation and parameter testing.
As a leading brand of industrial SLA 3D printers, Kings runs not only the largest R&D and manufacturing base for SLA 3D machines and printing materials but also one of the largest customized 3D printing service center in China
We are the first 3D printing enterprise that made a technical breakthrough in the shoe industry. The application of high toughness material and the innovation in Orang 2.3 software have greatly improved the efficiency of the shoe molds and greatly cut the cost.
Kings has established comprehensive marketing and service channels. Professional after-sale engineers are sent for programming training, on-site machine installation and parameter testing.
We are honored as a high-tech enterprise in 2017, and it is another honor that we are reported by CCTV(national TV station) as a representative of high-tech enterprises.
Our service
1. Fast Response
Your inquiry will be replied within 12 hours by professionals
2. On-site installation and training service
When you purchase our printers, free on-site installation and training service will be offered by our professional engineers
3. Two years warranty
We offer two years warranty for our 3D printers. Whenever there are any problems, our engineers will offer on-site repair service
Your inquiry will be replied within 12 hours by professionals
2. On-site installation and training service
When you purchase our printers, free on-site installation and training service will be offered by our professional engineers
3. Two years warranty
We offer two years warranty for our 3D printers. Whenever there are any problems, our engineers will offer on-site repair service
4.Shipping and leadtime:
Our lead time is around 15 working days. We can offer you a very short leadtime
The printers will usually be delivered by sea
