Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой
Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой

Carretilla elevadora 2 тонны 2,5 тонн дизельный вилочный погрузчик с контейнерной мачтой

Share on (11000009859848):


Price:7 885,00 $ - 8 215,00 $

Quantity:


Product Overview

Description



Product Description


carretilla elevadora 2 ton 2.5 ton diesel engine forklift with container mast








Engine
China Xinchai C490BPG engine, Japanese ISUZU  or Mitsubishi Engine
Transmission
Electric hydraulic automatic transmission
Mast
standard duplex 3m mast(3m-6m duplex or triplex mast are optional)
Tires
Air tires (solid tires are optional)
Forks
standard 1070mm forks, fork extension are optional
Seat
Standard PU seat with safety belt, luxury fully suspension seat optional
Attachment
side shifter, fork positioner, all kinds of clamps such as bale clamp, paper roll calmp, etc.


carretilla elevadora 2 ton 2.5 ton diesel engine forklift with container mast
Specifications
Unit
FD20H
FD25H
1
Features
Power type
-
Diesel
Diesel
2
Rated load
kg
2000
2500
3
Load center
mm
500
500
4
Lifting Height
mm
3000
3000
5
Free lifting height
mm
135
135
6
Fork size
LxWxT
mm
1070X122X40
1070X122X40
7
Mast Tilt Angle
Front/Read
°
6/12
6/12
8
Min. Turning Radius
mm
2240
2240
10
Min. Ground Clearance
Mast
mm
110
110
11
Overhear Guard Height
mm
2090
2090
12
Front Overhang
mm
473
473
14
Performances
Max. Travelling Speed
loaded
Km/h
19
19
15
Max. Lifting Speed
loaded/empty
mm/s
490/510
490/510
16
Max. Traction Force
loaded
KN
17
17
17
Max. Climbing Ability
°
20
20
18
Dimension
Overall Length
without fork
mm
2570
2570
19
Overall Width
mm
1160
1160
20
Mast Lowered Height
mm
1990
1990
21
Mast Extended Height
mm
4000
4000
22
Chassis
Tyre
Front
-
7.00-12-12PR
7.00-12-12PR
23
Rear
-
6.00-9-10PR
6.00-9-10PR
24
Wheel Base
mm
1600
1600
25
Wheel Thread
Front/Rear
mm
970/970
970/970
26
Weight(without load)
kg
3350
3800
27
Powertrain
Battery
V/Ah
12/90
12/90
28
Engine
Model
-
XC490BPG
XC490BPG
29
Rated Power
KW/r.p.m
37/2650
37/2650
30
Rated Torque
N.m/r.p.m
148/2000
148/2000
31
No. of cylinder
-
4
4
32
Bore x Stroke
mm
90 x 100
90 x 100
33
Displacement
L
2.54
2.54
34
Fuel Tank Capacity
L
60
60
35
Transmission/Shift
-
1/1 Automatic transmission
36
Operation Pressure
MPa
17.5
17.5


Detailed Images


Japanese ISUZU Engine or Mitsubishi Engine

Auto Electric Hydraulic Transmission System

Waterproof Overhead Guard



Luxury Suspension Seat with safety belt

LED Warning Light

Light Protection Frame



Cylinder Dustproof Protection


Triangle wider view back mirror

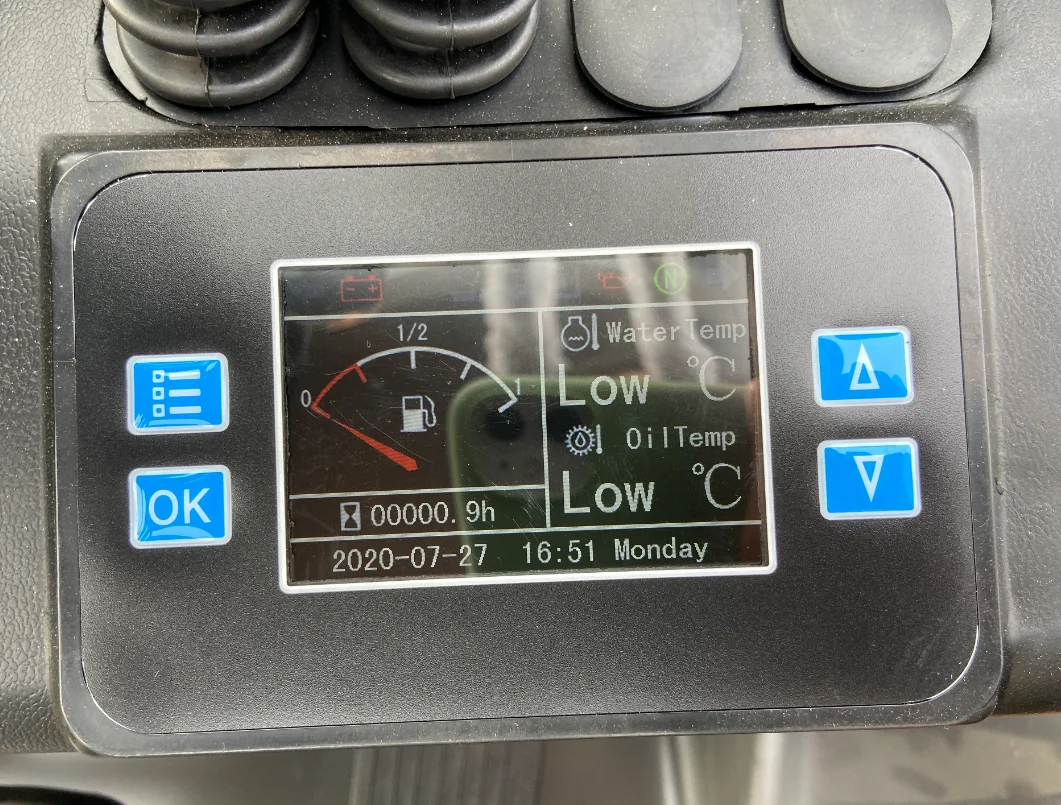

Waterproof LCD Dispaly



3000mm - 6000mm Lifting height Mast


Cooper Radiator with longer service life

Air tires or optional Solid tires




Optional Attachments


SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.




Quality Control


SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.


Tilt angle test
Wheel hug test
Brake Line Test


Climbing test
Lifting Test
Turning Test


Package and Delivery


forklift 2000kg 2500kg 3000kg 3m 4m 4.5m Seated Diesel forklift Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 3 Units, 1*40'GP - 6 Units




Successful Cases


SNSC --"Beyond your needs!"
SNSC as a professional manufacturer of  industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.


2017.9, 4 units SNSC FD30 ISUZU diesel forklifts  to Belgium
2019.5, 8pcs FD30 with ISUZU C240 engine, side shifter to Libya
2019.6, 5pcs  SNSC FD30 diesel forklifts with triplex 5m mast  to Egypt


2020.3, 8pcs FD35 with ISUZU C240 engine and Triplex 4.5m mast to France
2020. 6, 6pcs FB20H with fork positioner and side shifter, triplex 5m mast, to Canada
2020.8, 6pcs FD25H with ISUZU C240 Engine, triplex 4m mast to Argentina.


Our Factory


We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.




Material Preparation Workshop
Structure Workshop


Painting Workshop
Assembly Workshop


Contact Us


Any interest, please feel free to contact Mrs. Vicky. Very glad to serve you at any time.
