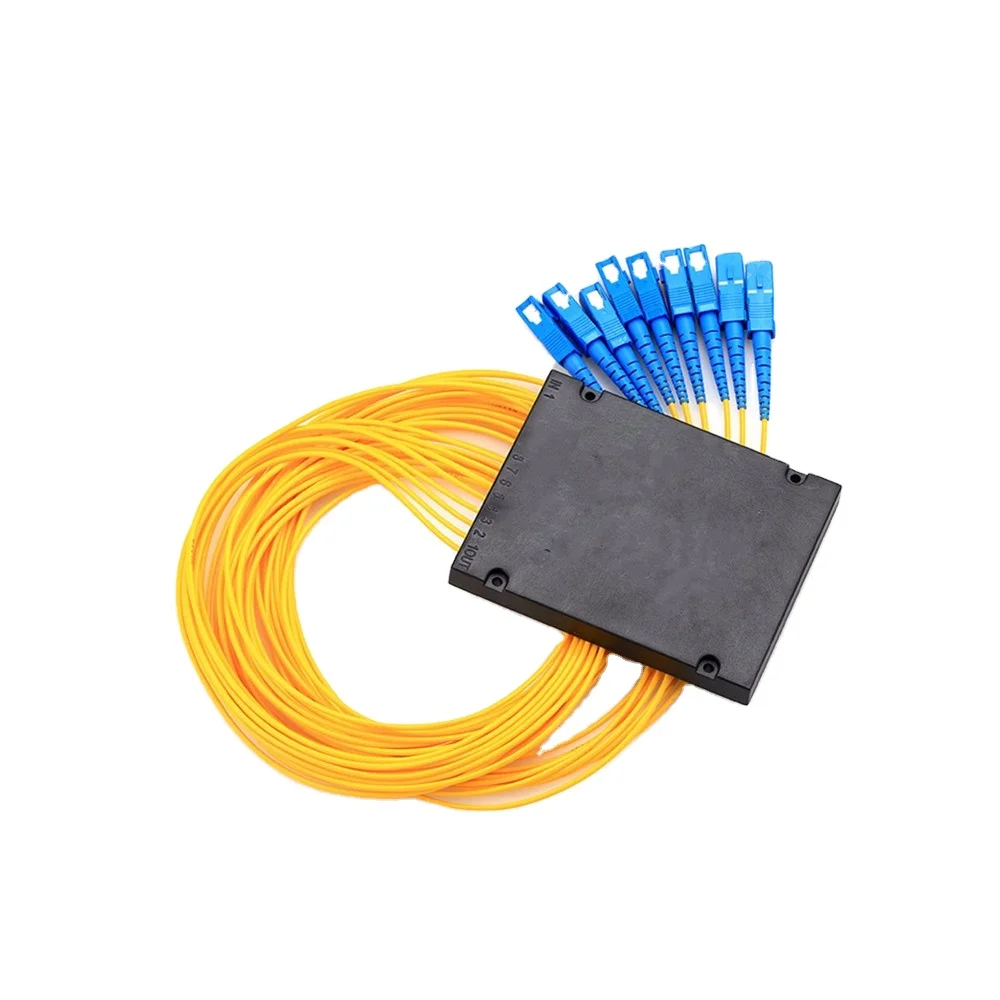

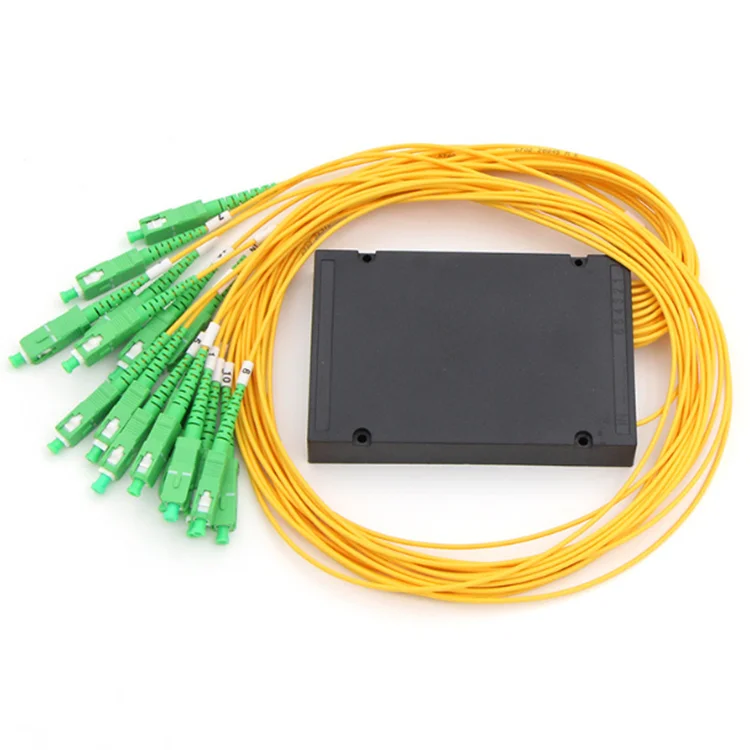

1x4 1x8 1x16 1x32 1x64 Fiber optic equipment 1260 to 1650nm ftth optical fiber plc splitter
- Category: >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (11000009860882):
Product Overview
Description

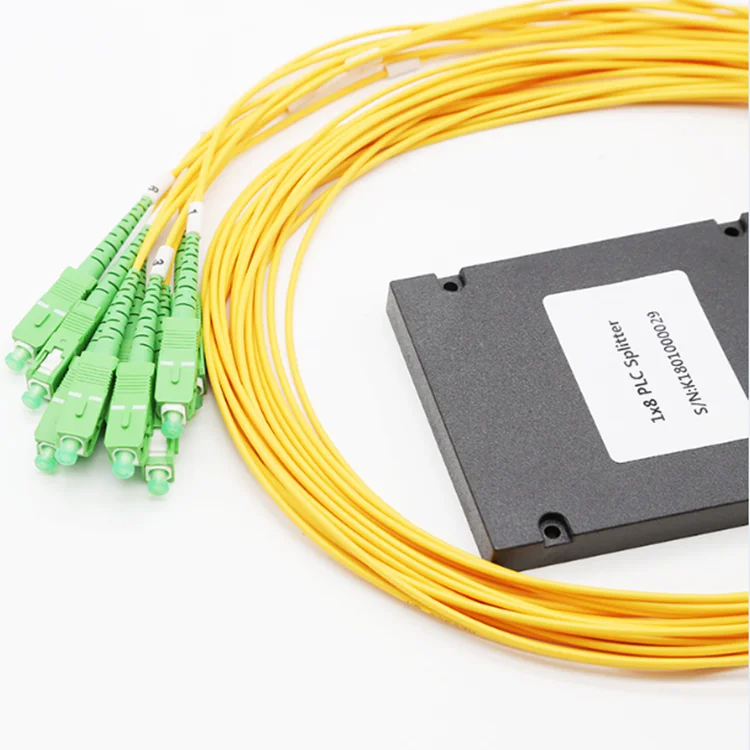

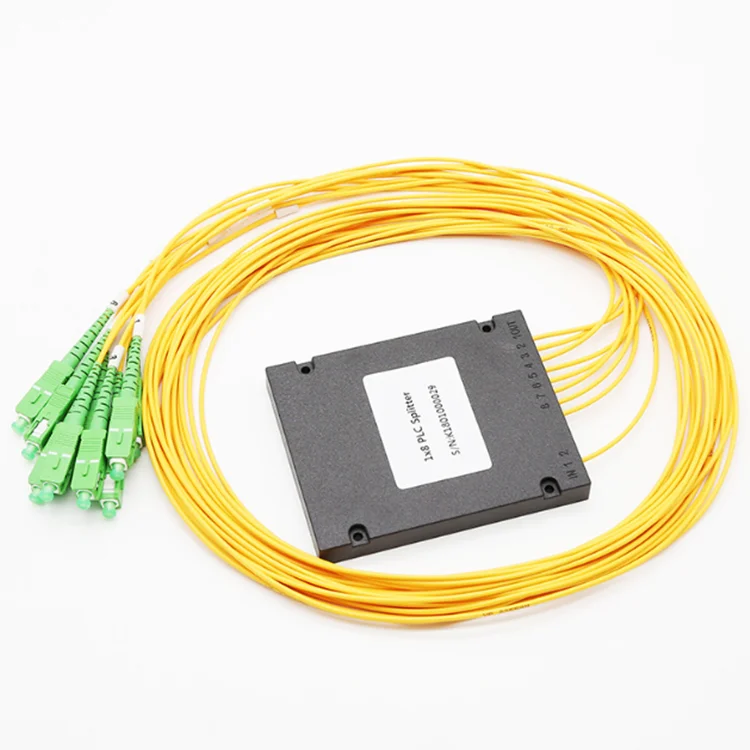

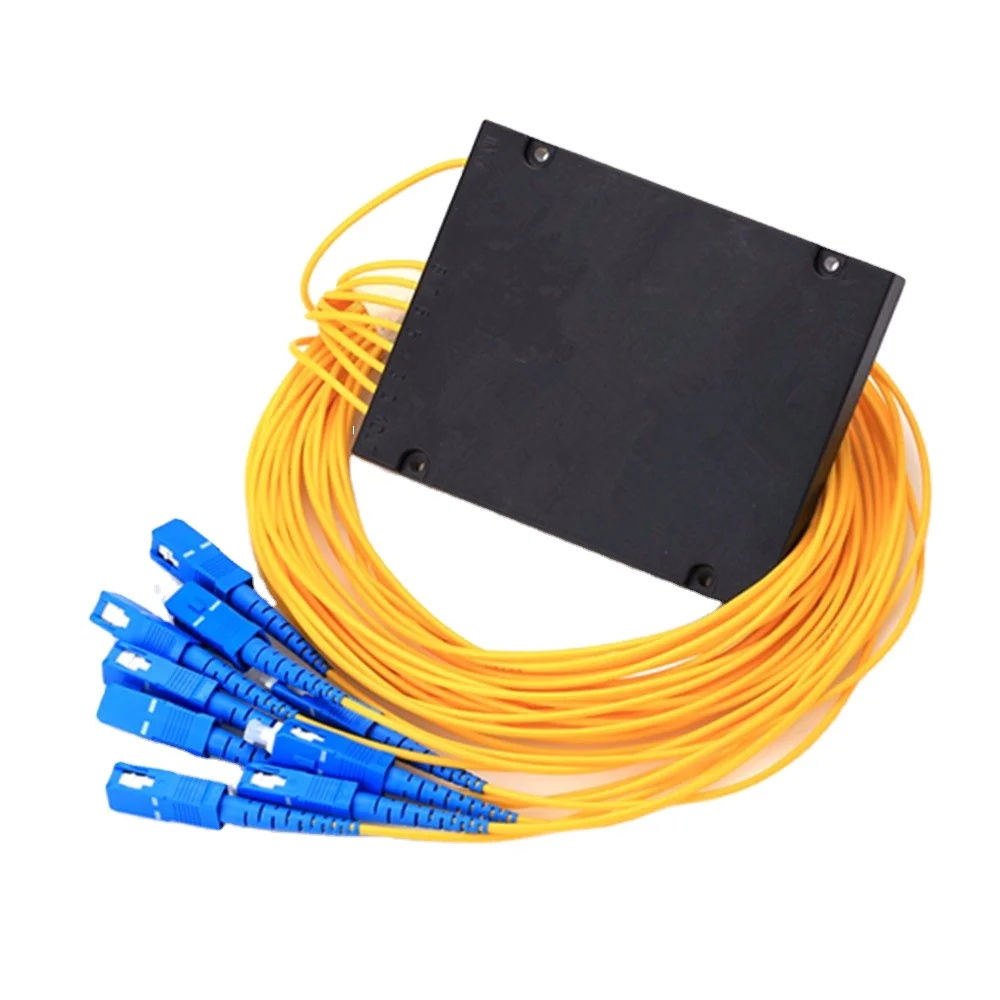

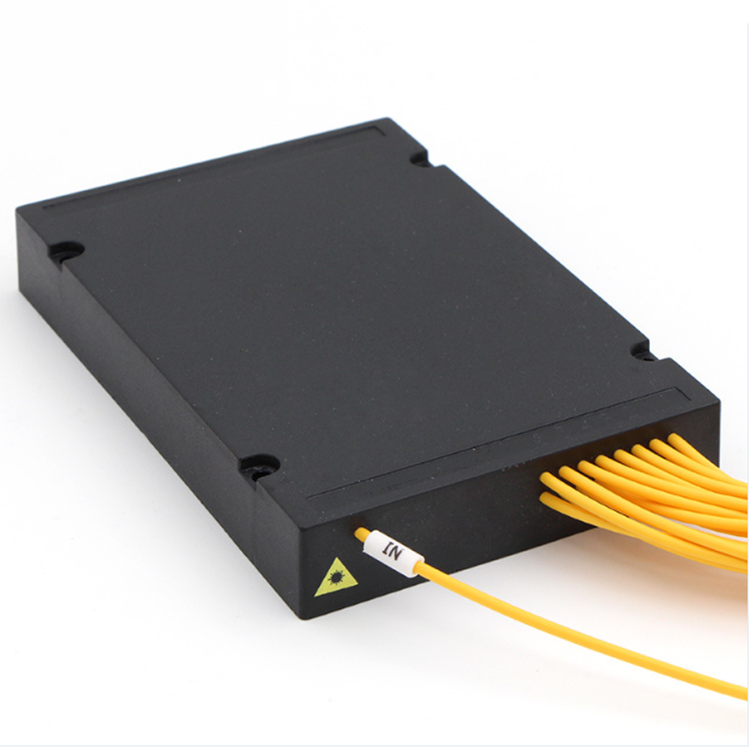

1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.

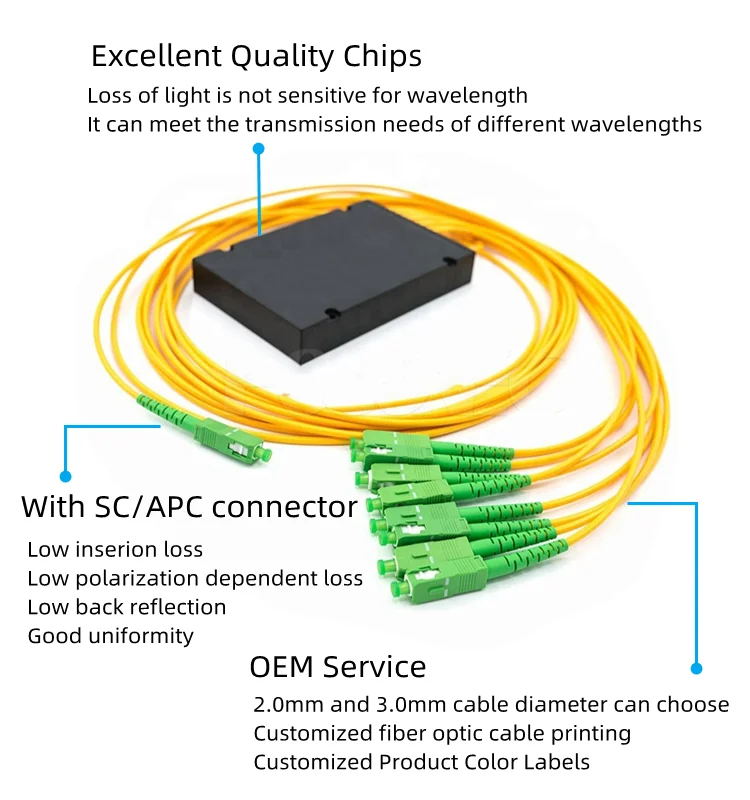

2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

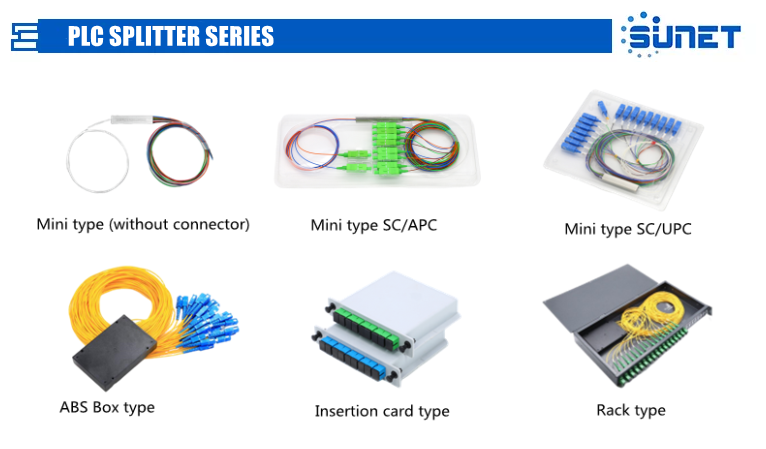

3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) | ≥55 | ||||||||
Return Loss (dB) | UPC ≥55 APC ≥60 | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
