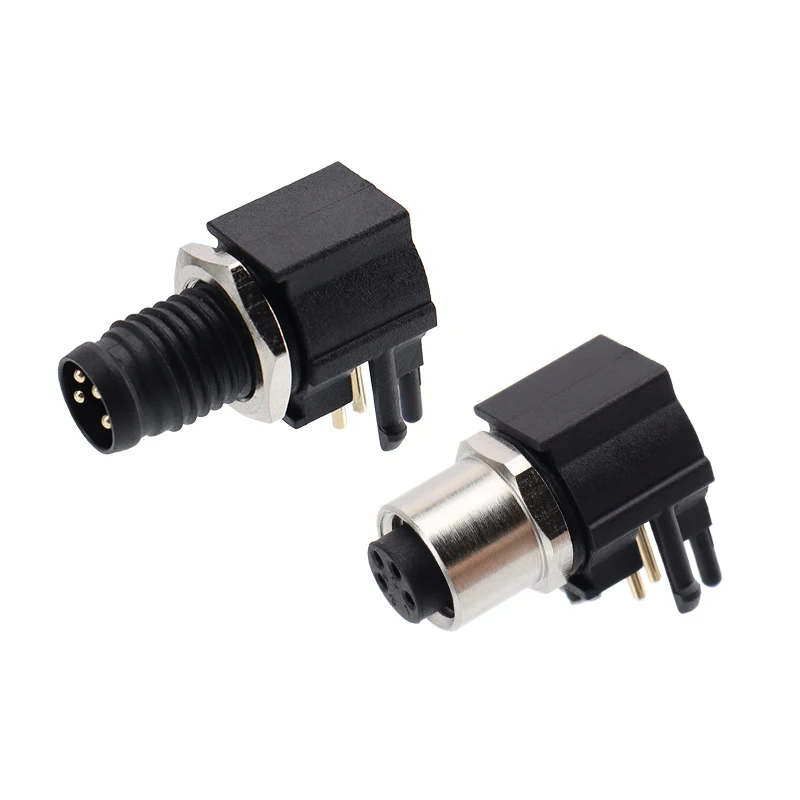

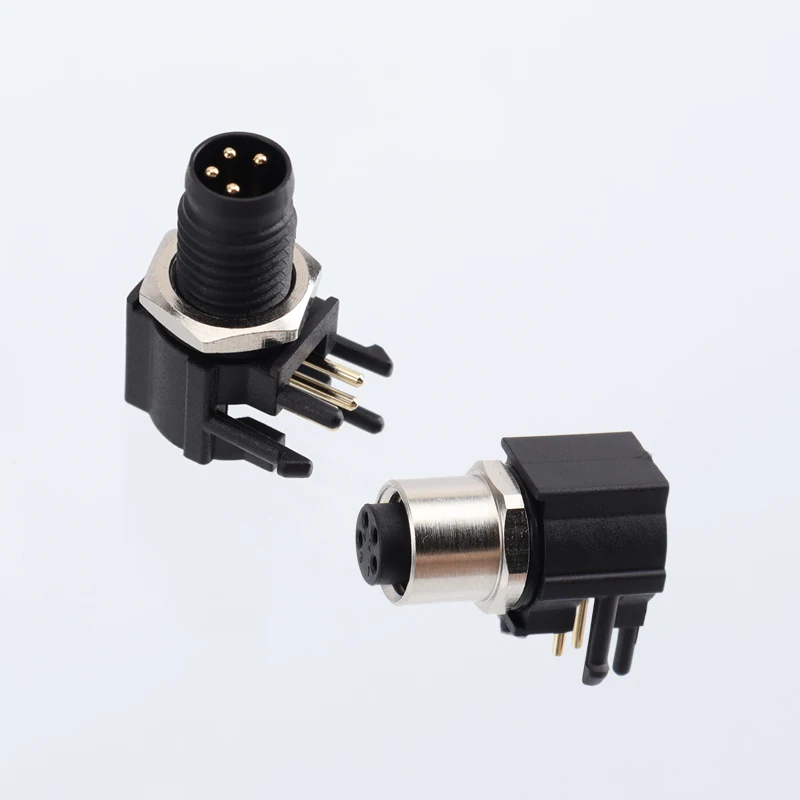

M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector
M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector
M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector
M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector
M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector
M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector

M8 panel mount plastic connector solder type waterproof IP67 3pin 4pin male female angle 90 degrees M8 pcb connector

Share on (11000009894661):


Price:

Quantity:


Product Overview

Description



Title goes here.

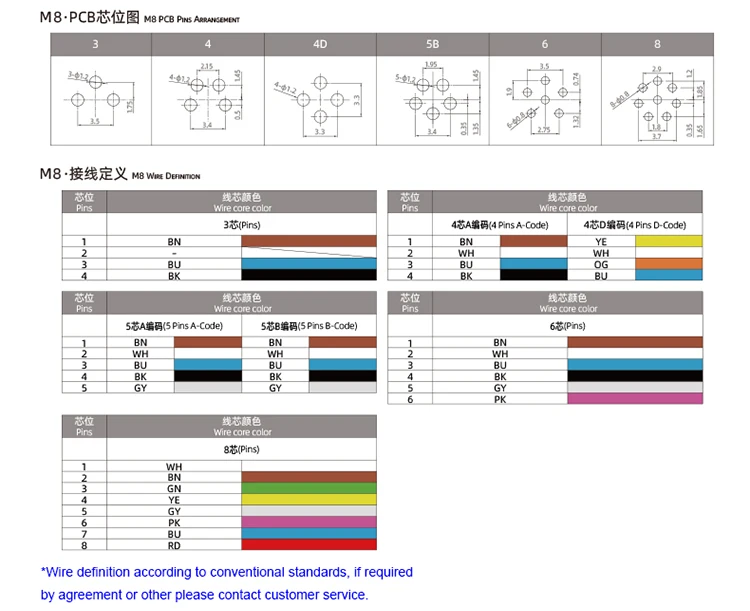

Pins Number: 3 4 5 6 8 pins
Plug: assembly, overmolded cable type (length can be customized at will)
Most connectors are excellent for full shielding at 360 degrees
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB board type
Waterproof grade: Ip65 IP67
Products comply with IEC 61076-2-104 standard
99 3403 282 03/99 3391 282 04/99 3412 282 03/99 3390 282 04
1526169/1524788/1440070/1440096


Products Description

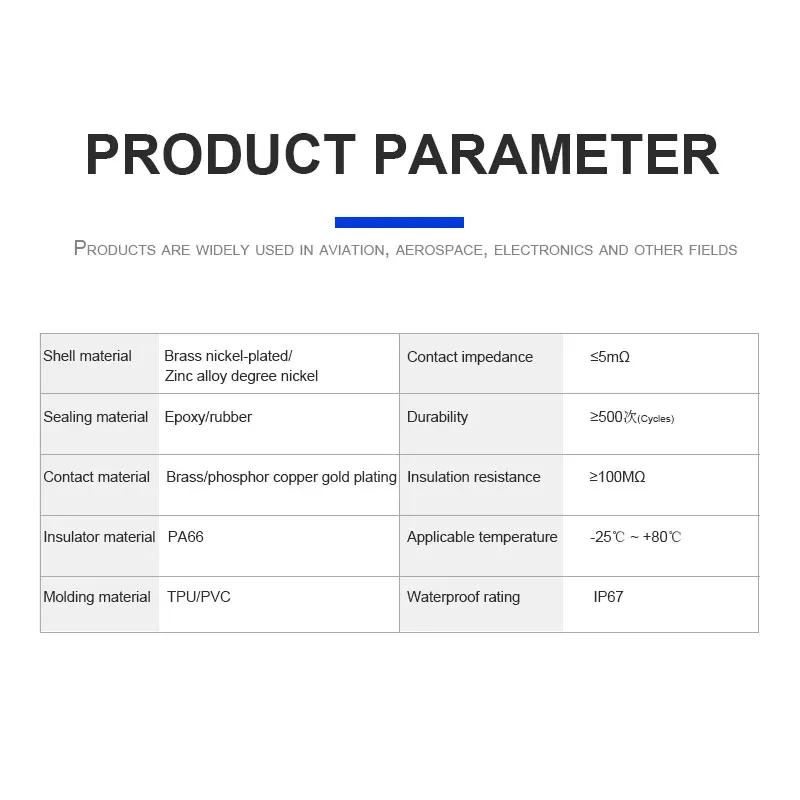

Technical parameter


Shell Material:
Copper/Zinc Nickel-plated
Insulation Resistance:
≥100mΩ
Insert Material:
PA66+30%GF
Contact Resistance:
≤5mΩ
Molding Material:
PVC/TPU
IP Level:
IP67/IP68
Contact Material:
Brass/Phosphorus copper gold-plated
Standard:
IEC61076-2-104
Applicable Temp.:
-25℃~+80℃
Agreement:
Ethernet
Sealing Material:
Epoxy resin/Rubber






Packaging & Delivery


Packing details:
1, Our standard packing: 1/2/3/4/5pcs connectors put into a transparent polybag, every big polybag with a label. then put into a carton.
2, Packing as buyer's option.


Delivery details:
1, the lead time for samples is 1~10 days, 10~15 days for the production.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.




Application
