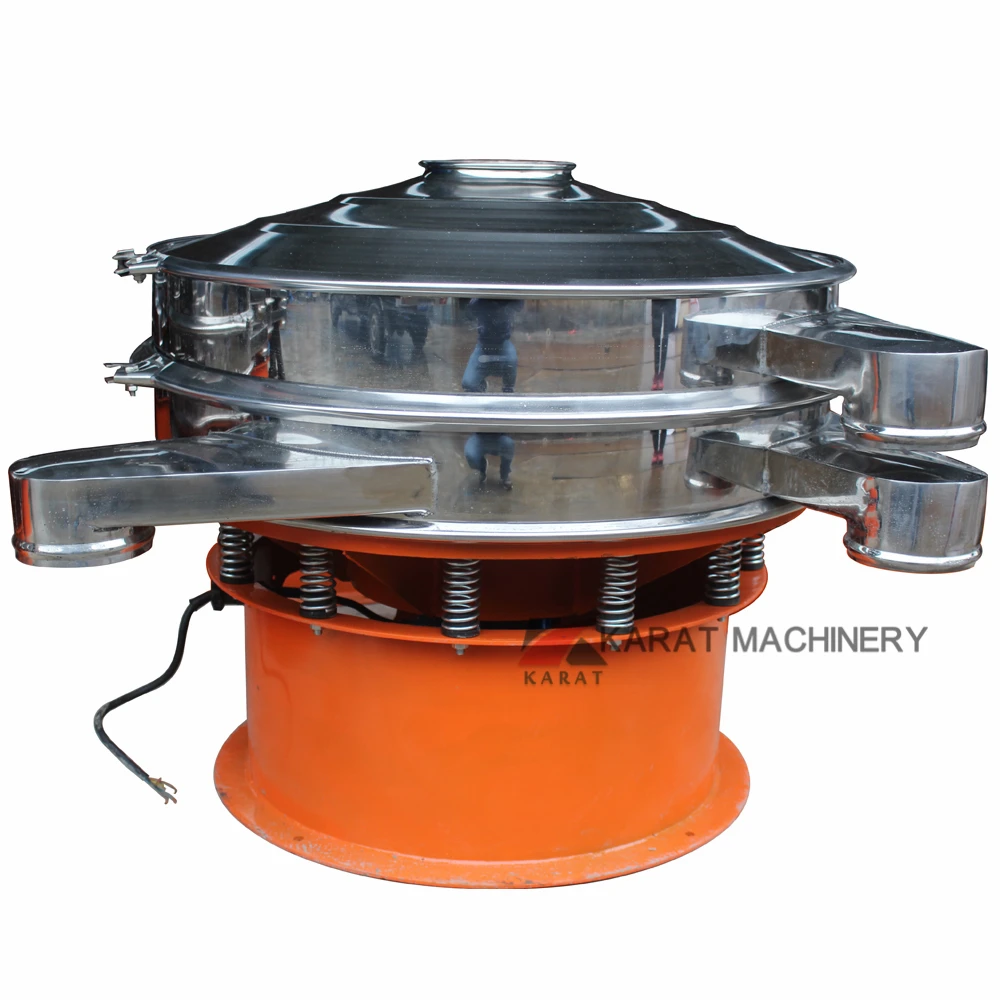

Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine
Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine

Stainless Steel Separator Chemical Raw Materials Salt Vibrating Sieve Round Vibrating Screen Machine

Share on (11000010837127):


Price:$1,200.00 - $1,500.00

Quantity:


Product Overview

Description





Products Description


automatic electric wheat flour performance multi layers rotary vibrating screen sieve
Rotary vibrating screen sieve is a high precision fine powder sieving machine. The fundamental principle of Grain seed / pine nut / chestnut circular vibrating screen sieve is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.






Working Principle
Rotary vibration screen is made of an upright motor as a source of vibration, the motor is installed at the upper and lower ends of the eccentric heavy hammer, the motor rotation motion into horizontal, vertical, oblique three-dimensional motion, and then the motion to the screen surface. Adjust the phase Angle of the upper and lower ends to change the motion track of the material on the screen surface.

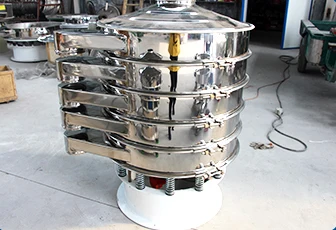

Vibrating screen sieve can be up to 5 layers,and the mesh size can reach 500 mesh.We will choose a suitable model according to your specific materials and application.



Model

Power（kw）

Diameter of Screen Surface（mm）

Layer

Mesh Size（mesh）

Frequency（rpm）
XZS400
0.15
340





1-3





0-500





1500
XZS600
0.37
540
XZS800
0.55
730
XZS1000
0.75
950
XZS1200
1.5
1150
XZS1500
2.0
1450
XZS1800
2.2
1730
XZS2000
2.5
1930

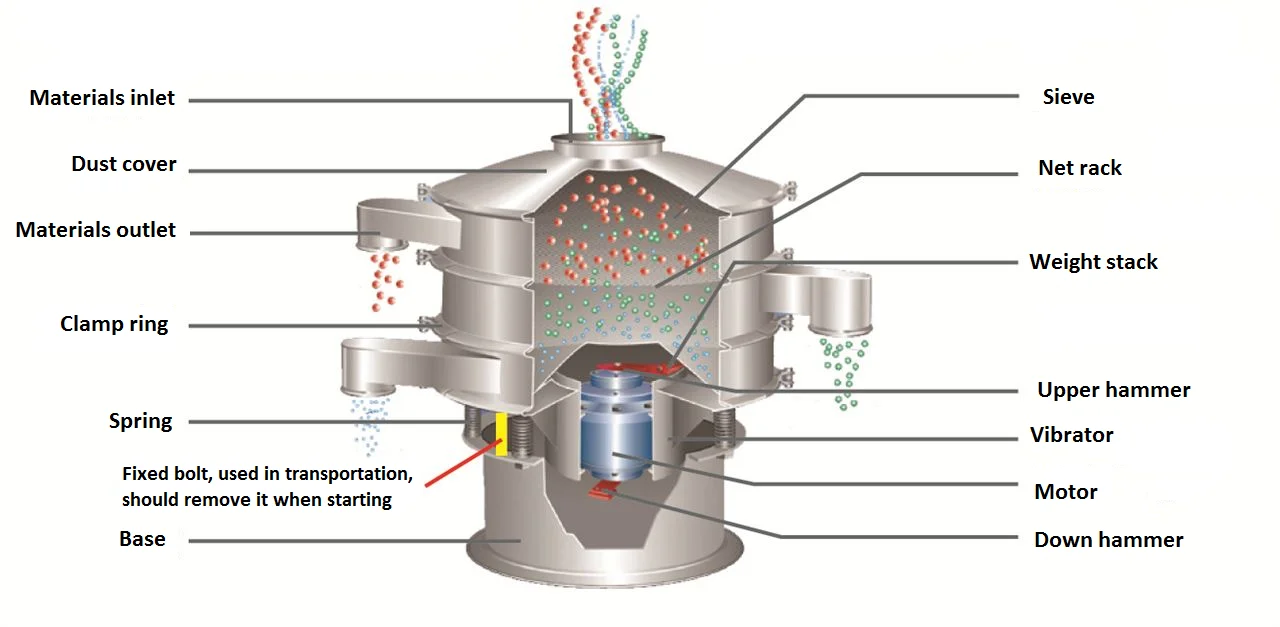

Vibrating screen sieve is made of inlet,outlet,clamp,screen frame,screen mesh,vibrating motor,spring,
support base and so on.The below pictures will help you know more about our machine.







Screen mesh is easy to replace,only 3-5 minutes

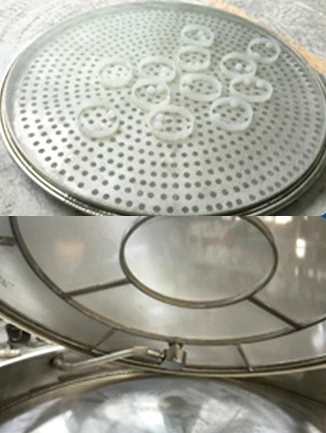

The way of the clearing
screen mesh is simple and efficiency,bouncing ball clearing or ultrasonic vibrating clearing device

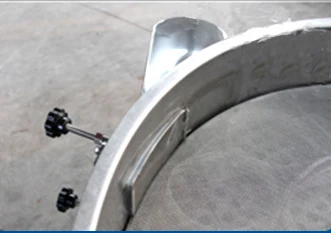

Material outlet can be installed with valves,making the screening more thorough

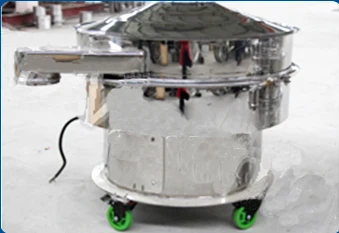

Bottom with casters,easy to move

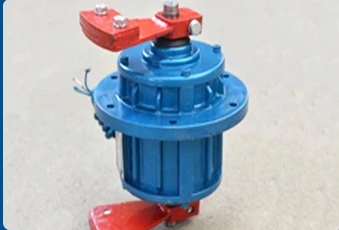

Copper wire winding,durable and long life,12 mouth warranty



400-2000mm,small size.
Fully enclosed mechanism,the dust not fly,and the liquid does not leak.Round mechanism,
no hygienic dead corners,
the outlet can be rotated 360°


Application

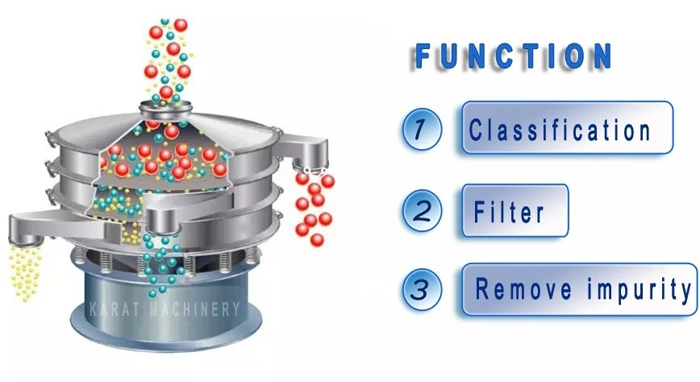

Vibrating screen sieve is widely used in food industry, such as: grains, beans, mining industry, such as stone, coal, minieral,sand, chemical industry, such as coating powder, calcium carbonate, etc. Main functions are removing impurity, filtering,classification of material, solid-liquid separation, screening.






Main Product








Company Information


Karat Machinery Equipment Co., Ltd is located in Xinxiang City--the hometown of China's vibrating screen. It is a professional manufacturer of screening and conveying equipment. Our company is specialty in the development and sales of vibration machinery,screening equipment, conveying equipment and lifting equipment. Our company produces a series of products as follows: circular vibrating screen sieve, screw conveyor, ultrasonic round separator, rectangular separator, vibration table, drum screen, standard laboratory inspection sieve, straight line vibrating screen, vibration motor, vibrating conveyor,feeding machine, hoisting equipment, belt conveyor. All of our production are widely used in food, pharmaceutical, chemical,metallurgy, building materials, mining, thermoelectric, environmental protection and other fields. And our company's business covers all parts of the country, and is exported to the United States, France, Canada, Russia, Australia, Japan, Singapore,Malaysia, India, Vietnam and other countries.








Customer Visiting


We have many customers from all over the world and we have become very good friends in good communication.




Packaging & Shipping
Vibrating screen sieve is packed by wooden case or according to the customer's requirements.




FAQ


Q: What information do I need to provide for getting an accurate quotation for Plastic powder vibrating sieve round separator
sieving?
1. Material's name, bulk density, and water content
2. Capacity you required___kg/h
3. What's the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency

Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/local accommodation/ local traffic is in charge of customer.

Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer,
the customer only need to find special installation team to execute.
