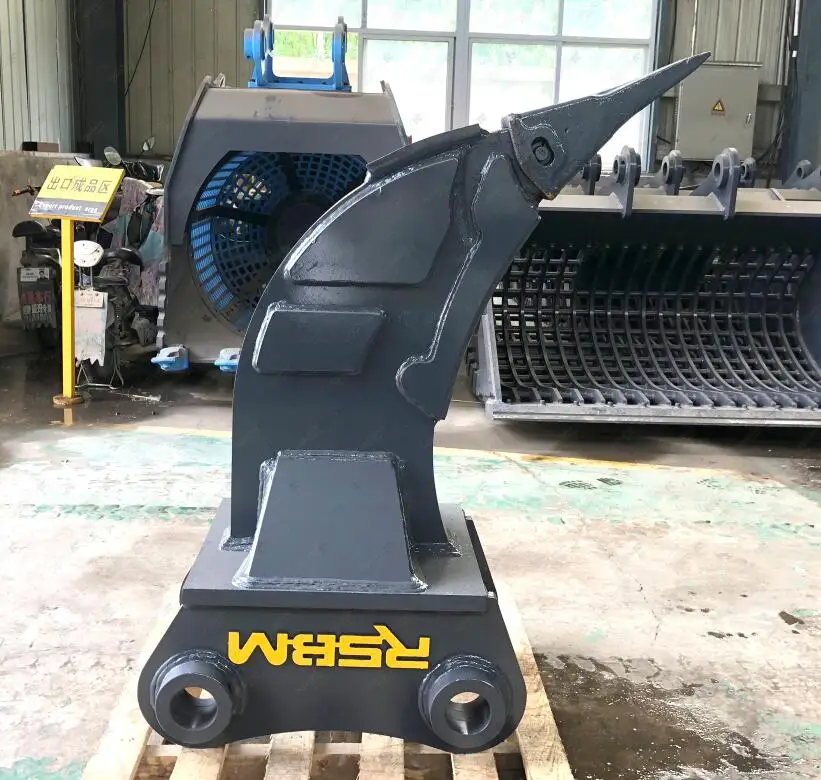

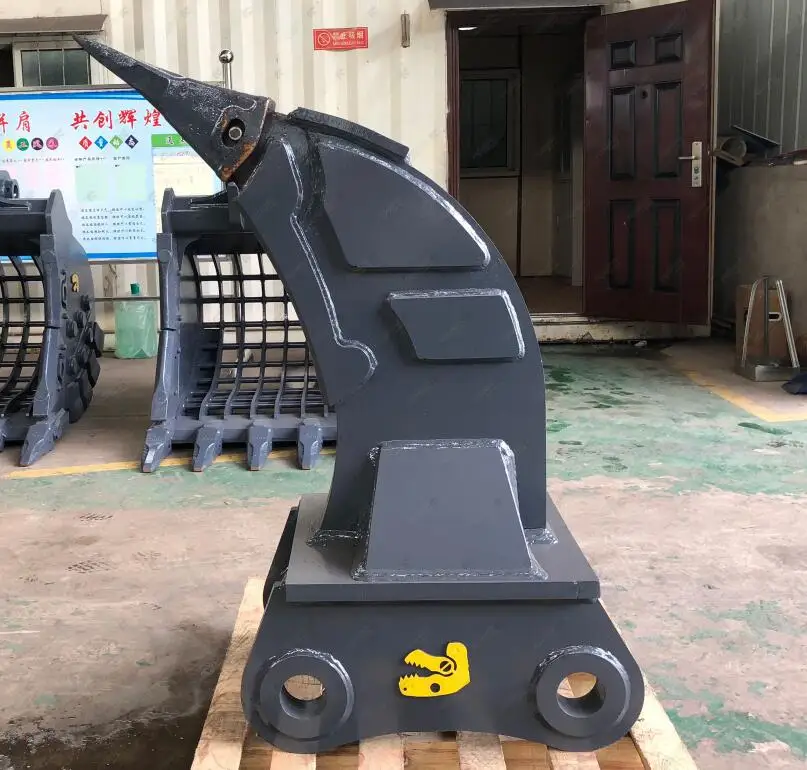

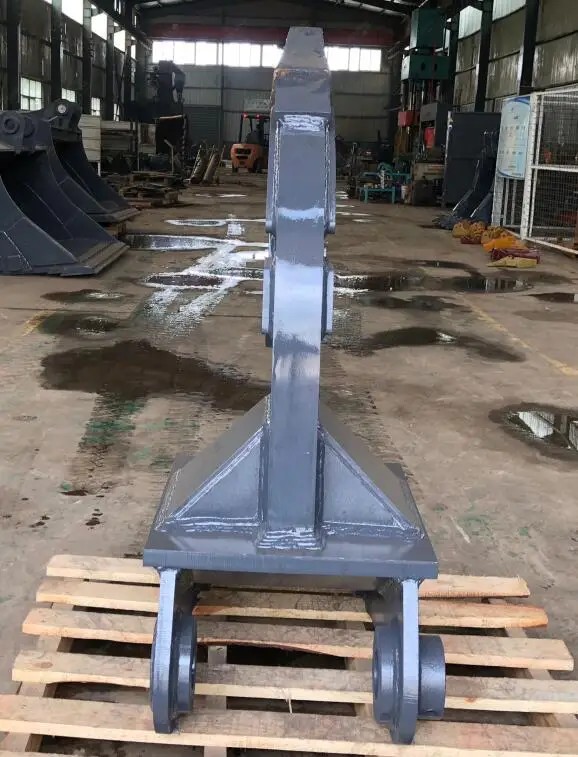

RSBM Excavator Spare Parts Ripper Single Tine for 1 50T Backhoe
- Category: >>>
- Supplier: Ransun Heavy Industry Technology(Shanghai) Co. Ltd.
Share on (11000012372712):
Product Overview
Description
Specification
Shank ripper which is with a sharp tooth on the front which goes beneath the ground deeply to release the dirt for further
excavation.
Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.
Characteristic:
1) Designed just for ripping, the ripper could reduce the amount of pressure added to the excavator itself, achieving more safety.
2) It could dig deeply into the earth which is handpicked or frozen.
Features:
a.Generally with one single tooth could be two or three;
b.Strong digging and penetrability.

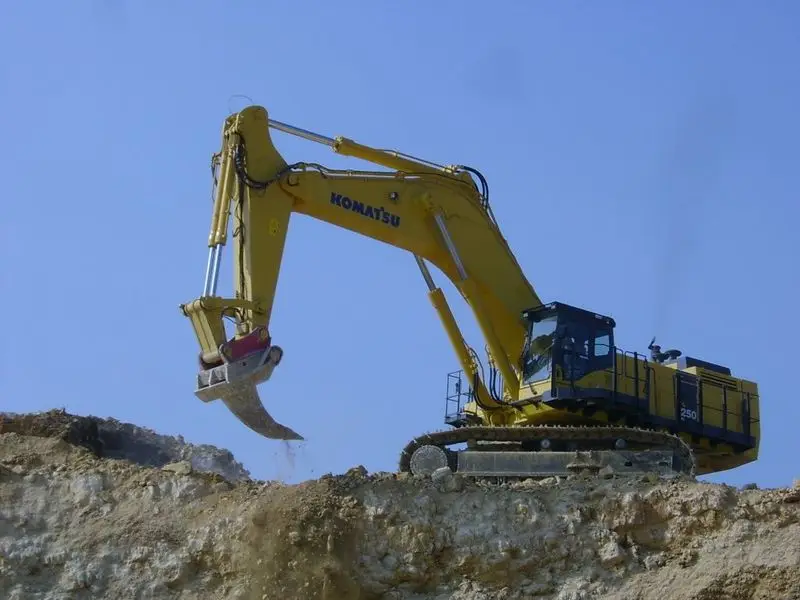

Applications:
Breaking of hardpan, sub-hard rock, and weathered rock. It’s commonly applied in any area which is with frozen, rock, or paved
ground which impedes further excavation.
excavation.
Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.
Characteristic:
1) Designed just for ripping, the ripper could reduce the amount of pressure added to the excavator itself, achieving more safety.
2) It could dig deeply into the earth which is handpicked or frozen.
Features:
a.Generally with one single tooth could be two or three;
b.Strong digging and penetrability.
Applications:
Breaking of hardpan, sub-hard rock, and weathered rock. It’s commonly applied in any area which is with frozen, rock, or paved
ground which impedes further excavation.

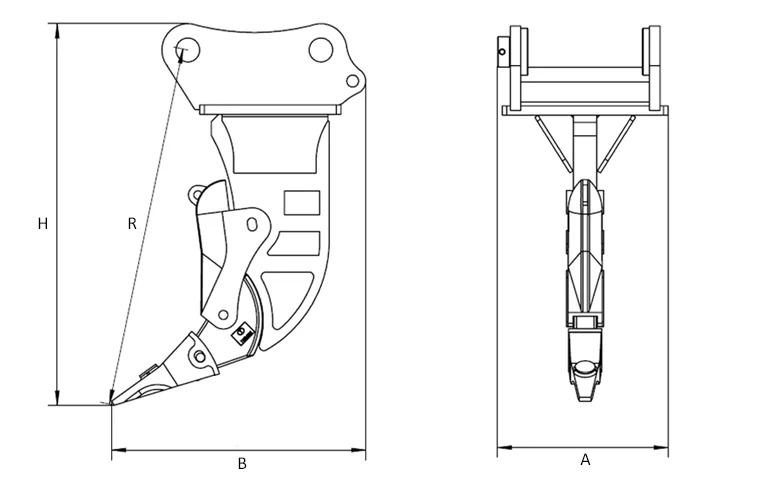

Model | Ton Range | Width A (mm) | Height H (mm) | R (mm) | Length B (mm) | Weight (kg) | Tine Thickness (mm) | Teeth |
RS-RMINI | 1T-3T | 240 | 470 | 450 | 320 | 52 | 35 | FR50 |
RS-R40 | 3T-5T | 280 | 530 | 480 | 360 | 79 | 40 | FR50 |
RS-R50 | 5T-8T | 290 | 600 | 550 | 410 | 95 | 45 | J-250 |
RS-R80 | 8T-12T | 345 | 720 | 642 | 492 | 135 | 50 | J-250 |
RS-R120 | 12T-16T | 410 | 1065 | 1030 | 760 | 266 | 60 | DH200 |
RS-R200 | 18T-23T | 533 | 1355 | 1267 | 862 | 540 | 80 | D8 4T5451 |
RS-R250 | 23T-29T | 580 | 1406 | 1306 | 850 | 610 | 100 | D8 4T5451 |
RS-R300 | 30T-36T | 636 | 1541 | 1452 | 930 | 836 | 100 | D9 4T5502 |
RS-R450 | 40T-48T | 760 | 1650 | 1515 | 974 | 1050 | 100 | D9 4T5502 |
RS-R500 | 50T-65T | 830 | 1760 | 1609 | 1050 | 1670 | 110 | D11 9W4551 |
RS-R850 | 70T-100T | 930 | 1934 | 1836 | 1120 | 1910 | 120 | D11 9W4551 |
Brand Name | RSBM |
Material of excavator bucket | Q345B, Q460,NM360/400,HARDOX450/500 |
Type | Excavator Tooth Ripper |
Category | Heavy construction attachments |
Key word | Earth Digger Digging Ripper |
Condition | New |
Customizable fittings | Color, logo and other additional fittings |
Application | Digging earth |
Warranty | 6 months |
Packing | Customized |
