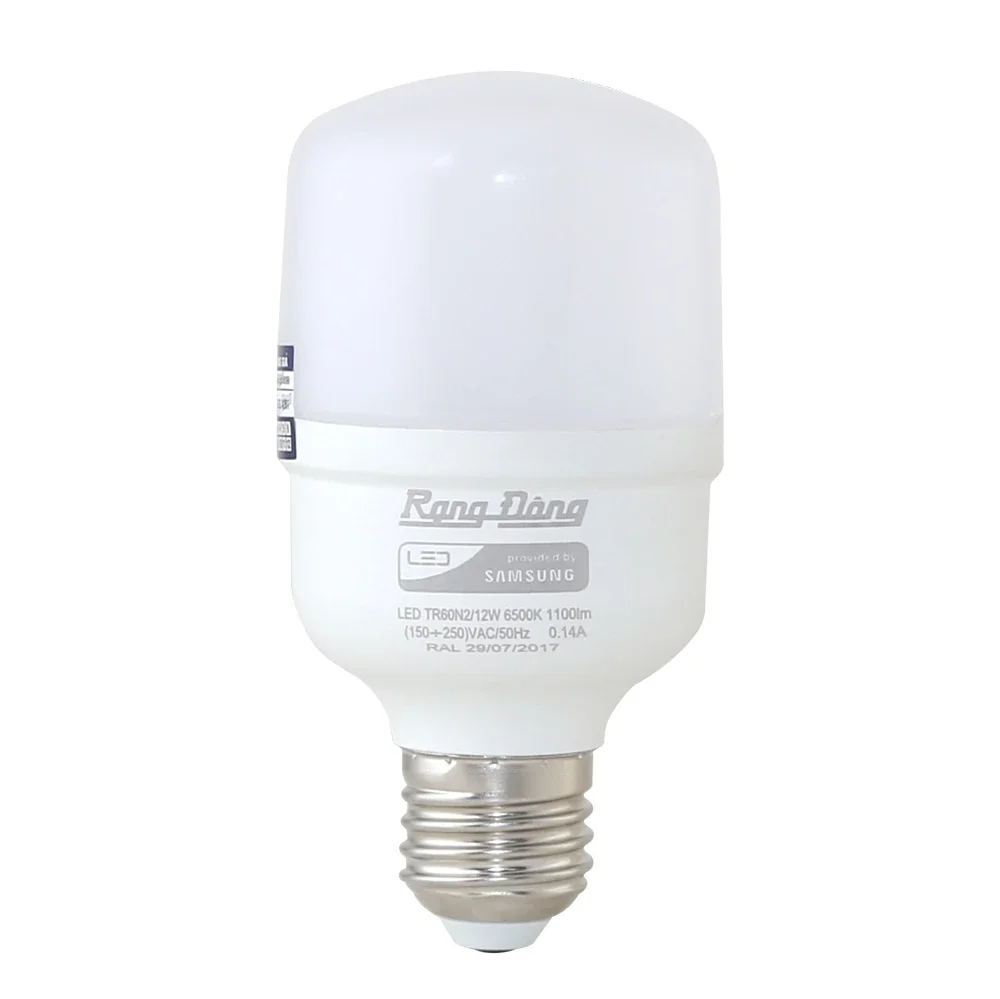

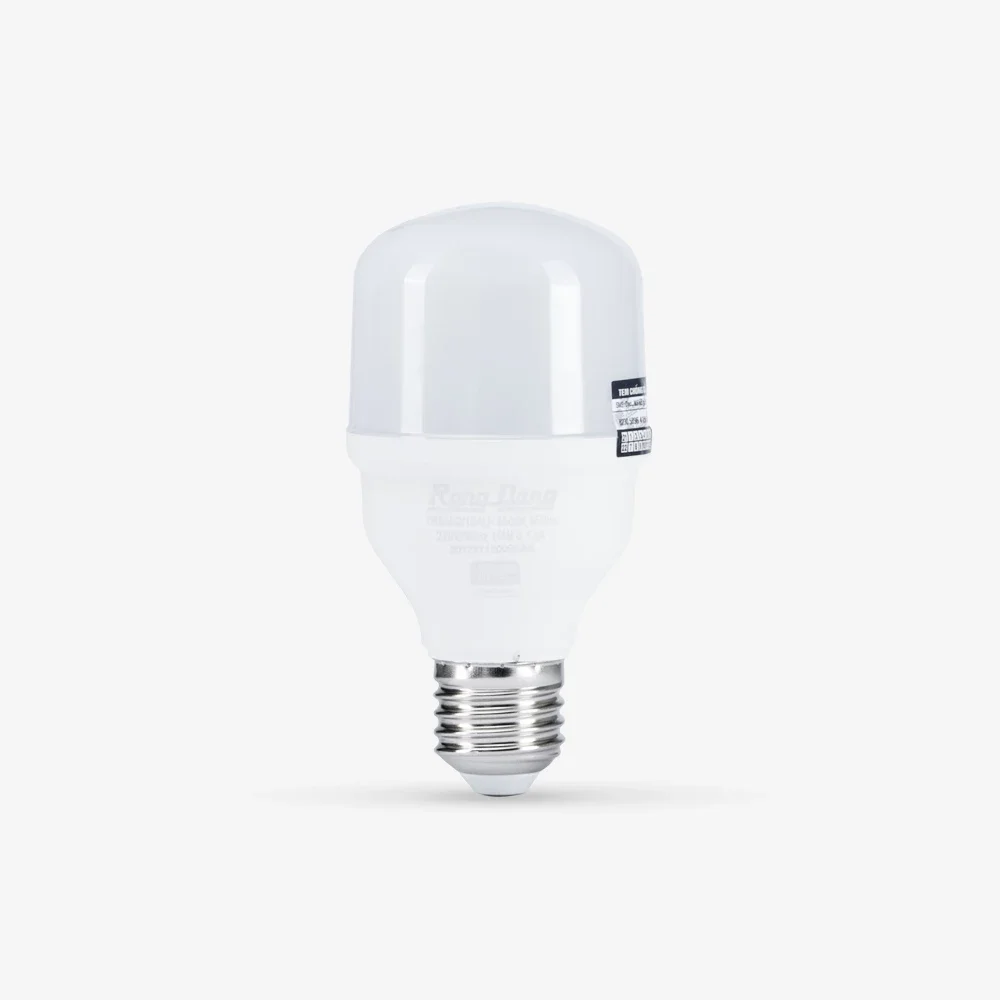

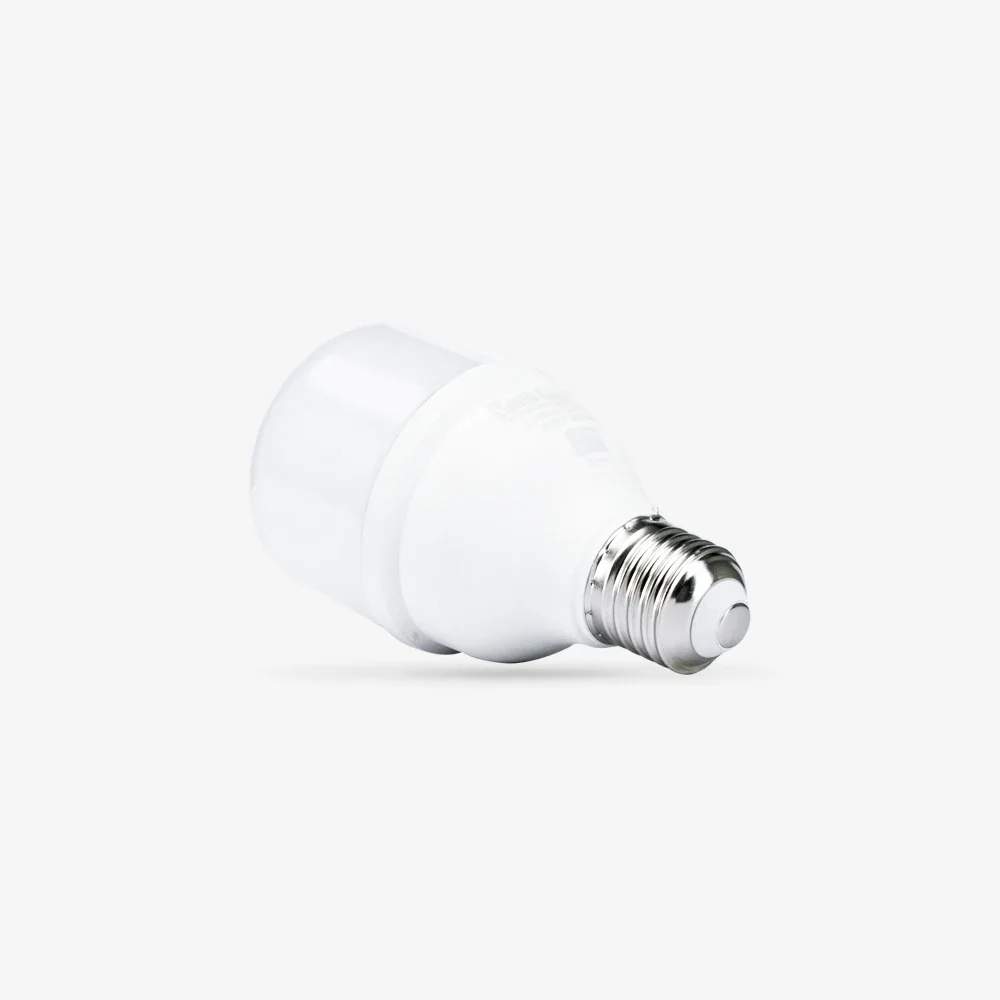

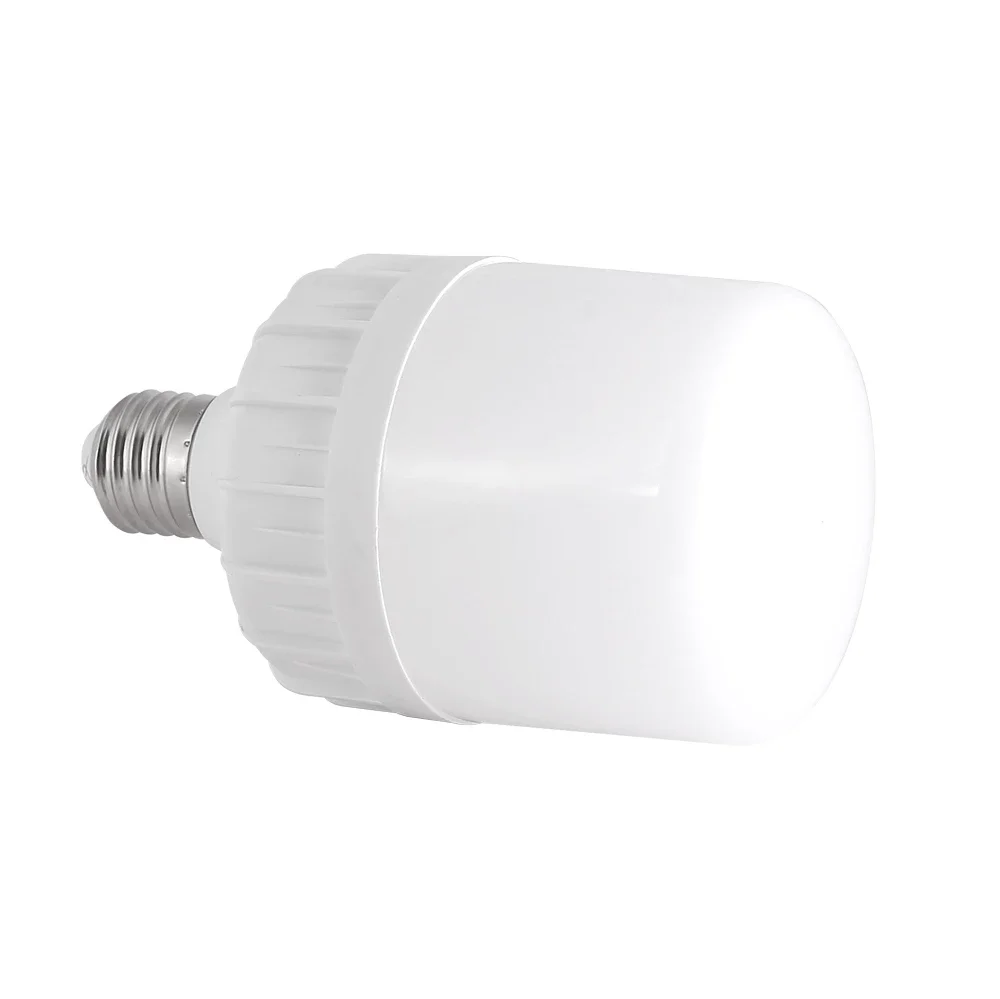

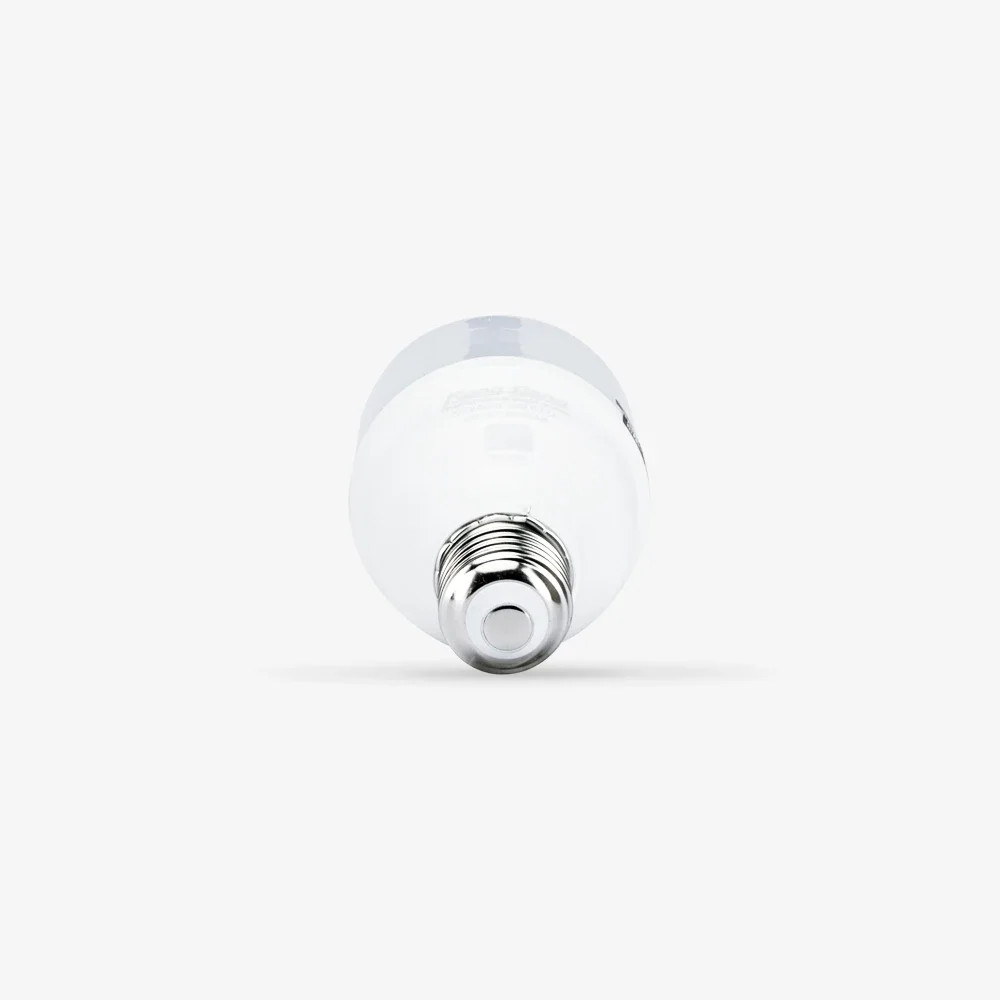

Energy Saver Long Lasting AL PC T Bulb Efficient Indoor Lighting LED Light Buib from 12w to 50w CE Certification
- Category: >>>
- Supplier: RANG DONG LIGHT SOURCE AND VACUUM FLASK JOINT STOCK COMPANYRANG COMPANY
Share on (11000012793926):
Product Overview
Description
Product Features
- Full series from 12W to 50W
- High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
- High luminous efficacy up to 120 lm/W

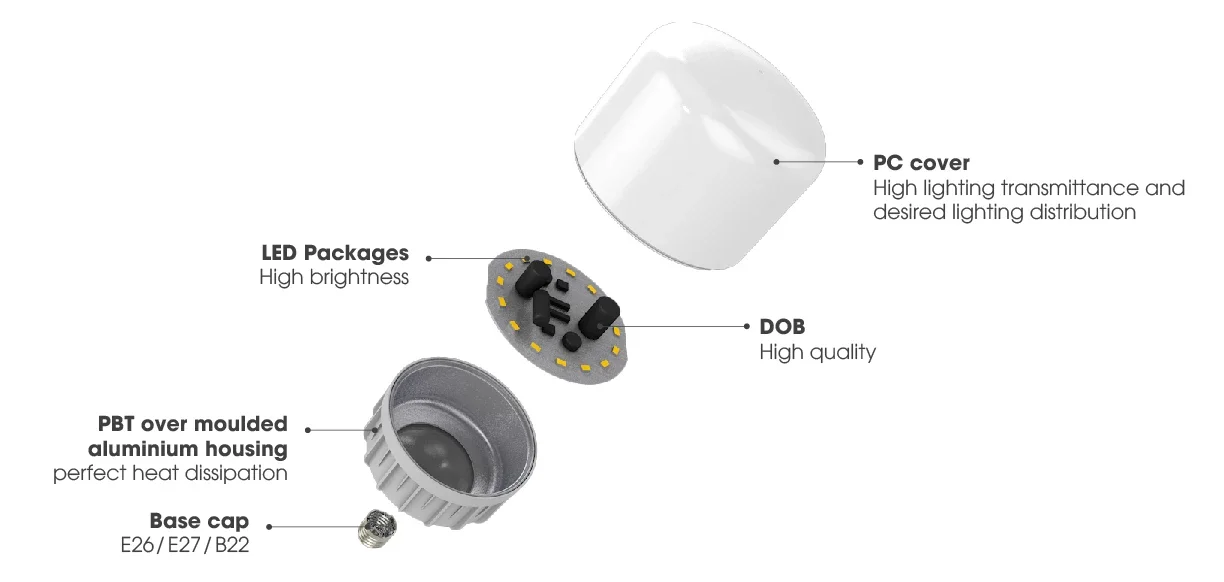

- Heat-conductive PBT over moulded aluminium housing with perfect heat dissipation
- PC cover with high lighting transmittance and desired lighting distribution
- CE, KC, UL certified
- Long lifespan: 20,000 hours, saving the maintenance cost
- High-quality LEDs provided by Samsung/ Seoul Semiconductor/ Nichia/ Lumiled with excellent performance
- High luminous efficacy up to 120 lm/W
- Heat-conductive PBT over moulded aluminium housing with perfect heat dissipation
- PC cover with high lighting transmittance and desired lighting distribution
- CE, KC, UL certified
- Long lifespan: 20,000 hours, saving the maintenance cost
Applications

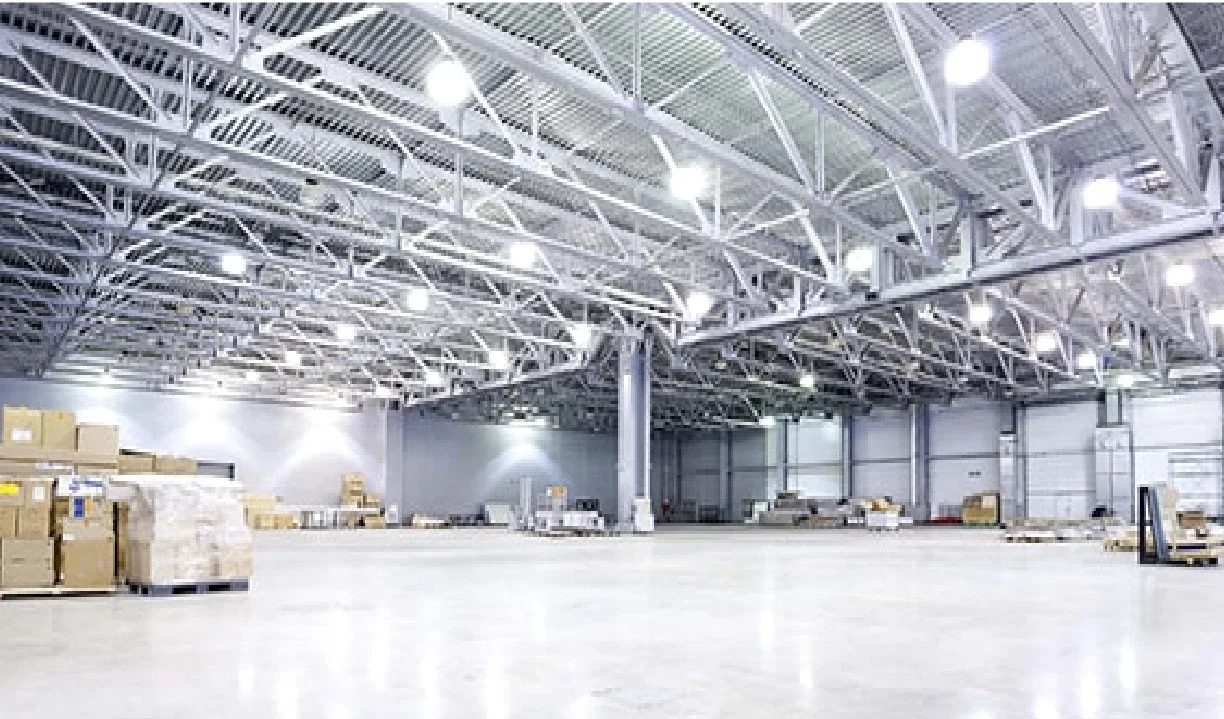

- Home, hall, store, warehouse, factory and etc.
Products Details
Product Specifications

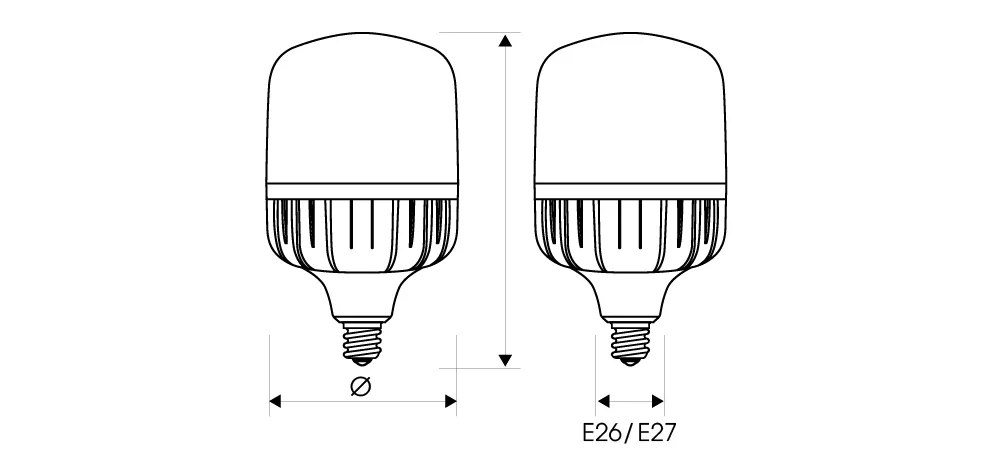

Model | Dimension LxWxH (mm) | Power (W) | Voltage (V) | Power factor | Luminous flux (lm) | Luminous efficacy (lm/W) | CCT (K) | Lifespan (hrs) |
TR100N2/27W | 100x185 | 27 | 220-240 | 0.9 | 2300/2500 | 85/92 | 3000/6500 | 25,000 |
TR100/30W | 100x185 | 30 | 220-240 | 0.5 | 2700/2850 | 90/95 | 3000/6500 | 15,000 |
TR120N2/36W | 120x208 | 36 | 220-240 | 0.9 | 3200/3600 | 88/100 | 3000/6500 | 25,000 |
TR120/40W | 120x208 | 40 | 220-240 | 0.5 | 3600/3800 | 90/95 | 3000/6500 | 15,000 |
TR70N2/12W.H | 70x128 | 12 | 120/220-240/ 100-277 | 0.5/0.7/0.9 | 1020/1080 1140/1200 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
TR70N1/14W.H | 70x128 | 14 | 120/220-240/ 100-277 | 0.5/0.7/0.9 | 1190/1260 1330/1400 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
TR80N1/20W.H | 80x143 | 20 | 120/220-240/ 100-277 | 0.5/0.7/0.9 | 1700/1800 1900/2000 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
TR100N1/30W.H | 100x185 | 30 | 120/220-240/ 100-277 | 0.5/0.7/0.9 | 2550/2700 2850/3000 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
TR120N1/40W .H | 120x208 | 40 | 120/220-240/ 100-277 | 0.5/0.7/0.9 | 3400/3600 3800/4000 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
TR140N1/50W.H | 140x225 | 50 | 120/220-240/100-277 | 0.5/0.7/0.9 | 4250/4500 4750/5000 | 85/90 95/100 | 3000/4000/5000/ 5700/6500 | 20,000 |
Capacity: 13.5 million pieces per year
Customizable: Power (12/14/20/27/30/36/40/50W), Voltage (120/220-240/100-277), PF(0.5/0.7/0.9), lm/W (up to 120), CCT (3000/4000/5000/5700/6500K), CRI (80/90/Sunlike), lifespan, etc.

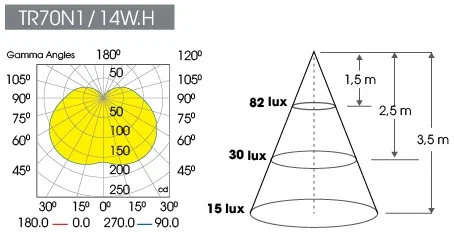

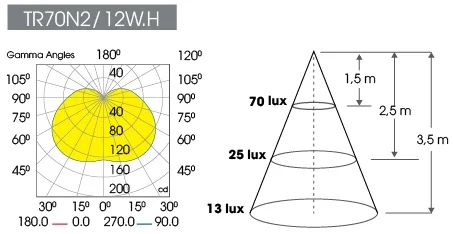

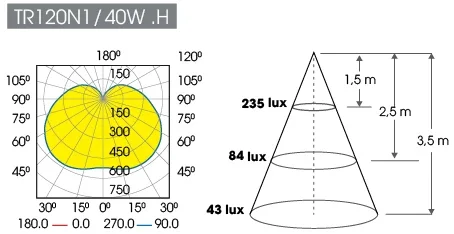

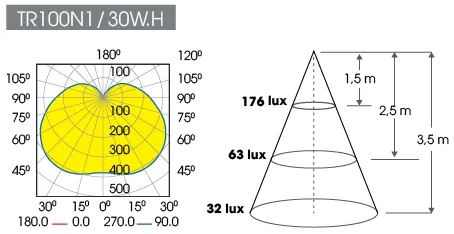

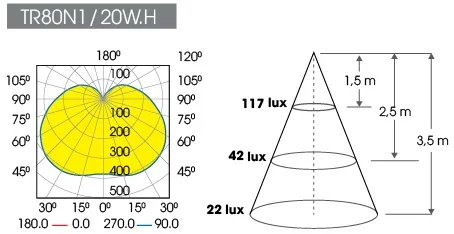

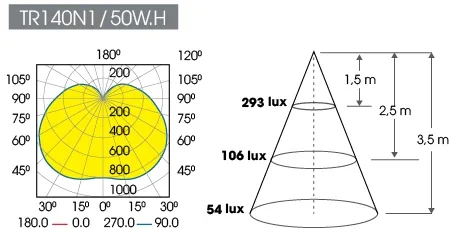

Luminous Intensity Distribution

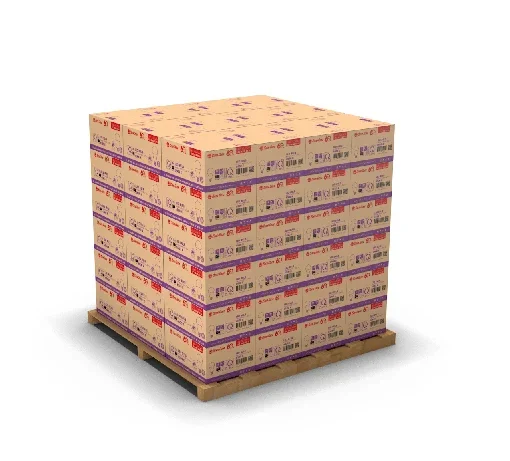

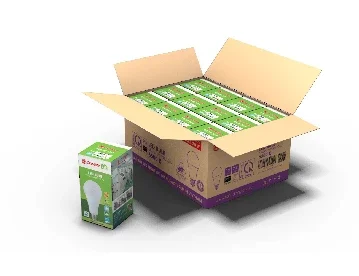

Packing and Transportation
Type of lamps | Quantity in master box (pcs) | Estimated quantity/20'DC (pcs) | Estimated quantity/40'HC (pcs) | |||
TR70 12W/14W | 24 | 64728 | 148656 | |||
TR80 20W | 24 | 39744 | 91272 | |||
TR100 27W/3W | 24 | 28080 | 64488 | |||
TR120 36W/40W | 12 | 15468 | 35508 | |||
TR140 50W | 12 | 8784 | 20172 | |||
Customizable according to customer’s request | ||||||
Exported market: South Korea, EU, etc.

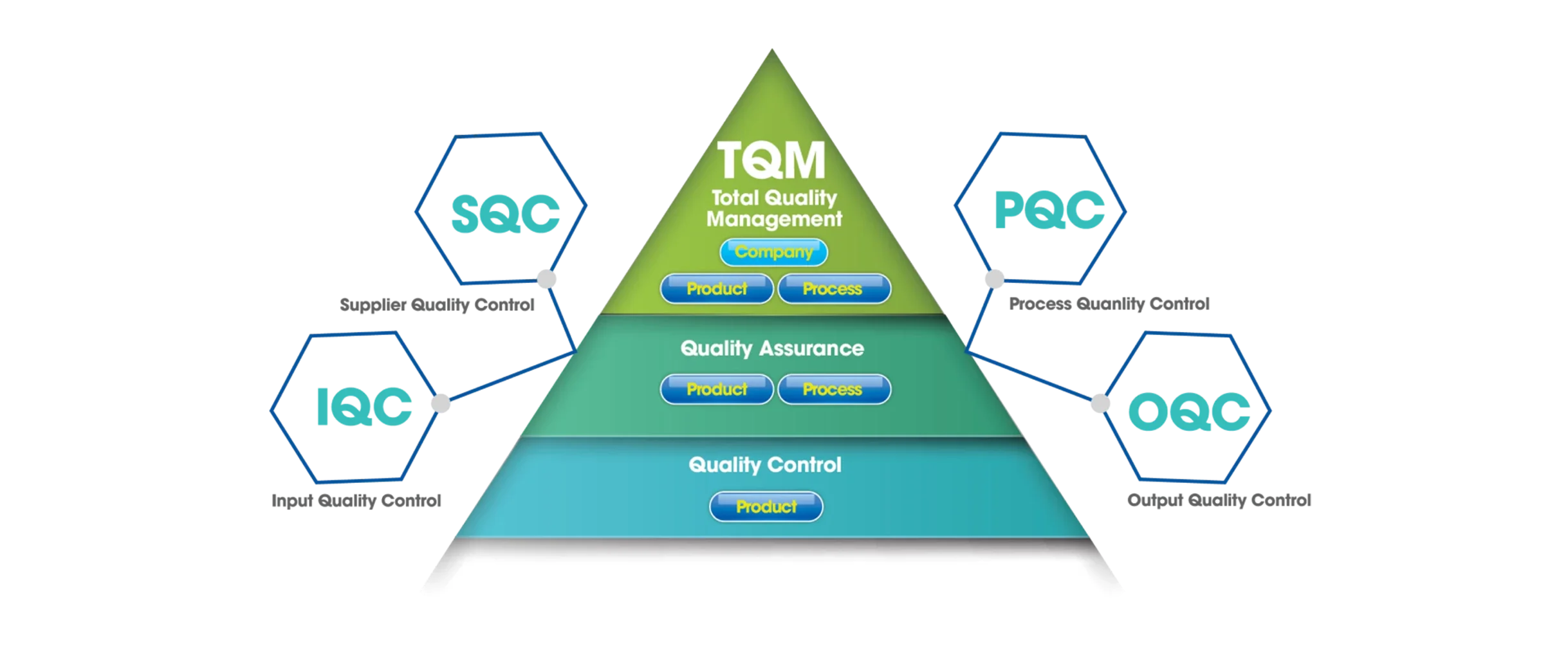

\t\t\t\t\t\t\t\t\tQuality Management \t\t\t\t\t\t\t
