Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill
Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill

Quartz Coal Pulverizer Kaolin Grinding Mill Three Roll Raymond Mill

Share on (11000013963114):


Price:$32,500.00

Quantity:


Product Overview

Description



Product Description




High Pressure Grinder is designed by our institute through many years’ hard work and study of powder processing machinery, which creates a new era of high-efficiency and low-consumption grinding mill. This machine is suitable for producing minerals powder, which is widely used in the fields of mining, metallurgy, chemical, construction and mining industry.


TECHNOLOGICAL PROCESS






Features of YGM grinding mill
1. Powder-saving, reliable and durable.
2.Bevel gear integral transmission.
3.Centralized control electrical system.
4. Smooth and reliable performance.
5. Optimized Host Grinding Device.
6. Its electricity consumption is lower than that of ball grinding mill of the same level by over 60%.
7.Under an ideal circumstance YGM Medium-speed Grinding Mill consumes 1.02kW/h when yielding one ton of materials and 1.48kW/h when feeding one ton of materials.
8.The Main milling machine is drived with an enclosed gear box and pulley, enable its smooth transmission and reliable operation.


PRODUCT PARAMETERS


​ Model
Ring Diameter
(mm)
Roller Diameter×height
(mm)
Max. Feeding Size
(mm)
Final Size
(mesh)
Capacity
(t/h)
Speed of Main Mill
(r/min)
Dimension L×W×H
(mm)
YGM1100-Q4
φ1100
φ320×170
≤25
80-800
0.5-6.5
132
7350×5900×7900
YGM1400-Q4
φ1400
φ430×210
≤30
80-600
2-13.8
106
8000×8550×9700
YGM1500-Q4
φ1500
φ480×230
≤30
80-600
2.9-17.5
105
9700×8500×10200
YGM1750-Q4
φ1750
φ520×270
≤30
80-425
5-25
92
9230×10116×10510
YGM2000-Q4
φ2000
φ620×300
≤35
80-425
6.5-32
78
9368×11500×11000
YGM2200-Q4
φ2200
φ630×320
≤35
80-425
8.4-40
72
10465×11372×11500




Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

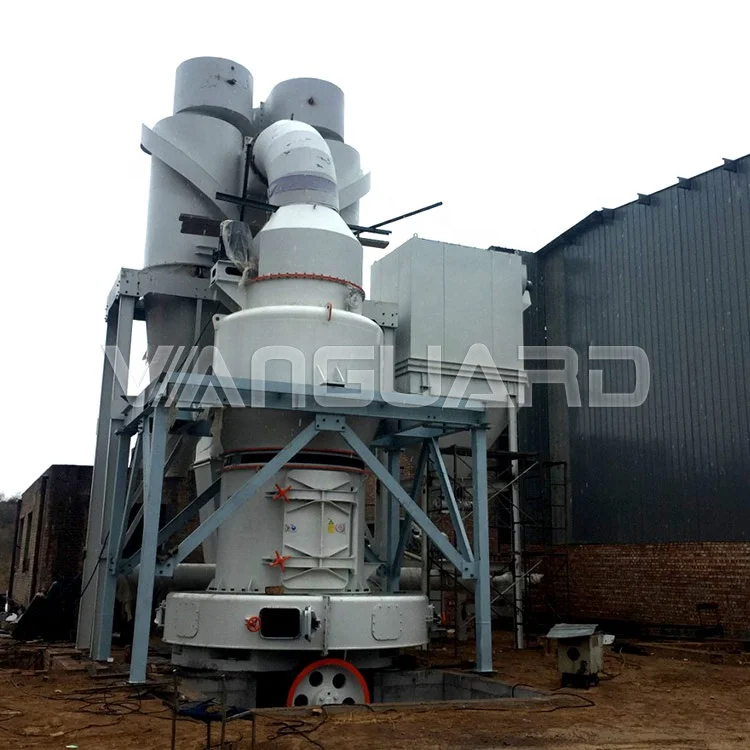

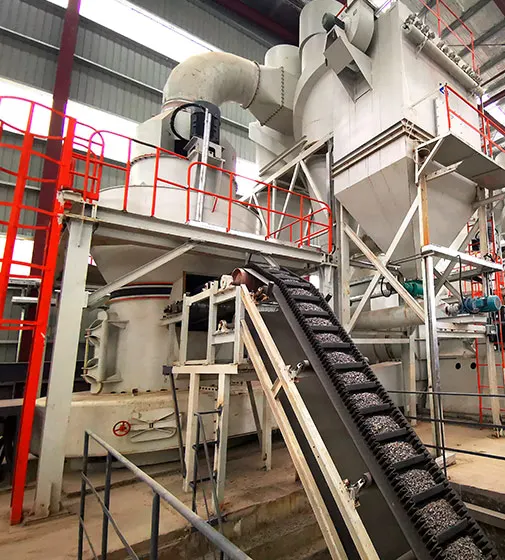

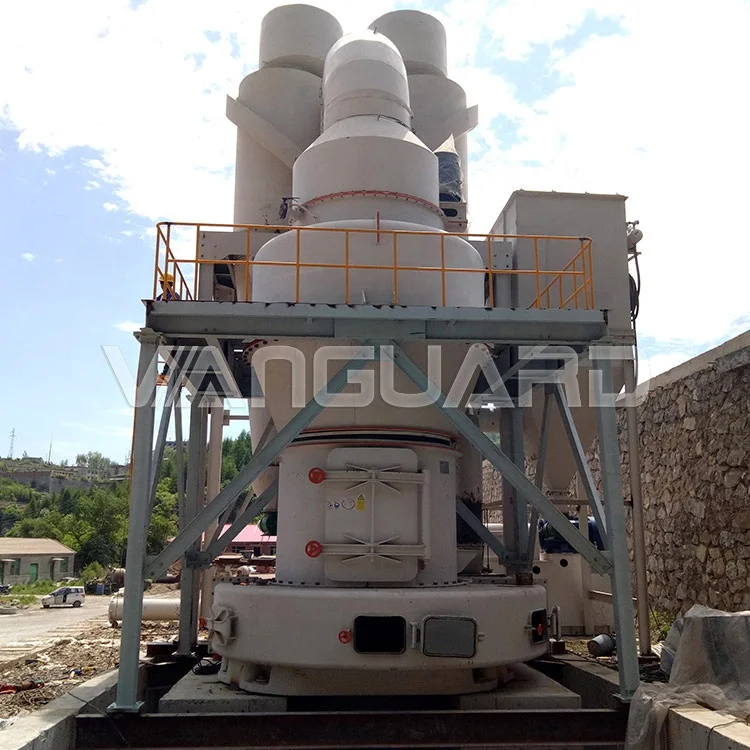

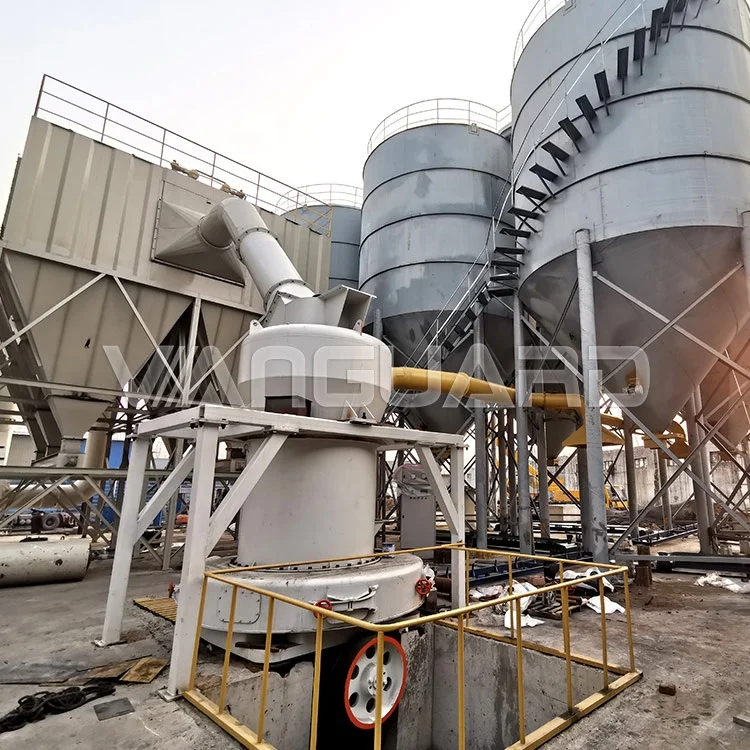

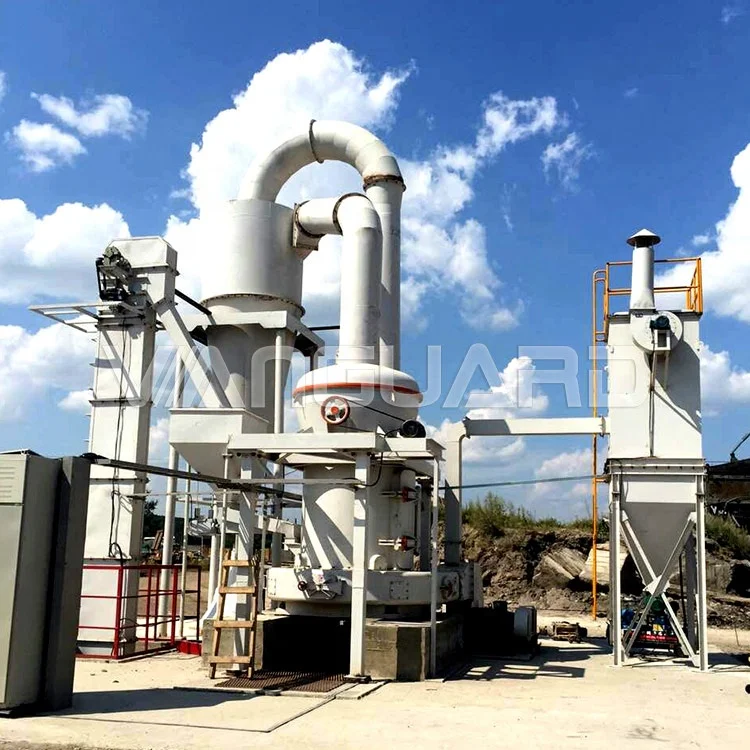

CUSTOMER CASES






Packaging and Shipping




About VANGUARD




Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.






Matching of production and support system allows customers to get best service at lowest cost.






Qualification


Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.




Our Services




FAQ


Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete grinding plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
