BIOBASE Manufacture Freeze Dryer for lab Mini Freeze Dryer BK FD10S Freeze Dryer
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (11000014224215):
Product Overview
Description
Product Introduction
Features&Parameters
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||
Tray | 4 pcs | 3 pcs | |||||||
Height Between Trays | 50mm | 70mm | |||||||
Cold Trap Temperature | ≤-60℃ | ||||||||
Cold Trap Capacity | 6.9L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*260mm | ||||||||
Vacuum Degree | <10 Pa | ||||||||
Water Capture Capacity | 3kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Power Supply | 220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) | ||||||||
Power Consumption | 0.9KW | ||||||||
Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump | ||||||||
External Size (W*D*H) | 600*560*374/820mm | 600*560*374/880mm | |||||||
Package Size(W*D*H)mm/ Gross Weight | Main Body | 670*700*560(80kg) | |||||||
Drying Chamber /Vacuum Pump | 400*400*620 (15kg) | ||||||||

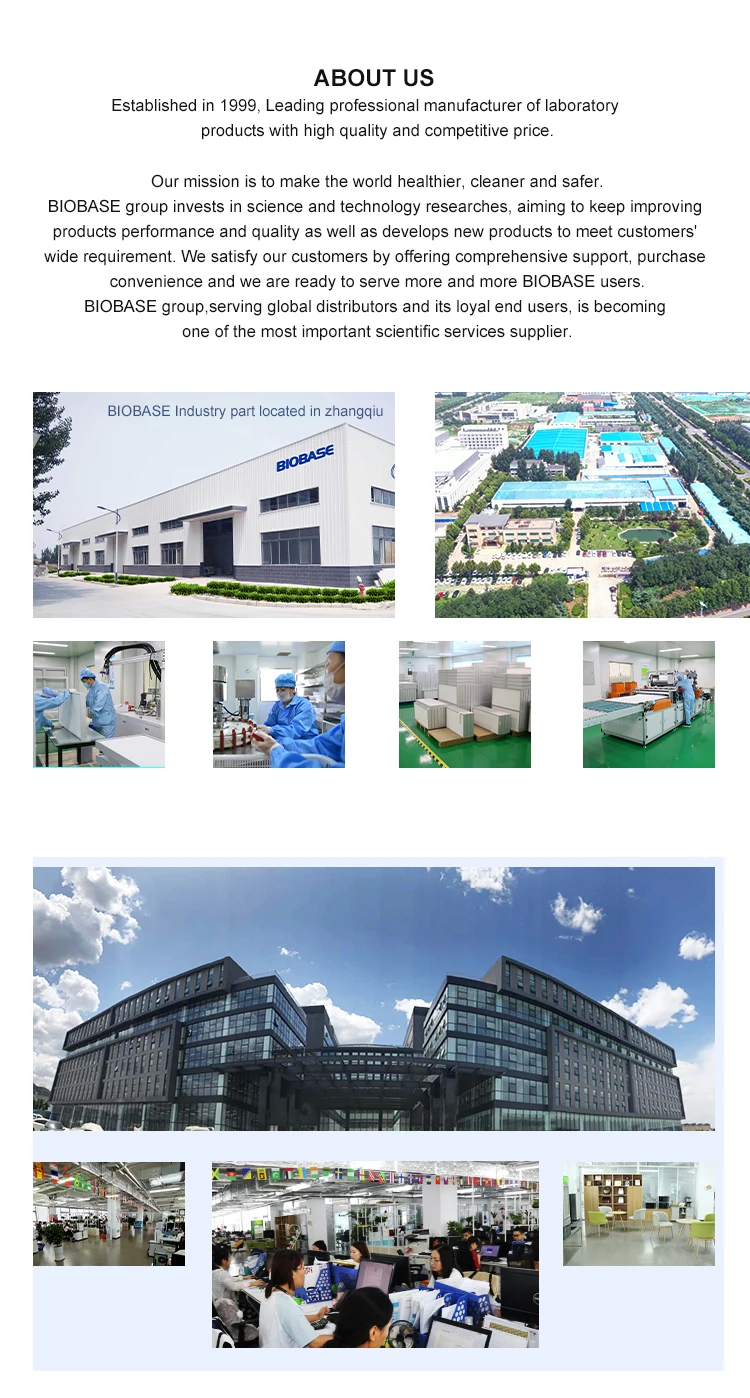

Company Profile

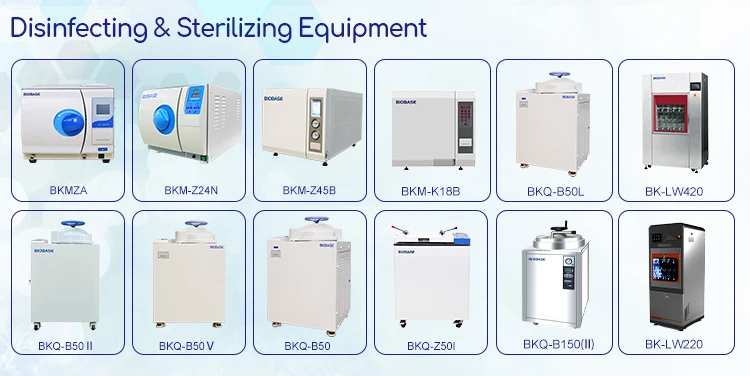

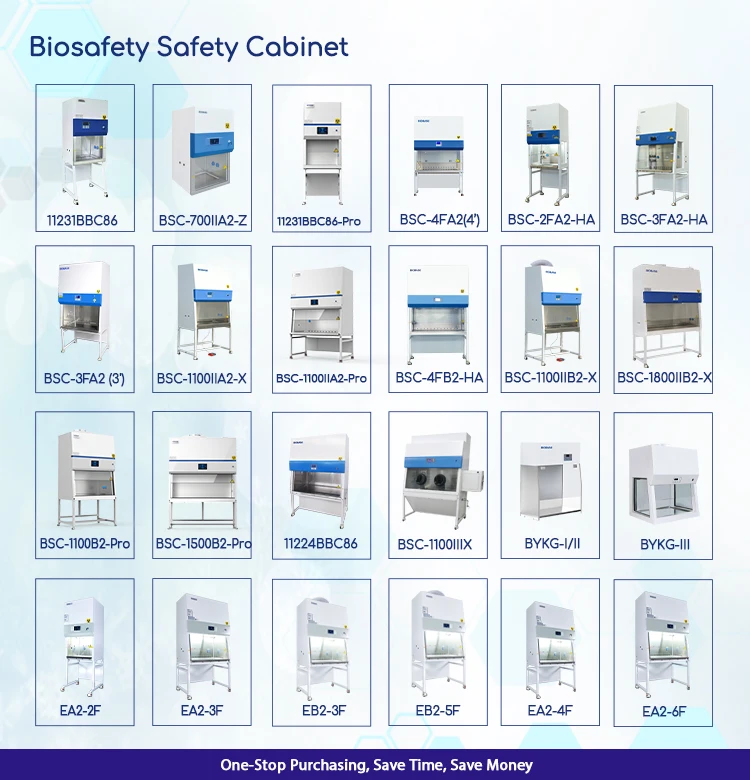

Related Products
Services&Warranty
Both your before and after sales will be taken care !
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We assist you on every direct purchasing,project and bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
Ontime delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We promise all spare parts available in lifetime use.
•We care your complain within 24 hours.
•We value every inquiry sent to us, ensure quick competitive offer.
•We assist you on every direct purchasing,project and bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
Ontime delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We promise all spare parts available in lifetime use.
•We care your complain within 24 hours.
Warranty
We provide 1 year warranty for all our items.We will responsible for repairing it or replace the related accessories free of charge if any malfunction happened for the equipment's own quality problem from the date of purchase.
Packaging & Shipping
Transport terms
- Cartons packaging, plywood packing or customized packaging can be available.
- International Express such as DHL, TNT, EMS, FedEX.
- Sea / Air Transportation based on your requirement.
- Choose your own shipping agent is welcomed.
- Sea / Air Transportation based on your requirement.
- Choose your own shipping agent is welcomed.
- Deliver time will be very short because of our 16 factories in China.
