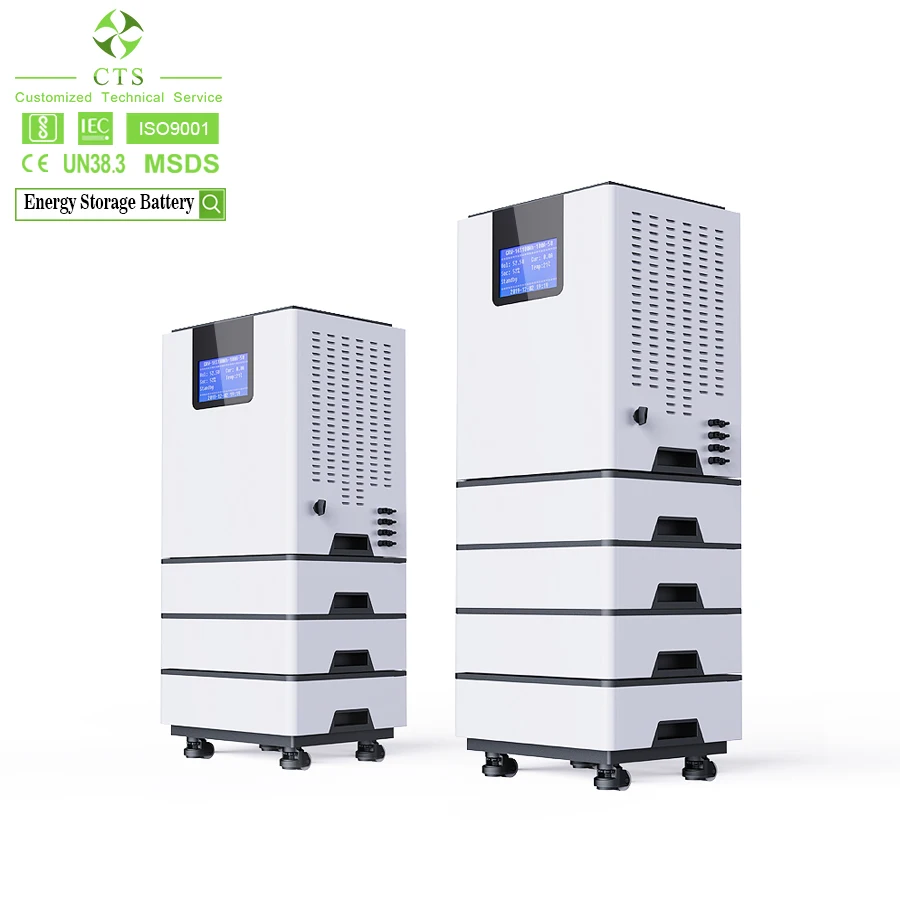

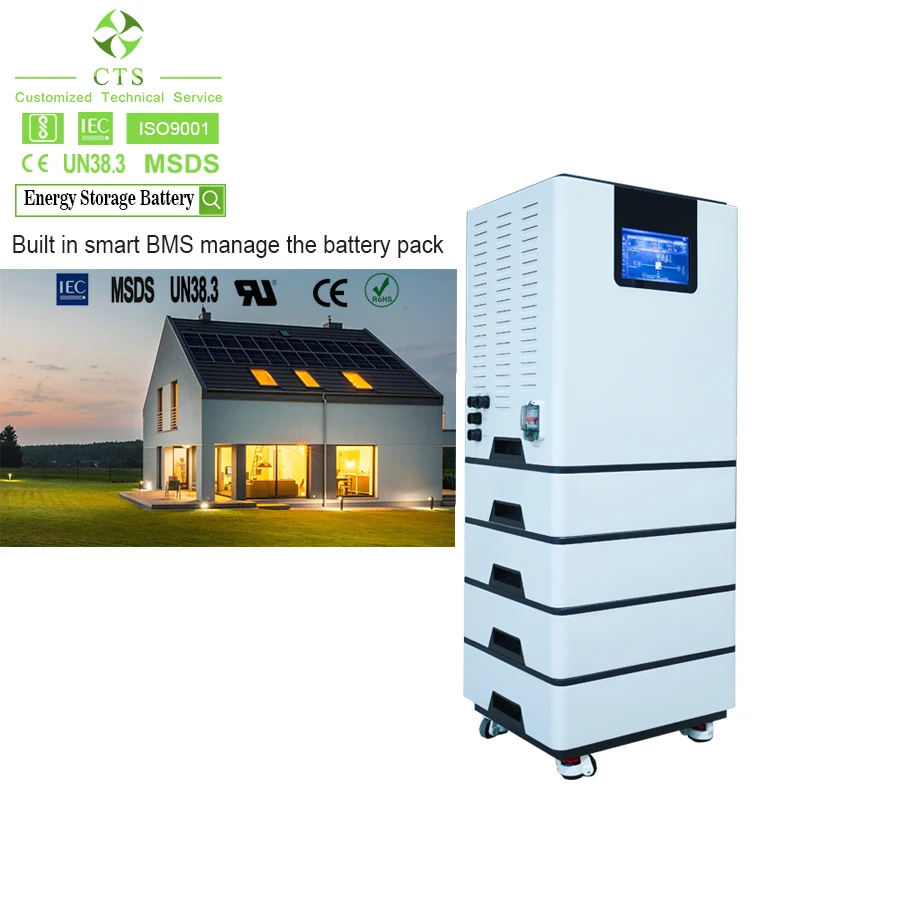

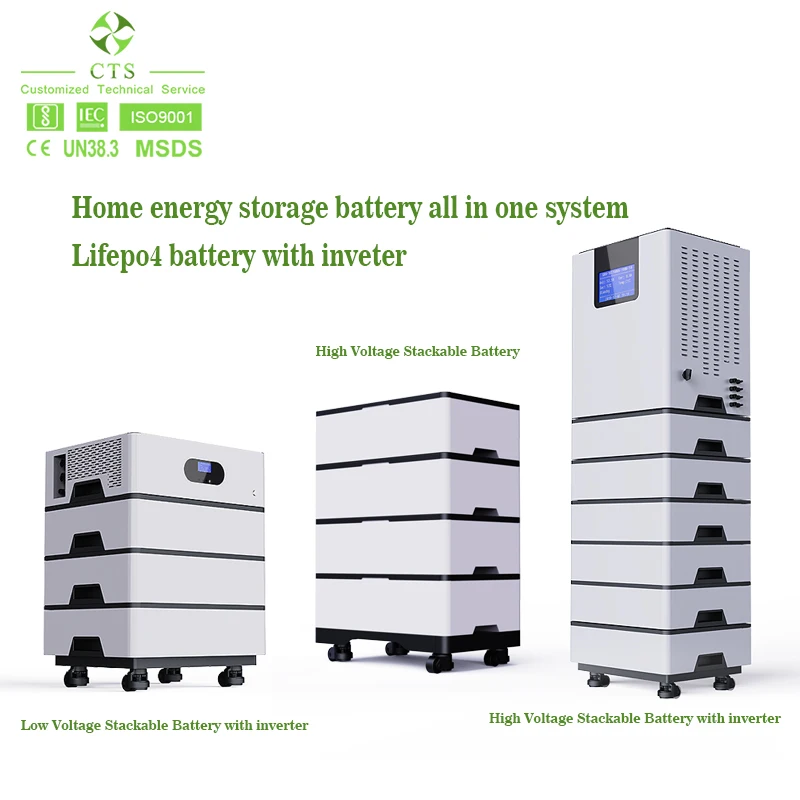

CTS 48v 300ah 600ah 10kWh 20kWh home energy storage lifepo4 battery pack all in one system battery home use energy storage
- Category: >>>
- Supplier: Hunan Cts Technology Co. Ltd.
Share on (11000014274792):
Product Overview
Description
48v lifepo4 battery 10kwh 20kwh high capacity stacked battery storage battery and hybrid inverter ess solar energy battery
★ A+++ LFP cell and reliable BMS design
★ Module design with flexiable expansion to 30kwh

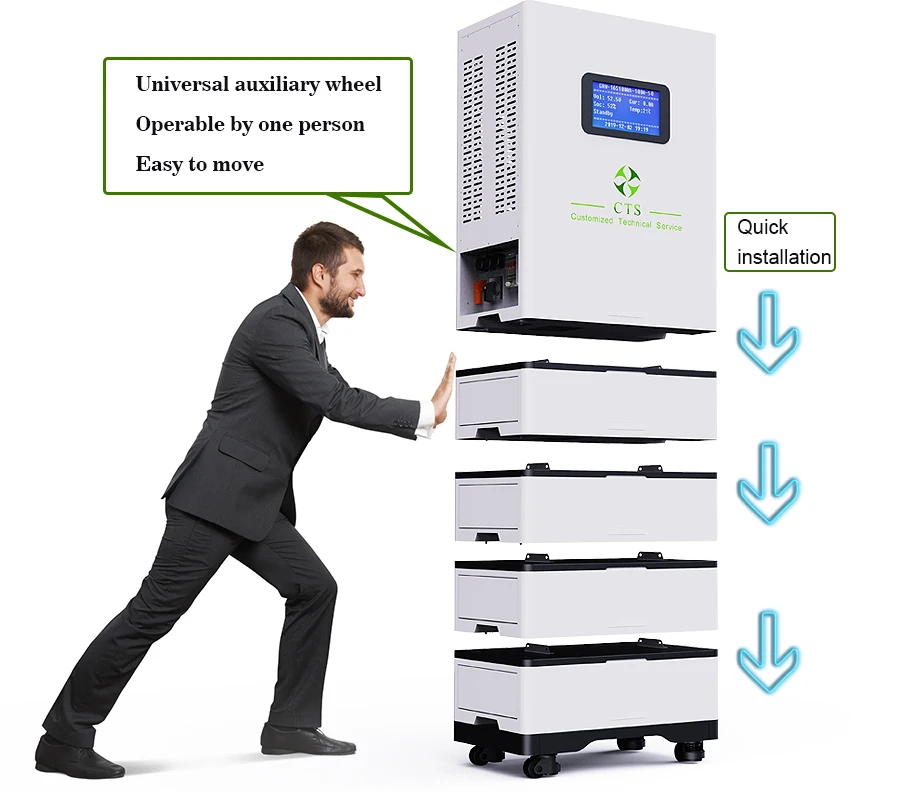

★ Pulley and rail design ensures easy and quick in stallation of the system
★ Build in MPPT with 99% efficient
★ Low-voltage batteries and inverters provide cost-effective storage systems
★ Operating temperature ranges from -10C to 55C
★ Module design with flexiable expansion to 30kwh
★ Pulley and rail design ensures easy and quick in stallation of the system
★ Build in MPPT with 99% efficient
★ Low-voltage batteries and inverters provide cost-effective storage systems
★ Operating temperature ranges from -10C to 55C
System specification | ||||||||||||
Model | LS51100-FP5 | LS51200-FP5 | LS51300-FP5 | LS51400-FP5 | LS51500-FP5 | LS51600-FP5 | ||||||
Inverter parameter | ||||||||||||
PV input power | 4000W | |||||||||||
PV max charge current | 80A | |||||||||||
Max PV Voltage | 145VDC | |||||||||||
MPPT voltage range | 64~130VDC | |||||||||||
Number of Mppt | 1 | |||||||||||
EPS output power | 5000W | |||||||||||
EPS output voltage | 230VAC | |||||||||||
EPS output current | 21.7A | |||||||||||
EPS output frequency | 50/60HZ | |||||||||||
EPS Transfer Time | ≤ 20ms | |||||||||||
Waveform | Pure Sine Wave | |||||||||||
AC charge current | 60A | |||||||||||
Battery parameter | ||||||||||||
Battery Type | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | ||||||
Rated voltage | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | ||||||
Rated capacity | 100AH | 200AH | 300AH | 400AH | 500AH | 600AH | ||||||
Energy(25°C, 0.5C） | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | 30.72kwh | ||||||
Safety standard | IEC62619, UN38.3, MSDS | |||||||||||
System parameter | ||||||||||||
Display | 7 inch touch LCD | |||||||||||
Operating temperature | -10°C~60°C | |||||||||||
Humidity | 15%~85%(No condensation) | |||||||||||
Size(W*D*H) | 640*400*1068mm | 640*400*1336mm | 640*400*1604mm | 640*400*1872mm | 640*400*2140mm | 640*400*2408mm | ||||||
weight | 88kg | 136kg | 184kg | 232kg | 280kg | 328kg | ||||||

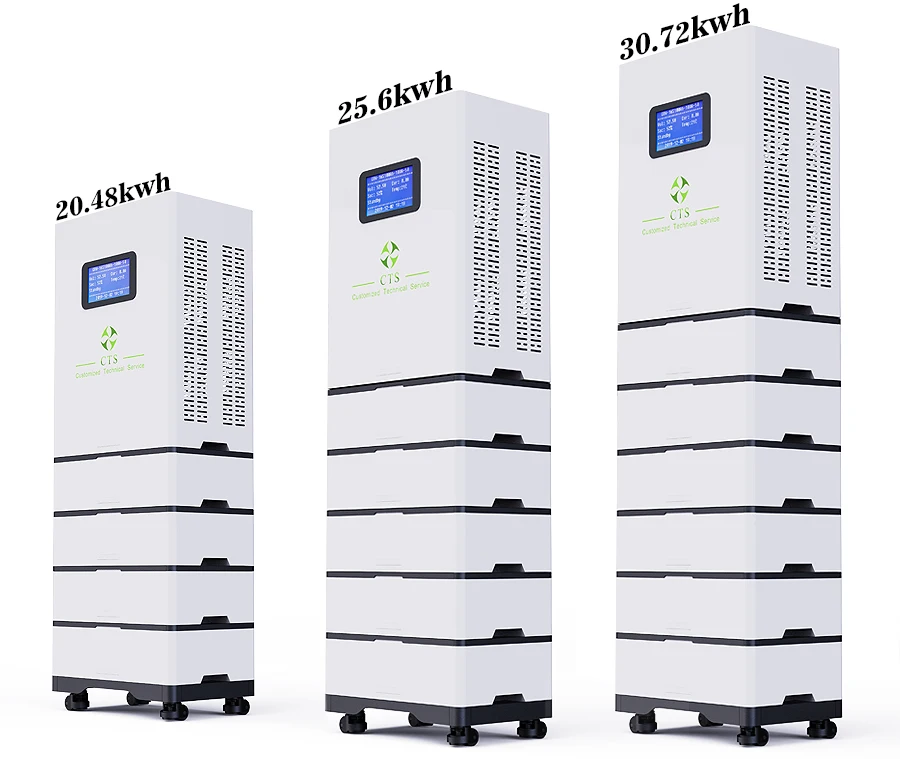

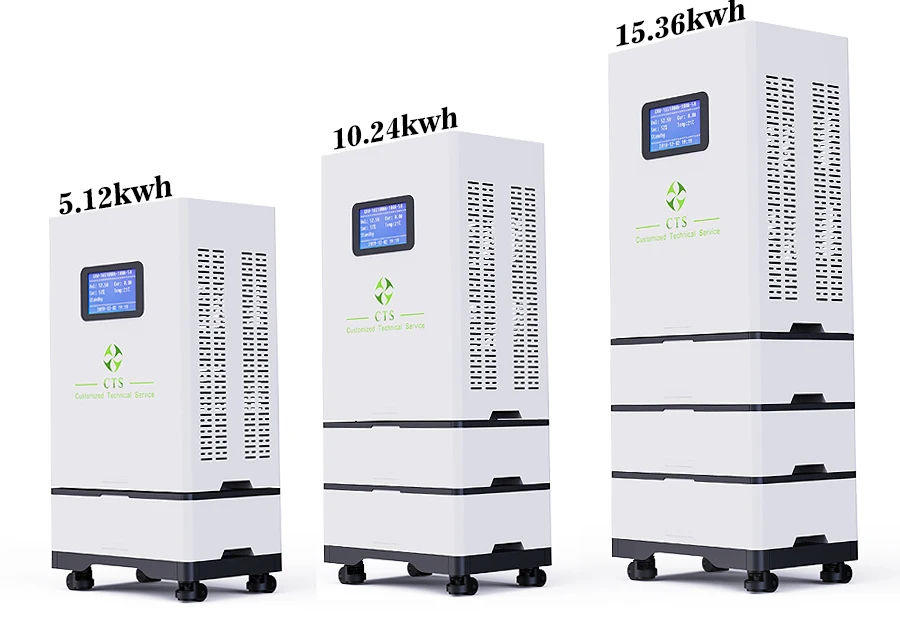

★Can be stacked
Mobile home enrgy storage battery, A single battery is 5KH, which can
be satcked up to 30KH,Effectively respond tosudden power outages and
planned power restrictions
be satcked up to 30KH,Effectively respond tosudden power outages and
planned power restrictions
Data Monitoring
Voltage, Current, Tmperature, etc.
Safety Protection
Overcharge, Overdischarge, Overcurrent, Overtemperature, Online alarm, etc.
Data Interaction
CAN, RS485,
Voltage, Current, Tmperature, etc.
Safety Protection
Overcharge, Overdischarge, Overcurrent, Overtemperature, Online alarm, etc.
Data Interaction
CAN, RS485,

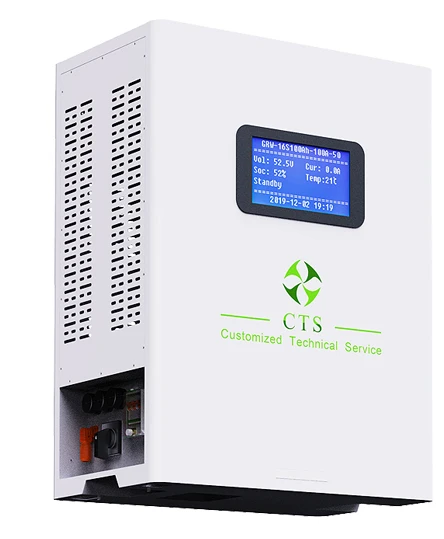

Optional Off-grid/on-grid inverter
Integrateddesign,Off-grid operation
supporting emergencypower
supply,switchable at any time，
multiple inverter modes,3/4/5KW

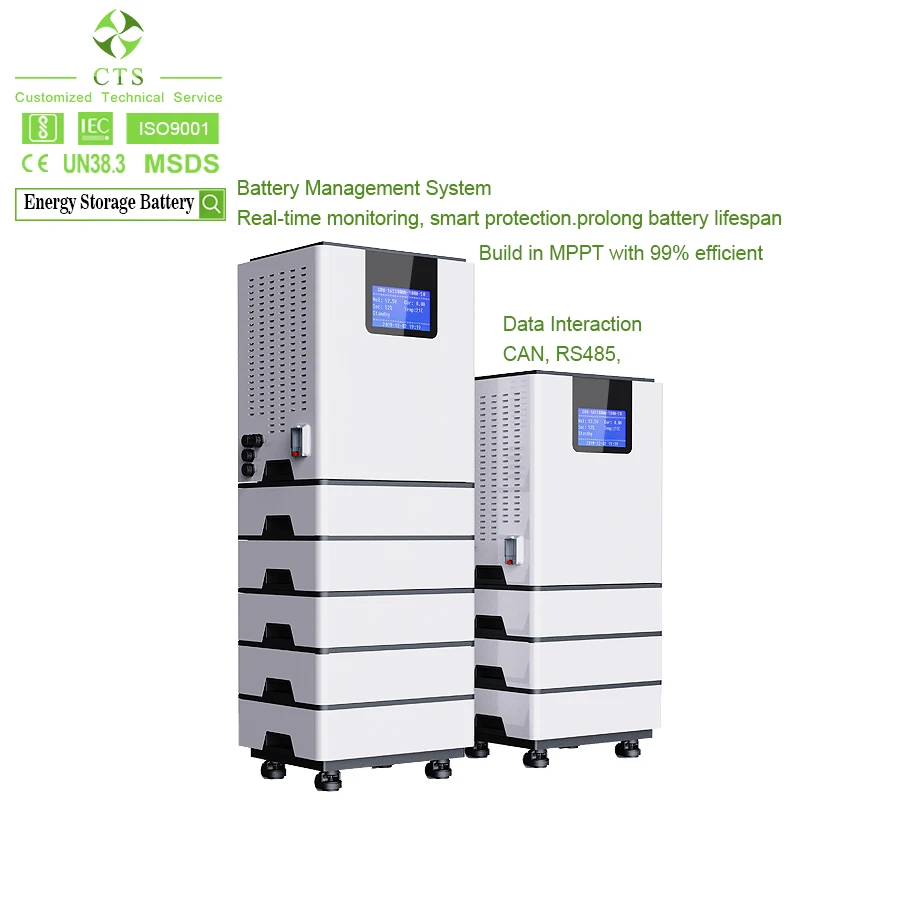

★ Intelligent Battery Management System

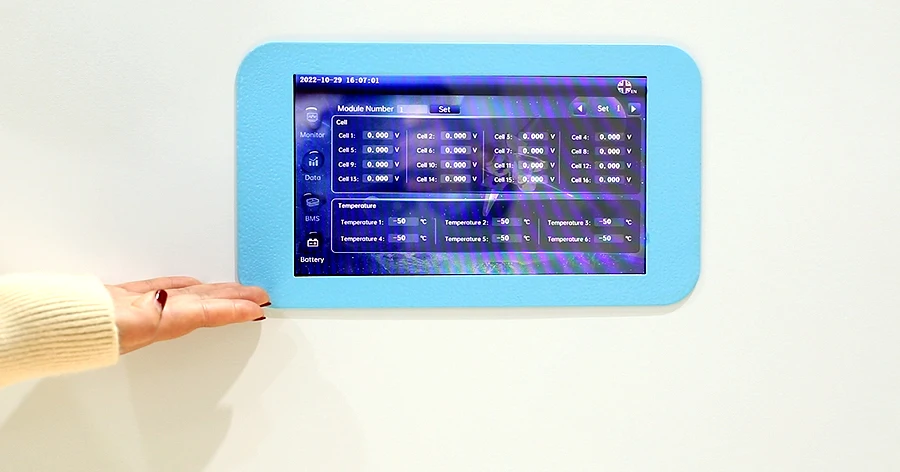

Smart 7 Inch Touch screen display the parameters of theequipment in real time,and the runningstatus is clear at a glance.

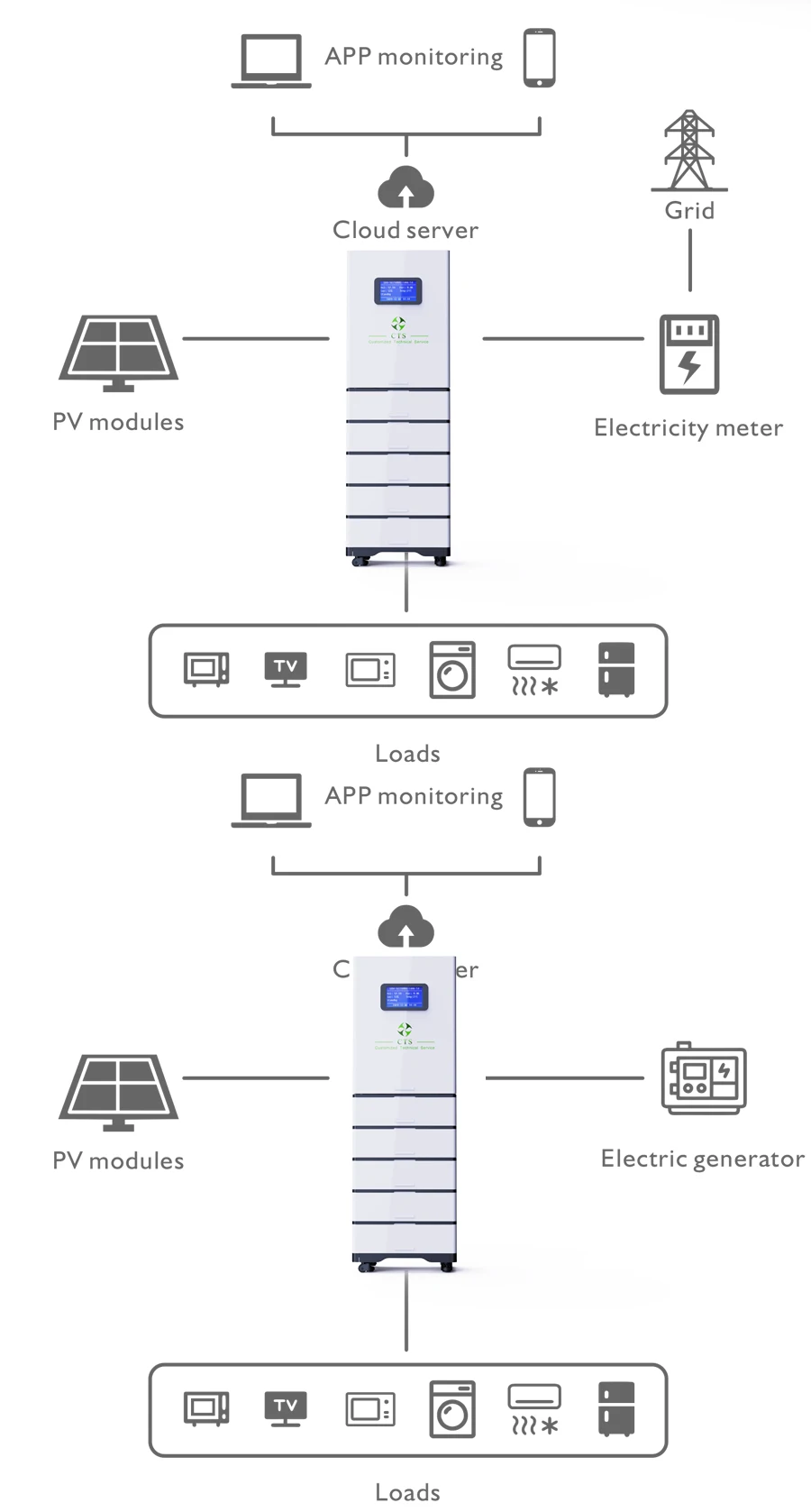

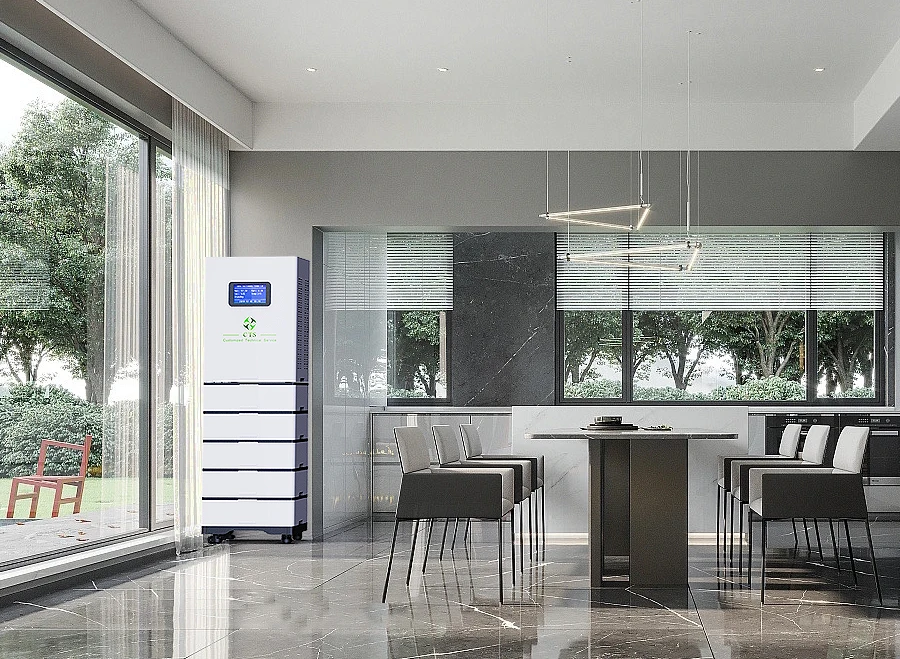

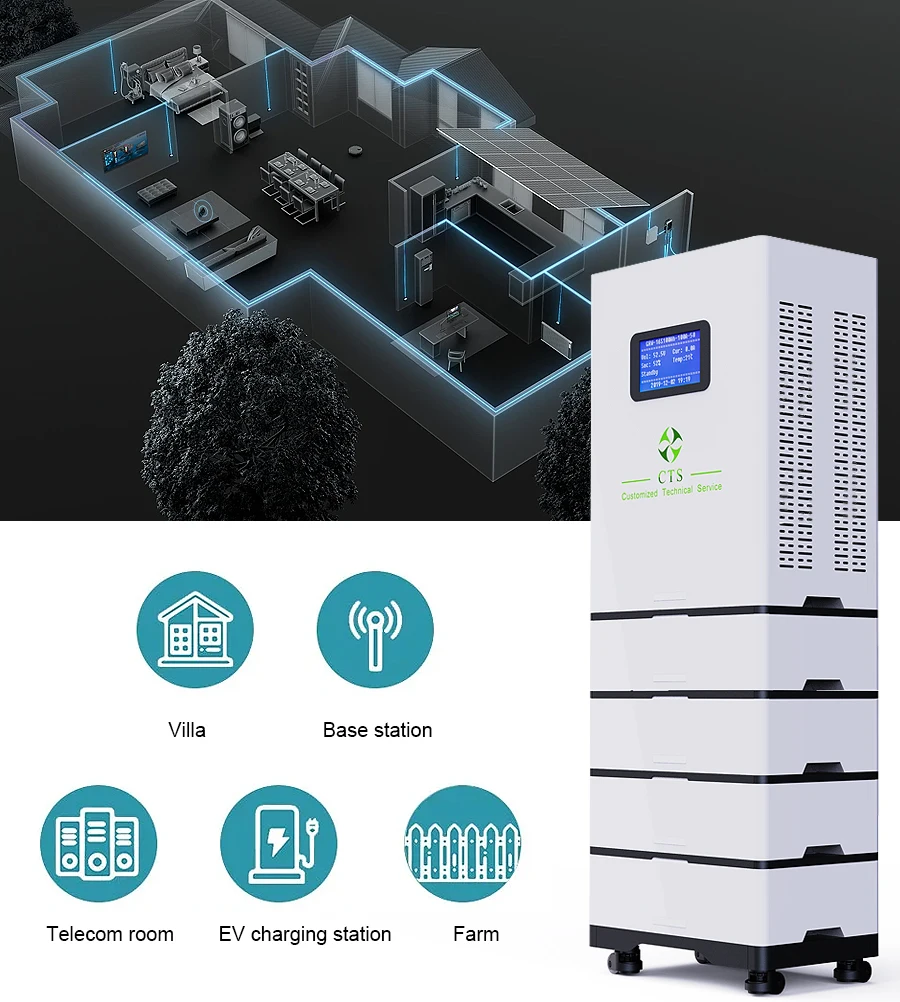

Residential Energy Storage System
The intelligent small energy storage system is combined with advanced LiFe-PO4 lithium batteries, hybrid inverters, energy management systems, and photovoltaic module systems, which is suitable for household energy storage, farms, and other applications.

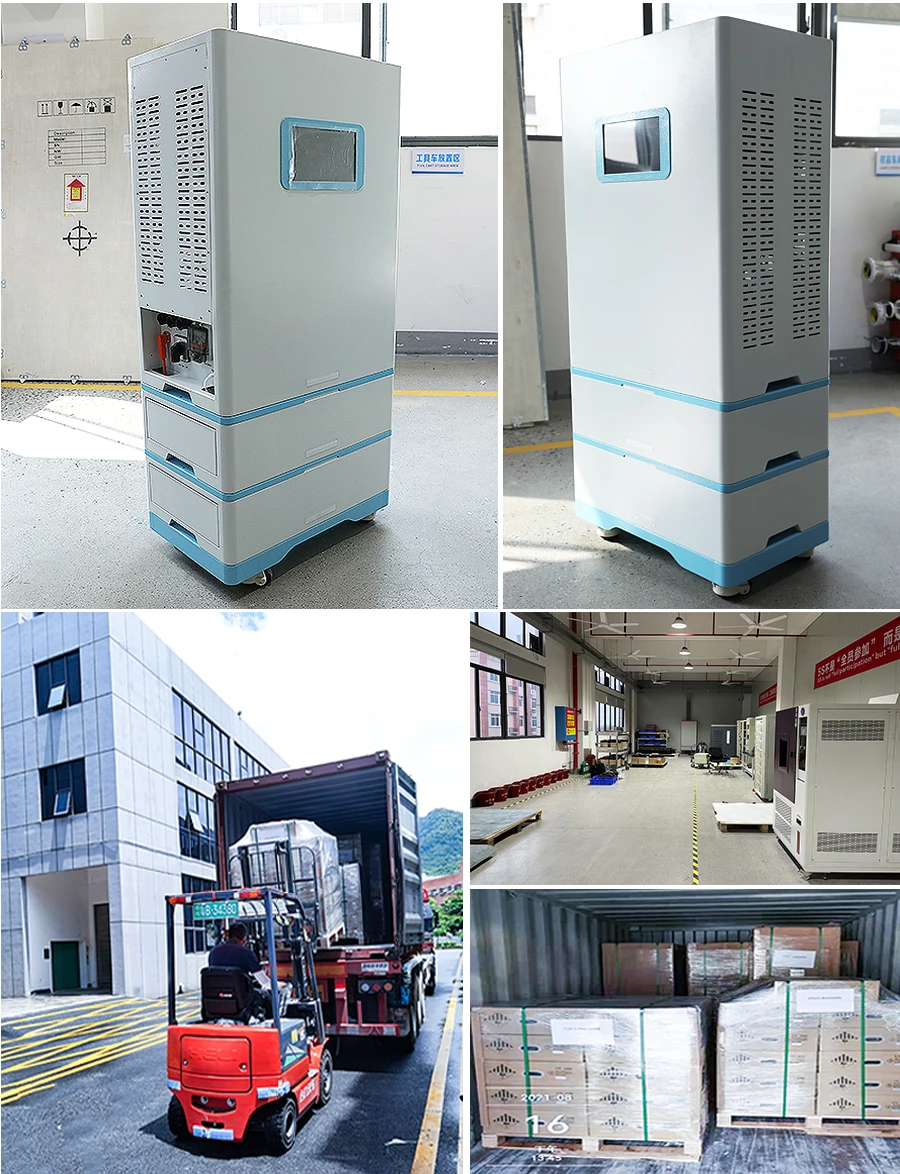

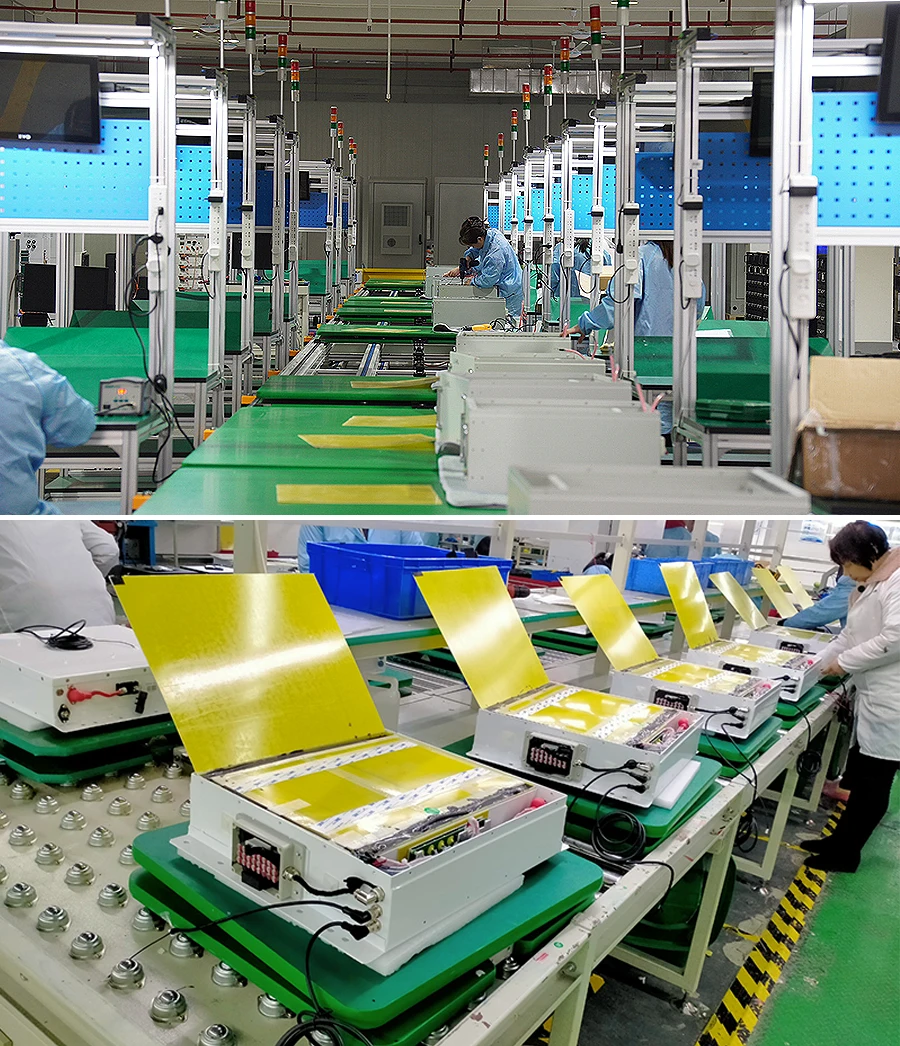

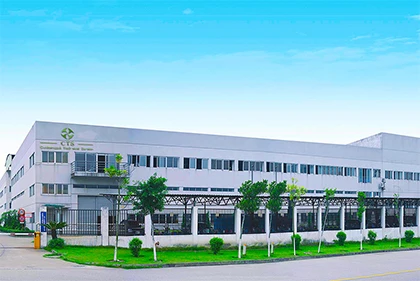

10+ years to sharpen a sword. We do only one thing, professional customization. 20 + R&D team 150 front-line production employees
10 production lines 20,000 square meter plant Capacity up to 500mwh
