TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system
TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system is made of XPS foam board, which has a good thermal insulation and waterproof effect. We have two types of underfloor heating insulation panel, one is laminated with aluminum foil, the other is recombined with aluminum panel. The water pipes in different diameter can be installed into the grooves, if the XPS board is covered by aluminum foil or aluminum panel, the energy could be spreaded efficiently and evenly.
TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system
Two types of underfloor heating insulation panel

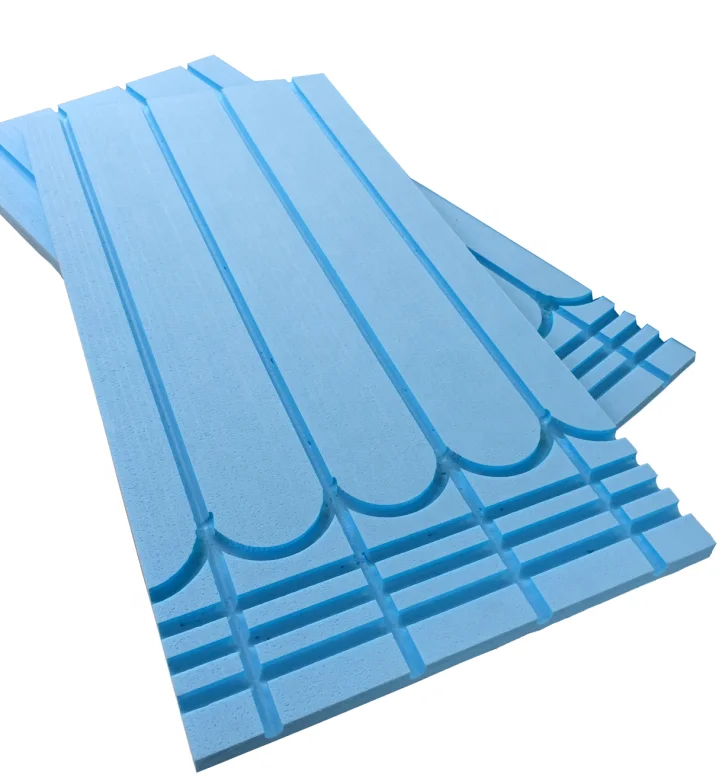

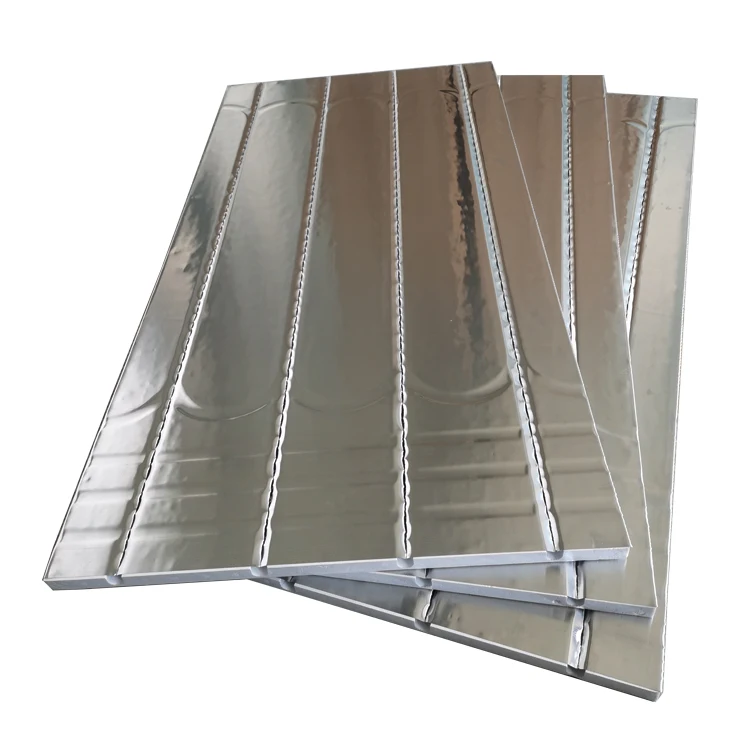

1. Grooved XPS laminated with aluminum foil-----------------it's better for tile finished floor
Item No. | Size of the panel | Pipe OD | Chanel distance | ||
UHP-Al25-16 | 1200*600*25mm | 16mm | 15/20cm | ||
UHP-Al30-20 | 1200*600*30mm | 20mm | 15/20cm | ||
Al foil | totally laminated for grooved XPS foam board | ||||

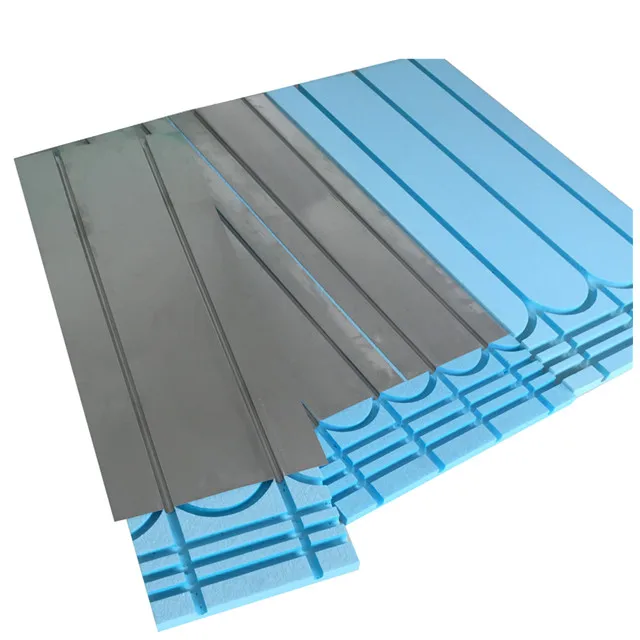

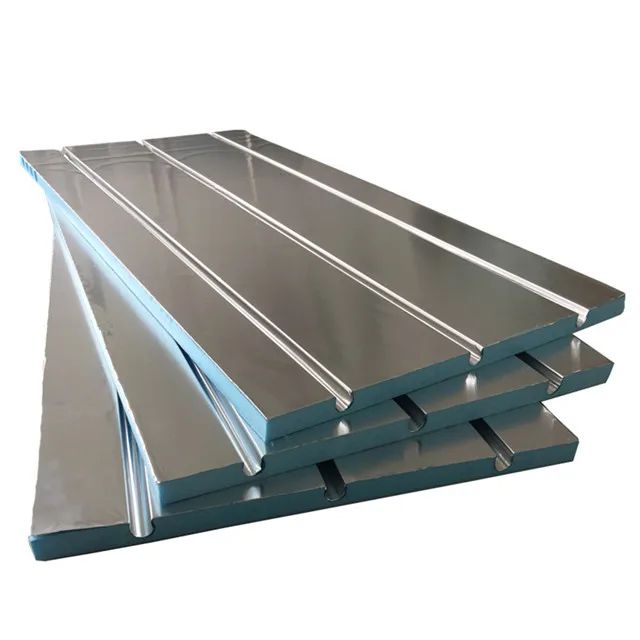

2. Grooved XPS + aluminum sheet ----------------------------it's better for wood finished floor
Item No. | Size of the panel | Pipe OD | Chanel distance |
UHP25-16 | 1200*600*25mm | 16mm | 15/20cm |
UHP30-20 | 1200*600*30mm | 20mm | 15/20cm |
Al sheet | 1000*390*0.45mm | 16/20mm | 15/20cm |
3.OEM or ODM is also acceptable, we can produce based on your requirement
Technical data of XPS foam board
Radiant floor Pro warm board underfloor heat reflective aluminium foil insulation foam xps floor heating panel
XPS | ||
Density of core board | Kg/m3 | 32~35 |
Thermal conductivity,90 days, 10。C | W/mK | 0.028~0.036 |
Compressive strength at 10% deflection or yield,(vertical) | Kpa | 250~300 |
Tensile strength | Kpa | >=300 |
Water absorption | vol-% | <=1% |
Capillarity | nil | nil |
Coefficient of linear thermal expansion | mm/mk | 0.07 |
Temperature limits | 。C | -50。C，+75。C |
Characteristics
1. For TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system, we use fresh material to manufacture XPS foam board free of CFC,HCFC
TYCO | Other factory | Other factory | Other factory |
Fresh material | EPS recycled material | XPS recycled material | Waster material |
2. Ʊ-shape groove-easy to installation. For example, two people can finish 1000m2 in two hours
3. high compressive strength 250～300kpa（1m2 area can bear 25~30 ton weight)

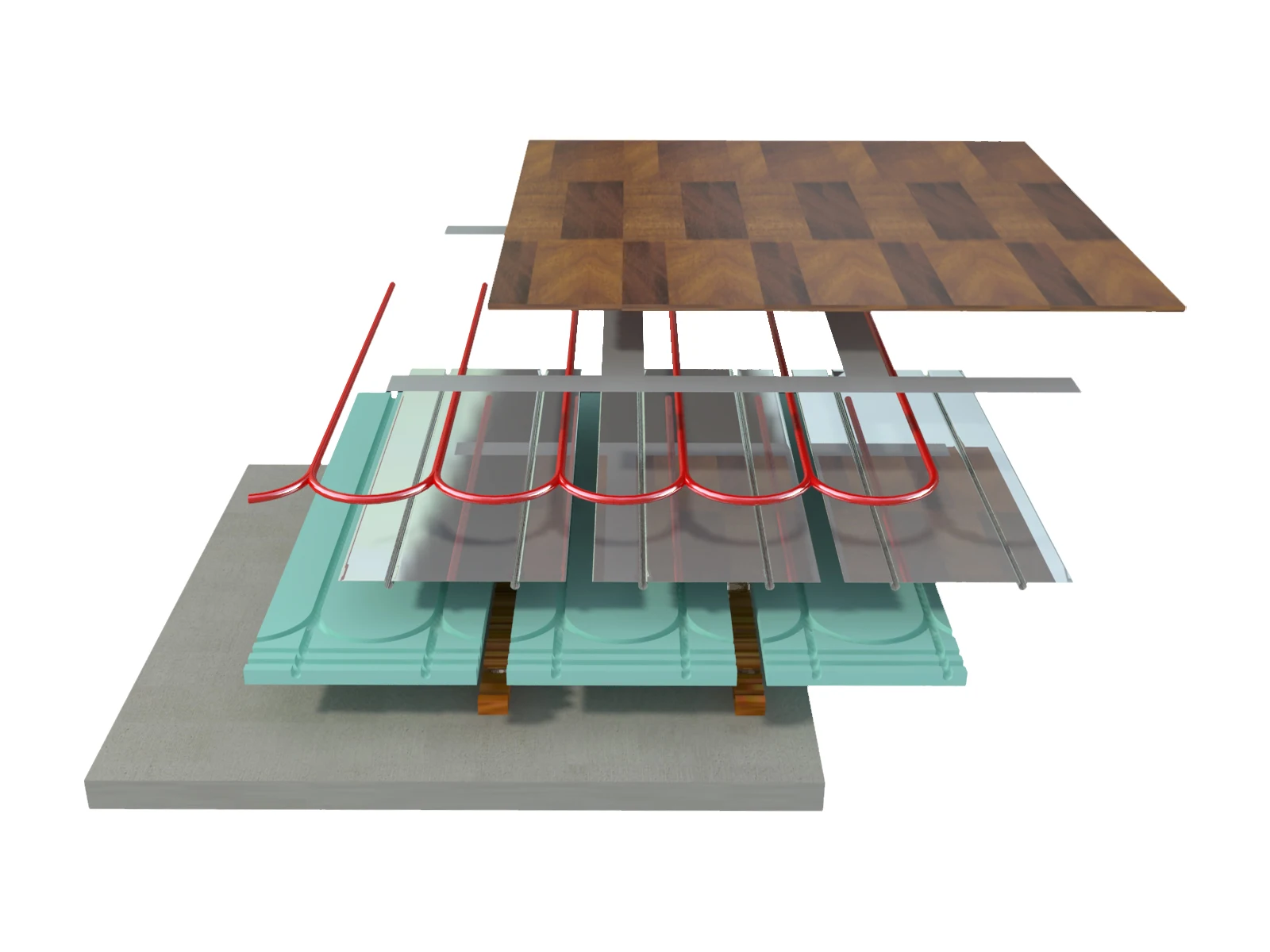

Installation
Grooved XPS + aluminum sheet it's better for wood finished floor | Grooved XPS laminated with aluminum foil it's better for tile finished floor | ||||
Related Products
Aluminum tape | Thermostat | Pex-al-pex | ||
Brass manifold
For TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system, If you have demand with these accessories,Pls contact us!

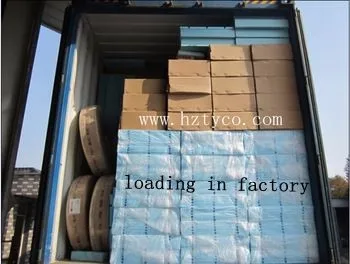

Packing & Delivery
Packing
Item No. | Packing | Quantity/40'GP | Quantity/40'HQ | |
Grooved XPS foam board |
| 1200x600x25mm 3400pcs 1200x600x30mm 2900pcs | 1200x600x25mm 3800pcs 1200x600x30mm 3200pcs | |
Aluminum foiled grooved XPS foam board | ||||
Aluminum sheet | Carton | 20pcs per carton size:45x23.5x106cm | ||
Delivery
1、Normally 25 days after we receive your deposit.
2、If you need it urgently, we can push the limit to 15~20 days. Although it is not ideal since we respect our workers and do not drive them to do overtime all the time, it can be done if needed.
TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system
Our Company
TYCO Warmboard Hydronic radiant floor XPS panels with PEX Pipe tubing for underfloor heating system

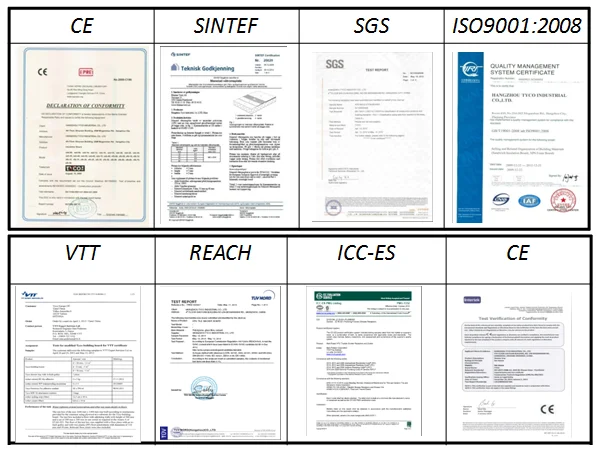

Certifications
