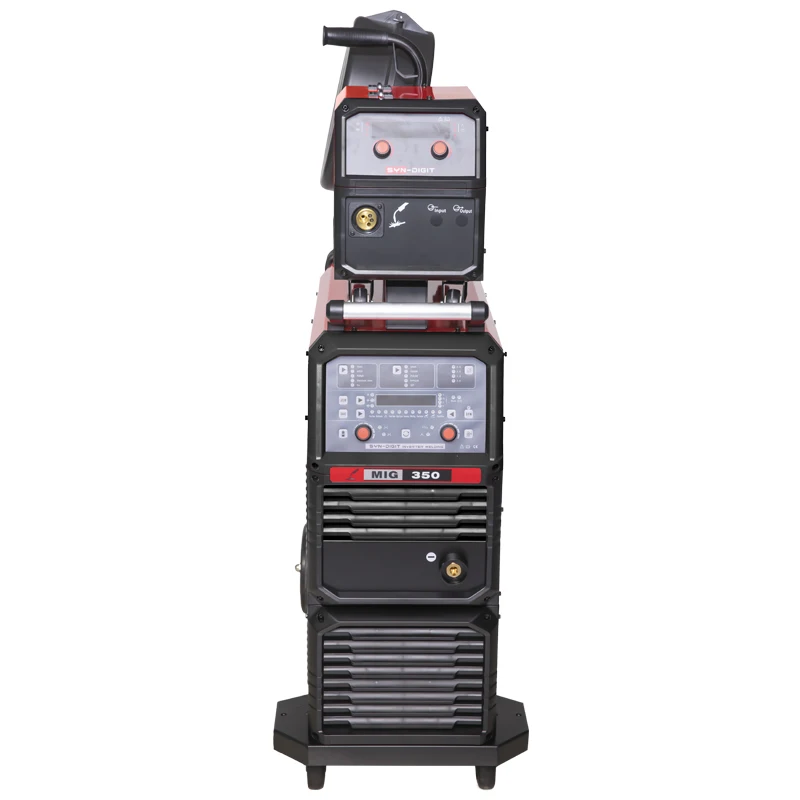

MIG Welding Machine for Stainless Steel Carbon Steel Industrial Use IGBT Module MIG/MAG/MMA Welders MIG 350W
- Category: >>>
- Supplier: Wuhan Jinda Welding Technology Co. Ltd.Wuhan Ltd.
Share on (11000014673994):
Product Overview
Description
Product Description
Main features:

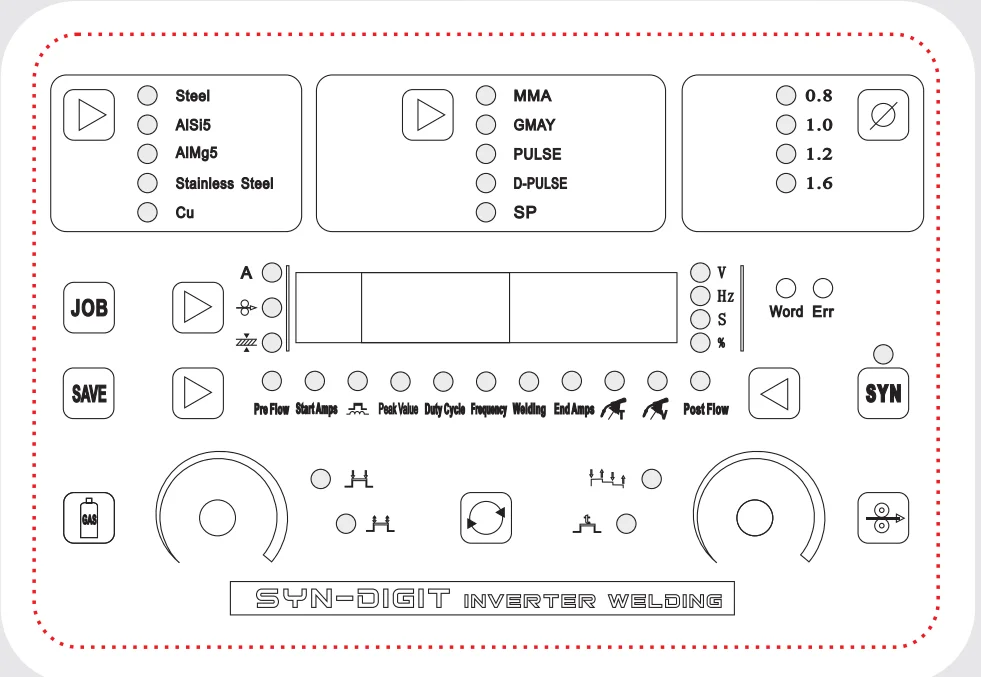

1. New Appearance Design, Compact Digital Control Panel, SYN Adjustment;
2. Integrated Wire Feeder With Double Drive Wire Feeder, Ensure Wire Feeding Stable;
3. Single Pulse And Double Pulse Can Be Chosen, Especially Suitable For Super-thin Aluminum Plate Of 0.45mm Welding;
4. With Trolly, Easy To Move, High Convenience For MIG Welding;
5. International Brand IGBT And Rectify Tube;
6. Quick Welding Speed, Little Splash, Deep Pool, Good Welding Appearance;
7. High Duty Cycle, Efficiency is 3 Times Of Traditional Argon Welding, Energy Saving, High Reliability.
2. Integrated Wire Feeder With Double Drive Wire Feeder, Ensure Wire Feeding Stable;
3. Single Pulse And Double Pulse Can Be Chosen, Especially Suitable For Super-thin Aluminum Plate Of 0.45mm Welding;
4. With Trolly, Easy To Move, High Convenience For MIG Welding;
5. International Brand IGBT And Rectify Tube;
6. Quick Welding Speed, Little Splash, Deep Pool, Good Welding Appearance;
7. High Duty Cycle, Efficiency is 3 Times Of Traditional Argon Welding, Energy Saving, High Reliability.
Specification
Model | MIG-350 | MIG-350W |
Input Power Voltage(VAC) | 3PH.AC380V | 3PH.AC380V |
Rated Input Capacity(KVA) | 15.8 | 15.8 |
Rated Input Current(A) | 24 | 24 |
No-load Voltage(V) | 65 | 65 |
Output Current Range(A) | 50-350 | 50-350 |
Rated Duty Cycle(%) | 60 | 60 |
Diameter Of Rod(mm) | Ø0.8/Ø1.0/Ø1.2/Ø1.6 | Ø0.8/Ø1.0/Ø1.2/Ø1.6 |
Insulation Class | F | F |
Protection Class | Ip21 | Ip21 |
Efficiency(%) | 85 | 85 |
Power Factor(cosφ) | 0.93 | 0.93 |
N.W.(kg) | 59 | 74 |
Dimensions(mm) | 970*475*685 | 970*475*925 |
