Deye sun 1600 800 600 micro solar inverter 800w SUN M60G4 EU Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system
Deye sun 1600 800 600 micro solar inverter 800w SUN-M60G4-EU-Q0 mppt wifi grid tie microinverter for home use system

Deye sun 1600 800 600 micro solar inverter 800w SUN M60G4 EU Q0 mppt wifi grid tie microinverter for home use system

Share on (11000014697579):


Price:$89.00 - $99.00

Quantity:


Product Overview

Description



Products Description

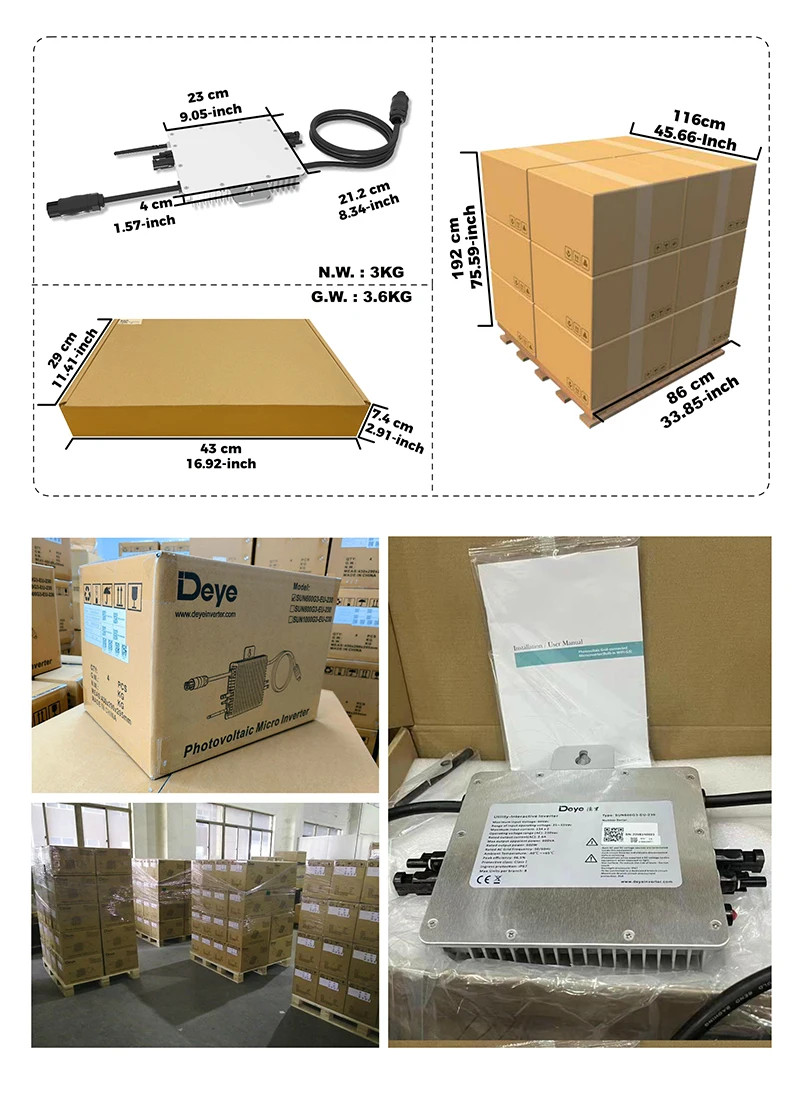

Product Packaging




Specification


Model
SUN-M60G3-EU-Q0
SUN-M80G3 -EU-Q0
SUN-M100G3-EU-Q0
Input Data (DC)
Recommended input Power (STC)
210~420W (2 Pieces)
210~500W (2 Pieces)
210~600W (2 Pieces)
Maximum input DC Voltage
60V
MPPT Voltage Range
25~55V
Full Load DC Voltage Range (V)
24.5~55V
33~55V
40~55V
Max. DC Short Circuit Current
2×19.5A
Max. input Current
2×13A
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
Output Data (AC)
Rated output Power
600W
800W
1000W
Rated output Current
2.7A
2.6A
3.6A
3.5A
4.5A
4.4A
Nominal Voltage / Range (this may
vary with grid standards)
220V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
220V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
220V/
0.85Un-1.1Un
230V/
0.85Un-1.1Un
Nominal Frequency / Range
50 / 60Hz
Extended Frequency/Range
45~55Hz / 55~65Hz
Power Factor
>0.99
Maximum units per branch
8
6
5
Efficiency
95%
Peak Inverter Efficiency
96.5%
Static MPPT Efficiency
99%
Night Time Power Consumption
50mW
Mechanical Data
Ambient Temperature Range
-40-60℃, >45℃ Derating
Size (WxHxD mm)
212×229×40 (Excluding Connectors and Brackets)
Weight (kg)
3.5
Cooling
Natural cooling
Enclosure Environmental Rating
IP67
Features
Communication
WIFI
Grid Connection Standard
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty
10 Years


Company Profile




We have established long term strategic partnershipswith the following brands: Deye, Goodwe, Solis,Growatt, SRNE, SMA, Hoymiles,MUST, HUAWEl, etc




FAQ


1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.

2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.

3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.

4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.

5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
