5KW Residential Energy Storage 48V 100Ah LiFePO4 Batteries Power wall Lithium Ion Battery with RS485 LCD Display For Home
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. LimitedShenzhen Limited
Share on (11000014870164):
Product Overview
Description

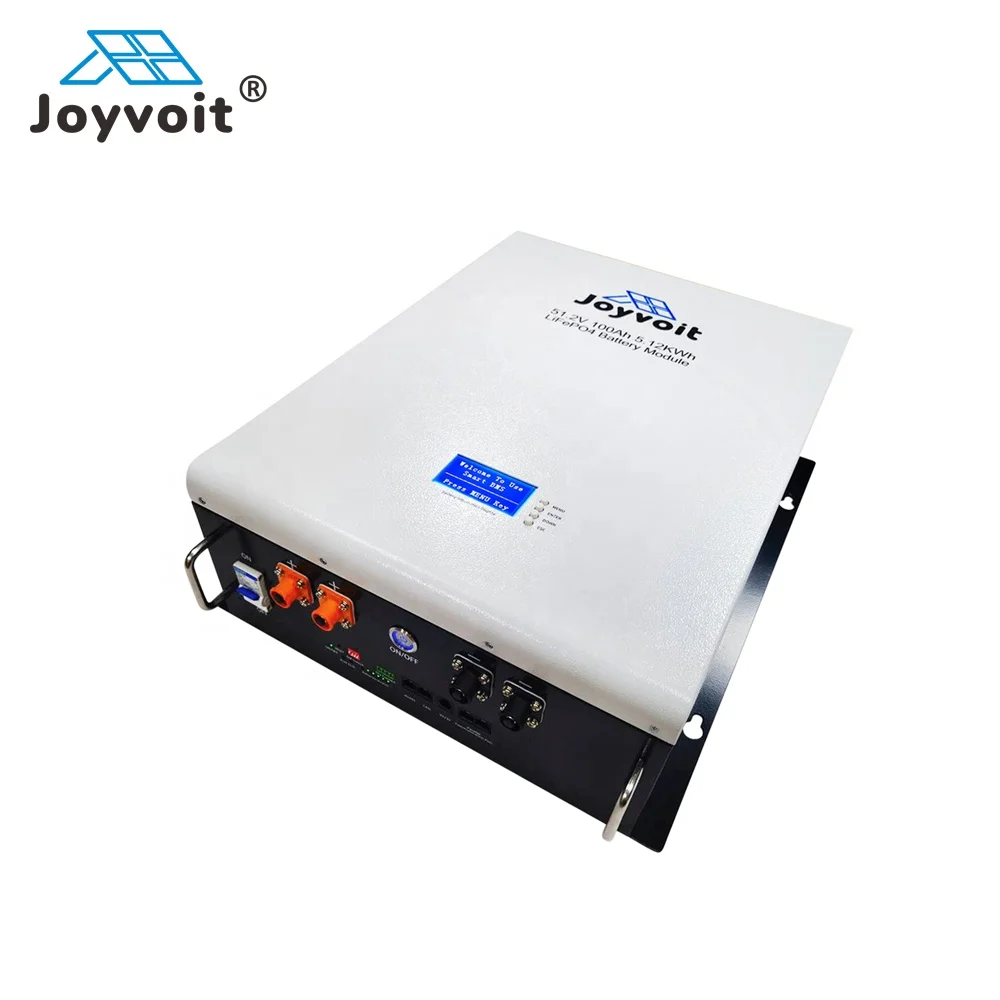

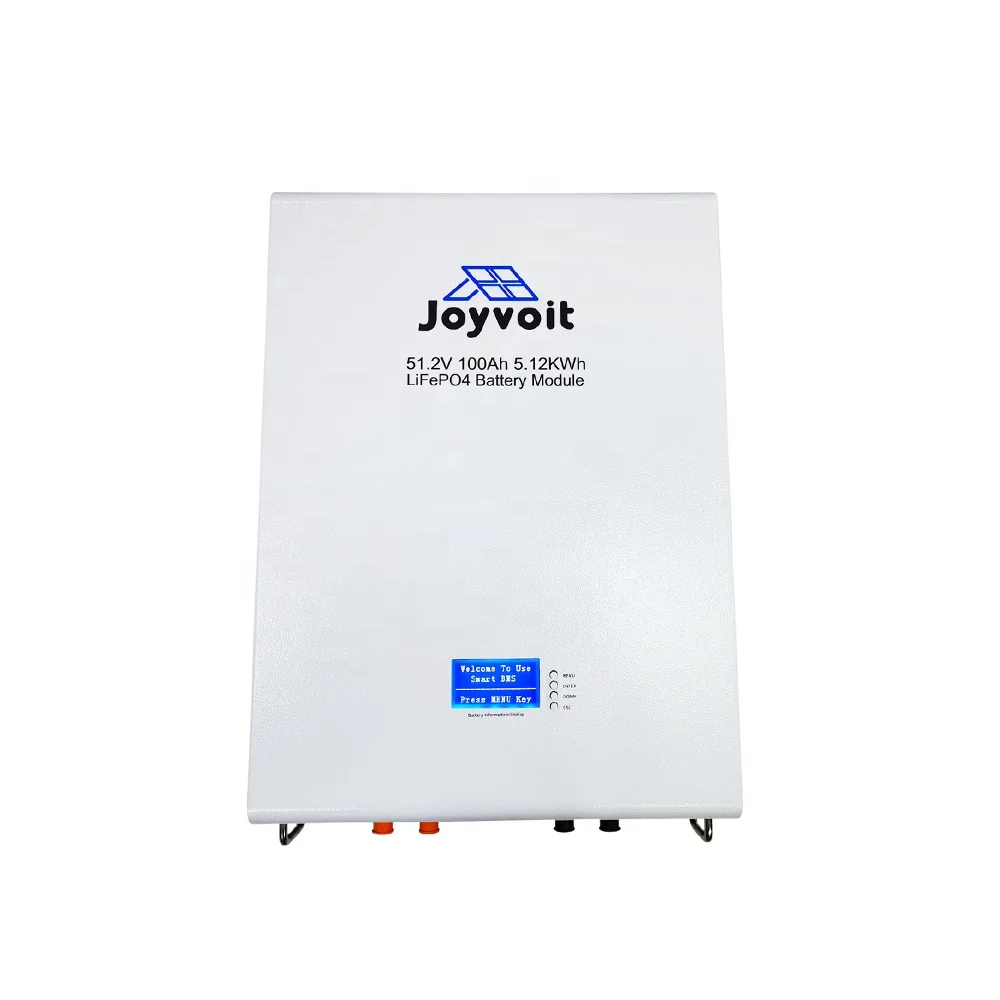

5KW Residential Energy Storage 48V 100Ah LiFePO4 Batteries Power Wall Lithium Ion Battery with RS485 LCD Display For Home
Remarks
The lithium iron phosphate battery module which designed for residential energy storage application. This battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, fast charging, temperature range and environmental protection. And also, it has a beautiful fashionable modeling design. We Joyvoit is committed to providing safe and stable power supply for residential energy storage system.
51.2V LiFePO4 Battery 50/60/100Ah Product List | ||||||||||||
Model | BW2KW | BW3KW | BW5KW | BR2KW | BR3KW | BR5KW | ||||||
Basic | ||||||||||||
Rated voltage | 51.2V | 51.2V | ||||||||||
Rated capacity | 50Ah | 60Ah | 100Ah | 50Ah | 60Ah | 100Ah | ||||||
Rated energy | 2.56KWh | 3.00KWh | 5.00KWh | 2.56KWh | 3.00KWh | 5.00KWh | ||||||
Operating parameters | ||||||||||||
Voltage range | 44.8~56V | 44.8~56V | ||||||||||
Charging voltage | 55.2~56.8V | 55.2~56.8V | ||||||||||
Cut-off voltage | 44.8V | 44.8V | ||||||||||
Max. Charging current | 50A | 60A | 100A | 50A | 60A | 100A | ||||||
Recommended charging current | <=25A | <=30A | <=50A | <=30A | <=30A | <=50A | ||||||
Max. Discharging current | 70A | 70A | 100A | 70A | 70A | 100A | ||||||
Physical | ||||||||||||
Dimension (mm) | 442x430x88 Wall-mounted | 442x430x133Wall-mounted | 670x550x350Wall-mounted | 442x430x88 Wall-mounted | 442x430x88 Wall-mounted | 442x470x154 Wall-mounted | ||||||
Weight (kg) | 29.5 | 32 | 46 | 30 | 30 | 46 | ||||||
Communication port | RS485/CAN | RS485/CAN | ||||||||||
Indicator | LCD | LCD | ||||||||||
Terminal | M6 screw | M6 screw | ||||||||||
Environment | ||||||||||||
Humidity | 5~95% Relative humidity | 5~95% Relative humidity | ||||||||||
Charging temperature | 0°C~45°C | 0°C~45°C | ||||||||||
Discharging temperature | -20°C~60°C | -20°C~60°C | ||||||||||
Storage temperature | -20°C~45°C | -20°C~45°C | ||||||||||
Service Life | ||||||||||||
Cycle Life (80% DOD) | >6000 times (0.5°C,@25°C) | >6000 times (0.5°C,@25°C) | ||||||||||
Design life | >15 years | >15 years | ||||||||||
Certification | ||||||||||||
Safety | CE,EMC,TUV (IEC62619) | CE,EMC,TUV (IEC62619) | ||||||||||
Transportation | UN38.3 | UN38.3 | ||||||||||
If the model of the new battery product you want is not in this list, please contact SUN’S to customize. | ||||||||||||
Feature:
* The battery module consists of single LFP cells, wire, BMS and metal container.
* LFP single cell, long life, safety and wide temperature range
* High energy density, small size, light weight, no pollution
* High efficiency, fast charging
* Built-in BMS, protect voltage, current, temperature in whole service life
* Integrated communication interface, communication with inverter controller
* Integrated LED indicator, display the SOC and operation status
* Standardized module, supporting parallel design, matching a variety of inverters
* 5 years design life, stable performance, maintenance-free.
* High energy density, small size, light weight, no pollution
* High efficiency, fast charging
* Built-in BMS, protect voltage, current, temperature in whole service life
* Integrated communication interface, communication with inverter controller
* Integrated LED indicator, display the SOC and operation status
* Standardized module, supporting parallel design, matching a variety of inverters
* 5 years design life, stable performance, maintenance-free.
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 13 years experience in off grid solar field. In addition, we use alibaba platform
A: Our company had set up at 2010, have 13 years experience in off grid solar field. In addition, we use alibaba platform
for 12 years as supplier.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
