Tianchen NS Tianchen Laser hot sale 3015 3000W sheet metal cutter ipg laser source fiber laser cutting machine

Product Overview

Description

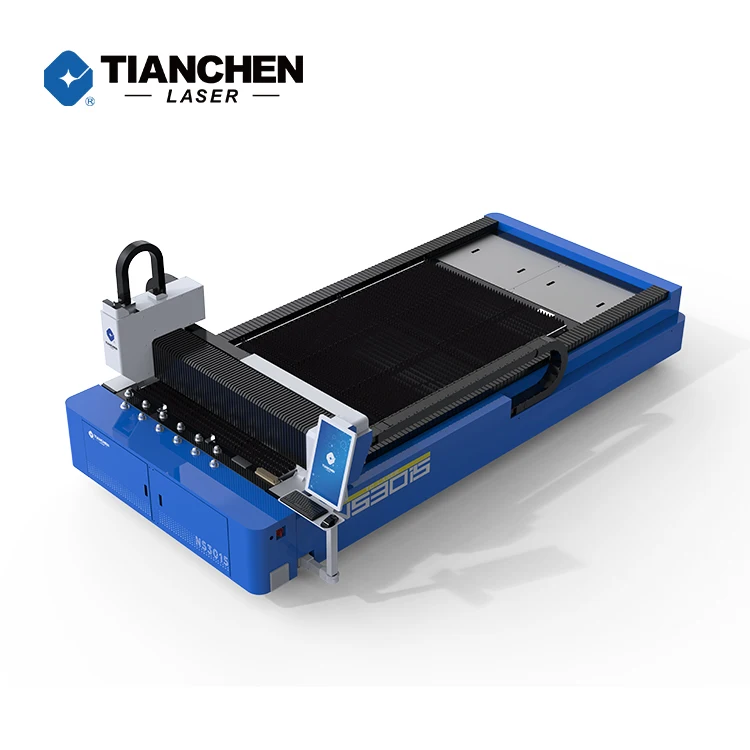

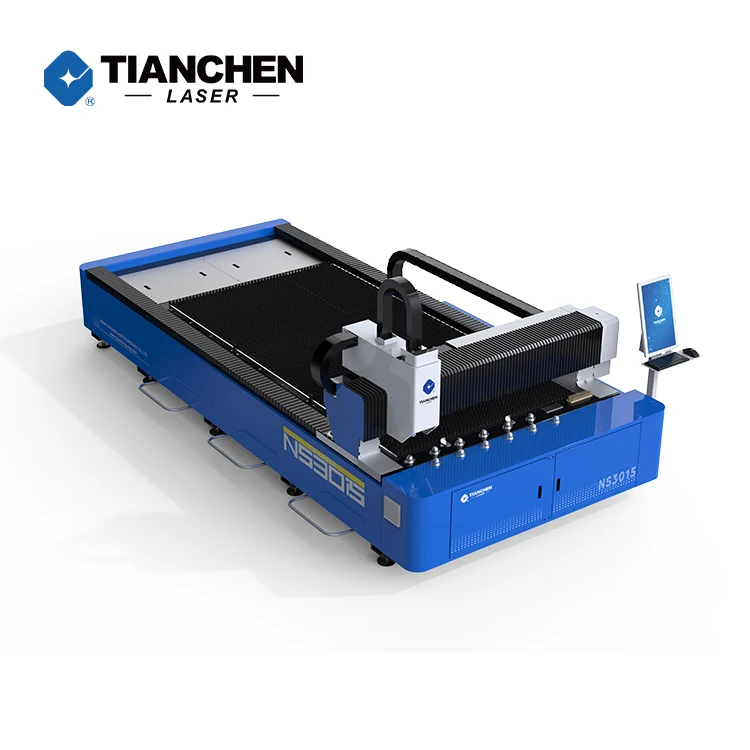

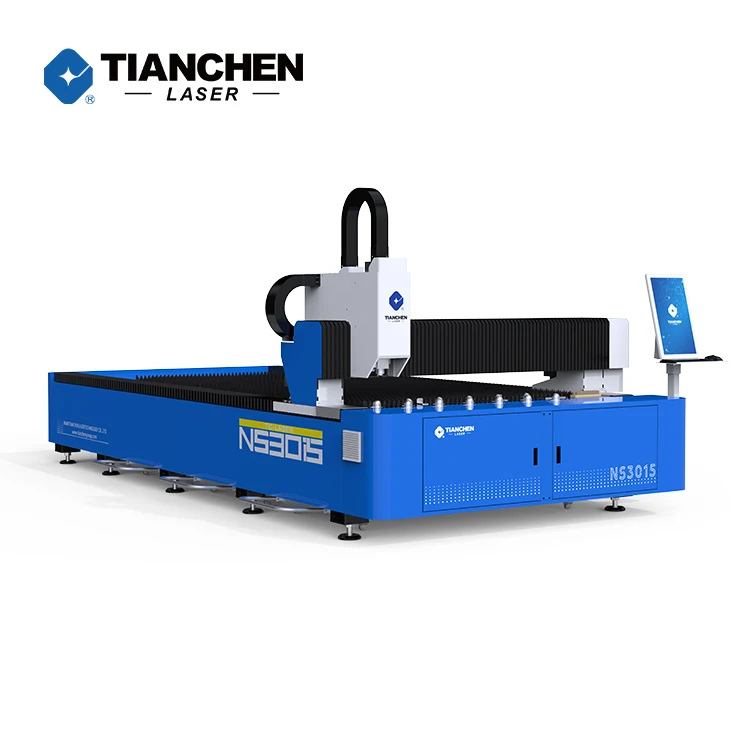

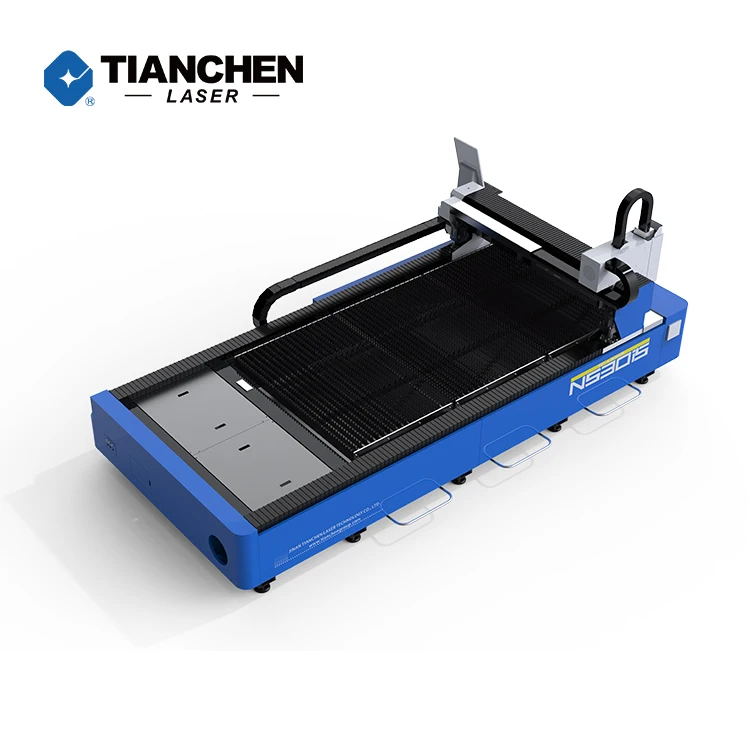

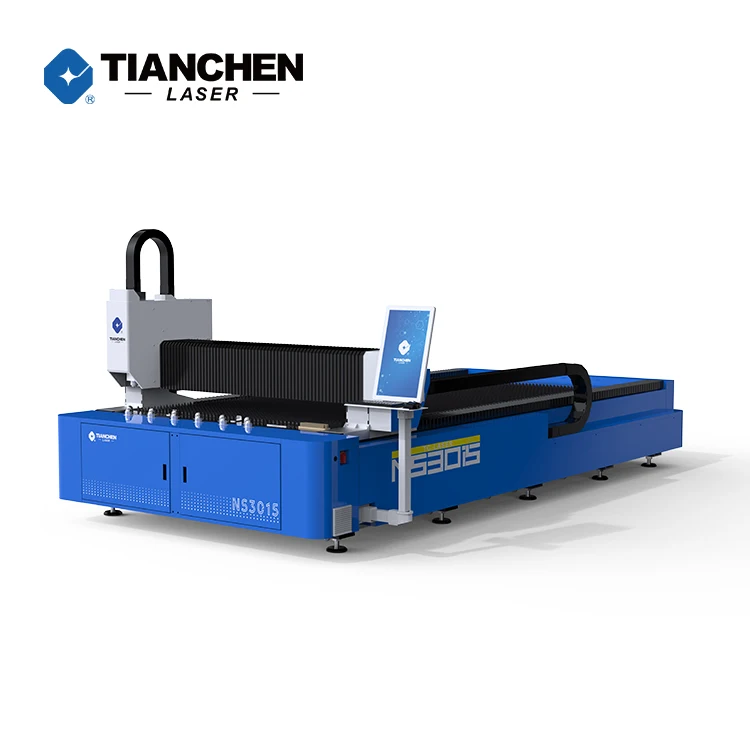

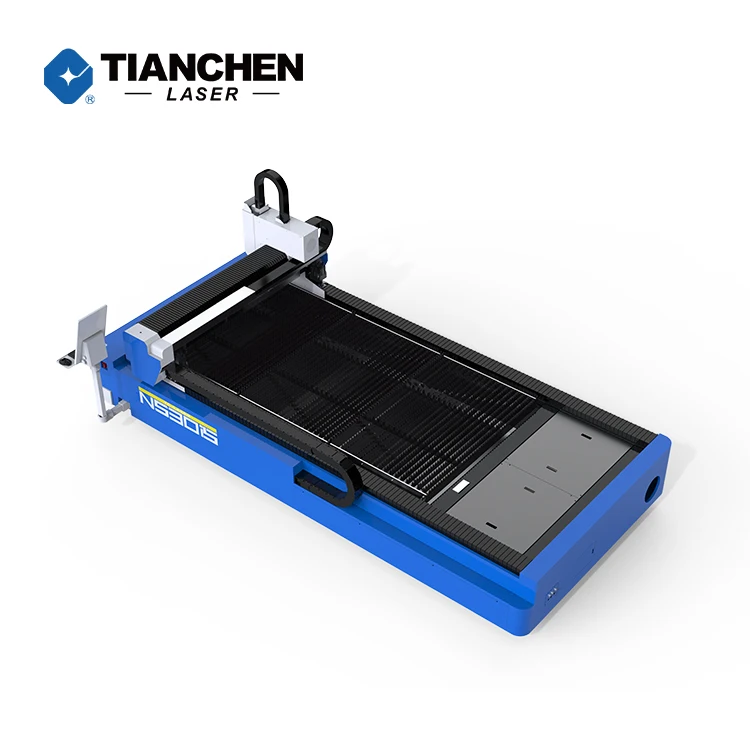

TC-NS Compact-size Single Platform Fiber Laser Cutting Machine      Fiber laser cutting machine is a laser cuttingmachine that uses a fiber laser generator as a light source. It transmits high-energy laser beams through optical fibers to precisely cut various materials. Cnc fiber laser cutters have the characteristics of high efficiency, high precision, and high speed, and are widely used in the processing of metal and non-metal materials. ‌ Tianchen Fiber laser cut machines are widely used in manufacturing and processing industries, such as machinery manufacturing, automotive manufacturing, aerospace, electronics and electrical appliances, petrochemicals, medical equipment, food packaging, and other industries. It is suitable for cutting and processing metal materials such as stainless steel, carbon steel, aluminum alloy, copper, iron.
S/N	Items		Parameters
			NS3015	NS4015	NS6015	NS4020S	NS6020S
1	Basic parameter	Working area	3048*1524mm	4064*1524mm	6096*1524mm	4064*2032mm	6096*2032mm
		Positioning accuracy	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm
		Repositioning accuracy	0.03mm	0.03mm	0.03mm	0.03mm	0.03mm
		Max. running speed (X/Y axis linkage)	120m/min	120m/min	120m/min	130m/min	130m/min
		Max. acceleration (X/Y axis linkage)	1.0G	1.0G	1.0G	1.2G	1.2G
		Table load bearing	800kg	1100kg	1600kg	3000kg	4000kg
		Total weight of machine	1.8T	2.2T	3.7T	4T	5.7T
		Support power	1-3KW

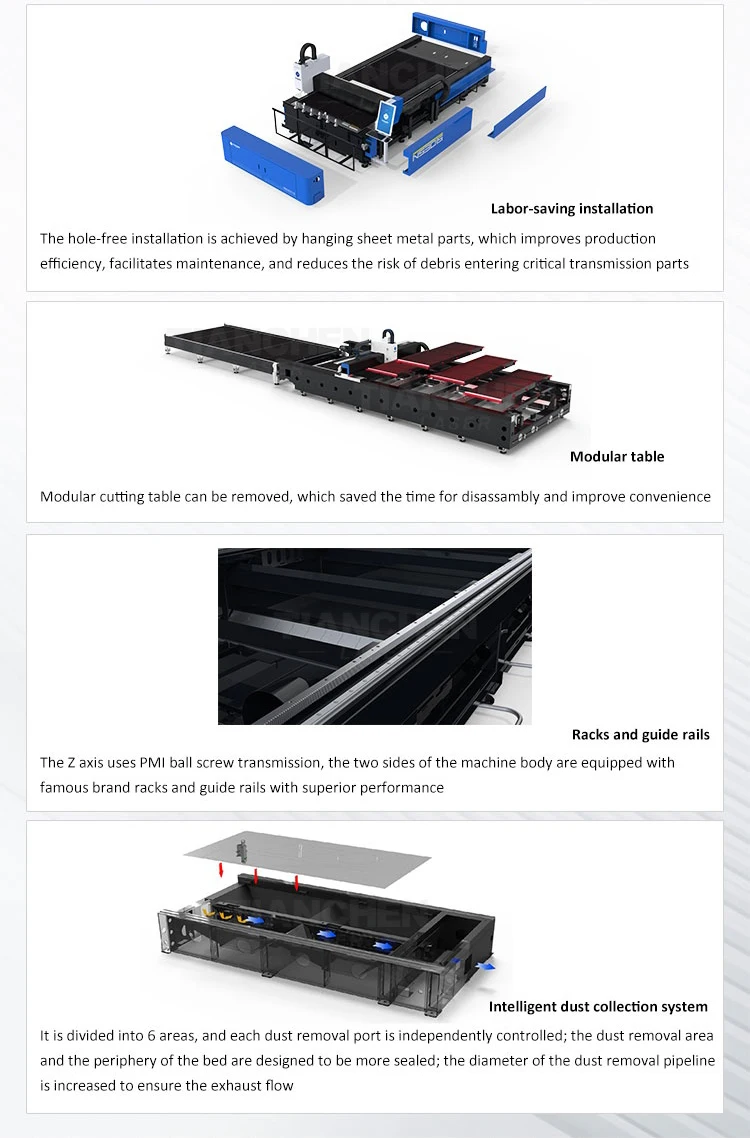

		Features	Intelligent partition dust removal Integrated electric control cabinet

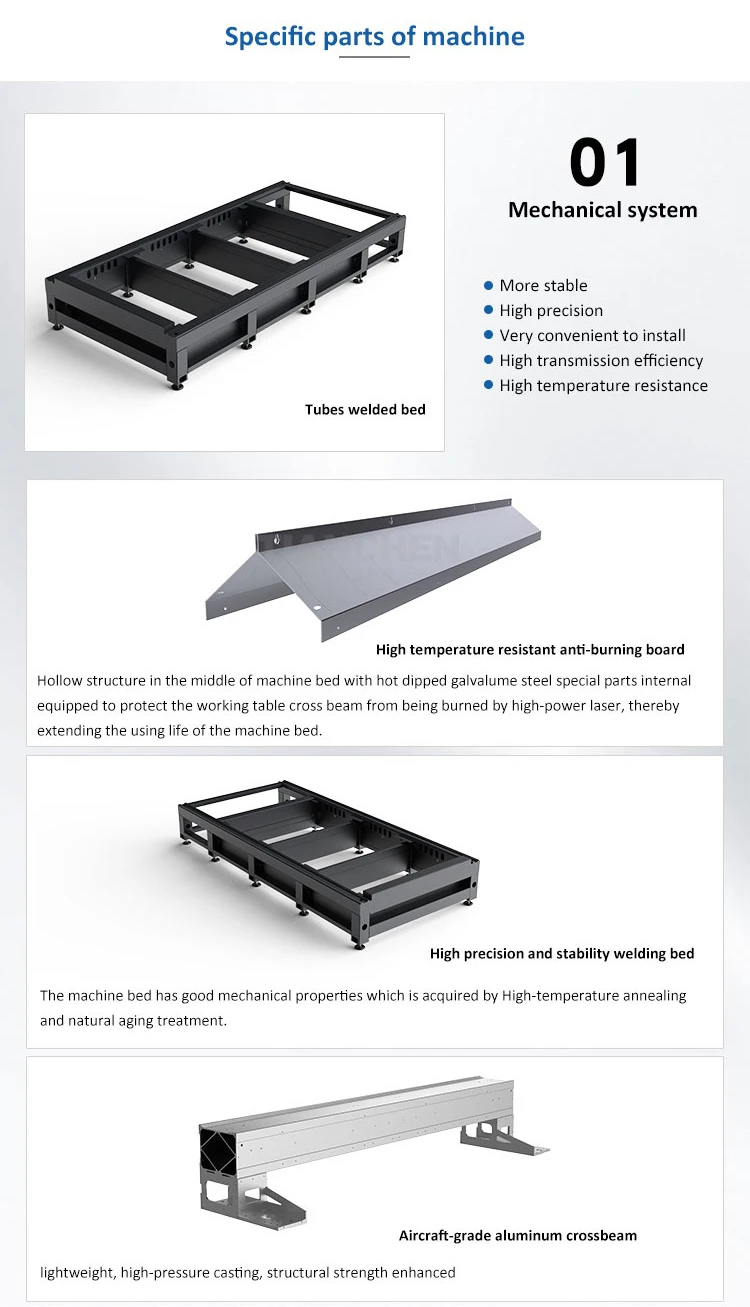

2	Mechanical system	Machine bed	Tube welded bed
		Gantry structure	High-pressure cast aluminium beams
		Servo motor and driver	International famous brand
		Guide rail	International famous brand
		Rack	International famous brand
		Reducer	International famous brand
		Gear	International famous brand
		lubrication system	Automatic lubrication function

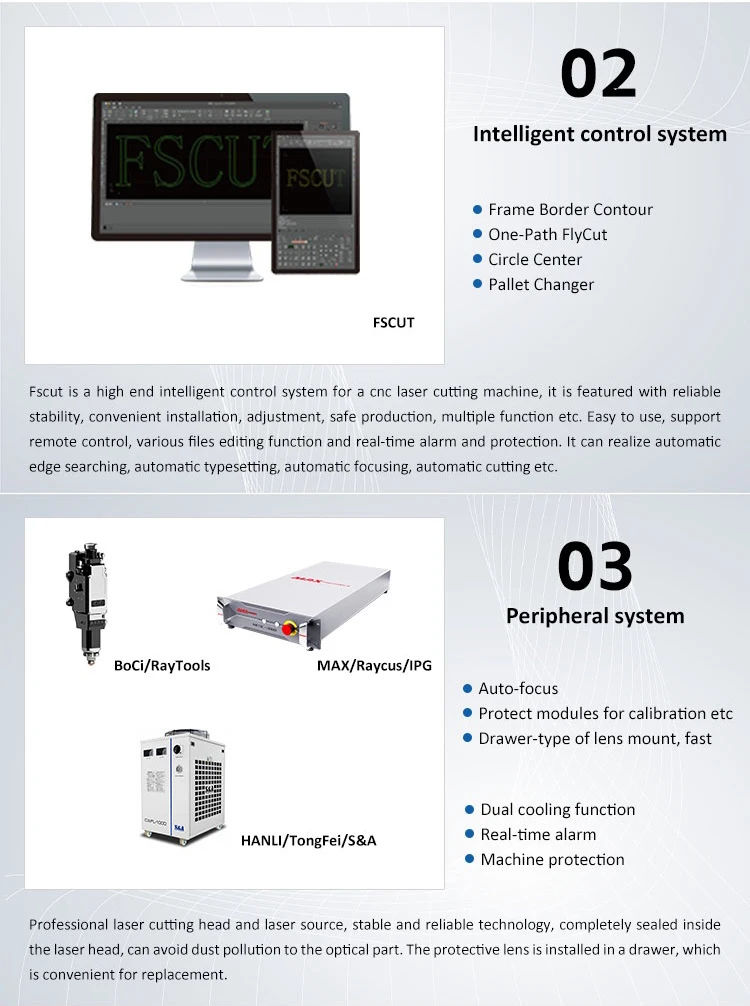

3	Peripheral system	Laser source	MAX/Raycus/IPG
		Laser head	BoCi/RayTools
		Water cooler	HANLI/TongFei/S&A
4	Intelligent control system	Control system	FSCUT2000E
		Control mode	Bus control
		Alarm	Gas low pressure alarm(Oxygen, Nitrogen/Air)
		O2 Cutting gas control valve	International famous brand
		Cleaning function	Nozzle automatic cleaning function

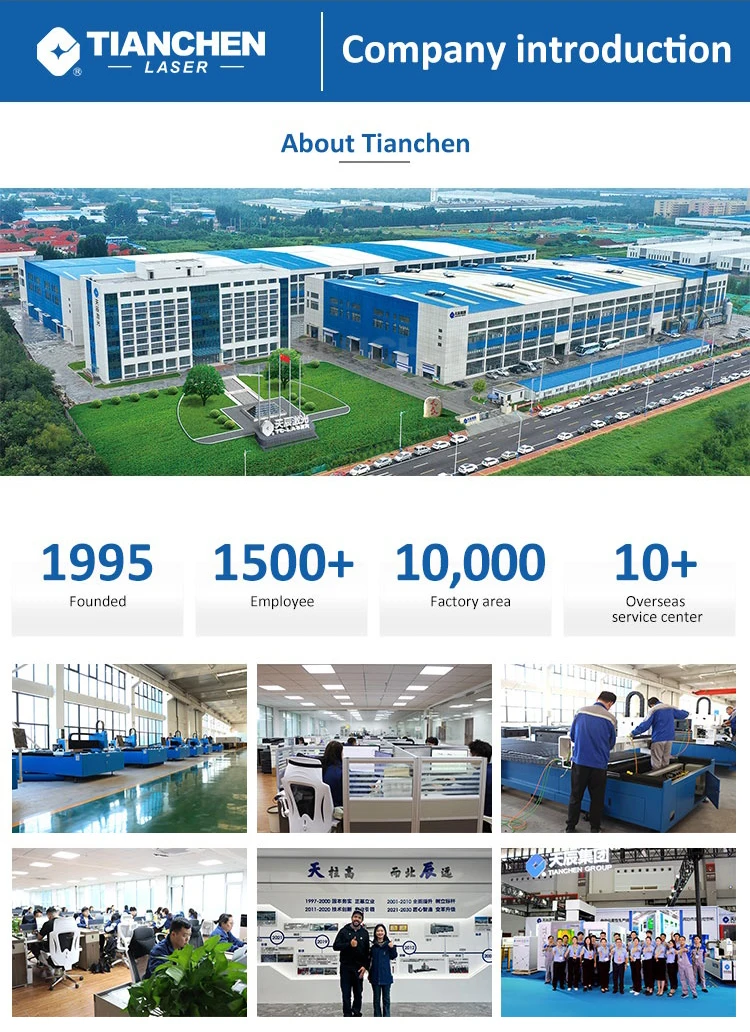

Jinan Tianchen Machine Group Co., Ltd., founded in 1995, is an enterprise group with strong capital and technical

strength and good social reputation. The main products of Tianchen Group include intelligent door and window manufacturing

equipment, CNC machining center equipment, fiber laser cutting machines, etc. All of tianchen machines passed CE FDA certifications etc.



Tianchen Laser focuses on the R&D and manufacturing of laser processing equipment, integrating scientific research, production,

sales, testing and service, and is committed to providing laser intelligent equipment solutions for global users. The main series is

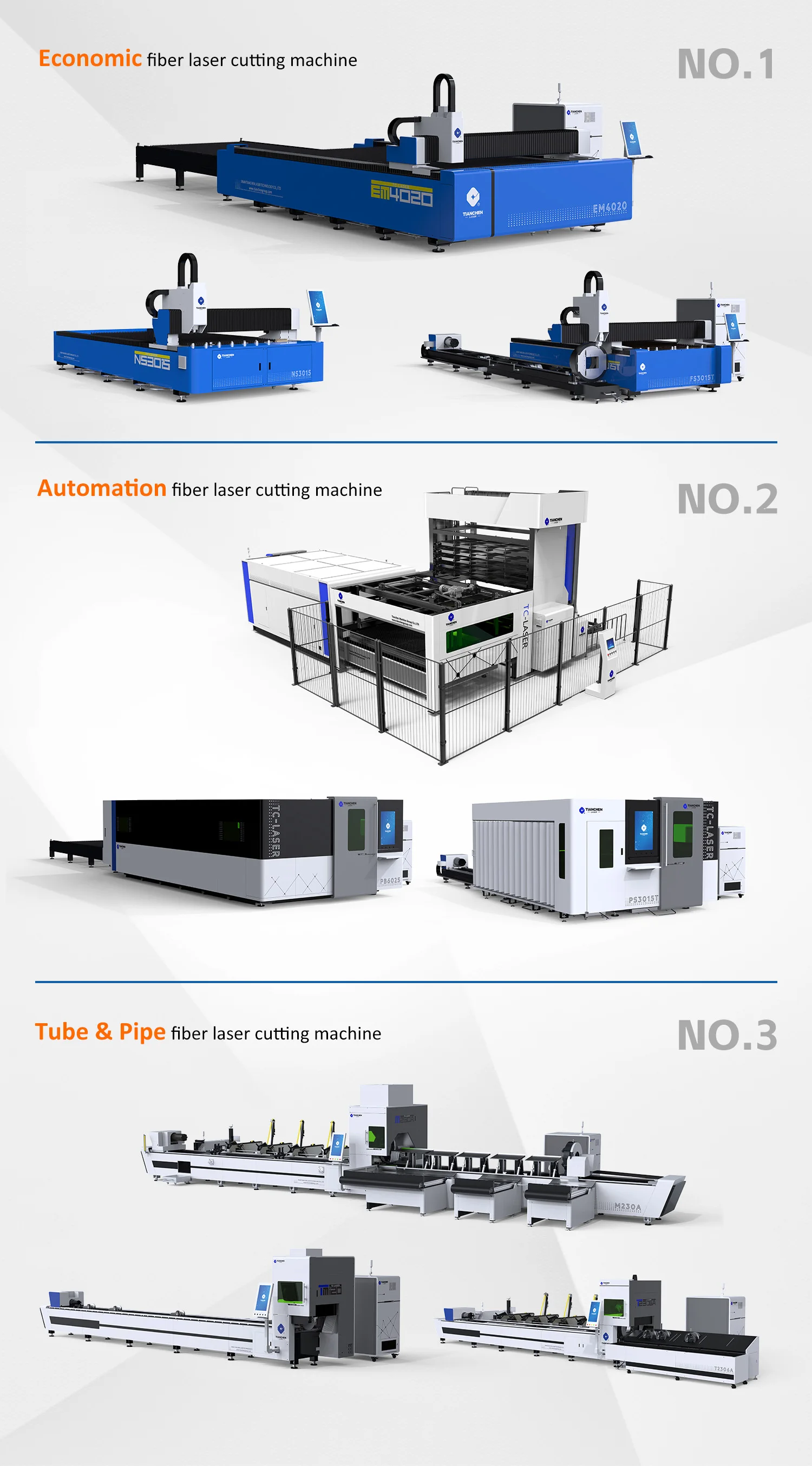

laser cutting machine series. According to the processing of different forms of cutting materials, the machines are divided into a

series for cutting plates, a series for cutting pipes, and a series for cutting plates and pipes in one.

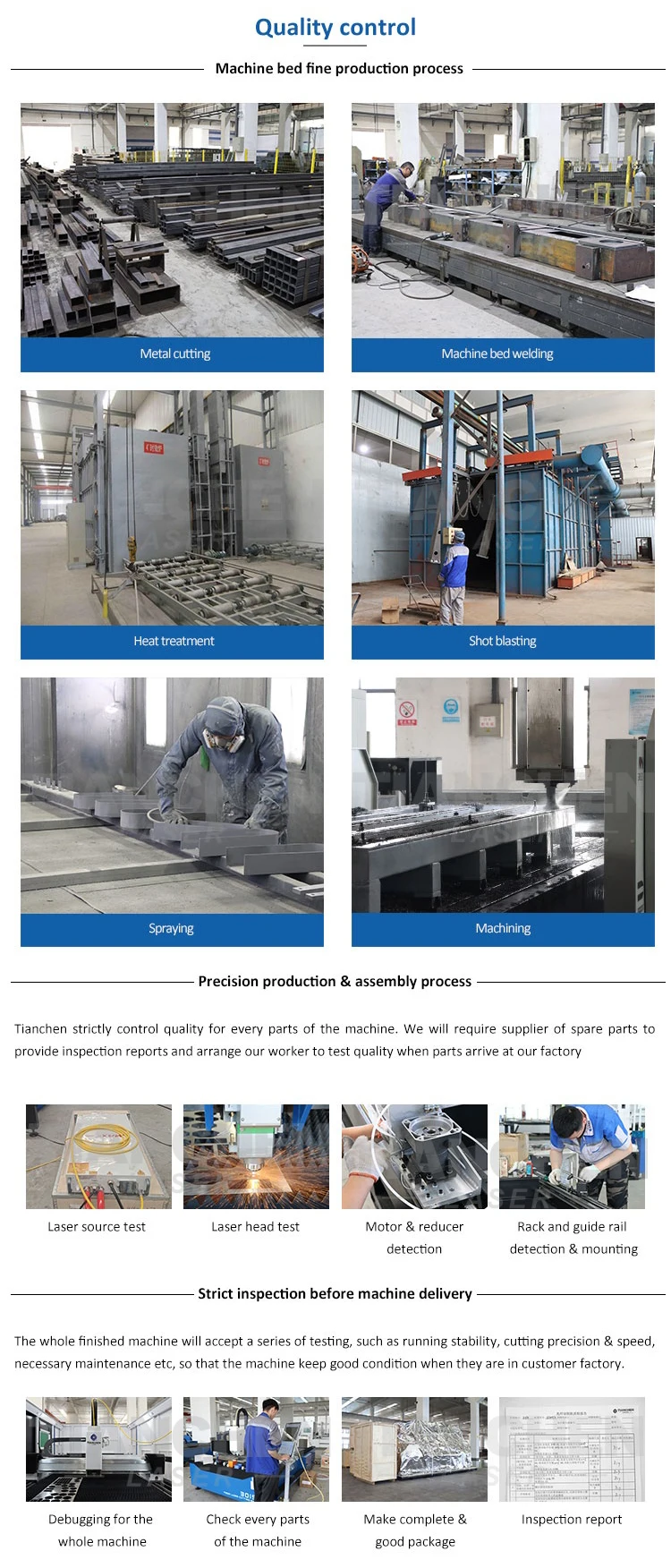

Diverse production equipment, strict quality standards and inspection system, forward- looking management concept, sound quality

management system accumulated by 29 years of experience in machinery manufacturing, continuous and in-depth quality projects...

These create today's Tianchen quality.  Tianchen's products sell well all over the country, and are exported to Russia, India, South Korea,

Germany, Spain and other countries and regions, and have received recognition and praise from customers.



















 1. What is fiber laser cutting machine?

Fiber laser cutting machine is for cutting metals, such as cutting carbon steel, mild steel, stainless steel, aluminum, brass and copper.



2. What’s the necessary info. does i need provide to get your quotation?

 You can receive our price within one hour after send us the cutting materials/cutting thickness/working area info.



3. Does the machines have certifications?

All of our machines have CE FDA certifications, you can ask our sales person to send you for confirmation. You don’t need to worry

about the customs clearance. In addition, we have agents in some countries.



4. What’s your payment terms?

Alibaba trade assurance/TT/West Union/Paypal/LC/Cash etc.



5. What’s the delivery time of machine?

The delivery time of the most common machine models is usually within 15-30 days. You can ask our sales person to confirm.



6. How do you provide after-sales service?

You can install and operate machine according to the installation manual and installation video we prepared for you. If you have any

question about machine, we can set up online group where our engineers and sales person will be available to guide you, and our service

will stay online 24 hours for you. Our after-sales service team has very rich experience, you don’t need to worry about it.
