2200W mobility scooter,mini golf cart
US $4650-$5650
Electric mobility scooter 4 seater 2seater 6 seater golf carts electric 4 seater lithium golf cart battery golf cart body kit
- Category: >>>
- Supplier: Shuozhongxiang (beijing) International Trade Co. Ltd.
Share on (11000015191084):
Product Overview
Description

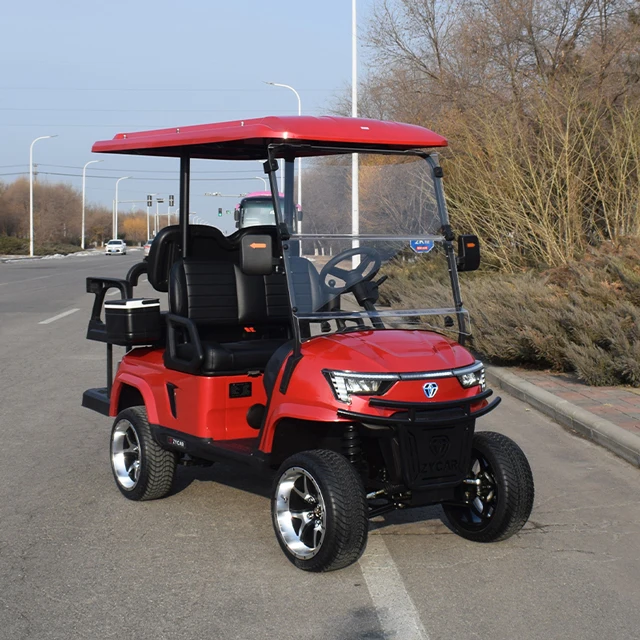

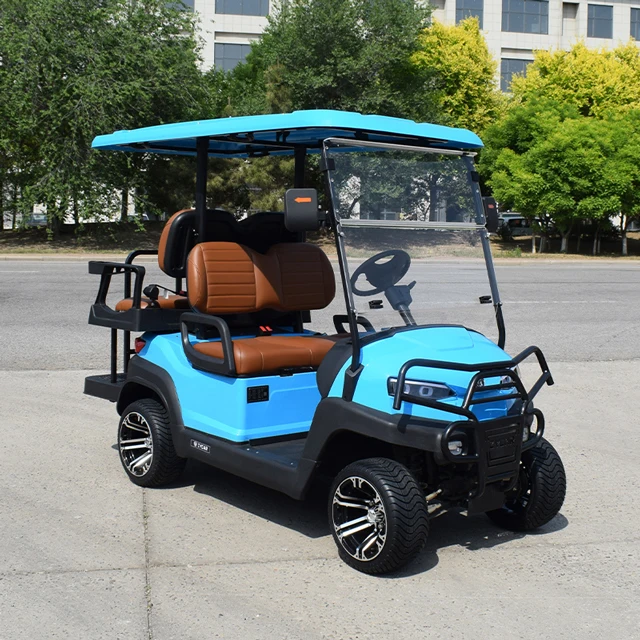

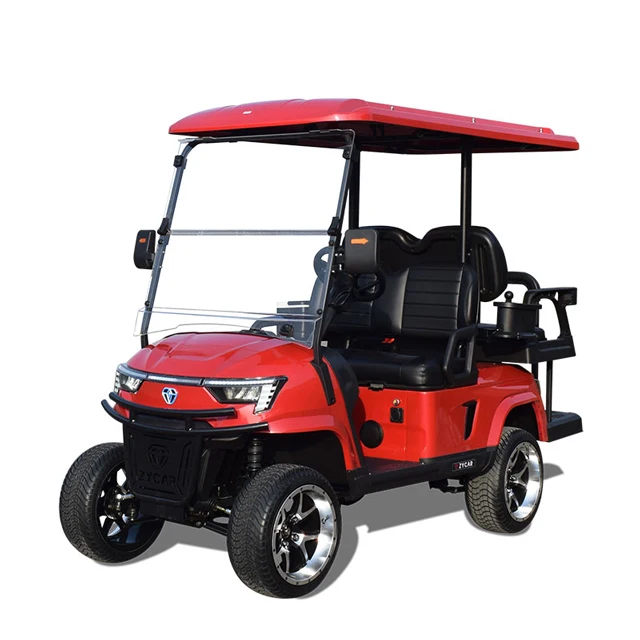

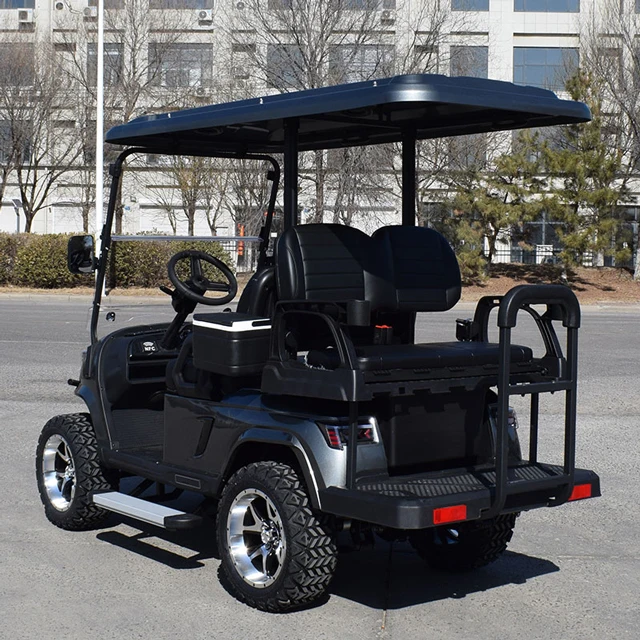

Product Display
golf cart-golf carts electric-electric golf cart-gas golf cart-golf cart battery-chinese golf cart-used golf carts for sale gas powered-

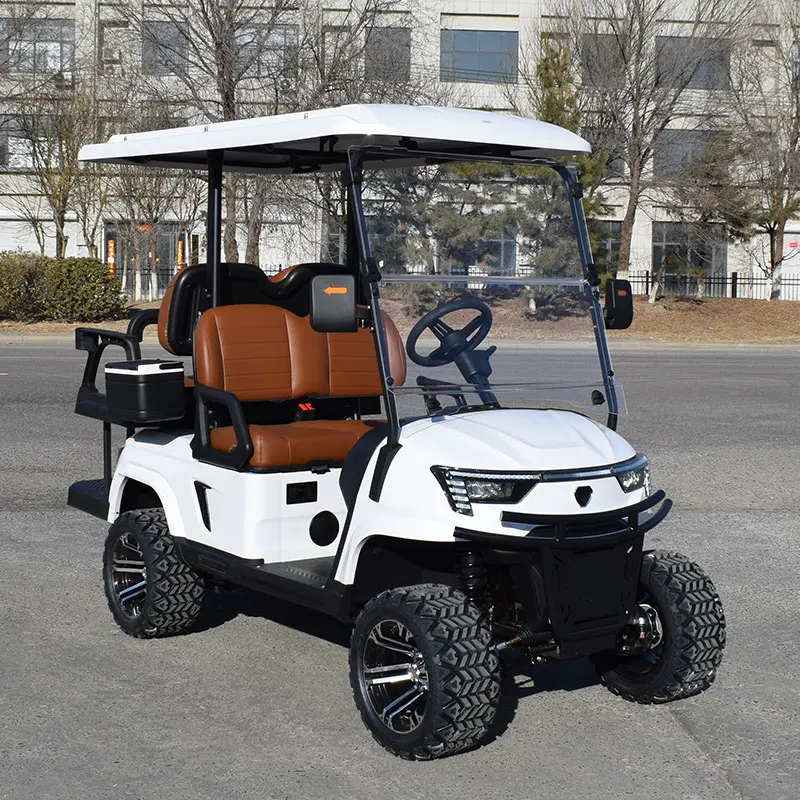

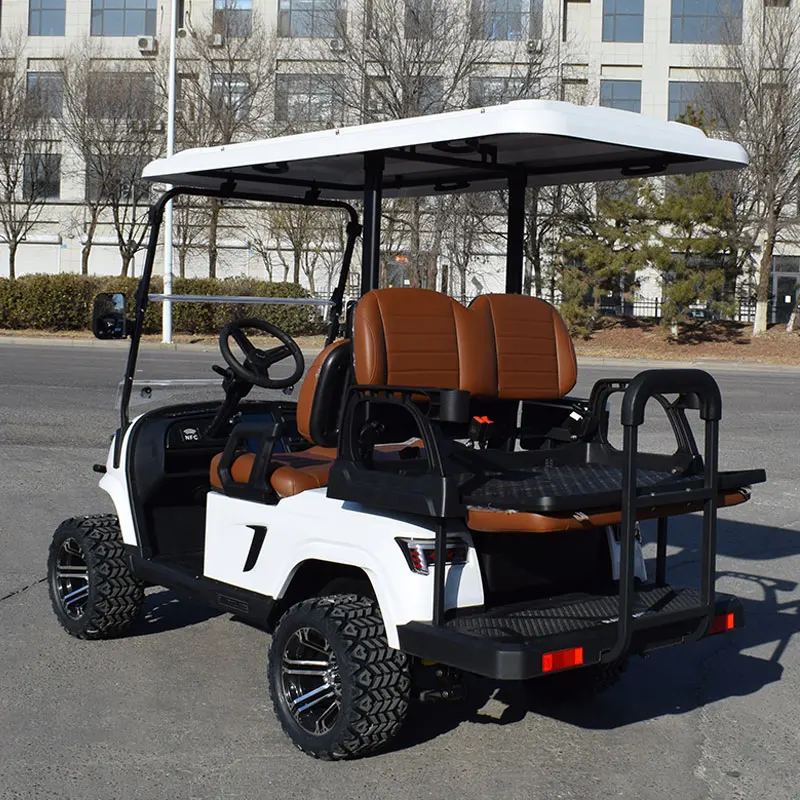

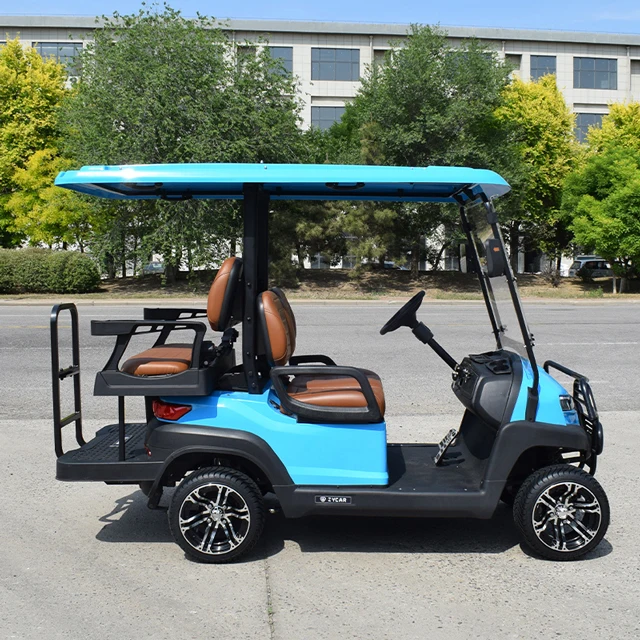

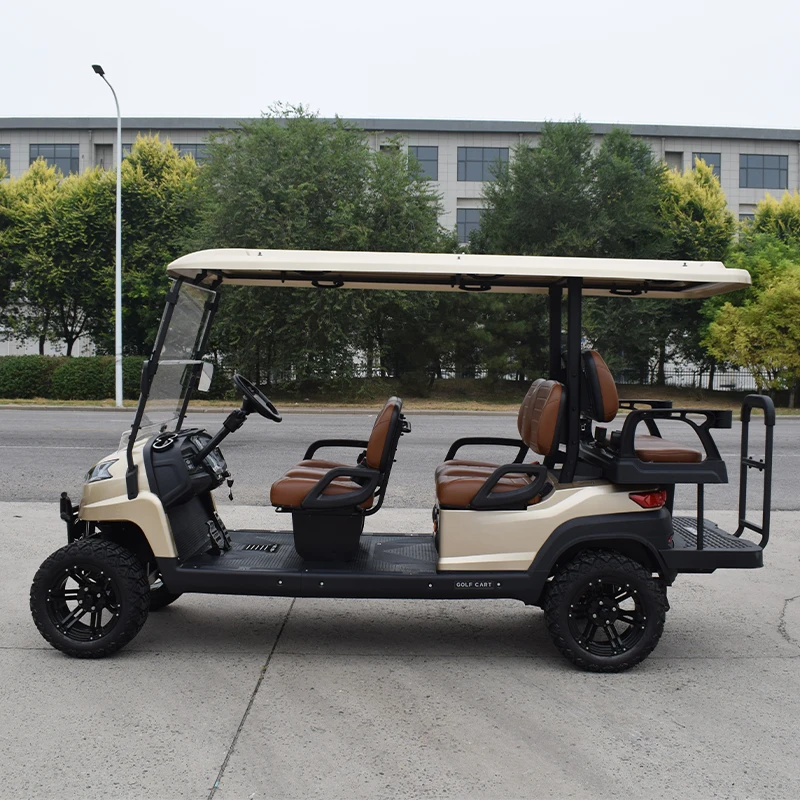

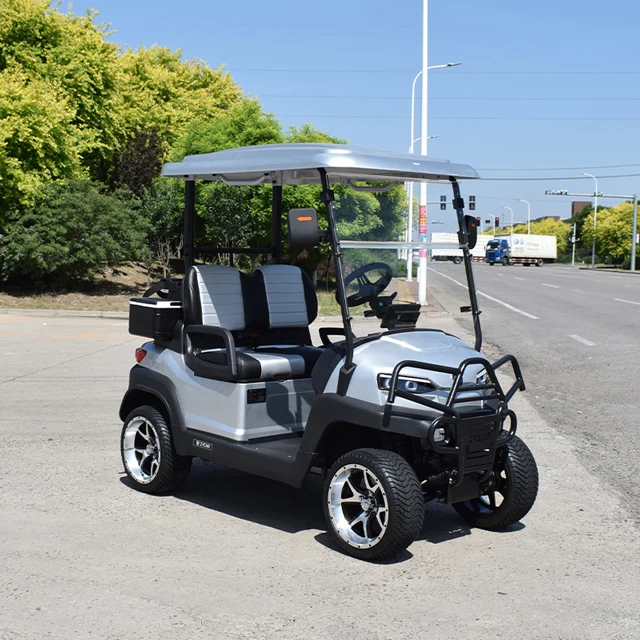

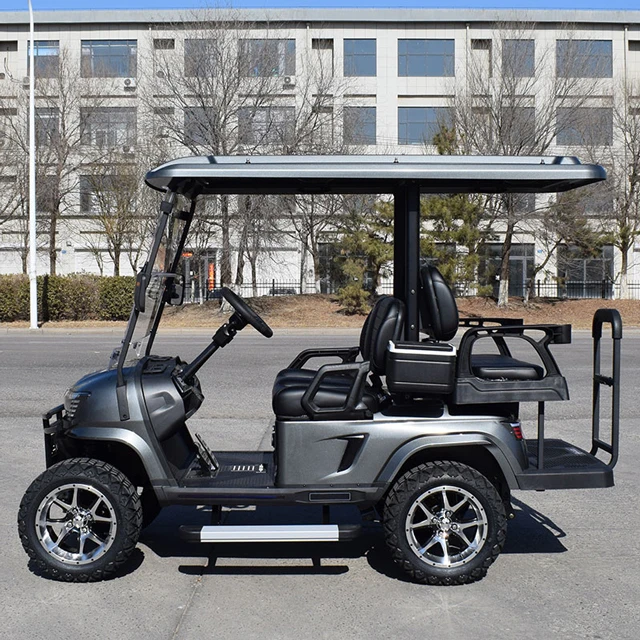

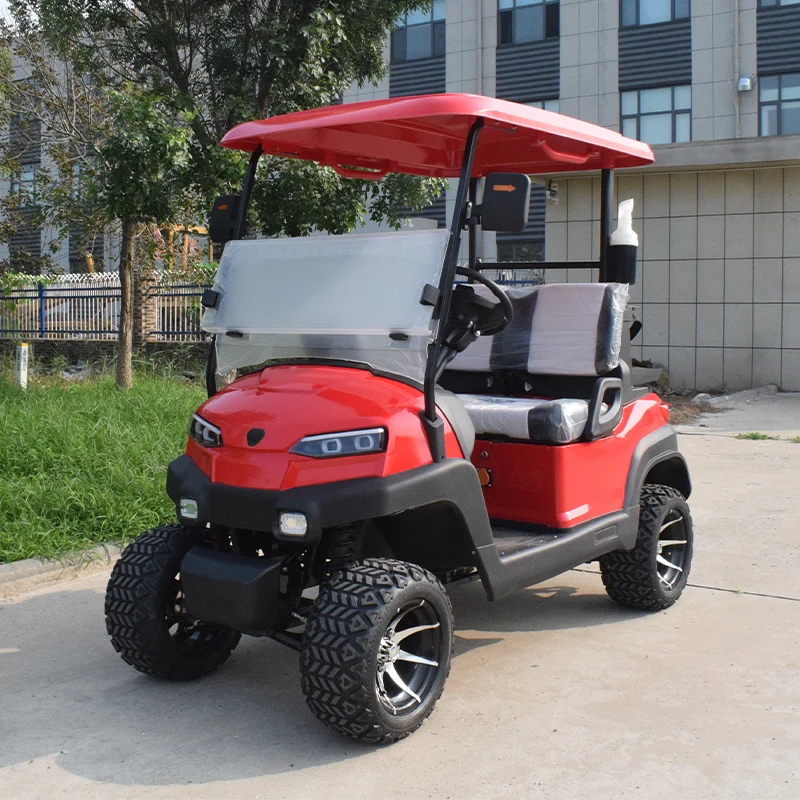

2seater 4 seater 6seater utility golf cart
Multi-color optional, batch can be customized
OEM customized support
24*7 service support
fob /cif logistics support
Adequate stock
fob /cif logistics support
Adequate stock
We have related models of interior, exterior modification parts, reported cushion, ladder, luggage rack, traction, tires, wheels, side bags, mecha, hood, tail, lampshade, interior kits, etc., welcome to order

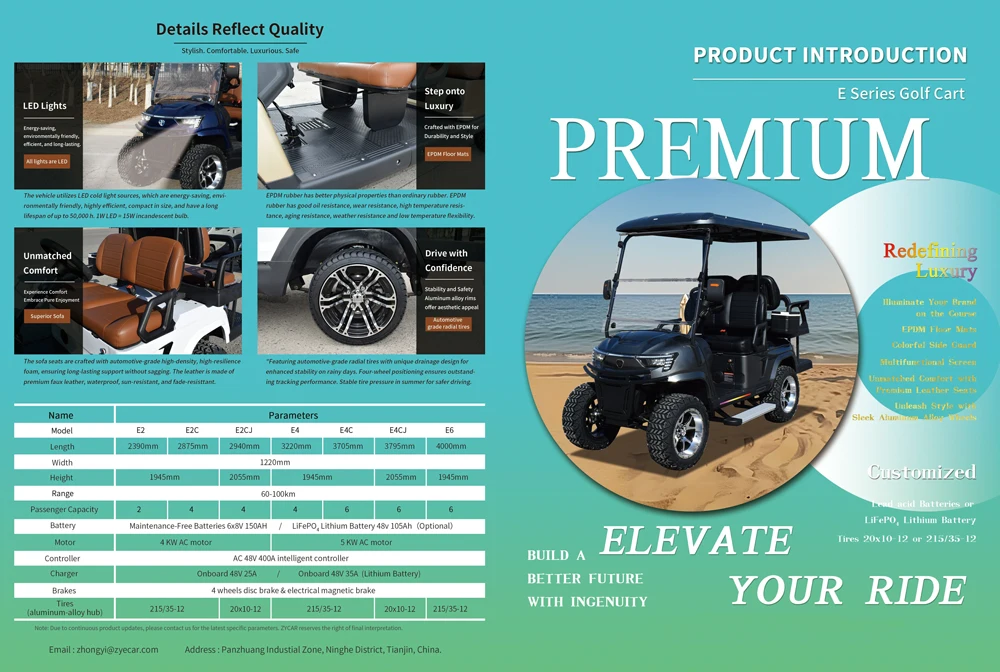

Specification
4 Seats lifted Golf Cart | ||||||
Model | golf cart | |||||
System | 48V 4KW AC system | |||||
Key Components | ||||||
Battery | Maintenance Free lead acid Battery 6*8V 150AH | |||||
Motor | Zhongyi Brand 4KW AC motor（Option Mahel 5kw AC motor) | |||||
Controller | Enpower 3818 AC Controller | |||||
Charger | on board 48V/25A | |||||
Performance | ||||||
Passenger capacity | 4 | |||||
Range (loaded) based on flat road at a speed of 20km/h | 60-80km | |||||
Max. speed | 24km/h adjustable | |||||
Minimum turning radius | 4m | |||||
Max. climbing ability | 15% | |||||
Brake Distance | 4M | |||||
Cart's weight(with batteries) | 635 kgs | |||||
Dimensions | ||||||
Overall dimensions:LWH (mm) | 2875*1210*2065mm | |||||
Min. ground clearance | 165mm | |||||
front /rear wheel distance | front 880mm/ rear 998mm | |||||
Wheelbase(mm) | 1740mm | |||||
Detailed Configurations('S' for Standard; 'O' for Option) | ||||||
Body and Frame | ||||||
Chassis | Welded high yield strength tubular steel with pickling and phosphating electrophoresis process | S | ||||
Body &Roof | Injection molding modeling design separable replacement | S | ||||
Support frame | the front steel ,the rear aluminum | S | ||||
Seats | Sponge&artificial Leather | S | ||||

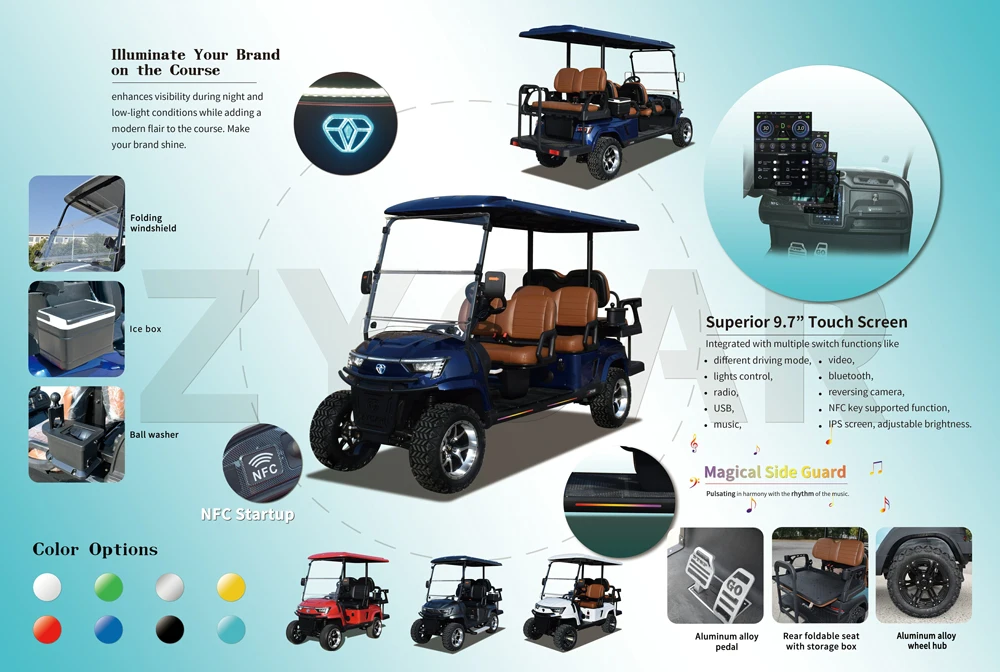

Dashboard | Plastic molding instrument board electric key switch,lockable storage box, cup holder,mobile holders,forward and Revise switch,emergency flashers switch and 9.7inch touching screen to show battery/ speed/controller information and functions swtiches. 2USB charger ports.NFC key. | S | ||||
Safety Belts | Two-point belt | S | ||||
Windshield | Folded Windshield(organic glass) | S | ||||
Floor mat | one piece shaped floor mat | S | ||||
Seats cover | O | |||||
Ice box(with box holder) | O | |||||
Golf ball washer | O | |||||
Sand bottle | O | |||||
Aluminum Brush guard | this guard is a new shape | O | ||||
Caddy standing plate | O | |||||
Body cover | O | |||||
Rain cover | O | |||||
Electric System | ||||||
Lighting system | Automotive level lighting combination design, high-end, long-lasting LED lights, including daytime driving lights, high/low beam with angel eyes head lights, drive/break tail lights, and front/rear flowing water turning lights and Emergency Flashers. | S | ||||
Touching meter screen | 9.7inch touching screen in the middle of dashboard: Reversing camera,CAN communication to the controller, High accuracy speed meter KPH/MPH, ODO,SOC. Multi-page display with controller diagnostic information,meanwhile can switch on/off auto head light/ECO/Mountain model ect. Entertainment function: radio,bluetooth phone/music,movie. | S | ||||
Side guard with light& Side shinning light | S | |||||
Steering and Suspension System | ||||||
Steering system | Dual automotive-style strut and self-adjust rack-and pinion steering | S | ||||
Brake system | 4 wheels disc brake + electrical magnetic brake | S | ||||
Accelerator | electric aluminum accelerator | S | ||||
Suspension system | Front mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle,leaf spring + cylinder hydraulic shock absorption | S | ||||
wheel & Tyre | Aluminum hub AT20*10-12 | S | ||||
View other main products

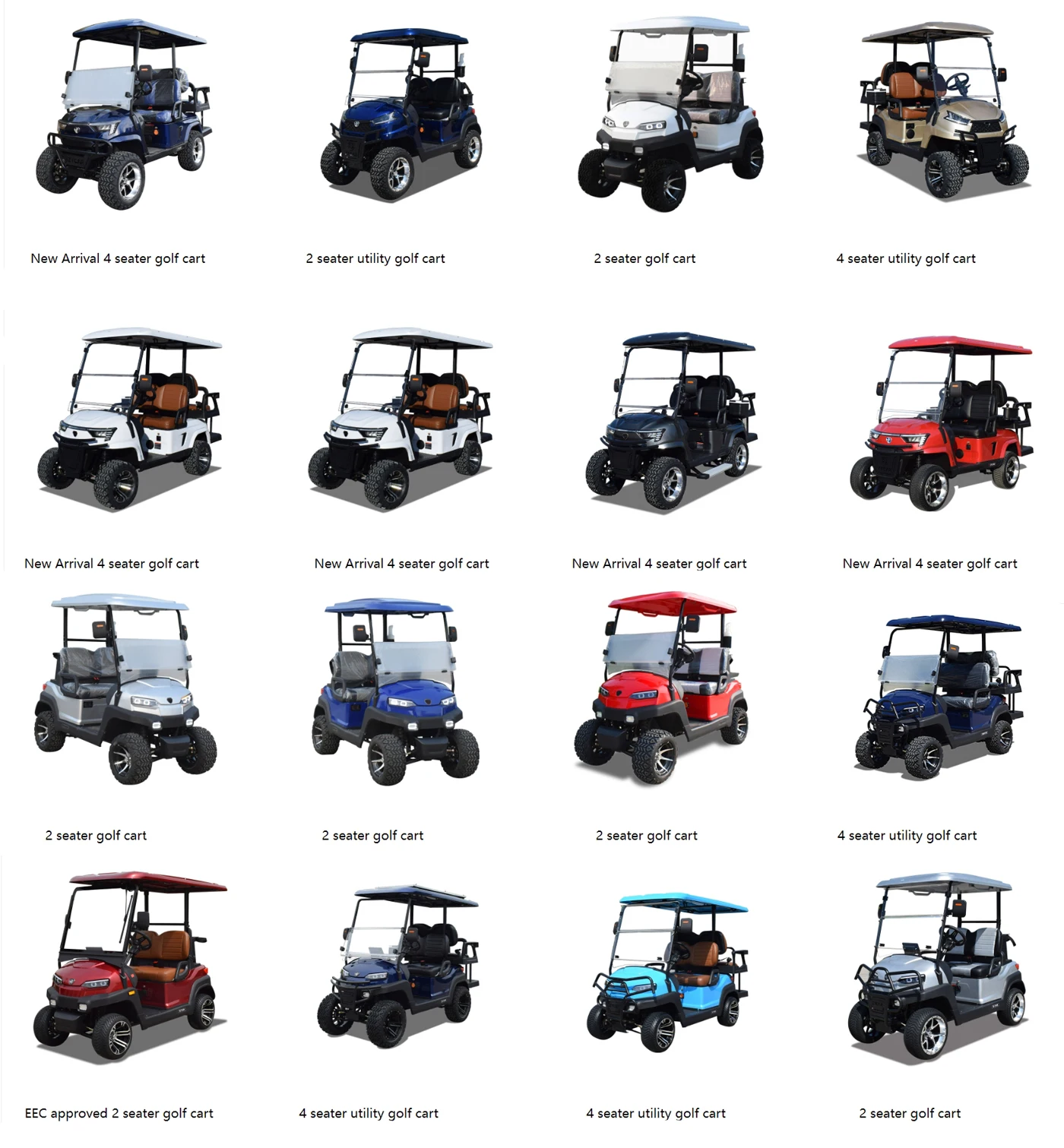

Hot selling models
