Cotton Bale Wrap Silage Film for Cotton Picker CP770 CP690
- Category: >>>
- Supplier: Qingdao Taimei Products Co. Ltd.Qingdao Ltd.
Share on (11000015681927):
Product Overview
Description
Products Description

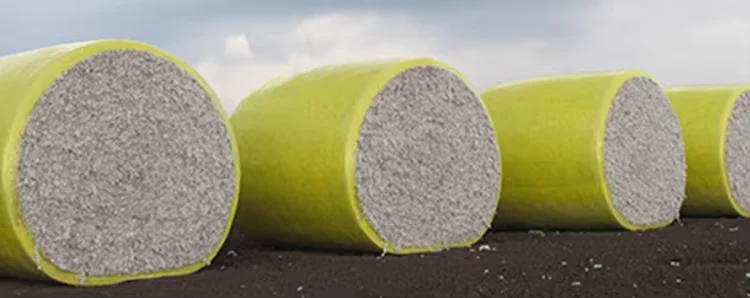

Cotton Wrap Film

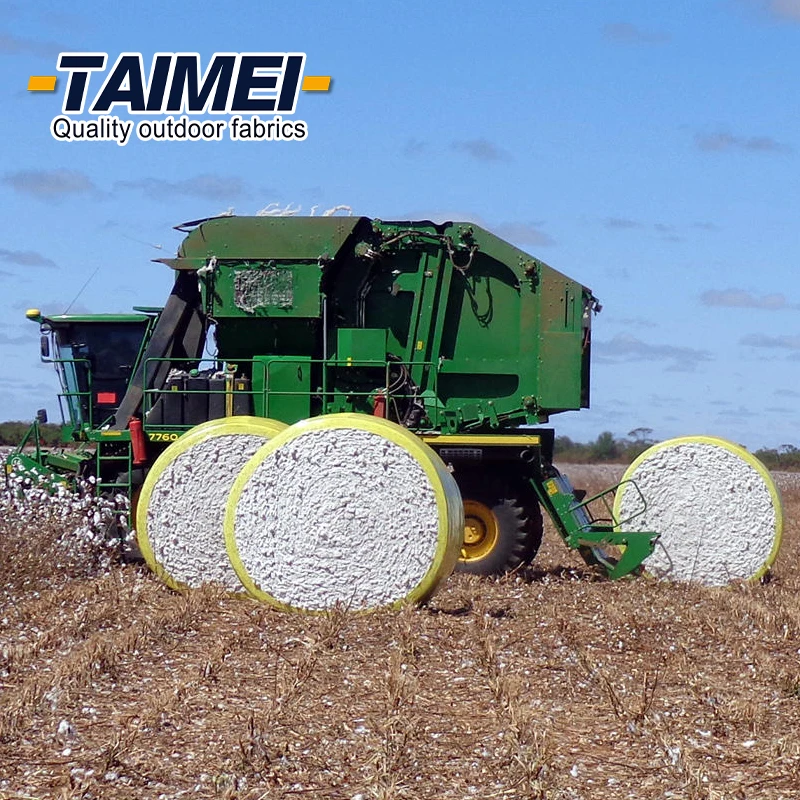

Balego Cotton Wrap Film are designed to use as film supply of John Deere Cotton Picking Machine. We use multi-cross extrusion technology to enhance the physical performance of the film and make it the best choice of the cotton farmer. HRPS Glue technology prevent cotton from sticking to the wrap. The outer layers are a special formulated film which is tacky on one side only. The combination of two types of film ensures that the round module will hold its uniformity for transport and processing.
24 Pre-Cut Portions
Balego Wrap is made of pre-cut wrap portions in order to assure the next portion is ready to be fed correctly during packing. The roll is made from 24 “ready to use” portions.

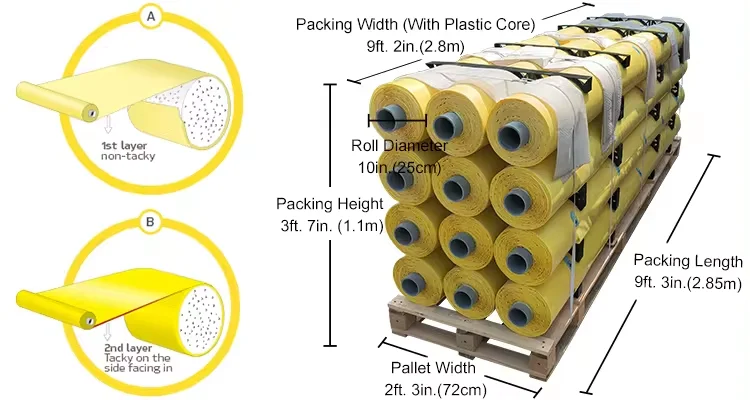

Pallet
To avoid the overload of 40HQ container and consider to load more quantty into 20ft containers, we adopt both loading plan1 and loading plan 2 for most of the orders.
Plan 1:
9 rolls per pallet, 216 wraps per pallet
Plan 2:
12 roll per pallet, 288 Wraps per pallet
9 rolls per pallet, 216 wraps per pallet
Plan 2:
12 roll per pallet, 288 Wraps per pallet
Product Specifications
Parameters | Result | |
Roll Width | 8.85 ft / 2.7 m | |
Plastic Core Width | 9.19 ft / 2.8 m | |
Roll Diameter | 10 in / 254 mm | |
Roll Weight | 220 lbs / 100 kg | |

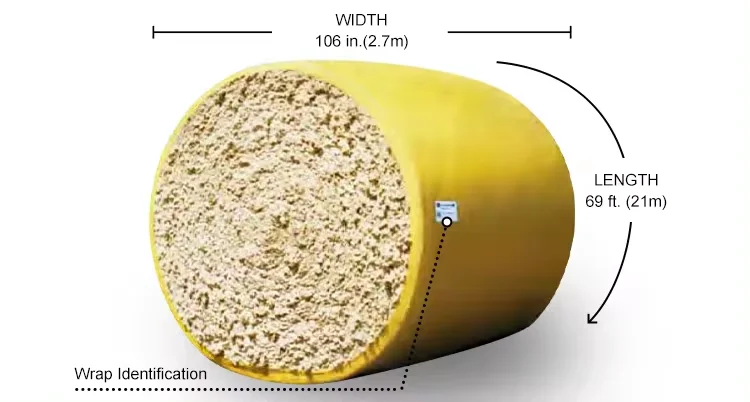

Individual Sheet Length | 69 ft / 21 m | |
Pallet Size (mm) | W750 x H1150 x 2820 | |
Qty per roll | 24 sheets / roll | |
Qty per pallet | 12 rolls / pallet, Max. 270 rolls / 40HQ | |
Film Property | Result | |
Thickness | 0.073-0.078 um | |
Tensile Strength (MD) | 85 N/5cm | |
Tensile Strength (CD) | 73 N/5cm | |
Elongation at Break(MD) | 650% | |
Elongation at Break(CD) | 580% | |
Note: This data sheet supersedes all previously issued data, at the time of manufacturing. Handling may change these properties.

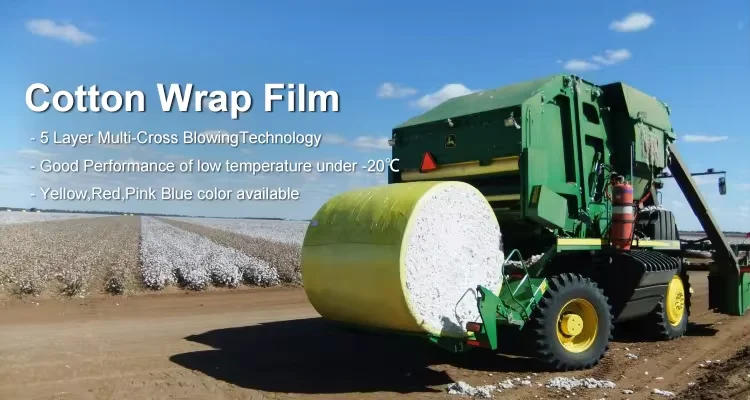

Features
- 5 Layer Multi-Cross BlowingTechnology.
- Good Performance of low temperature under -20℃.
- 24 portions per roll, easy to operate on all cotton picker.
- QR Code Lable on each portions to track cotton origin.
- RFID Tag is Ready Build-In (Optional) -
-Yellow,Grey,Pink,Purple colors are available.
-Yellow,Grey,Pink,Purple colors are available.

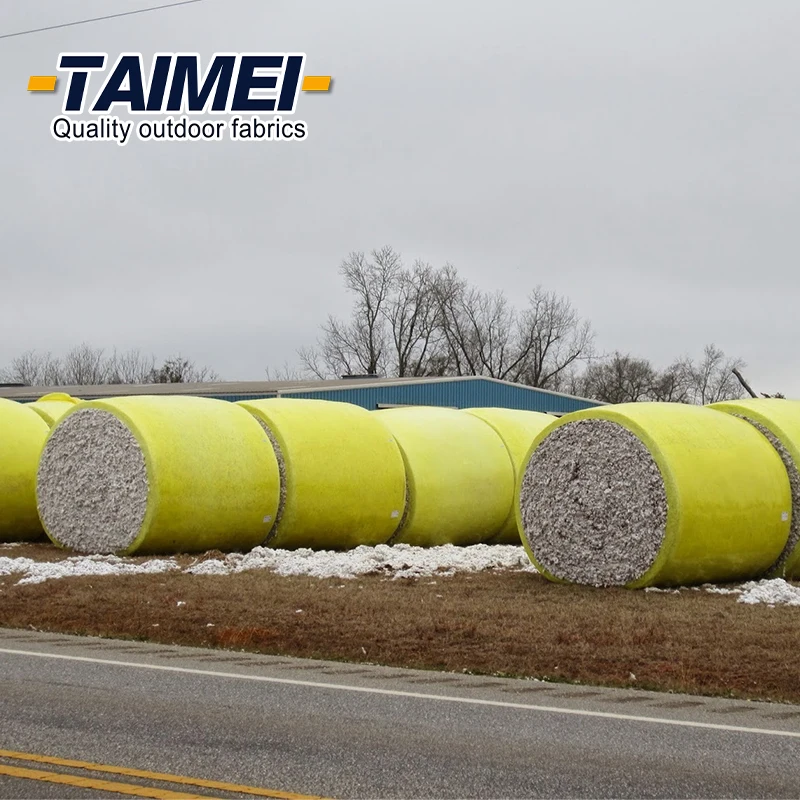

Product Images

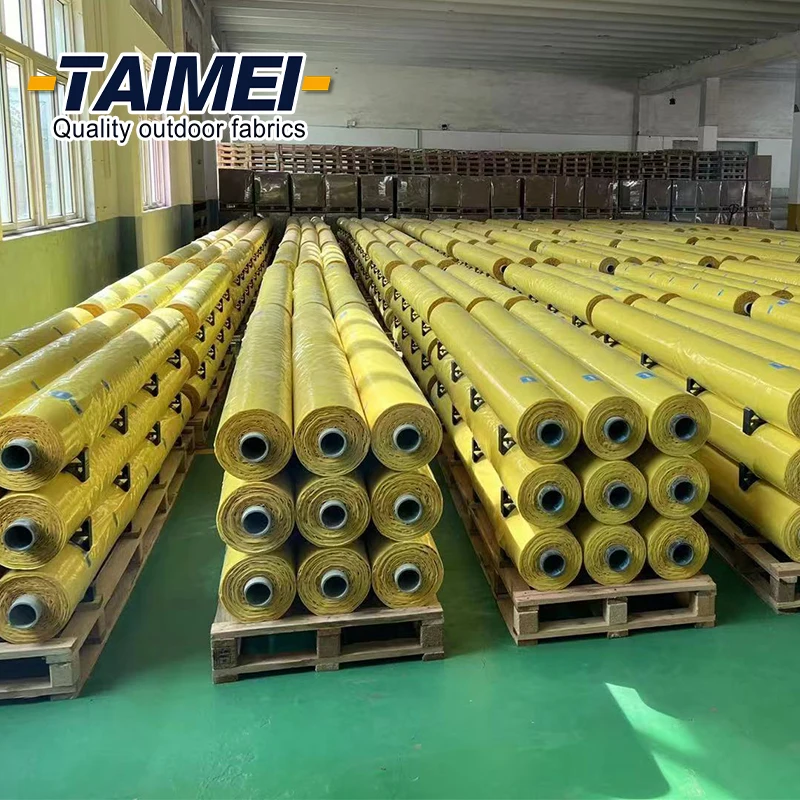

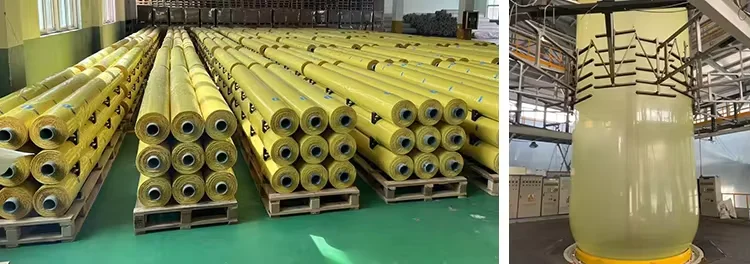

Factory
- We use 5 layers blowing technology for all A and B film, so it have high tensile strength.
- We use automotic cuting andlamnating machine to ensure every wrap are the standard size an all the lable on the right location.
- Standard stock are available and ready to ship.

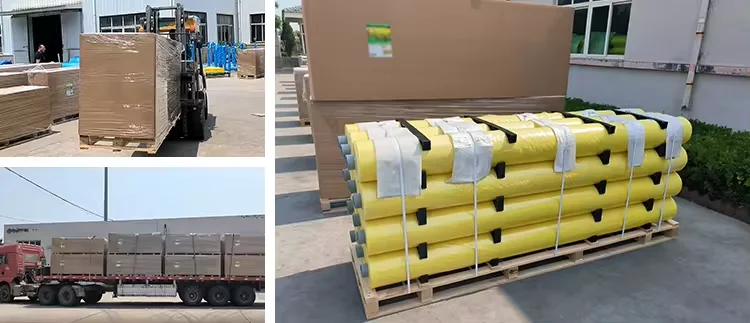

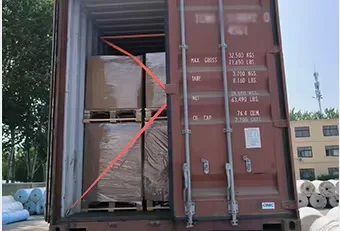

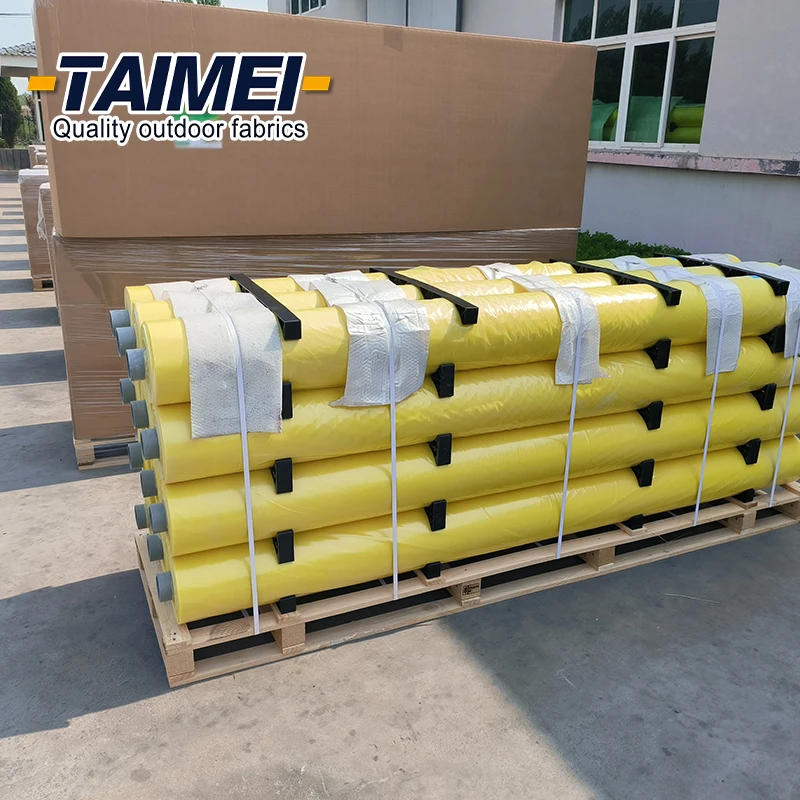

Shipment
- 9 rolls or 12 rolls per pallet and strip tightly on the pallet.
- Outer carton with color lable protected on each pallet.
-Strength film wrap on outter carton.
- Production capacity: 1x40HQ/day.

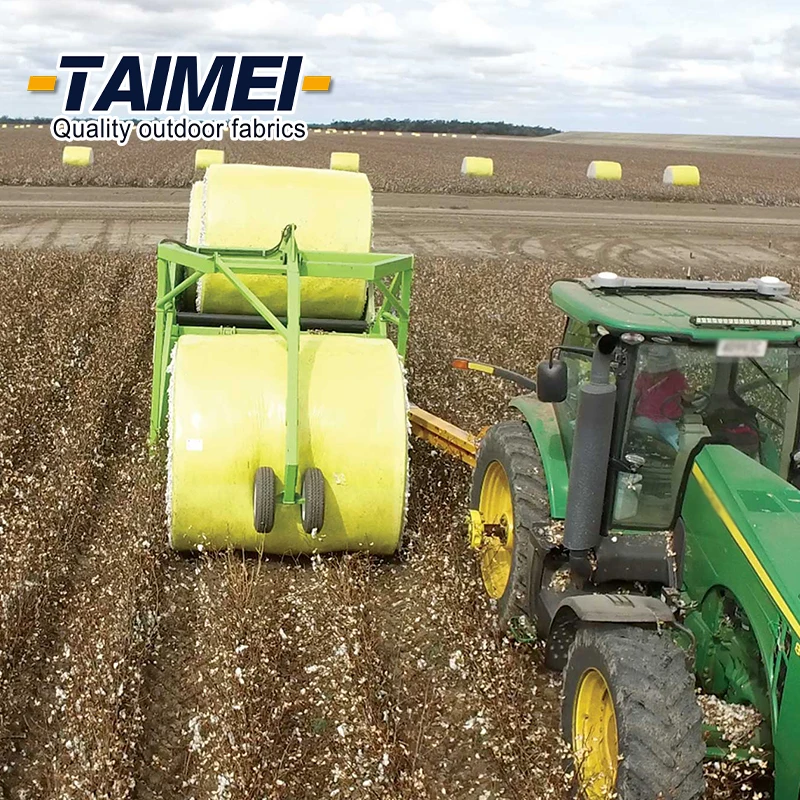

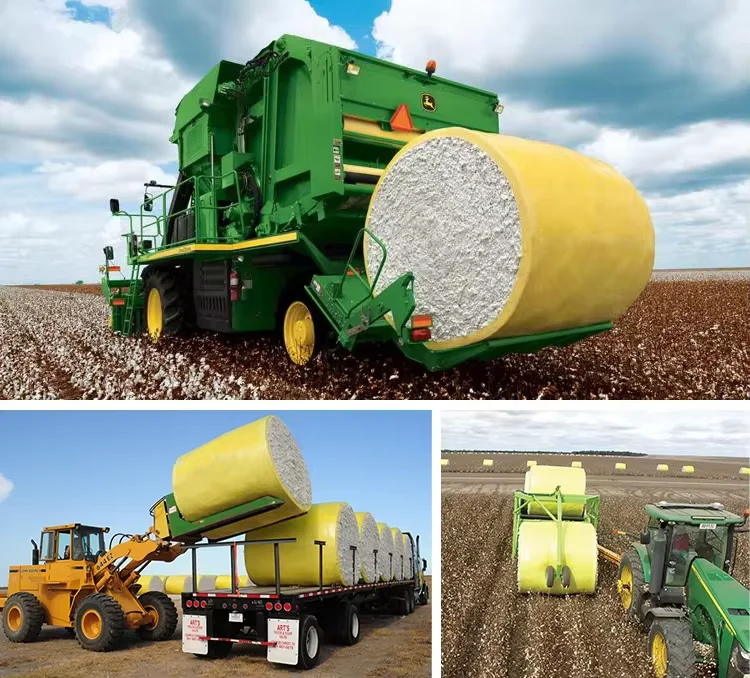

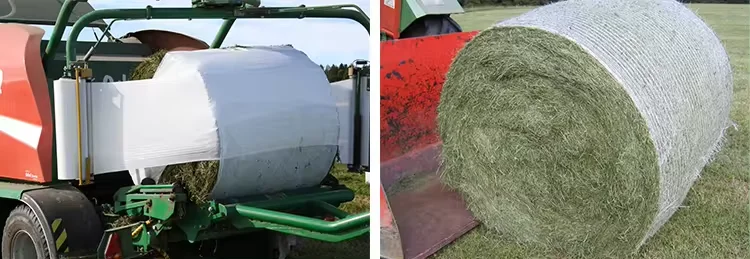

Applications
More Products

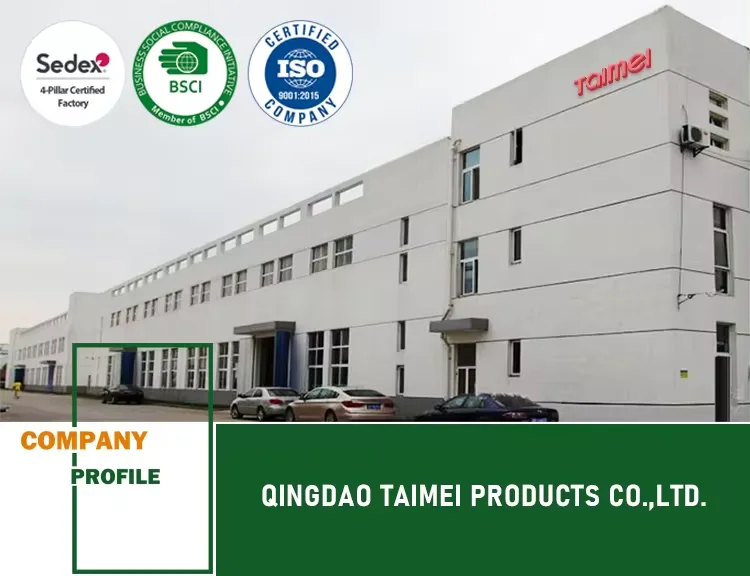

Company Profile
Professional OEM Manufacturer of Industrial Textile for 15 years.
TAIMEI Group is a ISO9001 certificated supplier of woven fabric and coating fabric, extruded films and sun shade covers. We headquartered in Qingdao, is responsible for marketing and R&D, while manufacturers in Weihai, Qingdao, Binzhou and Tai'An cities, handling production. With 15+ years of group experience in manufacturing, our production teams have 20+ years of experience in the production of a different kind of fabric, 380+ customers in 60+ countries worldwide, and for a variety of markets, applications and end-users.
