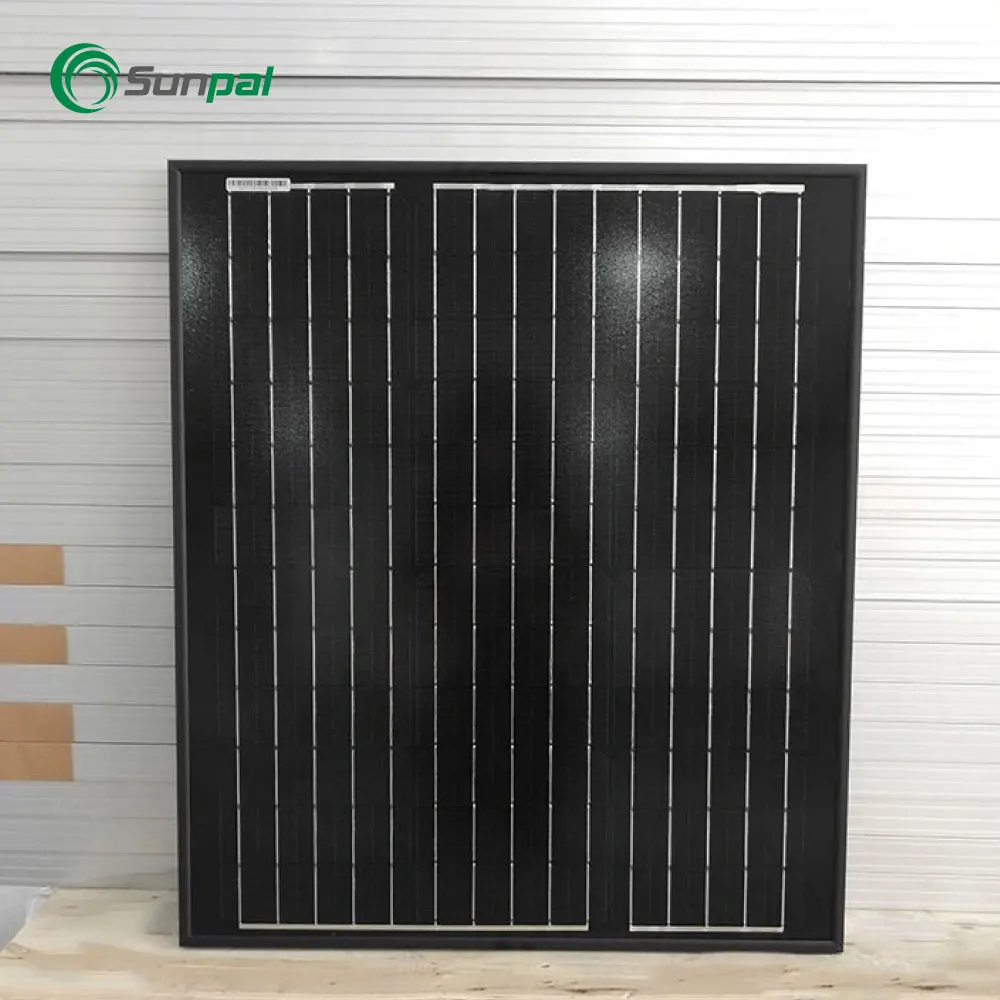

Sunpal Mono Crystalline Solar Panels 50W 120Watt Small Solar Panel Price
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (11000015699332):
Product Overview
Description
Product Description
Module | SP20-100M-18/36 | ||||||||
Peak Power Watts(Pmax/W) | 20W | 30W | 50W | 80W | 100W | ||||
Power Output Tolerance(W) | +3% | ||||||||
Maximum Power Voltage(Vmp/V) | 9.27 | 9.83 | 19.72 | 19.05 | 18.56 | ||||
Maximum Power Current(Imp/A) | 2.16 | 3.06 | 2.54 | 4.2 | 5.39 | ||||
Open Circuit Voltage(Voc/V) | 10.95 | 11.47 | 23.29 | 22.23 | 21.92 | ||||
Short Circuit Current(Isc/A) | 2.28 | 3.22 | 2.68 | 4.45 | 5.7 | ||||
Module Efficiency(%) | 15.43 | 16.37 | 16.24 | 17.24 | 17.3 | ||||
Dimension (mm) | 360*360*25 | 470*390*25 | 570*540*25 | 800*580*30 | 1075*540*30 | ||||

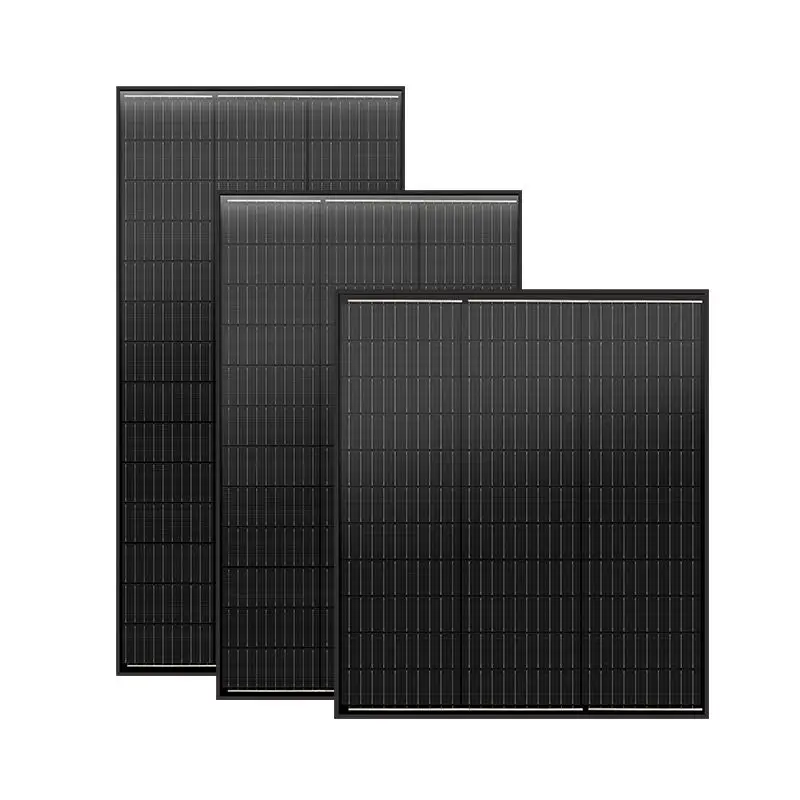

Sunpal 20w-100w Mini solar panels description .
【Portable Size】The dimensions of panel is 1075*540*30mm, the length of extension cable is 50cm to 120cm. The extension cable is long enough for you to connect the charge controller or 12V load. And you can carry the compact 25W solar panel with you easily.
Details Images

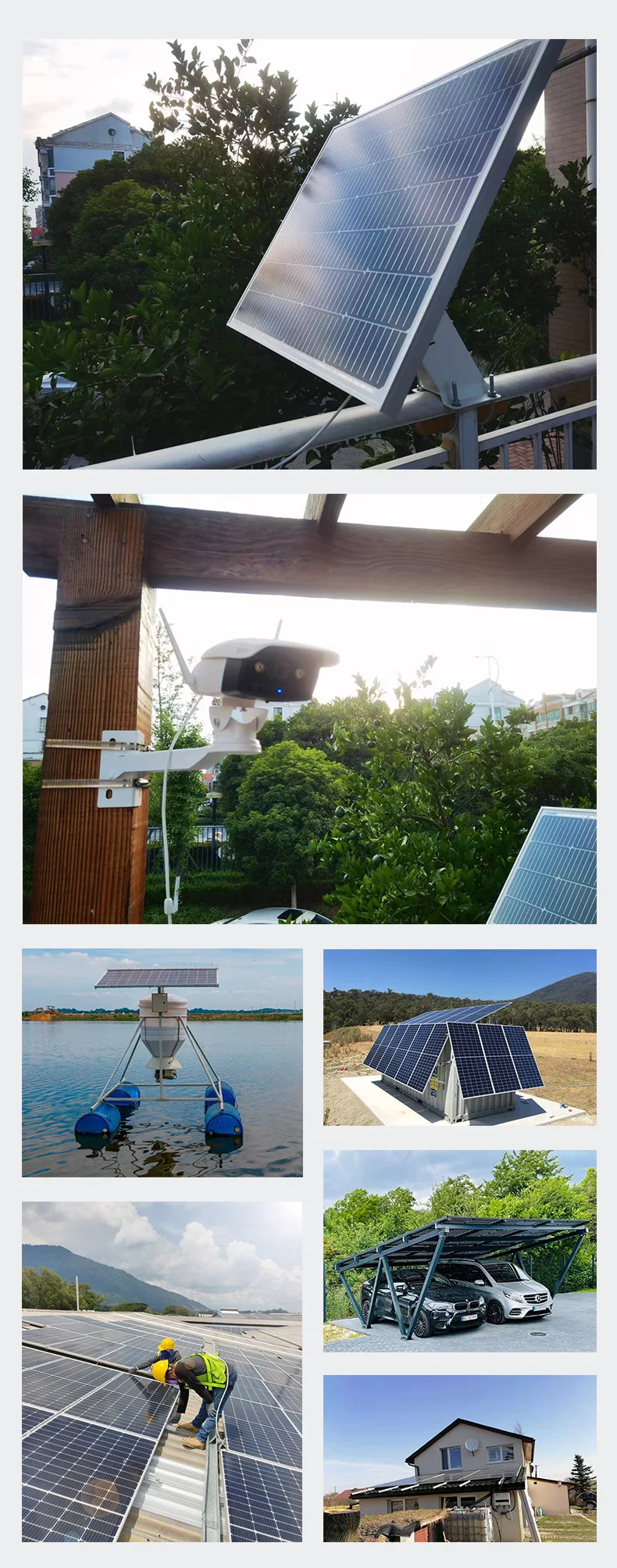

Application

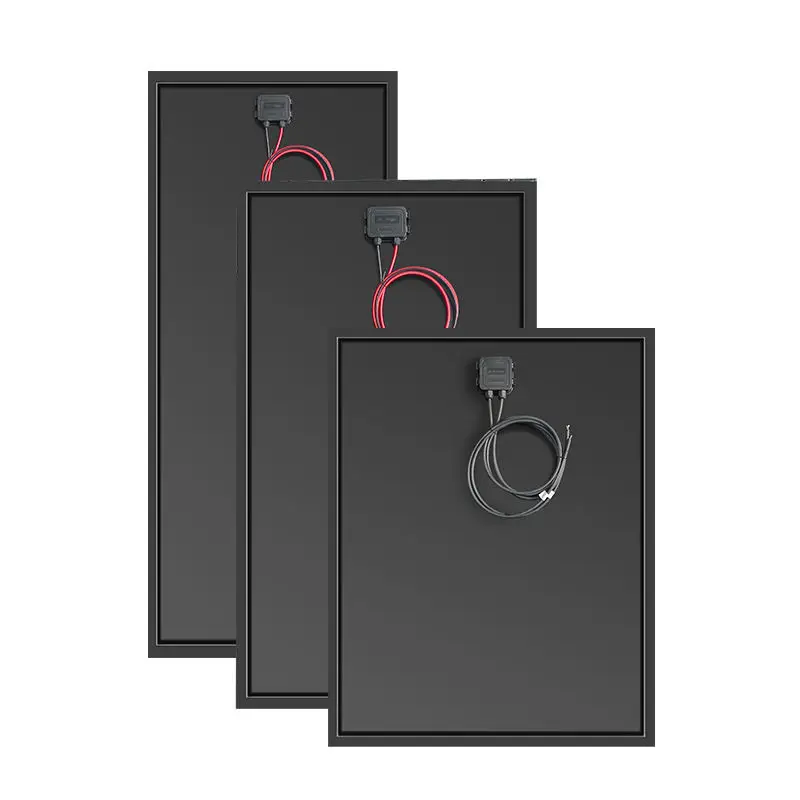

【Product Details】Waterproof Junction Box, corrosion-resistant aluminum frame for extended outdoor use, allowing the solar panel to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)
【Easy Installation】Pre-drilled holes on the back of the panel for fast mounting and securing.
OEM & ODM Services
Sunpal provides customized size, customized appearance, customized voltage and current, customized packaging, customized brand logo, and door-to-door delivery service.
Our Factory
competitors in terms of production capacity and the number of innovative designs. Sunpal factory is based in Jiangsu Province,
with a factory area of 150,000 square meters, 1000 workers, and 100 staff members in the sales team. The daily capacity is 1.3MW.
