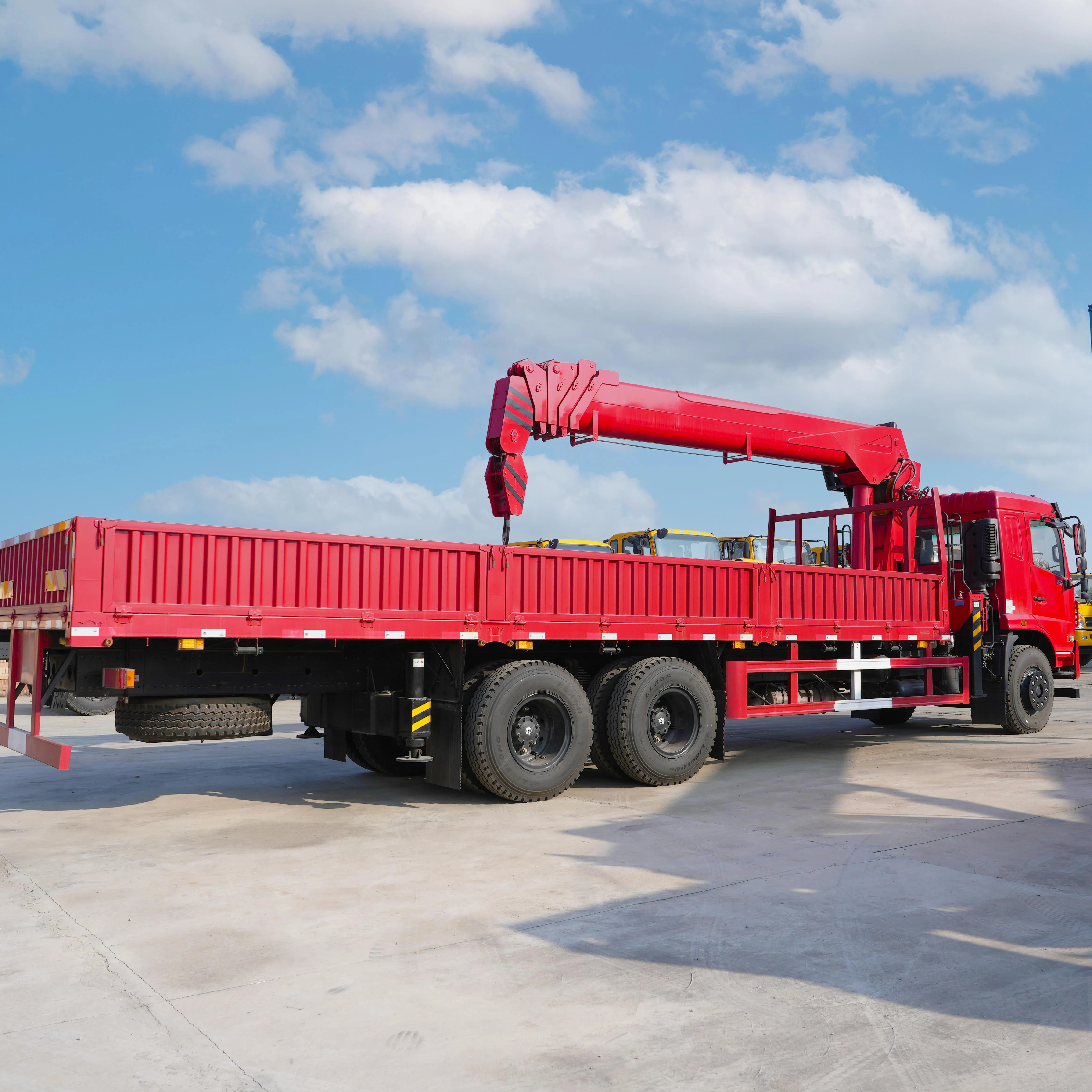

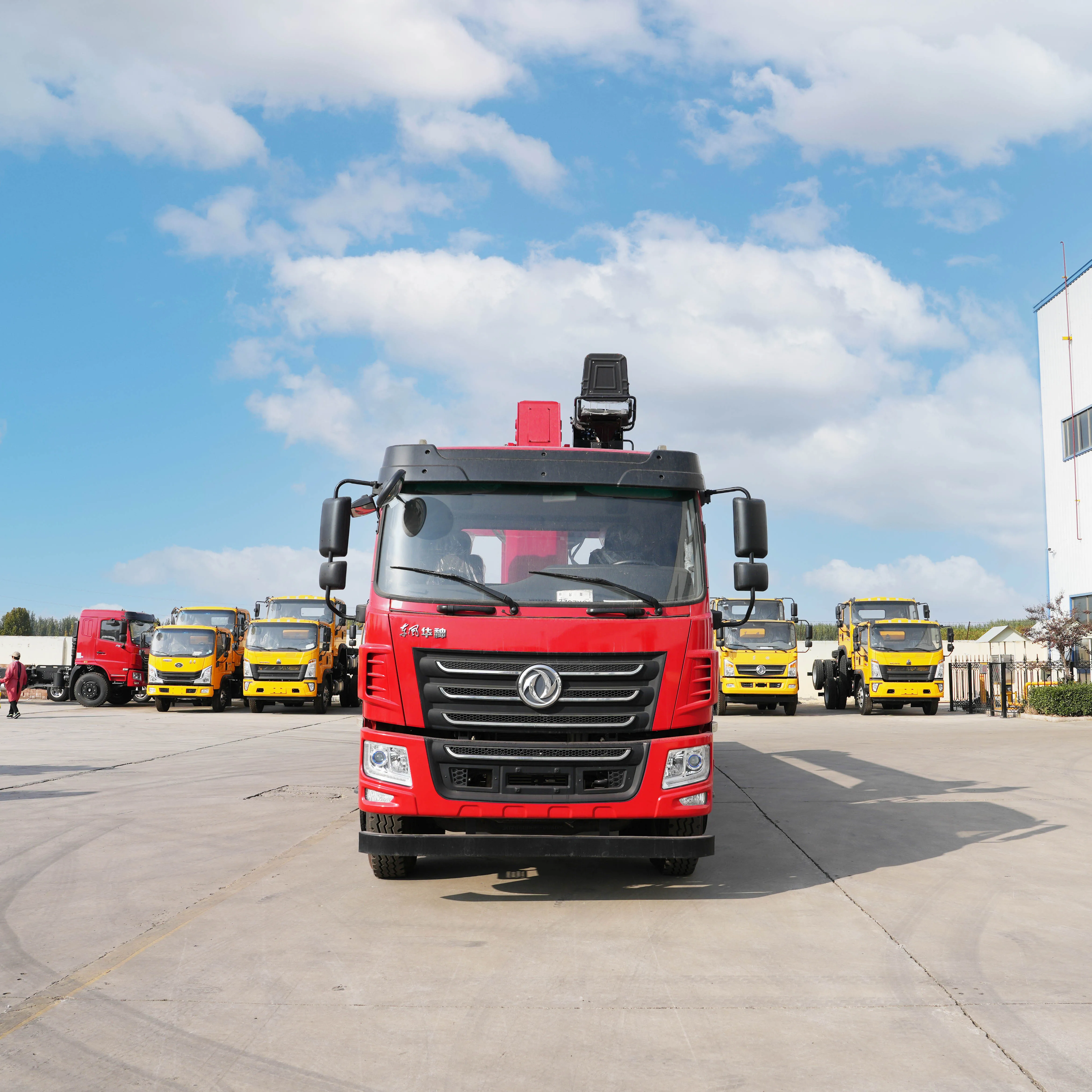

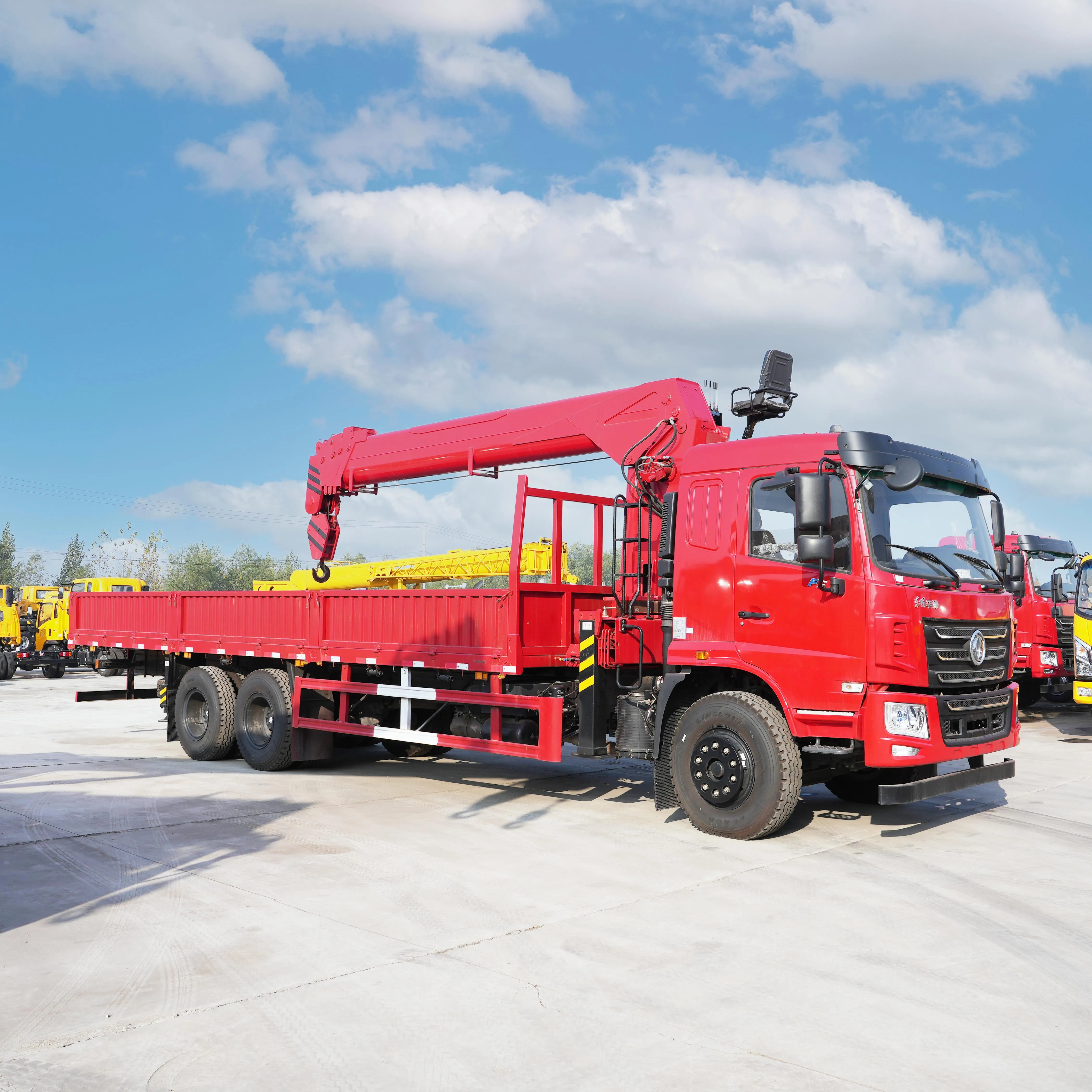

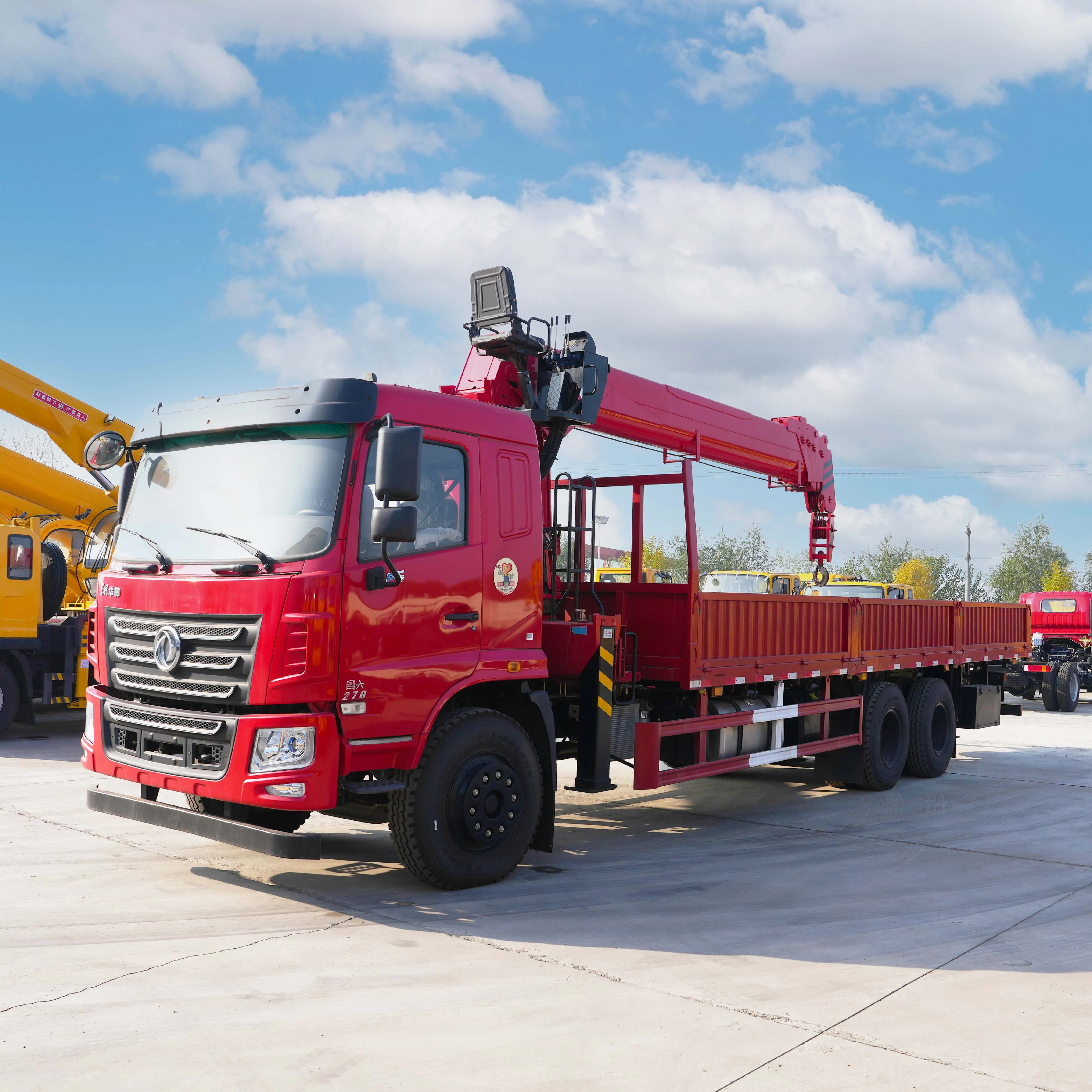

China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane
China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane

China Factory For Sale Dongfeng 8 Ton 12 Ton Mobile Telescopic Boom Truck Mounted Crane Hydraulic Mobile Truck Crane

Share on (11000016455035):


Price:

Quantity:


Product Overview

Description



Product Paramenters


External chassis
Dongfeng Huashen F5 (Euro VI)
Maximum lifting height
21.8 m
Dimensions
12000*2500*3850
Maximum lifting torque
30T*M
Inner dimensions of cargo compartment
8500*2400*550
Basic arm length
5.6-18.8m
Wheelbase
5900+1350mm
Maximum lifting weight
12000kg
Gross mass
25000kg
Hydraulic outriggers
Automatic (double-chamber rear outriggers)
Curb mass
16230kg
Boom telescopic
Retractable rod rope
Rated load
8575kg
Boom extension method
Dual cylinder boom extension
Gearbox model
Fatu 8-speed gearbox
Maximum elevation angle
0-75°
Engine model
Yuchai
Slewing angle
360° full slewing
Engine power
199KW (270 horsepower)
Slewing speed
2.5
Frame
300 three-layer
Boom
5 meters*5 sections (U-shaped boom)
Axle load
Front axle 7T rear axle 18T
Span of the whole machine
2.5m*5.8m
Maximum speed
90KW/h
Tire model
1100R20-18PR
Refrigeration system
Air conditioning
Dual pump confluence
Aluminum alloy hydraulic oil tank


Assembly configuration: air conditioner for getting on the vehicle, air conditioner for getting off the vehicle, weighing device, torque limiter, wireless camera, hanging basket, air cushion seat.
Product features: with center swivel, the turntable can rotate 360° at any angle, equipped with planetary reduction mechanism, faster and smoother rotation, equipped with hydraulic cooling system, lower oil temperature, improve efficiency, high and low speed driving, steering wheel power, air brake, driving the vehicle is easier and more flexible.


Products Description




Excellent quality; selected fine materials, reliable quality, no fear of heavy lifting
Lightweight design; large load-bearing capacity, reduced fuel consumption and increased transportation capacity.


Simple operation; high-quality joystick, easy to use and high working efficiency
Optimized components; reliable quality, reduced failures and maintenance


Comfortable driving; spacious cab Comfortable driving The interior is spacious and can be equipped with air conditioning and a change of driving position
Choose from 8 tons, 12 tons, and other sizes and colors, as well as arm length, changeable grab accessories and other accessories


Customer visit








Certifications

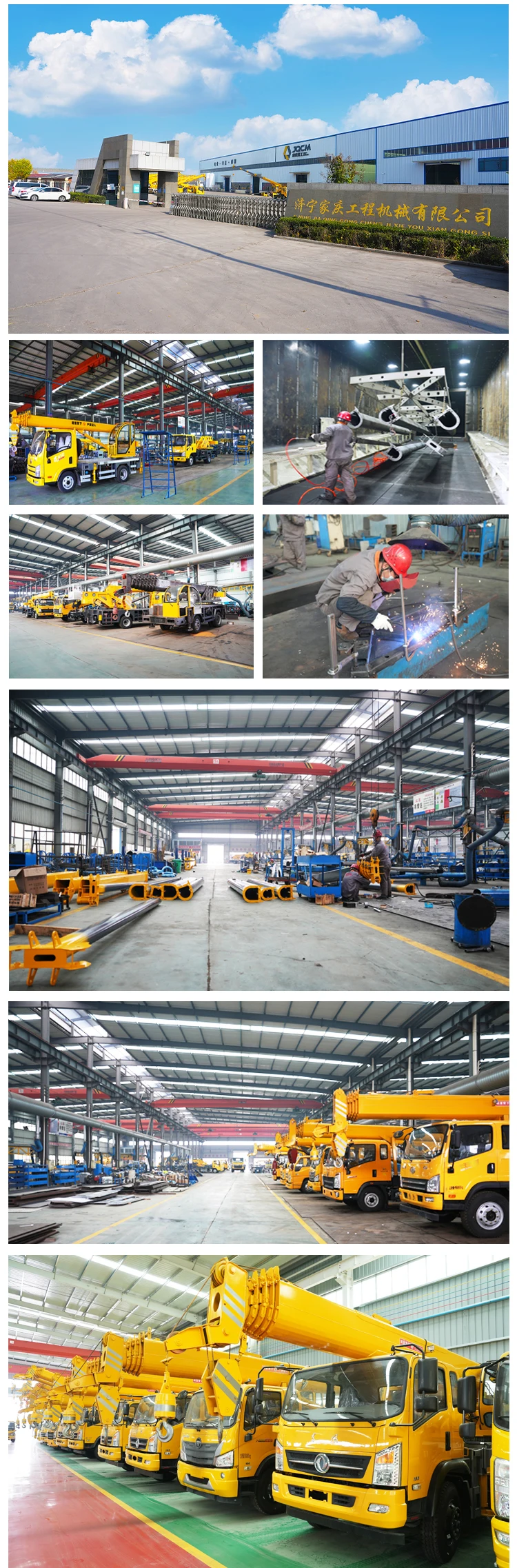

Company Profile
