4 People Using Jinbo Electric Used Smart Car
$1,500-2,200

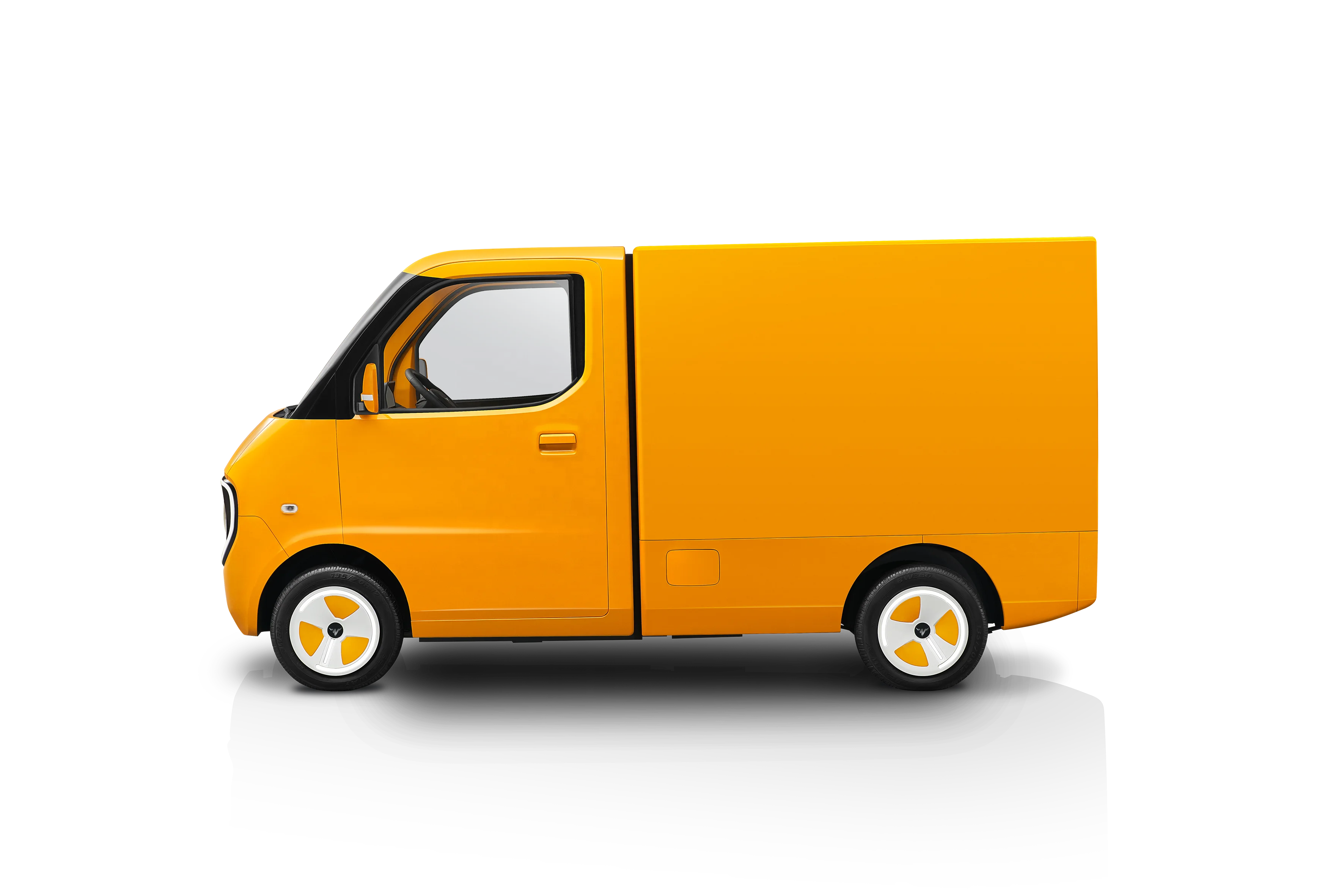

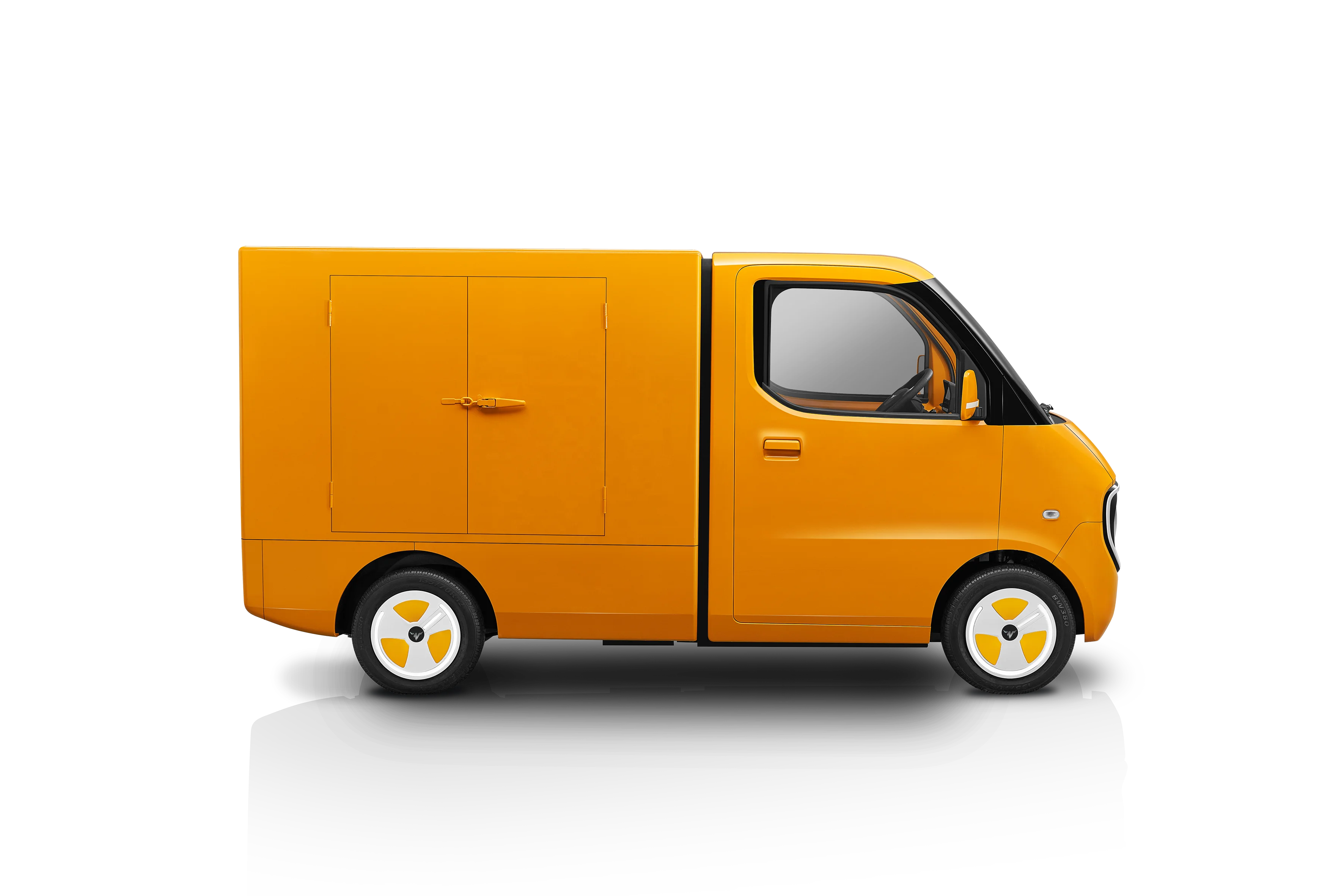

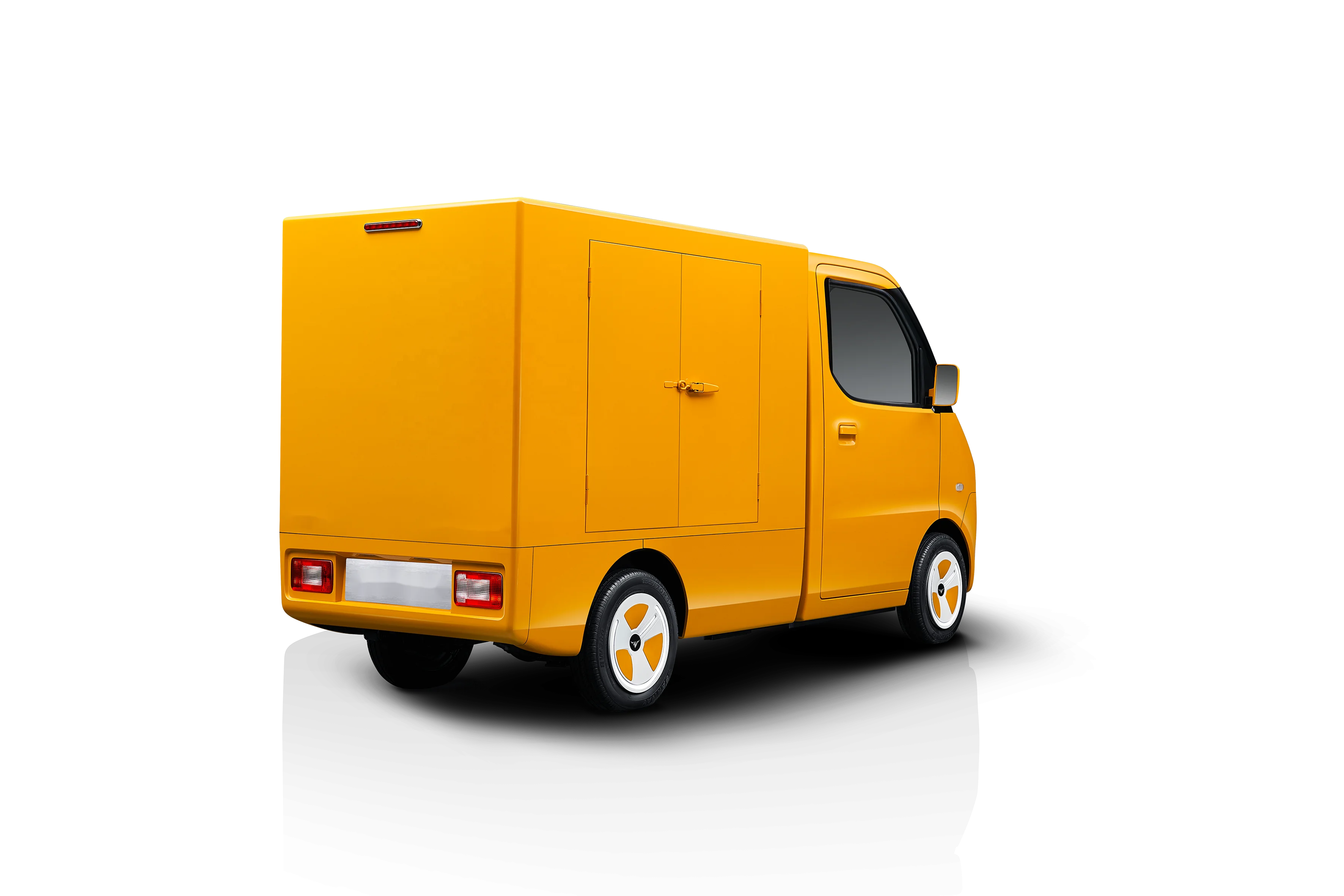

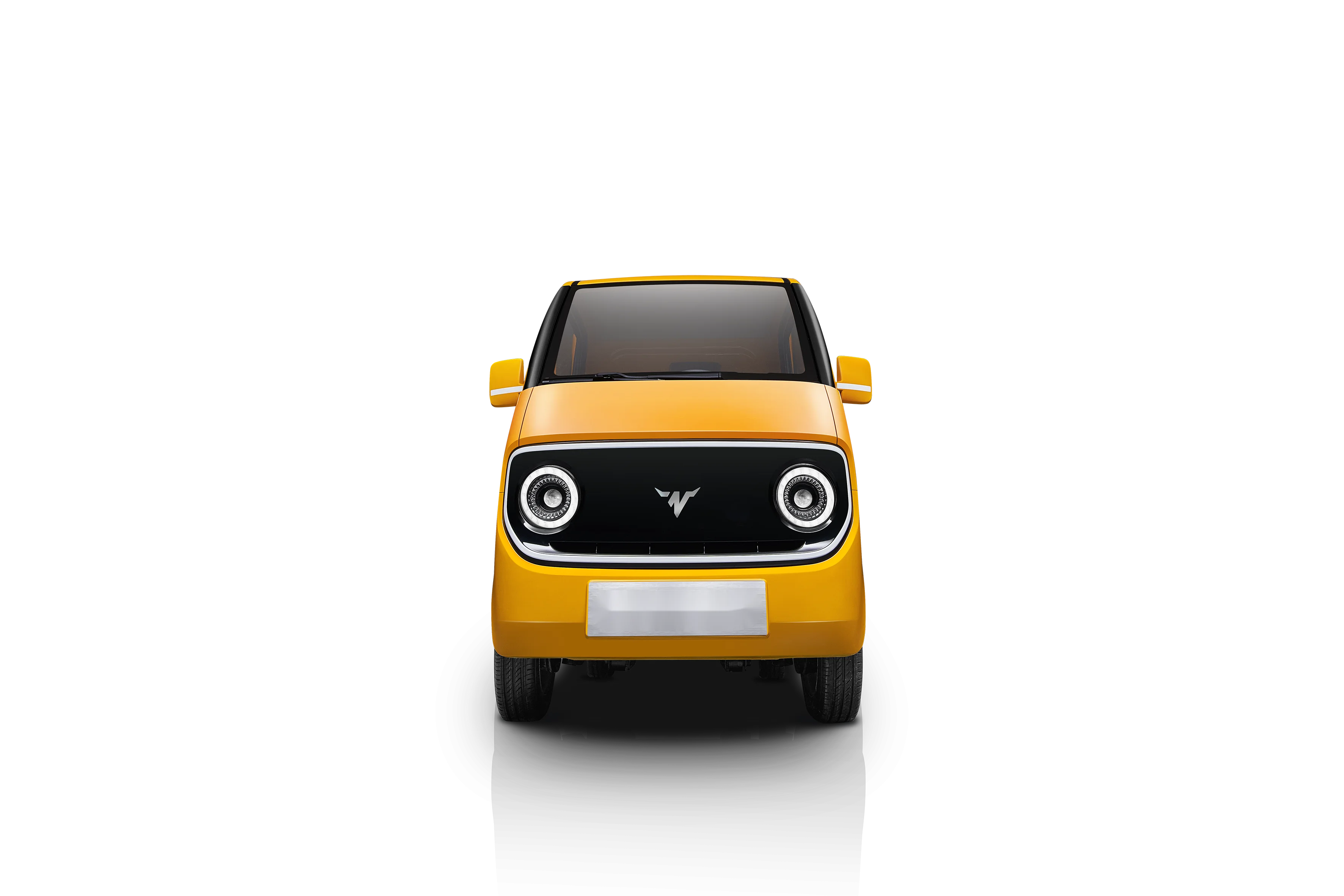

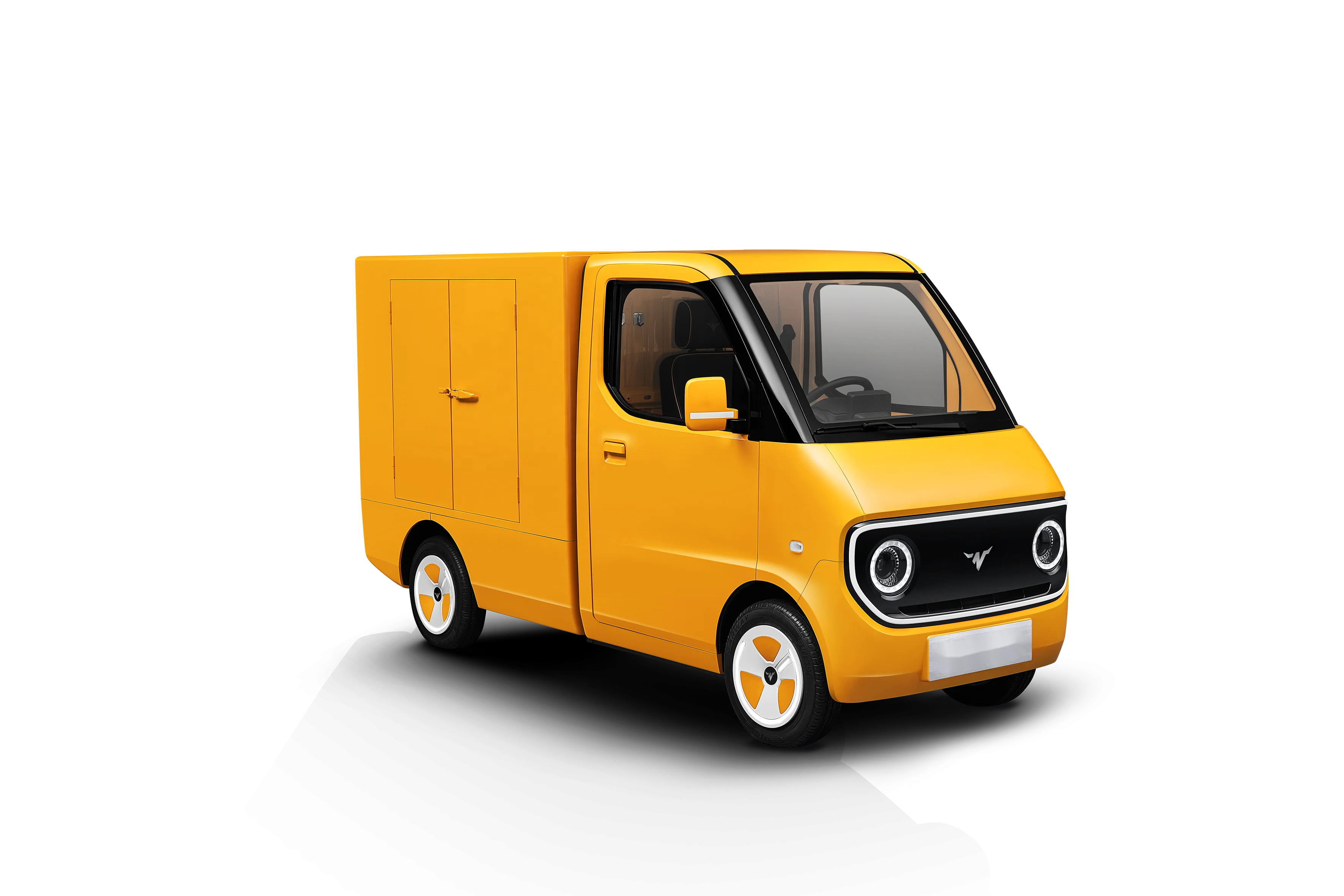

Electric Van with EEC Certification for New Energy/Electric truck
- Category: >>>
- Supplier: HENAN NIEGUI IMPORT AND EXPORT TRADING CO. LTD.
Share on (11000016623830):
Product Overview
Description
Products Description
* 6KW AC motor
* Top speed of 71km/h
* Driving range of 120km
* Front and rear 135-70R12 vacuum tires
* Front disc brake and rear oil brake
* ABS+EBD for safety driving
* Secure and comfortable cockpit
* Economical product configuration
* Bluetooth and USB charging interface
* Convenient loading and unloading
* Easily adapted to fit multiple scenarios

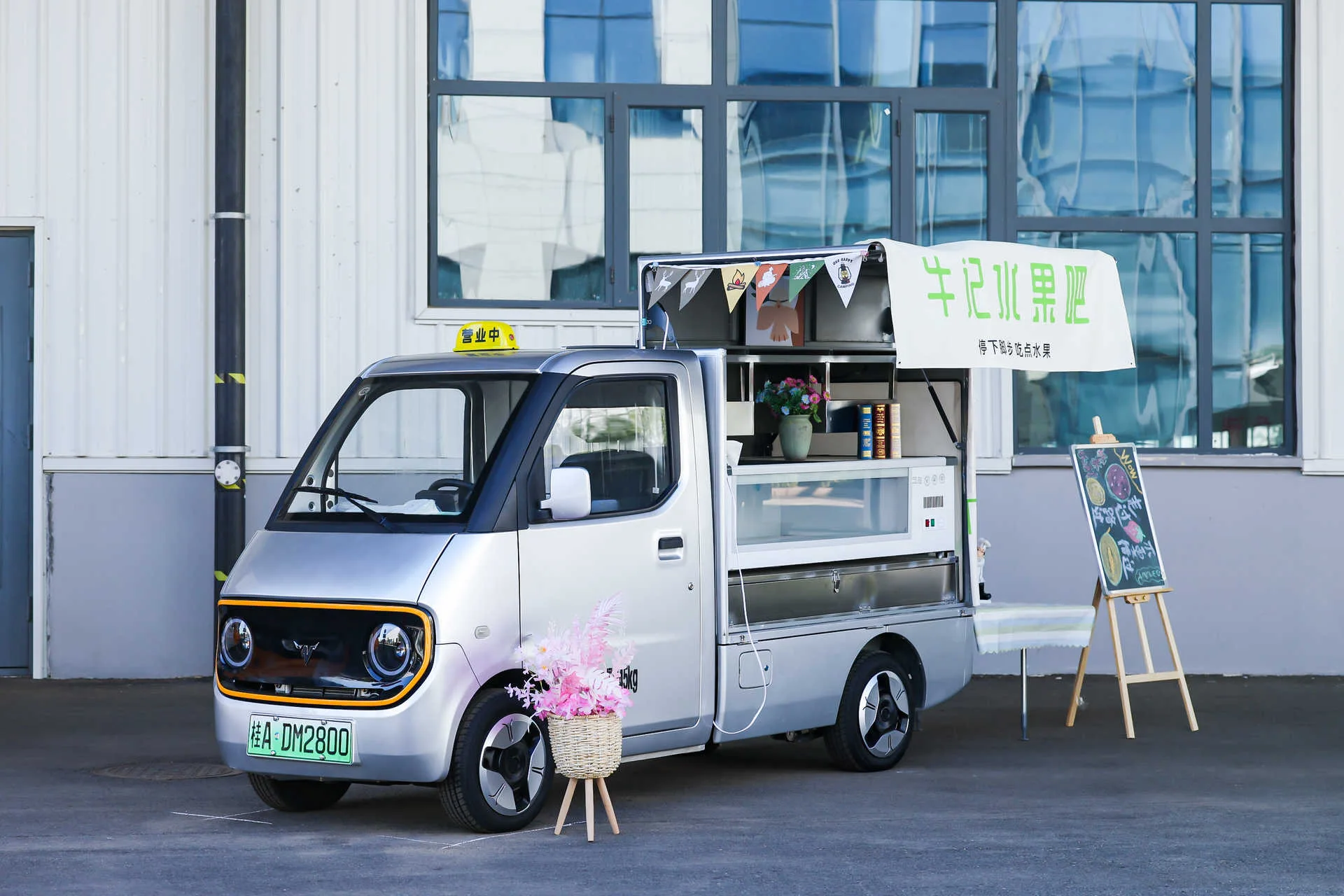

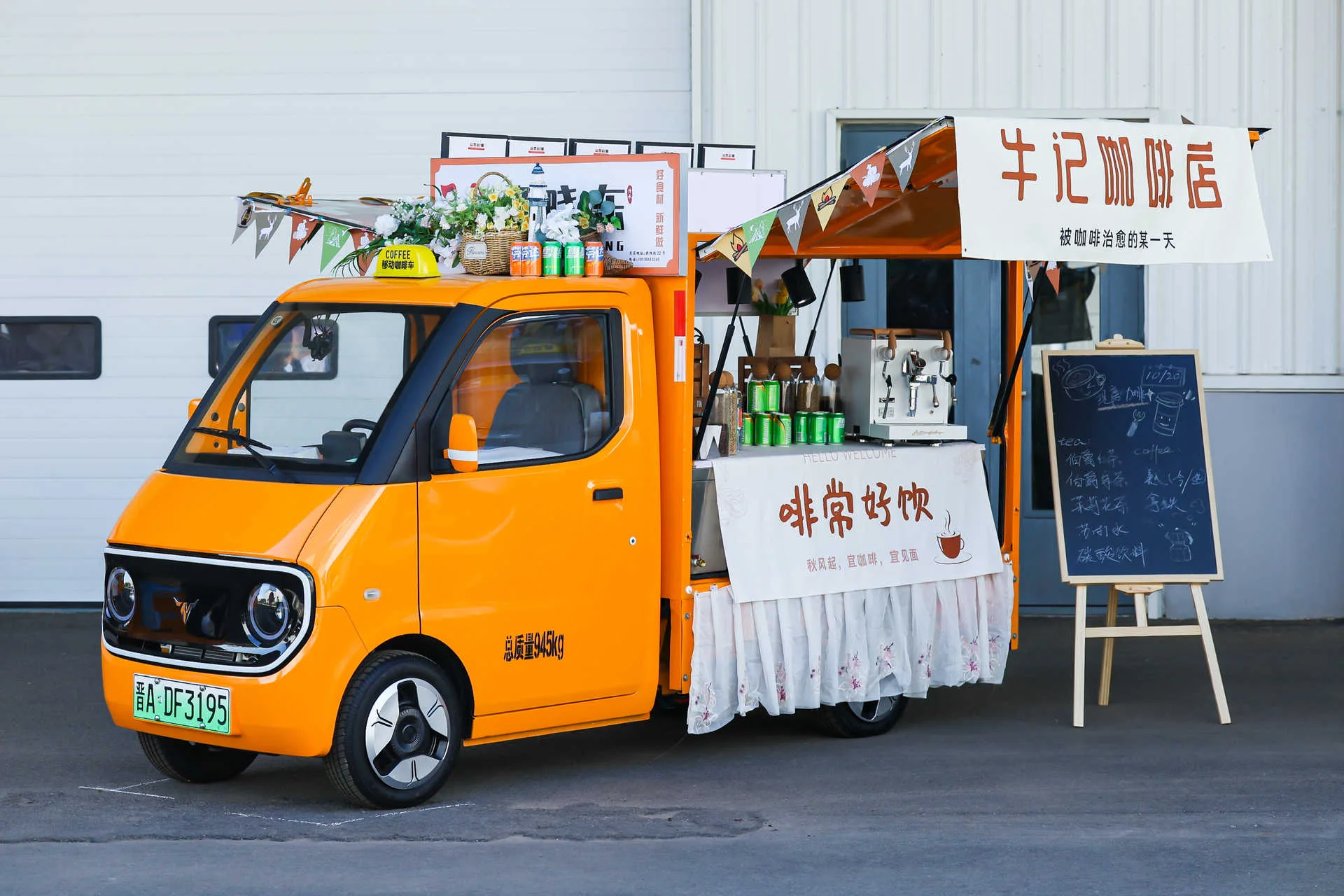

* Terminal Delivery, Postal Service, Mobile Vending, Door-to-door Service, Mobile Advertising, Short-distance Transportation
* Top speed of 71km/h
* Driving range of 120km
* Front and rear 135-70R12 vacuum tires
* Front disc brake and rear oil brake
* ABS+EBD for safety driving
* Secure and comfortable cockpit
* Economical product configuration
* Bluetooth and USB charging interface
* Convenient loading and unloading
* Easily adapted to fit multiple scenarios
* Terminal Delivery, Postal Service, Mobile Vending, Door-to-door Service, Mobile Advertising, Short-distance Transportation

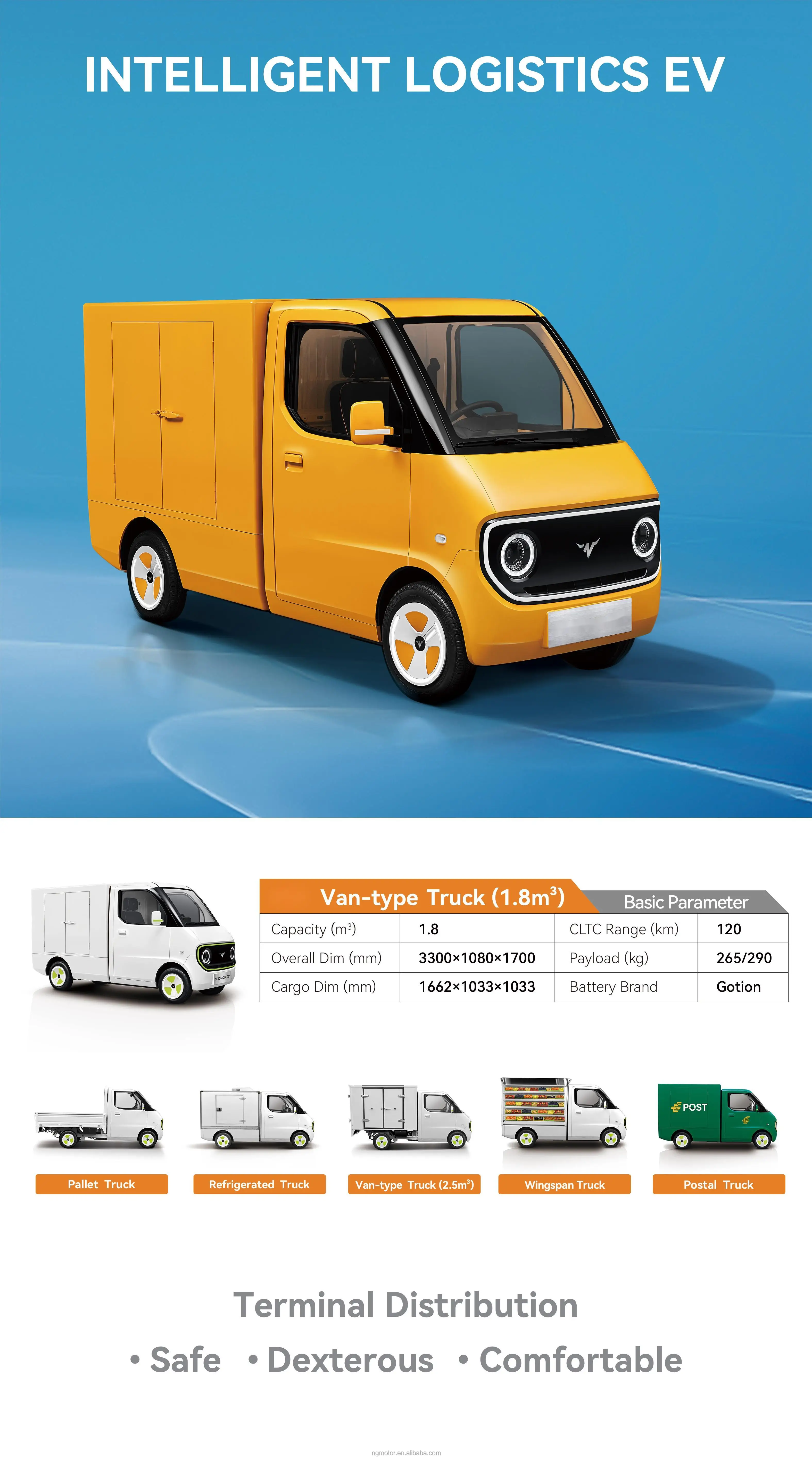

Details Images
Product Paramenters
MODEL | NG-VAN01 /L7e | |||
Container Loading Quantity(40HQ) | 4 units in CBU | |||
Size(mm) | 3300* 1138* 1700 | |||
Plate size(mm) | 1662*1033*1033 | |||
Wheelbase(mm) | 2200 | |||
Total weight(kg) | 945 | |||
Curb(kg) | 615 | |||
Loading weight(kg) | 800 | |||
NEDC(km) | 120 | |||
Max speed (km/h) | 71 | |||
0～50km/h Acceleration time(s) | ≤10 | |||
Maximum climbing slope (% ) | ≥20 | |||
Ground clearance under full load(mm) | ≥131 | |||
Passenger | 1 | |||
Battery （Gotion Brand） | Type | Lithium iron phosphate | ||
Capacity(kw · h) | 9.98 | |||
Voltage(V) | 96 | |||
Density(Wh/kg) | ≥114 | |||
Charger(kW) | 3.3 | |||
Charge time(h) | ＜4 | |||
Battery thermal management | Natural air cooling | |||
Battery pre-heating system(charging) | ● | |||
Motor (OSWELL Brand) | Type | Permanent magnet synchronization | ||
Rated/peak power (kW) | 6kW/12kW | |||
Rated/peak torque (N.m) | 10/61 | |||
Controller（MCU） | OSWELL Brand | |||
Chassis | Drive mode | Rear drive | ||
Suspension | Front McPherson independent rear leaf spring | |||
Electric power steerling CEPS | ● | |||
Braking system | Front disc rear drum | |||
Tyre size | 135/70R12 | |||
Steel hub | ● | |||
Appearance and interior | Color White/Silver | White/Silve | ||
Right side opposite door | ● | |||
Exterior rearview mirror | Manual adjustment | |||
Driver's side sun visor | ● | |||
Seat | material Textile | |||
Seat adjustment | Front and rear adjustable, backrest angle adjustable | |||
Container floor | Metal | |||
Ceiling | ● | |||
Air condition | ● | |||
Halogen headlamp | ● | |||
Headlamp height adjustment | ● | |||
High-mounted brake lamp | ● | |||
USB Interface( 1pc) | ● | |||
Speaker | 1 | |||
Bluetooth | ● | |||
Combination instrument | LCD meter | |||
Safety system | Car window | Manual window | ||
T-BOX | — | |||
Low speed warning tone | ● | |||
Three-point type seat belt | ● | |||
ABS+EBD | ● | |||
Intelligent configuration | Mobile phone and car integration | — | ||
Remote query | — | |||
Remote diagnosis | — | |||
Others | Car kit | ● | ||
Warning triangle | ● | |||
Reflective Vest | ● | |||
1. " ●" available, " ○" optional, "-”Without 2. If the configuration is changed, the final explanation of the manufacturer shall prevail. | ||||

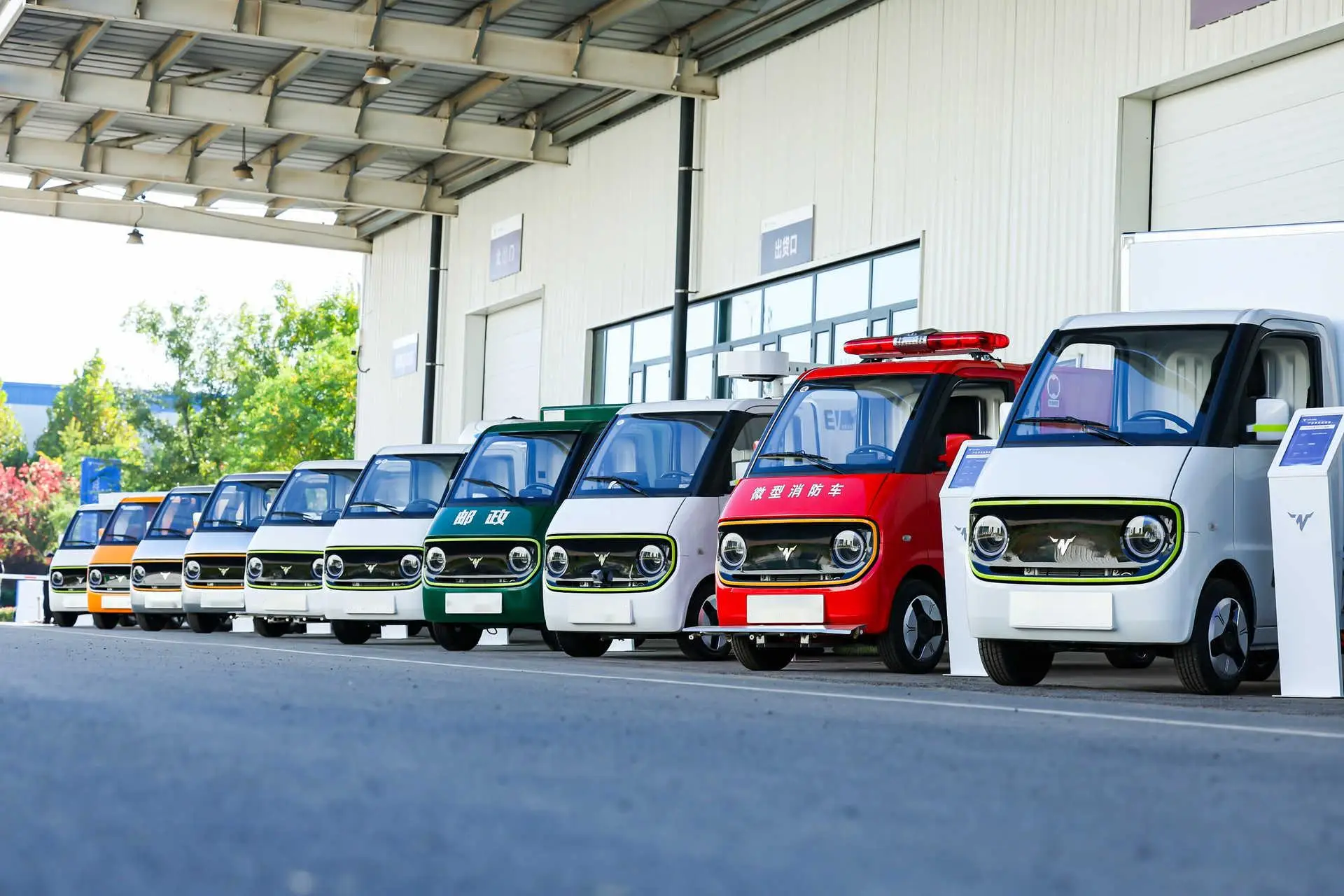

Exhibition
Company Profile
Henan Niegui Import and Export Trade Co., Ltd. It is located in Luoyang city, The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles,mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now，now exported to the European market. Products are exported to Egypt, Myanmar,Nepal, Cambodia, Russia, France, Italy, Australia,Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation!
Welcome the friend all over the world come to visit us and cooperation!
FAQ
A：Do you support samples before placing bulk orders?
Yes, we can send one sample before placing bulk orders. Sample production time is 40-45 days.
B：How is the after-sales service?
The after-sales service is 1 year, and we support three-guarantee service.
C： Whether you could make our brand on your products?
Yes. We can customize the product logo and brand according to your needs, if you can meet our MOQ.
D：Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E： How to guarantee the quality of your products? How to guarantee product quality?
1. Strict detection during production.
2. Strict sampling inspection on products before shipment and intact product packaging
Yes, we can send one sample before placing bulk orders. Sample production time is 40-45 days.
B：How is the after-sales service?
The after-sales service is 1 year, and we support three-guarantee service.
C： Whether you could make our brand on your products?
Yes. We can customize the product logo and brand according to your needs, if you can meet our MOQ.
D：Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E： How to guarantee the quality of your products? How to guarantee product quality?
1. Strict detection during production.
2. Strict sampling inspection on products before shipment and intact product packaging
