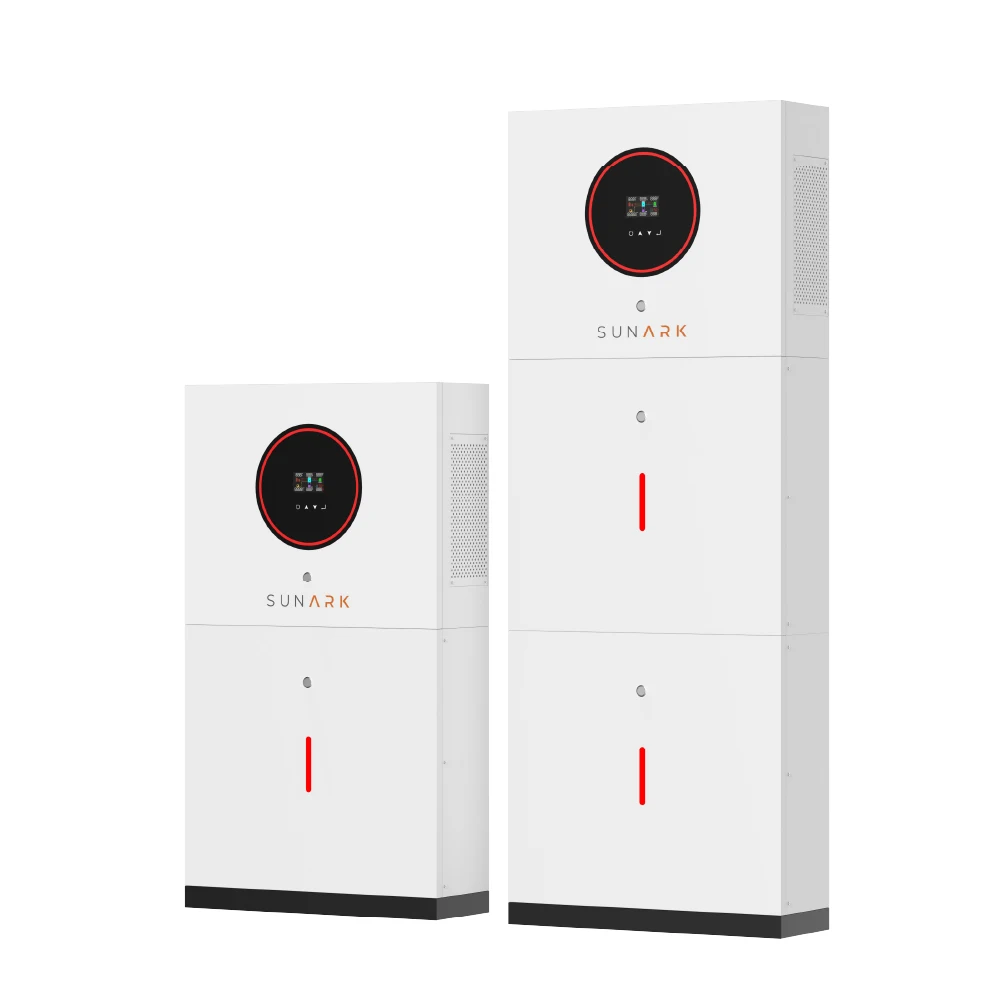

Sunark Chinese Price Solar Inverter Battery 10Kw 100Ah 200Ah Rechargeable Battery Inverter For Home
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (11000017036271):

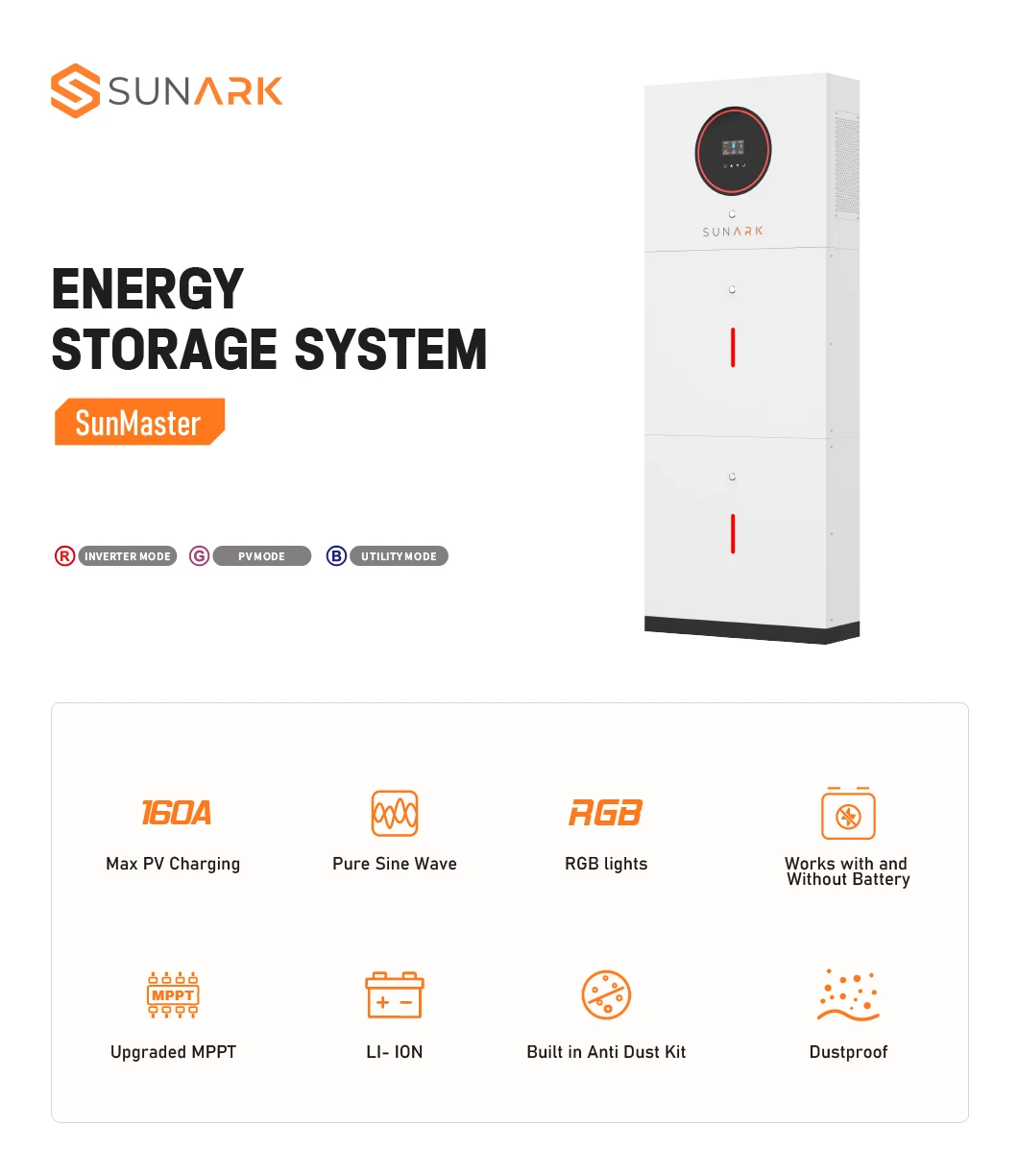

Product Overview
Description
Product Description
· Pure sine wave solar inverter(on/off Grid)
· Output power factor 1.0
· WIFI&GPRS available for IOS and Android
· Inverter can run without battery
· One-key restoration to factory Settings
· Built-in Lithium battery automatic activation
· Built-in anti-dust kit for harsh environment
· Built-in 140A (for 4.2KW)/120A(for 6,2KW)/160A(MPPT Solar charge: max 6200W(for 4,2KW),max6500(for
6.2KW),max10200W(for 10.2KW)
· High PV input voltage range(60~ 500VDC)
· Intelligent fan speed adjustment
· Smart battery charge design to optimize battery life
· Dual output
Model | SunMaster-4.2KW | SunMaster-6.2KW | SunMaster-10.2KW | |||
Phase | 1-phase | |||||
Maximum PV Input Power | 6200W | 6500W | 5400W +5400W | |||
Rated Output Power | 4200W/4200VA | 6200W/6200VA | 10200W/10200VA | |||
Maximum Solar Charging Current | 140A | 120A | 160A | |||
GRID-TIE OPERATION | ||||||
PV INPUT (DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||||
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | 90VDC/120VDC | ||||
MPPT Voltage Range | 60~450VDC | 90~450VDC | ||||
Maximum Input Current | 1/18A | 1/22A | 2/18A | |||
GRID OUTPUT (AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Voltage Range | 195.5~253VDC | 190~253VDC | ||||
Nominal Output Current | 18.2A | 27.0A | 44.3A | |||
Power Factor | >0.99 | |||||
EFFICIENCY | ||||||
Maximum Conversion Efficiency (DC/AC) | 98% | |||||
TWO LOAD OUTPUT POWER | ||||||
Full Load | 4200W | 6200W | 10200W | |||
Maxium Main Load | 4200W | 6200W | 10200W | |||
Maxium Second Load(battery mode) | 1400W | 2067W | 3400W | |||
Maxium Load Cut Off Voltage | 26VDC | 52VDC | ||||
Maxium Load Return Voltage | 27VDC | 54VDC | ||||
OFF-GRID OPERATION | ||||||
AC INPUT | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable Input Voltage Range | 90-280VACor170-280VAC | |||||
Frequency Range | 49-51±1HZ | |||||
Maximum AC Input Current | 30A | 40A | 50A | |||
PV INPUT (DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||||
MPPT Voltage Range | 60-450VDC 90-450VDC | |||||
Maximum Input Current | 1/18A 1/22A 2/18A | |||||
BATTERY MODE OUTPUT (AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Waveform | Pure sine wave | |||||
Efficiency (DC to AC) | 94% | |||||
BATTERY & CHARGER | ||||||
Nominal DC Voltage | 24VDC | 48VDC | ||||
Maximum Solar Charging Current | 140A | 120A | 160A | |||
Maximum AC Charging Current | 100A | 100A | 140A | |||
Maximum Solar+AC Charging Current | 140A | 120A | 160A | |||
HYBRID OPERATION | ||||||
PV INPUT (DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||||
Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | |||||
MPPT Voltage Range | 60~450VDC 90~450VDC | |||||
Maximum Input Current | 1/18A 1/22A 2/18A | |||||
GRID OUTPUT (AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Voltage Range | 195.5~253VDC | 190~253VDC | ||||
Nominal Output Current | 18.2A | 27.0A | 44.3A | |||
AC INPUT | ||||||
AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable Input Voltage Range | 90-280VAC or170-180VAC | |||||
Maximum AC Input Current | 30A | 40A | 50A | |||
Maximum AC Charging Current | 100A | 140A | ||||
GENERAL | ||||||
PHYSICAL | ||||||
Dimension,D*W*H(mm) | 541*442*190 | |||||
Cartoon Dimension,D *W *H(mm) | 600*550*240 | |||||
Net Weight (kgs) | 18.5 | 27.8 | 25.5 | |||
Gross Weight(kgs) | 20.5 | 29.4 | 27.5 | |||
INTERACE | ||||||
Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |||||
ENVIRONMENT | ||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
Operating Temperature | -10°C-50°C | |||||
STANDARD | ||||||
Compliance Safety | CE | |||||
Model | 25.6V 100AH | 25.6V 200AH | 48V 100AH | 48V 200AH | |||
Normal charging voltage | 29.2V | 29.2V | 54.75V | 54.75V | |||
Maximum charging current | 100A | 100A | 100A | 100A | |||
Discharge termination voltage | 21.6V | 21.6V | 40.5V | 40.5V | |||
Recommended discharge termination voltage | 22.4V | 22.4V | 42V | 42V | |||
Maximum discharge current | 100A | 100A | 100A | 100A | |||
Single cell charging overvoltage protection | 3.8V | 3.8V | 3.8V | 3.8V | |||
Overvoltage protection for the whole battery | 29.2V | 29.2V | 54.75V | 54.75V | |||
Low voltage protection for single cell discharge | 2.7V | 2.7V | 2.7V | 2.7V | |||
Low voltage protection for whole group discharge | 21.6V | 21.6V | 40.5V | 40.5V | |||
Charge overcurrent protection | 102~112A | 102~112A | 102~112A | 102~112A | |||
Discharge overcurrent protection | 102~122A | 102~122A | 102~122A | 102~122A | |||
BMS Features | High accuracy cell level voltage, current measuring Over-charge, over-discharge protection Short-circuit protection Self-learning intelligent SOC calculation Cell level active equalization Multiple communication type Parallel connect function | ||||||
Working temperature | -15°C~+55°C | ||||||
Storage temperature | -20°C~+50°C | ||||||

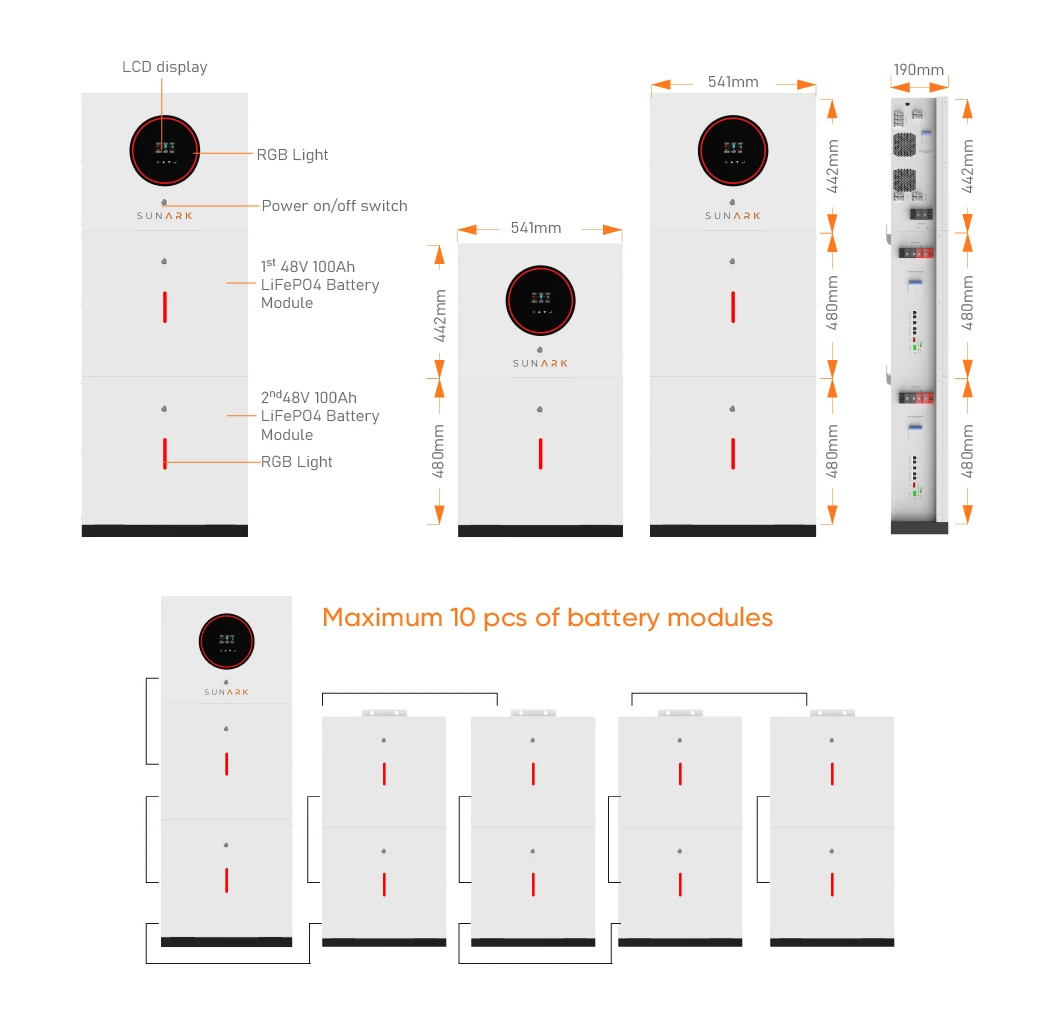

Single Battery Module Dimensions(mm) | 541*480*190 | 541*480*190 | 541*480*190 | 541*960*190 | |||
Single Battery Module Weight (Kg) | 27KG | 54KG | 54KG | 110KG | |||

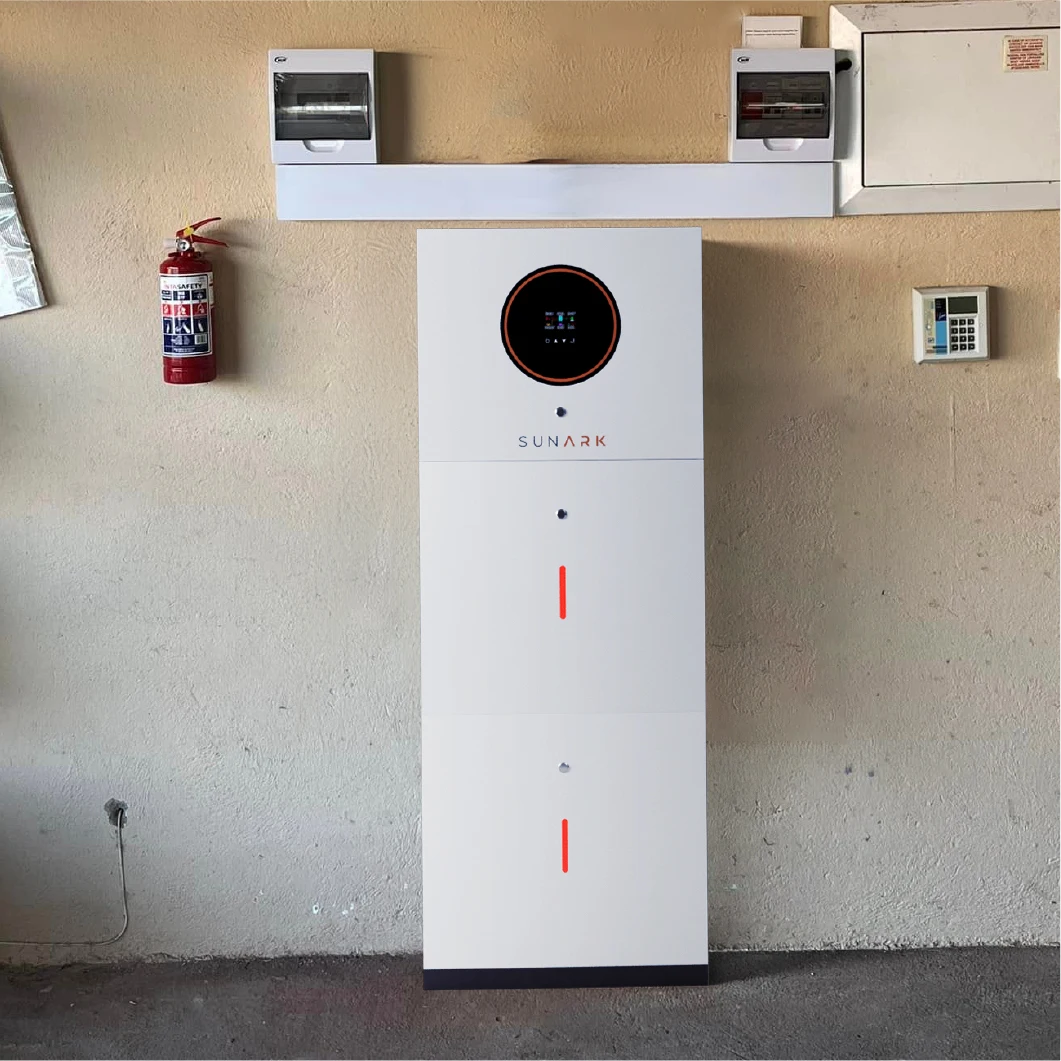

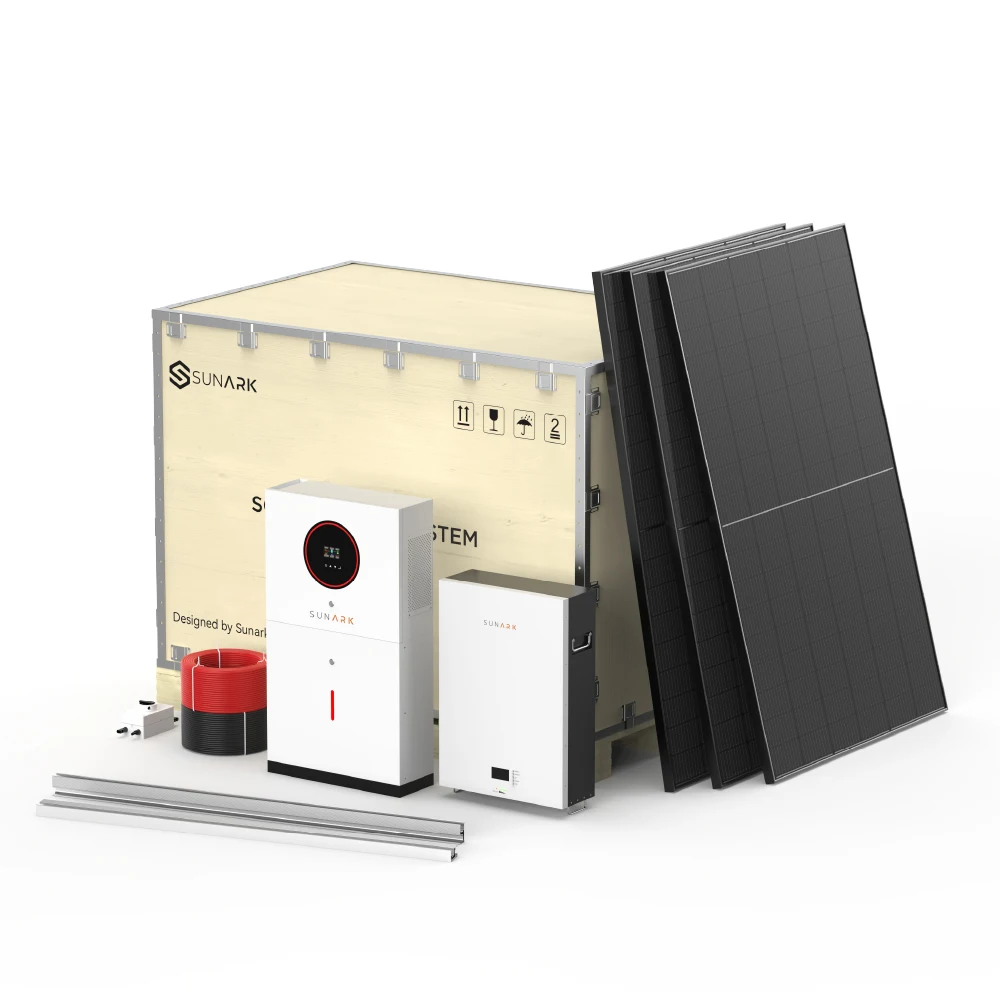

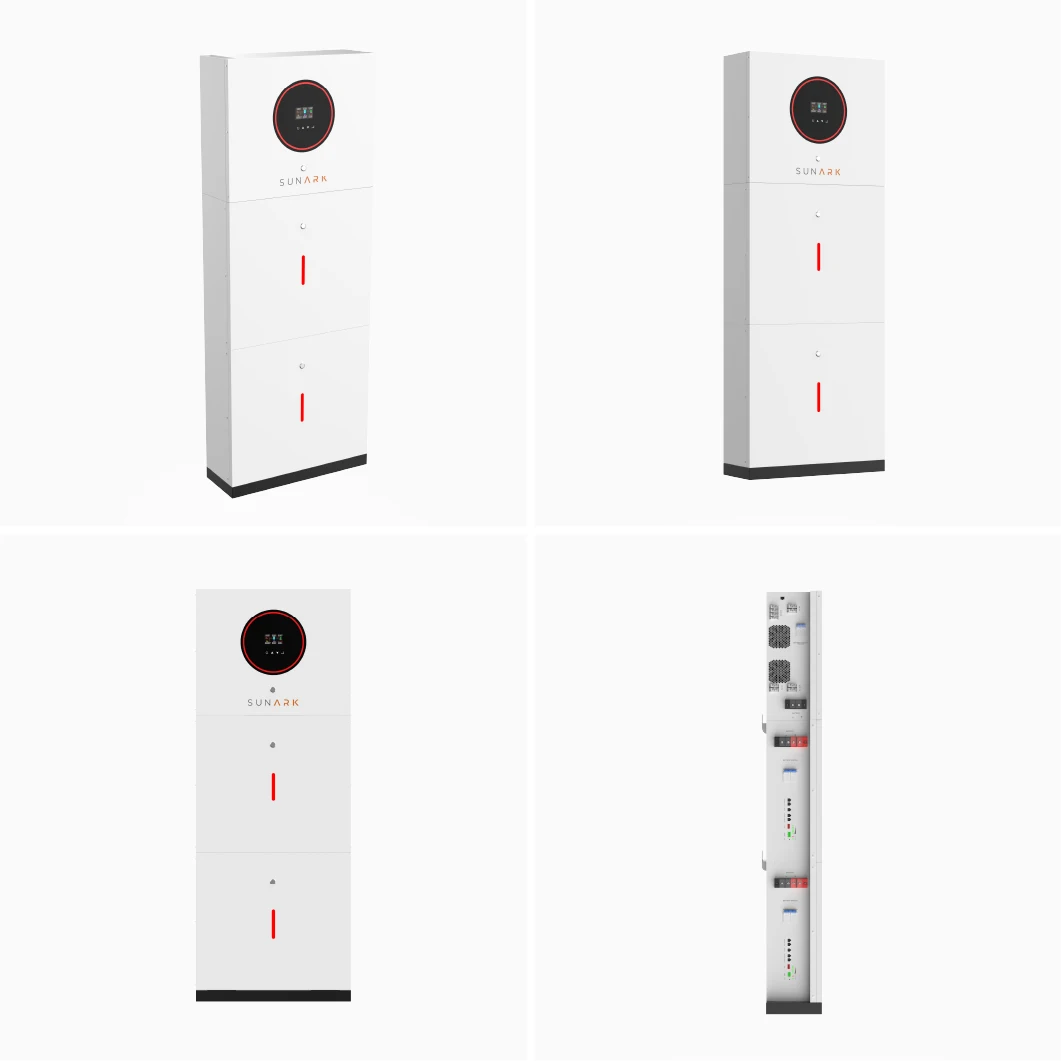

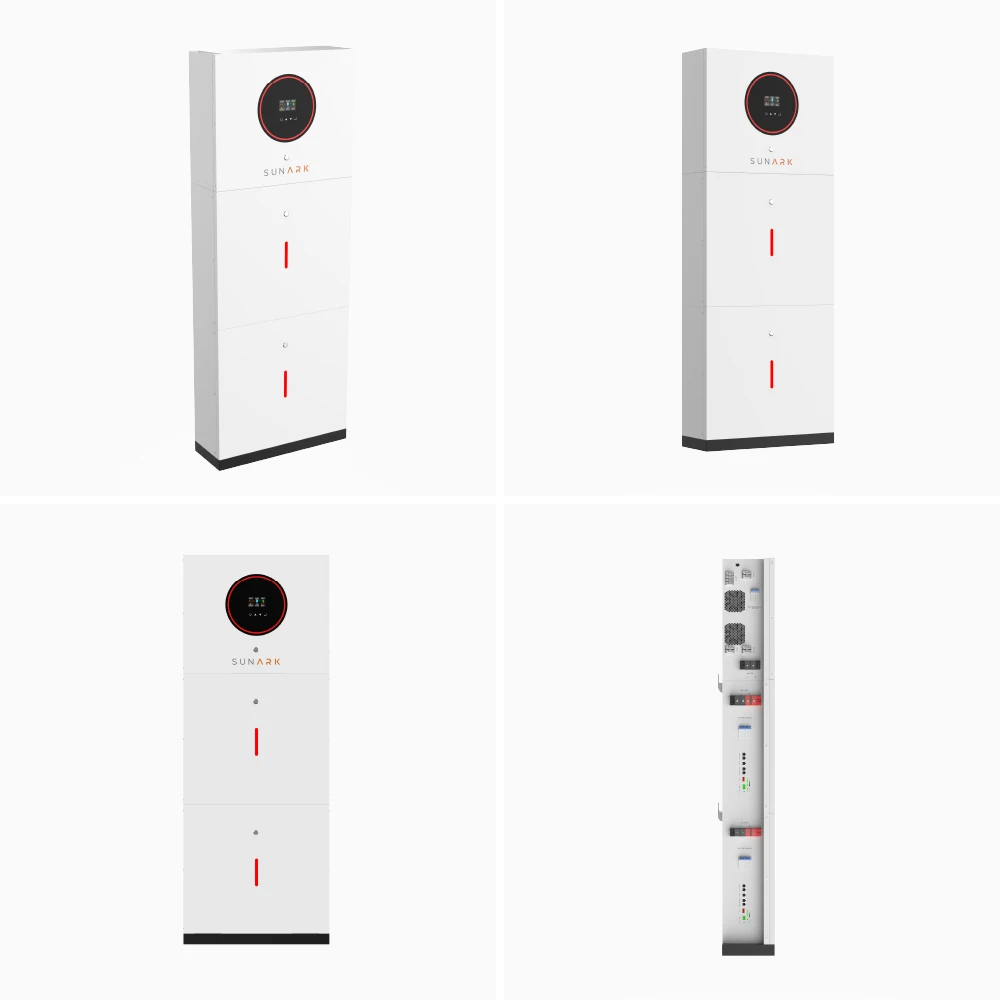

Pictures and Packages

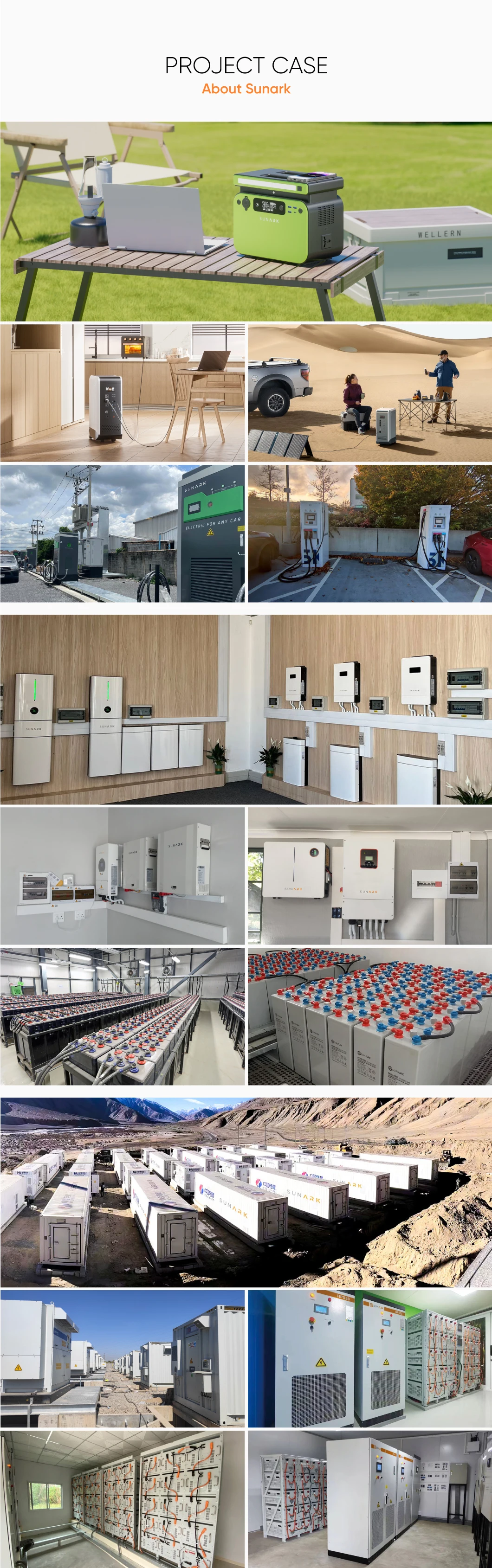

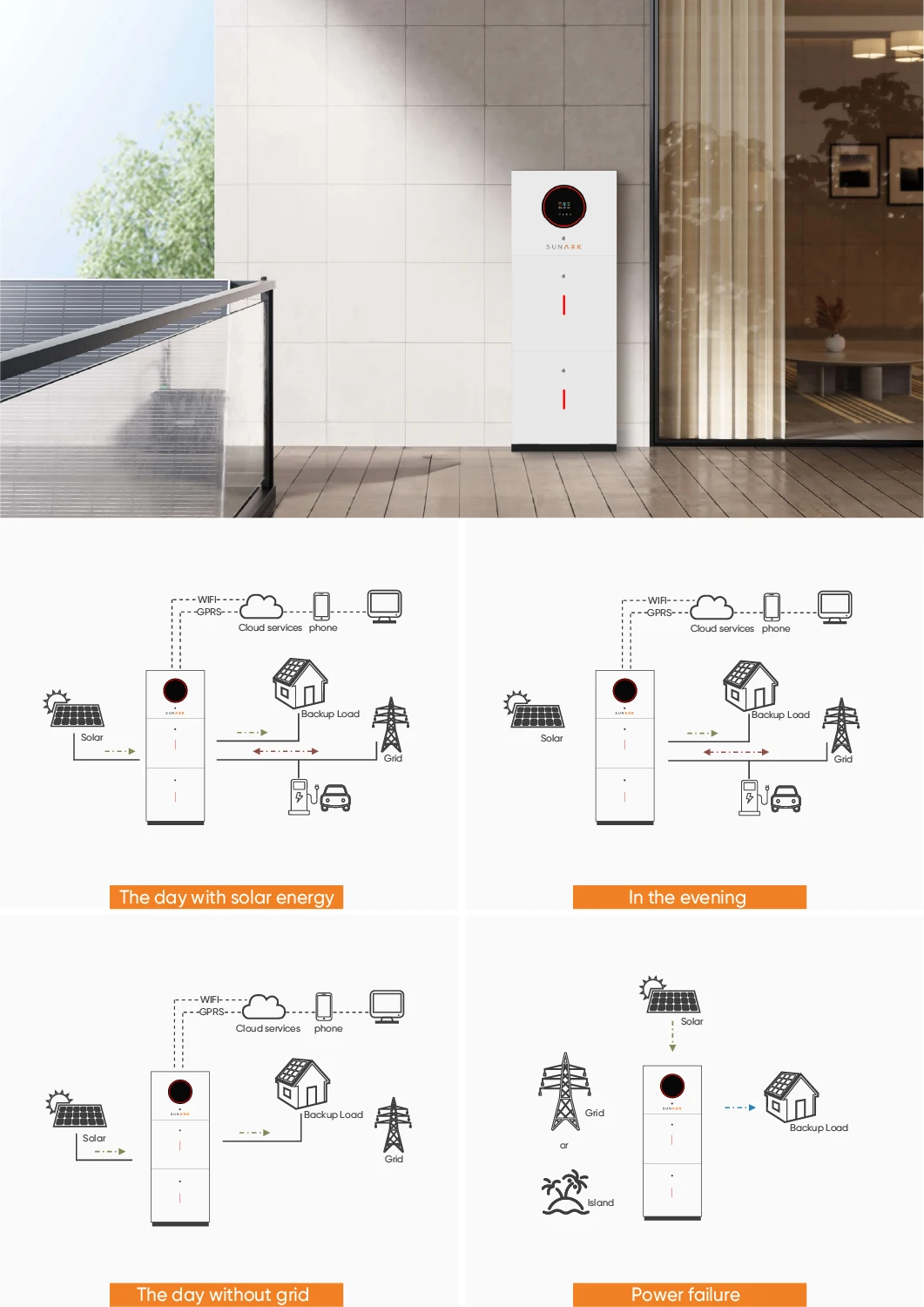

Applications

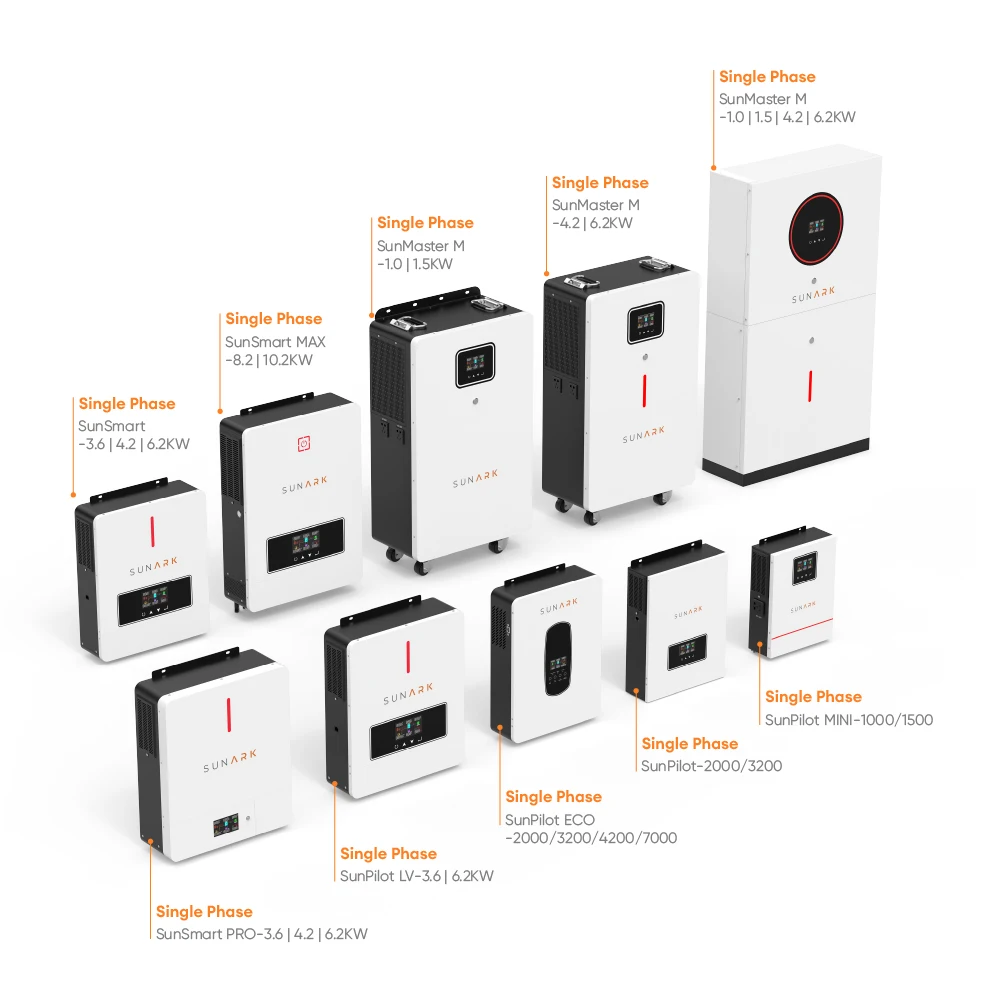

Products Series
SunSmart-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunSmart PRO-3.6/4.2/6.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunSmart MAX-8.2/10.2KW
Output Power: 3.6-6.2KW Single Output Voltage: 220/230/240VAC Maximum AC charging current: 100A Maximum solar charging current:
120A Battery Voltage: 24/48VDC
120A Battery Voltage: 24/48VDC
SunPilot-2000/3200
Output Power: 2200-3200VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 80A
Battery Voltage: 12/24VDC
SunPilot ECO-2000/3200/4200/7000
Output Power: 2000-7000VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 60/80A
Battery Voltage: 12/24/48VDC
SunPilot MINI-1000/1500
Output Power: 1000-1500VA Single
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 40A
Battery Voltage: 12/24VDC
SunPilot LV-3.6/6.2KW
Output Power: 3.6-6.2KW Split
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
MPPT Solar Charge Controller: 120A
Battery Voltage: 24/48VDC
SunMaster-4.2/6.2/10.2KW
Output Power: 4.2-10.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
SunMaster M-1.0/1.5/4.2/6.2KW
Output Power: 1.0-6.2KW Single
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC
Output Voltage: 220/230/240VAC
Battery Voltage: 24/48VDC

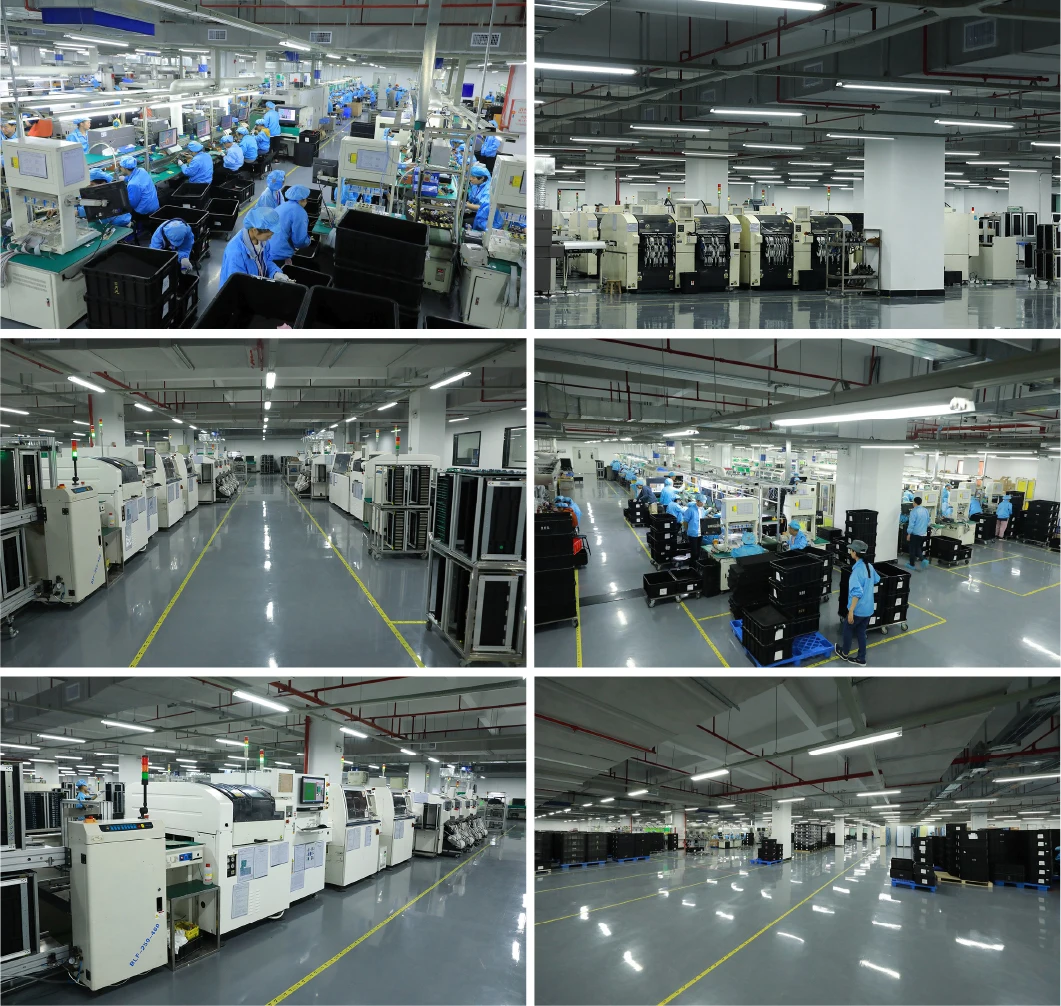

Our Factory
