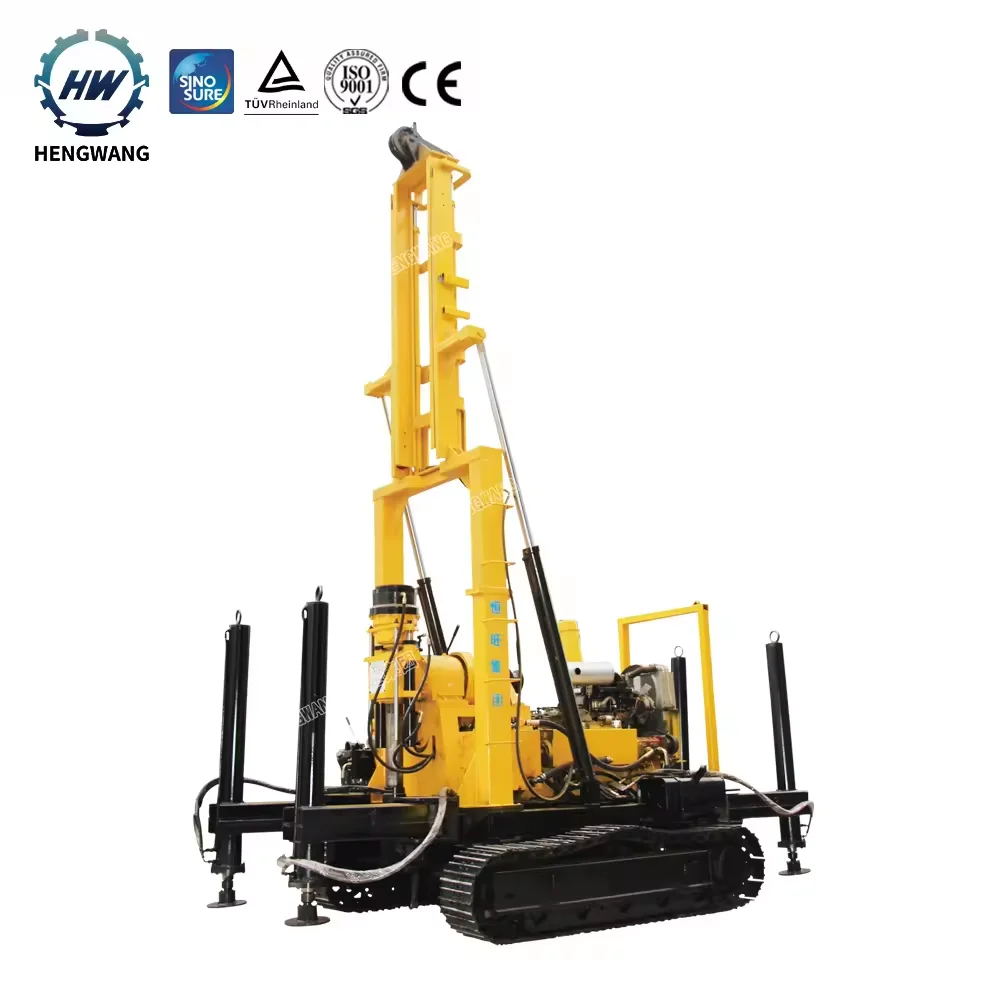

Hengwang HW190L borewell drilling rig crawler small hydraulic water well drilling rig machine price for sale
- Category: >>>
- Supplier: Constant Heavy Industry Machinery (jining) Co. Ltd.Constant Ltd.
Share on (11000017203793):
Product Overview
Description
Product Description
HW series hydraulic drilling rig is a kind of widely used portable drill machine. It is suitable for drilling water
well,geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
well,geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
What Chassis Can This Water Well Drilling Rig Machine Do?
1. As a hydraulic water well drilling rig factory, Hengwang has many models of water well drilling rig, which can be customized for various water well drilling rig chassis. According to the different chassis, it can be divided into simple hydraulic water well drilling rig, wheeled trailer hydraulic water well drilling rig, and crawler hydraulic water well drilling rig，tricycle-type hydraulic water well drilling rig, and truck-type hydraulic water well drilling rigs.
2. The chassis of the simple water well drilling rig is floor-standing. The chassis is a sliding frame that can slide forward and backward. The main function of the sliding frame being able to move forward is to facilitate the loading and unloading of drill pipes. This portable hydraulic water well drilling rig price is cheap, and the portable hydraulic borewell drilling machine price is affordable even for your own family digging wells.
3. The wheeled hydraulic water well drilling rig is based on our simple hydraulic water well drilling rig and adds 4 movable
wheels, which can be hung on trailers such as cars, which also meets the requirements of some customers who want to transport them in short distances. Hang the hydraulic water well drilling rig on the trailer and go to the construction site for construction. This hydraulic water well drilling rig is also loved by most customers because it is convenient and affordable
.4. There is also a hydraulic water well drilling rig with a crawler chassis. This drilling rig is also relatively popular because
it is more stable in work and has high drilling efficiency. The disadvantage is that it needs truck hauling during transportation. If the economic strength is slightly better Point customers can choose this hydraulic water well drilling rig.
5. The tricycle-type drilling rig is mainly to move faster, and can go to some short-distance construction sites for construction. Because time is money, getting to the site quickly can save more drilling time.
1. As a hydraulic water well drilling rig factory, Hengwang has many models of water well drilling rig, which can be customized for various water well drilling rig chassis. According to the different chassis, it can be divided into simple hydraulic water well drilling rig, wheeled trailer hydraulic water well drilling rig, and crawler hydraulic water well drilling rig，tricycle-type hydraulic water well drilling rig, and truck-type hydraulic water well drilling rigs.
2. The chassis of the simple water well drilling rig is floor-standing. The chassis is a sliding frame that can slide forward and backward. The main function of the sliding frame being able to move forward is to facilitate the loading and unloading of drill pipes. This portable hydraulic water well drilling rig price is cheap, and the portable hydraulic borewell drilling machine price is affordable even for your own family digging wells.
3. The wheeled hydraulic water well drilling rig is based on our simple hydraulic water well drilling rig and adds 4 movable
wheels, which can be hung on trailers such as cars, which also meets the requirements of some customers who want to transport them in short distances. Hang the hydraulic water well drilling rig on the trailer and go to the construction site for construction. This hydraulic water well drilling rig is also loved by most customers because it is convenient and affordable
.4. There is also a hydraulic water well drilling rig with a crawler chassis. This drilling rig is also relatively popular because
it is more stable in work and has high drilling efficiency. The disadvantage is that it needs truck hauling during transportation. If the economic strength is slightly better Point customers can choose this hydraulic water well drilling rig.
5. The tricycle-type drilling rig is mainly to move faster, and can go to some short-distance construction sites for construction. Because time is money, getting to the site quickly can save more drilling time.
6. The truck-type water well drilling rig is to install the main body of the drilling rig on the truck. This is suitable for
long-distance construction. At present, with the development of the economy, more and more customers are also willing to choose the truck drilling rig, because it is more convenient. And the work is more stable and efficient.
It also can add two wheels and four weels and hydraulic drill mast and change to electric engine .
long-distance construction. At present, with the development of the economy, more and more customers are also willing to choose the truck drilling rig, because it is more convenient. And the work is more stable and efficient.
It also can add two wheels and four weels and hydraulic drill mast and change to electric engine .
Specification
water well drilling rig specification | Model | HW-160L | HW-230L | ||
Drilling depth(m) | 160 | 230 | |||
Open hole dia. (mm) Soil/rock | 400、 220 | 600、 325 | |||
End hole dia. (mm) | 75 | 75 | |||
Drill rod dia. (mm) | 42、50 | 42、50、60 | |||
DriU angle C ) | 90-75 | 90-75 | |||
Matching engine power (kW) | 13.2 | 15 | |||
Weight (kg) | 3350 | 3600 | |||
Machine Dimension L*W*H (m) | 3.8*1.95*2.7 | 3.8*1.95*2.7 | |||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

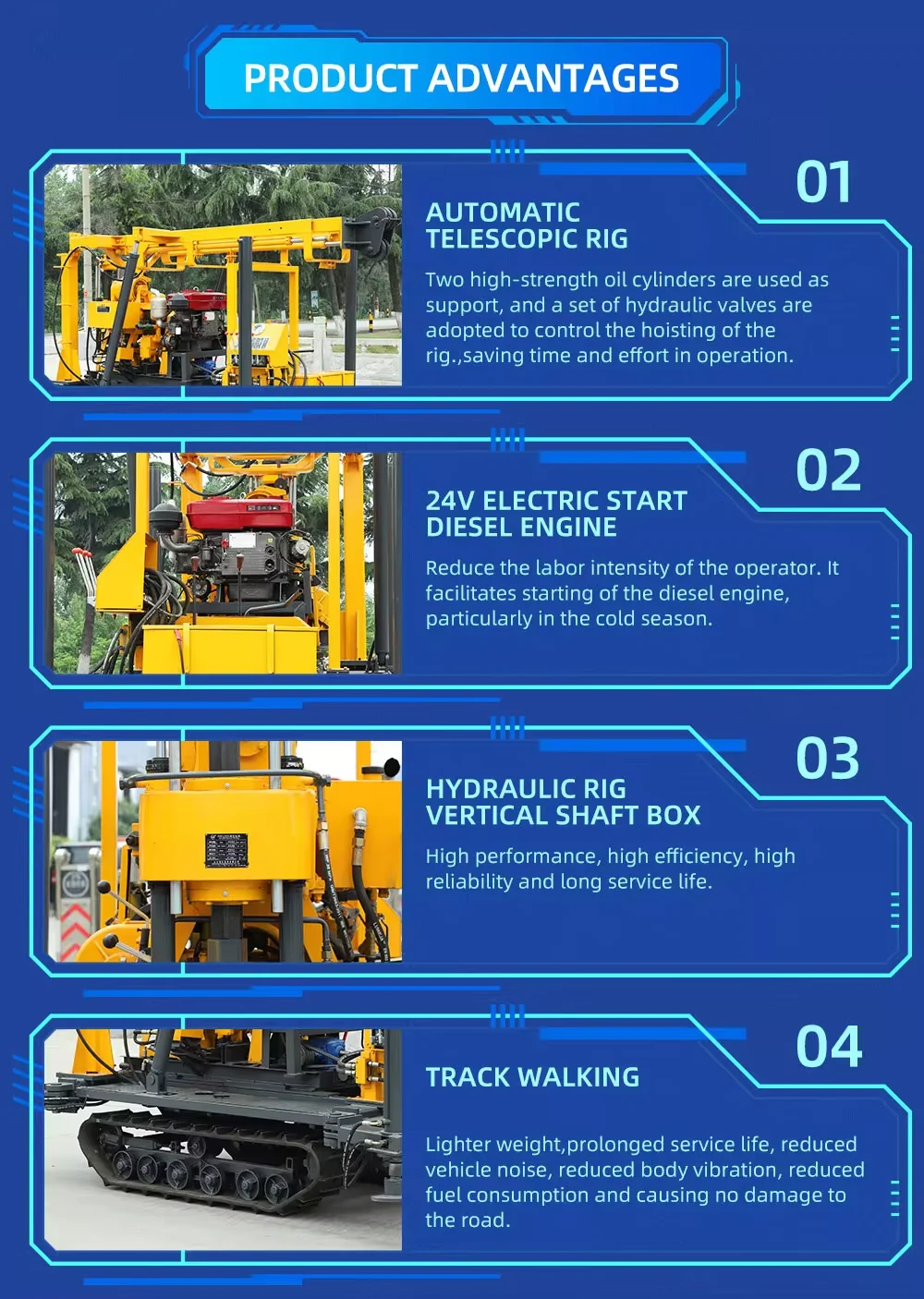

Diesel engine
Enhanced fuel system,low fuel consumption and emissions. Long life,double oil lubrication,good reliability

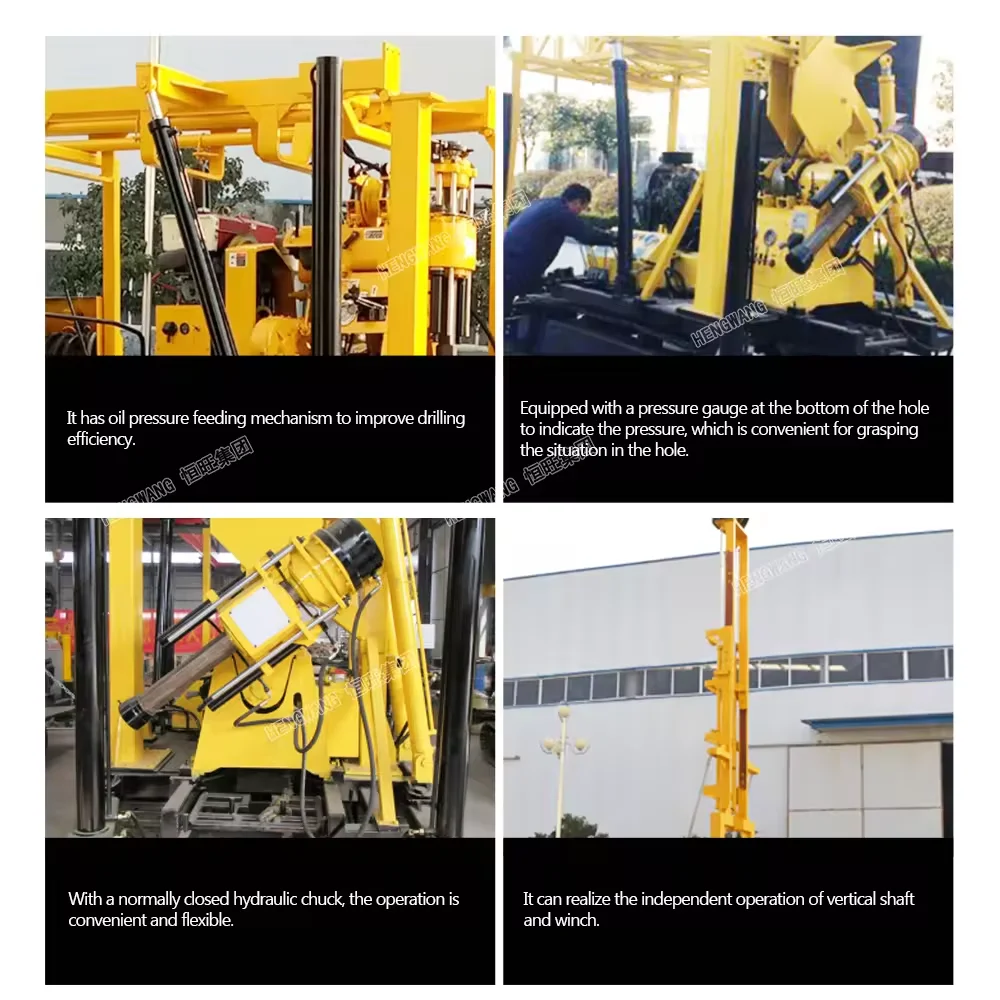

Operation system
It has a hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
Hydraulic chuck
By using ball clamping mechanism or hydraulic chuck, the reversing rod can be realized without stopping the machine, and the
operation is convenient, safe and reliable
operation is convenient, safe and reliable
Winch
For the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the
winch.
winch.
What should be attention in the use of hydraulic well drilling rig?
position, orientation, angle, hole depth, etc., and the hydraulic water well drilling machine operator should not modify it
without authorization. It is easy to cause unpredictable accidents if it is not implemented in accordance with the regulations,remember. When installing the drill pipe, check the hydraulic water drilling machine to ensure that the drill pipe is not blocked,bent, cracked, and the wire mouth is not worn. Unqualified and inferior drill pipes are strictly prohibited. 2. When drilling with clear water, no water supply is allowed before drilling, and pressure drilling can only be carried out after the water returns,and sufficient flow must be ensured. 3. Pay attention to check the lubricating oil of the wind motor at any time, check the waterand gas pipelines at any time, and whether the bolts and nuts of the various accessories of the hydraulic well drilling rig are firm. When the working surface is immersed in water, use a large-diameter drill bit when opening a hole. , Insert the drill pipe, let the drill pipe out of the water surface 1-2 meters, prevent the mud and slag from falling into the hole, the water well drilling rig is not allowed to reverse during the drilling operation to prevent the drill pipe from falling into the hole, the portable hydraulic water well drilling machine will not fall into the hole in a short time. When the machine stops working, asmall amount of air pressure should be given to prevent the sediment from immersing into the inside of the hydraulic water well drillin g rig impactor. If the hydraulic water well drilling rig is stopped for a long time, the sound of the impactor and the operation of the reduction box should be checked. If abnormal sounds and phenomena are found, the machine should be stopped immediately, and check in time. 4. When the hydraulic water well drilling rig is repaired, it needs to be cooled before starting to avoid burns due to high temperature. The hydraulic system of the hydraulic water well drilling rig needs to be depressurized and repaired to avoid danger caused by internal high pressure. Maintenance of hoisting load-bearing objects; when disassembling the wire rope to connect with the lifter, pay attention to the mechanical rotation damage; when the rig lifter does not rotate flexibly and the wire rope is twisted by the rotational force of the wire rope, it is necessary to avoid personnel being pinched.

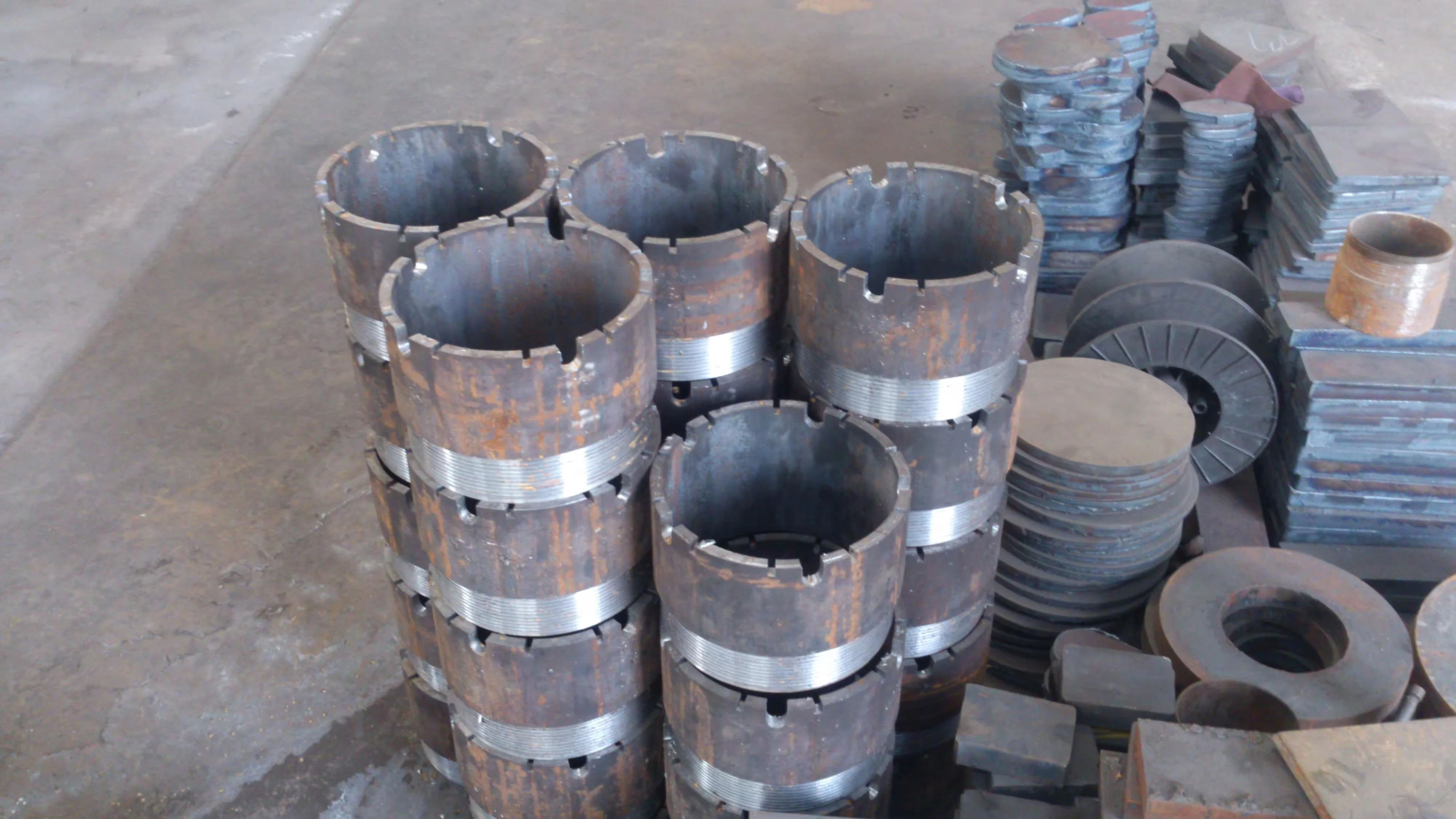

Alloy bits
we have many kind of drill bit , like alloy bit , tricont bit ,Three-wings bit, Diamond bit . According customer drill require to choose

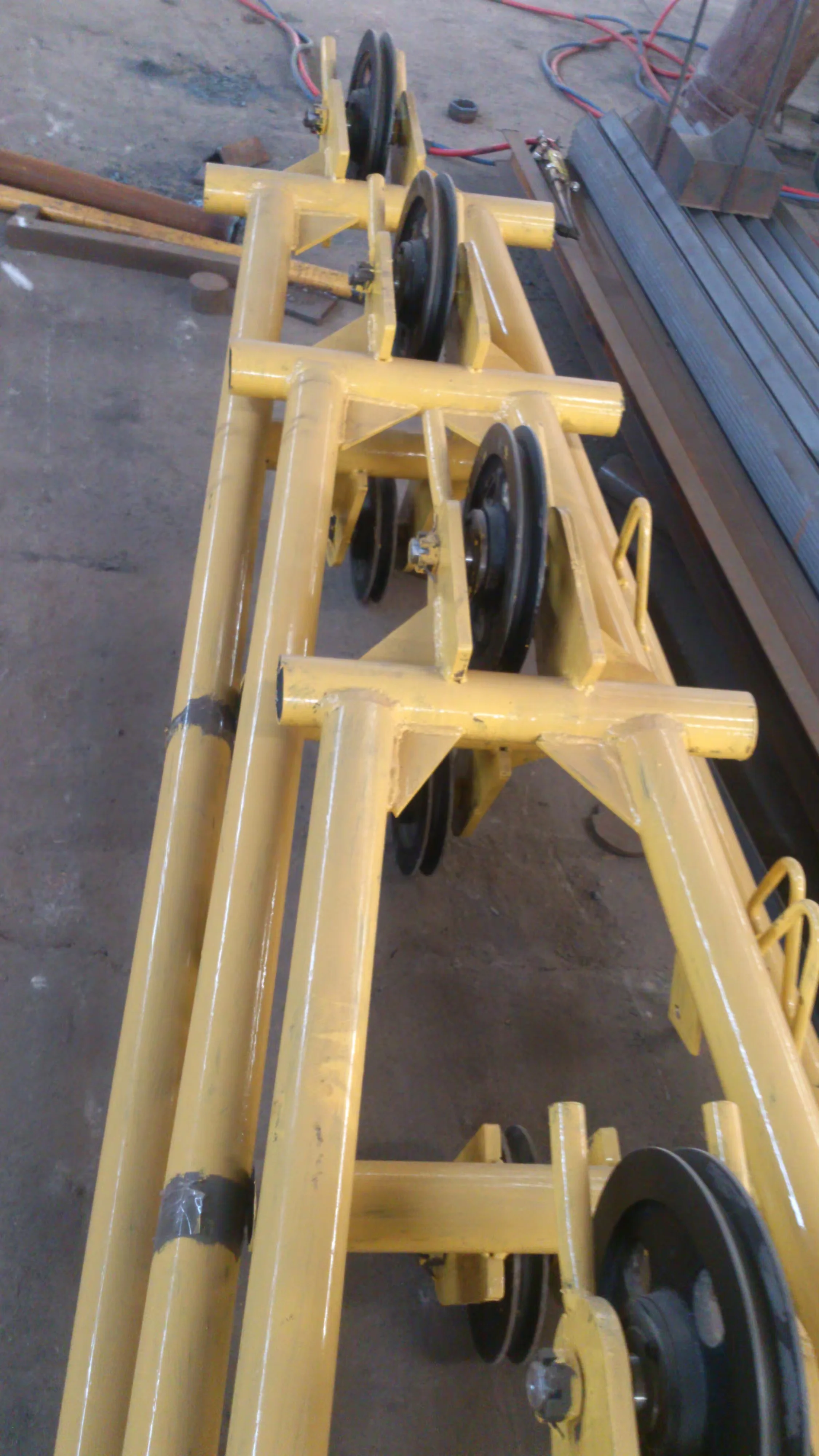

Drill Mast
6M or hydraulic drill mast
