  • 150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V
150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V

150KPA 5LPM DF3203 micro diaphragm air pump DC6V 12V 24V

Share on (11000017224631):


Price:$3.72-10.00

Quantity:


Product Overview

Description

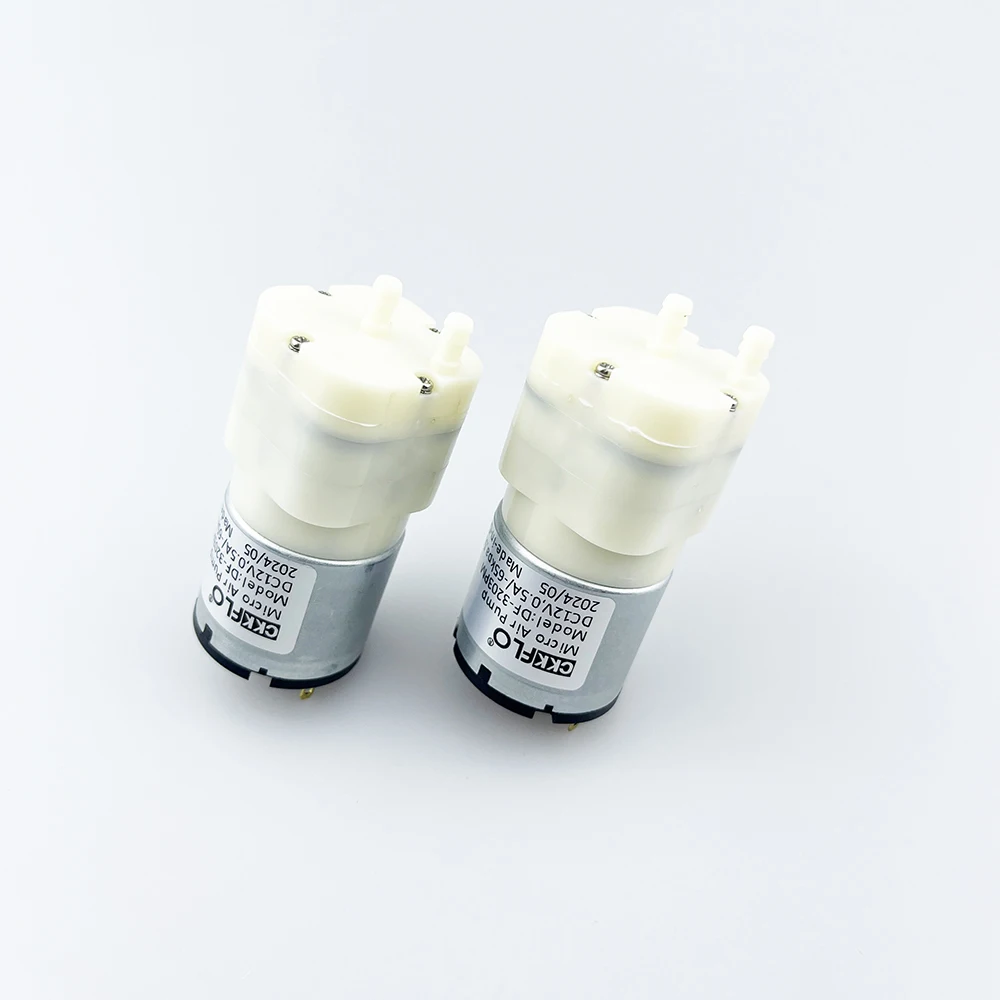

DF-3202PM ELECTRIC MICRO DIAPHRAGM AIR VACUUM PUMP FOR HOME APPLIANCE
DF-3202PM DIAPHRAGM AIR PUMP has the advantages of compact structure, no maintenance, no oil, low power consumption etc. mainly
used in electronic sphygmomanometer,
pneumatic tourniquet products, massage and health care articles, industrial electrical appliances, medical instruments and small sprayer fields.


Specification
Rated voltage
DC6.0V
DC12.0V
DC24.0V
Rated current
<500mA
<380mA
<180mA
Inflation time
<7.5s(from 0 to 300mmhg in a 500cc tank
Air flow
3.0~6.0 L/min
Max pressure
130kpa
Max vacuum
-65kpa
Noise
<60dB
Medium
Air
Life test
50.000 times(on 10s, off 5s as one cycle)
Environment
0-50degree CRH75%
Leakage
Air leak was less than 10 mmHg / min when inflated to 300 mmHg in 500cc
Power
4W
