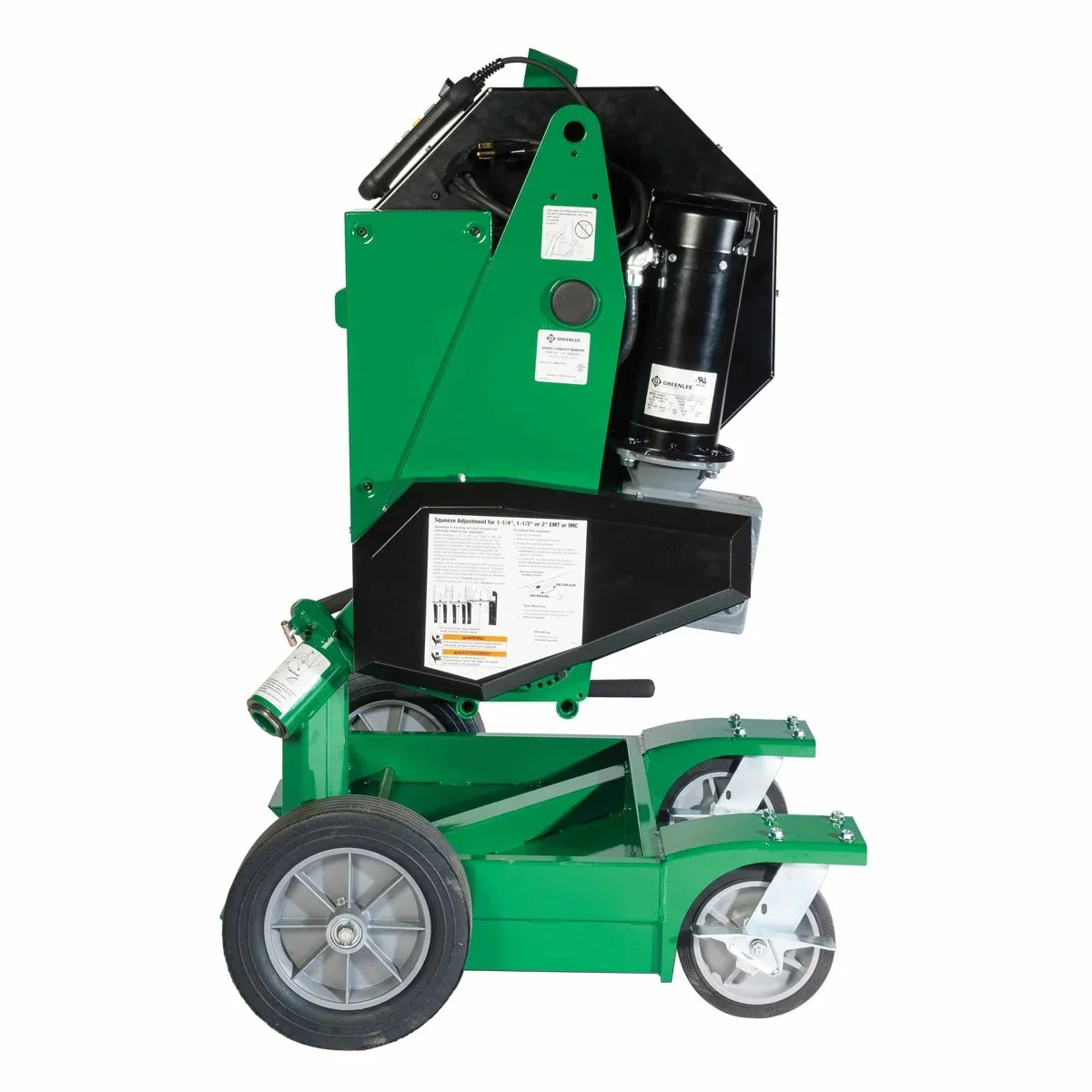

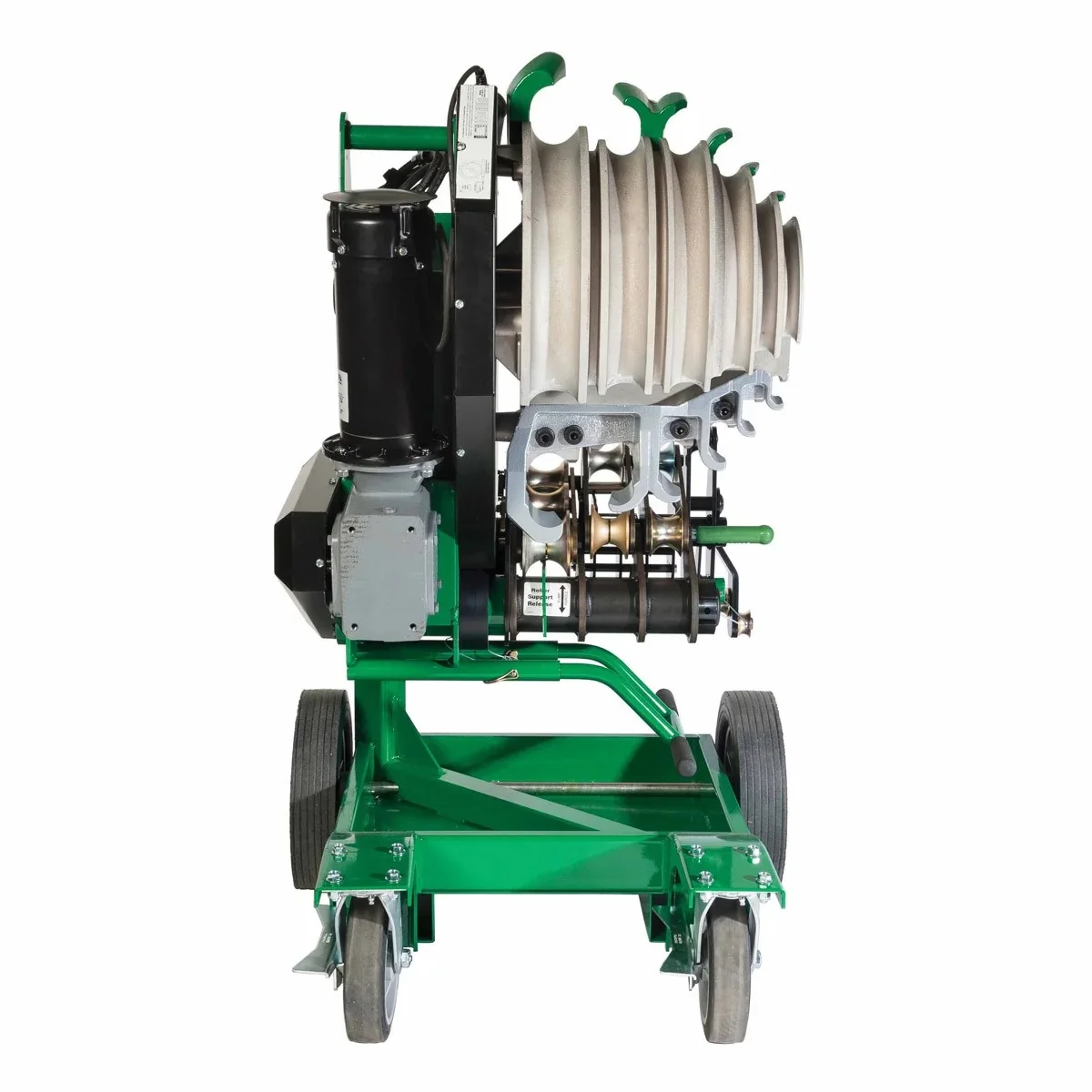

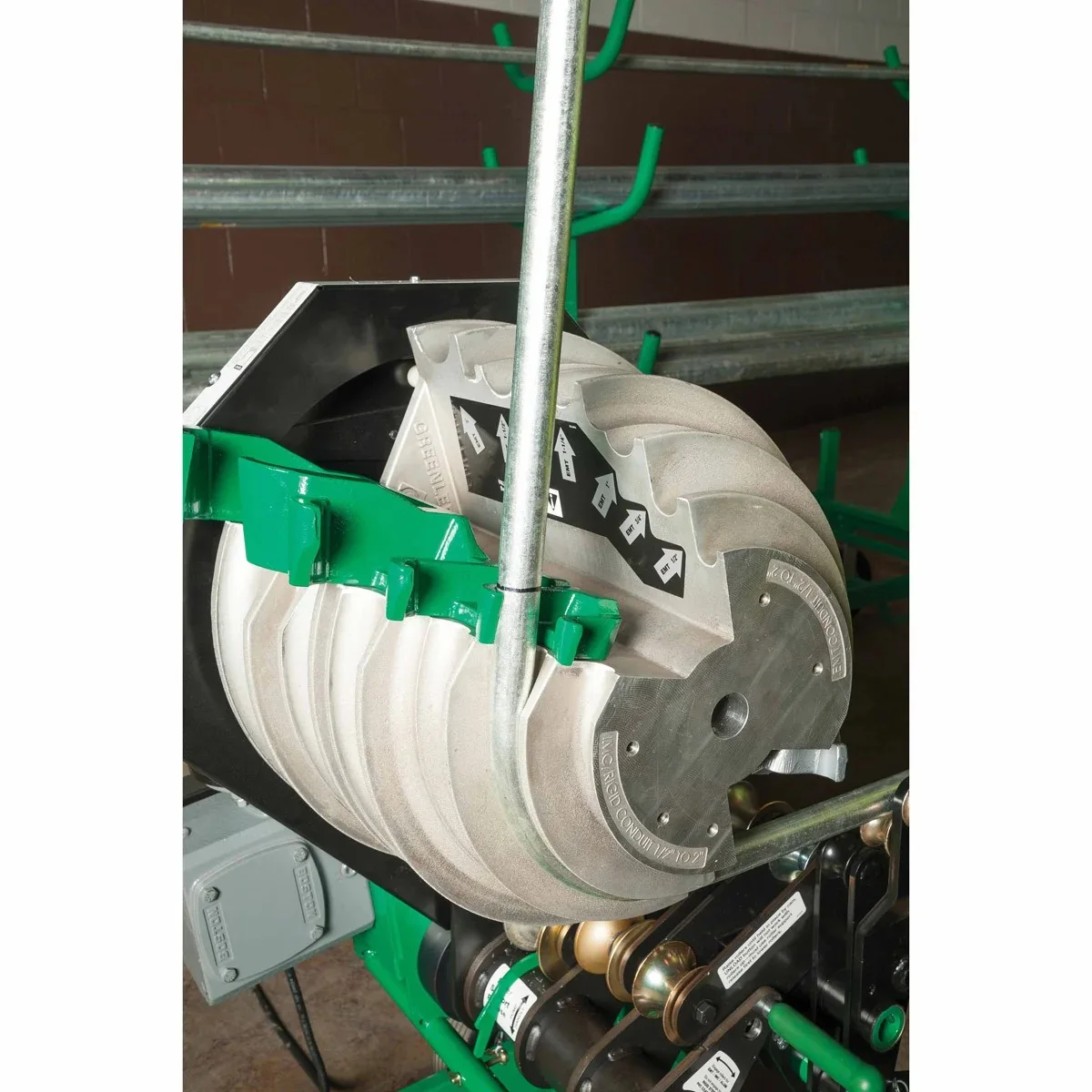

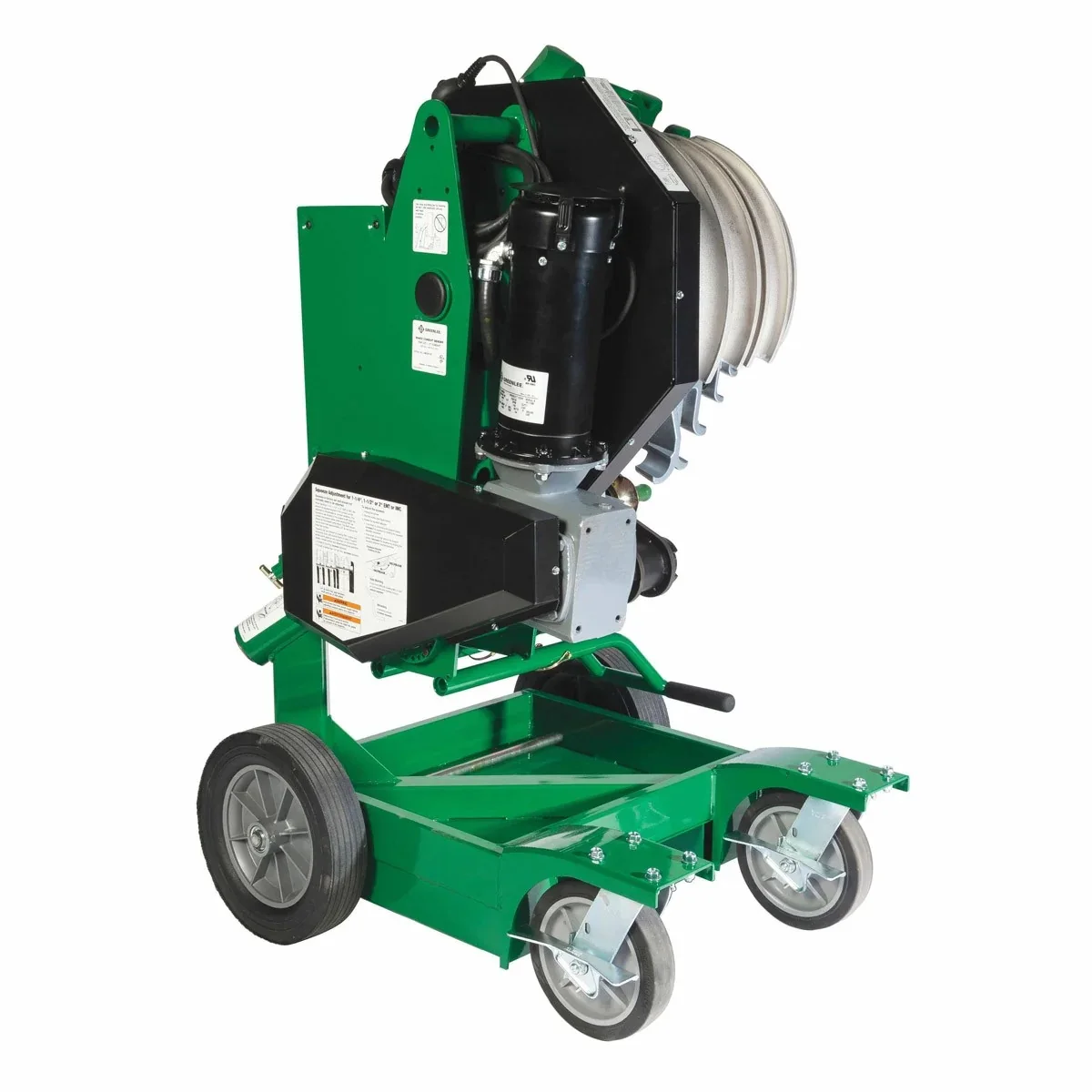

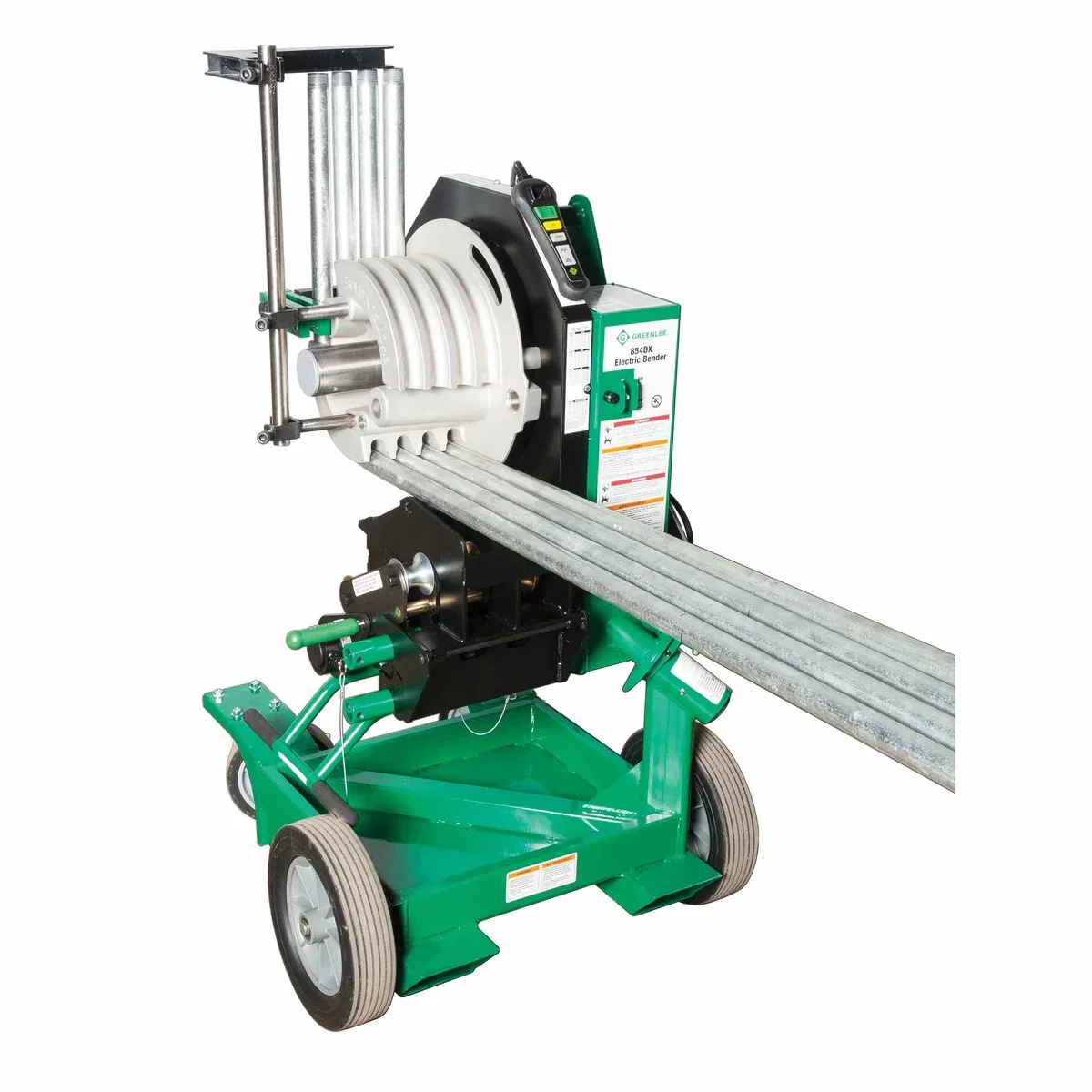

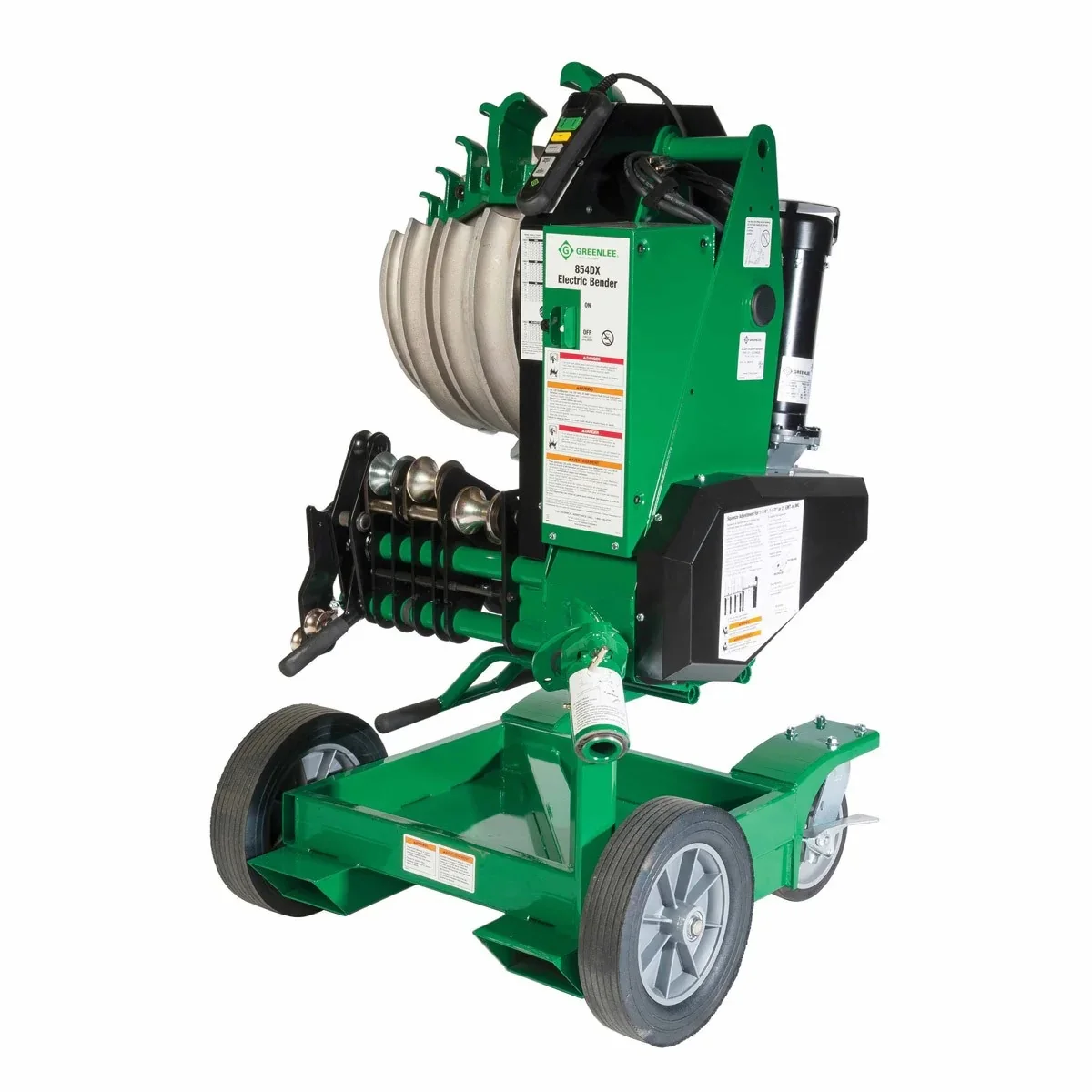

Brand New Original 854DX One Shoe Solution EMT, IMC, and Rigid Electric Conduit Bender with complete accessories

Product Overview

Description

Electric conduit benders add an angle to metal electrical conduit to fit it along corners or around obstacles. They make bends without damaging the conduit, leaving a clear path with ample space for wire and without sharp edges that could nick wire. Their motor rotates a bending shoe, which provides an arched track that cradles the conduit to form uniform bends without rolling or twisting. They have a degree indicator to assist with forming the desired bend angle. These electric conduit benders operate with less effort, perform a larger range of bends, and produce more accurate, repeatable bends than hand and mechanical benders. They provide a stable workstation to make bends for large-scale conduit installations.



Bend electrical conduit pipe at the angle you need it using the Bender, Electrical Conduit. Designed for EMT, Rigid and IMC conduit pipe up to 2 inches in size, this device is extremely versatile. For durability, the Greenlee deluxe versatile electric bender features a heavy-duty steel handle and iron composite head. Its absolute encoder helps ensure accurate angles every time. Both horizontal and vertical bends are possible with the machine; switching between the two is fast, helping increase your productivity. The electrical conduit bender also features a digital pendant that lets you set your angle and monitor the entire process. To prevent damage caused by power loss and arcing, this device has a solid state system with electronics that continue to provide reliability for up to a million bends.





Specifications
Type: Electric Conduit Bender
Voltage Rating: 120 VAC
Conduit Size: 1/2" to 2" Rigid, EMT, & IMC
Includes: 1/2'' - 2'' Rigid / EMT / IMC Shoe, Roller Support and Digital Pendant
Product Size: 46.1" H (Vertical Bending Position) x 29.4" W x 33.0" D
1171 mm H (Vertical Bending Position) x 747 mm W x 840 mm D
Weight: 513 lbs. (233 kg.) (Bender Only)
Votage Rating: 120 VAC
Amperage Rating: 20 AMP GFCI - Protected Receptacle
Standard: C/US UL Listed
Conduit Type: Rigid, EMT, IMC (PVC coated Rigid w/ optional accessory)
Angle Indicator: Digital Display On Pendant
Accessories: SG4-854 Shotgun Shoe for 854DX
02840 Shoe Group, 1/2'' to 2'' PVC Coated Rigid (854DX)
