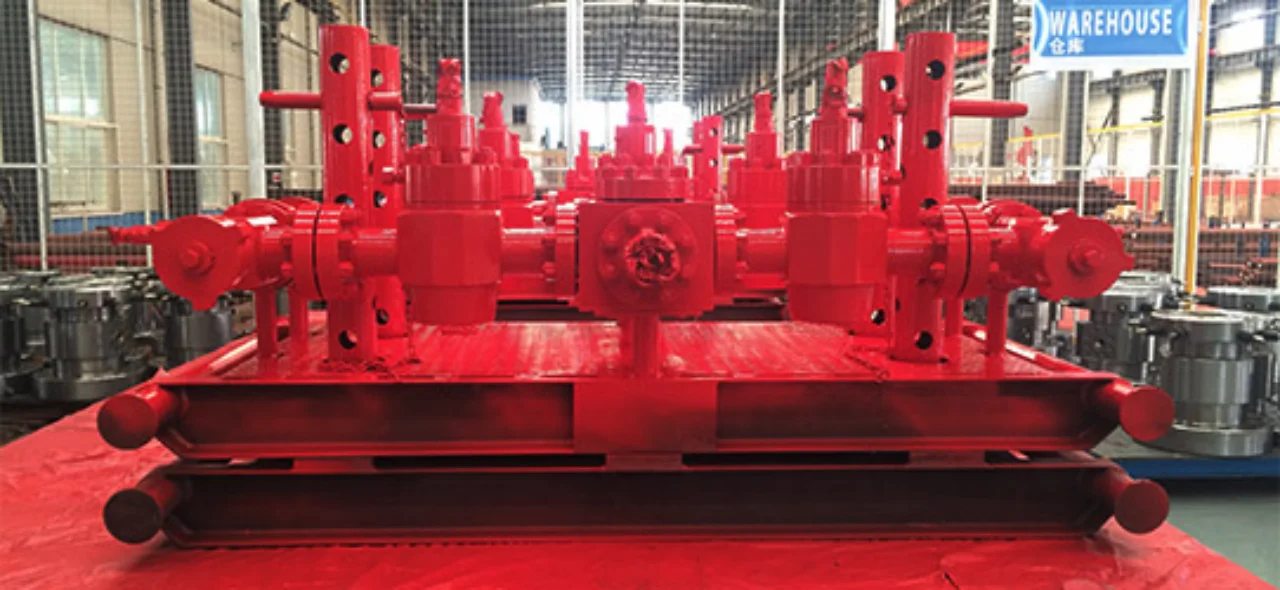

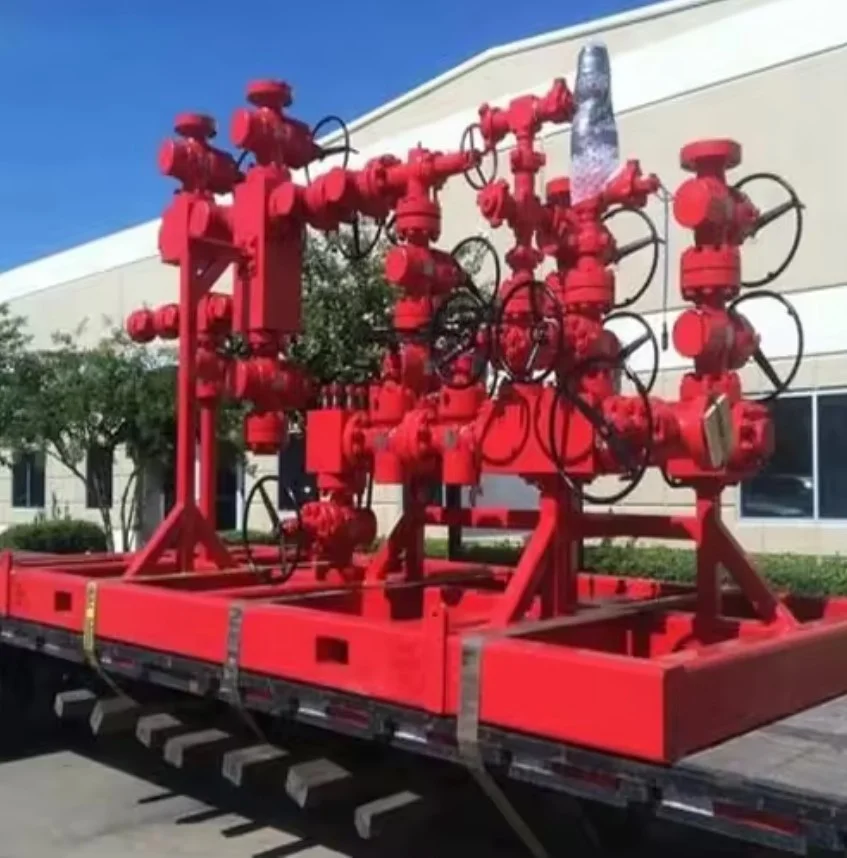

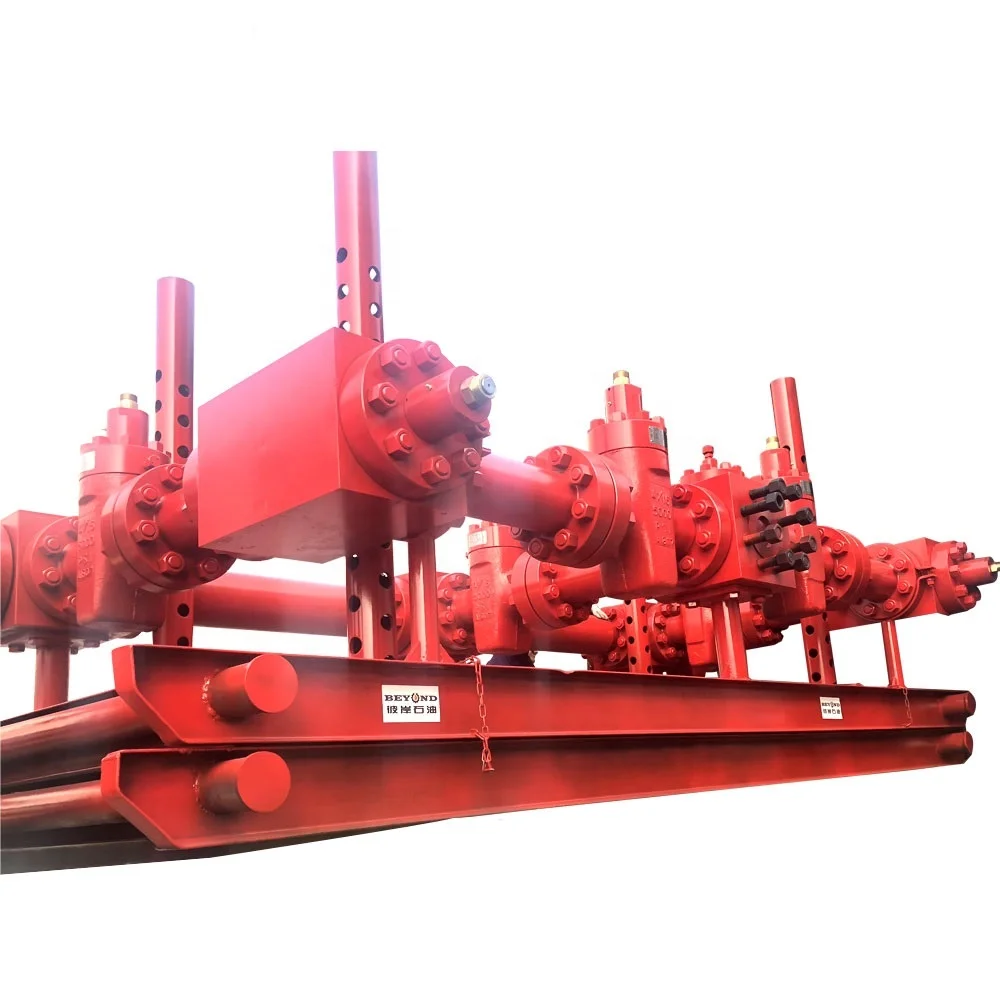

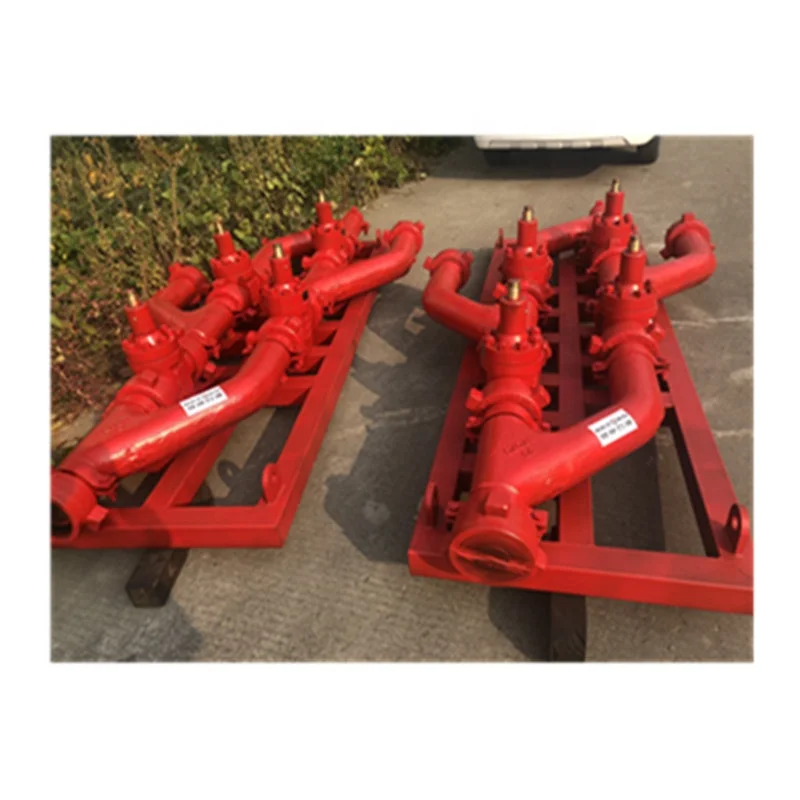

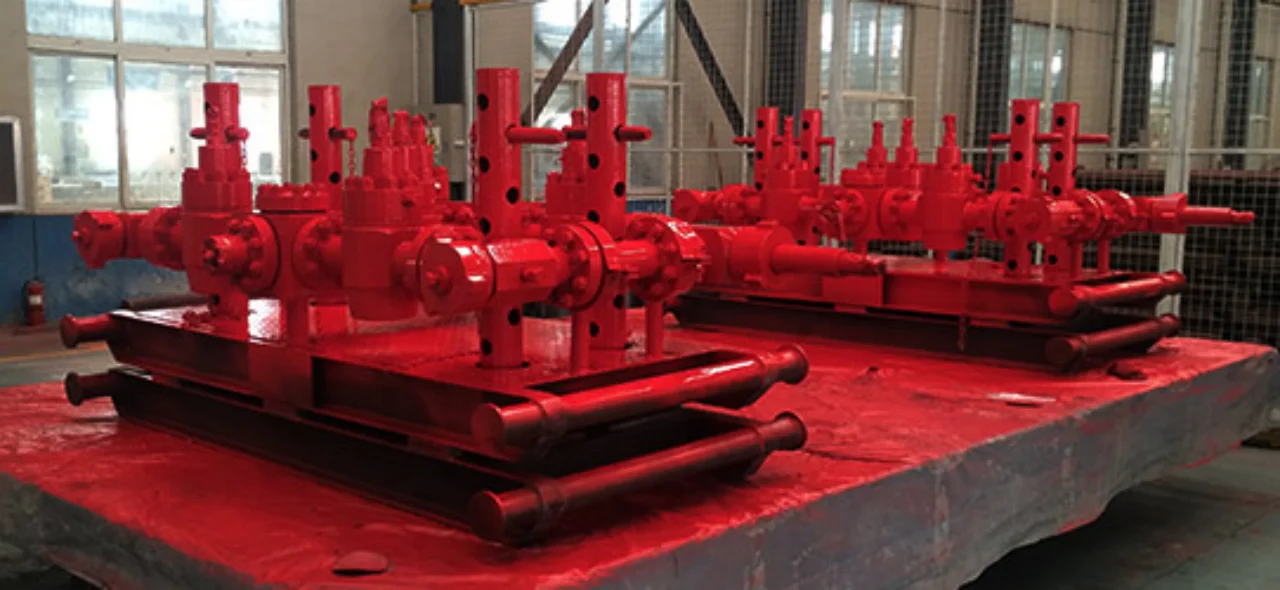

Oilfield API 6A Valve Choke Manifold for Drilling Well Control
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (11000017559061):
Product Overview
Description

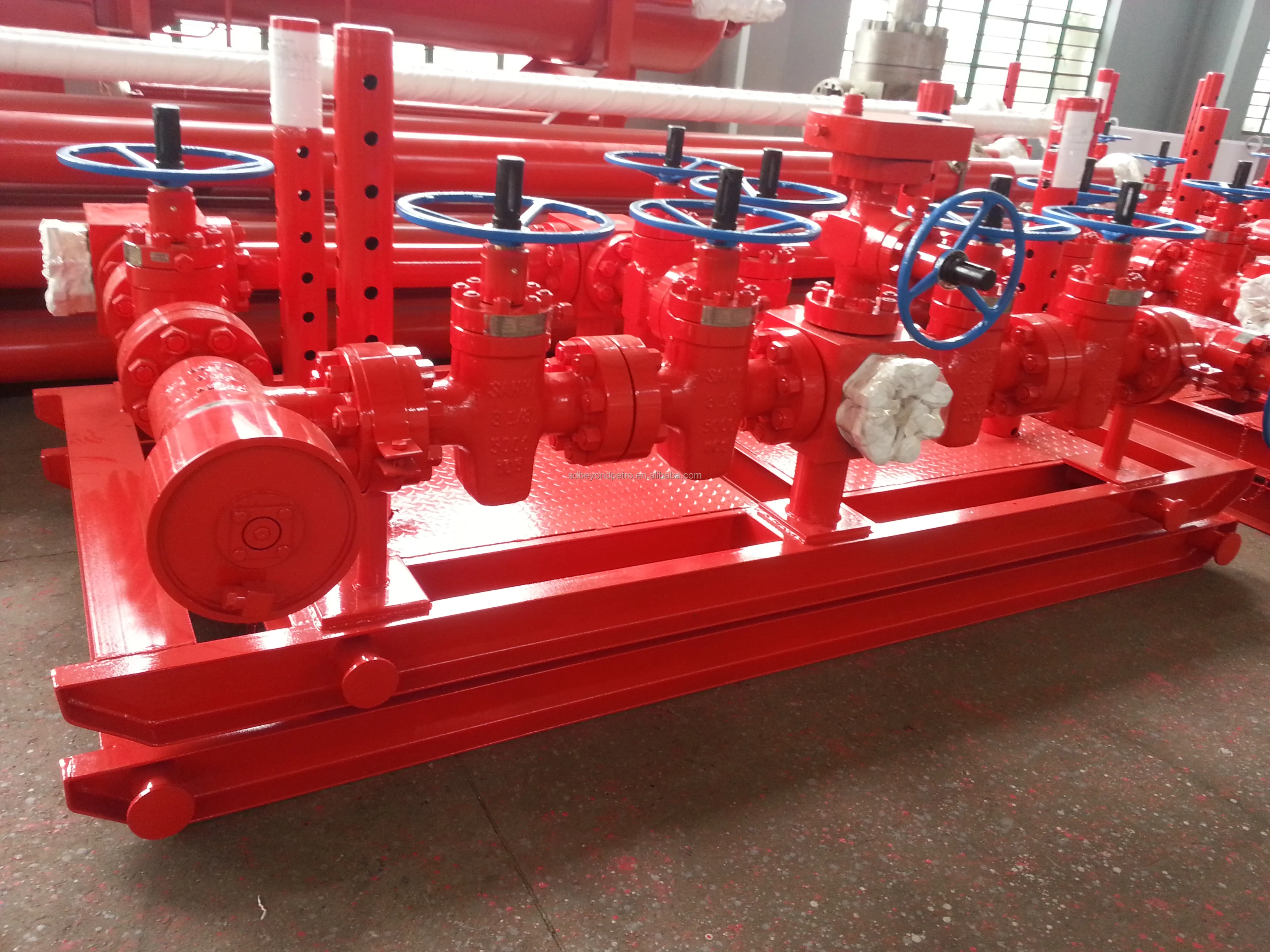

When drilling the well, the choke and kill manifold were connected to either side of the BOP; it can accomplish the choke circulation and bleed by opening and closing the gate valve of the manifold or adjusting the choke valve. It also can adjust the pressure between the bit pressure and the casing. They are the tools used for the balance-drilling or the unbalance-drilling. If the well blowout or kick in the drilling process, bleed and reduce the pressure by opening the choke manifold in the side way or the gate valve in the middle. Mud with high pressure from the well pump can control the blowout and kick, when it goes into the casing through the kill manifold.
The choke manifold and the kill manifold are the necessary equipment for drilling.
The choke manifold and the kill manifold are the necessary equipment for drilling.
Working pressure: | 3000PSI-15000PSI |
Working medium: | natural gas, mud, various drilling fluids |
Main blowdown diameter: | 3-1/16’’—4-1/16’’ |
Throttling blowdown diameter: | 2-1/16’’—4-1/16’’ |
Well killing pipeline diameter: | 2-1/16’’—4-1/16’’ |
Temperature level: | P. U (-29℃～121℃) |
Material level: | EE |
Manufacturing level: | PSL3 |
Manufacturing specification: | API SPEC 6A API SPEC 16C NACE MR-0175 |
