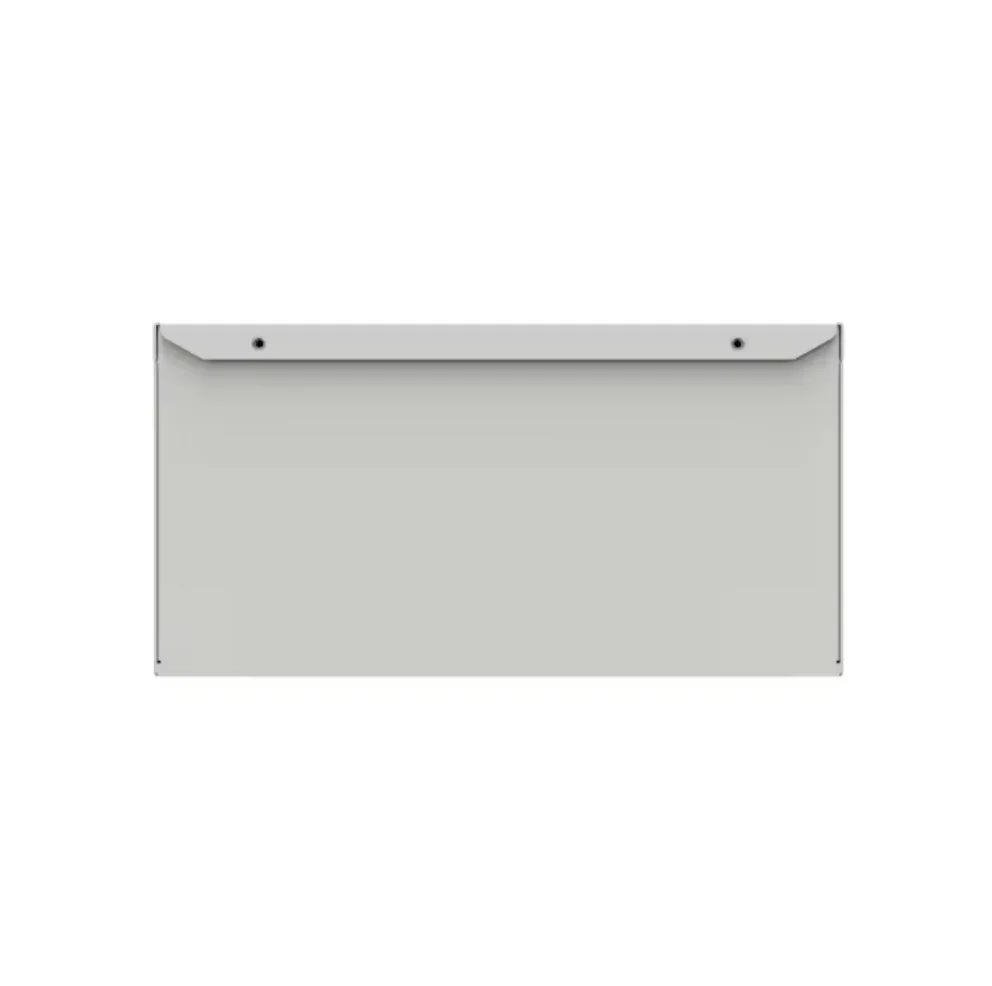

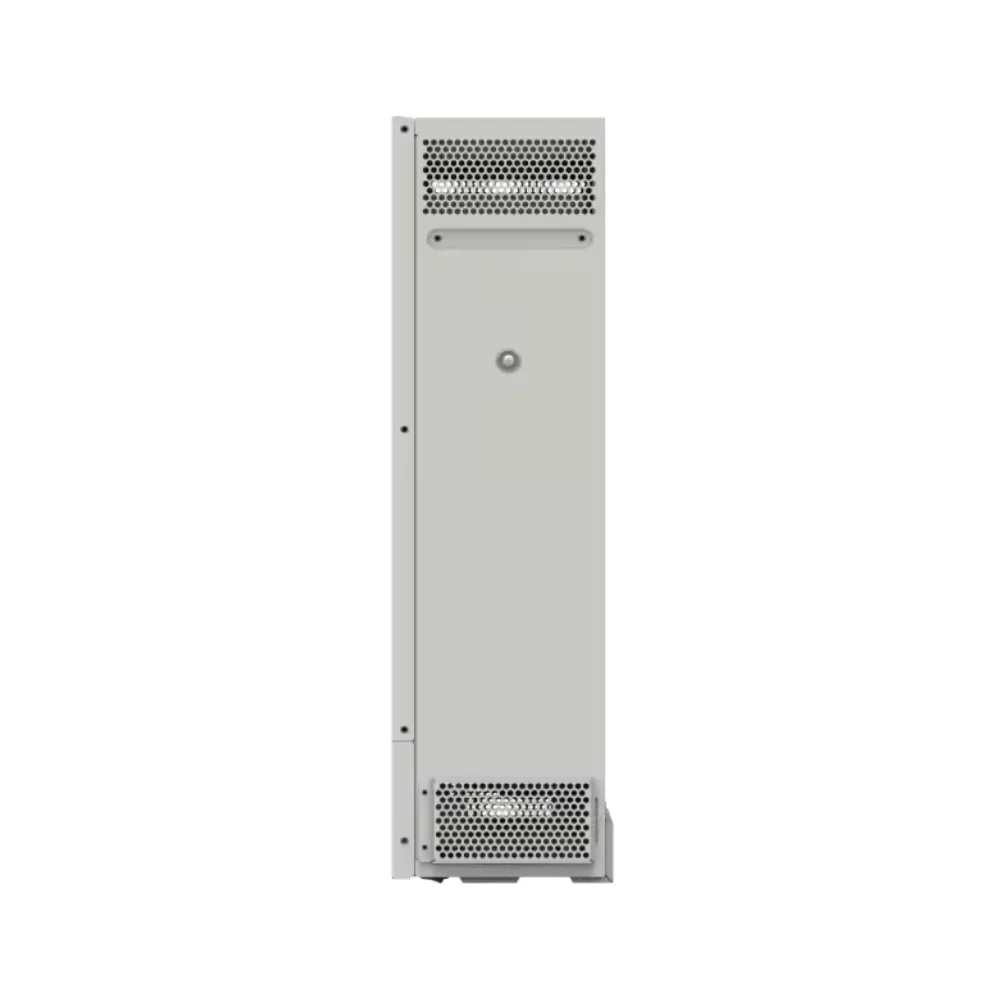

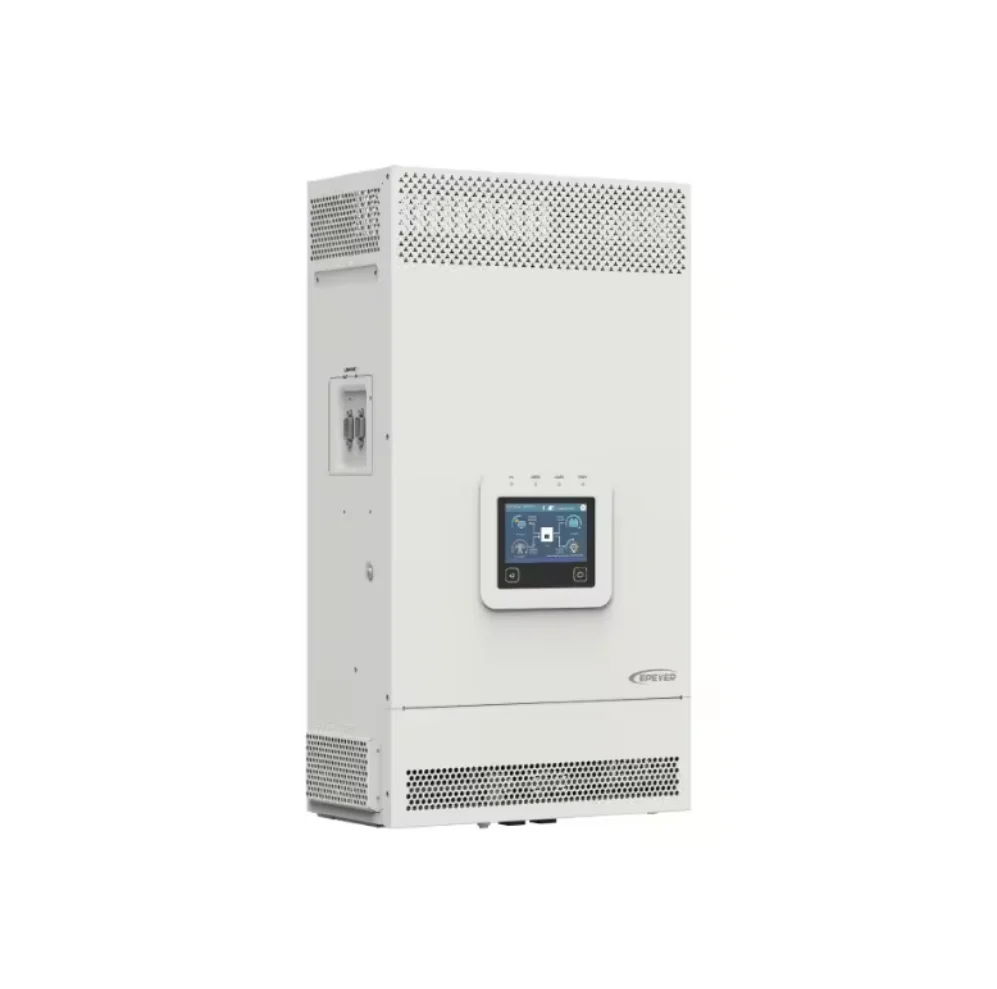

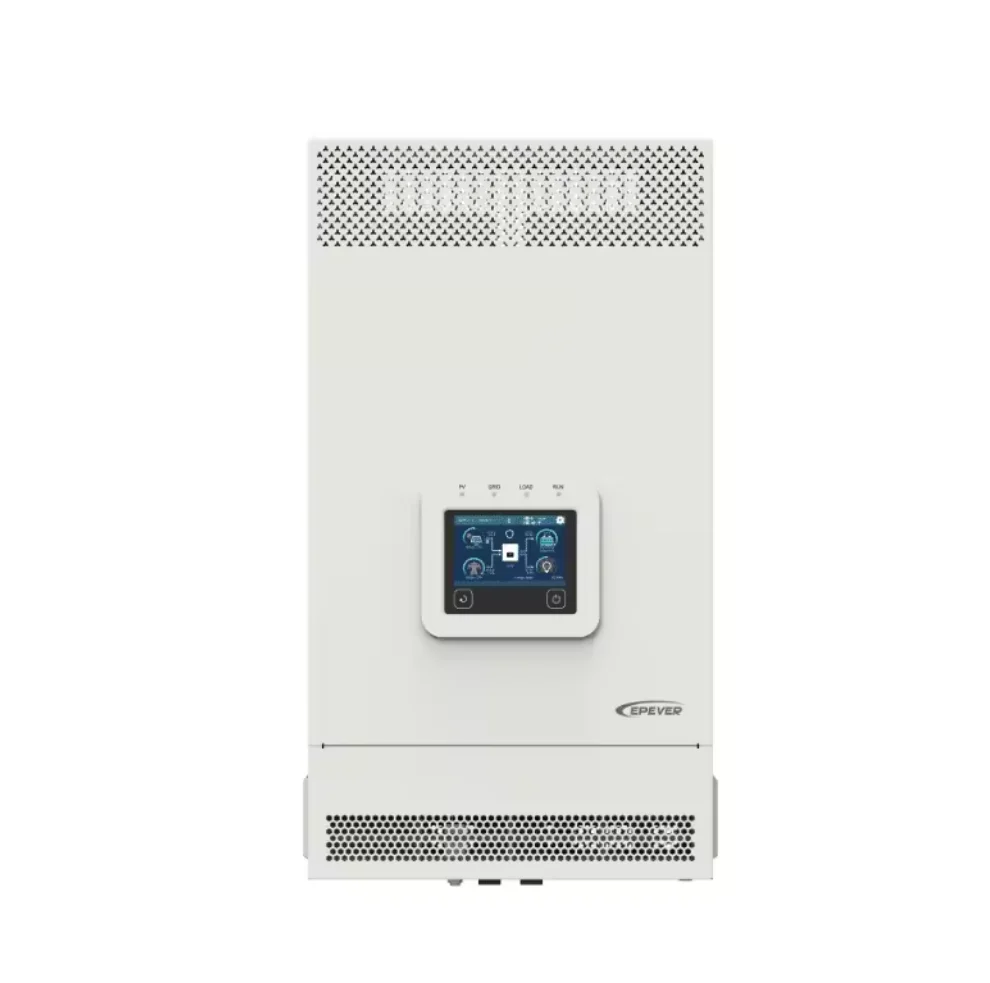

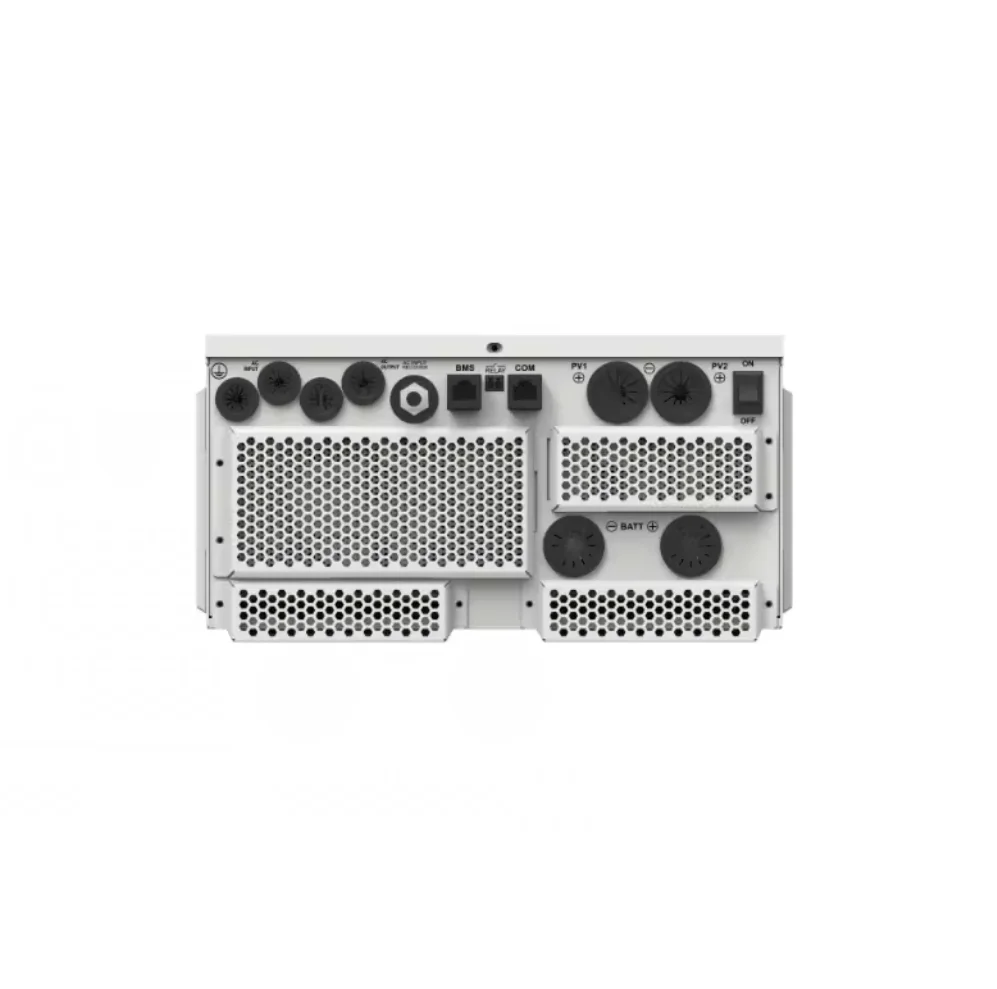

EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW
EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW

EPEVER UC Series Solar Charge Inverter 3.5kW/5.5kW

Share on (11000018116667):


Price:$350.00-382.00

Quantity:


Product Overview

Description







Applicable for pure off grid / backup power / self-consumption / on grid situation PV input voltage range: 80Vdc-500VdcPV input current up to 32ASupports battery mode & non battery mode Battery & PV reverse polarity protection Dual pure sine wave output Supports single- phase or three-phase parallel operation (up to 16 units) Sleep mode triggered by low power output or low battery voltage Independent BMS communication interface Built-in WiFi for mobile monitoring*Isolated RS485 interface: Connects with Bluetooth, WiFi, 4G, etc. Optional 320 x 480 high-resolution color LCD touchscreen or monochrome screen Historical data recording function, storage capacity of 25000 records Comprehensive electronic protection ensures safer and more stable operationIP20 enclosure design with anti-dust kit


Technical Specifications


Model
UC3522-1250P20/C
UC3542-0650P20/C
UC5542-1050P20/C
Utility Input
Utility Input Voltage
176VAC ~ 264VAC(Default), 90VAC ~ 285VAC(Configurable)
Utility Input Frequency
45Hz ~ 65Hz
Max. Utility Charging Current
110A
60A
100A
Switch Response Time
Inverter to Utility：10msUtility to Inverter：20ms
Utility Output
Rated Output Voltage
220/230VAC
Utility Output Frequency
50Hz/60Hz
Max. Output Power
3500W 5500W
5500W
Power Factor
＞0.99
Inverter Output
Inverter Rated Power（@30℃）
3500W
5500W
3-Second Transient Surge Output Power
7000W
8500W
Inverter Output Voltage
220/230VAC
Inverter Frequency
50/60Hz
Output Voltage Waveform
Pure Sine Wave
Load Power Factor
0.2–1(VA ≤Rated output power)
THDv (@linear load)
≤3%
Max. Load Efficiency
92%
Max. Inverter Efficiency
94%
Max. Main Load
3500W
5500W
Main Output Cut-Off Voltage
24.4V(Default)
48.8V(Default)
