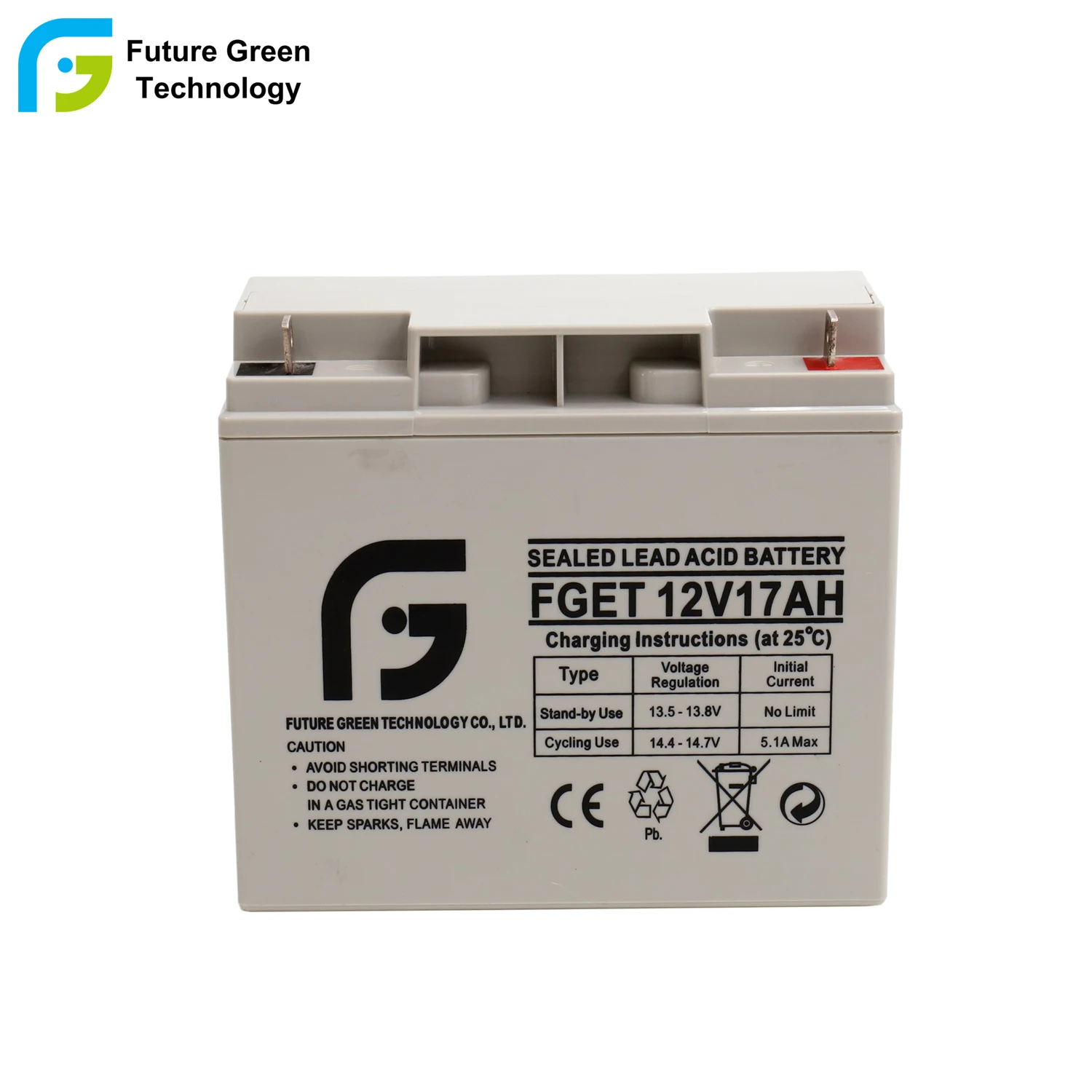

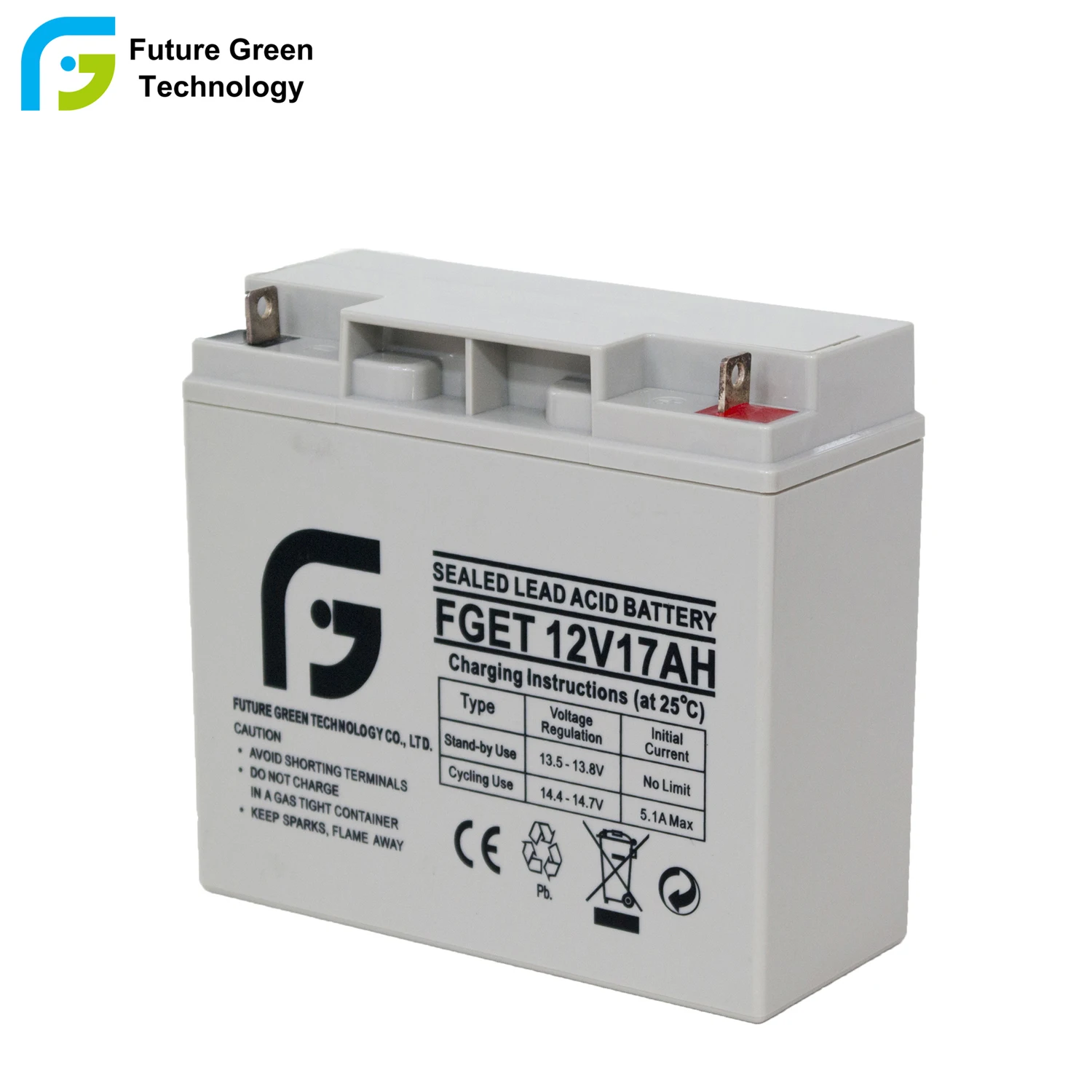

OEM 12V17Ah Deep Cycle Rechargeable High Quality Lead Acid Battery Sealed Storage UPS Alarm System Direct from China Factory

Share on (11000019258312):


Price:$17.00

Quantity:


Product Overview

Description

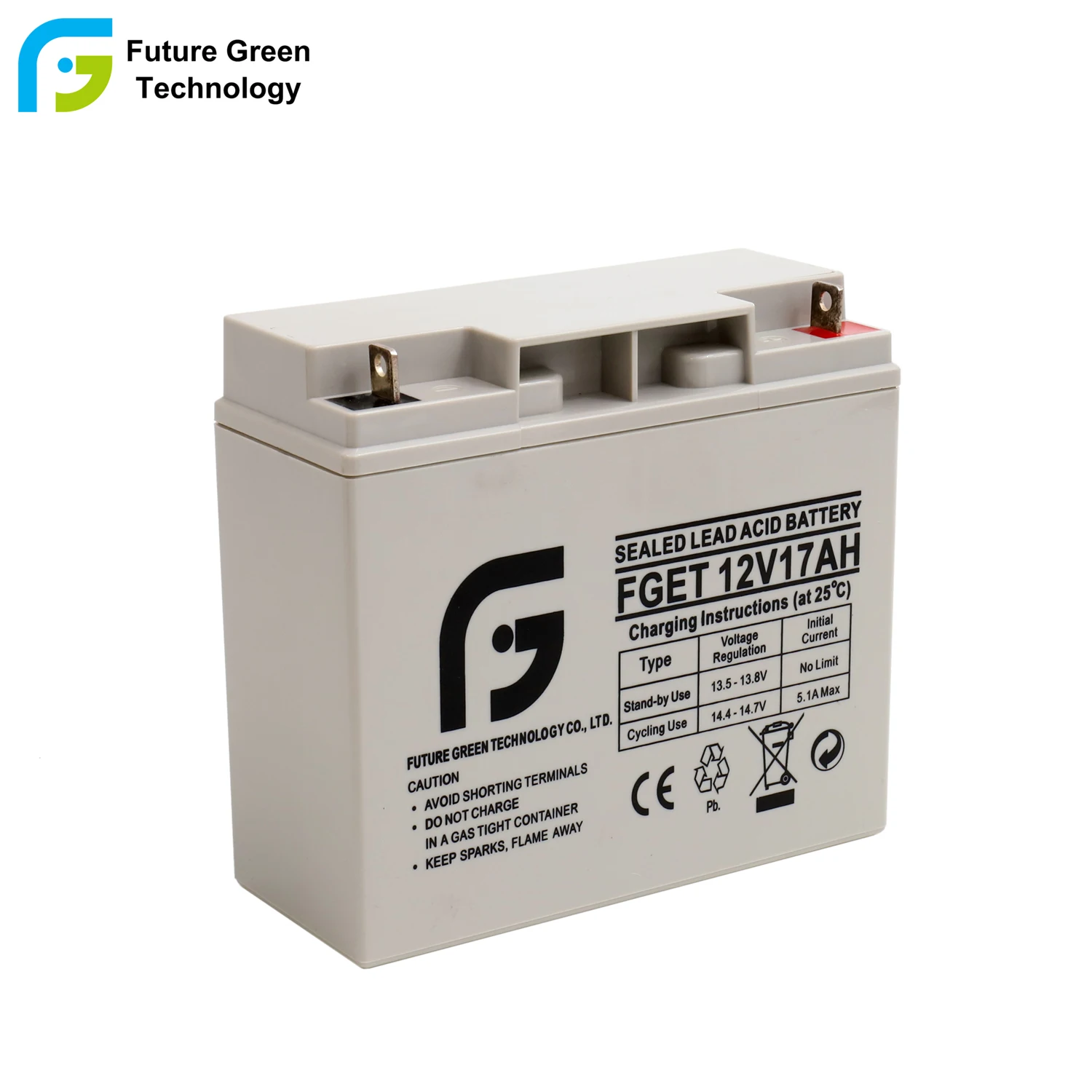

12V17ah Deep Cycle Rechargeable Sealed Storage Lead Acid Battery for UPS Lighting Boats Alarm System from China Factory
1. Long battery life, high capacity, Superior recovery after discharge.
2. ABS material: Increase the strength of the battery container. (Flame-retardant ABS is optional)
3. High purity raw material: Ensure a low self-discharge rate.
4. Silver-coated copper terminals, brass insert terminals, and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge


Product Description

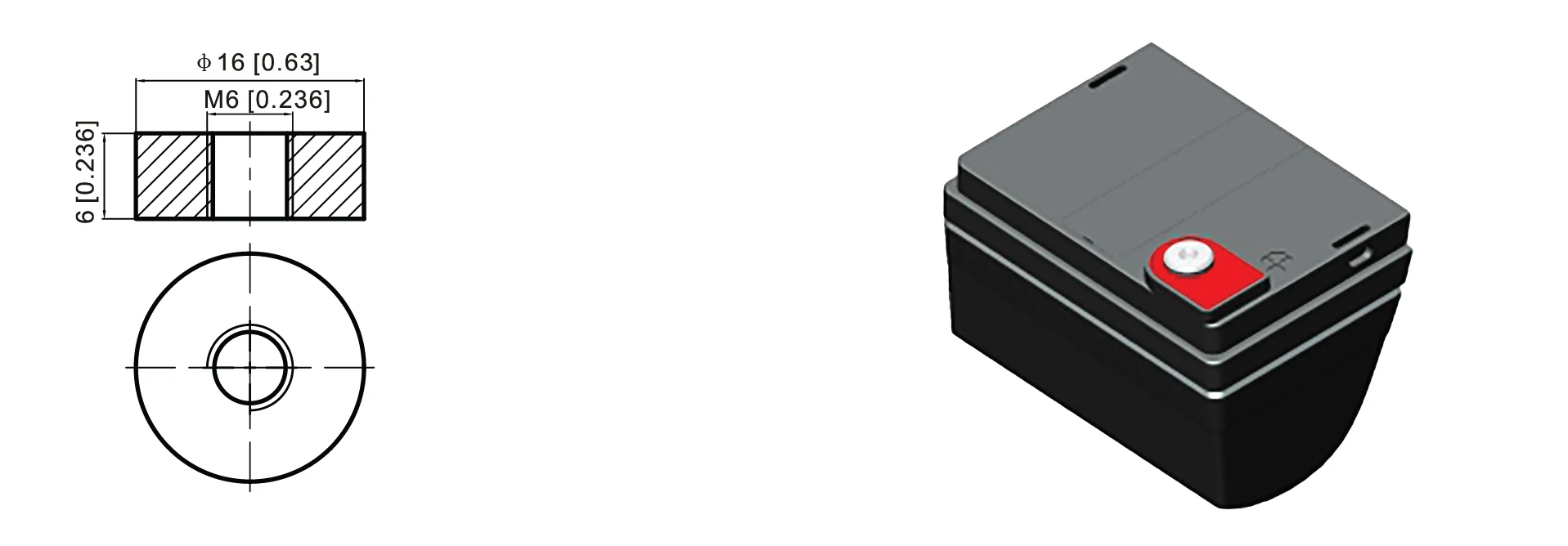

M6

T6: Threaded insert w.6 mm stud fastener

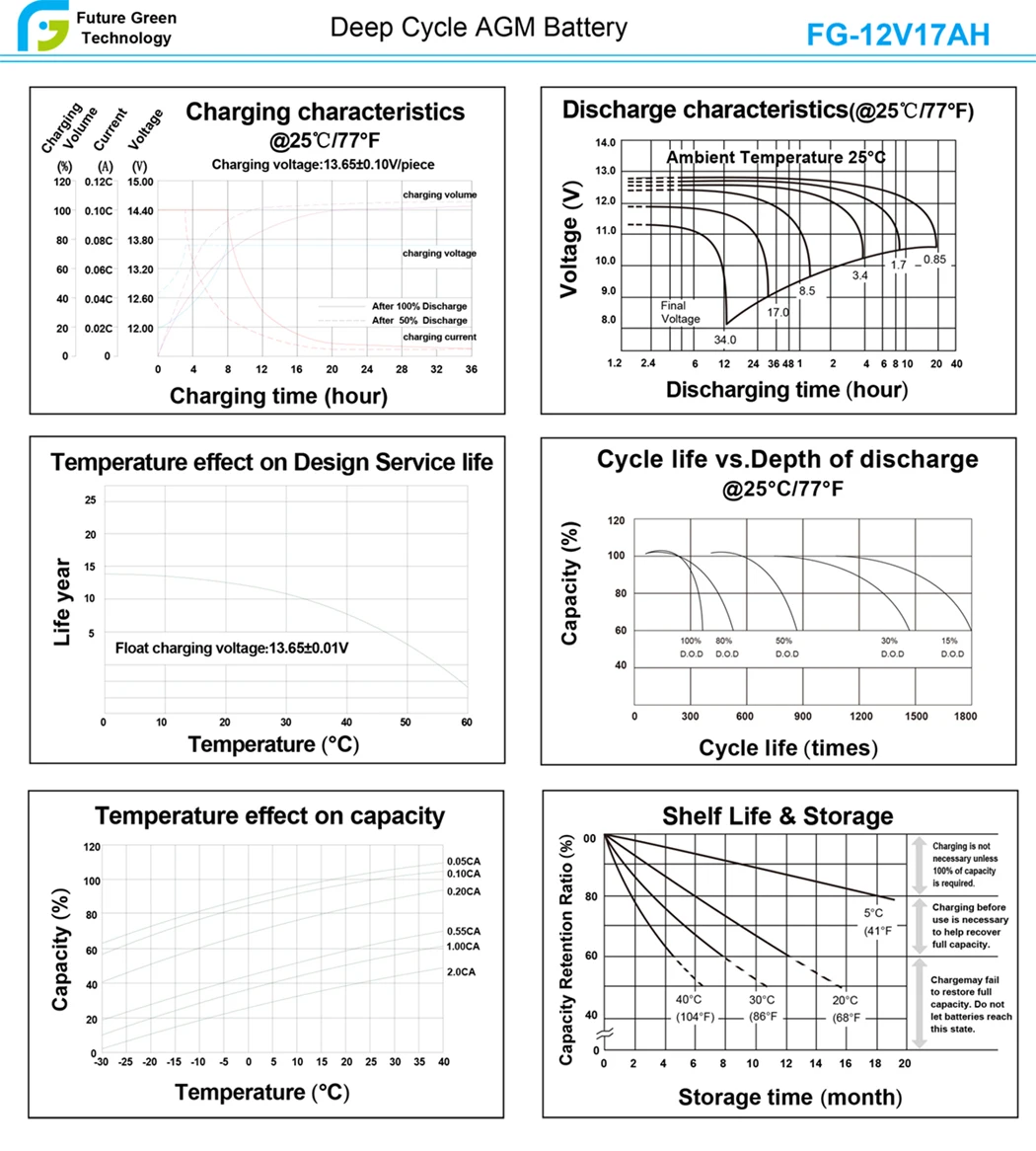

Specification


1. Functional Parameter
5. Environment Temperature
Nominal Voltage
12V
Discharge Temperature
-15~50ºC
Nominal Capacity (20 hour rate)
17Ah
Charge Temperature
0~40ºC
Number of Cells
6cells
Storage Temperature
-15~40ºC
2. Rated Capacity at 25ºC (77° F)
6. Inner Resistance & Max . Discharge Current
20 hour rate (0.05C, 10.8V)
17.00Ah
Fully Charged battery at 25ºC (77° F)
<16mΩ
5 hour rate (0.165C, 10.8V)
16.35Ah
Max. Discharge Current (7 min)
51.3A
1 hour rate (0.55C, 10.5V)
11.75Ah
Short Circuit Current (10 sec)
171.0A
3. Capacity affected by Temperature (20 hour rate)
7. Self-discharge at 25ºC (77° F)
40ºC (104° F)
102%
Capacity after 3 month storage
91%
25ºC (77° F)
100%
Capacity after 6 month storage
83%
0ºC (32° F)
85%
Capacity after 9 month storage
73%
-15ºC (5° F)
65%
Capacity after 12 month storage
64%

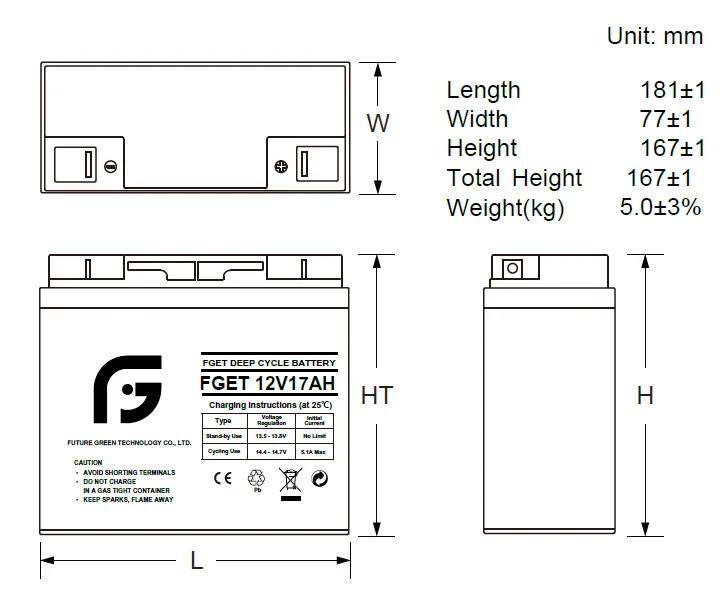

4. Dimension and Weight
8. Constant voltage charging at 25ºC (77° F)
Length
181mm
Cycle use
14.6~14.8V
Width
77mm
Maximum charging current
7.2A
Height
167mm
Temperature compensation
-30mV/ºC
Total Height
167mm
Float use
13.5~13.8V
Reference Weight
5.0kg
Temperature compensation
-20mV/ºC

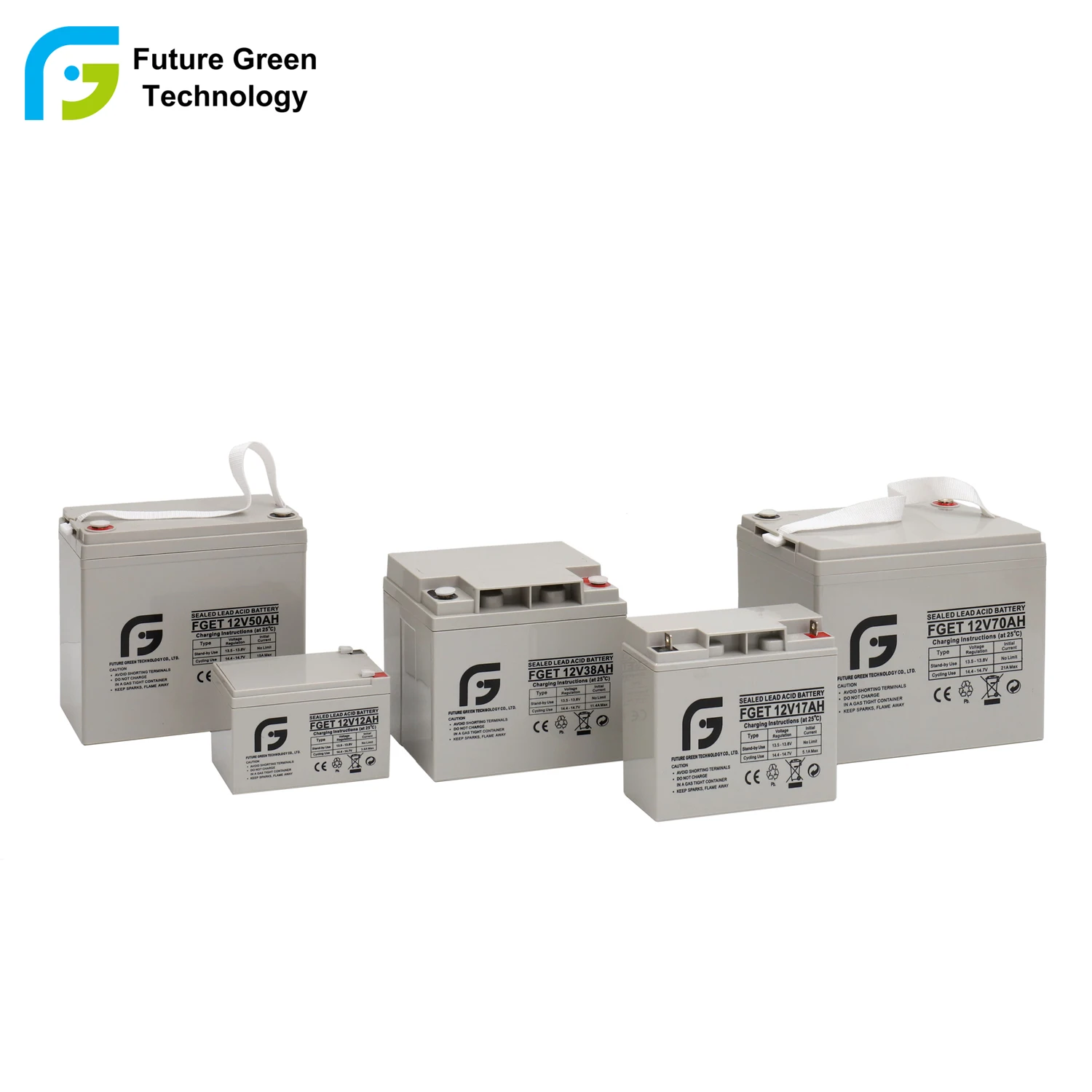

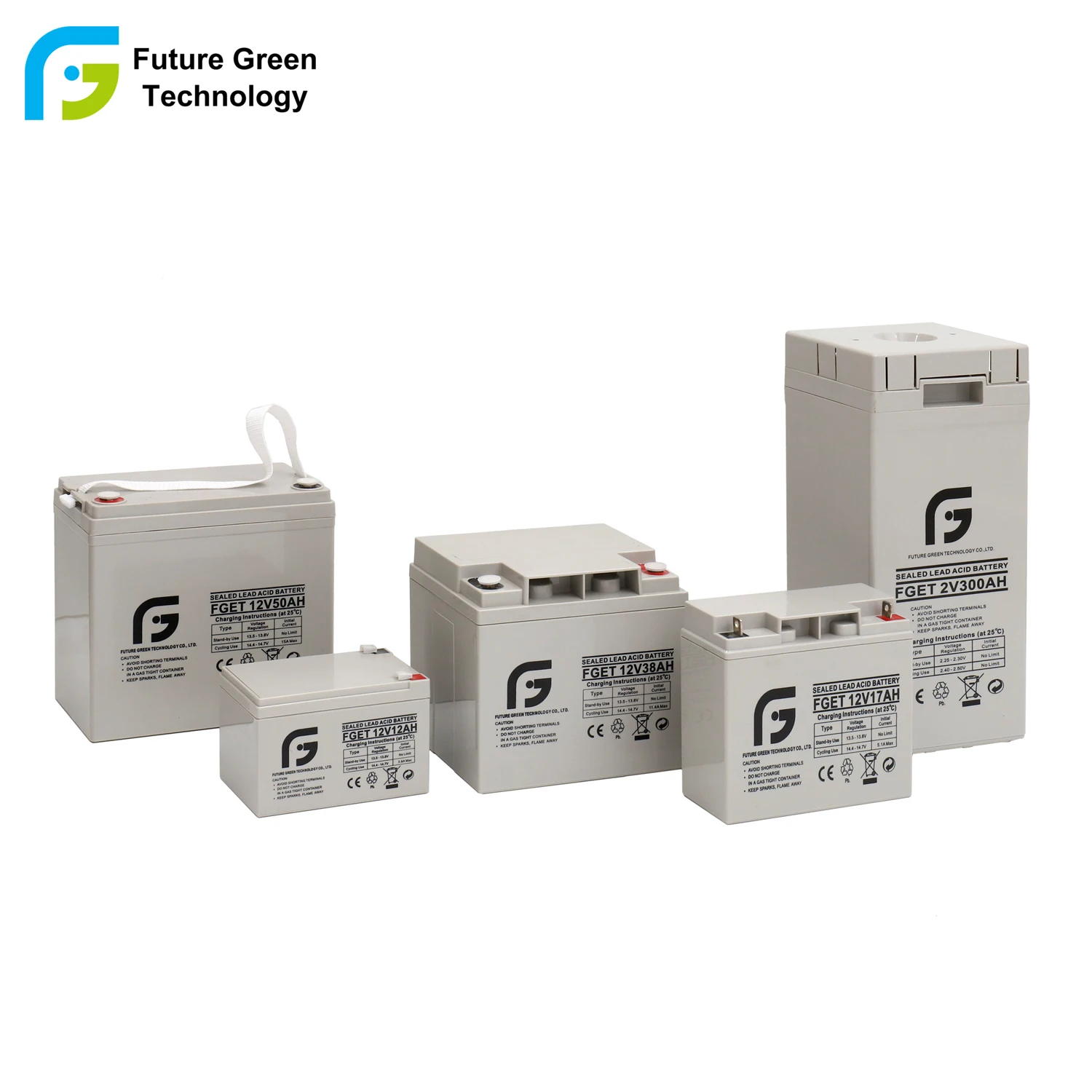

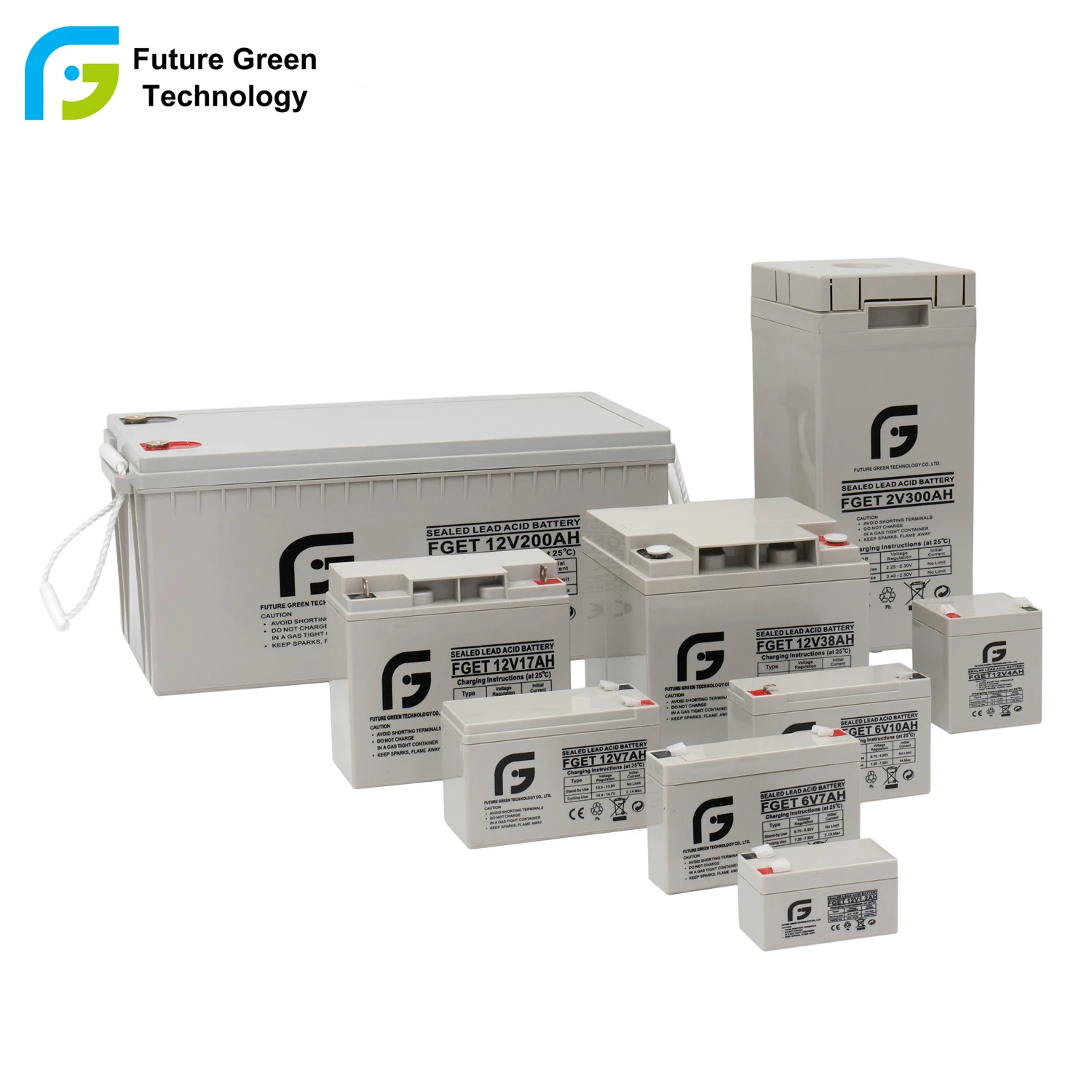

Similar Products


Model
Voltage
Capacity(20h)
Size(mm)
Plate Number
Weight(kg)
SJ12V24Ah
12V
24Ah
177*165*126*126
66
7.3
SJ12V30Ah
12V
30Ah
177*165*126*126
78
8.8
SM12V33Ah
12V
33Ah
196*131*155*180
42
9.2
SM12V36Ah
12V
36Ah
196*131*155*180
42
10.6
SM12V38Ah
12V
38Ah
196*165*175*182
36
13
SM12V42Ah
12V
42Ah
196*165*175
42
13
SM12V45Ah
12V
45Ah
196*165*175
42
13.2
SM12V55Ah
12V
55Ah
229*138*208*227
48
15
SM12V65Ah
12V
65Ah
350*166*175
66
19
SM12V70Ah
12V
70Ah
350*166*175
72
21
SM12V80Ah
12V
80Ah
350*166*175
78
22

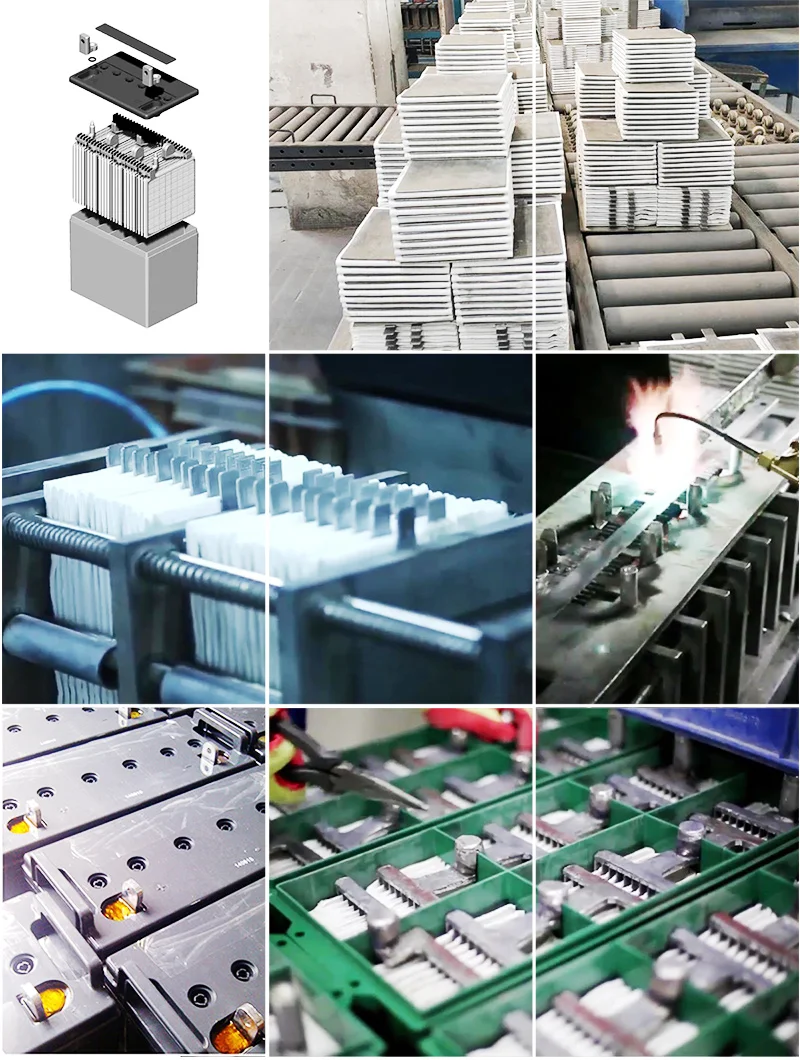

Production Process

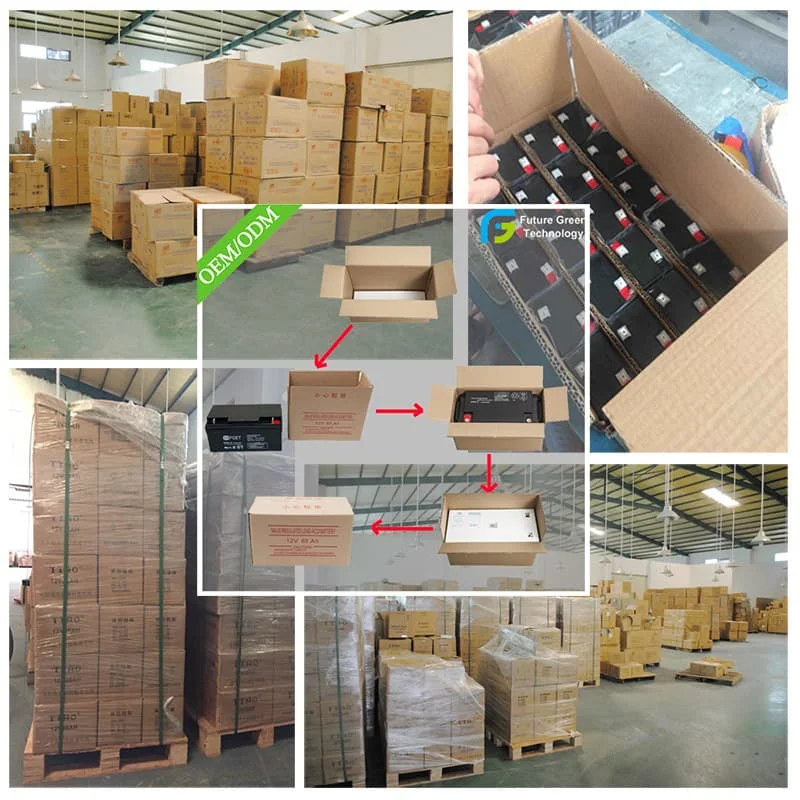

Product packaging




Company Introduction




Certifications




FAQ


Q1: Are you factory?
A1: Yes, we are factory which located in Guangzhou, China.
Q2: How about the delivery time?
A2: 7 days for sample; about 15 working days for bulk order.
Q3: How to choose the right solar battery?
A3: Tell us your demands, then we will recommend suitable solar battery for you. Choosing solar batteries for your solar panel system can be a difficult task. There are many different types of solar battery technologies to choose from, and choosing the right solar battery will depend on what your needs are.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How to Ask for Support if product failure in a warranty?
A5: 1. Email us about the PI number, serial number, Product S/N number, show us more details such as Pictures, your testing report or video, if it is the quality problem of the product itself, we will resend a new one in the next order.
2. We will submit your case to our after-sales department, and solve it in 24 hours.
