Manufacturing Light Concrete Wall Panel Floor Slab H Column Wall Cap Extrusion Making Machine
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (11000019563192):
Product Overview
Description

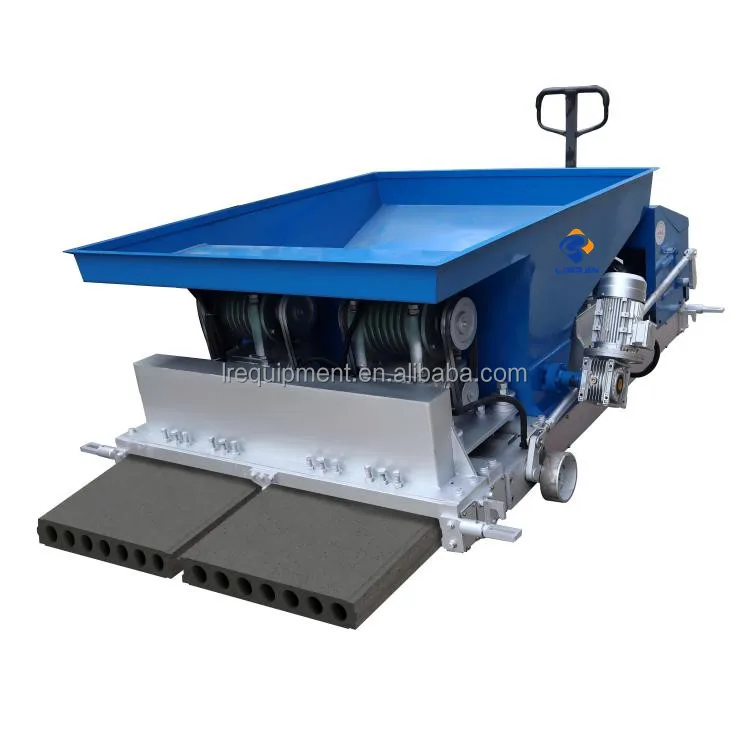

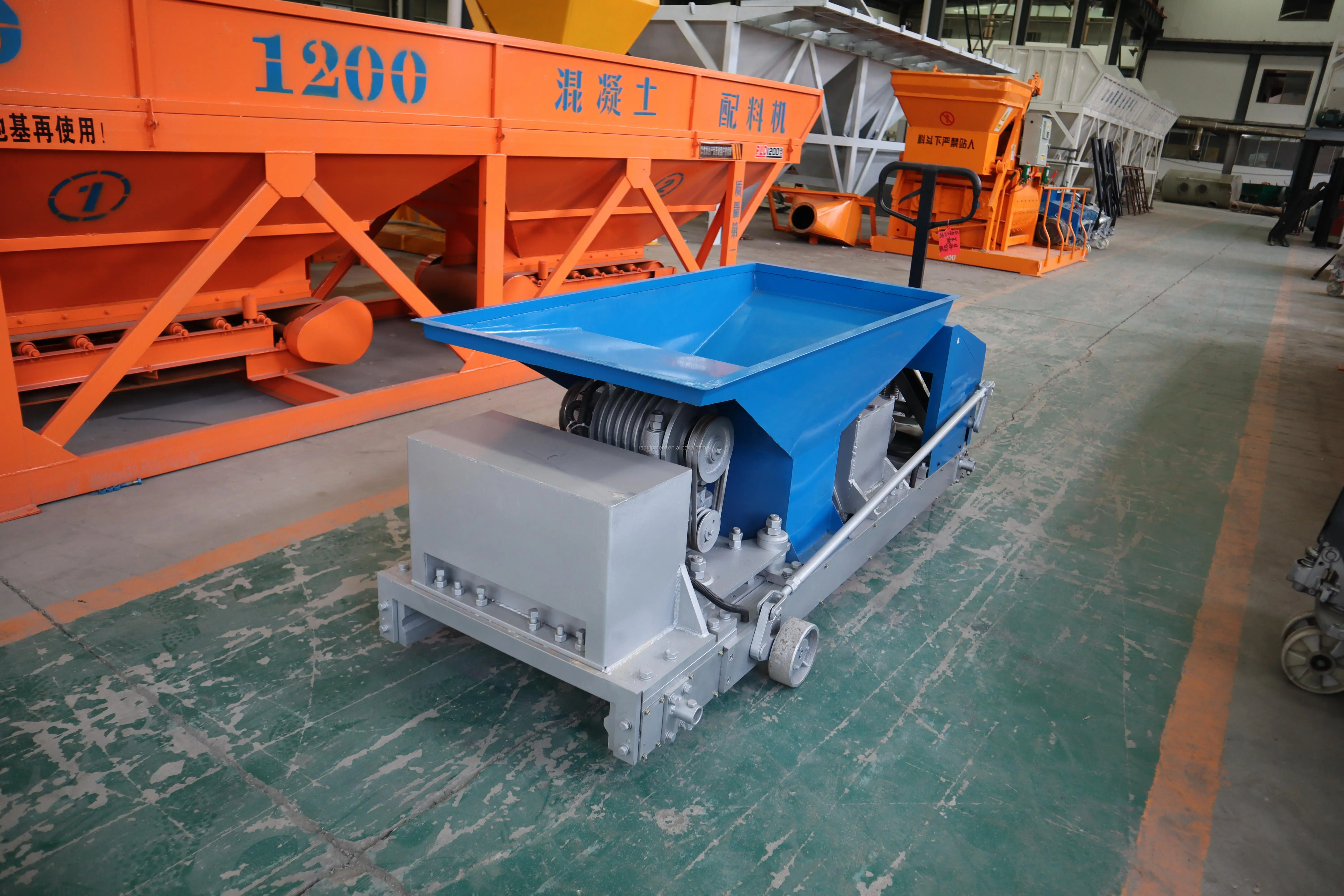

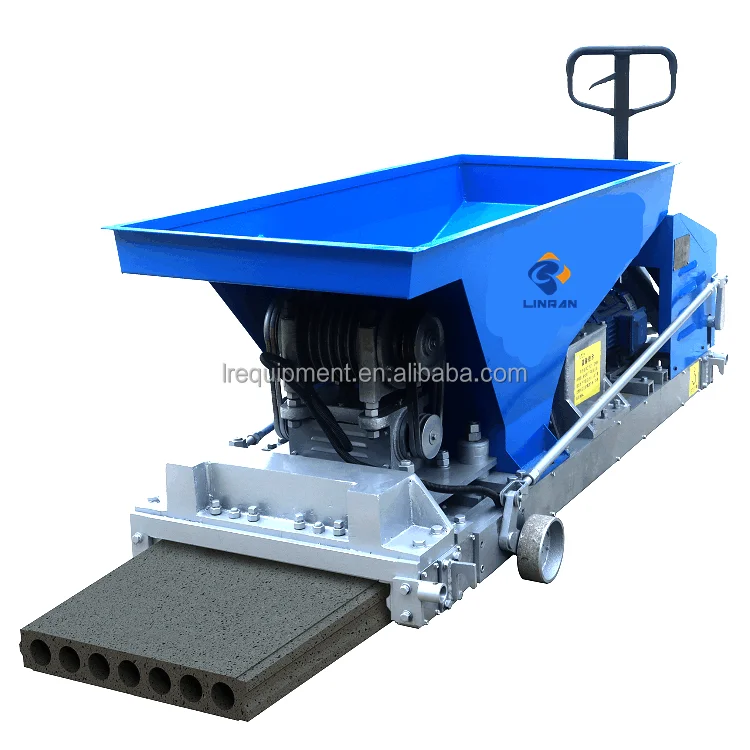

Manufacturing Light Concrete Wall Panel Floor Slab H Column Wall Cap Extrusion Making Machine
JQT type concrete wall panel extrusion machine is a new and popular equipment.It adopts the technology original of random tension rebar and pretensioning upper protective layer.It uses ordinary cement or port-land cement as gelling agent,the low carbon steel wire as reinforce,expand perlite,ceramsite,slag,tly ash,grain slag,sand as aggregate.the traditional manual drawing, ground moulding or stripping form plate process is integrated into a whole process that can befinished by the machine at one time. The advanced technology has greatly
reduced the product cost, improved the product quality and production efficiency, and is the main equipment for the productionoflightweight partition wall panel.
reduced the product cost, improved the product quality and production efficiency, and is the main equipment for the productionoflightweight partition wall panel.
Auxiliary Equipment
Working principle of Manufacturing Light Concrete Wall Panel Floor Slab H Column Wall Cap Extrusion Making Machine
The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel into one.The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame(wall board), vibration machine(vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augersjextrusion and the vibrator continuousvibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating churning knife, and pushes the extruder forward continuously, thus realizing the continuous productionof wall panel. The upper surface of wall panelis polished bythe forming scraper at the end ofthe machine.
Main characteristics of Manufacturing Light Concrete Wall Panel Floor Slab H Column Wall Cap Extrusion Making Machine
1.High efficiency;
it can produce panel 0.8-3.2m/min.
2. The density of the platet is uniform;
The density of the plate is uniform, and it changes completely the low strength ofthe plate at the edge of the left rotation and the right handmixing blade, which is easy to be cracked after assembling.High mechanization,full hydraulic lifting.
3. Save a lot of materials;
The broken end wire can be manually connected;
4. Full use of the pedestal;
The plate can be produced to reach the end of the bar, so that the steel bar and mixing materials can be used at the end of the pedestal, thus improving the utilization ratio of the pedestal.
5. Save platform cost;
It doesn't use the channel steel track, which saves the cost of the pedestal and reduces the production difficulty, ensure the accuracy of production.
6.The main vulnerable arts have long lifetime;
Mixing auger can be used more than 80,000 meters,The vibration plate can reach more than 100,000 meters,and the side wall panel can reach more than 60,000 meters.
Main parameters of Manufacturing Light Concrete Wall Panel Floor Slab H Column Wall Cap Extrusion Making Machine
Model | Height (mm) | Width (mm) | No. of hole (pcs) | Aperture (mm) | Speed (m/min) | Main motor (KW) | Vibrator (KW) | Lifttime of mixing blade(KM) |
JQT6×60 | 60 | 600 | 9 | 38 | >0.8~3.2 | 4 | 0.8 | >80 |
JQT8×60 | 80 | 600 | 8 | 40 | >0.8~3.2 | 5.5 | 0.8 | >80 |
JQT9×60 | 90 | 600 | 7 | 58 | >0.8~3.2 | 5.5 | 4 | >80 |
JQT10×60 | 100 | 600 | 7 | 58 | >0.8~3.2 | 5.5 | 4 | >80 |
JQT11×60 | 110 | 600 | 5 | 78 | >0.8~3.2 | 5.5 | 1.1 | >80 |
JQT12×60 | 120 | 600 | 5 | 88 | >0.8~3.2 | 7.5 | 4 | >80 |
JQT14×60 | 140 | 600 | 5 | 90 | >0.8~3.2 | 7.5 | 4 | >80 |
JQT15×60 | 150 | 600 | 4 | 110 | >0.8~3.2 | 7.5 | 4 | >80 |
JQT16×60 | 160 | 600 | 4 | 110 | >0.8~3.2 | 7.5 | 4 | >80 |
JQT18×60 | 180 | 600 | 3 | 135 | >0.8~3.2 | 11 | 4 | >80 |
JQT20×60 | 200 | 600 | 3 | 142 | >0.8~3.2 | 11 | 4 | >80 |
Finished product show
Working site
We has provided complete sets of wall panel equipment for more than 1000 customers at
home and abroad,and the product has been widely recognized by customers.
home and abroad,and the product has been widely recognized by customers.
Our main products are JQT concrete wall panel extrusion machine,JQTD lightweight automatic wall panel production line,LMJ mobile molding production line and mixing plant.
Product packaging
Packing & Delivery:
If by container, all machines will be wrapped by plastic film to avoid humidity, and use rod to be fixed to avoid Shake and Collision, 100% keep machine safty and down broke rate.
If by LCL, need use wooden box, for each machine we have corresponding wooden packed solution to meet different countries customer's request.
Customer Photos
We have been exported our products to many countries and regions, all over the world, especially in Burma, Kenya, Zambia, Ethiopia, SaudiArabia, Vietnam, Malaysia, Indonesia, Singapore.Our products have own praises from all over customers worldwide.
Project cases

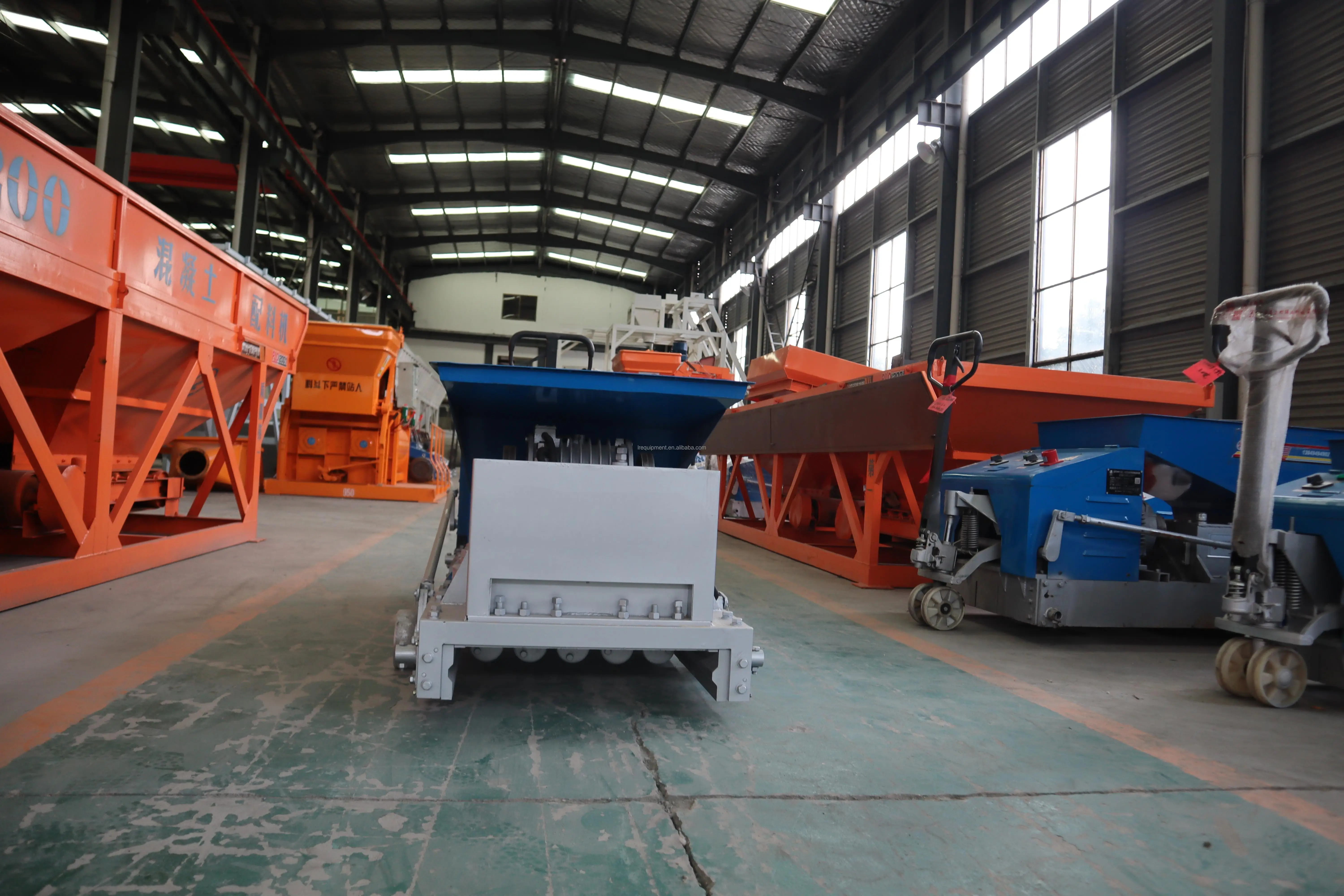

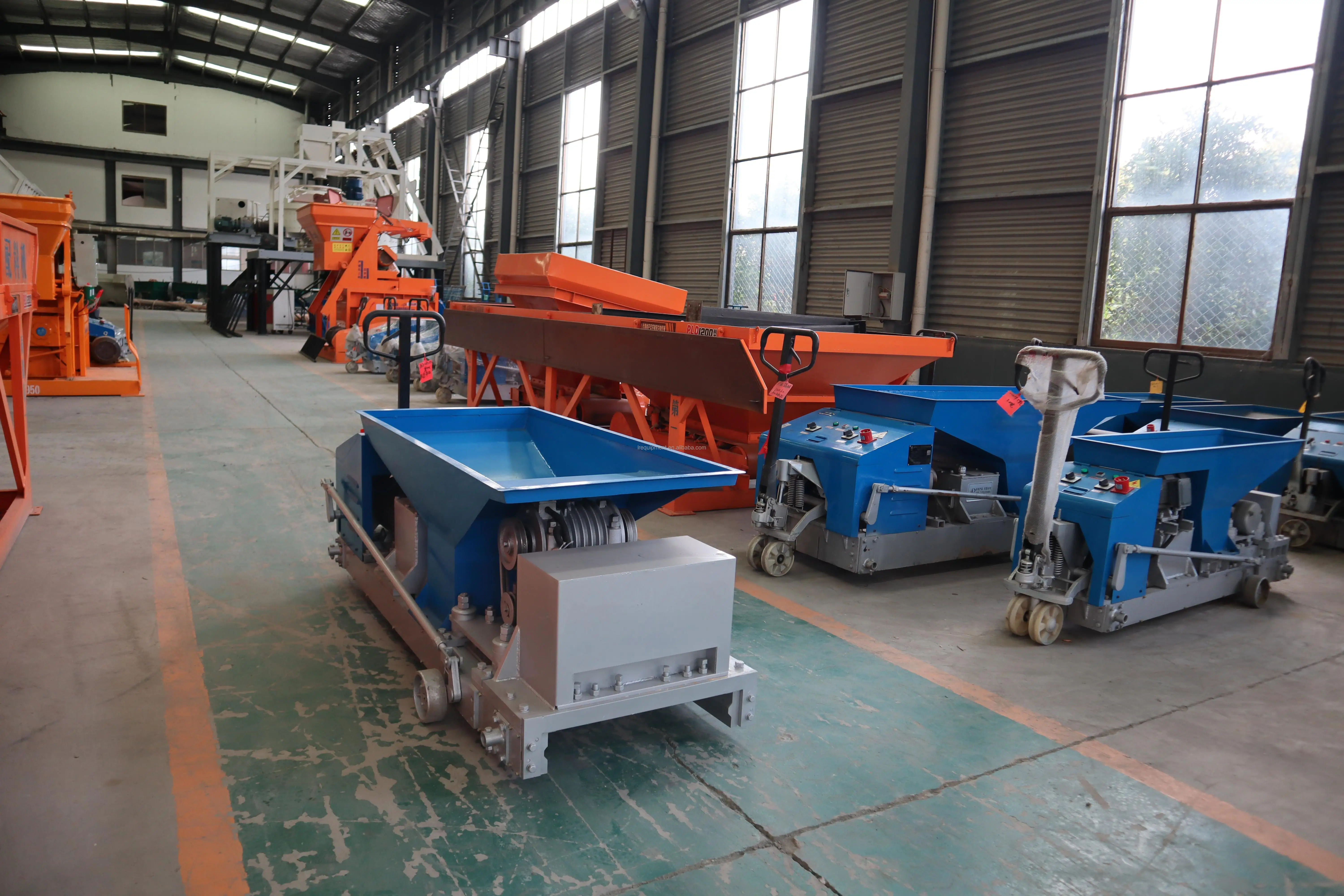

Processing warehouse
Our company occupies an area over 86000m² acres and has standardized industrial workshop 66000m²,A variety of large and medium-sized processing equipment more than 100 sets, advanced processing technology.It is a green prefabricated construction equipment manufacturing base.
Why Choose Us
Why choose LINRAN?
Zhengzhou Linrran Equipment Co., Ltd.was established in 2004.The registered capialis RMB20,000,000.It is located in industry cluster distict,Linying County, LuoheCity, Henan Province. We focus on designing, researching, and developing, manufacturing and selling construction machinery, building materials machinery.
Our company covers an area of 84000m2, and has standardized industial plants 66,000m2. There are more than 100 sets of advanced equipment such as gold processing, welding, assembly and processing center. We staff 106 personnel, including 40 professional engineers with high education and 30 skilled workers with strict training .The company adheres to technological innovation as the development engine.At present,we gain 180 kinds of China' s invention patents and utilitymodel patentstotal.
Our products have attained ISO9001:2015 Quality Management System Certification,we have 20 years of manufacture experience in concrete machinery industry and have a good reputation in this field,that formed a perf
ect design and development, product manufacturing, marketing, equipment installation and after-sales service production management system. We are regarded as Nationa l high-tech enterprises,Henan lightweight partition panel equipment engineering technology research center.Our company has won many honorary titles, including" Qinghua university doctoralstudent practice base " , " Council member o f national wall material association”,” Importance to the credit standing first, complying with contracts signed“ , “ Advanced unit in Intellectual Property " quality reliable enterprise " ," Industry 1351 projectimportant enterprise " and so on.
ect design and development, product manufacturing, marketing, equipment installation and after-sales service production management system. We are regarded as Nationa l high-tech enterprises,Henan lightweight partition panel equipment engineering technology research center.Our company has won many honorary titles, including" Qinghua university doctoralstudent practice base " , " Council member o f national wall material association”,” Importance to the credit standing first, complying with contracts signed“ , “ Advanced unit in Intellectual Property " quality reliable enterprise " ," Industry 1351 projectimportant enterprise " and so on.
Our company insists on the management principle of " Integrity, innovation, service,win-win" We service users with project design, process design, standard and non-standard product design and production.With our abundant experience and industrious and hardworking staff members, we can meet variousrequirements from different types of customers.
Our enterprise vision is " Become the global preferred brand of wall panel equipment" ! In future,We will transform and upgrade on the basisof scientific and technological innovation to improve the comprehensive ability of enterprises.our arm is to help customers realize their goals, we are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
