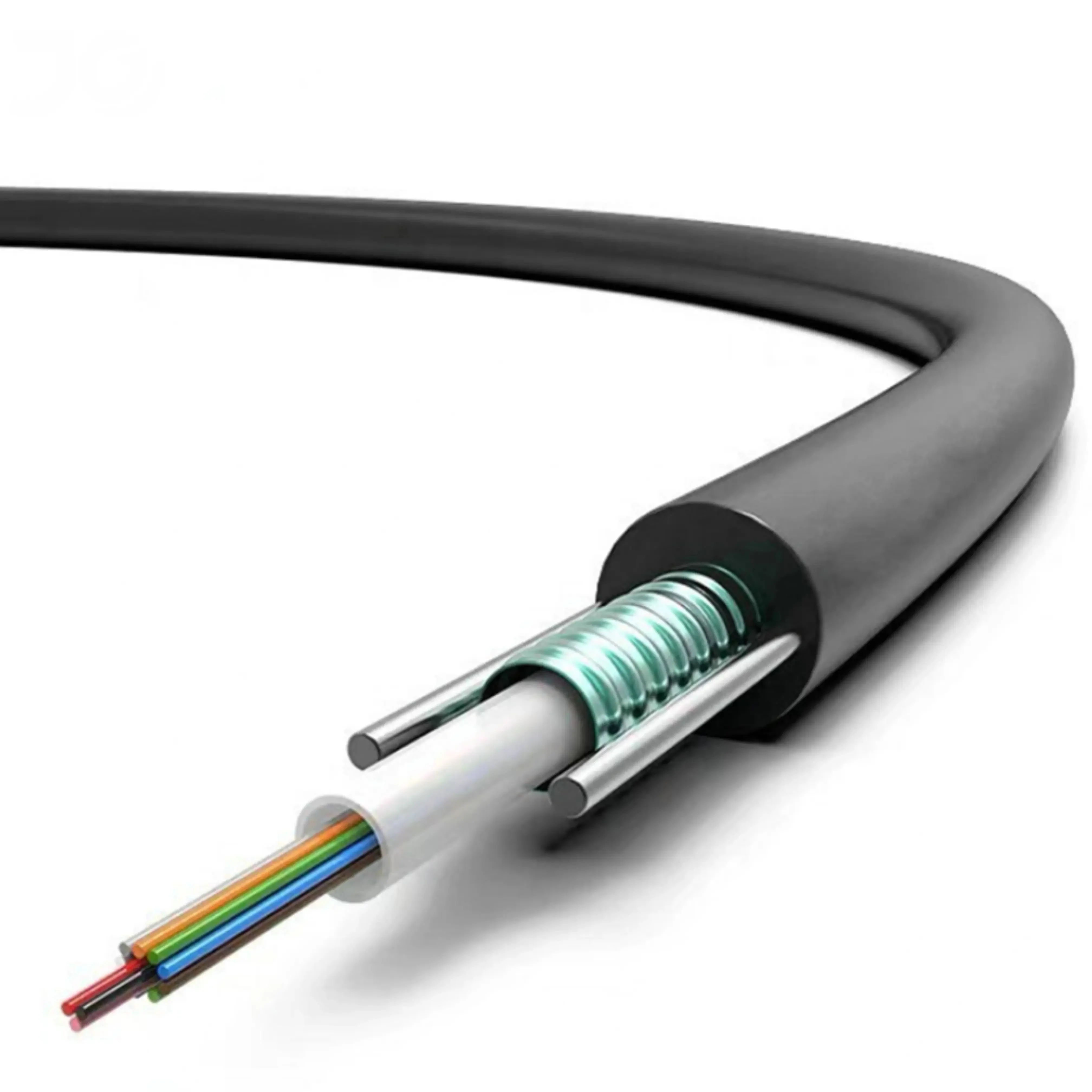

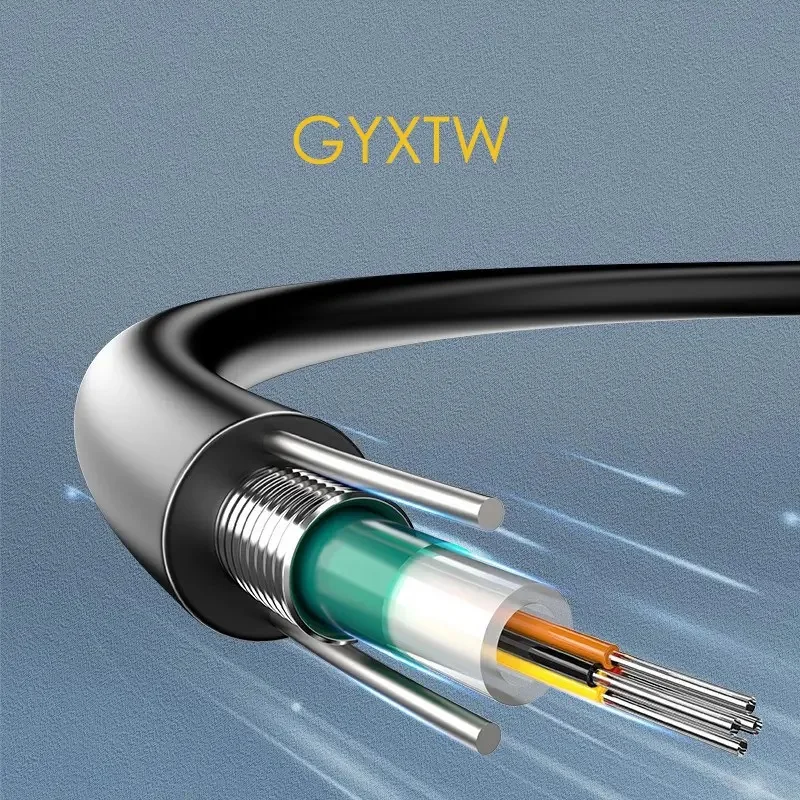

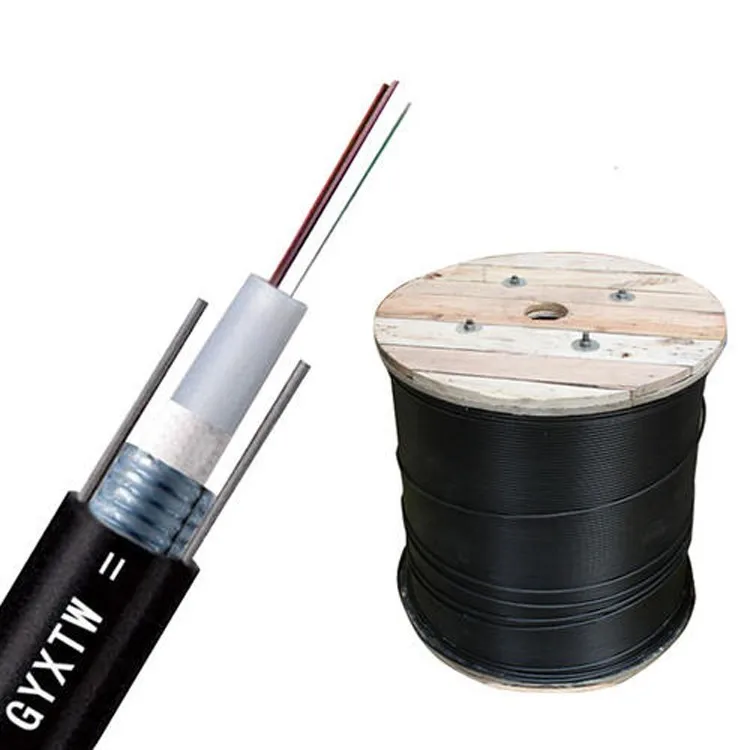

Central Tube Armored Cable GYXTW Outdoor Single Mode 4/6/8/12 Cores Optical Fiber Cable
- Category: >>>
- Supplier: Ningbo Exact Cables & Wire Co. Ltd.
Share on (11000020048232):
Product Overview
Description
PE sheath | common polyethylene sheath. Used for power lines below 110KV. (optional) |
AT jacket | anti-electric mark jacket. Used for power lines above 100KV. (optional) |
Number of cores | 4 /8 /12 /24 /48 /96 /144 |
Span | 50 m / 100 m / 200 m / 400 m / 500 m / 1000 m |
Optical properties | ||||||||||
type | G.652 | G.655 | 50/175μm | 62.5/125μm | ||||||
Attenuation (±20℃) | 850nm | ≤3.0dB/km | ≤0.30dB/km | |||||||
1300nm | ≤1.0dB/km | ≤1.0dB/km | ||||||||
1310nm | ≤0.36dB/km | ≤0.40dB/km | ||||||||
1550nm | ≤0.22dB/km | ≤0.23dB/km | ||||||||
Bandwidth (Class A) | 850nm | ≥500MHz·km | ≥200MHz·km | |||||||
1300nm | ≥1000MHz·km | ≥600MHz·km | ||||||||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||||||||
Optical cable cut-off wavelength | ≤1260nm | ≤1480nm | ||||||||
Structural parameters | ||||||||||||
model | Number of optical fibers | Cable diameter | Cable weight kg/km | Allowable tensile force Long term/short term | Allowable crushing force Long term/short term N/100mm | Bending radius Static/Dynamic mm | ||||||
1001 | 2~12 | 10.0 | 105 | 600/1500 | 300/1000 | 10D/20D | ||||||
1002 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D | ||||||
1003 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D | ||||||
1004 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D | ||||||
1005 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D | ||||||
