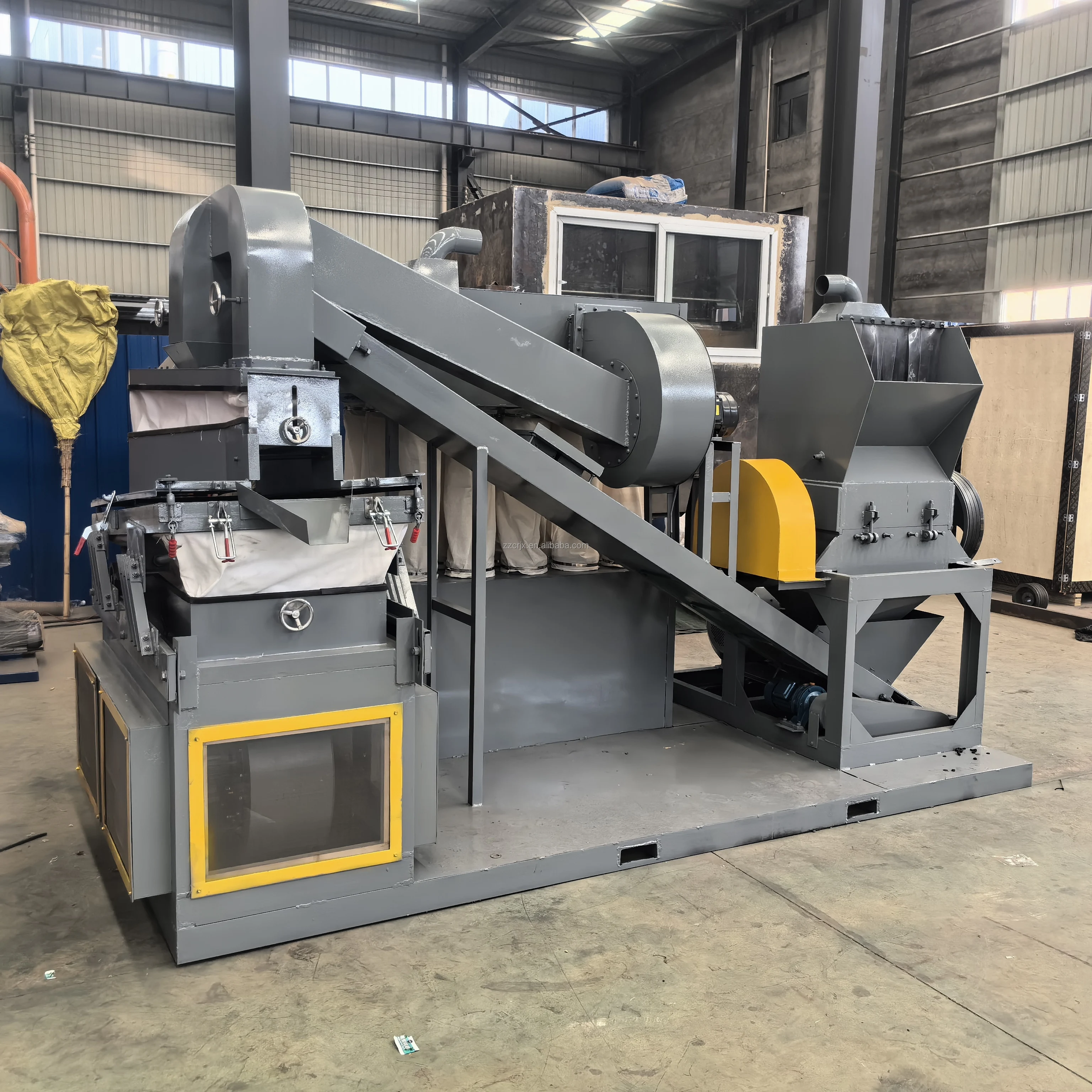

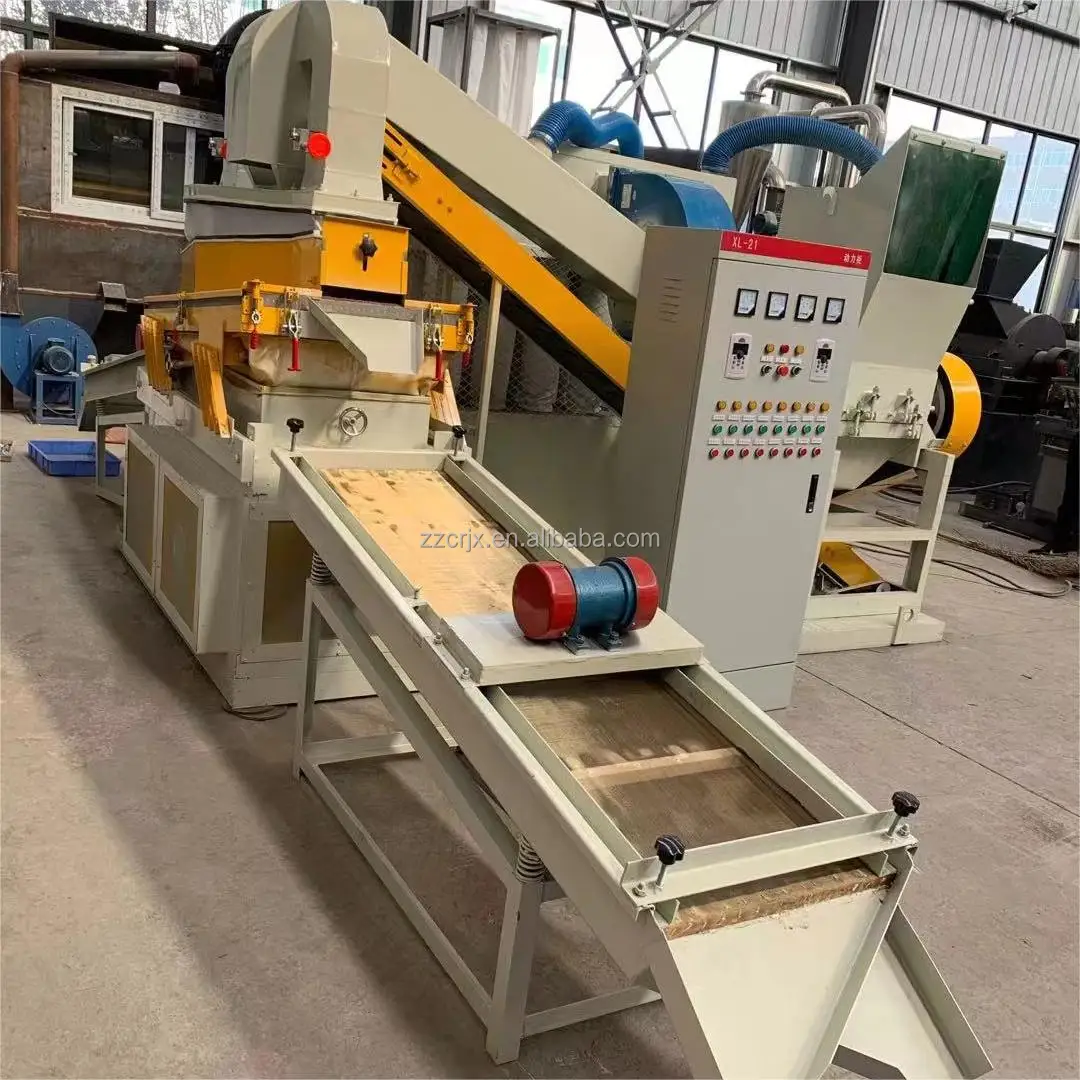

High Quality Cable Granulator Copper Wire Recycling Machine Scrap Metal Copper Granules Shredders Machine Hot Selling
- Category: >>>
- Supplier: Zhengzhou Chenrui Machinery Equipment Co. Ltd.
Share on (11000020054072):
Product Overview
Description
Overview

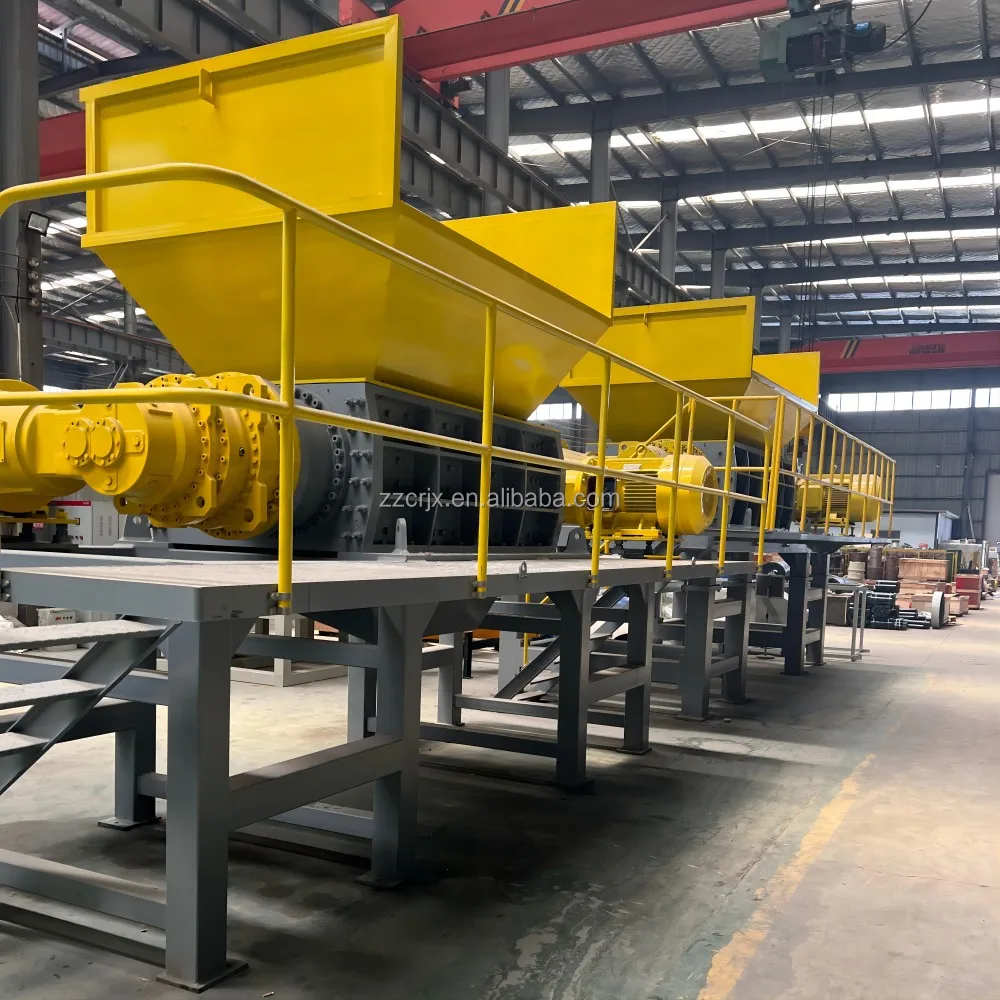

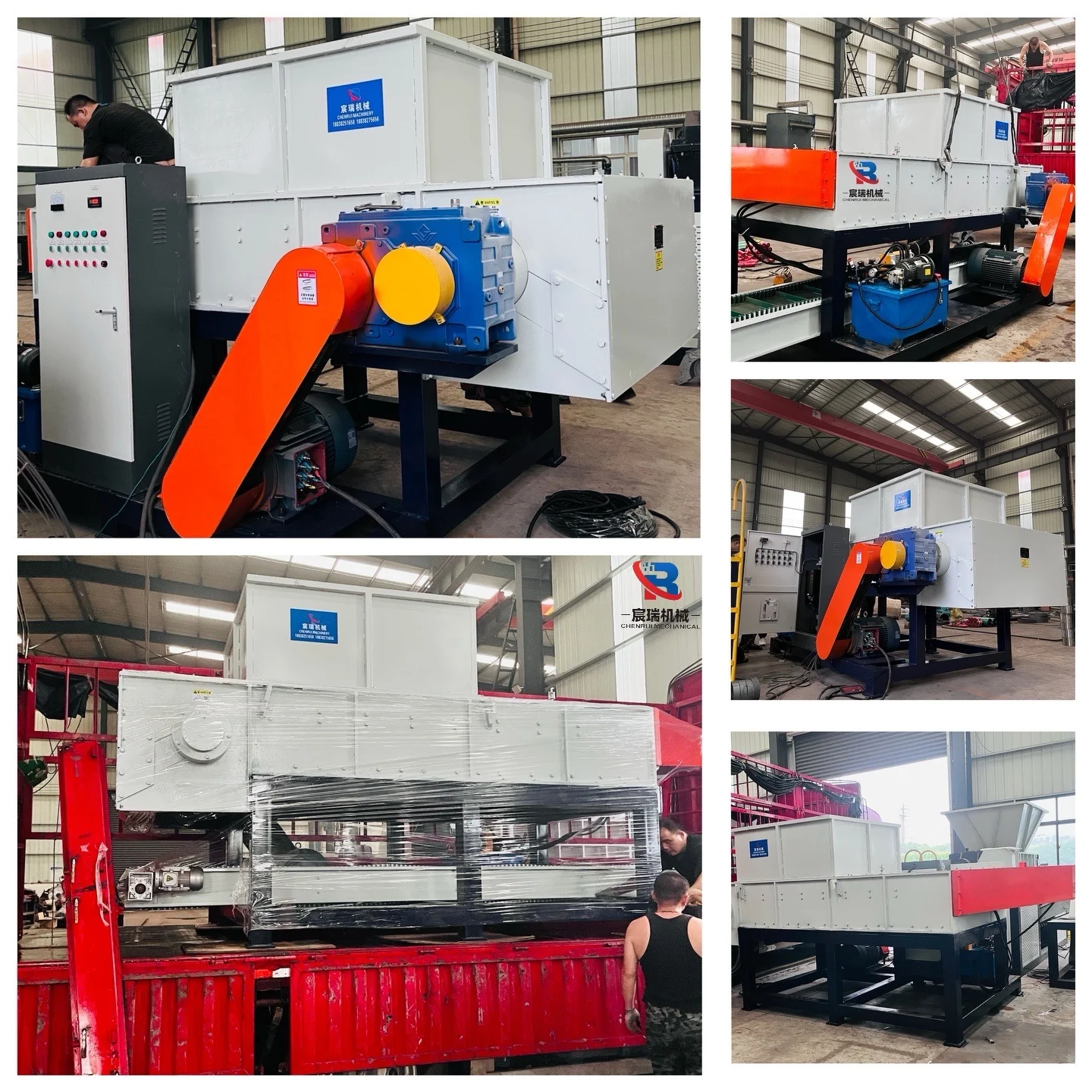

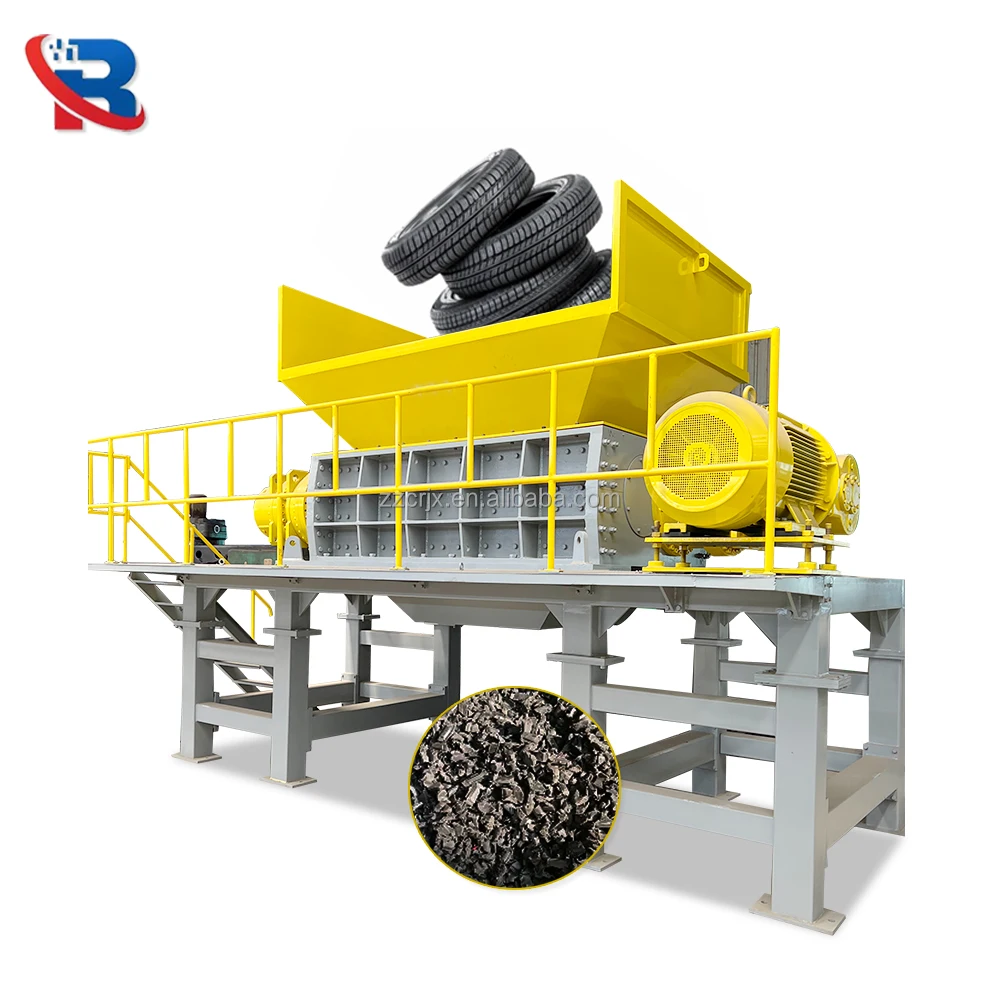

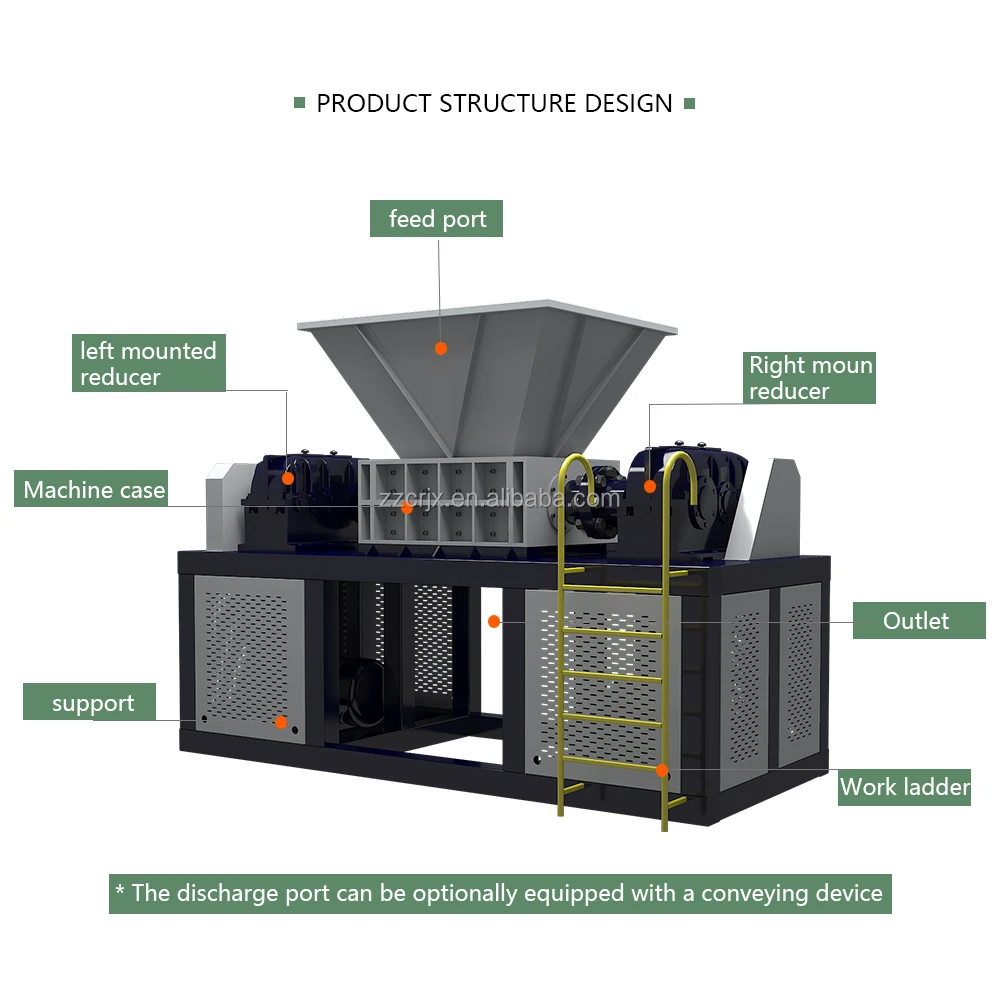

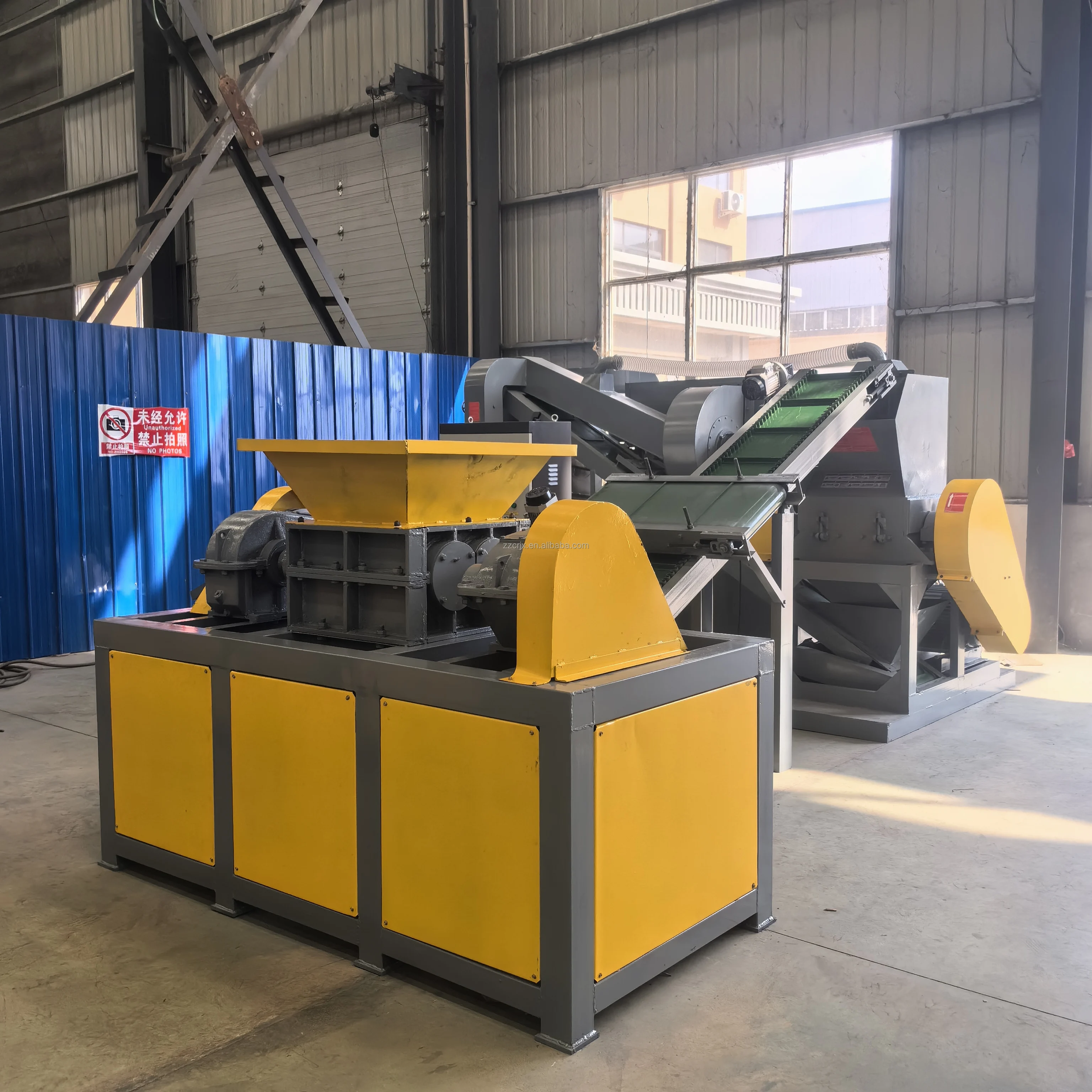

Twin Shaft Shredder
CR series double shaft shredder adopts double motor and double reducer drive mode, which has stronger shredding capacity.
The WLP series of twin shaft shredders are driven by dual motors and dual gearboxes for greater shredding capacity.
The power of CR series shredder is 15kW-300kW.
It is a heavy duty shear shredder, suitable for processing large volume and high hardness solid waste.
The WLP series of twin shaft shredders are driven by dual motors and dual gearboxes for greater shredding capacity.
The power of CR series shredder is 15kW-300kW.
It is a heavy duty shear shredder, suitable for processing large volume and high hardness solid waste.
Product Parameter
Can be customized according to different materials | ||||||||||
Model | 400 | 600 | 800 | 1000 | 1200 | |||||
Motor Power | 7.5kw*2 | 11kw*2 | 22kw*2 | 37kw*2 | 45kw*2 | |||||
Reducer | Model 400*2 | Model 400*2 | Model 500*2 | Model 750*2 | Model 850*2 | |||||
Blade Number | 50 | 46 | 42 | 34 | 20 | |||||
Cutter Diameter（mm） | Φ190 | Φ220 | Φ260 | Φ400 | Φ450 | |||||
L*W*H(m) | 2.1*0.95*1.4 | 2.5*1.1*1.6 | 3*1.4*1.8 | 4*2.2*2.4 | 4.4*2.1*3.2 | |||||
Weight（kg） | 1000 | 1800 | 3200 | 7500 | 9500 | |||||
Product Feature
1、Double motor + double reducer drive system, low speed, high torque, strong tearing capacity;
2、High alloy steel cutting tool, wear-resistant and durable, long service life;
3、42CrMo high alloy steel spindle, high processing precision, good mechanical strength, strong impact resistance;
4、Fixed knives are set on both sides of the knife box to prevent the material from being entangled, which can be dismantled independently, easy to dismantle and easy to maintain;
5、Self-aligning roller bearings, four seals, effective dustproof and waterproof;
6、PLC control system, current monitoring, overload protection, automatic reversal, to protect the motor and knife;
7、Long service life of the equipment, low maintenance cost.
2、High alloy steel cutting tool, wear-resistant and durable, long service life;
3、42CrMo high alloy steel spindle, high processing precision, good mechanical strength, strong impact resistance;
4、Fixed knives are set on both sides of the knife box to prevent the material from being entangled, which can be dismantled independently, easy to dismantle and easy to maintain;
5、Self-aligning roller bearings, four seals, effective dustproof and waterproof;
6、PLC control system, current monitoring, overload protection, automatic reversal, to protect the motor and knife;
7、Long service life of the equipment, low maintenance cost.
1、Overload Protection & Auto Reverse - The shredder includes an electronic protection system that automatically stops and reverses the shredding action when the system is overloaded. This system allows the shredder to clean itself and then automatically continue the shredding process.
2、Advanced Bearing Protection System-Multiple barriers of mechanical labyrinth seals and conventional seals protect expensive bearings and ensure the highest in-line reliability.
3、Efficient Shredding - Pairs of shafts rotate at slightly different speeds to increase the efficiency of the shearing and tearing action.
4、Economical - From the low-speed, high-torque electromechanical drive system to the rugged cutting chamber design, the shredder is designed to be energy efficient and low maintenance.
5、Low Noise and Ballistic-Free Operation - The low-speed, high-torque industrial shredder operates at low noise levels and produces no dust or flying particles.
6、Severe Impact Protection - Cushion drive system absorbs minor impact loads and automatically stops the shredding action when non-shreddable items enter the shredding chamber.
7、High alloy heat-treated knives for extra long life, corrosion and wear resistance.
8、Tapered roller bearings, hexagonal knife shaft, durable.
2、Advanced Bearing Protection System-Multiple barriers of mechanical labyrinth seals and conventional seals protect expensive bearings and ensure the highest in-line reliability.
3、Efficient Shredding - Pairs of shafts rotate at slightly different speeds to increase the efficiency of the shearing and tearing action.
4、Economical - From the low-speed, high-torque electromechanical drive system to the rugged cutting chamber design, the shredder is designed to be energy efficient and low maintenance.
5、Low Noise and Ballistic-Free Operation - The low-speed, high-torque industrial shredder operates at low noise levels and produces no dust or flying particles.
6、Severe Impact Protection - Cushion drive system absorbs minor impact loads and automatically stops the shredding action when non-shreddable items enter the shredding chamber.
7、High alloy heat-treated knives for extra long life, corrosion and wear resistance.
8、Tapered roller bearings, hexagonal knife shaft, durable.

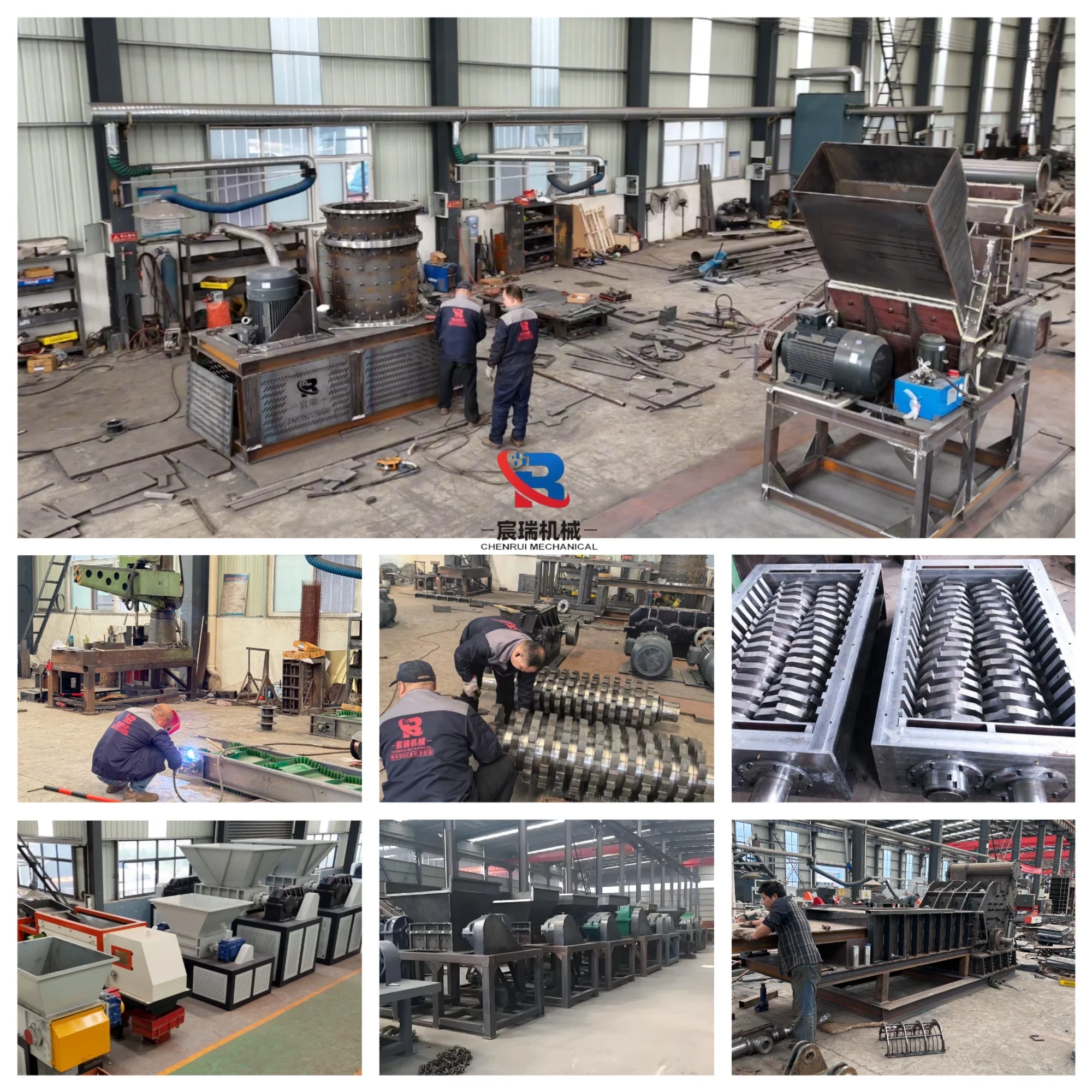

Welding
All of our welders have decades of experience and are highly skilled, and we make sure that we take care of any details.Cutting
We use CNC flame cutting for raw materials, which can ensure the beautiful atmosphere of the equipment.Assembly
Assembly is a very important part, and we have hired the best master to complete the assembly work.
Suitable Material:

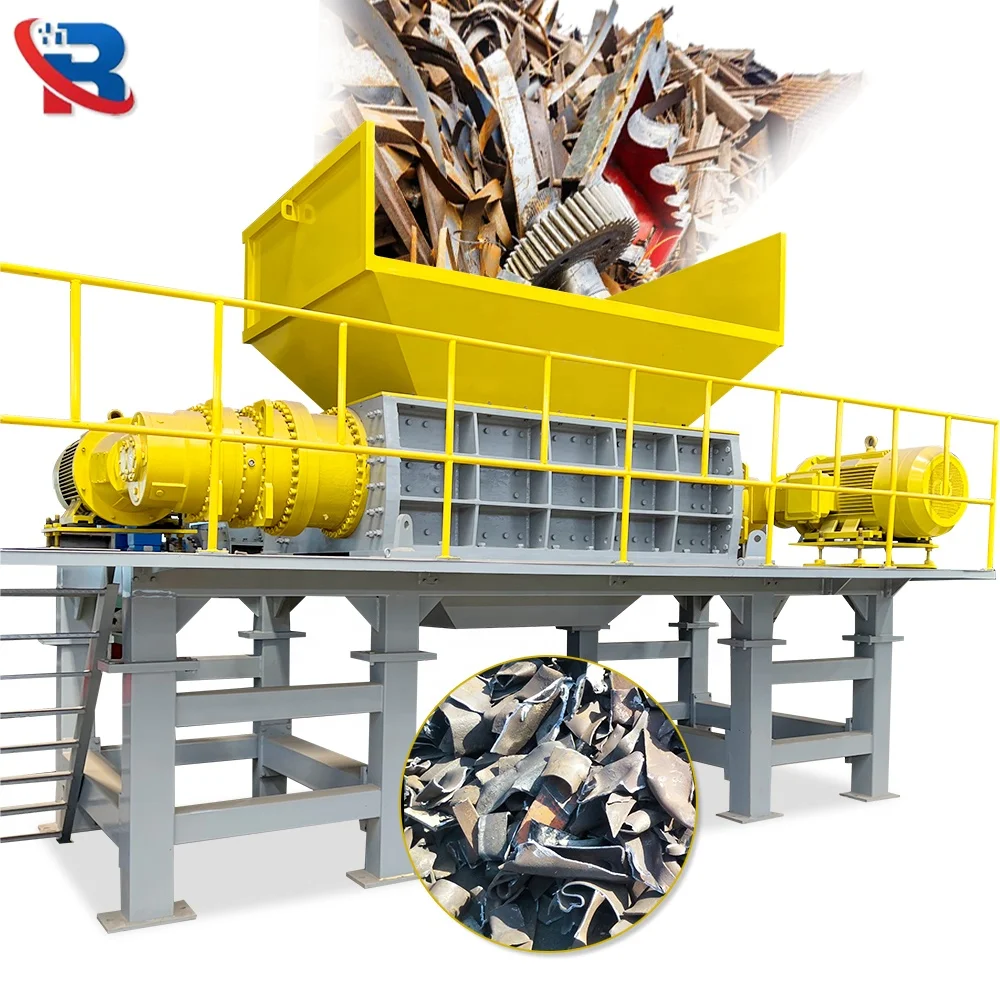

Heavy Melting Scrap :
Heavy Melting Scrap :
heavy waste metals: 6 mm＜Thickness≤10 mm, Waste steel plate, 5 mm-25 mm reinforcing steel bar.
Light Melting Scrap:
Light Melting Scrap:
Light waste metals: 1 mm＜Thickness≤6 mm, scrap metals, waste gas tank, LPG gas containers, scrap bike, scrap car shells, motor shells, scrap metal, oil Iron tank, large blue barrels, beverage cans, tin cans, scrap aluminum windows, waste aluminum alloy.
Shape and final product size:
Shredding entire waste metal materials into Block, Chip, Pieces with different small size, 5-30 cm can be customized according to clients request.
Shape and final product size:
Shredding entire waste metal materials into Block, Chip, Pieces with different small size, 5-30 cm can be customized according to clients request.
Hot Sale Product
FAQ
Q1:What is the quality of your products?
A1:Our machines are manufactured in strict accordance with national and international standards, and each machine is tested before leaving the factory.
Q2:How about the price?
A2:We mainly focus on cost-effective, we can give you a lower price than other trading companies, if the products are really suitable and can bring you benefits, the price can be negotiated.
Q3: Do you provide after-sales service?
A3:Yes. Our machine warranty is one year, and we have a professional after-sales service team to solve your problems in time.
Q4: Are you a manufacturer?
A4:Yes, we are a manufacturer with rich experience.
Q5:Can you customize the machine for me?
A5:We can customize it according to customer's requirement.
Q6:What is your shipping method?
A6:Express, air freight, sea freight.
Q7:What is your production capacity per hour?
A7:There are 2 tons/hour, 3 tons/hour, 5 tons/hour, 7 tons/hour, 10 tons/hour, 15 tons/hour and so on, which can be customized according to customers' requirements.
Q8:What are the payment terms?
A8:30% down payment as deposit and 70% balance before shipment.
A1:Our machines are manufactured in strict accordance with national and international standards, and each machine is tested before leaving the factory.
Q2:How about the price?
A2:We mainly focus on cost-effective, we can give you a lower price than other trading companies, if the products are really suitable and can bring you benefits, the price can be negotiated.
Q3: Do you provide after-sales service?
A3:Yes. Our machine warranty is one year, and we have a professional after-sales service team to solve your problems in time.
Q4: Are you a manufacturer?
A4:Yes, we are a manufacturer with rich experience.
Q5:Can you customize the machine for me?
A5:We can customize it according to customer's requirement.
Q6:What is your shipping method?
A6:Express, air freight, sea freight.
Q7:What is your production capacity per hour?
A7:There are 2 tons/hour, 3 tons/hour, 5 tons/hour, 7 tons/hour, 10 tons/hour, 15 tons/hour and so on, which can be customized according to customers' requirements.
Q8:What are the payment terms?
A8:30% down payment as deposit and 70% balance before shipment.
