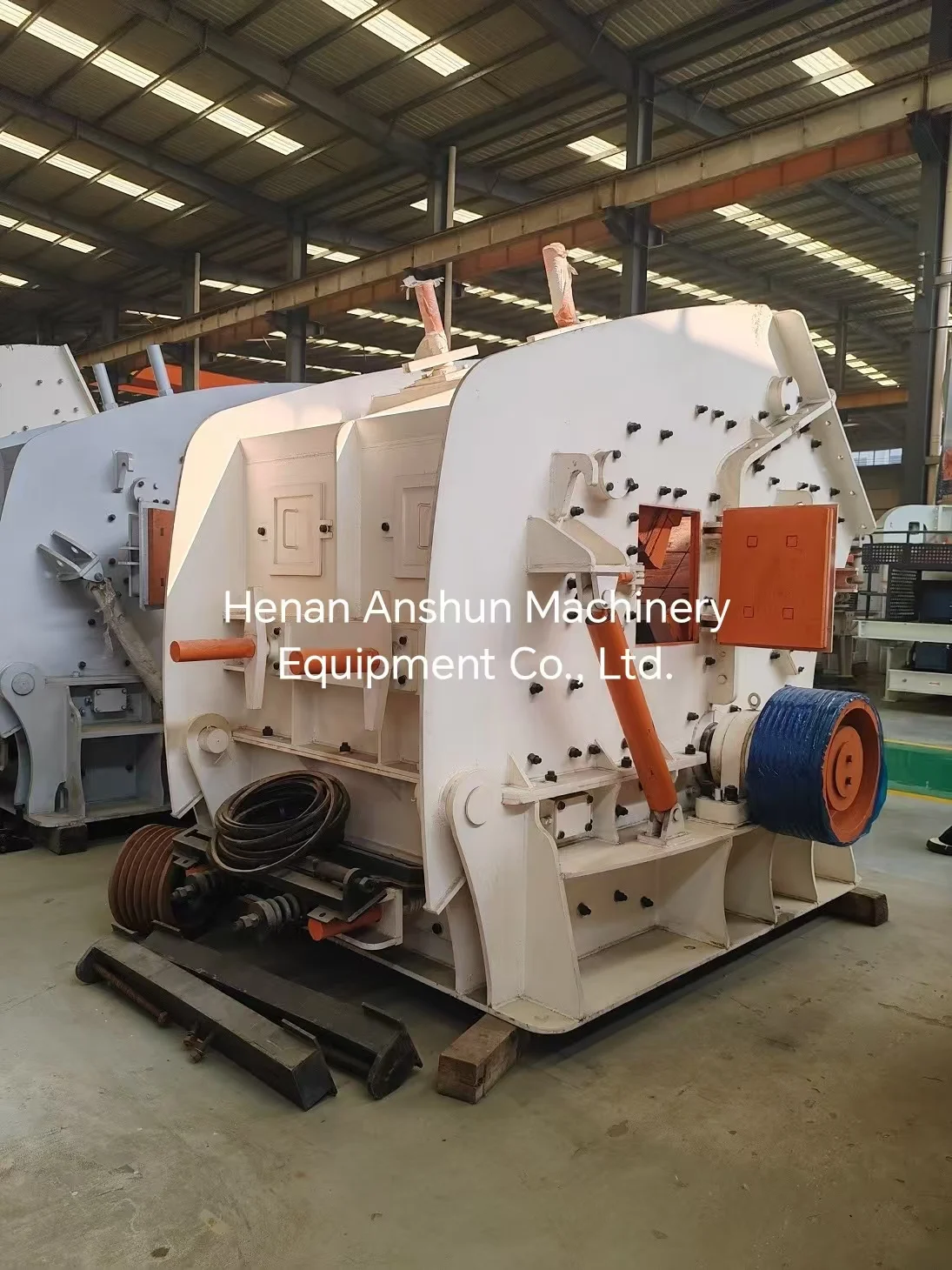

PF Stone Impact Crusher Cheap Good Quality Concrete Block Machine Automatic Impact Crushing Machinery For Sale
- Category: >>>
- Supplier: Henan Anshun Machinery Equipment Co. Ltd.Henan Ltd.
Share on (11000020155313):
Product Overview
Description
Products Description

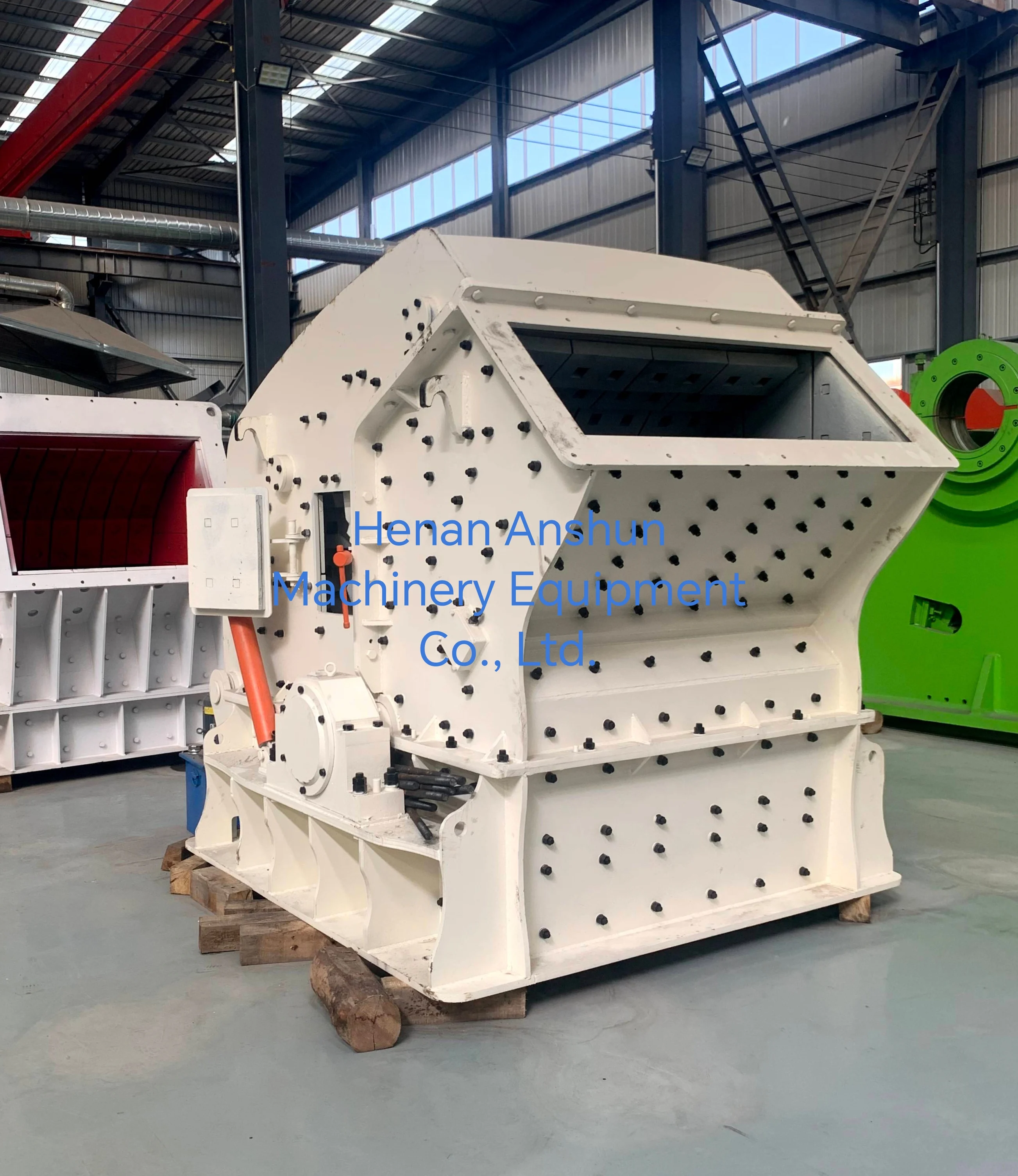

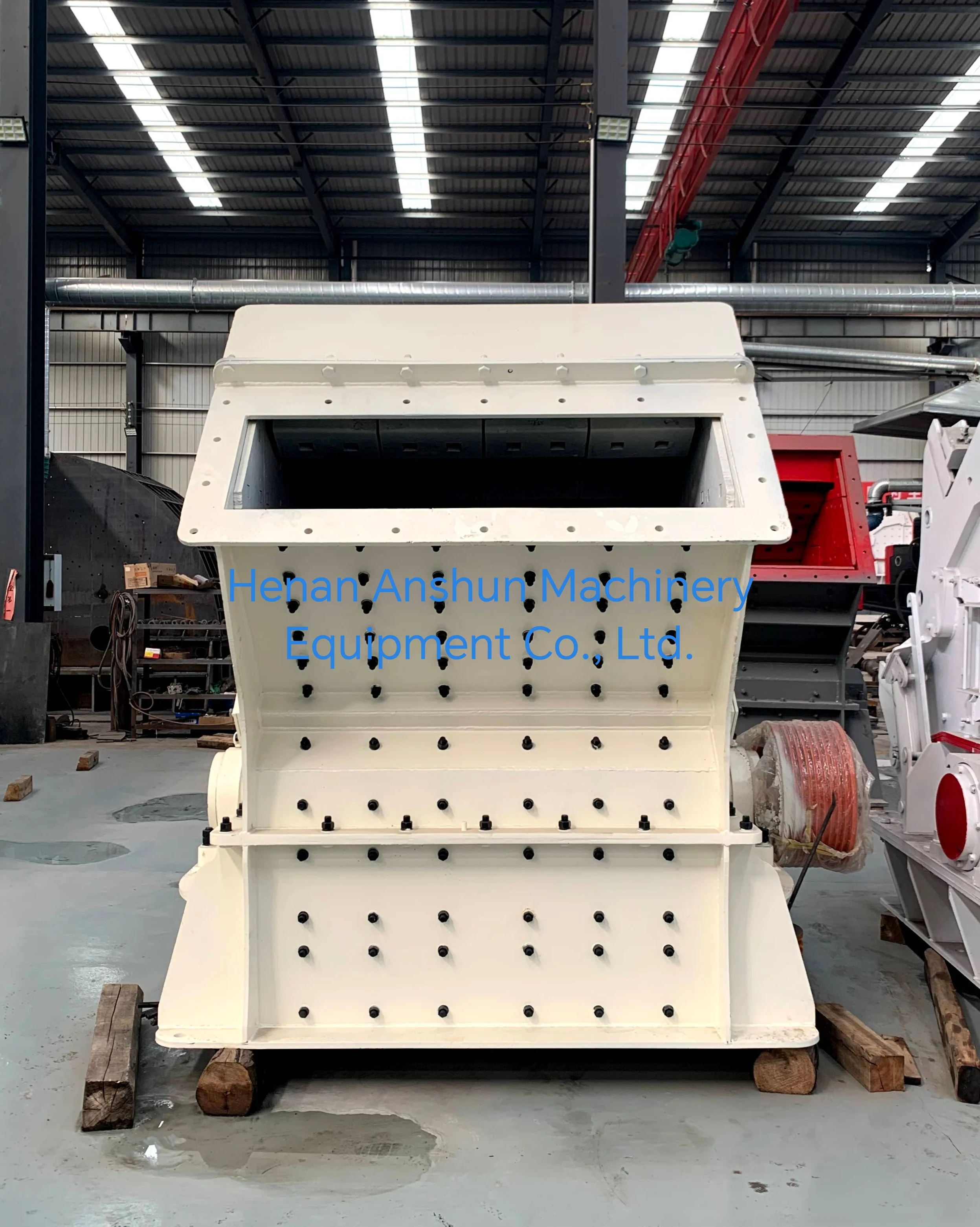

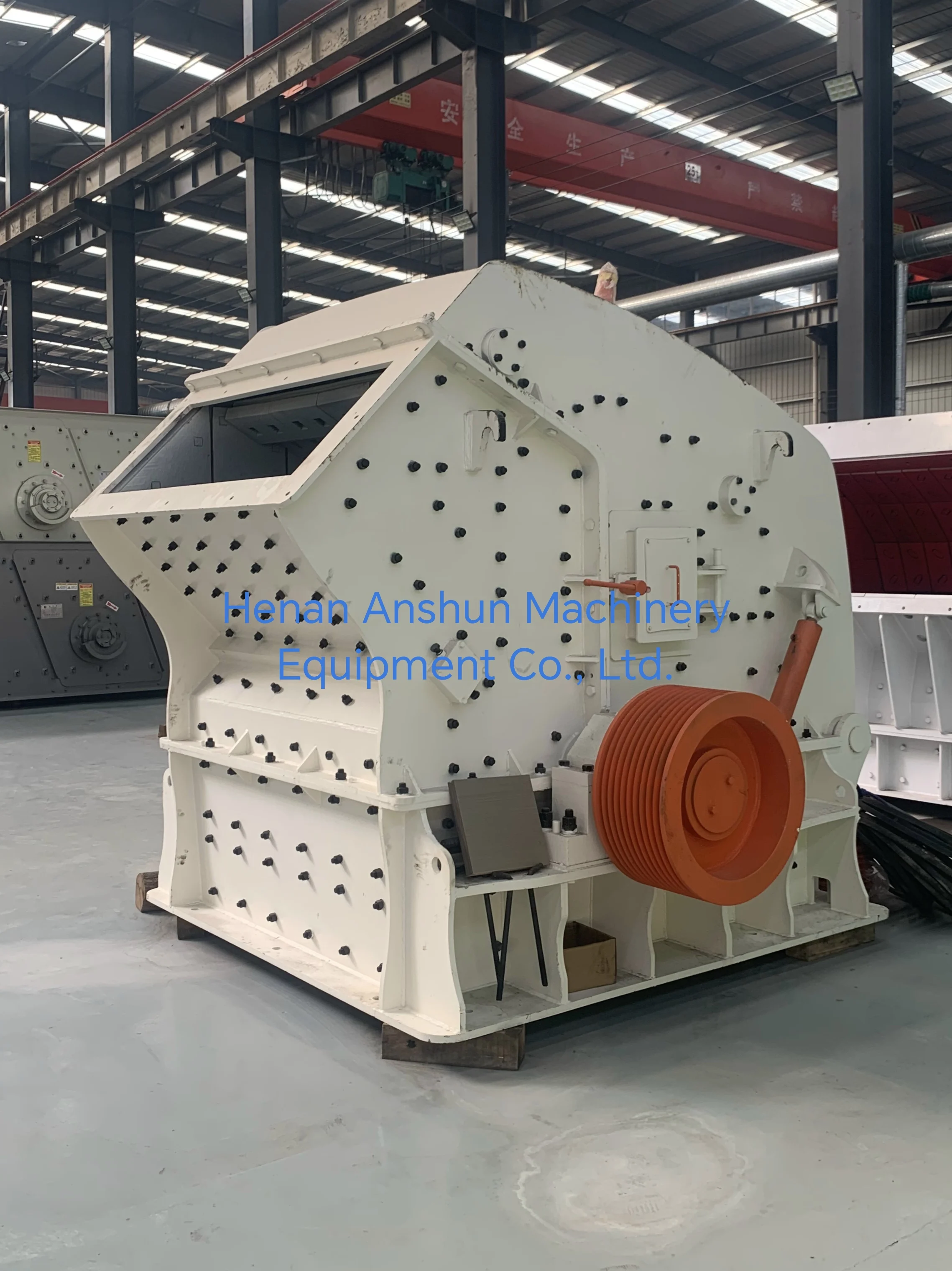

Stone impact crusher used in hydropower highway railway building materials is a crushing machine that uses impact energy to crush materials. This crushing equipment can handle various materials with a particle size not exceeding 1000 mm and a compressive strength not exceeding 350 MPa. It has a large crushing ratio, high crushing efficiency and easy maintenance. The product is cube-shaped and is an ideal processing equipment for aggregates used in highway and hydropower construction. Impact crushers are widely used in highway construction, water conservancy projects and construction gravel processing due to their stable performance.
Working Principle

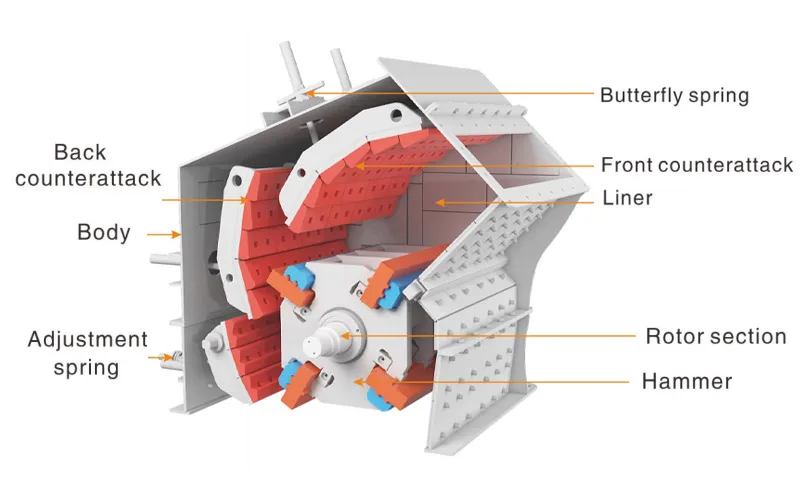

This machine is a crushing equipment that uses impact energy to crush materials. When the material enters the plate hammer action area, it is crushed under the high-speed impact of the plate hammer. It continuously runs
towards the counterattack device installed above the rotor. Then, it bounces off the counterattack liner back to the plate hammer action area and is counterattacked again. Crushing is repeated in the crushing cavity from large to small. Until the material is broken to the required particle size, it is discharged from the lower part of the machine.
towards the counterattack device installed above the rotor. Then, it bounces off the counterattack liner back to the plate hammer action area and is counterattacked again. Crushing is repeated in the crushing cavity from large to small. Until the material is broken to the required particle size, it is discharged from the lower part of the machine.
features

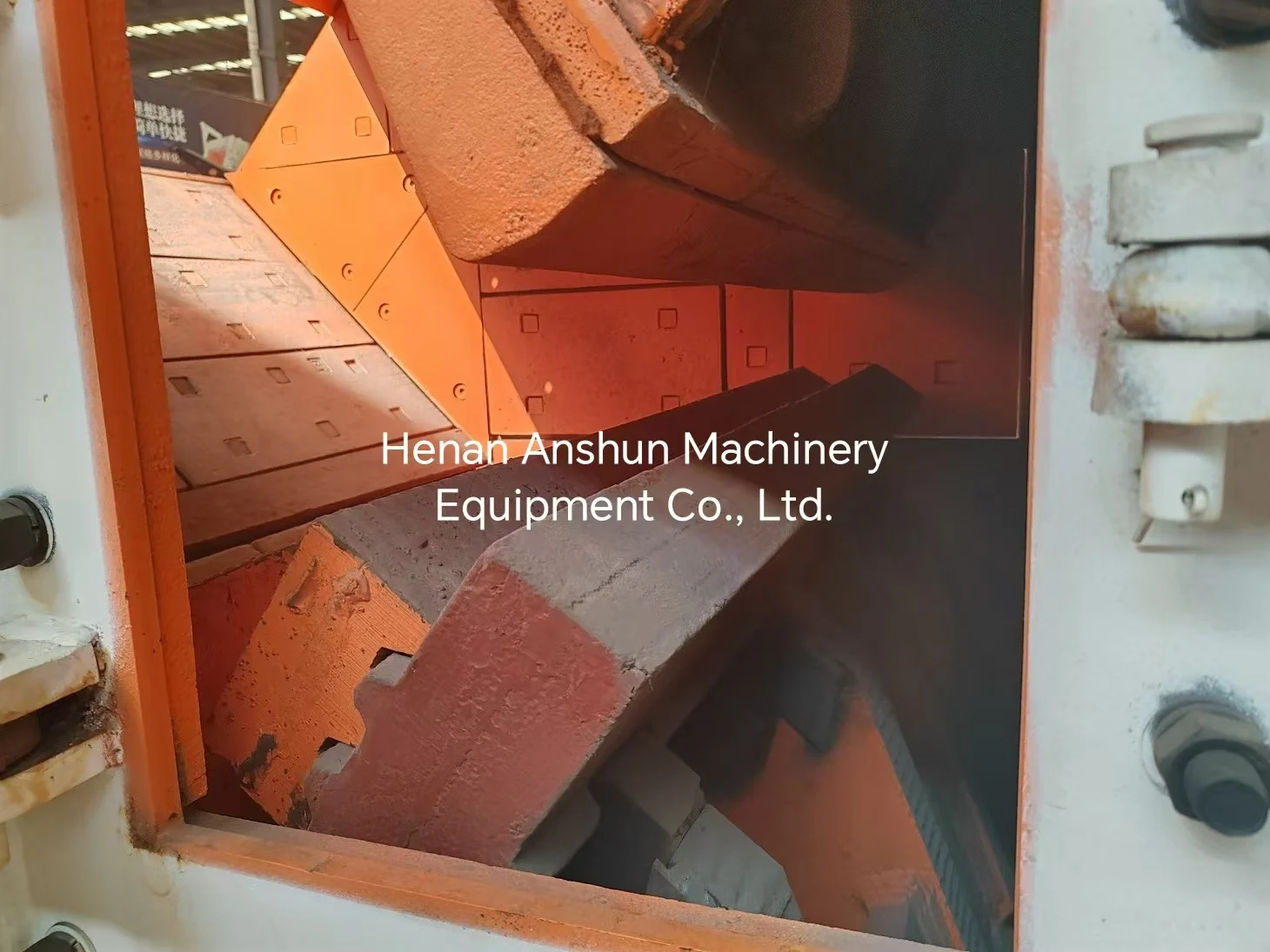

1.The machine has a simple structure, a keyless connection, and a unique impact liner.
2.It is highly efficient and energy-saving in hard rock crushing.
3.The product is shaped like a cube, and the discharge particle size is adjustable, simplifying the crushing process and saving production costs.
Scope of application
It can be used for crushing granite, basalt, limestone and other hard rock materials.It is widely used in the crushing and shaping of hard materials in mining, gravel fields, water conservancy and hydropower, highways, railways, chemical industry, building materials, and other industries.
Technical Data
model | rotor size (mm) | feed inlet size (mm) | Max feed size (mm) | capacity (t/h) | power (kw) | weight (t) |
PF-1007 | 1000×700 | 400×730 | 250 | 30-50 | 37-55 | 9.5 |
PF-1010 | 1000×1050 | 400×1080 | 300 | 50-80 | 55-75 | 14 |
PF-1210 | 1250×1050 | 400×1080 | 300 | 70-120 | 110-132 | 17 |
PF-1214 | 1250×1400 | 400×1430 | 300 | 130-180 | 132-160 | 22 |
PF-1315 | 1320×1500 | 830×1520 | 350 | 160-250 | 185-200 | 26 |
PF-1320 | 1320×2000 | 830×2030 | 400 | 300-350 | 220 | 30 |
PF-1520 | 1520×2000 | 860×2050 | 700 | 300-550 | 2×200 | 49 |
Why Choose Us
Company Profile

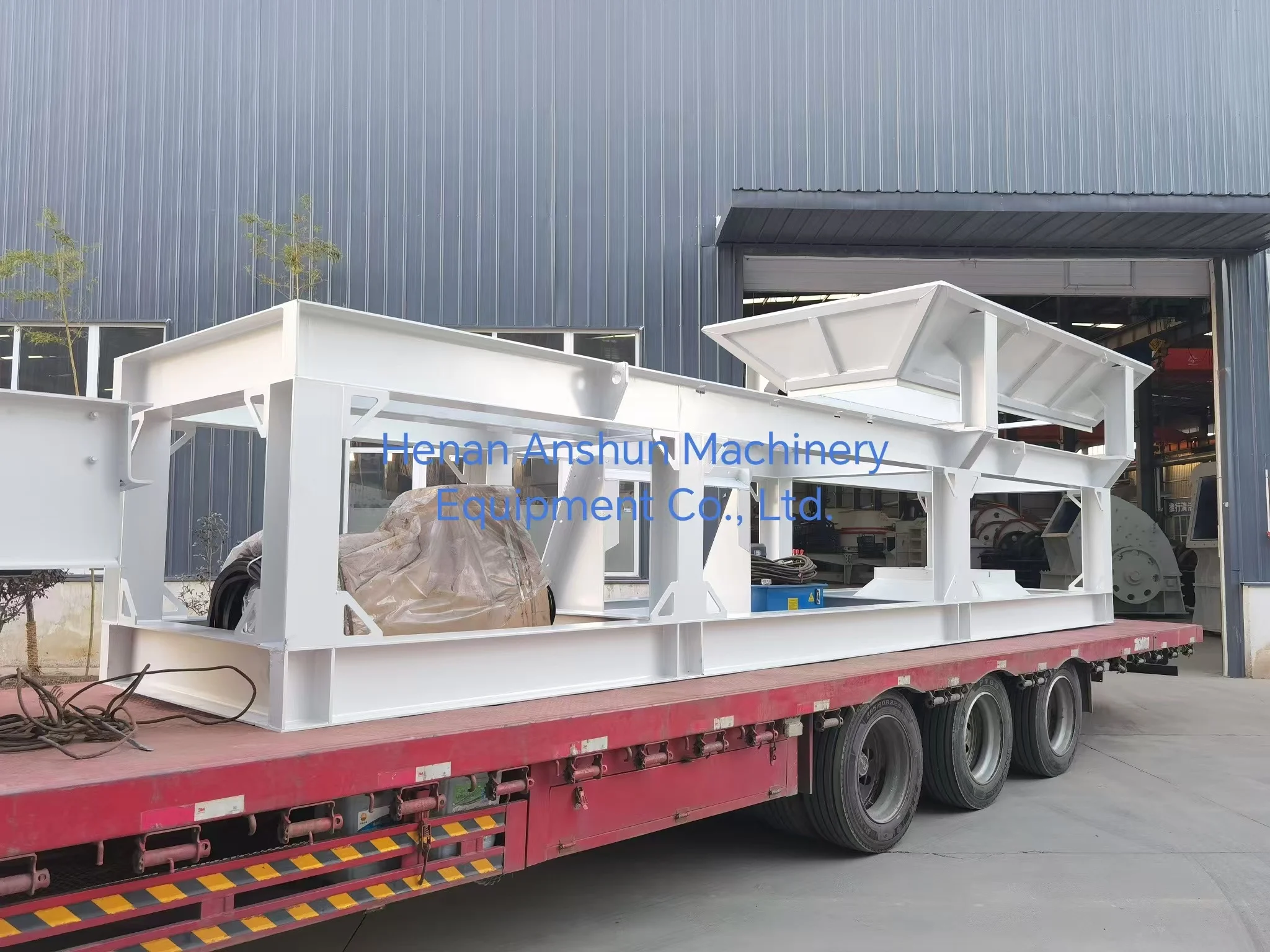

Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry. Packaging & Shipping
Certifications
FAQ
Q1. Are you factory or trade company?
A1. We are manufacturer, and we also supply trade service.
Q2. How about your delivery time?
A2: Generally, it will take 10-25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
