LW32140 SIEMENS 6EP3437 8MB00 2CY0, stabilized power supply, E02

Share on (11000020451218):


Price:$479.36

Quantity:


Product Overview

Description


Product Description

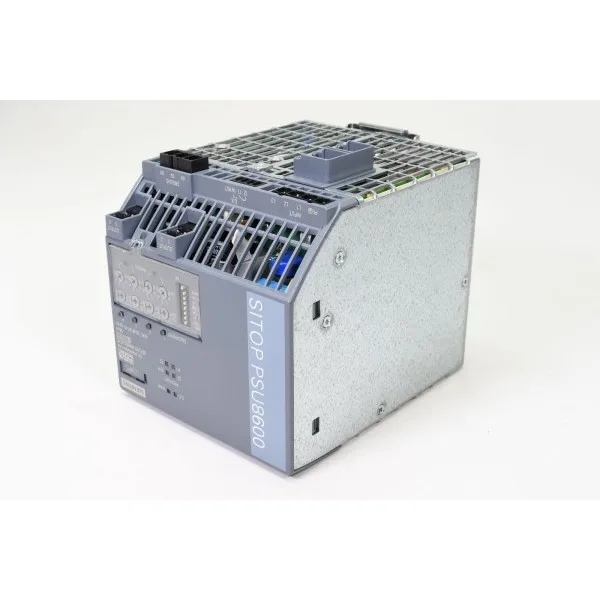

 Siemens AG stabilized power supply, 6EP3437 8MB00 2CY0

Model: 6EP34378MB002CY0


Data:
SITOP PSU8600

Electrical data input:
Form of power network: 3-phase AC
Supply voltage nominal value: min.400V-max.500V
Initial value: 320V; derating 320-360 and 530-575V
Final value: 575V
Mains frequency 1/2 nominal value: 50/60 Hz
Input current at 400-500V: 2.75-2.2 A
Inrush current limitation at 25°C: max.14 A
I2t value: max.2.24 A²·s

Electrical data output:
Waveform of the voltage at the output: regulated, potential-free DC voltage
Number of outputs: 4
Nominal output voltage: 24V DC
relative total tolerance of voltage: 3%
Residual ripple: max.100 mV
voltage peak: max.200 mV
adjustable output voltage: 4-28 V
Output current nominal value: 40 A
Output current per output: 10 A
effective power output: typ.960 W

Efficiency: 93%
Power dissipation at rated output voltage at rated output current: typ.72 W
Power dissipation at no load: max.20 W

Ambient temperature (operating): -25...+60 °C; with natural convection (self-convection)
Ambient temperature (transport/storage): -40...+85°C
Dimensions:
Width/height of housing: 125 mm
Depth of the housing: 150 mm
Distance to be kept:
-top/bottom: 50 mm
-left/right: 0 mm


You need more pictures and information:
Please look here: https://lagerwerk.com/en/Electrics-Mechanics/Automation-Devices/Siemens/25691/SIEMENS-6EP3437-8MB00-2CY0-stabilized-power-supply-E02



Note on the condition
Used: the item has already been used, it may show signs of wear, but it is in good condition and fully functional.

,6EP3437-8MB00-2CY0, 6EP3437 8MB00 2CY0, 6EP34378MB002CY0, Siemens AG, Siemens, stabilized power supply,LW32140,6EP3437-8MB00-2CY0



//sc03.alicdn.com/kf/A36d7379cd5cd425cbb4c93bc773aa6efz/854558414/A36d7379cd5cd425cbb4c93bc773aa6efz.jpg_100x100

Specifications
Attributes
ConditionUsed
Warranty3 months
Quantity1.0
UPCdoes not apply
Product lineSITOP PSU8600
EAN4.025515154471E12
