Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase
Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase

Deye Hybrid Lowvoltage Inverter 12KW 15KW 20KW 25KW Hybrid Solar Inverter 3 Phase

Share on (11000020740067):


Price:$2,099.00-2,300.00

Quantity:


Product Overview

Description



Products Description




Three Phase Hybrid lnverter SUN-14/15/16/18/20K-SG05LP3-EU-SM2
100% unbalanced output, each phase;Max.output up to 50% rated power
AC couple to retroft existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

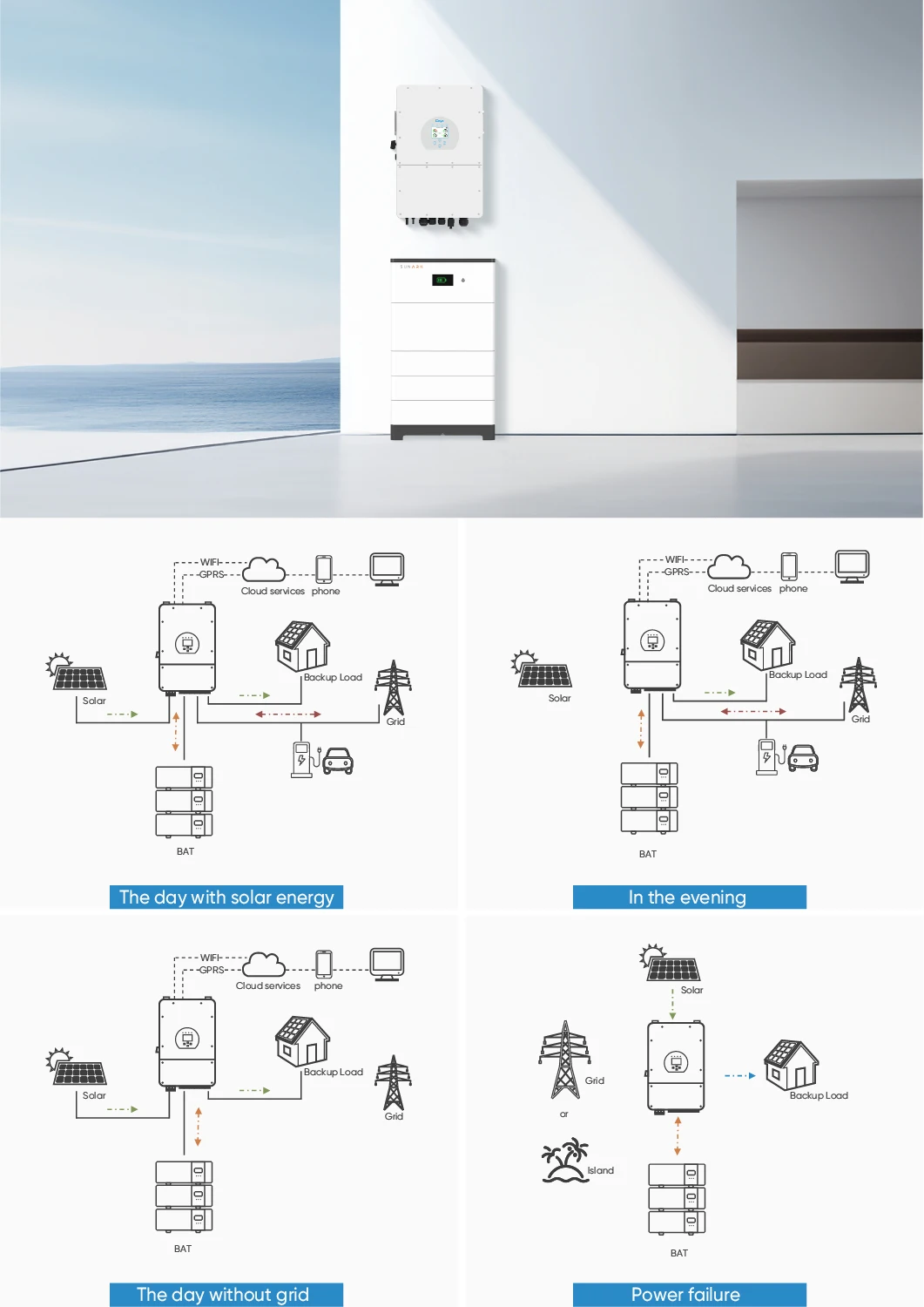

How it work




Technical Data


Model
SUN-14K-SG05LP3-EU-SM2
SUN-15K-SG05LP3-EU-SM2
SUN-16K-SG05LP3-EU-SM2
SUN-18K-SG05LP3-EU-SM2
SUN-20K-SG05LP3-EU-SM2
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
260
280
300
330
350
Max. Discharging Current (A)
260
280
300
330
350
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
1
PV String Input Data
Max. PV Input Power (W)
21000
22500
24000
27000
30000
Max. PV Input Voltage (V)
800




Start-up Voltage (V)
160
MPPT Voltage Range (V)
160-650
Rated PV Input Voltage (V)
550
Max. Operating PV Input Current (A)
36+20
Max. Input Short-Circuit Current (A)
54+30
No. of MPP Trackers/No. of Strings MPP Tracker
2/2+1
Efficiency
Max. Efficiency
97.6%
Euro Efficiency
97.0%
MPPT Efficiency
>99%


Products Series


UE-3/3.6/5/6K-SG04LP1
Output Power: 3-6KW Single PhaseOutput Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
UE-3.6/5/6K-SG03LP1-EU
Output Power: 3.6-6KW Single PhaseOutput Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
UE-3.6/5/6/7.6/8K-SG05LP1-EU
Output Power: 3.6-8KW Single Phase Output Voltage: 220/230/240V Battery Voltage: 40-60V Battery Type: Lead-acid or Lithium-ion


UE-5/6/7.6/8K-SG01LP1-US
Output Power: 5-8KW Split PhaseOutput Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
UE-5/6/8/10/12K-SG04LP3
Output Power: 5-12KW Three Phase Output Voltage: 230/400VBattery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
UE-12/14/16K-SG01LP1
Output Power: 12-16KW Single Phase Output Voltage: 230/400VBattery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion

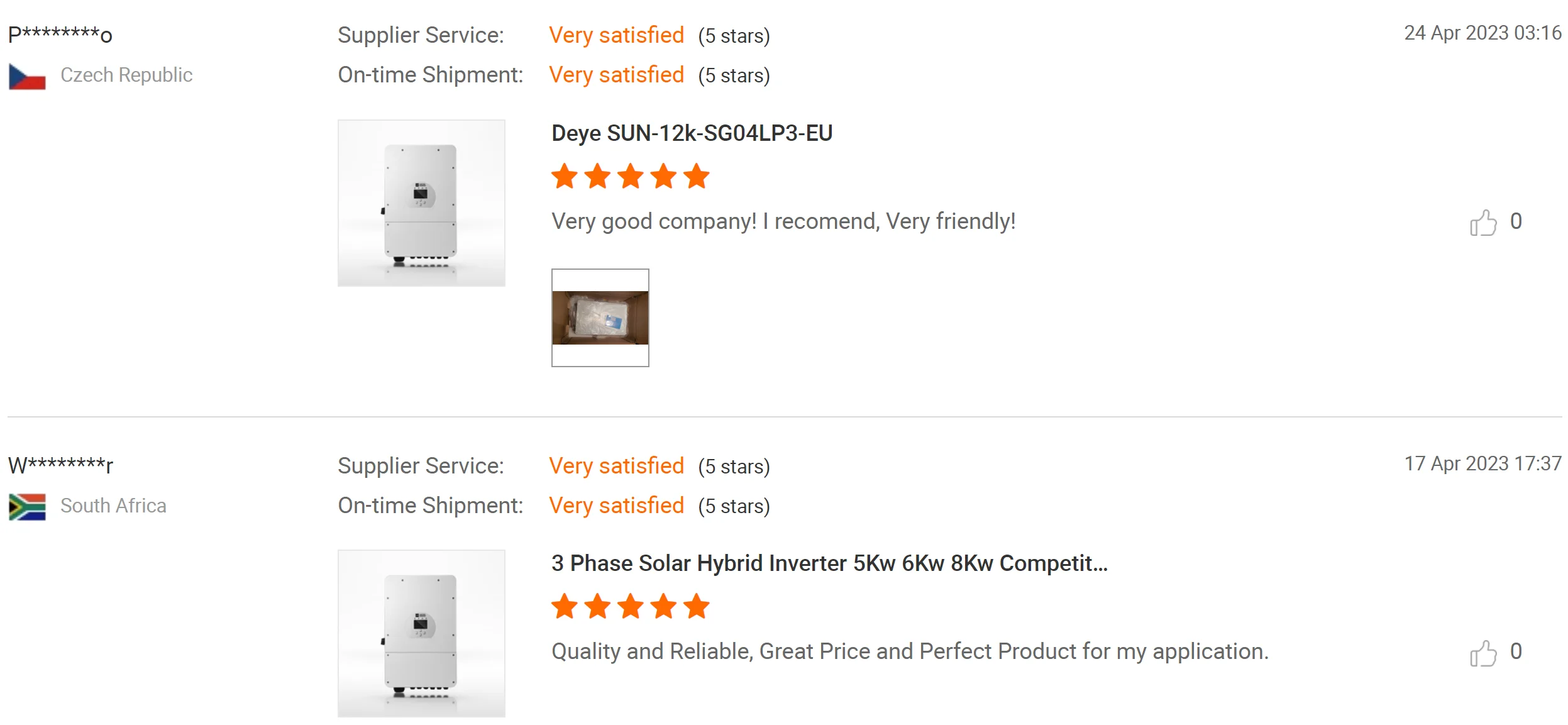

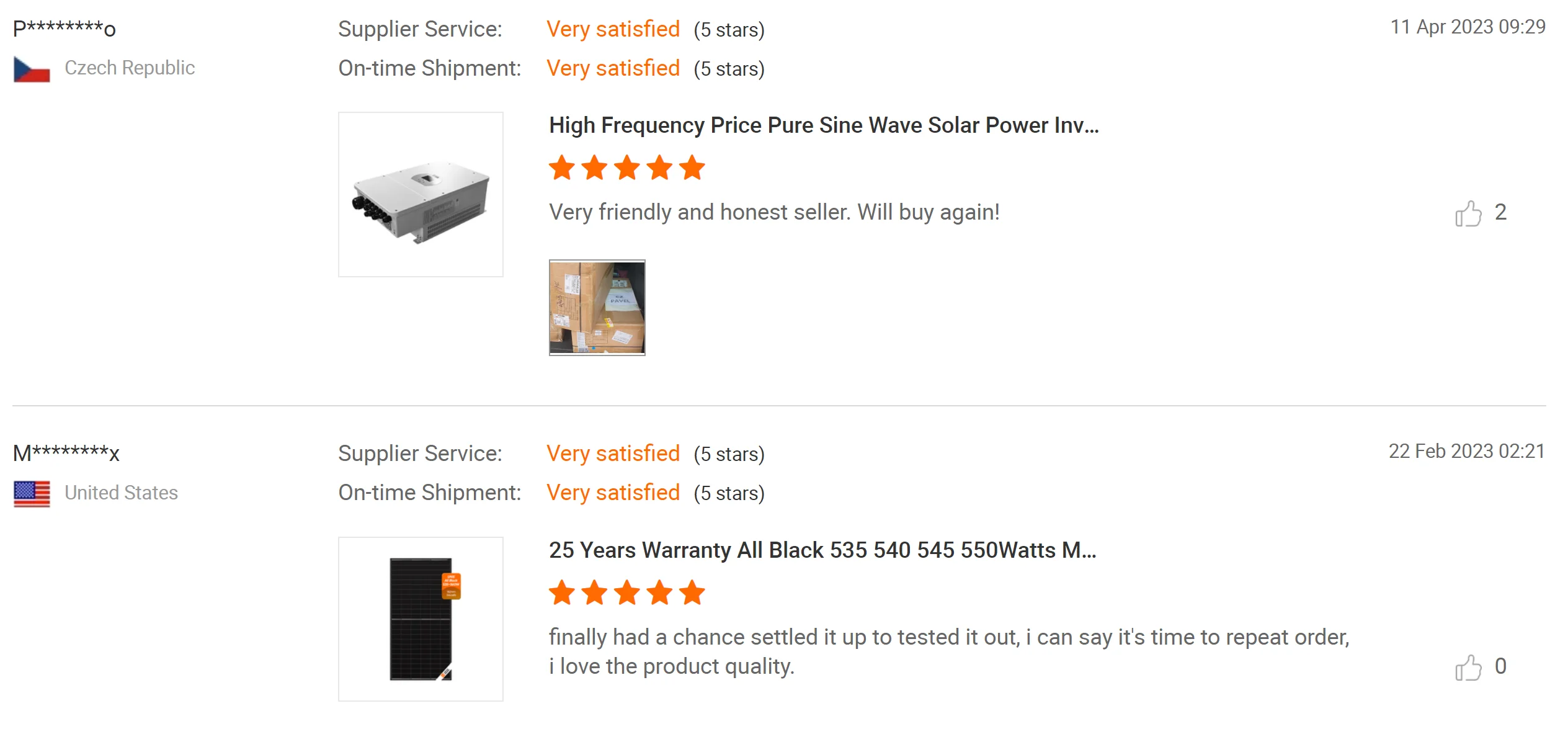

Customer Feedback




What are UE's customers saying?"
Very friendly and honest seller. Will buy again!" "finally had a chance settled it up to tested it out, i can say its time to repeat order. I love the product quality."




What are UE's customers saying?
“Hello Jason,good morning.Finally we got the 30KW hybrid solar system and 100KW on grid installed,now all working great. Our boss is very happy with the result, and we will need your help create United Energy brand here in the US. Thank you for all kind generosity and service you provide we would appreciate if you can send product pictures and technical details so we can start advertising here on our website.”


Get Free Quote Now




UE - Solar Energy Solution Expert - Looking for Agents and Distributors;
50% of the sales engineer has over 10 years of experience;
Well-trained for solar projects from the preliminary design to the completion of the final installation;
Developed hundreds of distributors from the ground up.




FAQ


Q1：How to choose suitable inverter?
A: If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

Q2：How long of the warranty or guaranty?
A: 10 Years on Lithium Batteries, 5 Years for Hybrid inverter

Q3：How does the warranty works?
A: If there were any quality problems during the warranty period,we will check it technically thought pictures or videos provided from the project site,solutions will be provided in 1 working day according to the specific situation (send new parts or replace with a new product for free for you if it's product quality problem).

Q4：How can i know the quality of your product?
A: We can have online video call with you any time, so you can monitor the whole production process, you can also send 3rd party to our factory for goods inspection, the whole set of test report can be presented when production is finished.

Q5：Do you have MOQ?
A: We do not have MOQ, small order is welcome to test our quality.
Fully confident that you will love our quality and service.
