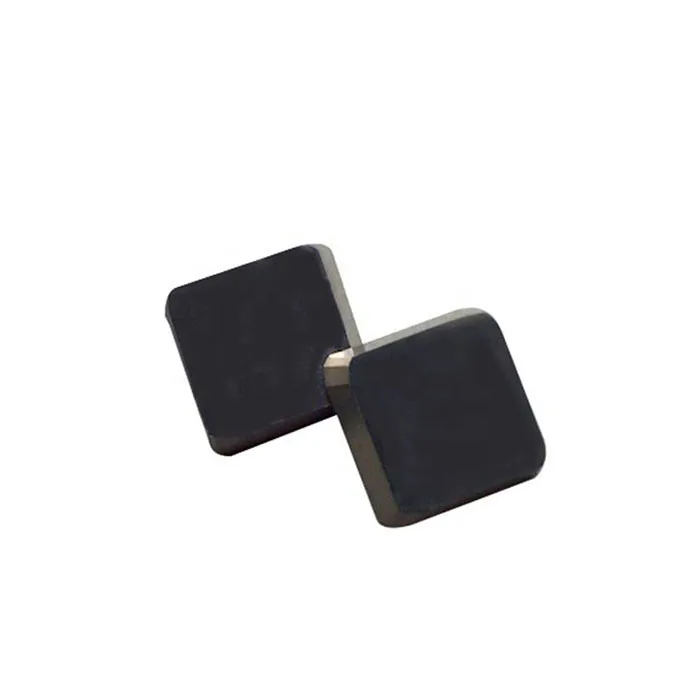

remarkable cbn inserts SNMN090404/SNMN090412 for Wear-resistant cast iron rollers cbn cutting tools

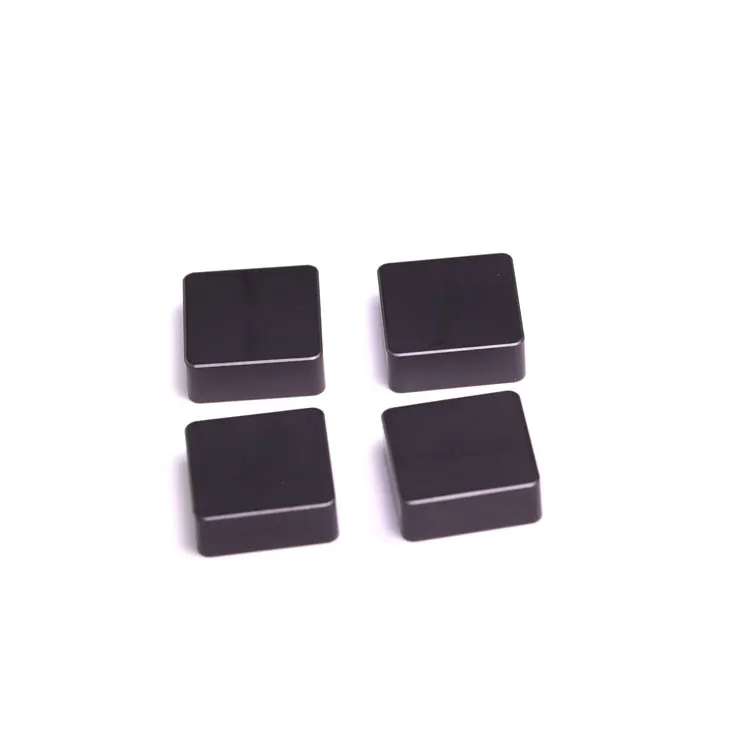

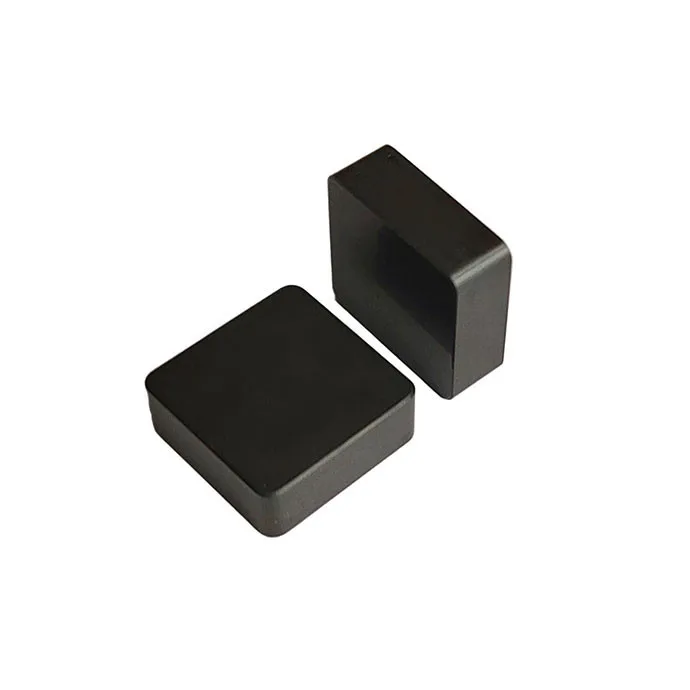

SNMN series CBN solid inserts (abbreviated as CBN inserts) are square in shape and are often called SNGN. Under the action of high temperature and ultra-high pressure of the six-sided top hydraulic press, it is sintered and synthesized, which has strong wear resistance, heat resistance and chemical stability.
High stability SNMN/SNGN CBN cutting tool inserts are designed to meet the demands of hard part turning on super alloys. Super alloys are known for their exceptional high-temperature strength, excellent corrosion, and oxidation resistance, which make them ideal for use in aerospace, energy, and chemical processing industries. However, these properties also make them exceptionally difficult to machine, especially with conventional cutting tools.
One key feature of the SNMN CBN cutting tool insert is its high stability, which is crucial for precision machining on super alloys. This stability is achieved through innovative design and advanced manufacturing processes, which result in a rigid and durable tool. The inserts feature a unique geometry that ensures smooth chip evacuation and reduces cutting forces, minimizing the risk of tool breakage. The CBN material also enhances the stability of the cutting tool by resisting wear, fracture, and temperature-induced deformation.
PRODUCT RANGE
What products we offered ？

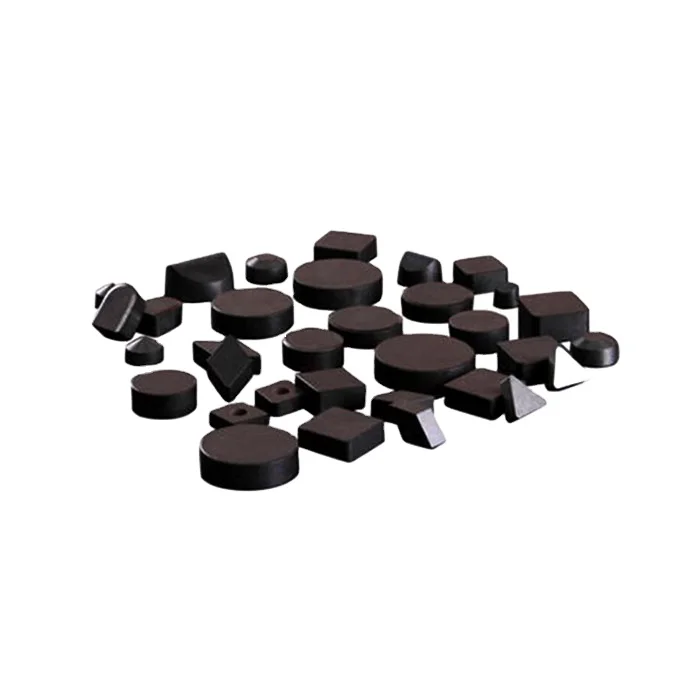

Our products include a variety of ISO standard model cutting tools, such as solid CBN Inserts, composite PCBN inserts, coated PCBN inserts, wiper CBN Inserts, and Chip-breaker CBN Inserts. We also accept customized orders for non-standard CBN Inserts based on drawings.

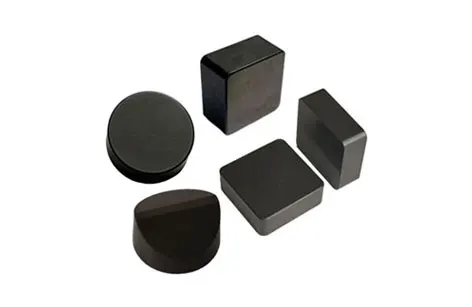

Solid CBN Inserts
SBN800
Low-hardness, Good Toughness.
The ultimate grade for cast iron processing, balancing lifespan and cost-effectiveness.
SBN850
Moderate hardness and toughness.
Suitable for machining both cast iron and hardened steel materials. More universal.
SBN900
High hardness, low toughness.
Suitable for machining high hardness steel.
SNMN CBN cutting tool inserts are made from a superhard material called cubic boron nitride (CBN), which is second only to diamond in hardness. Compared to traditional cutting tools, CBN inserts offer a significantly longer tool life, increased productivity, and reduced manufacturing costs. These inserts come in a range of sizes, including SNMN1207, SNMN1507, and SNMN2010, to accommodate different machining applications.

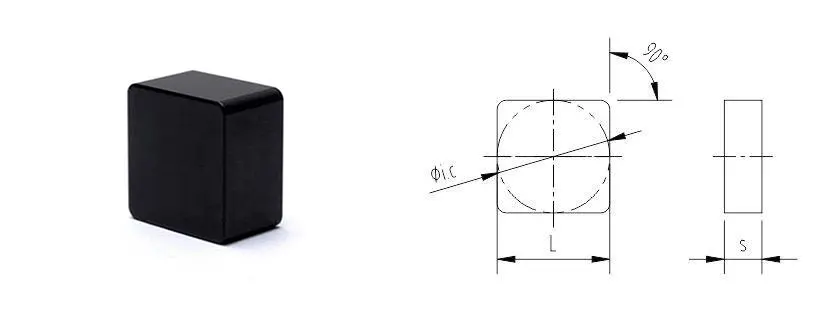

Solid CBN Inserts SNMN/SNGN | ||||||||
Model | L(mm) | Φ(mm) | S(mm) | r(mm) | ||||
SNMN090304 | 9 | 9.525 | 3.18 | 0.4 | ||||
SNMN090308 | 9 | 9.525 | 3.18 | 0.8 | ||||
SNMN090312 | 9 | 9.525 | 3.18 | 1.2 | ||||
SNMN090404 | 9 | 9.525 | 4.76 | 0.4 | ||||
SNMN090408 | 9 | 9.525 | 4.76 | 0.8 | ||||
SNMN090412 | 9 | 9.525 | 4.76 | 1.2 | ||||
SNMN120404 | 12 | 12.7 | 4.76 | 0.4 | ||||
SNMN120408 | 12 | 12.7 | 4.76 | 0.8 | ||||
SNMN120412 | 12 | 12.7 | 4.76 | 1.2 | ||||
SNMN120712 | 12 | 12.7 | 7.94 | 1.2 | ||||
SNMN120716 | 12 | 12.7 | 7.94 | 1.6 | ||||
SNMN150716 | 15 | 15.875 | 7.94 | 1.6 | ||||
SNMN201020 | 20 | 20 | 10 | 2 | ||||
APPLICATION

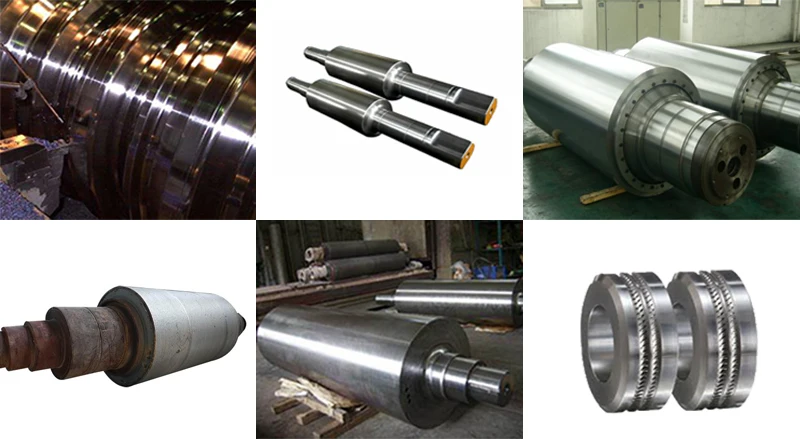

Common Rolls Materials include Cast Iron Rolls, Cast Steel Rolls, These rolls are general of high hardness, prone to casting defects, and difficult to process.
Therefore, the cbn inserts is the most suitable choice because it has the following advantages:
1. Excellent surface finish;
2. High speed turning, high performance;
3. More flexibility in machining;
4. Less investment in machines;
5. Not required coolant;
6. Easier in recycling and treatment of chips;
7. Easier in removal of outlet of chips.
Therefore, the cbn inserts is the most suitable choice because it has the following advantages:
1. Excellent surface finish;
2. High speed turning, high performance;
3. More flexibility in machining;
4. Less investment in machines;
5. Not required coolant;
6. Easier in recycling and treatment of chips;
7. Easier in removal of outlet of chips.
