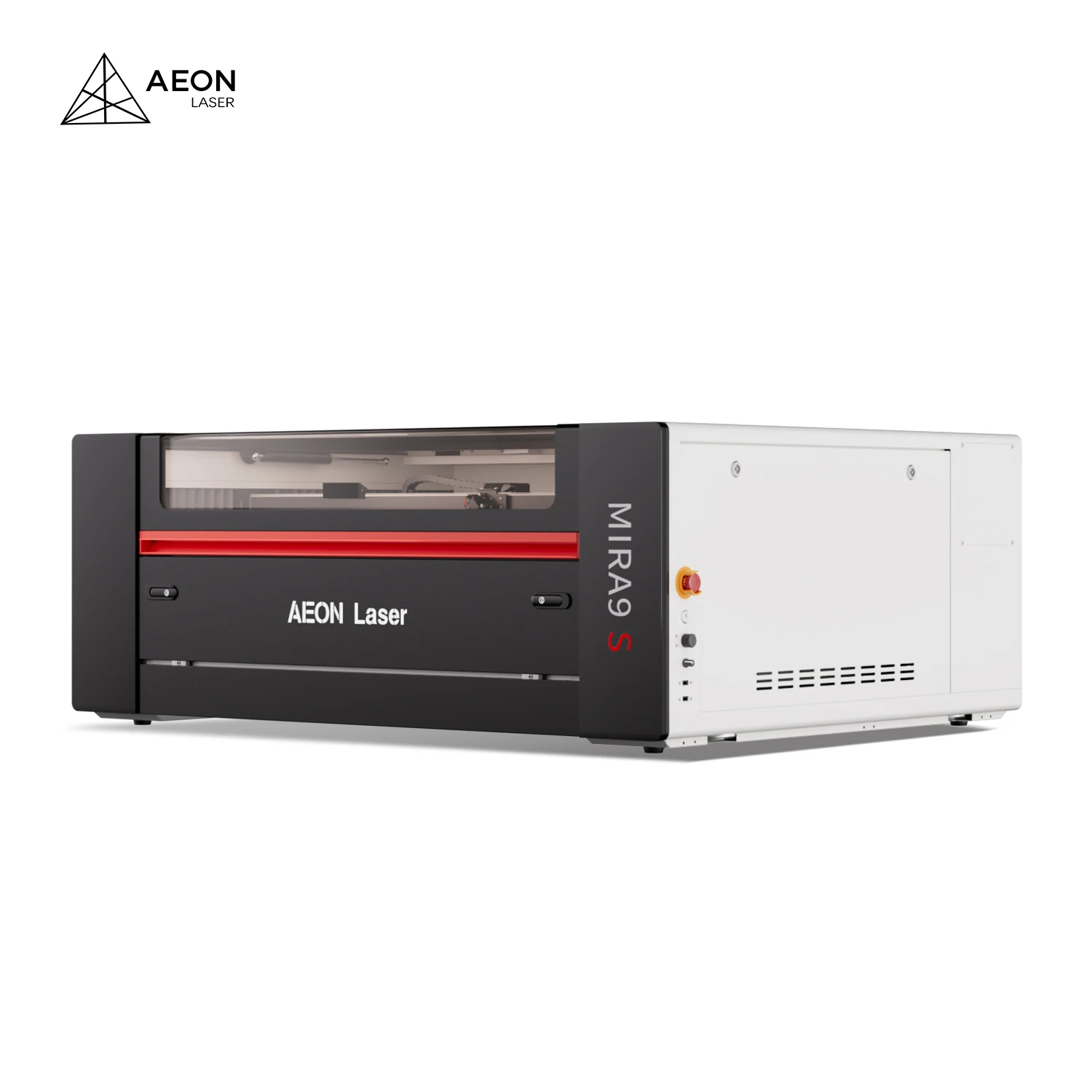

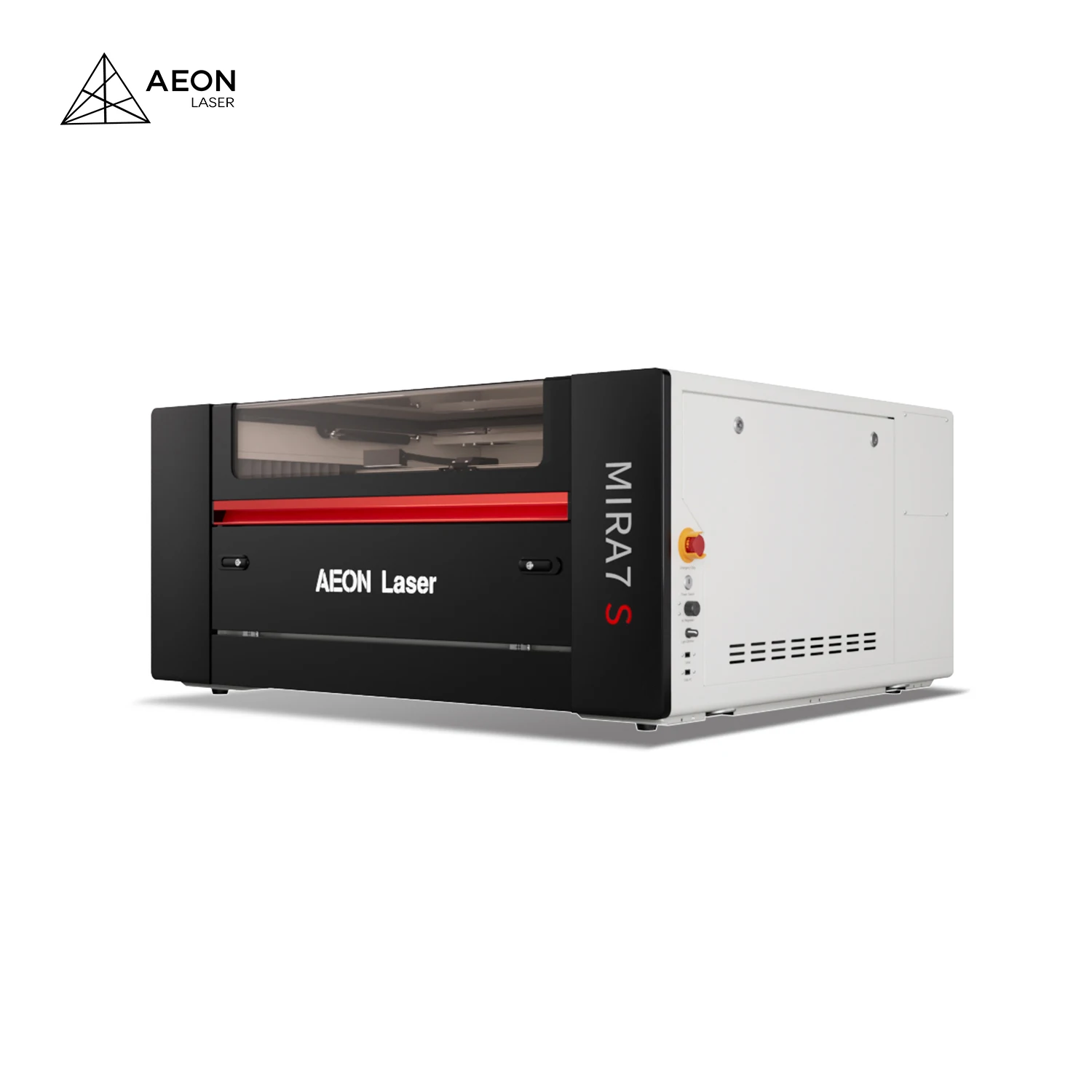

AEON REDLINE MIRA S 5030 7050 9060 tumbler laser engraving machine
- Category: >>>
- Supplier: Suzhou Aeon Laser Technology Co. Ltd.Suzhou Ltd.
Share on (11000020906695):
Product Overview
Description

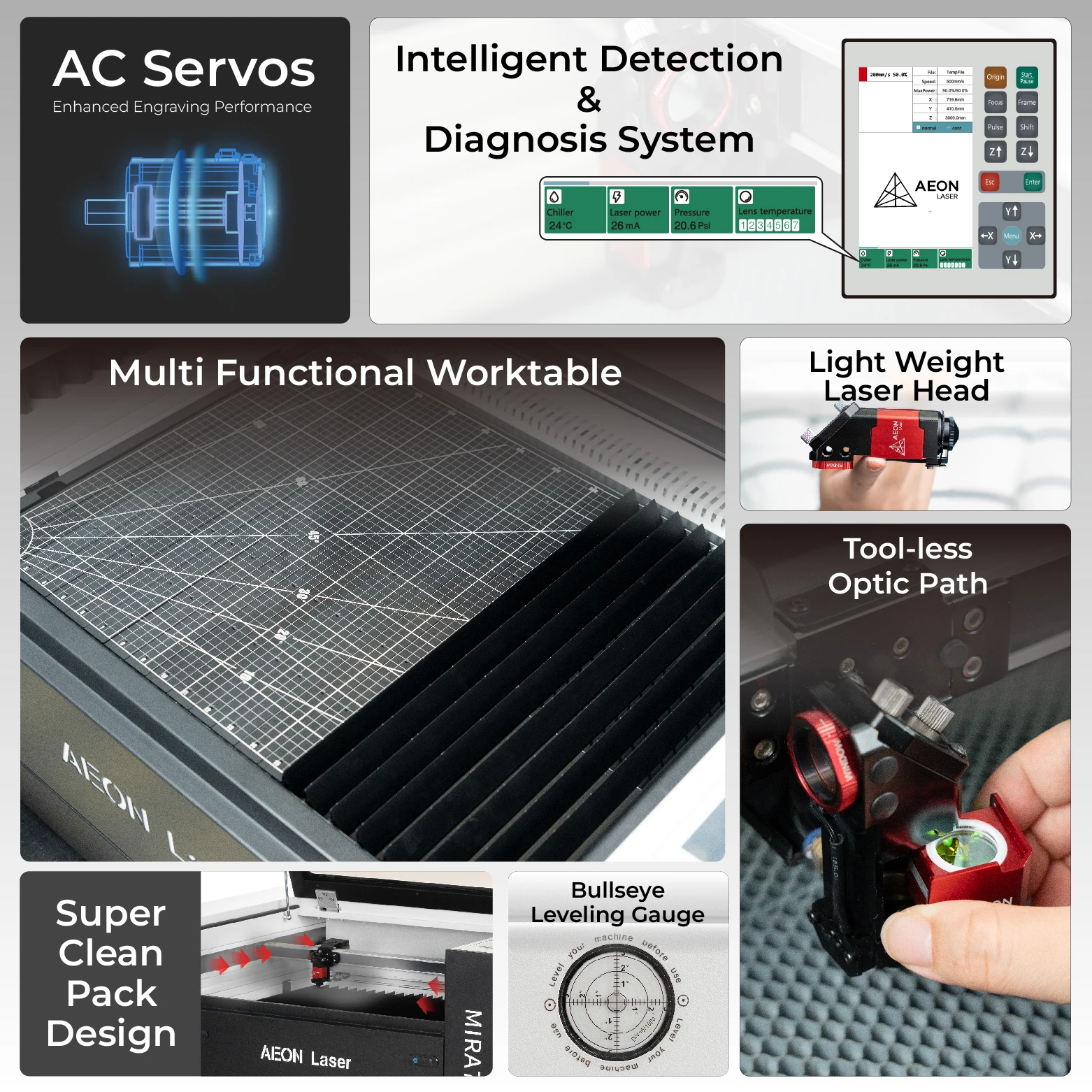

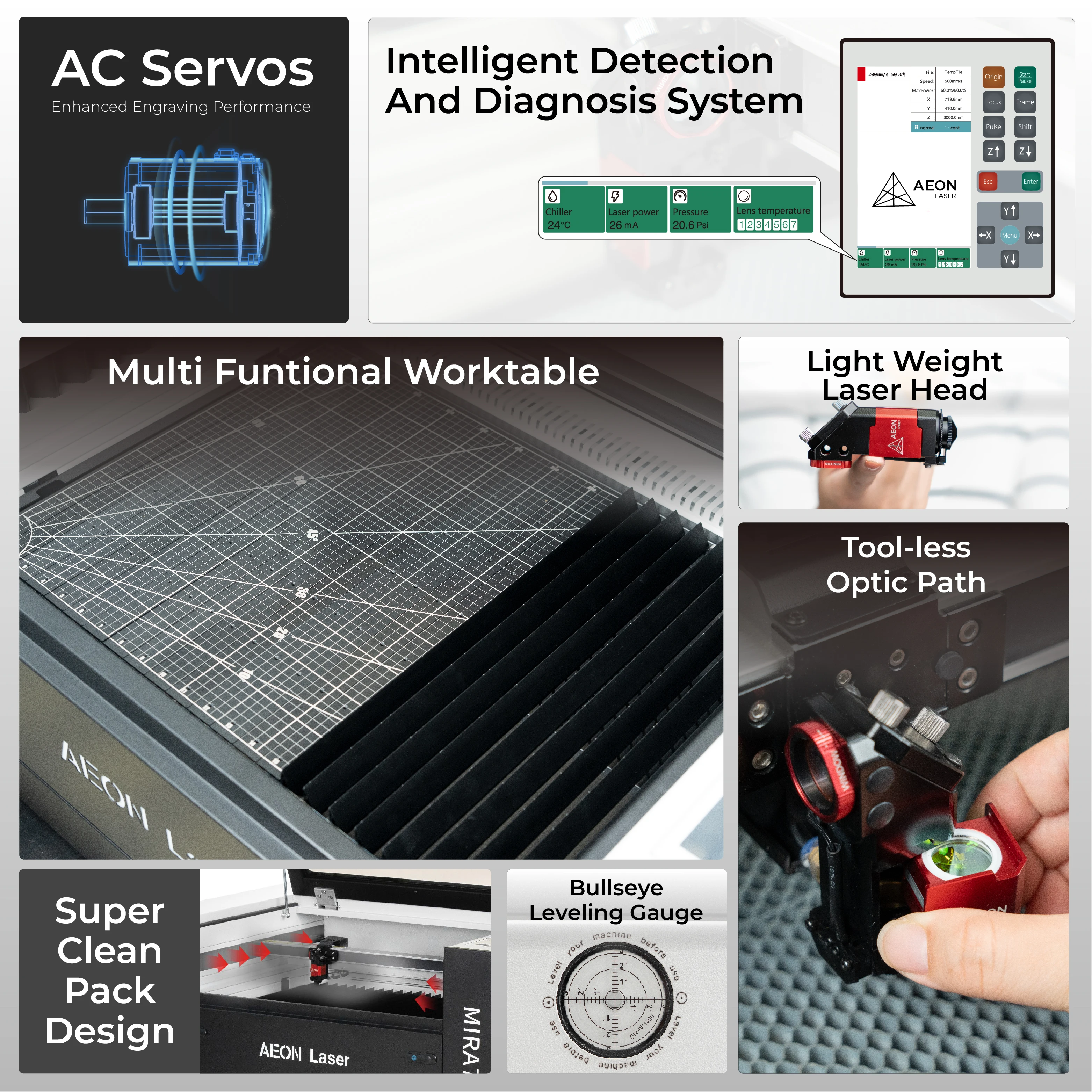

Main Features
Product Paramenters
Parameters | Model | MIRA5 S | MIRA7 S | MIRA9 S | |||
Working Scope | Working Area (mm) | 500*300mm | 700*500mm | 900x600mm | |||
Z Axis Lifting Space | 140mm | 140mm | 150mm | ||||
Max Lifting Capacity | 15KG | 25KG | 25KG | ||||
RF: 30W/60W | RF: 30W/60W | RF: 30W/60W | |||||
Max Engraving Speed | 3500mm/s (RF) 1200mm/s(Glass) | 4000mm/s (RF) 1200mm/s (Glass) | 4000mm/s (RF) 1200mm/s (Glass) | ||||
Acceleration | 8G (RF) 5G (Glass) | 8G (RF) 5G (Glass) | 8G (RF) 5G (Glass) | ||||
Motor | AC Servos (RF) DC Steppers (Glass) | AC Servos (RF) DC Steppers (Glass) | AC Servos (RF) DC Steppers (Glass) | ||||
Minimum Font Size(RF Tube) | 1.0x1.0mm | 1.0x1.0mm | 1.0x1.0mm | ||||
Multi Functional WorktablePositioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | ||||
Working Table | Multi Functional Worktable | Honeycomb + Multi Functional Worktable | Honeycomb + Multi Functional Worktable | ||||

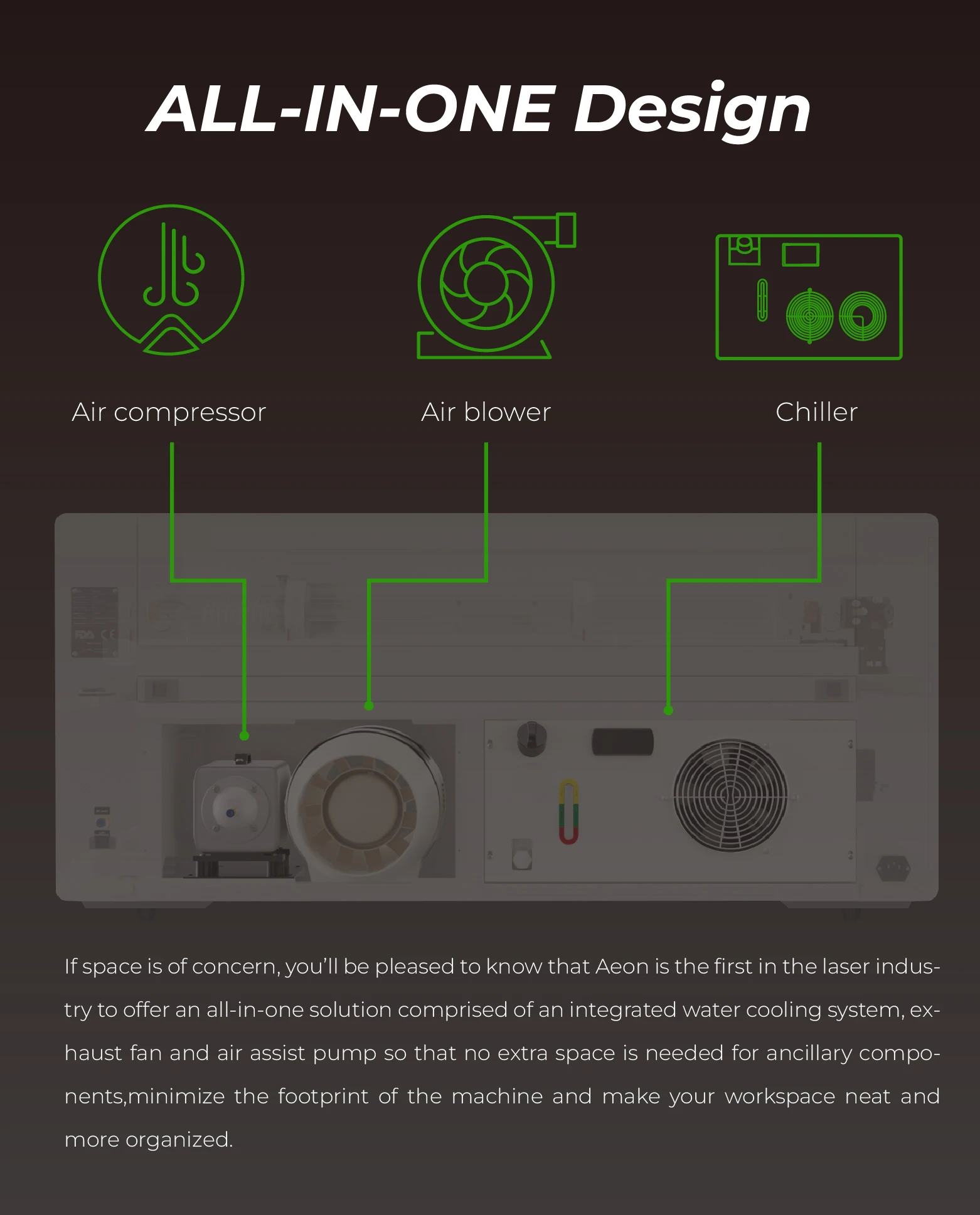

Cooling system | Glass: Built-in 3000 chiller RF: Air-cooled | Glass: Built-in 3000 chiller RF: Air-cooled | Glass: Built-in 5000 chiller RF: Air-cooled | ||||
Fume Exhaust Fan | Built-in inline 60W | Built-in inline 75W | Built-in inline 75W | ||||
Air Assis | Built-in 45W | Built-in 85W | Built-in 85W | ||||
XY axis fully dust-proof | √ | √ | √ | ||||
Auto Focus | √ | √ | √ | ||||
Wireless Connectivity | √ | √ | √ | ||||
Red Dot Positioning | √ | √ | √ | ||||
Material Pass Through Door | √ | √ | √ | ||||
Camera | 160° 5MP（2592x1944） | 90° 5 MP (2592 x 1944) | 90° 5 MP (2592 x 1944) | ||||
Tooless optical system | √ | √ | √ | ||||
Internal Memory | 1G | 1G | 1G | ||||
Smart Panel (monitoring function) | × | √ | √ | ||||
Fault alarm and diagnosis | × | √ | √ | ||||
Operation status light | √ | √ | √ | ||||
Water Flow Protection | √ | √ | √ | ||||
Water Temperature Alarm | × | × | × | ||||
Operating Software | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | ||||
Compatible Design Software | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | ||||
Laser Class | Class 1 laser product | Class 1 laser product | Class 1 laser product | ||||
Cover lid interlock | √ | √ | √ | ||||
Side panel lid interlock | √ | √ | √ | ||||
Key lock | √ | √ | √ | ||||
Package | Machine Dimension(mm) | 900*700*410 | 1128*945*510 | 1328*1070*530 | |||
Net Weight (KG) | 110 | 180 | 220 | ||||
Gross Weight(KG) | 125 | 230 | 290 | ||||
Optionals | Rotary Clamp/Lightburn Software /Air Purifier | ||||||

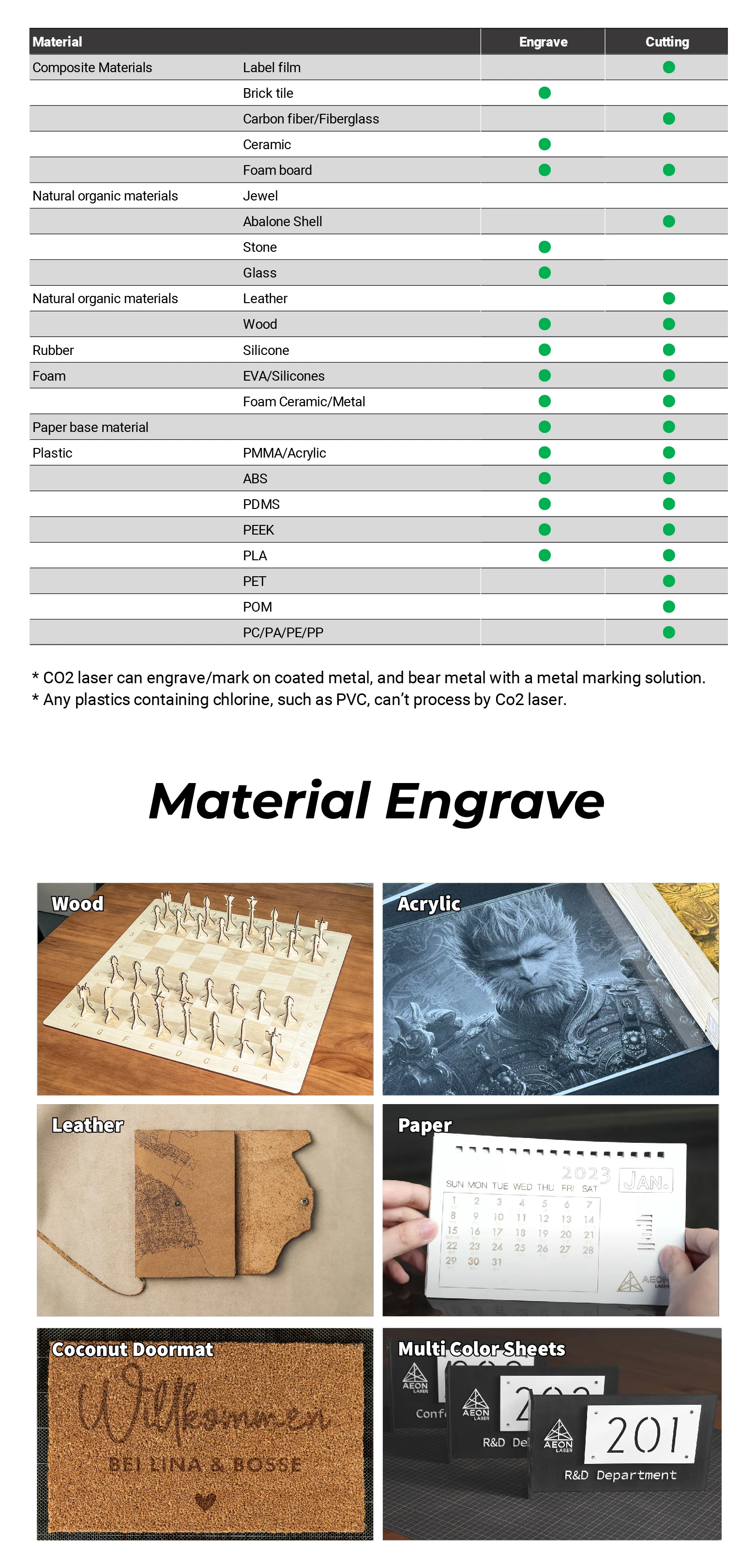

Application

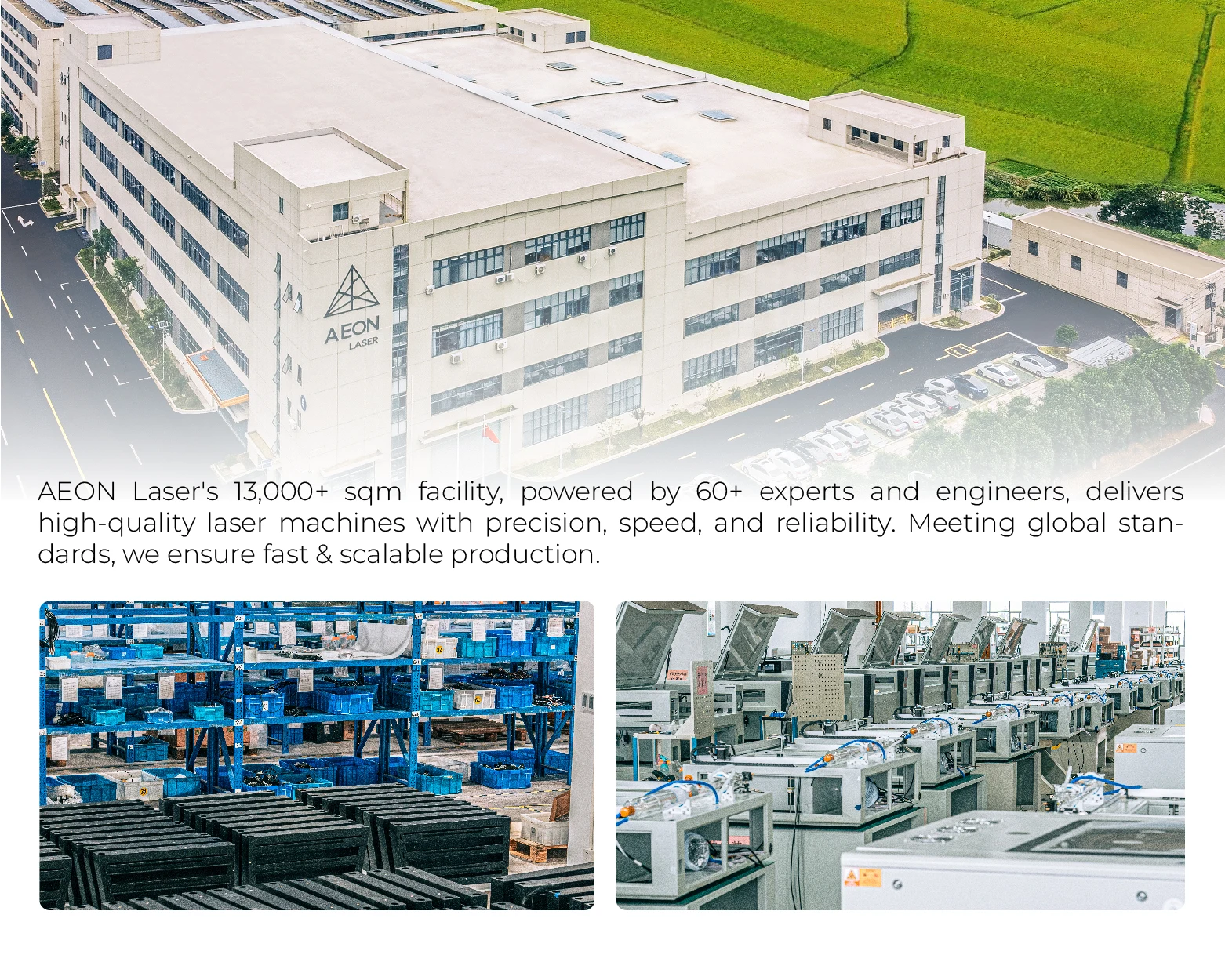

Company Profile
Certifications
Exhibition
FAQ
1.I know nothing about this machine, what kind of machine should I choose?
Just tell us what you want to do by using a laser machine, and then let us give you professional solutions and suggestions.
Please tell us this information, we will recommend the best solution.
1)Your materials
2) Max size of your material
3)Max cut thickness
4)Common cut thickness
2.When I got this machine, but I don’t know how to use it. What should I do?
We will send videos and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and
e-mail.
3.What about the warranty period?
Our machine comes with a one-year warranty. Additionally, laser tubes, mirrors, and focus lenses are covered for six months,
except for RECI laser tubes, which have a 12-month warranty. Guide rails are under warranty for two years. If any issues arise
during the warranty period, we will provide free replacement parts.
Just tell us what you want to do by using a laser machine, and then let us give you professional solutions and suggestions.
Please tell us this information, we will recommend the best solution.
1)Your materials
2) Max size of your material
3)Max cut thickness
4)Common cut thickness
2.When I got this machine, but I don’t know how to use it. What should I do?
We will send videos and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and
e-mail.
3.What about the warranty period?
Our machine comes with a one-year warranty. Additionally, laser tubes, mirrors, and focus lenses are covered for six months,
except for RECI laser tubes, which have a 12-month warranty. Guide rails are under warranty for two years. If any issues arise
during the warranty period, we will provide free replacement parts.
