Factory Direct 15.6' Embedded 1920*1080 Tablet Computer J1900 J6412 I3 I5 I7 Rugged Industrial Touch Panel PC IP65 Waterproof
- Category: >>>
- Supplier: Shenzhen Inctel Technology Co. Ltd.Shenzhen Ltd.
Share on (11000021553637):
Product Overview
Description
Product Description
Note: We have different kinds of Industrial Panel PC, if you have some interests ,and want to know more details ,Please feel free Click Here to Contact us ,We will offer you the best price .
15.6 Inch Industrial Panel PC Intel Celeron or Core Processor
CPU Optional:
1. Intel Celeron Processor J1900
2. Intel Celeron Processor J6412
3. Intel Core I5 Gen. 3th CPU, ship any one of them
4. Intel Core I3 Gen. 4th CPU, ship any one of them
5. Intel Core I5 Gen. 4th CPU, ship any one of them
6. Intel Core I5 Gen. 6th CPU, ship any one of them
CPU Optional:
1. Intel Celeron Processor J1900
2. Intel Celeron Processor J6412
3. Intel Core I5 Gen. 3th CPU, ship any one of them
4. Intel Core I3 Gen. 4th CPU, ship any one of them
5. Intel Core I5 Gen. 4th CPU, ship any one of them
6. Intel Core I5 Gen. 6th CPU, ship any one of them
7. Intel Core I5 Gen. 11th CPU, ship any one of them
8. Intel Core I7 Gen. 6th CPU, ship any one of them
9. Intel Core I5 Gen. 8th CPU, ship any one of them
10. Intel Core I7 Gen. 8th CPU, ship any one of them
11. Intel Core I7 Gen. 11th CPU, ship any one of them

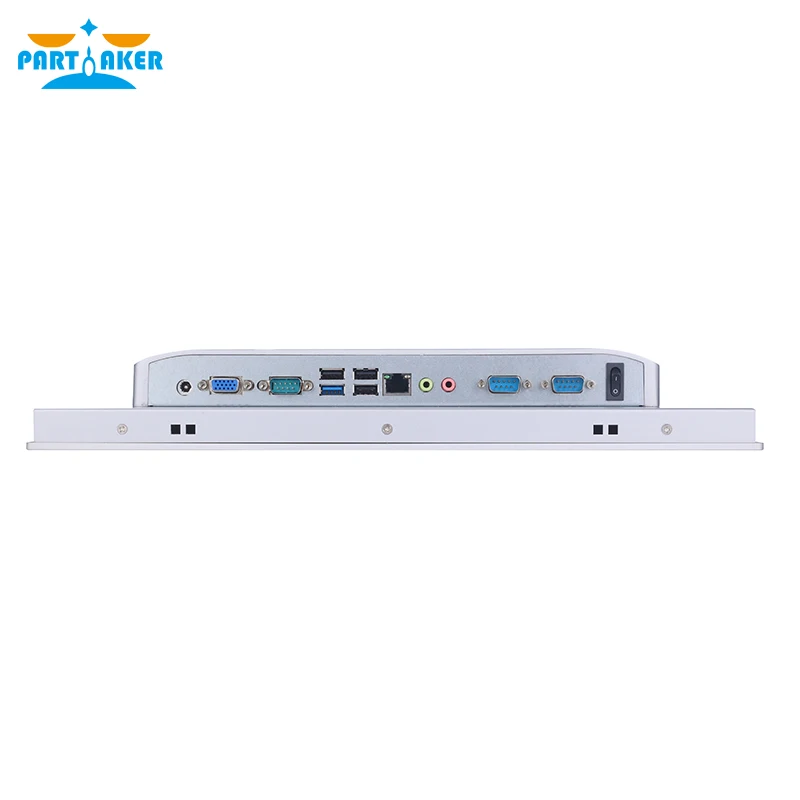

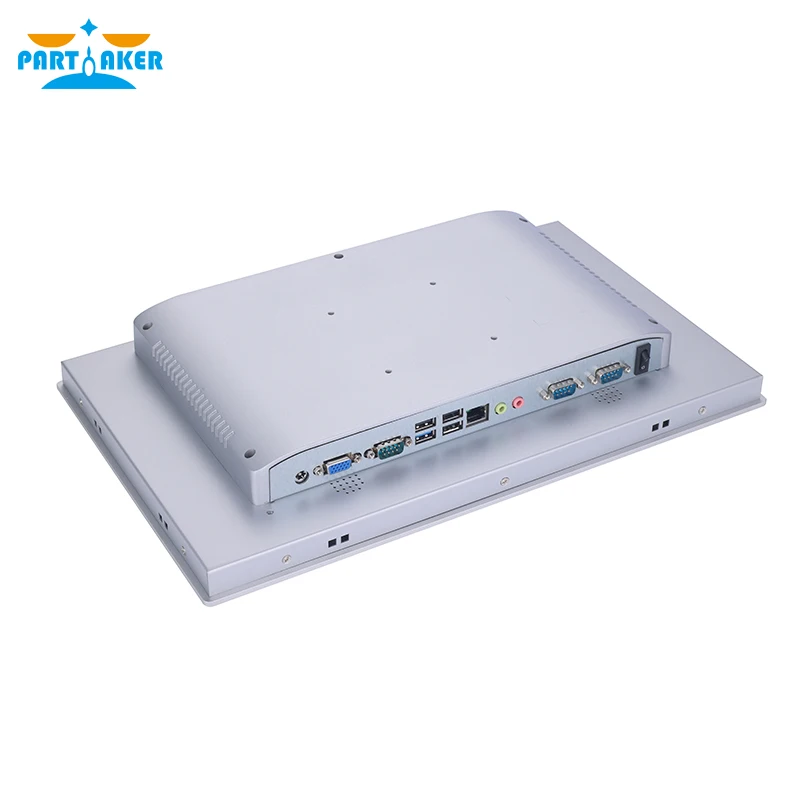

I/O Ports:
J1900: DC12V*1/VGA*1/LAN*1/USB2.0*3/USB3.0*1/AUDIO*2/COM*3
J6412: DC12V*1/HDMI*1/LAN*2/USB3.0*4/AUDIO*1/COM*3
I5 3317U: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*4/AUDIO*2/COM*2
I5 3317U: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*4/AUDIO*2/COM*2
I3 4000U: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I5 4200U: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I5 1135G7: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I5 6200U: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I7 6500U: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I5 8265U: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I7 8565U: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
I7 1165G7: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2
Characteristic

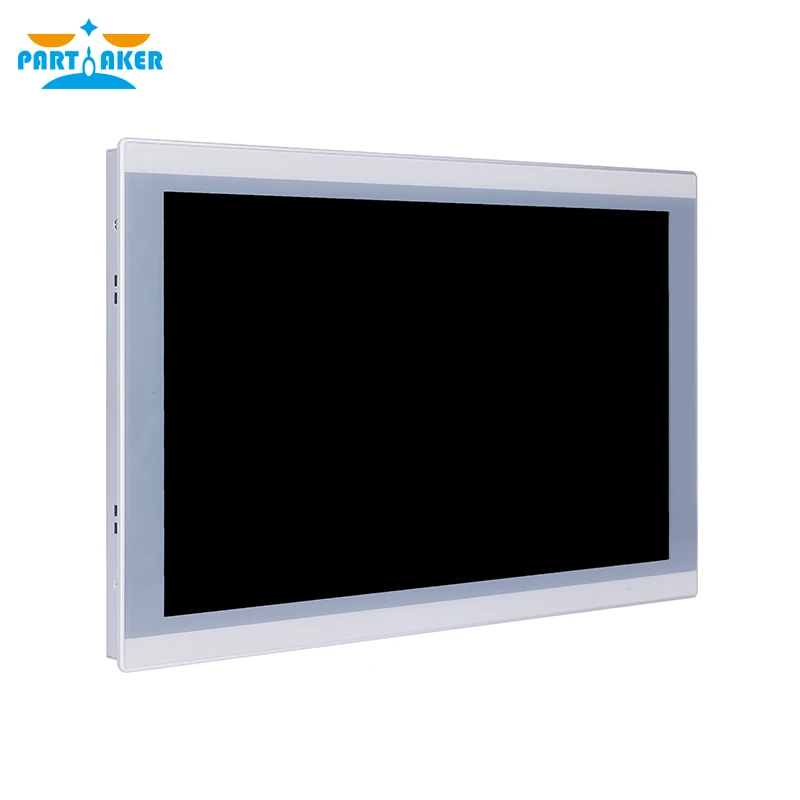

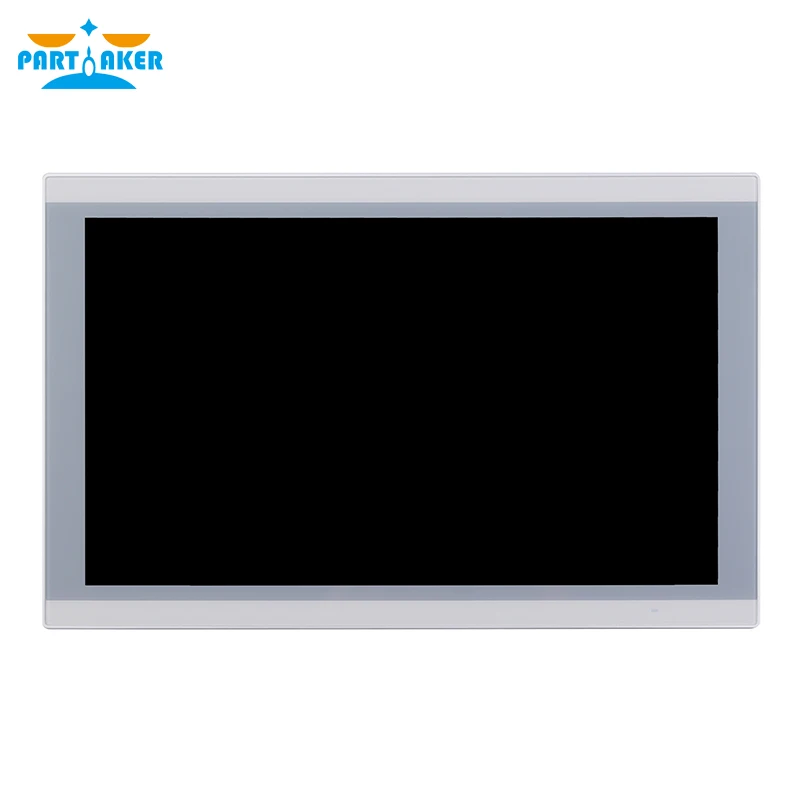

15.6" TFT LED panel
10-point capacitive touch screen
Optional Intel® Celeron® or Core processor
Aluminum alloy housing, compact fanless design
Front panel protection grade IP65
Support full-size Mini PCIe expansion
Support USB 3.0
Support Windows Embedded and LINUX

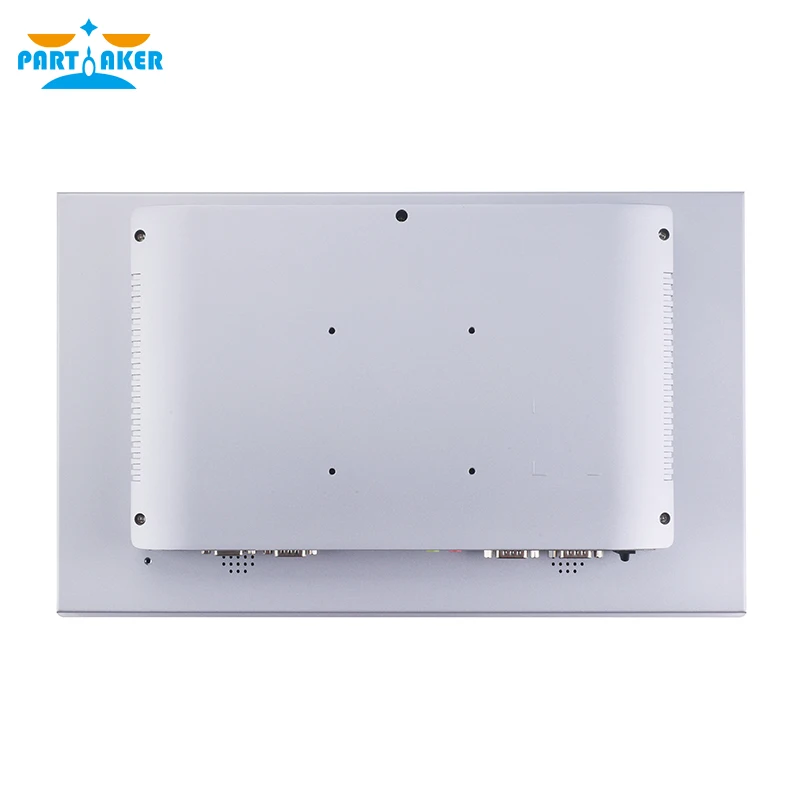

Support VESA 75
Model | A6 PA-156TPC-CE6A All In One PC |
Brand Name | Partaker |
Case Color | White |
Case Material | High-quality pure aluminum chassis |
CPU | Intel Celeron J1900 Quad Core 1.99Ghz (Intel Celeron J6412, Core i3 i5 dual core optional) |
Ram | Support 1*DDR3L 1333/1600Mhz Ram Slot, Max Support 8G (2G/4G/8G optional) |
Storage | Support 1*MSATA, 1*2.5'' SSD/HDD(32G/64G/128G/512G/1TB optional) |
Expansion slot | Support 1 x Full Size Mini PCIe slot |
Display Port | 1*VGA, 1*HDMI(J6412, i5, i3), J1900 without HDMI |
Display Chip | Integrated Intel HD Graphic card |
Network Card | 1*10/100/1000 Mbps Ethernet |

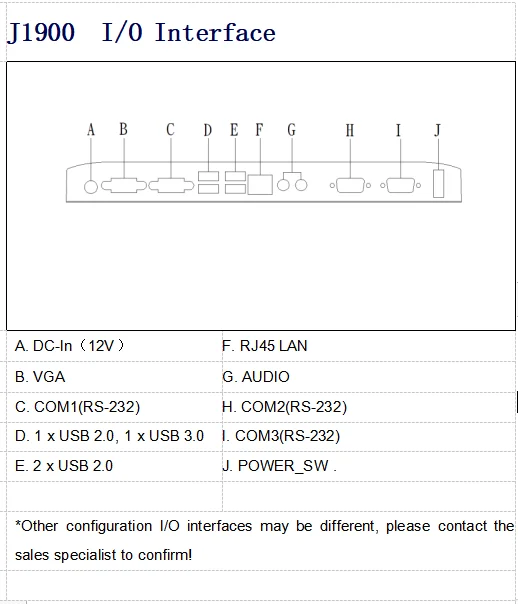

I/O | J1900: DC12V*1/VGA*1/LAN*1/USB2.0*3/USB3.0*1/AUDIO*2/COM*3 |
J6412: DC12V*1/HDMI*1/LAN*2/USB3.0*4/AUDIO*1/COM*3 | |
i5 3th Gen: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*4/AUDIO*2/COM*2 | |
i3 4th Gen: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2 | |
i5 4th Gen: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2 | |
i5 6th Gen: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2 | |
Touch Screen | Size：15.6 inch Resolution：1920 * 1080 Brightness ：250cm/m2 |
10-point projected capacitive touch screen，Life time: over 200 Millions | |
Power Supply | DC 12V |
Operating System | Support Windows 7/8/10, Linux |
Working Temperature | -10degC - +50degC |
Working Humidity | 0% - 95% relative humidity, Non-condensing |
Size | 354.3*278.3*54 mm |
Application | Applied in Automation, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,Transportation etc. |
