RLK131 TLK131 Transmission Parts Keyless Power Lock Device 45*75
US $8.20-$11.00

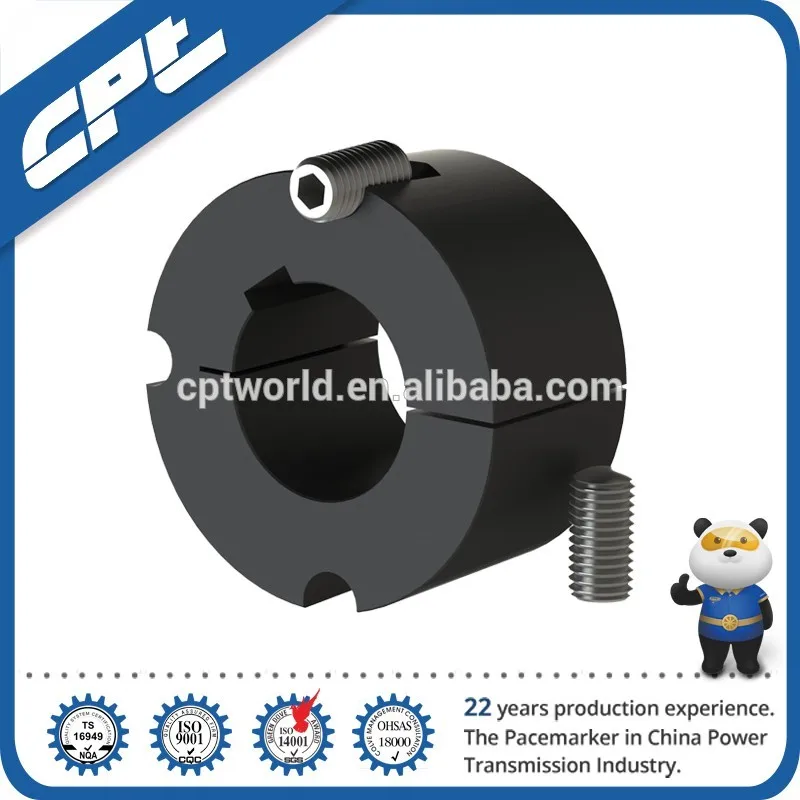

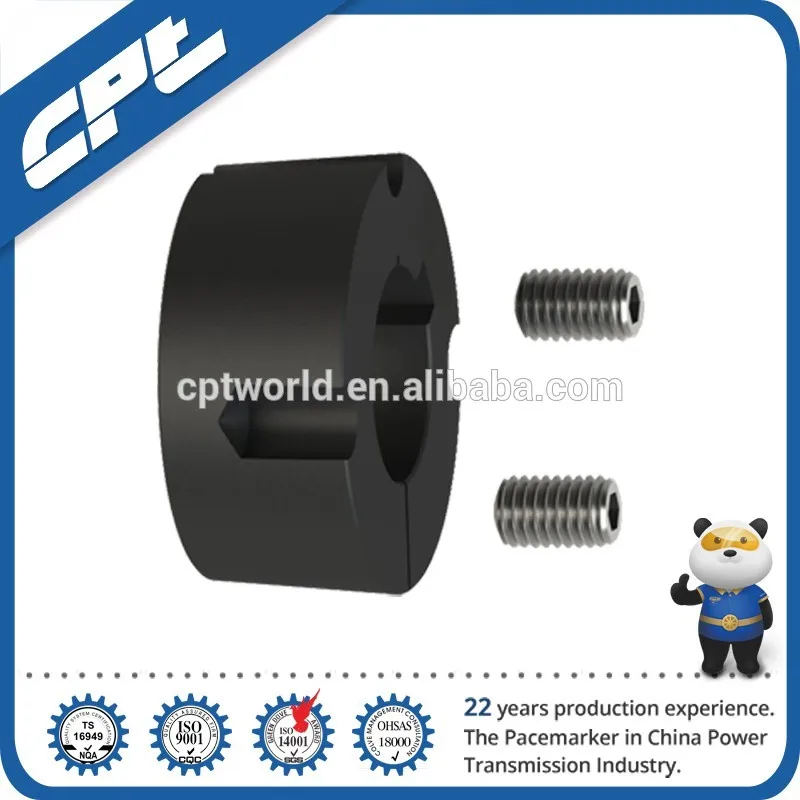

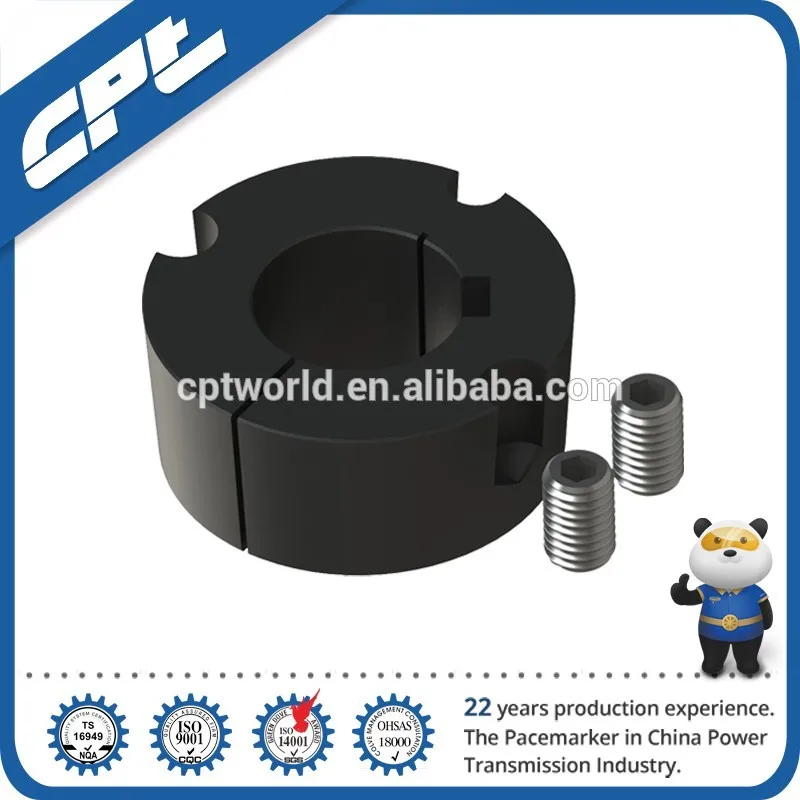

Европейский стандарт конус lock буша 2012
- Category: >>>
- Supplier: Sichuan Dawn Precision Technology Co. Ltd.
Share on (1100008375263):
Product Overview
Description
Описание продукта
европейский стандарт конус lock буша 2012
Структура продукта тип
технические характеристики
Название продукта: Конусности Кусты 2012
диаметр В Дюймах
| нет. | код | модель | D1 | D2 | S | D | b | t | винт Spec. | кол-во | вес (кг) |
| 1 | CP076314 | 2012-1/2 | 69.77 | 66.68 | 31.8 | 1/2 " | 14.29 | 3.17 | 7/16-14BSW × 7/8 | 2 | 0.75 |
| 2 | CP076316 | 2012-9/16 | 69.77 | 66.68 | 31.8 | 9/16 " | 16.69 | 4.76 | 7/16-14BSW × 7/8 | 2 | 0.76 |
| 3 | CP076317 | 2012-5/8 | 69.77 | 66.68 | 31.8 | 5/8 " | 18.26 | 4.76 | 7/16-14BSW × 7/8 | 2 | 0.8 |
| 4 | CP076318 | 2012-11/16 | 69.77 | 66.68 | 31.8 | 11/16 " | 19.86 | 4.76 | 7/16-14BSW × 7/8 | 2 | 0.73 |
| 5 | CP076319 | 2012-3/4 | 69.77 | 66.68 | 31.8 | 3/4 " | 21.43 | 4.76 | 7/16-14BSW × 7/8 | 2 | 0.72 |
| 6 | CP005448 | 2012-13/16 | 69.77 | 66.68 | 31.8 | 13/16 " | 23.82 | 6.35 | 7/16-14BSW × 7/8 | 2 | 0.71 |
| 7 | CP005746 | 2012-7/8 | 69.77 | 66.68 | 31.8 | 7/8 " | 25.4 | 6.35 | 7/16-14BSW × 7/8 | 2 | 0.7 |
| 8 | CP005478 | 2012-15/16 | 69.77 | 66.68 | 31.8 | 15/16 " | 27 | 6.35 | 7/16-14BSW × 7/8 | 2 | 0.68 |
| 9 | CP005545 | 2012-1 | 69.77 | 66.68 | 31.8 | 1 " | 26.72 | 6.35 | 7/16-14BSW × 7/8 | 2 | 0.66 |
| 10 | CP005392 | 2012-1-1/16 | 69.77 | 66.68 | 31.8 | 1-1/16 " | 30.17 | 7.94 | 7/16-14BSW × 7/8 | 2 | 0.65 |
| 11 | CP005418 | 2012-1-1/8 | 69.77 | 66.68 | 31.8 | 1-1/8 " | 31.75 | 7.94 | 7/16-14BSW × 7/8 | 2 | 0.64 |
| 12 | CP005447 | 2012-1-3/16 | 69.77 | 66.68 | 31.8 | 1-3/16 " | 33.34 | 7.94 | 7/16-14BSW × 7/8 | 2 | 0.63 |
| 13 | CP005411 | 2012-1-1/4 | 69.77 | 66.68 | 31.8 | 1-1/4 " | 34.93 | 7.94 | 7/16-14BSW × 7/8 | 2 | 0.6 |
| 14 | CP074587 | 2012-1-5/16 | 69.77 | 66.68 | 31.8 | 1-5/16 " | 36.52 | 9.52 | 7/16-14BSW × 7/8 | 2 | 0.62 |
| 15 | CP005461 | 2012-1-3/8 | 69.77 | 66.68 | 31.8 | 1-3/8 " | 38.1 | 9.52 | 7/16-14BSW × 7/8 | 2 | 0.57 |
| 16 | CP005503 | 2012-1-7/16 | 69.77 | 66.68 | 31.8 | 1-7/16 " | 39.69 | 9.52 | 7/16-14BSW × 7/8 | 2 | 0.54 |
| 17 | CP005403 | 2012-1-1/2 | 69.77 | 66.68 | 31.8 | 1-1/2 " | 41.28 | 9.52 | 7/16-14BSW × 7/8 | 2 | 0.52 |
| 18 | CP005485 | 2012-1-5/8 | 69.77 | 66.68 | 31.8 | 1-5/8 " | 44.45 | 11.11 | 7/16-14BSW × 7/8 | 2 | 0.48 |
| 19 | CP005424 | 2012-1-11/16 | 69.77 | 66.68 | 31.8 | 1-11/16 " | 46.83 | 11.11 | 7/16-14BSW × 7/8 | 2 | 0.48 |
| 20 | CP005454 | 2012-1-3/4 | 69.77 | 66.68 | 31.8 | 1-3/4 " | 48.42 | 11.11 | 7/16-14BSW × 7/8 | 2 | 0.43 |
| 21 | CP005511 | 2012-1-7/8 | 69.77 | 66.68 | 31.8 | 1-7/8 " | 51.59 | 12.7 | 7/16-14BSW × 7/8 | 2 | 0.38 |
| 22 | CP005432 | 2012-1-15/16 | 69.77 | 66.68 | 31.8 | 1-15/16 " | 53.21 | 12.7 | 7/16-14BSW × 7/8 | 2 | 0.34 |
| 23 | CP005612 | 2012-2 | 69.77 | 66.68 | 31.8 | 2 " | 54.77 | 12.7 | 7/16-14BSW × 7/8 | 2 | 0.32 |
отверстие В Метрических
