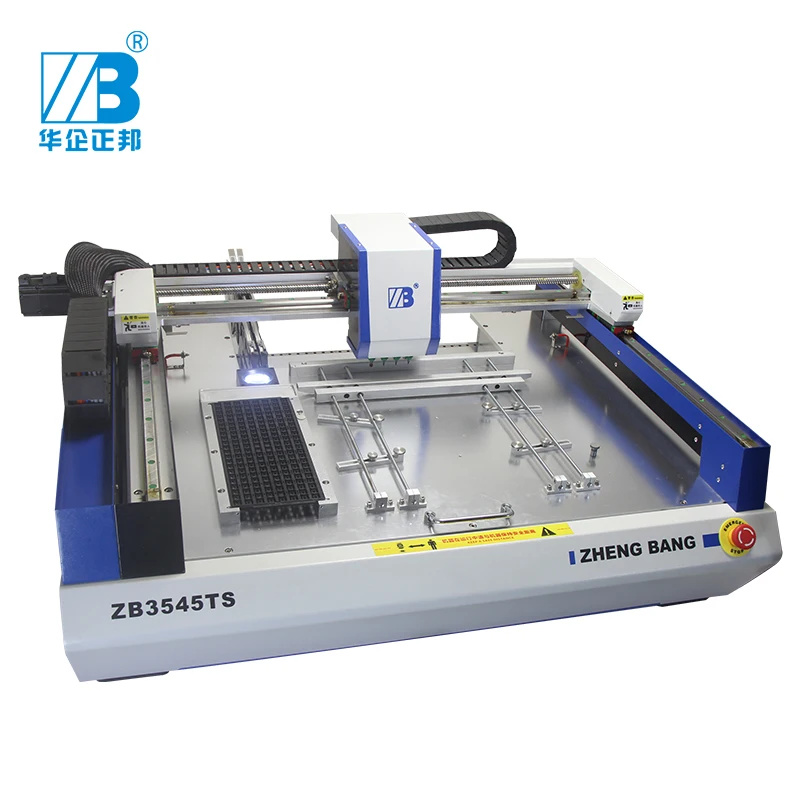

High speed and precision SMT pick and place machine/led pick and place machine with vision and 4 heads for smt assembly line
Product Description

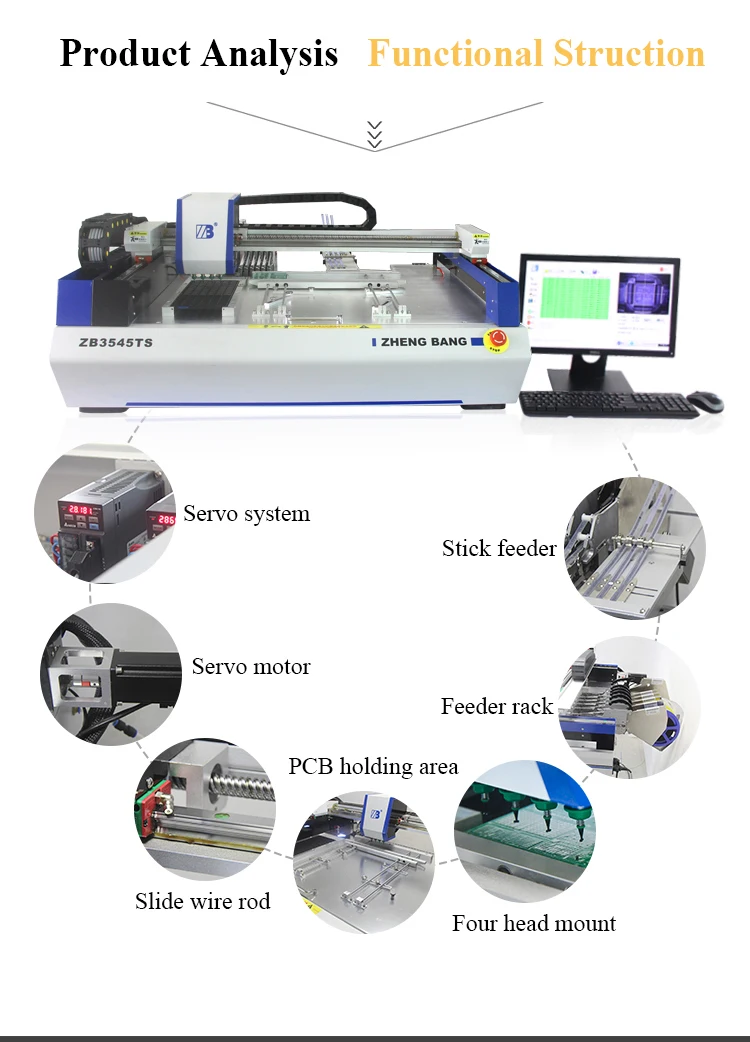

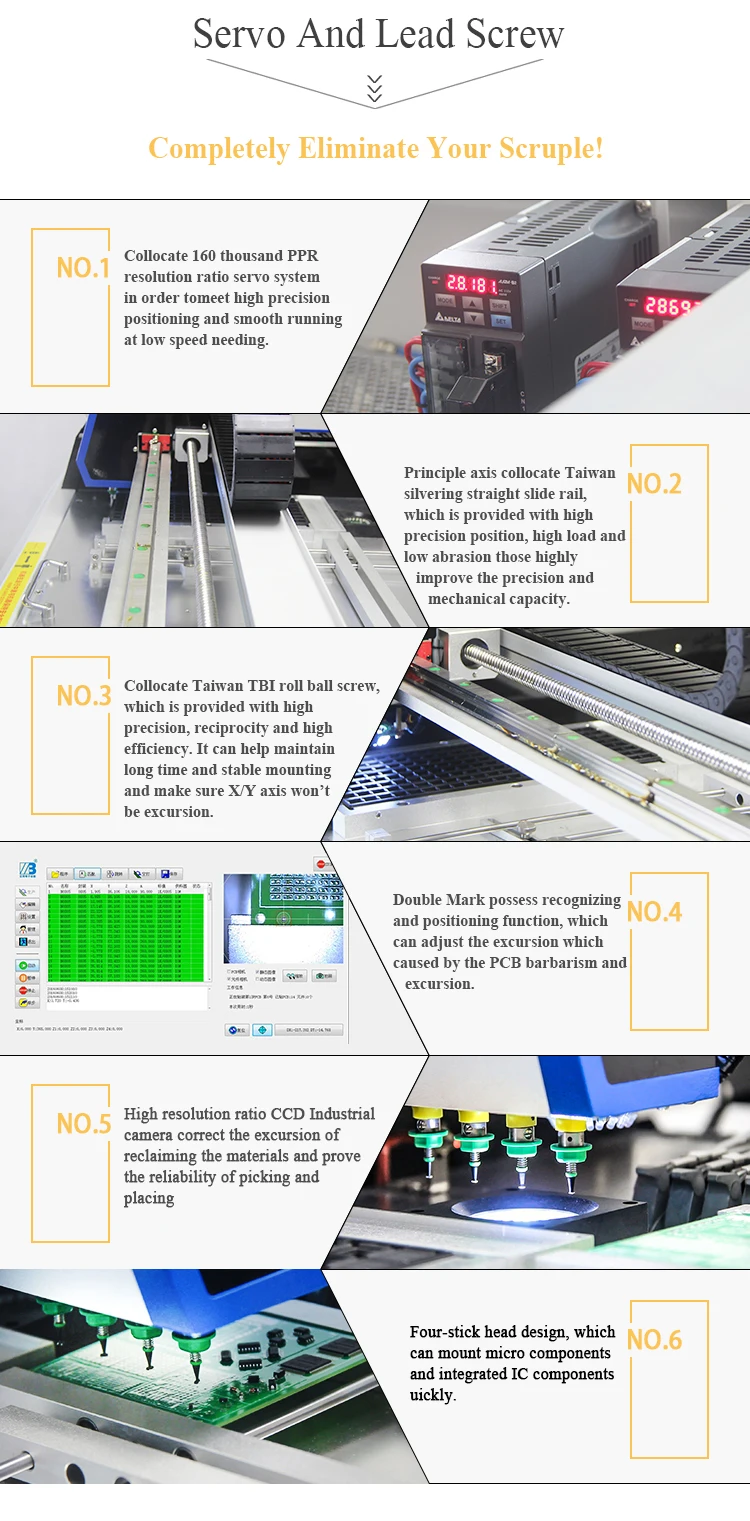

(1). servo motor.
(2). Collocate Taiwan TBI roll ball screw.
(3). Principle axis collocate Taiwan silvering straight slight rail.

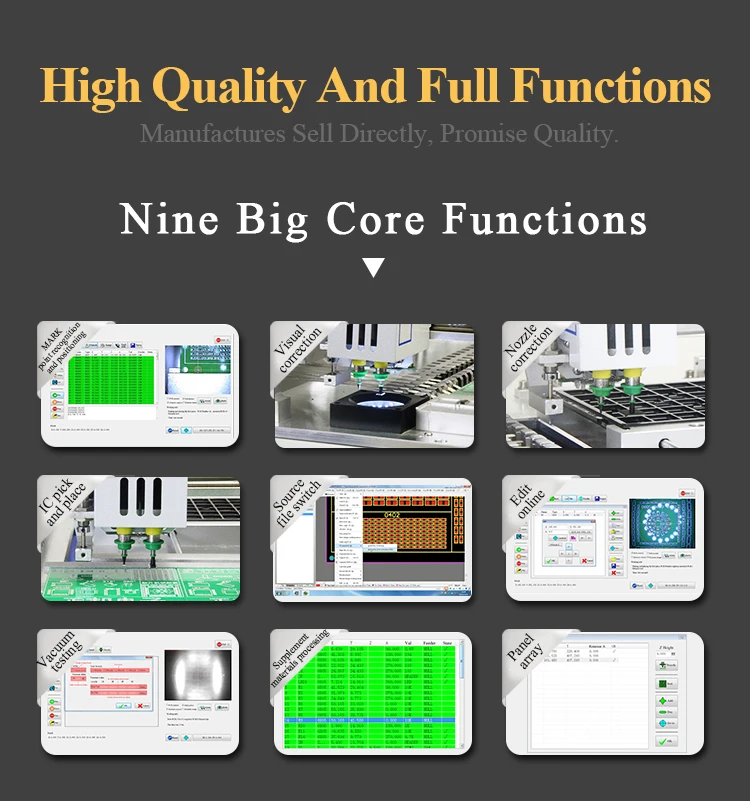

(4). Double Mark possess recognizing and positioning.
(5). High resolution ratio CCD Industrial camera
(6). Intelligent P&P heads, Automatic dispose picking fail 360-degree orientation.
(7). Support arbitrary IC try, Convenience/Reasonable/Arbitraty set.

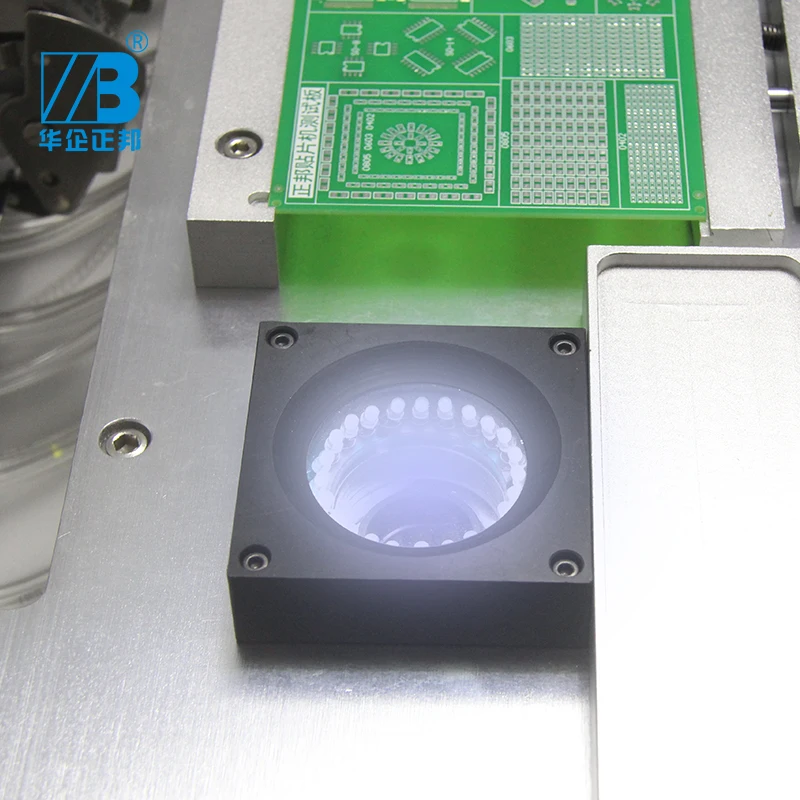

(8). The up and down looking vision system.(automatic identify mark/automatic identify the centre of components).

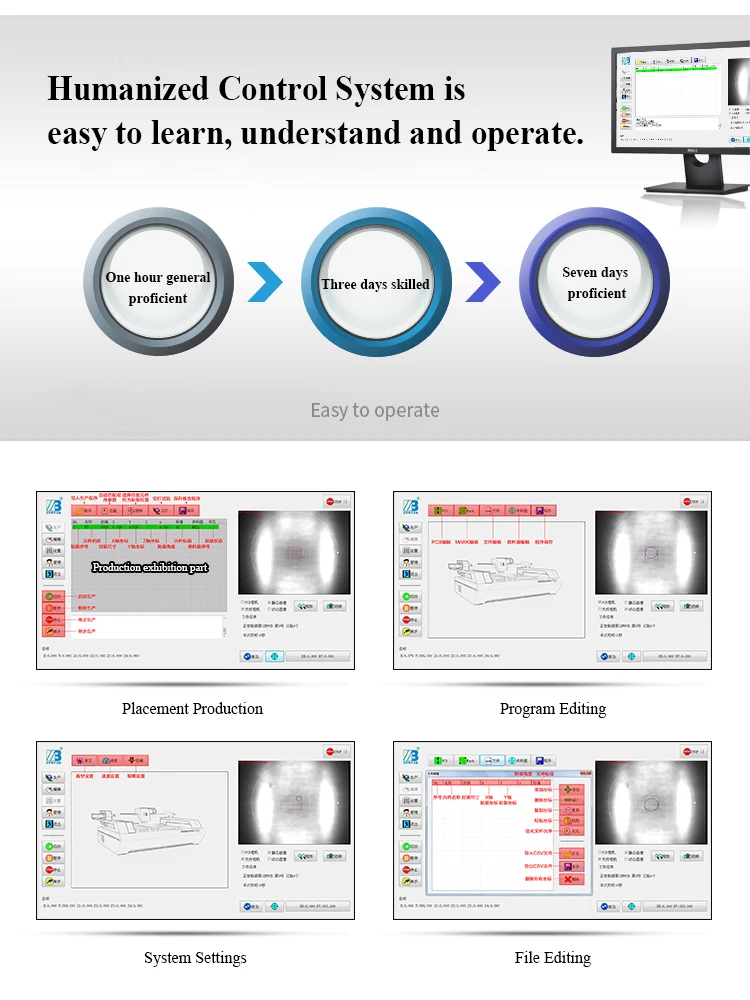

(9). The humanization control panel, care of every steps of your operation.
(10). Humanization PC Software, could support most of PCB design software software.
| System | Items | Content |
| Mounting System | Mounting heads | 4 PCS |
| Mounting accuracy | 0.025mm | |
| Mounting angle | 0~360° | |
| Theoretical Velocity | 7000pcs/hour | |
| Normal mounting | 5500pcs/hour | |
| Visual Mounting | 4000pcs/hour | |

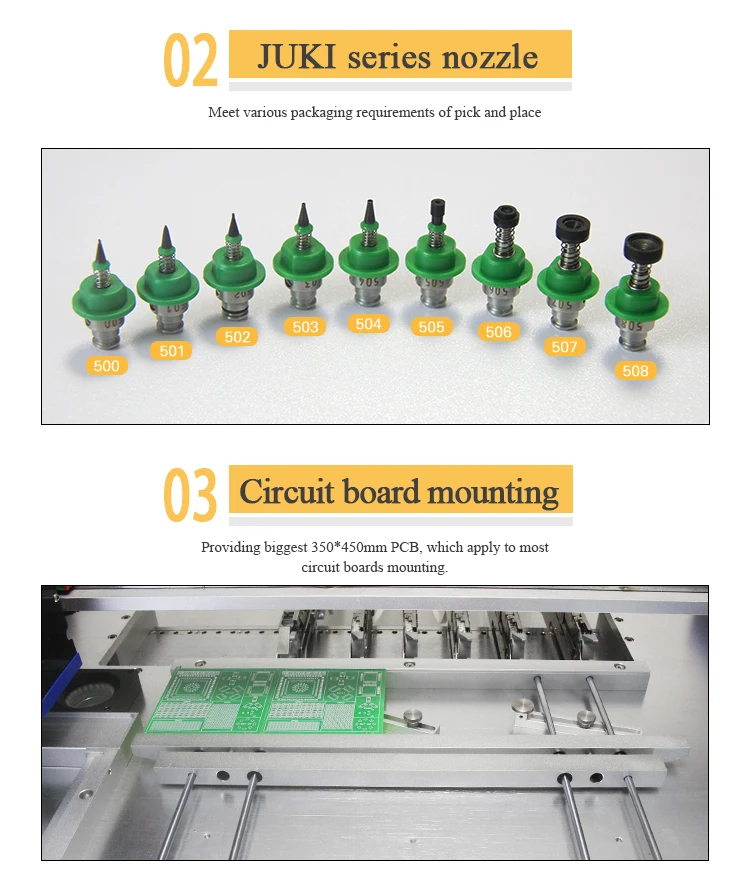

| Nozzle type | Juki nozzle | |

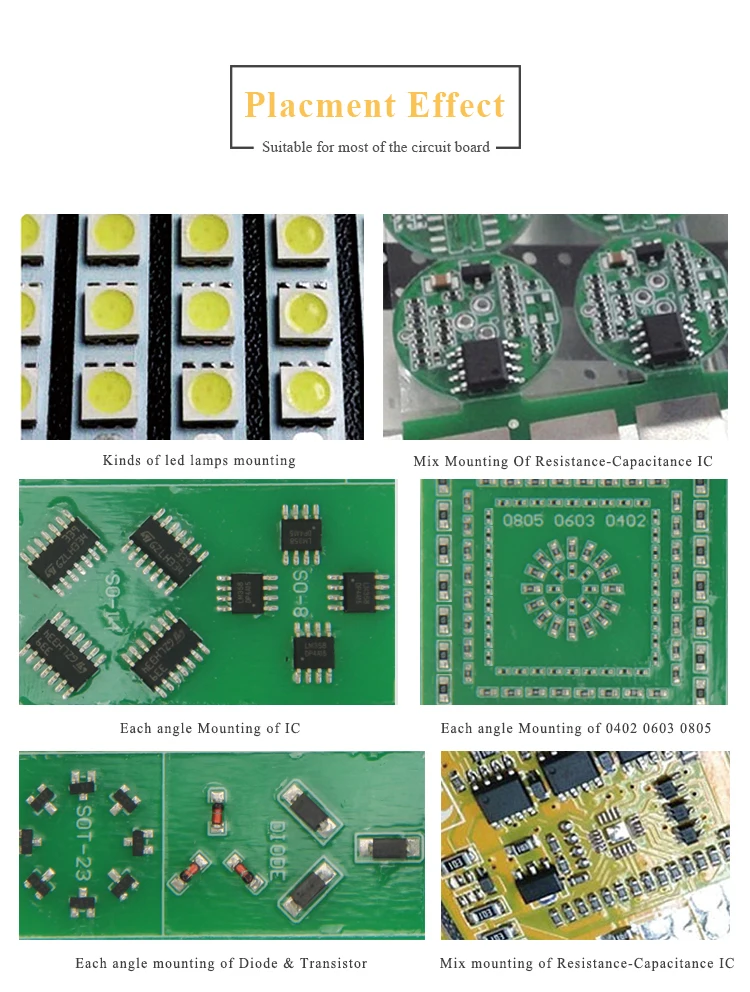

| Elements for mounting | RC (0402, 0603, 0805, 1206, etc) | |
| LED lamp (0603, 0805, 3014, 5050, etc) | ||
| Chip (SOT, SOP, QFN, BGA, etc) | ||
| Substrate | PCB minimal size | 10×10mm |
| PCB maximum size (no tray) | 350×450mm | |
| PCB thickness | ≤2mm | |
| PCB warp allowable value | <1mm | |

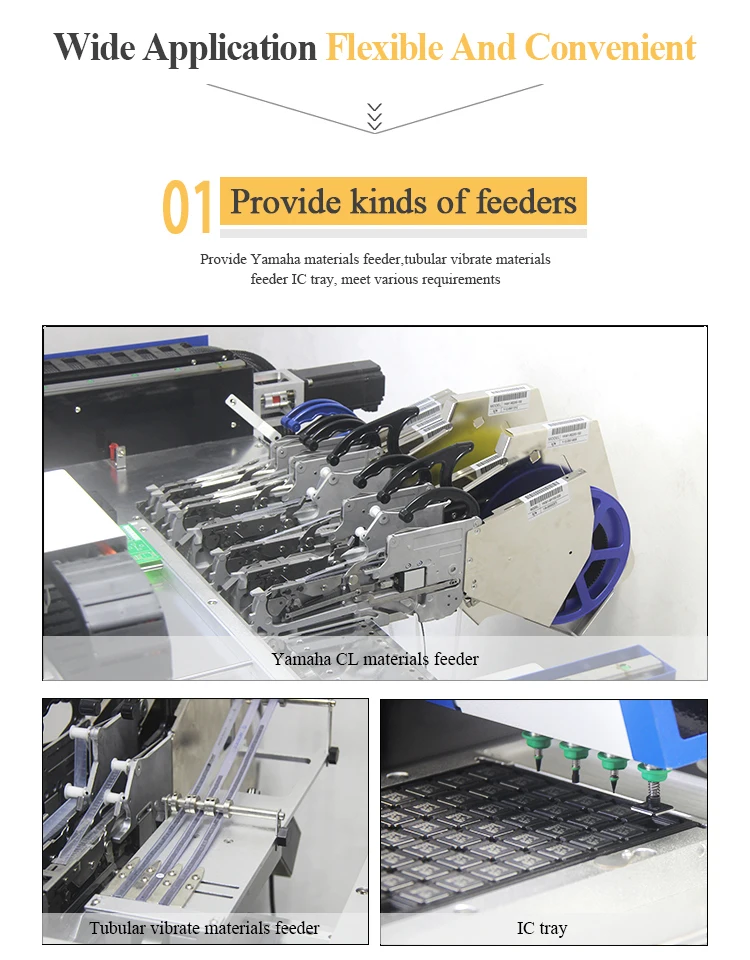

| Feeder | Type | Yamaha CL feeder |
| Specification | 8mm,12mm,16mm,24mm,32mm | |
| Quantity | 30pcs | |
| Tubular feeder | Maximum 4-3 or 3-5 tube feeder | |
| IC tray | postposition 1pc tray | |
| X, Y, Z axis | X, Y axis moving range | 630×540mm |
| Z axis moving range | 12mm | |
| Z axis rotation angle | 0~360° | |
| Visual System | Visual system | independent research and development |
| Visual camera | CCD high-definition camera | |
| Visual quantity | 2pcs (Parts camera, PCB camera) | |
| Identification ability | MAX.20*20mm | |

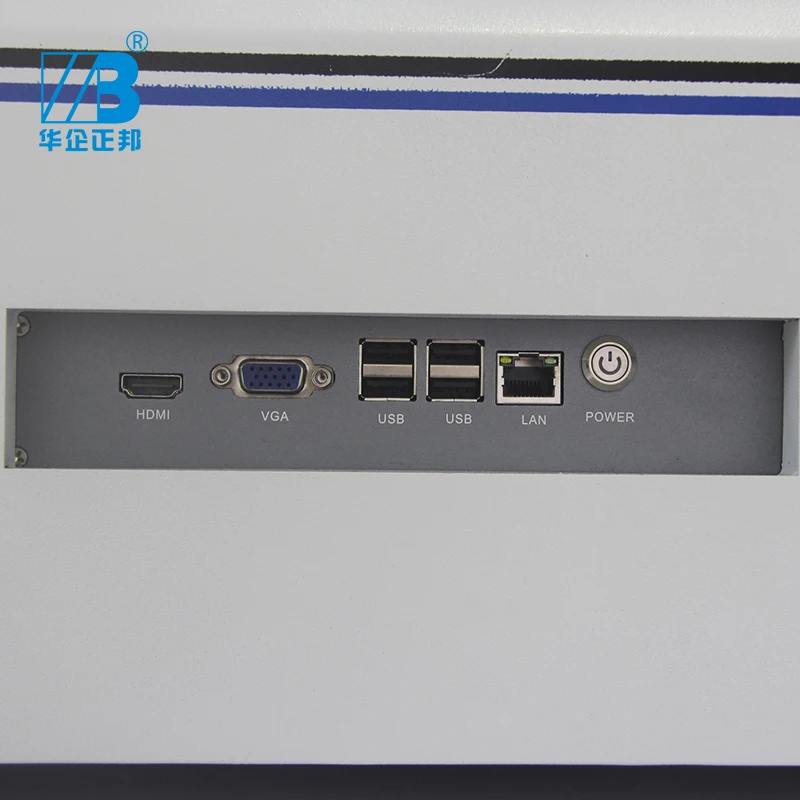

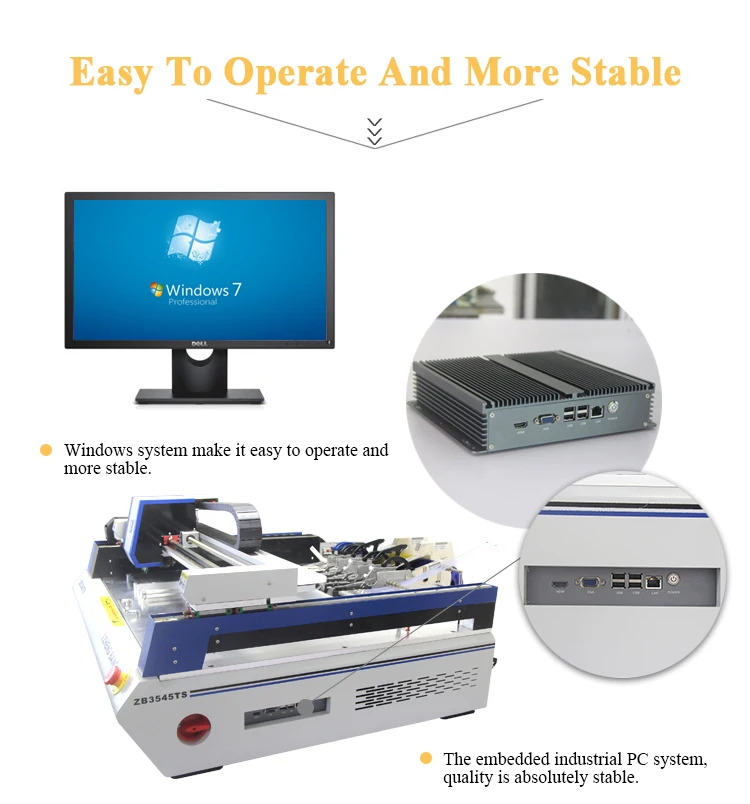

| Control System | PC system | Microsoft WIN7 |
| Operational software | independent research and development | |
| Compatible file format | CSV, TXT. format file | |
| Programming mode | Support online and offline | |
| Pressure | 0.8MPa | |
| Basic Parameter | Power | 500W |
| Power supply | AC220V±10% 50Hz | |
| Size | 1165×1105×630mm | |
| weight | 120kg |
