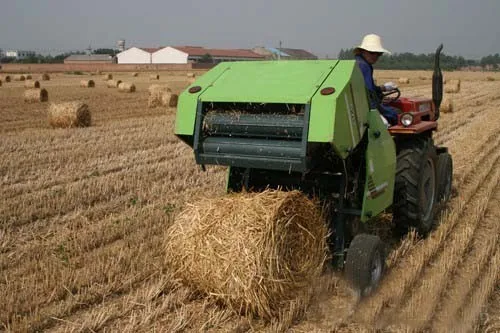

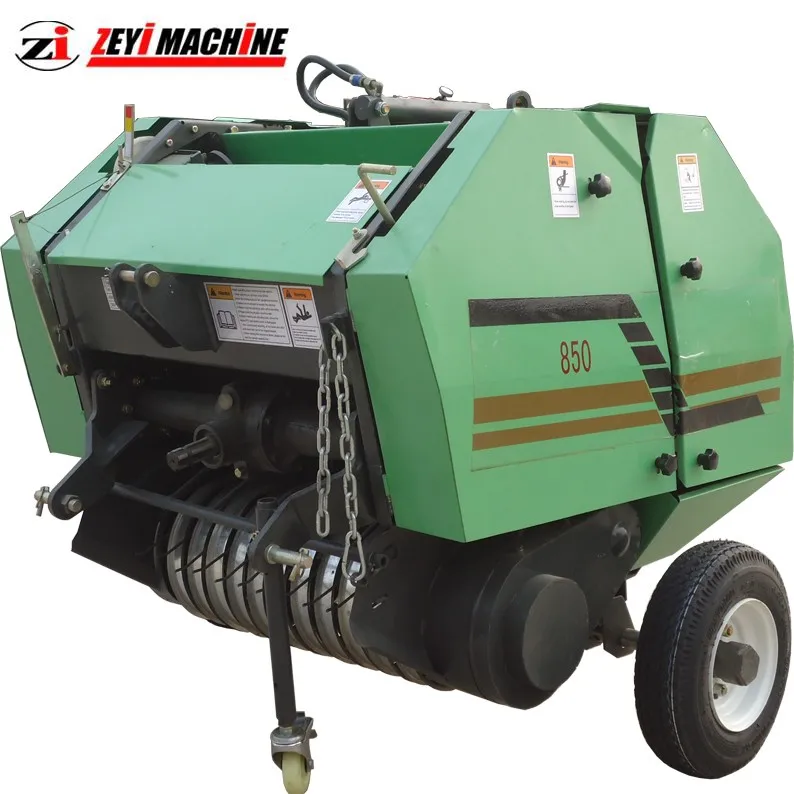

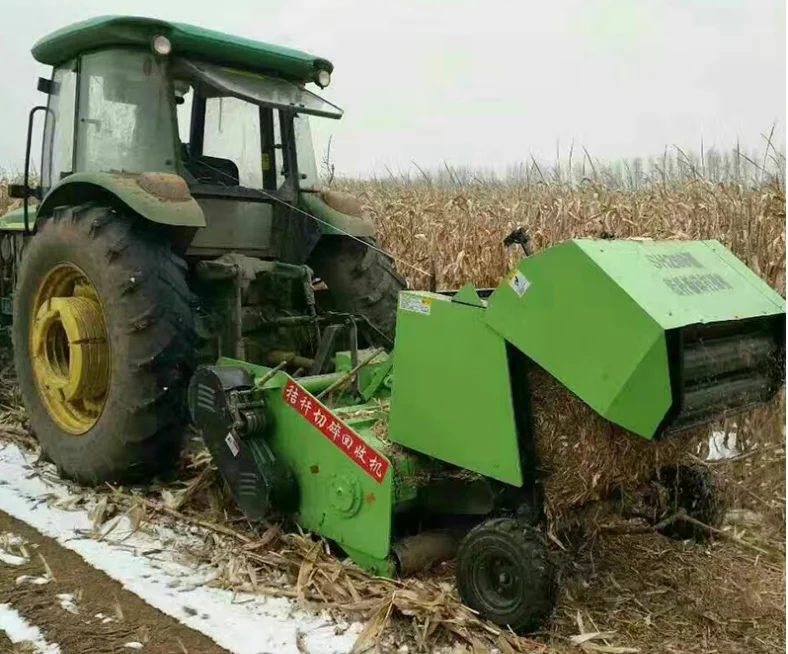

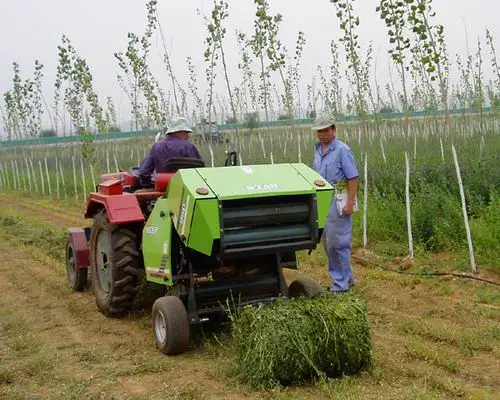

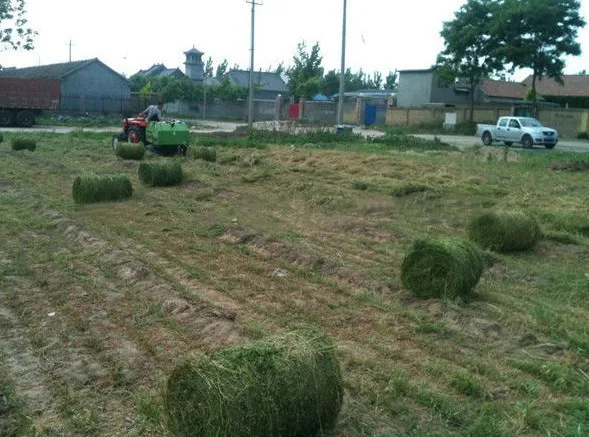

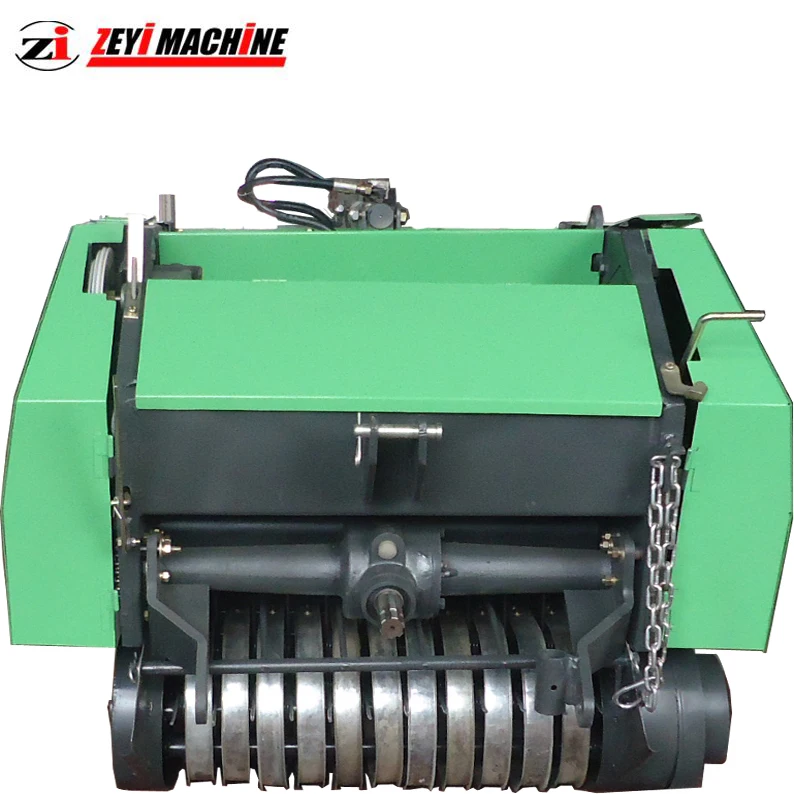

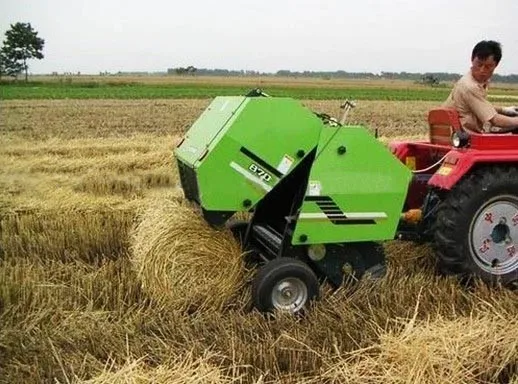

LTDK type tractor Round Baler can automatically pick up, bundle and put down pasture, paddy rice, wheat and rubbed corn stalks. It is widely used for gathering and bundling dry and green pasture, paddy rice, wheat and corn stalks, making them easier to transport, store and further process.
product specification	LTDK8050	LTDK8070	LTDK1070
Bale size      (  Dia X Width   )	500×700 mm	610×700 mm	61×1000 mm
Pick-up width	800	800	1100
Operation speed (km/h)	2～5	2～5	3～5
Capacity (Bales/h)	60～90	60～90	60～90
Appearance size(mm)	1150*1300*1200	1300*1300*1350	1300*1600*1350
Package size (mm)	1380*1120*1120	1430*1120*1130	1630*1120*1130
Weight of machine (kg)	490 kg	550	700
Weight of bind (kg)	20～25	25～30	35～40
Drive way	P.T.O drive	P.T.O drive	P.T.O drive
Input rotating speed (r/min)	540 rpm/min	540rpm/min	540rpm/min
Tire size(PR)	16×6.50-8-4	16×6.50-8-4	16×6.50-8-4
Mating power (kw/hp)	25～50hp tractor	25～50hp tractor	40～70hp tractor
Mounting way	3 point linkage	3 point linkage	3 point linkage
