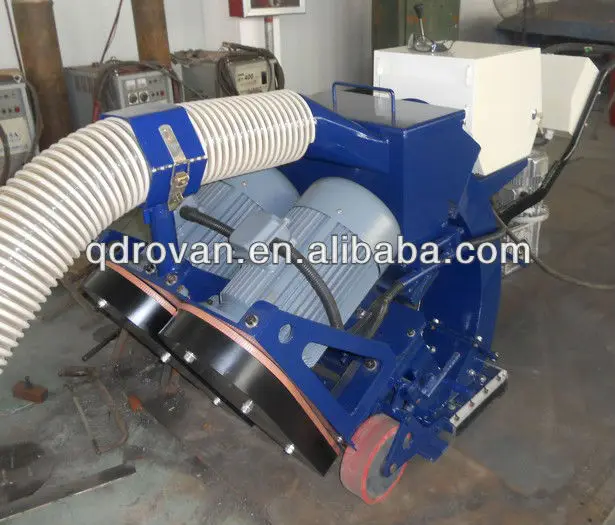

Automatic road shot blasting machine with alloy wheels
- Category: >>>
- Supplier: Qingdao Rovan Machinery Co. Ltd.
Share on (1100014649578):
Product Overview
Description
Automatic road shot blasting machine with alloy wheels
Product Description
Application Industries

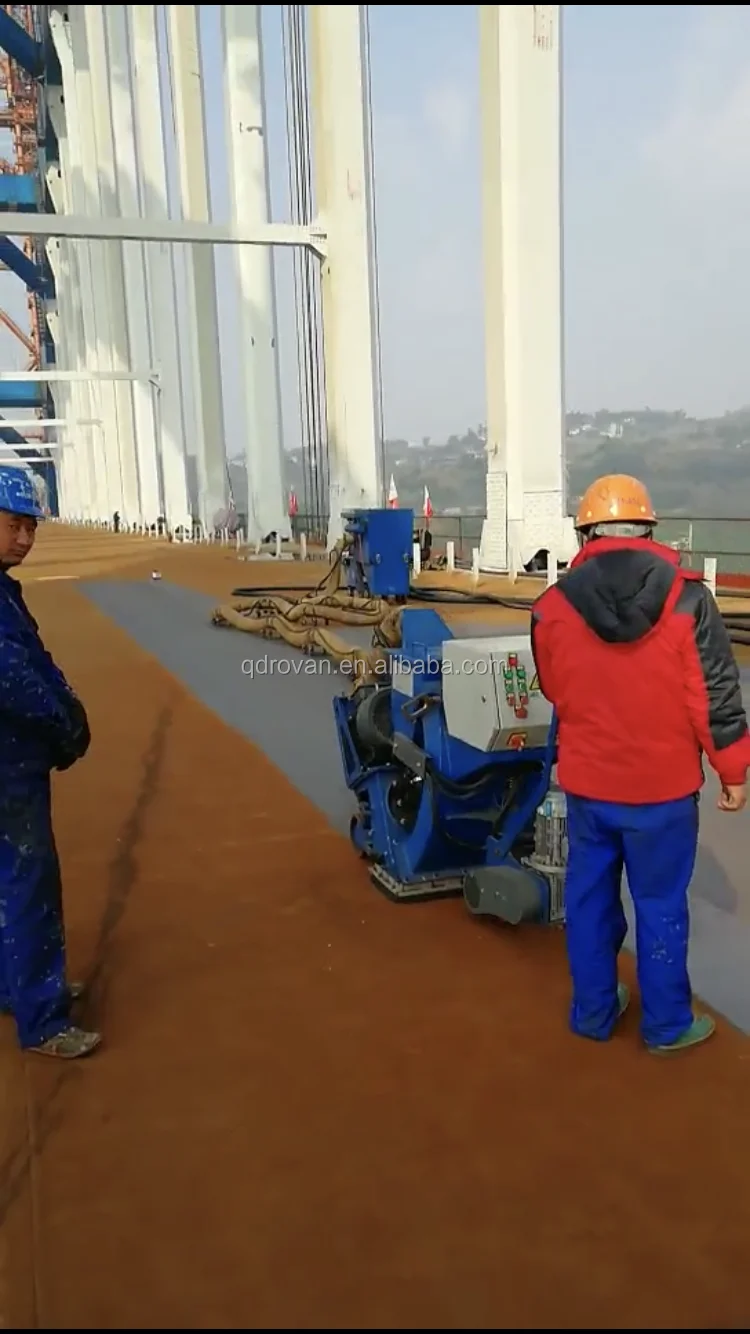

*. Maintenance of the bridges

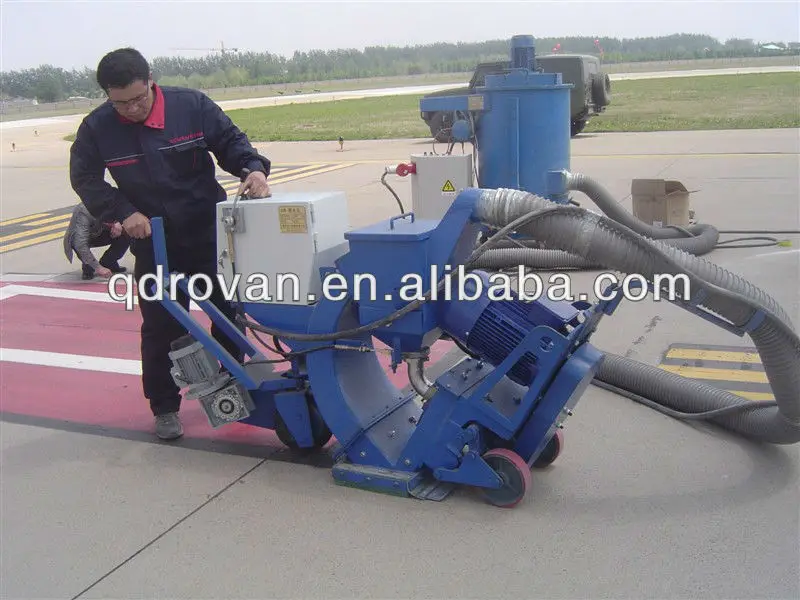

*. Cleaning the park apron in airport
*. Cleaning, derusting for the surface of steel structure
*. Ground floor project-based surface treatment

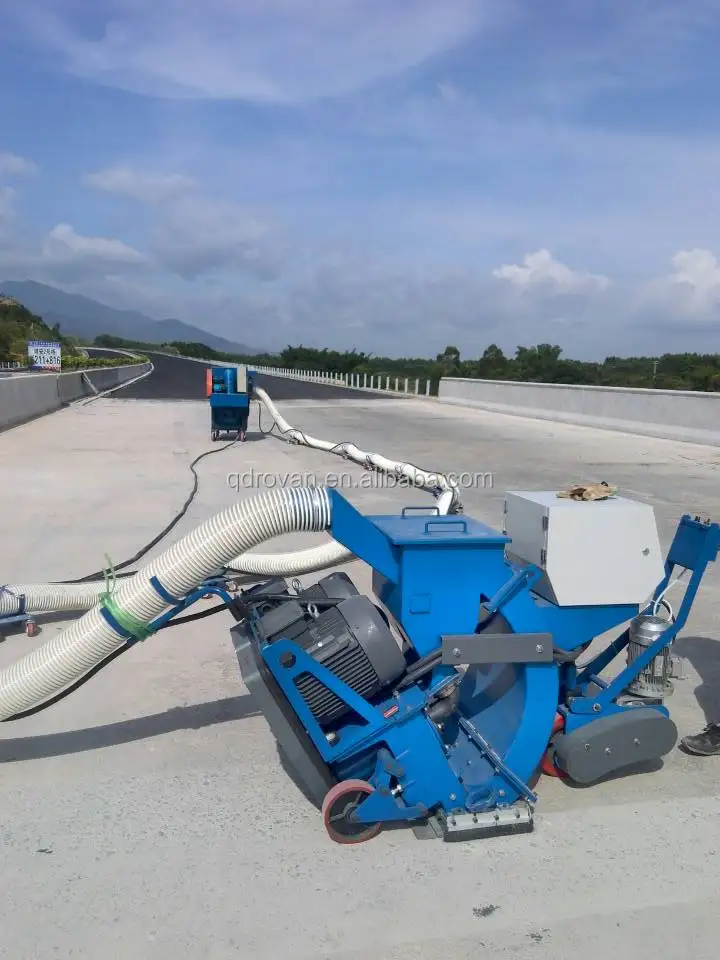

*. Maintenance of highways
*. Maintenance of municipal road
*. Mantenance and derusting of hull surface
*. Removal of road zebra crossing
*. Other surface treatment........
Working principal:
Steel shots in the lower part of the separation box goes into the blasting components through feeding tube and driven by the motor. The high-speed rotating shot will be thrown and stroke against the surface of workpieces at the speed of 80m/s. And thus carry out clean-up operation. Under the effect of negative pressure, the shot abrasive and dust will be back into sand separation box where the shot, dust and impurities will be separated completely. Good shot materia into the blast is expected to continue to use. Dust and impurities wating to be processed have been filtered to the airtight dust box.
![HG128P2]3T46QH$%VGOQMT.jpg](http://sc02.alicdn.com/kf/H7d55f4e94aa9408c8e760310d59406fdZ/201596346/H7d55f4e94aa9408c8e760310d59406fdZ.jpg)

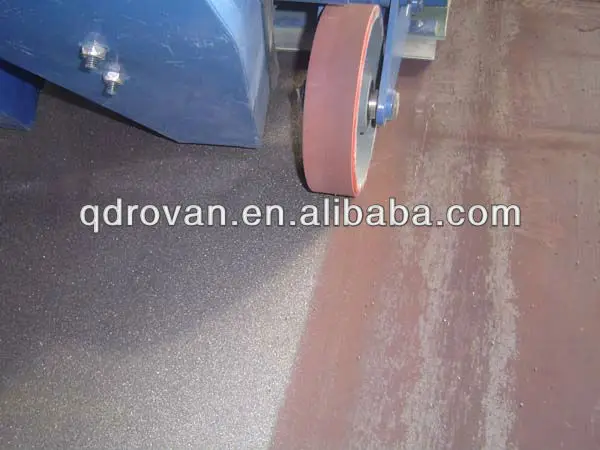

Shot blasting treatment on surface
Rough surface evenly.
Completely remove the floating cement and sand, 100% "wound".
Explicit, but not to get rid of the aggregate closely.
One-time construction, do not need to clean up, and no environmental pollution.
The construction of high efficiency.
Equipment operation cost is low.
Exposed concrete rights in advance, open the concrete wool stoma.
Shot blasting machine dust collector
Rovan dust collector is designed for mobile shot blasting machine counter blowing the dust removal equipment,
can also be used for solid dirt, dust, fiber, such as chip industrial dust removal. This machine is small in size, easy
to move, easy to operate, is a movable shot blasting machine equipment supporting the preferred products. Filter
adopts the pulse valve through three way back clear dirt, using the sequence control principle, to ensure that the filter
circuit flow; Using polyamine ether hose, ensure that the connection of chemical resistance, bending rigidity, wear
resistance, to ensure that the dust removal effect, make the dust catcher can security and stability of long-term work. Fan using SKF bearing, ensure that the transmission is stable and reliable.
Technique parameter
| Model | ROPW-270 | ROPW-550 | ROPW-850 |
| Abrasive flow rate(mm) | 270 | 550 | 850 |
| cleaning efficiency(m²/h) | >180 | >400 | >600 |
| Motor power(kw) | 11 | 2*11 | 2*15 |
| Weight(kg) | 680 | 1000 | 1600 |
Company Information
Our Services
Packaging & Shipping
FAQ
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
